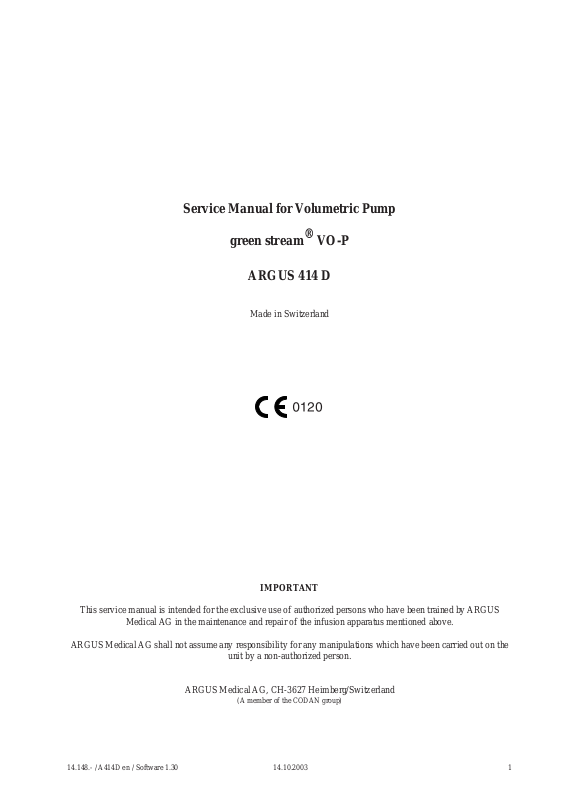

Argus 414D User manual

Service Manual for Volumetric Pump

green stream® VO-P

ARGUS 414 D

Made in Switzerland

IMPORTANT

This service manual is intended for the exclusive use of authorized persons who have been trained by ARGUS

Medical AG in the maintenance and repair of the infusion apparatus mentioned above.

ARGUS Medical AG shall not assume any responsibility for any manipulations which have been carried out on the

unit by a non-authorized person.

ARGUS Medical AG, CH-3627 Heimberg/Switzerland

(A member of the CODAN group)

14.148.- / A414D en / Software 1.30 14.10.2003 1

1 Drip chamber

ml

AL AR M

ml t ota l
ml i nf.
h. min

MODE

ART

OP

2 External drop detector
3 Air detector
4Tube guide
5 Door (opened)
6 Door handle
7 Stop flow lock
8 Display "infusion rate"
9 Display "total"
10 "100"-key
11 "10"-key
12 "1"-key
13 Battery discharged
14 Occlusion/bottle empty
15 ALARM
16 Line operation
17 Battery operation
18 Drop indicator
19 KVO-operation
20 "ON/OFF"-key
21 "MODE"-key
22 "START/STOP"-key
23 Air
24 Display "Pressure"

1

green stream VO-P

ml total
ml inf.
h. min

9

ALARM

STSTART
STSTOP

11

ml
h

12

c

MODE

8

10

100 10 1

2

16
17

24
23

13
14

15

18

2019

21 22

3

18-30°C

18-30°C

PVC

7

4

30 Bottle holder
31 Staff alert connector
32 External drop detector connector
33 DC-connection & QUICK® 100

Docking Station interface
34 Spindle for clamp
35 Screw for bottle holder
36 Line plug
37 Line fuse
38 Ground terminal
39 Clamp

5

34

31

6

30

32

35

39

33

36

2 14.10.2003 14.148.- / A414D en / Software 1.30

38

37

Table of contents

Page

1 Special key inputs and configurations 4

2History and pump configurations printout 13

3 Fault finding 17

4 Replacement of parts 18

5 Safety standard check 23

Mechanical drawings 24

Wiring diagram 28

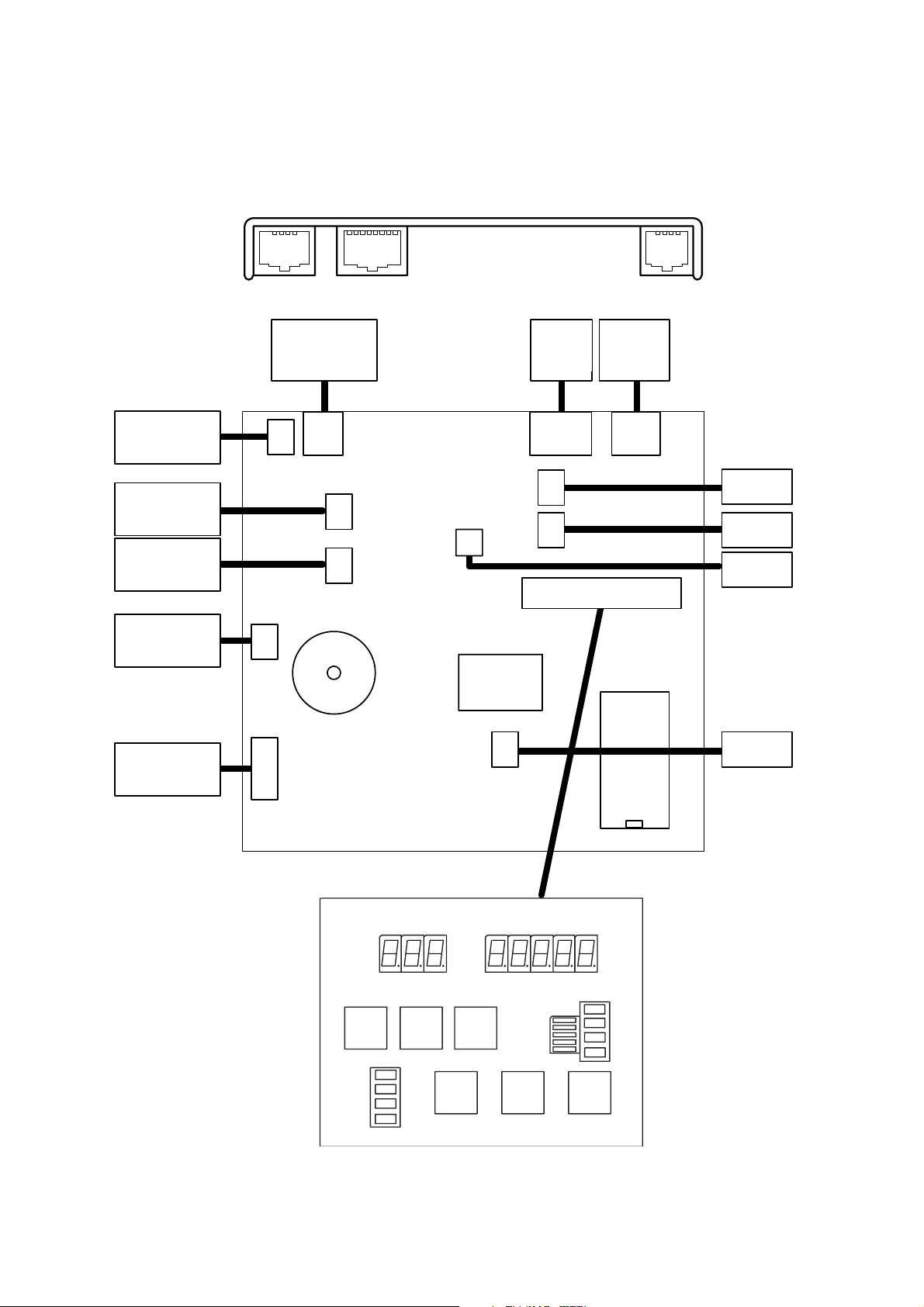

Bloc schematic 29

14.148.- / A414D en / Software 1.30 14.10.2003 3

MODE

ART

OP

ART

OP

1 Special key inputs and configurations

1.1 Special key inputs:

Configuration

CAUTION! The configuration possibilities mentioned below constitute a modification of the pump and

may only be carried out by authorized persons.

If the decimal points are flashing in a display, this display is ready to accept an input by means of the keys
"100, 10, 1".

Input of the address in display (2) Input of the values in display (3)

aInterrogation mode

MODE

STSTART

STSTOP

100

+

STSTART

STSTOP

Hold both keys pressed

Important!
Do not release the keys "MODE" and "START/STOP"

ml total
ml inf.
h. min

ml total
ml inf.
h. min

ml total
ml inf.
h. min

10

ml
h

ml
h

ml
h

1

Enter the requested address (eg. 52).

The programmed data of address 52 are displayed

Press the key at least 2 seconds.

4 14.10.2003 14.148.- / A414D en / Software 1.30

MODE

MODE

MODE

MODE

00

00

ART

OP

ART

OP

ART

OP

ART

OP

ART

OP

1.2 Configuration mode without PIN code

MODE

STSTART

STSTOP

MODE

STSTART

STSTOP

+

STSTART

STSTOP

Hold both keys pressed

Important!
Do not release the keys "MODE" and "START/STOP"

ml
h

ml
h

ml
h

ml
h

ml total
ml inf.
h. min

ml total
ml inf.
h. min

ml total
ml inf.
h. min

ml total
ml inf.
h. min

MODE

STSTART

STSTOP

100

MODE

100

STSTART

STSTOP

ml total
ml inf.
h. min

ml total
ml inf.
h. min

ml total
ml inf.
h. min

ml total
ml inf.
h. min

ml total
ml inf.
h. min

10

10

ml
h

ml
h

1

ml
h

ml
h

1

ml
h

Enter the requested address (eg. 5).

Enter the requested data (eg. 1).

If the data are accepted, entry changes to the left display.

ml
h

ml total
ml inf.
h. min

14.148.- / A414D en / Software 1.30 14.10.2003 5

1.3 Programming mode: first input of write protection (code)
IMPORTANT ! Remember to make a note of your code and keep it in a safe place.

Key Description Display (8) Display (9)

1 "MODE" & Keep both keys pressed before switching

"START/STOP" the unit on. "414" "prog"

2"START/STOP" Acknowledgement (write protection is inactive) ". . 0." " 0"

3"MODE" Switch over to display (9) " 0" ". . . 0."

4"START/STOP" Acknowledgement "Cod" "- - - - "

5"MODE" Switch over to display (9) "Cod" " 0"

6"START/STOP" Acknowledgement ". . 0." " 0"

7"MODE" Switch over to display (9) " 0" ". . . 0."

8 "100;10;1" Enter 1 to 4 digit code " 0" " C.C.C.C."

9"START/STOP" Acknowledgement (write protection is active) ". . 0." " 1"

Code is never visible

10 "ON/OFF" End of programming mode

1.4 Programming mode with active write protection (code)
CAUTION! Only the code holder can carry out modifications when the write protection is active.

Key Description Display (8) Display (9)

1 "MODE" & Keep both keys pressed before switching

"START/STOP" the unit on. "414" "prog"

2 "START/STOP" Acknowledgement (write protection is active) ". . 0." " 1 "

3"MODE" Switch over to display (9) " 0" ". . . 1."

4"START/STOP" Acknowledgement "Cod" "- - - - "

5 "100;10;1" Enter code "Cod" " X X X X"

6"START/STOP" Acknowledgement ". . 0." " 1"

7 "100;10;1" Enter requested address "A.A.A." "X X X X"

Programmed data appear in display (9)

8"MODE" Switch over to display (9) " A A A" " X.X.X.X."

9 "100;10;1" Enter requested data "A A A" " Y.Y.Y.Y."

10 "START/STOP" Acknowledgement.If the data are accepted, "A.A.A." " Y Y Y Y"

entry changes to display (8)

11 "ON/OFF" End of programming mode

6 14.10.2003 14.148.- / A414D en / Software 1.30

1.5 List of the interrogation- and configuration functions:
CAUTION! Before you make a new configuration or replace an EPROM or the mainboard make a note of

the programmed values. Afterwards you can re-enter the old not writeprotected values.

Address Write Default Function

(#) prot. Value

00 = No PIN code active
11 = Yes Run indication by running decimal point
20 = No Key "ON/OFF" only at STOP valid
30 = No Rate change only at STOP valid
40 = No Key "STOP" delayed (time at #361)
50 = No 2nd entry of rate (#3=1), rate calculation disabled.
60 = No Static alarm (staff alerting system)
70 = No Display elapsed time in run mode (#8=0) ****
80 = No Select remaining time (#7=1)
91 = Yes Alternative time input (10h, 1h, 1/4h)

10 0 = No Operation without drop detector

11 1 = Yes Recall "ml/h" (rate) at next power on
12 0 = No Recall "ml total" (end volume) at next power on
13 0 = No Recall "ml inf." (volume inf.) at next power on
14 0 = No SBS Step By Step function
15 0 = No Display VTBI (Volume To Be Infused)
16 0 = No Display "SEt -X-"’ if only 1 set enabled
17 1 = Yes KVO (KOR), mode see #60
18 0 = No Drop alarm only if bottle is empty (#10=0)
19 1 = Yes Buzzer at start

20 0 = No Menu "CLr" (clear "ml inf.") (#15=0) ****
21 0 = No Menu "uOP" (Micro operation) ****
22 0 = No Menu "trA" (transport) (#10=0 and #18=0) ****
23 1 = Yes Menu "PrL" (pressure alarm limit) ****
24 1 = Yes Menu "CAP" (battery capacity) ****
25 0 = No Menu "SEt Fill" ****
26 0 = No Menu "InF" ("ml inf." since last power on) ****
27 0 = No Menu "dLo" (data-lock) ****
28 0 = No Menu "Stb" (stand-by) ****
29 0 = No Menu "MEd" (medication number) ****

30 0 = No Menu "tM " (timer alarm) ****
31 0 = No
32 0 = No Menu "boL" (release bolus) ****
33 0 = No Menu "boLr" (bolus rate) (#32=1) ****
34 0 = No Menu "tot" (bolus total) (#32=1) ****
35 0 = No
36 0 = No
37 0 = No
38 0 = No Bolus application automatic (#32=1 and #34=1)
39 0 = No

40 0 = No Demo mode (all menus enabled) ****
41 0 = No Clear "ml/h" after infusion completed
42 0 = No Clear "ml total" after infusion completed (#41=1)
43 0 = No Air volume accumulated (1ml over 0.5 hrs)
44 1 = Yes Automatic pressure release after occlusion
45 1 = Yes Pressure display 20/40/60/80/100% (Bargraph ON)
46 0 = No Bargraph with indicator (25% steps, #45=1)
47 0 = No Standby- and battery prealarm low volume
48 1 = Yes Flashing numeric display at alarm
49 0 = No Alarm acknowledge only with key "MODE"

14.148.- / A414D en / Software 1.30 14.10.2003 7

Address Write Default Function

(#) prot. Value

50 0 = No Start with >= 1bar allowed
51 1 = Yes Start without infusion set
52 1 = Yes High resolution if calculated rate <100 ml/h
53 0 = No Micro mode after power on as default (Clear = 0.0 ml/h)
54 0 = No
55 0 = No
56 0 = No
57 0 = No
58 0 = No
59 0 = No

60 0 = No KVO only after infusion completed
61 0 = No
62 0 = No
63 0 = No
64 0 = No
65 0 = No Clear and continue (#15=0)
66 0 = No
67 0 = No
68 0 = No
69 0 = No

100 0 = No
101 1 = Yes Set 1 enabled
102 0 = No Set 2 enabled (Pressure sensor and volume calibration requested)
103 0 = No Set 3 enabled (Pressure sensor and volume calibration requested)
104 0 = No Set 4 enabled (Pressure sensor and volume calibration requested)
105 0 = No
106 0 = No
107 0 = No
108 0 = No
109 0 = No

200 0 = No
201 0 = No
202 0 = No
203 0 = No
204 0 = No
205 0 = No
206 0 = No
207 0 = No
208 0 = No
209 0 = No Set 1 definition

210 0 = No
211 0 = No
212 0 = No
213 0 = No
214 0 = No
215 0 = No
216 0 = No
217 0 = No
218 0 = No
219 0 = No

8 14.10.2003 14.148.- / A414D en / Software 1.30

Address Write Default Function

(#) prot. Value

220 0 = No
221 0 = No
222 0 = No
223 0 = No
224 0 = No
225 0 = No
226 0 = No
227 0 = No
228 0 = No
229 0 = No Set 2 definition

230 0 = No
231 0 = No
232 0 = No
233 0 = No
234 0 = No
235 0 = No
236 0 = No
237 0 = No
238 0 = No
239 0 = No

240 0 = No
241 0 = No
242 0 = No
243 0 = No
244 0 = No
245 0 = No
246 0 = No
247 0 = No
248 0 = No
249 0 = No Set 3 definition

250 0 = No
251 0 = No
252 0 = No
253 0 = No
254 0 = No
255 0 = No
256 0 = No
257 0 = No
258 0 = No
259 0 = No

260 0 = No
261 0 = No
262 0 = No
263 0 = No
264 0 = No
265 0 = No
266 0 = No
267 0 = No
268 0 = No
269 0 = No Set 4 definition

14.148.- / A414D en / Software 1.30 14.10.2003 9

Address Write Default Function

(#) prot. Value

270 0 = No Set 4 definition
271 0 = No
272 0 = No
273 0 = No
274 0 = No
275 0 = No
276 0 = No
277 0 = No
278 0 = No
279 0 = No

300 0
301 0
302 0
303 0
304 0
305 0

306 X 0 Infused sum in ml (xxxxyyyy) [xxxx . . . . ml]

307 X 0 Infused sum in ml (xxxxyyyy) [. . . . yyyy ml]

308 X 0 Operating time in min (xxxxyyyy) [xxxx . . . . min]

309 X 0 Operating time in min (xxxxyyyy) [. . . . yyyy min]

310 999 Max. rate in ml/h (1...999 ml/h)
311 999 Prime rate in ml/h (1...999 ml/h)
312 999 Max. bolus rate in ml/h (1...999 ml/h)
313 10 Max. bolus total in ml (1...99 ml)
314 0
315 4 Pressure limit "PrL" default value micro mode (1..10 * 100 mbar)
316 7 Pressure limit "PrL" default value (1..10 * 100 mbar)
317 250 Airbubble size (50...1000 µl)
318 20 Drop-rate window centre in drops/ml (10...65)
319 1000 Correction (850...1150) ((actual/nominal)*1000)

IV set -1-

320 999 Max. rate in ml/h (1...999 ml/h)
321 999 Prime rate in ml/h (1...999 ml/h)
322 999 Max. bolus rate in ml/h (1...999 ml/h)
323 10 Max. bolus total in ml (1...99 ml)
324 0
325 4 Pressure limit "PrL" default value micro mode (1..10 * 100 mbar)
326 7 Pressure limit "PrL" default value (1..10 * 100 mbar)
327 250 Airbubble size (50...1000 µl)
328 20 Drop-rate window centre in drops/ml (10...65)
329 1000 Correction (850...1150) ((actual/nominal)*1000)

330 999 Max. rate in ml/h (1...999 ml/h)
331 999 Prime rate in ml/h (1...999 ml/h)
332 999 Max. bolus rate in ml/h (1...999 ml/h)
333 10 Max. bolus total in ml (1...99 ml)
334 0
335 4 Pressure limit "PrL" default value micro mode (1..10 * 100 mbar)
336 7 Pressure limit "PrL" default value (1..10 * 100 mbar)
337 250 Airbubble size (50...1000 µl)
338 20 Drop-rate window centre in drops/ml (10...65)
339 1000 Correction (850...1150) ((actual/nominal)*1000)

IV set -2-

IV set -3-

10 14.10.2003 14.148.- / A414D en / Software 1.30

Address Write Default Function

(#) prot. Value

340 999 Max. rate in ml/h (1...999 ml/h)
341 999 Prime rate in ml/h (1...999 ml/h)
342 999 Max. bolus rate in ml/h (1...999 ml/h)
343 10 Max. bolus total in ml (1...99 ml)
344 0
345 4 Pressure limit "PrL" default value micro mode (1..10 * 100 mbar)
346 7 Pressure limit "PrL" default value (1..10 * 100 mbar)

IV set -4-

347 250 Airbubble size (50...1000 µl)
348 20 Drop-rate window centre in drops/ml (10...65)
349 1000 Correction (850...1150) ((actual/nominal)*1000)

360 0
361 500 Key "ON/OFF" delay (0...3000 msec), (additional key "STOP"] if #4=1)
362 3 Display brightness (1...3)
363 10 Buzzer alarm volume (5...10)
364 0
365 0
366 0
367 0
368 270 Battery discharge time incl. 15 min prealarm (45...615 min)
369 5 Automatic menu fall back delay time (5...30 s)

370 0 Clock seconds (0...59)
371 0 Clock minutes (0...59)
372 0 Clock hours (0...23)
373 0
374 0 Clock days (1...31)
375 0 Clock months (1...12)
376 0 Clock years (2000...2099)
377 0
378 0
379 0

380 X Last failure number (F-XX)
381 X Last infusion rate at failure
382 X 2. last failure number (F-XX)
383 X 2. last infusion rate at failure
384 X 3. last failure number (F-XX)
385 X 3. last infusion rate at failure
386 X 4. last failure number (F-XX)
387 X 4. last infusion rate at failure
388 X 5. last failure number (F-XX)
389 X 5. last infusion rate at failure

390 0 Last service date (yyww, year and week)
391 X 0 2. last service date
392 X 0 3. last service date
393 0 Service interval in months (1..24, 0 = disabled)
394 0 Service interval in hours (1..9999, 0 = disabled)
395 0 Own address for SCI (0=no address, or 1...127)

396 0 Inventory-no. of the pump (xxxx yyyy) [xxxx . . . .]

397 0 Inventory-no. of the pump (xxxx yyyy) [ . . . . yyyy]

398 0
399 X 414 Data xxxx -> clears protection key

14.148.- / A414D en / Software 1.30 14.10.2003 11

1.6 Special configuration options

- Configuration of a reminder alarm for the safety standard check:
First the service interval has to be configured either in months or in hours of operation, or both (addresses
393, 394).
Next the last service date has to be entered on address 390. Any value higher than 0 entered at the adresses
393 and/or 394 will release the reminder alarm after the set service interval has elapsed (check also the
correct settings of the internal clock).

- PC configuration tool "AConfig":
With this additional software the pump may be configured from a PC over the serial port. This software
may be available from your local distributor or our service department.

-IV-set definition:
Allows the individual calibration of up to 4 dedicated IV-sets over the full infusion rate range. Please
contact your local distributor or our service department for further information.

After changing the configuration a function check and a control measurement has to be made!

12 14.10.2003 14.148.- / A414D en / Software 1.30

2 History and pump configuration printout

2.1 Connecting of the ARGUS414 to the serial interface

Caution: The infusion pump must be disconnected from the patient before any connection

over the serial interface can be done.

A connection of the ARGUS414 to a computer is useful to the read the actual configuration or history of the
pump. Even a simple monitoring of the pump can be done over the serial interface RS-232.
The connection of the infusion pump with your computer over the interface can be done by connecting the
interface cable and adapter (part 12.011 and part 12.012) and the following steps:

- Connect the RS-232 interface cable to outlet (32) of the infusion pump and to the serial port of your PC.
Note in which port (COM1 or COM2) you have pluged in.

-Start your terminal program on your computer. A simple terminal program, e.g. "Hyper Terminal" is
included in every MS-Windows 9x and Windows NT systems, but must be installed first if necessary.

- Be sure that you have selected the right serial port (COM1 or COM2) and set the following communica­tion parameters:

Bits per second: 4800 Baud
Data bits: 8 bits
Parity: None
Stop bits: 1 bit
Protocol: None

- Go to the next step in one of the further chapters, depending on your intention.

2.2 Configuration printout

- Switch the pump on while keeping the keys "MODE" and "START/STOP" pressed and go in the configura­tion mode.

- Select address 399 on the left hand display.

-Start capturing text received over the serial interface, e.g. by selecting "capturing text..." in the menu of
the Hyper terminal. A text file which contains the actual configuration printout will now be generated.

- Enter the data 3456 on the right display of the pump.

-Press the "START/STOP" key.

- The pump will now transfer the actual configuration of the pump in the format mentioned below.

-Stop the capturing of the text received; this will also close the text file generated.

- The generated text file can be opened and printed out by any text program.

Pump configuration printout (sample)

/***** Configuration profile *****/ Wed 19-Jan-2002 11:29:55

Pump type : ARGUS414
Inventory number : 0000 0000
Software release : V1.00 (000719-4061)
Infused sum : 678ml
Operating time : 5h32min
Last service date : 2000 week 12

00=0 50=0 100=0 300=0 320=0400 340=0000 360=0000 380=0000
01=1 51=0 101=0 301=0 321=0000 341=0000 361=0000 381=0000
02=0 52=0 102=0 302=0 322=0000 342=0000 362=0000 382=0000
03=0 53=1 103=1 303=0 323=0000 343=0000 363=0000 383=0000
etc.

14.148.- / A414D en / Software 1.30 14.10.2003 13

2.3 History printout
The transfer of the last events made on the pump can be done either by this way:

- Switch the pump on while keeping the key "100" pressed.
Or by this way:

- Switch the pump on while keeping the keys "MODE" and "START/STOP" pressed and go in the configura-

tion mode.

- Select address 399 on the left display of the pump.

-Start capturing text received over the serial interface, e.g. by selecting "capturing text..." in the menu of

the Hyper terminal. A text file which contains the history printout will now be generated.

- Enter the data 4567 on the right display of the pump.

-Press the "START/STOP" key.

- The pump will now transfer the last events made on the pump in the format mentioned below.

-Stop the capturing of the text received; this will also close the text file generated.

- The generated text file can be opened and printed out by any text program.

History printout (sample)

/***** History *****/ Mon 28-Aug-2000 08:42:44

Pump off Mon 28-Aug-2000 11:54:38
Rate = 123.0ml/h IV-Set = 3
Total = 0050.0ml PrLimit = 0500mbar
Infsum = 0054.0ml Status = 0x0000

Pump on Mon 28-Aug-2000 15:01:58
Rate = 010.0ml/h IV-Set = 3
Total = 0050.0ml PrLimit = 0500mbar
Infsum = 0009.0ml Status = 0x0000
etc.

The possible messages are:

Battery defective
Battery low prealarm
Battery low, pump stop
Bolus start
Bolus stop
External power off
External power on
Bolus total reached
Occlusion, pump stop
PrLimit change
PC configuration failure

PC configuration done
Pump has detected failure
Pump off
Pump on
Pump start
Pump stop (KVO)
Rate change
Enter setup mode
Exit setup mode
Transport off
Transport on

Too many drops, pump stop
Inf-set change
Timer alarm, pump stop (KVO)
Total volume reached, pump stop (KVO)
Datalock off
Datalock on
Infsum cleared
No drops, pump stop
Not enough drops, pump stop
Door open, pump stop
Air bubble, pump stop

14 14.10.2003 14.148.- / A414D en / Software 1.30

2.4 Monitoring of the ARGUS414

Caution:The monitoring of the infusion pump ARGUS414 over the serial interface of a PC is only for

demonstration purposes; any connection with patients has not been tested under the
conditions of EN 60601-1 and are not allowed.

- Switch the pump on with an inserted filled infusion set.

- Enter one of the following command directly in your terminal window or transmit the corresponding
ASCII
code over your own monitoring program. A short sample of a monitoring session is mentioned at the end
of this chapter.

Command Keystrokes in terminal ASCII code Description

ENQ Ctrl+E 05H Request status (see format below)
SO Ctrl+N 0EH Sets pump in remote mode

STX Ctrl+B 02H Start of data entry (see format below)*
‘data‘ Data - Data*
ETX Ctrl+C 03H End of data entry*

DC2 Ctrl+R 12H Start infusion*
DC4 Ctrl+T 14H Stop infusion*
SI Ctrl+O 0FH Sets pump in local mode
ACK Ctrl+F 06H Alarm suppression (2min)*
FS Ctrl+\ 1CH Enables/disables KVO*
BEL Ctrl+G 07H Toggle "Buzzer at start mode"*
CAN Ctrl+X 18H No start tests at next start*
DC1 Ctrl+Q 11H Enquiry of inventory number (adress 396/397)

ESC Ctrl+[ 1BH Next character following ESC ("Ctrl+[") will select

the pump with address ‚"addr", if more than one
is connected to the serial interface

"addr" - 0-127 Address (must be the same as in the pump

configuration on address 395)

* Only valid in remote mode

Format of "data" entry:

Format of "status", which will be returned by the pump after typing "Ctrl+E" in the terminal:

STX 0 1 2 0 0 2 0 0 0 0 ETX

Total 1E3

Total 1E2

Total 1E1

Rate 1E1

Rate 1E2

Rate 1E0

Rate 1E-1

Total 1E0

Med. hex lo digit

Med. hex hi digit

STX 0 1 2 0 0 2 0 0 0 0 0 1 0 7 0 0 0 0 A B C D E ETX

PrL 1E3

PrL 1E2

PrL 1E1

Rate 1E2

Rate 1E0

Rate 1E1

Total 1E2

Total 1E3

Rate 1E-1

Total 1E1

Total 1E0

PrL 1E0

Statusbyte-1

Statusbyte-3

Statusbyte-2

Statusbyte-4

Statusbyte-5

Infused sum 1E3

Infused sum 1E2

Infused sum 1E1

Infused sum 1E0

Med. hex lo digit 1E0

Med. hex hi digit 1E1

14.148.- / A414D en / Software 1.30 14.10.2003 15

Format statusbyte-1:

Format statusbyte-2:

P 1 X X X X X X

Parity

Reserved

Always high

Pump type (0 = A414)

Format statusbyte-3:

Battery active

Battery low prealarm

Battery low, pump stop

P 1 X X X X X X

Parity

Reserved

Always high

Remote mode active

Door open

Global Alarm

Pump stop (KVO)

Battery defective

KVO active

P 1 X X X X X X

Parity

Reserved

Reserved

Always high

Occlusion, pump stop

Bottle empty, pump stop

Too many drops, pump stop

Format statusbyte-4:

P 1 X X X X X X

Parity

Reserved

Always high

Bolus active

Data lock active

Airbubble, pump stop

Standby alarm active

Timer alarm, pump stop (KVO)

Format statusbyte-5:

Total volume reached, pump stop (KVO)

P 1 X X X X X X

Parity

Always high

Bargraph-LED upper

Pressure indicator (adress 46)

A sample of a monitoring session:

- Switch the pump on with an inserted filled infusion set.

-Type "Ctrl+N" to set the pump in remote mode.

-Type "Ctrl+B", then "01200200" and then "Ctrl+C" which sets the rate to 12.0 ml/h and an infusion total of
200 ml. The rate should now be shown in the left display of the pump.

-Type "Ctrl+R" to start the infusion.

-Type "Ctrl+T" to stop the infusion.

Bargraph-LED lower+2

Bargraph-LED lower+3

Bargraph-LED lower

Bargraph-LED lower+1

16 14.10.2003 14.148.- / A414D en / Software 1.30

3 Fault finding

The fault code in case of a failure is displayed by pressing "MODE" key (21). (F-XX) appears in display (9),
and the source of the failure is listed in the table below:

Error Error reason Assembly group

F-21...22 ROM test Mainboard
F-23...24 RAM test Mainboard
F-25 CPU test Mainboard
F-26 Invalid function menu
F-27 EEPROM data invalid Mainboard
F-28 RTC (real time clock) data invalid Mainboard
F-29 Stepper motor power test Mainboard
F-31 1.2 Volt supply out of range Mainboard
F-32 5 Volt supply out of range Mainboard
F-33 30 Volt supply out of range Mainboard
F-41 Pressure sensor test failed Pressure sensor or mainboard
F-42 Air detector test failed Air detector or mainboard
F-43 Air bubble size invalid Mainboard
F-44...45 Address invalid for EEPROM Mainboard
F-46 Frequency from µC or RTC out of range Mainboard
F-47 Displayboard not present
F-48 Key(s) too long active Displayboard
F-49 Set correction invalid Mainboard
F-50 Pressure monitor Mainboard or pressure sensor
F-51...56 Rotation control - Mainboard

- Hallboard

- Motor

- Clutch

F-57...59 V olume control Mainboard

Exceptionally a fault code may appear, which is not included in this list. In this case we recommend to
change the main board.

14.148.- / A414D en / Software 1.30 14.10.2003 17

4 Replacement of parts

4.1 Disassembly of the pump

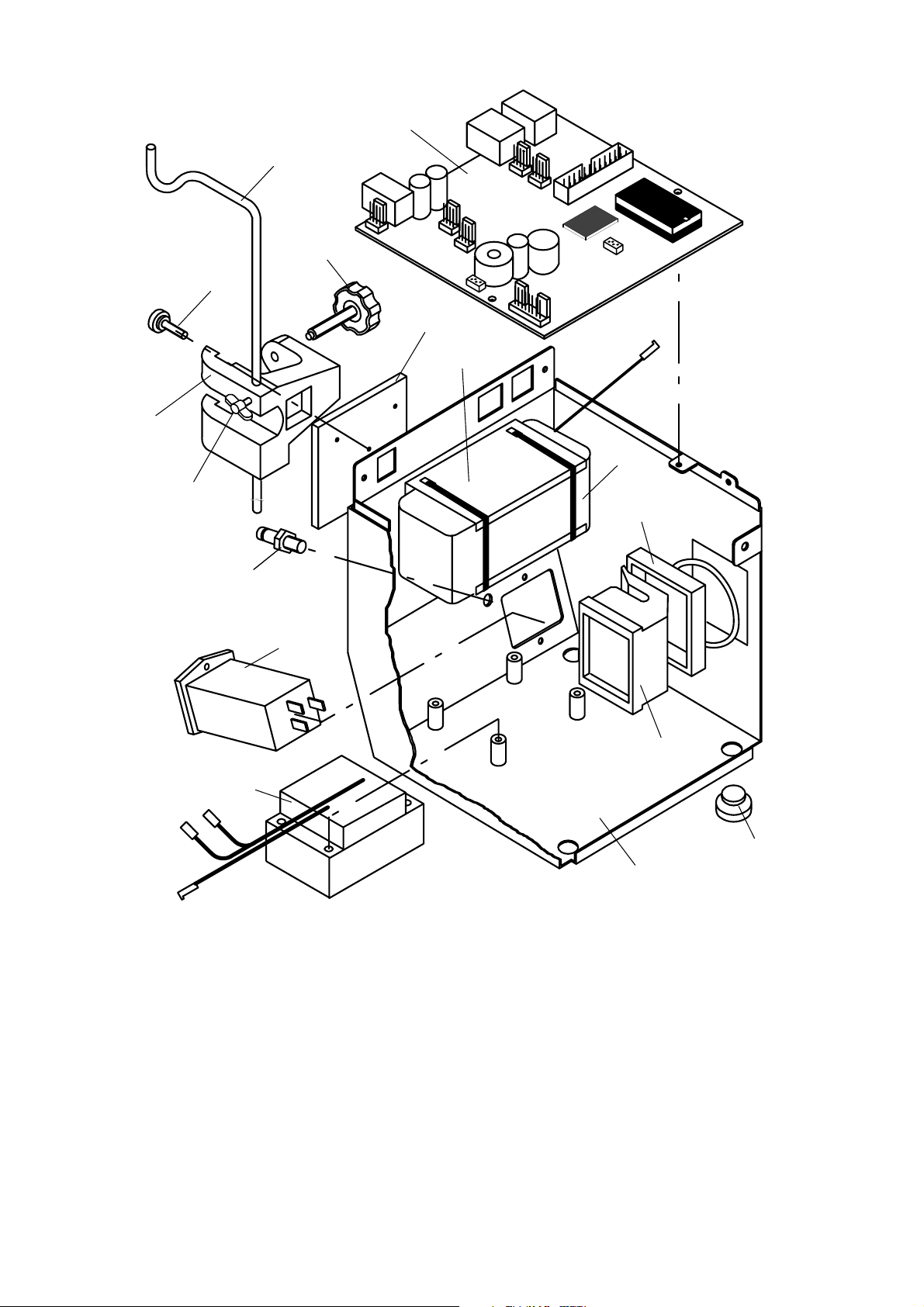

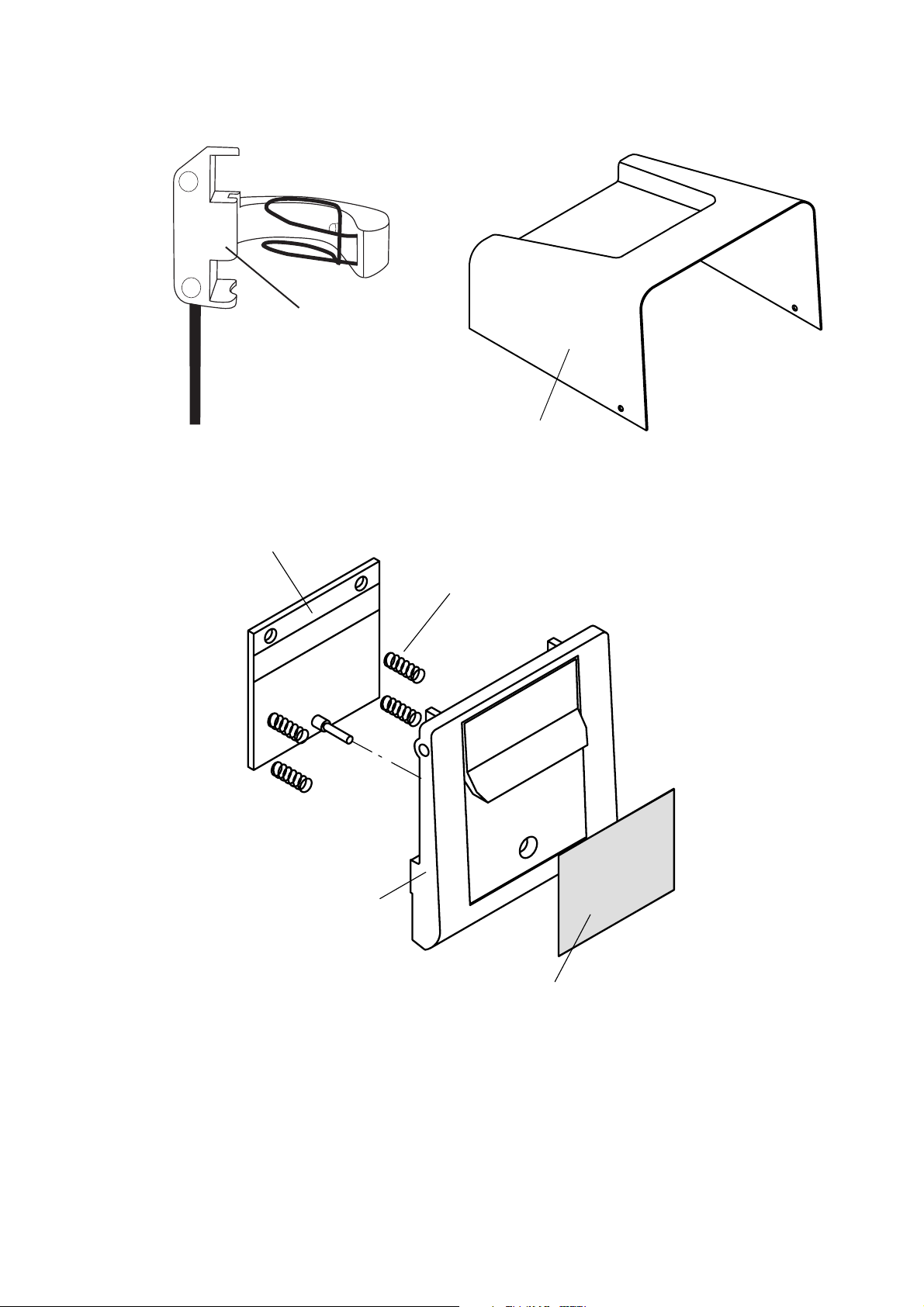

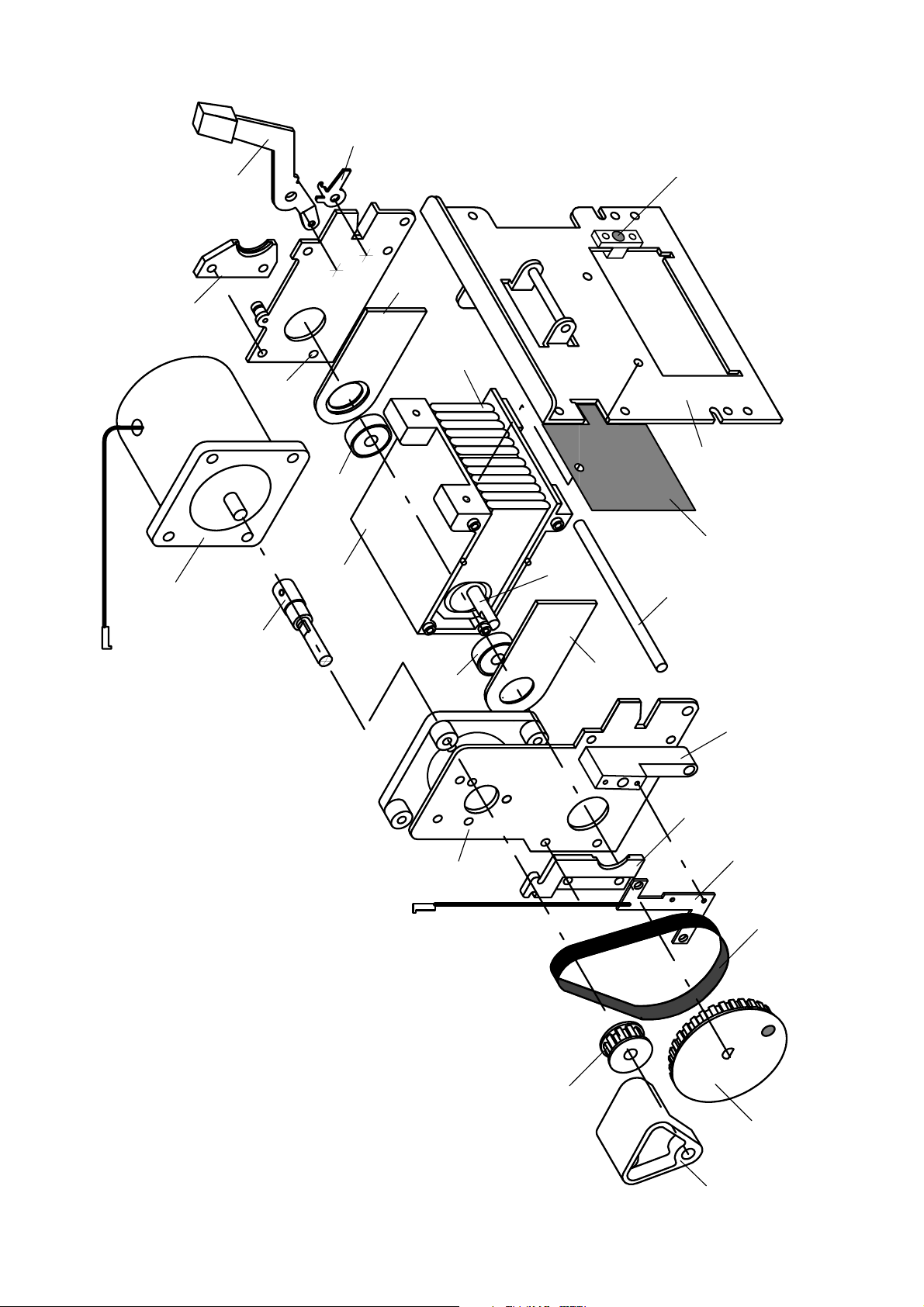

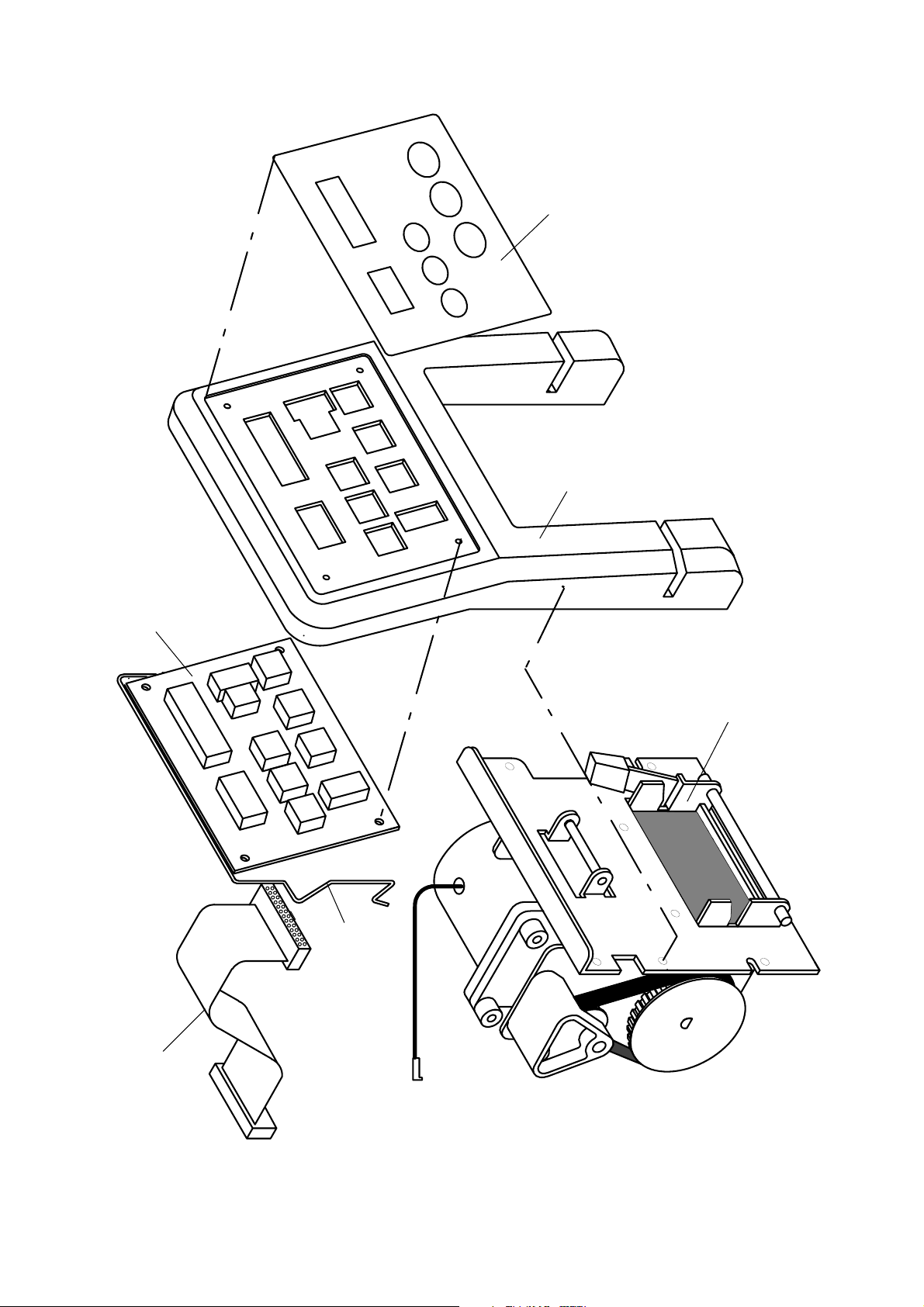

NOTE: The exploded views in the appendix show the individual mounting steps.

CAUTION!
Switch the unit off and disconnect the mains cable from the power outlet before opening the housing. The
antistatic protection have to be strictly adhered to when the ARGUS infusion pump is disassembled (the use
of an antistatic table mat and a grounded clip are recommended, for example).

aDisassembly of the hood:

Remove the four screws on the side and on the rear wall, lift hood up and disconnect the plug-type
connector of the drop barrier.

bDisassembly of the main printed board assembly:

Disconnect the plug-type connector of the main printed board assembly and unscrew the two lateral

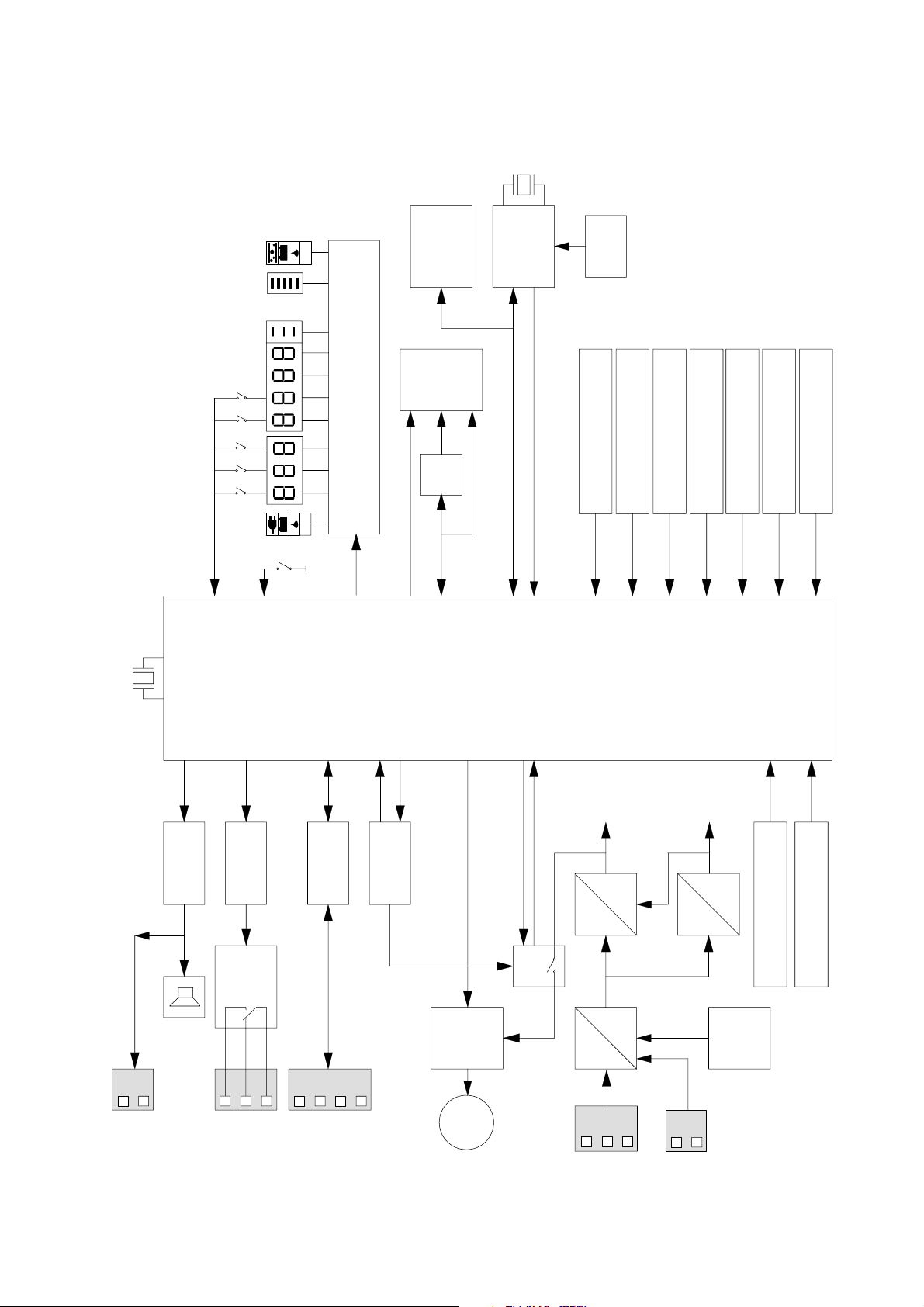

attachment screws. Please refer to the wiring diagram in the appendix.

cDisassembly of the front panel:

Use a ball-headed hexagon screwdriver to unscrew the two attachment screws from the rear and remove
the front panel. This special screwdriver can be obtained from the service department on request.

dDisassembly of the pump unit:

By unscrewing the four attachment screws, the whole pump unit can be removed from the front panel.

e Remove the pump door:

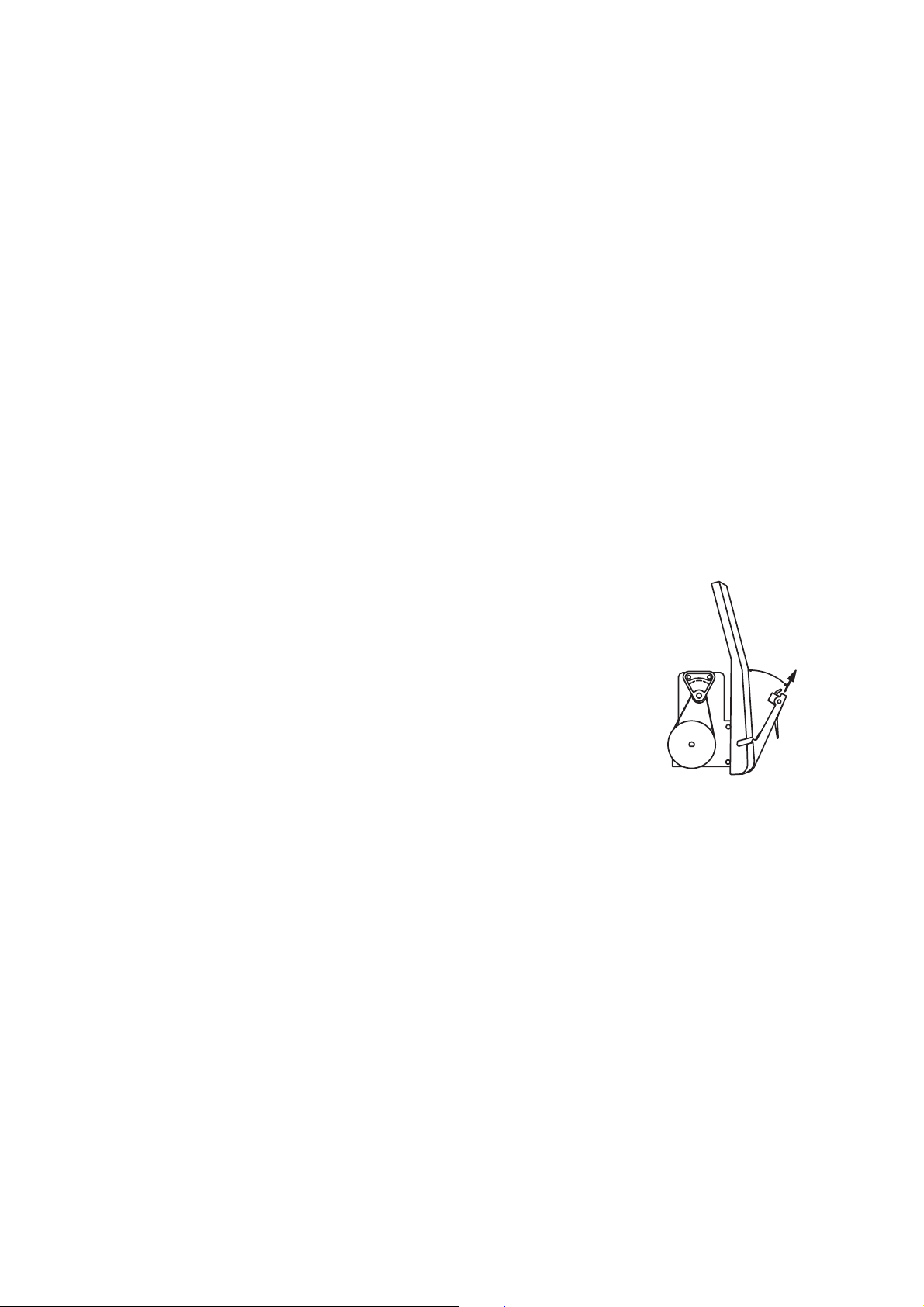

The pump door can be remove without any tools by pulling it out in the
direction of the arrow according to the drawing. For the dismounting and the
mounting the opening angle from 30 to 45° has to be kept.

4.2 Replacement of the EPROM or the display board
a Software updates may reset automatically the default values in the EEPROM. You are requested to write

down the actual contents of the addresses before you replace the EPROM or the display board. Afterwards
you have to re-enter these values in the program mode. If a write protection code has been used before, the
same code has to be programmed again.

bA pressure sensor calibrating is necessary when replacing the pressure sensor, a pressure sensor

calibration and a volume calibration are necessary when replacing the EPROM or the display board. Be
careful and carry out the described instructions step by step.

30-45°

18 14.10.2003 14.148.- / A414D en / Software 1.30

4.3 Pressure sensor calibration

1 Go to the program mode (without IV-administration set).

2 Enter in address 399 the value 1234.

3Press the key "START/STOP"

The display shows e.g. [Set] [-2- ]. Choose the IV set (no. 1 to 4) by pressing the key [1].

4Press the key "START/STOP" (The pump mechanic runs with a rate of ca. 200 ml/h).

The display shows [CAL.] [door]. By pressing the key "1" it is possible to show the stored value in mV
in the display.

5Press the key "START/STOP". The offset voltage, without IV-set, will be stored.

The stored value will be acknowledged by a sound.

6Press the key "MODE".

The display shows [CAL.] [0bAr]. By pressing the key "1" it is possible to show the stored value in mV
in the display.

7Install an used (milled) IV-administration set (Open the roller clamp).

8Start the pressure build-up by occluding the tube on the patient side to control the mechanical pressure

limit.
Minimum 1.2 bar has to be reached for a successful calibration.

9Gradually decrease the pressure by removing the occlusion.

10 Wait ca. 30 sec., then activate the key "START/STOP". The reference value for sensitivity calculation will

be stored. The stored value will be acknowledged by a sound.

11 Press the key "MODE".

The display shows [CAL.] [1bAr]. By pressing the key "1" it is possible to show the stored value in mV
in the display.

12 Start the pressure build-up again, wait until the manometer shows 1 bar, then activate the

key "START/STOP". The absolute value at 1 bar will be stored. The stored value will be acknowledged
by a sound.

13 Gradually decrease the pressure.

14 Turn the pump off- and on again.

15 Select the rate at 500 ml/h.

16 Press the key "START/STOP".

17 Start the pressure build-up to control the electronic pressure limit.
18 The alarm must be activated at ca. 700 mbar ± 100 mbar if the default value = "7".

If the result is not satisfactory repeat the sensor calibration.

19 Switch the pump off.

14.148.- / A414D en / Software 1.30 14.10.2003 19

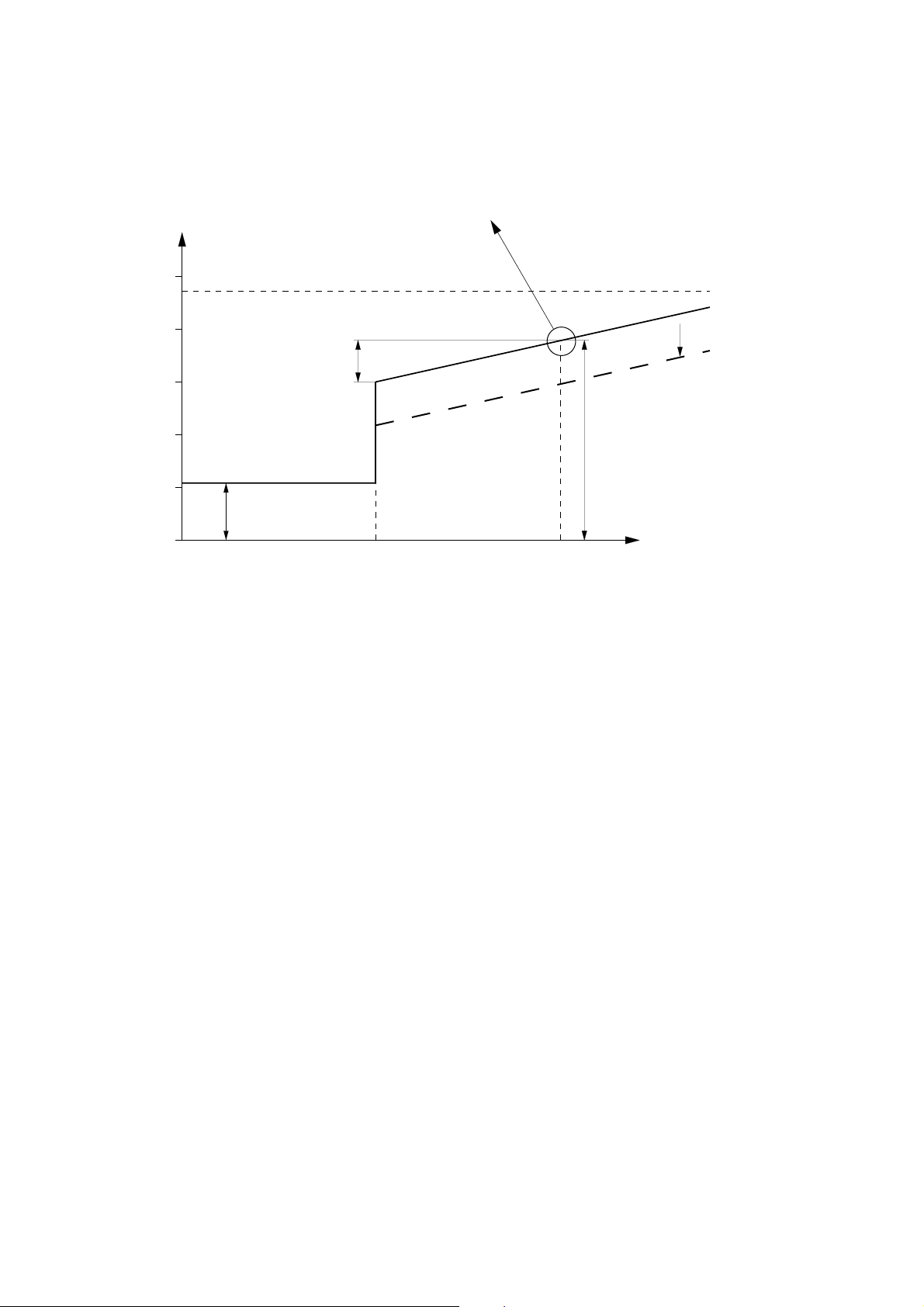

4.4 Pressure sensor signal

Sensor signal

mVolt

If the value meassured by the sensor after put in
a tube without pressure is higher then the stored value
for 1 bar, the pump cannot be started.

5000

4000

3000

2000

1000

0

without a tube

Value

no tube

Door open

Value

sensitivity

0 bar

Door closed
with a tube,
no pressure

System limit 4700 mV

Value 1 bar

1,0 bar

Door closed

with a tube,

pressure 1,0 bar

Auto

adjust

Pressure

20 14.10.2003 14.148.- / A414D en / Software 1.30

4.5 Volume calibration general

1 Go into the program mode.

2 Decide which IV set should be calibrate and check its release address.

- address 101 for IV set no. -1-

- address 102 for IV set no. -2-

- address 103 for IV set no. -3-

- address 104 for IV set no. -4-

Set the correction value in one of the following address to 1000:

- address 319 for IV set no. -1-

- address 329 for IV set no. -2-

- address 339 for IV set no. -3-

- address 349 for IV set no. -4­Switch the pump off and on.

3 Select the IV set you like to calibrate and make the following pump settings (for warm up the peristaltic

system): Rate = 999 ml/h; volume "total" = 10 ml
Start the pump by pressing "START/STOP" once. Switch the pump off and on again after the volume
"total" is reached.

4 The next pump settings are:

Rate = 100 ml/h; volume "total" = 25 ml
Start the pump by pressing "START/STOP" once. Switch the pump off immediately after the volume
"total" is reached, the net weight result must be 25 g +/-5%.

5 Calculate the correction factor with the equation:

Correction factor = (measured volume / preset volume) * 1000

6 Go into the program mode and select address for the correction value (see point 1)

Press "MODE" to enter the correction factor in the right hand display.
Press "START/STOP"] to acknowledge the correction factor.
Switch the pump off.

7 Make a control measurement with the same settings as mentioned in point 4, using the IV-set for which

the correction factor has been changed. Perform an occlusion pressure check (see chapter "Pressure
sensor calibrating", point 15-19) to verify the pressure alarm level.

14.148.- / A414D en / Software 1.30 14.10.2003 21

4.6 Volume calibration by the integrated program

1 Go to the program mode.

2 Enter in address 399 the value 123.

3Press the key "START/STOP".

The display shows e.g. [Set ] [-2- ]. Choose the IV set (no. 1 to 4) by pressing the key [1].

4Press the key "START/STOP".

The display shows [bAL.] [tArA]. The right hand display is flashing.
The pump delivers a volume of 5 ml by a rate of 250 ml/h to warm up the tube.

5 The display shows [bAL.] [tArA].

Re-zero the balance.

6Press the key "START/STOP".

The display shows [tM ] [ xxx].
The pump delivers a volume of 15 ml by a rate of 250 ml/h.

7 The display shows [bAL.] [12.75].

Enter the value of the balance into the pump e.g. 14.65.

8Press the key "START/STOP".

The display shows e.g. [Cor.] [ 977 ].

9Press the key "START/STOP".

The display shows e.g. [Set] [-2- ] and an acknowledgement sound occurs.
The correction factor has been stored in the address of the choosed IV set (see point 3).

10 Switch the pump off.

11 Make a control measurement with the same settings as mentioned in point 4 using the IV-set for which the

correction factor has been changed. Perform an occlusion pressure check (see chapter "Pressure sensor
calibrating", point 15-19) to verify the pressure alarm level.

4.7 Calibration of the battery capacity
Each battery is subject to a chemical process with a slowly decreasing running time. After many charge and
discharge cycles the battery may not have the capacity which provided the running time shown in the menu
"CAP".
To adjust the running time of the used battery please follow the steps mentioned below:

- Go in the configuration mode of the pump.

- Select address "368" in the left display.

- Enter the data "615" in the right display and press the "START/STOP" key to accept the data. This will set

the battery discharge time to the maximum of >10 hours.

- Switch the pump off.

- Be sure you have unplugged the line connection.

- Switch the pump on normally and let the pump running in battery mode until its self switching off.

- Load the battery for more than 16 hours by plug in the line.

- Switch on the pump and start an infusion with a rate of 60ml/h. The infused sum at this rate is now equal to

battery operating time in minutes.

- Leave the pump running until the pump its self switching off again.

- Switch the pump on while keeping the key "1" pressed. The right display now shows the capacity of the

battery in minutes. Multiply this time x 0.8 and enter the result on address "368" in the configuration mode.
This time defined from now on the running time of the pump including a 15 minutes pre-alarm (only after a
full charge).

- If this time is less than 4 hrs, you should replace the battery (part 10.016). If the specific time > 4hrs is not

necessary, the battery has to be changed only if the time less than 3hrs, with respect to environ pollution.

22 14.10.2003 14.148.- / A414D en / Software 1.30

5 Safety standard check

.

.

Safety standard check ARGUS 200

ARGUS 400

ARGUS 404

Serial-no:

Hospital/Dept./Customer:

...............................................................................................................................................................................................

The safety standard check has to be performed at least every 24 months or after 10000 hours of operation.
The check has to be done in accordance to the operation- and service manuals.

1 Visual check for damage, cleanness and completeness: - Housing, labels, accessories, connectors,

2 Test the function of the stop flow lever:

3 Keep key "START" (ARGUS 200/400/404) or - Display shows the software release: V ..................

"MODE" (ARGUS 414) pressed while switching on - Display of 2, 4, 7, F., ml total, ml inf., h.min
the pump. - Test of the red alarm LEDs:

4 Place a filled tube in the air detector: - LED air alarm disappeared

5 Set rate to 111 ml/h, press "START/STOP" - After 12 sec. the acoustical alarm and

(without drop detector): LED drop-alarm + LED ALARM released

........................ ARGUS 414

..................................................................................................................................................

power cable, etc.

Pressure display, air, battery, drops, ALARM

- Test of the green operation LEDs:
Line, battery, drops, KVO

O
O
O
O

ARGUS Medical AG

6 Press key "MODE": - Acoustical alarm switches off

7 Simulate drops manually: - LED drops (green) lights up

8 Check of the occlusion-alarm-pressure: - See Service manual "Replacement of parts"

Infusion set: Codan ..... Braun ..... Other ...........................

Pressure increase to ≥1.1 bar?

Test of the occlusion-alarm-pressure Preset level: ......... mbar Measured: ......... mbar

9 Check of the pump accuracy: - See service manual "Replacement of parts"

Rate: 250 ml/h Preset volume: 25 ml Measured volume: ............ ml

10 Test the pump at max. rate (999 ml/h): - Running smooth?

11 Battery check by setting the rate to 60 ml/h, - Green LED battery light?

disconnect the line and start the pump: - Battery prealarm after typ. 4 hrs?

(Red LED battery alarm + acoustical alarm)

Running time: ............. min - Battery alarm 15 min. after prealarm

(If the specified typical 4hrs of operation are not (Red LED battery alarm + ALARM + alarm acoustically)
required, the battery has to be changed only - After 6 min. the pump switches off
if the time is <3 hrs, due to environmental pollution)

12 Charge the battery min. 16 hrs.

13 Check the external connections: - Staff alerting system

- External drop detector

- Computer interface RS232

14 Electrical test according to EN60601-1 - Measurements attached

(all measurements made with a power cable 2,5 m)

The pump has passed the safety standard check and is safe for use.

Date: ........................... Name: ............................... Signature: ....................................

14.148.- / A414D en / Software 1.30 14.10.2003 23

10.053

10.076

11.005

11.002

11.120

11.061

11.018

10.016

12.016

11.105

12.001

12.008

10.008

Casing A414

10.006 Air detector with O-sealing

10.008 Transformer 230V

10.016 Battery 12V/1,2Ah

10.053 Clamp with screws

10.076 Main board ARGUS 414

10.084 Casing with rubber foot

11.002 Spindle for pole clamp

11.005 Bottle holder 450mm

10.084 Casing with rubber foot

11.018 Battery holder

10.006

12.002

10.084

11.105 Sealing 

11.061 Clamp holder 

11.127 Identification plate ARGUS 414

11.120Fixing screw M5x20 black

12.001 Equipotential plug

12.007 Cable staff alert (opt.)

12.008 Mains plug with filter

12.011 RS 232 cable

12.012 RS 232 adapter

12.016 Srew for bottle holder

24 14.10.2003 14.148.- / A414D en / Software 1.30

10.036

11.128

11.081

11.021

10.077

11.019

Front A414

10.036 Display PC-board

10.077 Pump unit without door

11.019 Spring (Front-housing)

11.021 Cable assy 26pol

11.081 Front PVC

11.128 Frontpanel A414

14.148.- / A414D en / Software 1.30 14.10.2003 25

11.037

10.013

10.080

11.039

10.081

12.006

11.100

10.037

11.038

11.010

10.083

11.101

10.002

11.031

10.009

Pump unit A414

10.002 Camshaft

10.009 Clutch assembly kit

10.013 Stepper motor

10.037 Pressure sensor

10.078 Hall PC-board

10.080 Stop flow lever with spring

10.081 Stop latch with spring

10.082 Side wall motor with motor plate

10.083 Pump unit holder with axle

11.003 Pulley-drive 32 XL

11.004 Pulley-drive 11XL

11.010 Slider

11.031 Axle (door hinges)

11.034 Support bearing

11.036 Cable / bearing holder

11.037 Bearing holder

11.038 Distance holder

11.039 Side wall with bolt

11.100 Housing for sliders

11.101 Sealing

11.129 PCB-holder

12.003 Drive belt 90XL

12.006 Ballbearing

12.006

10.082

11.038

11.129

11.036

10.078

12.003

11.004

11.003

11.034

26 14.10.2003 14.148.- / A414D en / Software 1.30

11.111

10.089

10.056

11.008-1 (d=0,7 D=6,0 l=15,0 n=7,5)

10.079

11.017

Cover and Door A414

10.056 Cover with magnet

10.050 Door complet

10.079 Door with handle

10.089 External drop detector 01

11.008-1 Pressure spring no. 1

11.017 Door cover

11.111 Counter plate

14.148.- / A414D en / Software 1.30 14.10.2003 27

Nurse-call



Alarm

4

1

Serial

Interface

RS 232

81

External

Drop-Detector

4

1

Internal

Drop-Detector

External

Buzzer

Air Bubble

Detector

Hall

Door + Wheel

Stepper

Motor

External

Drop-Detector

X8

X1

X10

X9

X12

X6

Buzzer

X13

µC

X11

Interface

RS 232

X2

X3

Serial

X7

Nurse-call

Alarm

X5

AC Input

Trafo
Batt. 

12 V DC

External 

15 V DC

X4

Pressure

Sensor

EPROM

Wiring diagram

28 14.10.2003 14.148.- / A414D en / Software 1.30

EPROM

Buzzer

Driver

NiCd-Batt.

12V

Relay

Driver

Reset +

Watchdog

Alarm

Relay

Nurse-call

EEPROM

RTC

Latch

Isolation

AC

DC

DC

DC

100

10

Mode

Start/Stop

DC

DC

+ 30V

(Motor +

Buzzer)

+ 5V

(Logic)

Controller

Display

Driver

+30V Control

+5V Control

Pressure sensor

Hall Door + Wheel

Internal drop detector

External drop detector

Line voltage control

Battery voltage control

1

Motor

Driver

Motor

On/Off

KVO

ml total

h. min

ml inf.

SQW-Frequency

Li-Batt.

3 Volt

RS-232

Air bubble detector

I C

2

Alarm

Pressure

AC Main

Ext. DC

Power test

ALARM

Ext. Buzzer

14.148.- / A414D en / Software 1.30 14.10.2003 29

Bloc schematic
