Proprietary Statement
This manual contains proprietary information of Argox Information Co., Ltd. It is
intended solely for the information and use of parties operating and maintaining
the equipment described herein. Such proprietary information may not be used,
reproduced, or disclosed to any other parties for any other purpose without the
DESKTOP BARCODE PRINTER
OS-214plus/OS-2140D/
OS-2140/OS-2140Z/
expressed written permission of Argox Information Co., Ltd.
Product Improvements
Continuous improvement of products is a policy of Argox Information Co., Ltd. All
specifications and signs are subject to change without notice.
FCC Compliance Statement
OS-2140DZ/OS-2140E
User’s Manual
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that the interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into a different outlet on a different circuit.
Consult the dealer or an experience Radio/TV technician for help.
This unit was tested with shielded cables on the peripheral devices. Shielded
cables must be used with the unit to insure compliance. The user is cautioned
that any changes or modifications not expressly approved by Argox Information
Co., Ltd. could void the user’s authority to operate the equipment.
Liability Disclaimer
Argox Information Co., Ltd. takes steps to assure that the company’s published
engineering specifications and manuals are correct; however, errors do occur.
Argox Information Co., Ltd. reserves the right to correct any such errors and
disclaims any resulting liability. In no event shall Argox Information Co., Ltd. or
anyone else involved in the creation, production, or delivery of the
accompanying product (including hardware and software) be liable for any
damages whatsoever (including, without limitation, damages for loss of business
profits, business interruption, loss of business information, or other pecuniary
Website: http://www.argox.com
I
loss) arising out of the use of or the results of use of or inability to use such
received, including interference that may cause un
desired operation.
product, even if Argox Information Co., Ltd. has been advised of the possibility of
such damages.
CAUTION:
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Safety
INDUSTRY CANADA NOTICE:
This device complies with Industry Canada ICES-003 class A requirements.
Cet equipement est conforme a ICES-003 classe A de la norm Industrielle
Canadian.
Supplemental Information: This device complies with the
requirement of FCC Part 15 Rules. Operation is subject to the
following two Conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference
Please only use adapters with the following electrical characteristics and
are certified by current legislation. Using other adapters may damage the
device and void the warranty also cause risks to the user.
Features Output: 24VDC, 2.4A
The manufacturer declares under sole responsibility that this product
conforms to the following standards or other normative documents:
EMC: EN 55022:2006+A1:2007, class A
Argox Information Co., Ltd certifies that the following products and/or
components are compliant with the current requirements of the European
Union Restriction on the use of Hazardous Substances (RoHS) Directive,
2002/95/EC.
EN 55024:1998+A1:2001+A2:2003
Table of Contents
Safety .................................................................................... II
Getting Started ..................................................................5
Unpacking .............................................................................. 5
Package Contents................................................................ 6
Connecting the Power Supply ................................................. 7
Getting to Know Your Printer .........................................10
Parts and Features ................................................................. 10
Controls and Indicators ......................................................... 13
Loading Ribbon and Media ............................................15
Loading Ribbon .................................................................... 15
Loading Media...................................................................... 20
Standard Mode.................................................................. 20
Cutter Mode...................................................................... 25
Calibration and Configuration........................................27
Performing Calibration and Configuration ............................ 27
Resetting to Factory Default Settings .................................... 28
Computer Connections...................................................29
USB Interface Requirements................................................. 29
Serial (RS-232) Interface Requirements ................................ 30
Serial Cabling Requirements................................................. 31
Parallel Interface Requirements ............................................ 32
Ethernet Interface.................................................................. 33
Communicating with the Printer ....................................35
Installing a Plug and Play printer driver (for USB only) ........ 35

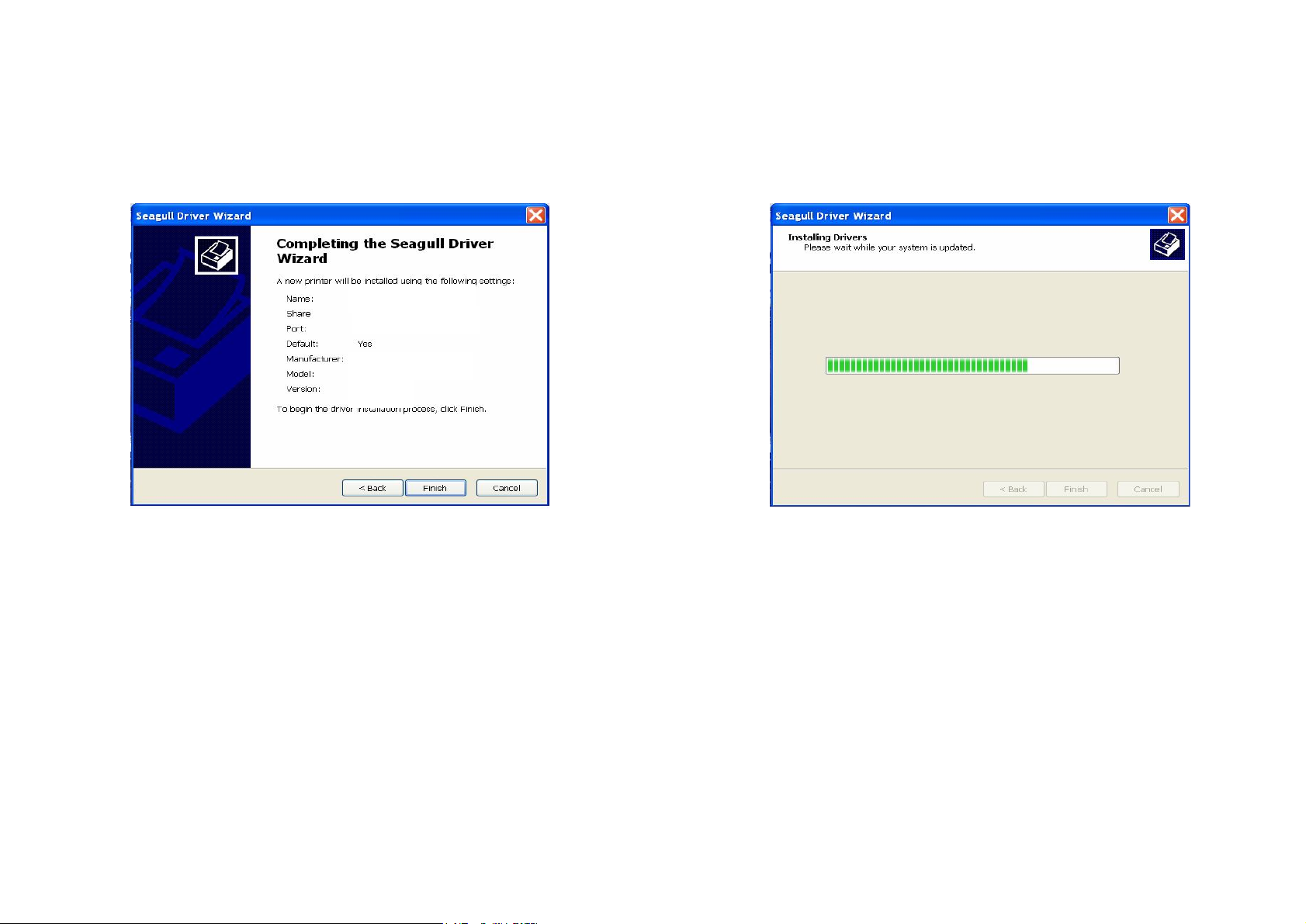

Installing the Printer Driver................................................... 43
Troubleshooting..............................................................55
LED Diagnosis ..................................................................... 55
Miscellaneous....................................................................... 58
Recovery .............................................................................. 59
Caring for Your Printer....................................................60
Cleaning ............................................................................... 60
II
III
Media Sensor .................................................................... 60
Thermal Print Head ........................................................... 60
Replacing the Thermal Print Head.....................................63
Important notice during TPH replacement ................... 65
Technical Reference ....................................................... 66
General Specifications...........................................................66
Fonts, Bar Codes and Graphics Specification ........................ 70
Printer Programming Language A, PPLA ....................70
Printer Programming Language B, PPLB ....................71
Printer Programming Language Z, PPLZ..................... 72
Interface Specifications ......................................................... 74
USB Interface....................................................................74
Serial................................................................................. 75
Ethernet............................................................................. 76
Parallel (Centronics).......................................................... 77
Auto Polling...................................................................... 77
Connection with host...................................................... 78
Appendix I - Installing the Cutter................................... 80
Appendix II - Installing the Extension Card .................. 83
Getting Started
Congratulations on choosing the Argox
OS-214plus/OS-2140D/OS-2140/OS-2140Z/OS-2140DZ/
OS-2140E desktop barcode printers. This manual will help you
get to know your new printer. There are two parts to this manual,
an operation guide and related information. The operation guide
is illustrated to help you quickly become familiar with the printer.
The related information includes troubleshooting, maintenance
and technical information for your reference.
Unpacking
After receiving your printer, please check for possible shipping
damage:
1. Inspect the outside of both the box and the printer for
possible damage.
2. Open the top cover of the printer to see if the media
compartments are in order.
Note: If damage has occurred, contact your shipping company
immediately to file a claim.
3. Check whether you have received the following
accessories together with the printer. If there are any
items missing, please contact your local dealer.
IV
5
Package Contents
Printer
Power Supply
Power Cord
Quick Installation Guide
CD ROM
USB Cable
0.5” ID Core for Ribbon
Media Holder
Connecting the Power Supply
Connect the power supply as below.
WARNING! Do not operate the printer and power supply in an
area where they can get wet.
Make sure the power switch is in the "O" position.
1. Insert the barrel connector of the power supply into the power
jack on the back of the printer. Note the location of the power
jack for different models in the diagrams below.
2. Insert the separate power cord into the power supply.
3. Plug the other end of the cord into an AC electrical outlet.
Power Core
Power Cord
OS-2140D/OS-2140/OS-2140Z/OS-2140D
6
7
Power Cord
OS-2140E
OS-214plus
8
9
Getting to Know Your Printer
Power Switch
H Cover
Power
Indicator
Feed Button
The illustrations that follow describe the printer’s parts, features,
controls, and indicators.
Parts and Features
Ready Indicator
OS-214plus/OS-2140D/OS-2140/OS-2140E/OS-2140Z/OS-2140DZ
Top Cover
Ribbon Pick-up Holder
Release Levers
Media Hanger
Ribbon module
(not included with OS-2140D)
10
11
Ribbon Supply Holder
Platen Roller
Thermal Print head
Power Switch
Controls and Indicators
The printer’s controls and indicators are shown in the diagram
below. The following table explains control and indicator
functions.
Power Indicator
Top Cover
Ready Indicator
Power Switch
Feed Button
12
13
Control /
Indicator
Power Switch
Power Indicator
Ready Indicator
Function
On: turns on normal operation
Off: turns off power
Note: Turn power off before connecting or
disconnecting cables
Green light shows the power-on
Light off shows the power-off
Blinking light indicates error has occurred
Green shows printer is ready to operate
Blinking light indicates printer is paused or
data transferring
Seagull driver status monitor
Press to advance labels to the first printing
position
Loading Ribbon and Media
This section describes how to load ribbon and media in the OS
Series printer.
Loading Ribbon
Note: This section does not apply to direct thermal printing.
1. Lift the top cover to expose the media compartment.
2. Unlatch the print head module by pushing the two white
release levers on the sides toward the rear.
3. Turn over the print head module to expose the ribbon
supply holder.
Feed Button
Press to take the printer out of "pause"
Press and hold while turning on the power
to print out a configuration profile
14
15
Release Lever
Ribbon Supply Holder
Media Compartment
Print Head Module
Release Lever
4. Unwrap the ribbon roll pack and separate the ribbon roll
and the bare core.
5. Attach the edge of the ribbon on the bare core and wind it
a little bit onto the core.
6. Insert the ribbon roll into the supply holder. (First snap in
the left side and then the right side.)
Ribbon Supply Holder
Ribbon Roll
Bare Core
16
17
7. Turn back the print head module and then insert the bare
Wheel
core into the pick-up holder. (First snap in the left side, and
then the right side.)
Ribbon Pick-up Holder
Bare Core
8. Turn the wheel of the print head module to ensure the
ribbon is tightly wound.
9. Press down the print head module firmly until you hear a
snap.
Print Head Module
18
19
Loading Media
The OS-214plus/OS-2140D/OS-2140/OS-2140Z/OS-2140DZ/
OS-2140E printers offer Two different loading modes: standard or
with a cutter.
Standard mode allows you to collect each label freely.
Cutter mode automatically cuts the label after it prints.
Standard Mode
1. Lift the top cover to expose the media compartment.
2. Remove the media hanger.
Media Compartment Media Hanger
3. Load the media roll onto the hanger from left to right.
Media Roll
Media Hanger
20
21
4. Click the media hanger back into the media
compartment.
5. Align the media roll to the left end.
6. Move the shield from right to left until it leans against the
media.
Media Compartment
Media Roll
Shield
7. Unlatch the print head module.
8. Hold the print head module upright with one hand to
allow the media to pass under it. Lead the media through
the media guides with the other hand.
9. Lead the media over the platen roller.
Print Head Module
Media Guides
22
23
10. Put the print head module down and press down firmly
until you hear a snap.
11. Close the top cover and turn on the printer or press the
"FEED" button if the printer is already on.
Print Head Module
Cutter Mode
Note: For Cutter mode you must first install the cutter and add
the cutter baby board to J16 on the main board. Please
refer to Appendix I.
Follow Steps 1 to 8 listed in Standard Mode above.
9. Thread the media over the platen roller, then route the
media through the slot of the cutter module.
10. Press down the print head module firmly.
Cutter Module
Feed Button
24
25
11. Close the top cover and turn on the printer or press the
"FEED" button if the printer is already on.
Note: The "FEED" button does not make the printer cut. Cutting
occurs only when the software is properly set.
Calibration and Configuration
This section discusses calibration, printing configuration and
resetting the printer to factory defaults.
Performing Calibration and Configuration
1. Turn off the printer power.
2. Press and hold the feed button while turning on the power,
until the printing motor is activated.
3. Calibration is performed while the printer automatically feeds
the label stock for a certain length, the printing motor
suspends for one second and then prints out a configuration
profile.
4. The profile includes firmware version, ROM checksum,
RS-232, thermal transfer/direct thermal settings, hardware
configuration, and font types.
5. At PPLB emulation, the printer enters character dump mode.
To exit from dump mode, press the feed button again. (If you
accidentally print the label without exiting from dump mode in
advance, you need to turn on the printer or press feed button
again to print normally.)
Important! You must always carry out calibration when
changing media. Failure to do so will result in improper
detection by the label sensor.
26
27
Resetting to Factory Default Settings
1. Turn on the printer and wait for 5 or more seconds.
2. Press the "Feed" button for 10 seconds, and the "Ready"
indicator and "Power" indicator will go off in order.
3. When the two indicators relight, release the feed button.
4. The printer feeds approximately 3 ~5 blank labels, and
then resets to the factory defaults.
Note: Revise the factory default settings that stored in flash,
even if turn off the power source cannot be eliminated.
Computer Connections
Note: You must insert the power supply’s barrel connector into
the power jack on the back of the printer before
connecting communication cables.
This printer comes with a nine-pin Electronics Industries
Association (EIA) RS-232 serial data interface, a USB interface
and Ethernet option. You must supply the required interface cable
for your application.
Note: This printer complies with FCC Rules and Regulations,
Part 15, for Class A Equipment, for use with fully shielded
six-foot data cables. Use of longer cables or unshielded
cables may increase radiated emissions above Class A
limits.
USB Interface Requirements
The Universal Serial Bus (USB) interface is version 2.0 and 1.1
compliant and provides a full-speed (12Mb/s) interface that is
compatible with your existing PC hardware. The USB’s “plug and
play” design makes installation easy. Multiple printers can share a
single USB port/hub.
28
29
Serial (RS-232) Interface Requirements
The required cable must have a nine-pin "D" type male connector
on one end, which is plugged into the mating serial port located
on the back of the printer. The other end of the signal interface
cable connects to a serial port on the host computer.
For technical and pin-out information, please refer to the
Reference Technical Information, Interface Specification.
Ethernet Port
(OS-2140E Model)
USB Port
RS-232 Serial Port
Serial Cabling Requirements
Data cables must be of fully shielded construction and fitted with
metal or metalized connector shells. Shielded cables and
connectors are required to prevent radiation and reception of
electrical noise.
To minimize electrical noise pickup in the cable:
Keep data cables short (6 ft or 1.83m recommended).
Do not tightly bundle the data cables with power cords.
Do not tie the data cables to power wire conduits.
Notes:
Default settings are included in the configuration report.
30
31
Parallel Interface Requirements
USB Port
The required cable (IEEE 1284-compliant is recommended) must
have a standard 36-pin parallel connector on one end, which is
plugged into the parallel port located on the back of the printer.
The other end of the parallel interface cable connects to the
printer connector at the host computer. For pin-out information,
refer to the Reference Technical Information, Interface
Specification.
Power Jack
Ethernet Interface
This connector is for Ethernet application; it is convenient to use
several printers by Ethernet connector at the same time.
Notes:
When using Ethernet model printer, please wait till the Ready
Indicator to stop blinking and then can start to use printer.
Parallel Port
OS-214plus
RS232 Serial Port
Ethernet Port
(OS-2140E Model)
USB Port
OS-2140E
RS-232 Serial Port
32
33
Ethernet Status/Activity Indicators
LED Status Description
Both Off No Ethernet link detected
Green LED
Amber LED
Green LED
Speed LED
On: 100 Mbps link Off: l0 Mbps link
Link/Activity LED
On: link up Off: link down Flash: activity
Amber LED
Communicating with the Printer
The bundled printer driver can be applied to all applications under
Windows 2003/ XP/ Vista/ Windows 7, supporting 32-bit/ 64-bit
operation systems. With this driver you can operate any popular
Windows software applications including Argox Bartender UL
label editing software or MS Word, etc., to print to this printer.
The following installation steps are based on OS-2140 as an
example. The screens included for these steps are taken from
Windows XP; steps in other versions of operation systems are
similar.
Installing a Plug and Play printer driver (for
USB only)
Note:
We strongly recommend that you use the Seagull Driver Wizard
instead of the Microsoft Windows Add Printer Wizard when
installing and updating your Drivers by Seagull.
(Even though the "Add Printer Wizard" is from Microsoft, it too
easily performs a number of tasks incorrectly when updating
existing drivers. It also badly handles the situation where a printer
driver is already in use by a Windows application.)
1. Turn off the printer. Plug the power cable into the power
socket on the wall, and then connect the other end of the
cable to printer's power socket. Connect the USB cable to the
34
35
USB port on the printer and on the PC.
2. Turn on the printer. If the printer supports Plug-and-Play, and
you have successfully connected it using a USB cable, then
the Windows Add Hardware Wizard will automatically detect
the printer and display a dialog that allows you to install a
driver. Click Cancel and do not install the driver using this
wizard.
3. Prepare the documentation and software CD-Rom from
printer package and then install to CD-Rom drive of your
computer. The CD-Rom will bring out the following prompt.
Click “Go”:
Instead of the flash prompt above, another way to install
Seagull driver is to run the DriverWizard utility from the
Installation Directory where the Seagull driver files are located.
5. On the Seagull Driver Wizard prompt, select the first radio
button to “Install a driver for a Plug and Play printer”:
4. Under OS-2140 product selection prompt, choose Seagull
Driver version and then start installation:
36
37
Argox OS-2140 PPLA
Then click “Next.”
6. Enter Printer name (i.e. Argox OS-2140 PPLA) and select "do
not share this printer”, and click "Next".
Argox OS-2140 PPLA
38
39
7. Check all the data on the showing screen, if it is correct, click
"Finish".
Argox OS-2140 PPLA
USB002
Argox OS-2140 PPLA
7.1.9_M-5
8. After the related files have been copied to your system, click
"Finish".
Installing printer ‘Argox OS-2140 PPLA’…
40
41
9. After driver installation is complete, click "Close".
The driver should now be installed.
Installed printer Argox OS-2140 PPLA
Installing the Printer Driver
1. Turn off the printer. Plug the power cable into the power
socket on the wall, and then connect the other end of the
cable to printer's power socket. Connect the USB cable, Serial
cable, or Ethernet cable to the proper port on the printer and
on your computer.
2. Prepare the documentation and software CD-Rom from
printer package and then install to CD-Rom drive of your
computer. The CD-Rom will bring out the following prompt.
Click “Go”:
42
43
3. Under OS-2140 product selection prompt, choose Seagull
Driver version and then start installation:
Instead of the flash prompt above, another way to install
Seagull driver is to run the DriverWizard utility from the
Installation Directory where the Seagull driver files are located.
4. On the prompt, Windows Printer Driver, select “I accept…”
and click "Next".
44
45
5. Assign the directory to keep Seagull driver, (for example:
C:\Seagull) and click "Next".
6. Click "Finish".
46
47
7. Select Install printer drivers and Click "Next"
8. Select model & emulation - the following examples are based
on model OS-2140 PPLA:
A rgox OS-2140 PPLA
48
49
9. Select the port of the printer and click "Next".
10. Enter Printer name (i.e. Argox OS-2140 PPLA) and select
"do not share this printer”, and click "Next".
Argox OS-2140 PPLA
50
51
Argox OS-
2140 PPLA
11. Check all the data on the showing screen, if it is correct, click
"Finish".
Argox OS-2140 PPLA
USB001
7.1.9_M-5
12. After the related files have been copied to your system, click
"Finish".
Installing printer ‘Argox OS-2140 PPLA’…
52
53
13. After driver installation is complete, click "Close".
The driver should now be installed.
Installed printer Argox OS-2140 PPLA
Troubleshooting
Normally, when the printer is in not working properly, the "Power"
LED blinks continuously; while printing and communication
between the host and printer stops.
LED Diagnosis
Power and Ready LEDs blinking continuously indicates printer
errors. To understand the problem, please observe the Power and
Ready LEDs and refer to the following solutions:
LED Indicators: Power and Ready LEDs blink at the same tempo
Power LED Ready LED
ON ON
OFF OFF
Possible Problems
Miss-detect gap
Label stock out Supply the label roll
Label stock not
installed
Label jam Recover the jam
Check the label path
Check the label sensor
Install the label roll
Solutions Remarks
If you use a
continuous label roll
and run under
Windows, select
continuous media.
54
55
LED Indicators: Power and Ready LEDs blink alternately
Power LED Ready LED
ON OFF
OFF ON
Possible Problems
Ribbon out Supply the ribbon roll
Ribbon jam Recover the jam
Ribbon sensor error Replace ribbon sensor
LED Indicators: Only the Power LED blinks
Solutions Remarks
Not applicable to
direct thermal
type.
Power LED Ready LED
ON ON
OFF ON
Possible Problems
Serial IO error Check the baud rate Serial interface only
Memory full Add the extension
RAM(flash memory
card)
Cutter failed, or jam
at cutter
Hardware error Call for service
Check the cutter
Recover the jam
Solutions Remarks
Occurs only when
installing or setting the
cutter
LED Indicators: Only the Ready LED blinks
Power LED Ready LED
ON ON
ON OFF
Possible Problems
Print head too hot Printing will stop until the
print head cools to an
acceptable printing
temperature. When it
does, the printer will
automatically resume
operation.
Solutions Remarks
56
57
Miscellaneous
If the host shows "Printer Time out"
1. Check if the communication cable (parallel or serial) is
connected securely to your parallel or serial port on the
PC and to the connector on the printer at the other end.
2. Check if the printer power is turned on.
If the data has been sent, but there is no output from the printer.
Check the active printer driver, and see if Seagull driver for your
Windows system and the label printer has been selected.
Vertical streaks in the printout usually indicate a dirty or faulty
print head. (Refer to the following examples.)
Clean the print head. If the problem persists, replace the print
head.
Poor printout quality:
The ribbon may not be qualified.
The media may not be qualified.
Adjust the Darkness (heat temperature).
Slow down the print speed.
Refer to the next chapter and clean the related spare
parts.
Recovery
After correcting problems, simply press the panel button or restart
the printer to continue your print jobs. Make sure the LEDs are not
blinking and remember to resend your files.
58
59
Caring for Your Printer
Adhesives and coatings of media can over time transfer onto the
printer components along the media path including the thermal
print head and media sensor. This build-up can accumulate dust
and debris. Failure to clean the print head, media path, and media
sensor could result in inadvertent loss off labels, label jams and
possible damage to the printer.
Note: Turn off the printer before cleaning.
Cleaning
Clean the following components of the printer using a cotton bud
dampened with alcohol. Do not soak the cotton bud excessively.
Media Sensor
Debris or dirt on the paper sensor can cause a miss-read or
unstable detection of the label gap. Clean with a cotton bud
dampened with alcohol.
Thermal Print Head
Thermal paper stock and the ribbon release debris on the print
head, which degrades printing quality. Clean the print head with
methanol or isopropyl alcohol and a cotton bud. Do not touch the
heater element with your fingers. Debris or dirt on the roller should
be cleaned with alcohol.
TPH Cleaning Interval:
It’s strongly recommended to regularly clean print heads at
least when changing every one ribbon roll (in thermal transfer
printing mode), or every one label roll (in direct thermal printing
mode). In addition, if printers are operated under critical
applications and environments, or it’s found print quality is
degraded, please clean print heads more frequently.
TPH Cleaning Material:
Surface of print head’s heating element is very fragile. To
prevent from any possible damage, please use soft cloth or
cotton buds with “Ethanol” or “industry alcohol” to clean print
head surface.
It’s strongly recommended to wear hand gloves during cleaning
progress.
Do not touch print head surface by bare hands or with any hard
equipment. Water or spit should be kept away in case of
corrosion on heating elements.
TPH Cleaning Direction:
When cleaning print head, please always wipe in One-Way
Direction - from Left to Right only, or, from Right to Left only, to
clean “Heating Line” of print head gently without excessive
stress.
Do not wipe back and forth, to avoid dust, dirt, or ribbon residue
on cleaning cotton would be attached onto print head again.
(Please refer to below picture)
60
61
Special Caution:
Warranty of print heads will be void if print head serial number
is removed, altered, defected, or made illegible, under every
circumstance.
Replacing the Thermal Print Head
1. Switch off the power and wait for both LEDs to go off.
2. Unlatch the print head module.
3. Remove the ribbon.
4. Push the print head firmly into the casing and shift it to the
left. It will release from the module.
5. Disconnect the print head cable.
62
63
6. Disassemble the print head and the mounting bracket by
releasing screws.
7. Replace with a new print head. Reassemble the print head
module in reverse order. Be careful not to touch the print
head elements.
Important notice during TPH replacement
1. Heater line should NOT be touched by bare hands to
prevent any damage caused by ESD or corrosion.
2. Surface of heaters should NOT be hit or scratched by
sharp or hard things to prevent any damage by scratch.
3. Residue or contamination should NOT be removed by a
cutter to prevent any damage by dent or scratch.
4. Connector side should NOT be touched when cleaning
TPH to prevent delaminated solder between FPC and
wafer. Ink-jet characters could be erased, if cleaning cloth
was touched them on FPC or label.
5. Heater surface should be free from any condensation.
6. TPH should NOT be put heater surface down.
64
65
Technical Reference
General Specifications
Specification
Printing method
Printing
resolution
Printing speed Up to 4ips (102mm/s)
Printing length Max 100” (2540mm)
Printing width Max 4.16” (105mm)
Memory
CPU type 32 bit RISC microprocessor
Media sensor Reflective x 1
Operation
interface
Communication
Interface
Fonts
OS-2140D OS-2140 OS-214plus
Direct Transfer Direct Transfer/Thermal Transfer
203 dpi (8dots/mm)
8MB DRAM(6MB user available)
4MB Flash ROM(2MB user available)
LED indicator(Power/Ready)x2, Button(Feed)x1
Centronics Parallel,
RS-232(Baud rate 2400 ~ 115200 bps),
USB(2.0)
Internal character sets standard 5 alpha-numeric fonts from
0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)
Internal fonts are expandable up to 24x24 4 direction 0 ~ 270
rotation Soft fonts are downloadable
RS-232(Baud rate
2400 ~ 115200
bps), USB(2.0)
2~3ips(51~76mm/s)
Max 43”(1092mm)
1D Barcodes
OS-2140 & OS-2140D:
PPLA: Code 39 (standard/with checksum digit), Code 93
Interleaved 2of 5 (standard/with checksum digit/with human
readable check digit), EAN-8, EAN-13,UPC-A, UPC-E, Postnet,
Codabar, Code 128 subset A/B/C, UCC/EAN-128,
UCC/EAN-128 K-MART, UCC/EAN-128 , Random Weight,
Plessey, HBIC, Telepen, FIM, UPC2, UPC5, GS1 Data Bar
PPLB: Code 39 (standard/with checksum digit),Code 93
Interleaved 2 of 5 (standard/with checksum digit/with human
readable check digit), EAN-8 (standard/2 digit add-on/5 digit
add-on), EAN-13 (standard/2 digit add-on/5 digit add-on),
UPC-A (standard/2 digit add-on/5digit add-on), UPC-E
(standard/2 digit add-on/5 digit add-on), Postnet, Codabar,
Code 128 subset A/B/C, Code 128 UCC (Shipping Container
Code), Code 128 Auto, German, Postcode, Matrix 2 of 5,
UCC/EAN 128, UPC Interleaved 2 of 5, GS1 Data Bar
PPLZ: Code 39 (standard/with checksum digit), Code 93
Interleaved 2of 5 (standard/with checksum digit/with human
readable check digit), EAN-8, EAN-13, UPC-A, UPC-E,
Postnet, Codabar, Code 128 subset A/B/C, Code 128 Auto,
UPC/EAN-Extension, Plessey, Industrial 2 of 5 , Standard 2 of
5, Logmars, MSI, Code 11, GS1 DataBar
OS-214plus:
PPLA: Code 39, Code 93,Code 128/subset A/B/C, Codabar,
Interleaved 2 of 5, UPC A/E/2/5 add-on, EAN-13/8, UCC/EAN
128, Postnet, Plessey, Interleaved 2 of 5, Interleaved 2 of 5 with
a modulo 10 checksum, Interleaved 2 of 5 with a modulo 10
checksum and shipping bearer bars , Code 128, UCC/EAN
Code 128 Random Weight, HBIC, Telepen , FIM
PPLB: Code 39, Code 93, Code 128/ subset A,B,C, Codabar,
Interleaved 2 of 5, Interleaved 2 of 5 with check sum digit,
Interleaved 2 of 5 with human readable check digit, Matrix 2 of
5, UPC A/E 2 and 5 add-on, EAN-8/13, Code 128UCC,
UCC/EAN, Postnet
66
67
OS-2140 & OS-2140D:
Thickness:0.0025”~0.01”(0.0635~0.254mm)
PPLA/PPLB/PPLZ: MaxiCode, PDF417, Data Matrix (ECC 200
only), QR code, Composite codes
2D Barcodes
Graphic
Emulation PPLA/PPLB/PPLZ (OS-2140Z,OS-2140DZ only)
Software-Label
editing
Software-Utility Printer Utility, Font Utility
Media Type
Media
Ribbon N/A
Dimensions W 186mm x H 153mm x L 278mm
Weight 2.0kgs
Power Source
Operation
Environment
OS-214plus:
PPLA: PDF-417, MaxiCode, Data Matrix (ECC200 only) ,QR
Code, Composite codes
PPLB: MaxiCode, PDF-417, QR Code, Composite codes
OS-2140 & OS-2140D:
PPLA/PPLB: PCX, BMP, IMG, HEX,GDI, Binary raster(PPLB
Only)
PPLZ: GRF, Hex and GDI
OS-214plus:
PPLA: PCX, BMP, IMG, HEX ,GDI
PPLB: PCX, Binary raster , GDI
Windows Driver (Win 2003/XP/Vista/Windows 7) BarTender ,
Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal
paper or plain paper and fabric label
Max Width:4.33”(110mm) Min Width:1”(25.4mm)
Max roll capacity(OD):4.3”(109mm)
Core size:0.5”(12.7mm) (1”(25.4mm) optional)
Ribbon Width: 1”~4”
Ribbon roll – max OD: 1.45”(37mm)
Ribbon Length: max 92m
Core size – ID: 0.5”(13mm) with notch
Wax, Wax/Resin, Resin (Outside Ribbon)
Universal Switching Power Supply Input: 100V~240V,
1.5A, 50~60Hz, Output: 24VDC, 2.4A
Operation Temperature: 40F~100F (4C~38C), 10% ~ 90%
non-condensing,
Storage Temperature: -4F~122F (-20C~50C)
Optional Items
Agency Listing
Cutter, Stacker, RTC Card, ArgoKee, 2MB Asian Font Card
(Traditional Chinese, Simplified Chinese, Korean and
Japanese)
CE, FCC, cTUVus, CCC,
68
69
Fonts, Bar Codes and Graphics Specification
, PC,
851,869, 1252, 1250, 1251,
Codabar, Code 128 subset A/B/C, Code 128 UCC
The specifications of fonts, bar codes and graphics depends on
the printer emulation. The emulations PPLA, PPLB and PPLZ are
printer programming languages, through which the host can
communicate with your printer.
Printer Programming Language A, PPLA
Programming
Language
9 fonts with different point size
Internal fonts
Symbol sets
6 fonts with ASD smooth font.
Courier font with different symbol sets.
Courier font symbol set: Roman-8, ECMA-94
(Code pages)
Soft fonts Downloadable soft fonts
Font size
Character
rotation
Graphics
Bar code types
1x1 to 24x24 times
0, 90, 180, 270 degree, 4 direction rotation
PCX, BMP, IMG, HEX, GDI
Code 39 (standard/with checksum digit), Code 93
Interleaved 2of 5 (standard/with checksum
digit/with human readable check digit), EAN-8,
EAN-13,UPC-A, UPC-E, Postnet, Codabar, Code
128 subset A/B/C, UCC/EAN-128, UCC/EAN-128
K-MART, UCC/EAN-128 , Random Weight,
Plessey, HBIC, Telepen, FIM, UPC2, UPC5, GS1
Data Bar
PPLA
PC-A, PC-B, Legal, and
PC437 (Greek), Russian.
Printer Programming Language B, PPLB
Programming
Language
Internal fonts
5 fonts with different point size
8 bits code page : 437, 850, 852, 860, 863, 865,
Symbol sets
(Code pages)
Soft fonts Downloadable soft fonts
Font size
Character
rotation
Graphics
Bar code types
7 bits code page: USA, BRITISH, GERMAN,
1x1 to 24x24 times
0, 90, 180, 270 degree, 4 direction rotation
PCX, BMP, IMG, HEX, GDI, Binary raster
Code 39 (standard/with checksum digit),Code 93
Interleaved 2 of 5 (standard/with checksum
digit/with human readable check digit), EAN-8
(standard/2 digit add-on/5 digit add-on), EAN-13
(standard/2 digit add-on/5 digit add-on), UPC-A
(standard/2 digit add-on/5digit add-on), UPC-E
(standard/2 digit add-on/5 digit add-on), Postnet,
(Shipping Container Code), Code 128 Auto,
German, Postcode, Matrix 2 of 5, UCC/EAN 128,
UPC Interleaved 2 of 5, GS1 Data Bar
PPLB
857, 861, 862, 855, 866,
737,
1253, 1254, 1255
FRENCH, DANISH, ITALIAN,
SPANISH, SWEDISH and
SWISS.
70
71
Printer Programming Language Z, PPLZ
1 (0) font with scaling point size.
E, Postnet, Codabar, Code
Programming
Language
8 (A~H) fonts with different point size.
Internal fonts
Symbol sets
(Code pages)
Soft fonts Downloadable soft fonts
Font size
Character
rotation
Graphics
Bar code types
8 AGFA fonts: 7 (P~V) fonts with fixed different
point size (can’t scale).
USA1, USA2, UK, HOLLAND, DENMARK
, NORWAY, SWEDEN/FINLAND, GERMAN
, FRANCE1, FRANCE2, ITALY, SPAIN, MISC,
JAPAN, IBM850.
1x1 to 10x10 times
0, 90, 180, 270 degree, 4 direction rotation
GRF, Hex and GDI
Code 39 (standard/with checksum digit), Code 93
Interleaved 2of 5 (standard/with checksum
digit/with human readable check digit), EAN-8,
EAN-13, UPC-A, UPC128 subset A/B/C, Code 128 Auto,
UPC/EAN-Extension, Plessey, Industrial 2 of 5 ,
Standard 2 of 5, Logmars, MSI, Code 11, GS1
DataBar
PPLZ
Notes:
1. The bare core for the ribbon must be 11 cm in length. It
should have two opposite slits at two ends. If the ribbon
itself is less than 11 cm, it must be aligned with the bare
core in the left side when you install it.
72
73
Interface Specifications
USB Interface
This is port complies with USB 2.0 Full Speed.
Connector Terminal Pin Assignment
Pin
1
2
3
4
Signal Description
VBUS 5V
D -
D +
GND Ground
12
12
3 4
3 4
Differential data signaling
pair -
Differential data signaling
pair +
USB series “B” Receptacle Interface
Serial
The RS232 connector on the printer side is a female, DB-9.
Pin Direction Definition
1 Shorted to Pin 6
2 In RxData
3 Out TxData
4 N.C.
5 Ground
6 Shorted to Pin 1
7 Out RTS
8 In CTS
9 Out +5V
Note :
Pin 9 are reserved for KDU (keyboard device unit), therefore
do not connect these pins if you are using a general host like
a PC.
T
74
75
Ethernet
The following port complies with Ethernet communication.
Pin
Signal
1 Transmit+
2 Transmit3 Receive+
4 Reserved
5 Reserved
6 Receive7 Reserved
8 Reserved
Parallel (Centronics)
The parallel port is a standard 36-pin Centronics, which complies
with IEEE 1284 standard (compatibility mode). Pin assignments
are as follows:
Pin Direction Definition Pin Direction Definition
1 In n/STROBE 16 - Ground
2~9
10 Out nACK 18 -
11 Out BUSY 19~30
12 Out PE 31 In nINIT
13 Out SELECT 32 Out nFAULT
14 In nAUTOFEED 33~35
15 - N.D. 36 In nSELECTIN
In Data 1~8
17 -
-
- N.D.
Chassis
Ground
Peripheral
High
Signal
Ground
Auto Polling
Both the serial port and parallel port of this printer can be
activated at the same time, i.e the printer can simultaneously
communicate with two PCs via different ports. However as no port
contention is made for this printer, if both PCs transmit data at the
same time the data may become damaged in the receiving buffer.
76
77
Connection with host
Host 25S Printer 9P
(PC or compatible) (PC or compatible)
DTR 20 …… 1 DSR DTR 4 …… 1 DSR
DSR 6 …… 6 DTR DSR 6 …… 6 DTR
TX 2 …… 2 RX TX 3 …… 2 RX
RX 3 …… 3 TX RX 2 …… 3 TX
CTS 5 …… 7 RTS CTS 8 …… 7 RTS
RTS 4 …… 8 CTR RTS 7 …… 8 CTS
GND 7 …… 5 GND GND 5 …… 5 GND
Alternatively you can just connect the 3 wires in the following way.
Host 25S Printer 9P
(PC or compatible) (PC or compatible)
TX 2 …… 2 RX TX 3 …… 2 RX
RX 3 …… 3 TX RX 2 …… 3 TX
GND 7 …… 5 GND GND 5 …… 5 GND
pin 4 pin 4
pin 5 pin 6
pin 6 pin 7
pin 20 pin 8
The simplest way to connect to other hosts (not PC compatible) or
terminals is:
Host 9S Printer 9P
Host 9S Printer 9P
Printer Terminal/Host
Pin 2- RxData ……… TxData
Pin 3- TxData ……… RxData
Pin 5- Ground ……… Ground
In general, as long as the data quantity is not too large and you
use Xon/Xoff as flow control, it will be problem free.
Baud rate: 2400, 4800, 9600(default), 19200, 38400,
57600, 115200 bauds.(programmable by
command)
Data format: always 8 data bits, 1 start bit and 1 stop bit.
Parity: always non parity
Handshaking: XON/XOFF as well as CTS/RTS (hardware flow
control).
If you run an application with the bundled printer driver under
Windows and use the serial port, you should check the above
parameters and set the flow control to "Xon/Xoff "or "hardware".
78
79
Appendix I - Installing the Cutter
1. Turn off the printer power and unplug the power cable and
Serial / USB cable.
2. Remove the top cover.
3. Remove the two screws under the base housing.
4. Remove the whole print head assembly by releasing the 4
screws at its feet.
5. Add the cutter baby board to J16 on the main board.
Print Head Assembly
J16
80
81
6. Secure the four screws attaching the cutter.
Cutter
7. Plug the cutter's connector into the PCB's header
connector (J9).
8. Reattach the print head assembly by securing the 4
screws.
9. Click back the middle cover.
10. Secure the two screws for the base housing.
11. Click the top cover into place.
Appendix II - Installing the Extension Card
Extension Card designated for all optional extension modules.
For example, RTC card and Add-on card.
Install the extension card into the printer as follows:
1. Turn off the printer power.
2. Remove the top cover.
3. Release the two screws at the bottom of the base housing.
82
83
4. Remove the middle cover.
5. Mount the extension card to J14 on the main board.
Slot for
Extension card
84
6. Click back the middle cover.
7. Secure the two screws for the base housing.
8. Click the top cover into place.
85
Loading...
