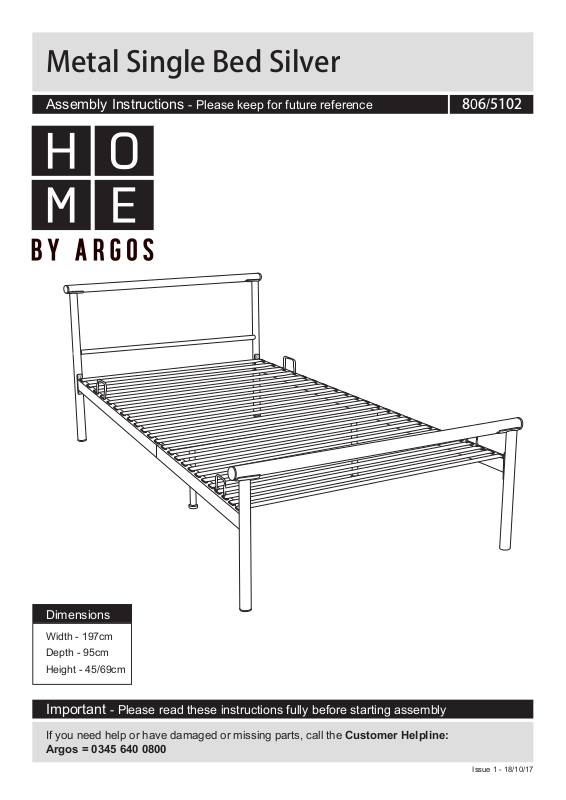

Metal Single Bed Silver
Assembly Instructions - Please keep for future reference
806/5102
Dimensions
Width - 197cm
Depth - 95cm
Height - 45/69cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
Issue 1 - 18/10/17
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• During assembly do not stand
or put weight on the product, this
could cause damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit.
• To reduce the
likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• Unit weight: 15.6kgs.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the
bolts.
• Regularly check and ensure
that all bolts and fittings are
tightend properly.
1
If you have damaged or missing components, call the
Components - Parts
Customer Helpline: Argos = 0345 640 0800
Please check you have all the parts listed below
1
Left headboard post
(66.5 x 5.5 x 3cm)
5
Top rail x 2
(Ø2.8 x 95.5cm)
7
Long side rail x 2
(103.5 x 11 x 2.5cm)
2
Right headboard post
(66.5 x 5.5 x 3cm)
3
Left footboard post
(43 x 5.5 x 3cm)
6
Rail
(Ø1.6 x 89cm)
8
Short side rail x 2
(96 x 11 x 2.5cm)
4
Right footboard post
(43 x 5.5 x 3cm)
9
Slat x 24
(92 x 3 x 2.5/Ø1.6cm)
11
Centre leg x 2
(31.5 x 8 x 2.5/Ø1.9cm)
10
Centre rail
(90 x 8 x 3cm)
2
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
A
M6 x 38mm Bolt x 2
D
Mattress stopper x 4
B
M6 x 15mm Bolt x 22
E
Allen key x 1
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
105
C
Adjustable footing x 2
110 115 120 125 130 135 140 145 150 155 160 165 170
3
Assembly Instructions
Step 1
Assembling headboard
and footboard
a: Position the
2
headboard posts ,
and rail as shown. Fix
6
through holes using bolts
A
then tighten with allen
E
key .
b: Position the top rail
on the headboard posts
2
1
& as shown. Fix
through holes using bolts
B
then tighten with allen
E
key .
Repeat above steps to
assemble the footboard
posts & and top
5
rail .
43
Important:
Do not fully
tighten the bolts
at this stage.
1
5
a:
A
b:
5
A
1
B
1
6
B
5
B
6
A
2
5
B
B
3
2
4
Step 2
Assembling side rails
Insert the long side rail
into short side rail as
shown. Fix through holes
using bolts then
B
tighten with allen key .
7
8
E
B
8
7
B
7
7
8
B
8
4
Assembly Instructions
Step 3
Attaching centre legs &
centre rail
a: Position the
assembled side rails
8
7
& and centre rail
as shown. Fix
10
through holes using bolts
B
then tighten with allen
E
key .
b: Position the centre
11
legs on the centre rail
10
as shown. Fix through
holes using bolts and
tighten with allen key .
c: Fix the adjustable
footing to centre legs
by turning it clockwise as
shown.
C
Important:
Do not fully
tighten the bolts
at this stage.
B
E
11
a: b:
7
8
B
B
10
B
B
7
10
11
c:
11
B
B
C
8
B
B
10
8
C
11
B
B
B
B
C
11
7
Step 4
Attaching side rails
Position the assembled
siderails between the
headboard and footboard
as shown. Fix through
holes using bolts and
tighten with allen key .
Important:
Two persons are
required to hold
on the frames
to assist the
assembly.
Important:
Do not fully
tighten the bolts
at this stage.
B
E
B
2
1
B
B
7
8
2
B
B
B
B
3
8
8
B
B
7
B
4
5
Assembly Instructions
Step 5
Attaching slats
Position the slats as
shown and insert into
holes on the side rails
8
and . Lock the slats
into position by pressing
down firmly.
Important:
Fully tighten all
the bolts
assembled in
previous steps
using the allen
E
key .
9
7
9
7
8
9
x24
7
7
8
Step 6
a: Attaching mattress
stoppers
Insert the mattress
stoppers into holes on
the side rails & as
shown.
b: Aligning the legs
Tighten all bolts on the
unit using allen key .
Use the adjustable
footing on the bottom
of the centre legs to
adjust its height making
sure it is at an even level
on the floor.
D
7 8
E
C
11
a:
D
D
7
D
8
7
D
11
8
C
b:
11
C
11
C
D
7
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
