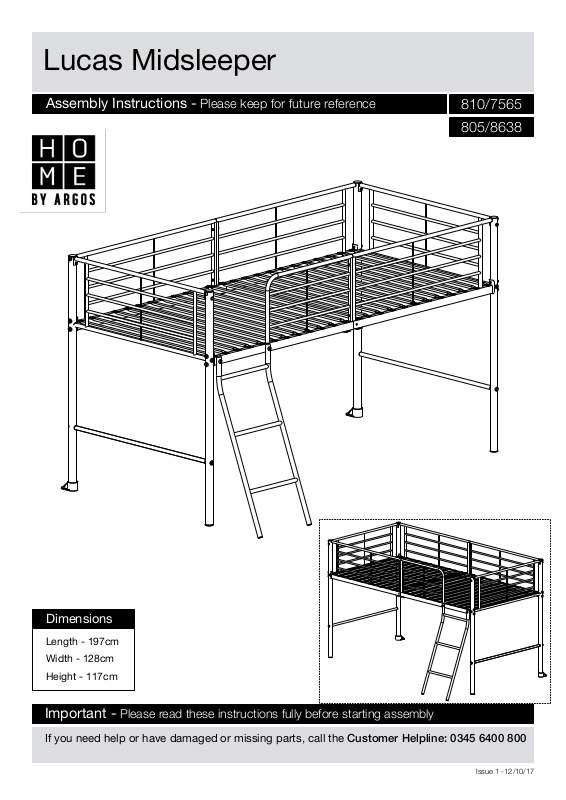

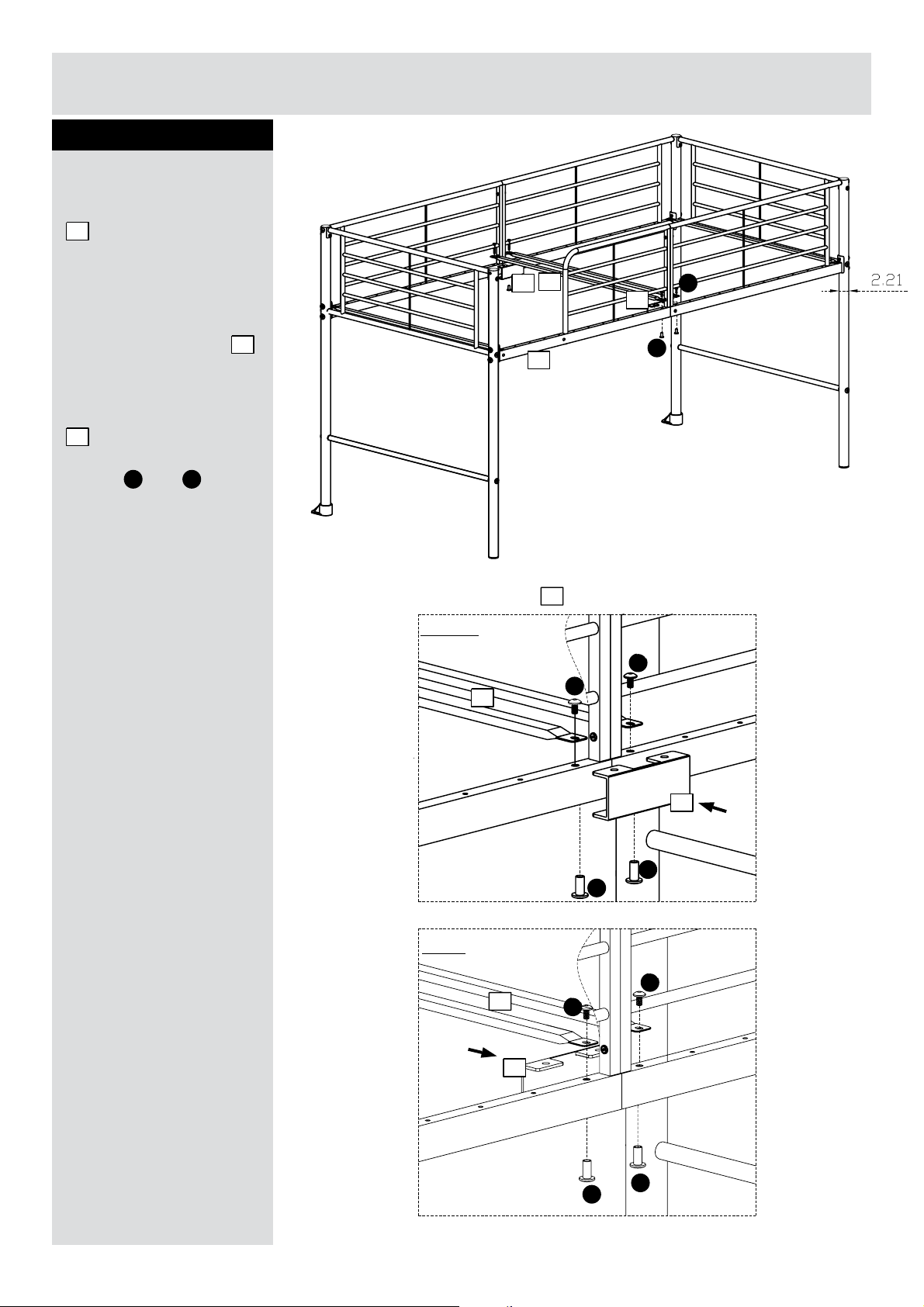

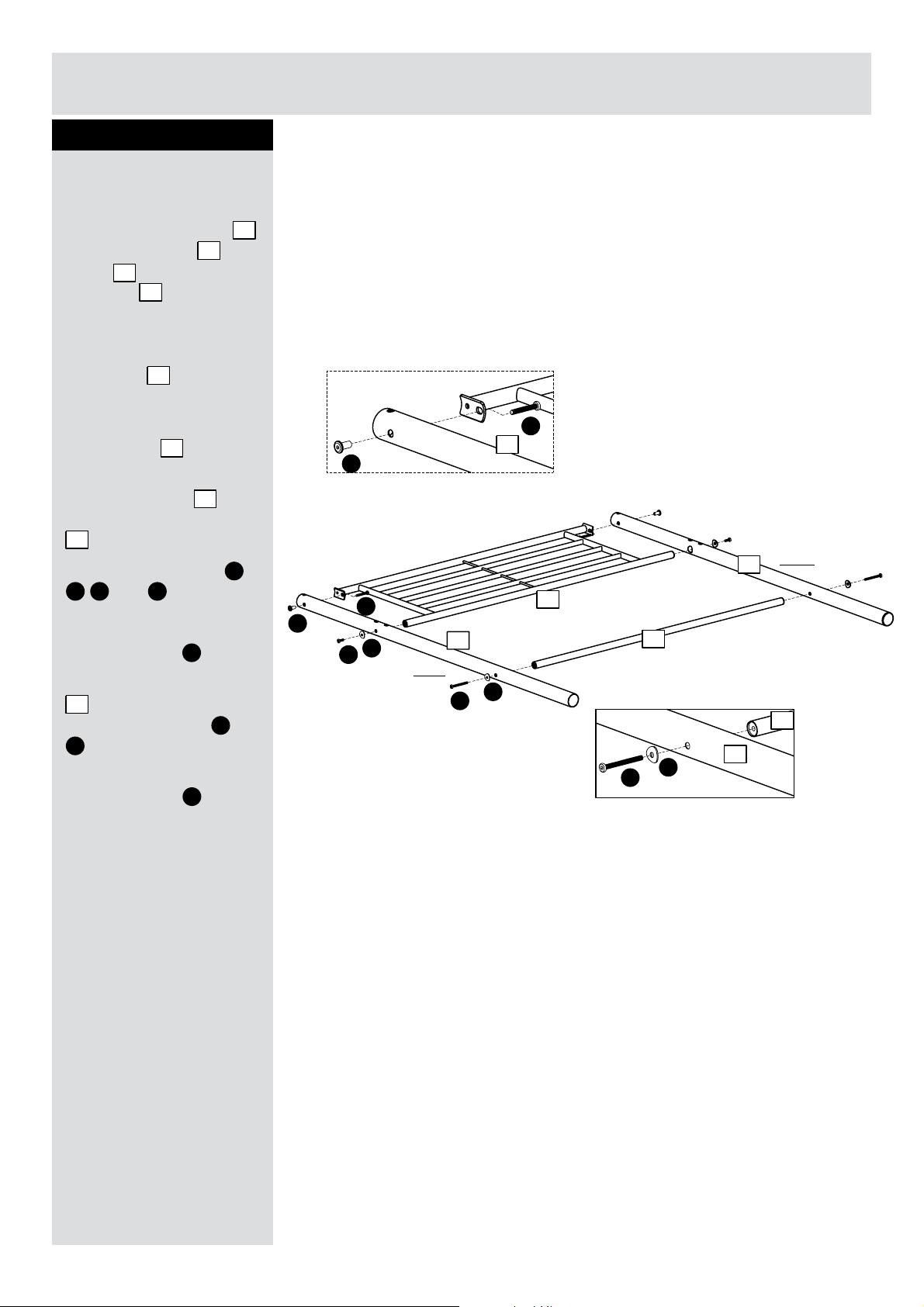

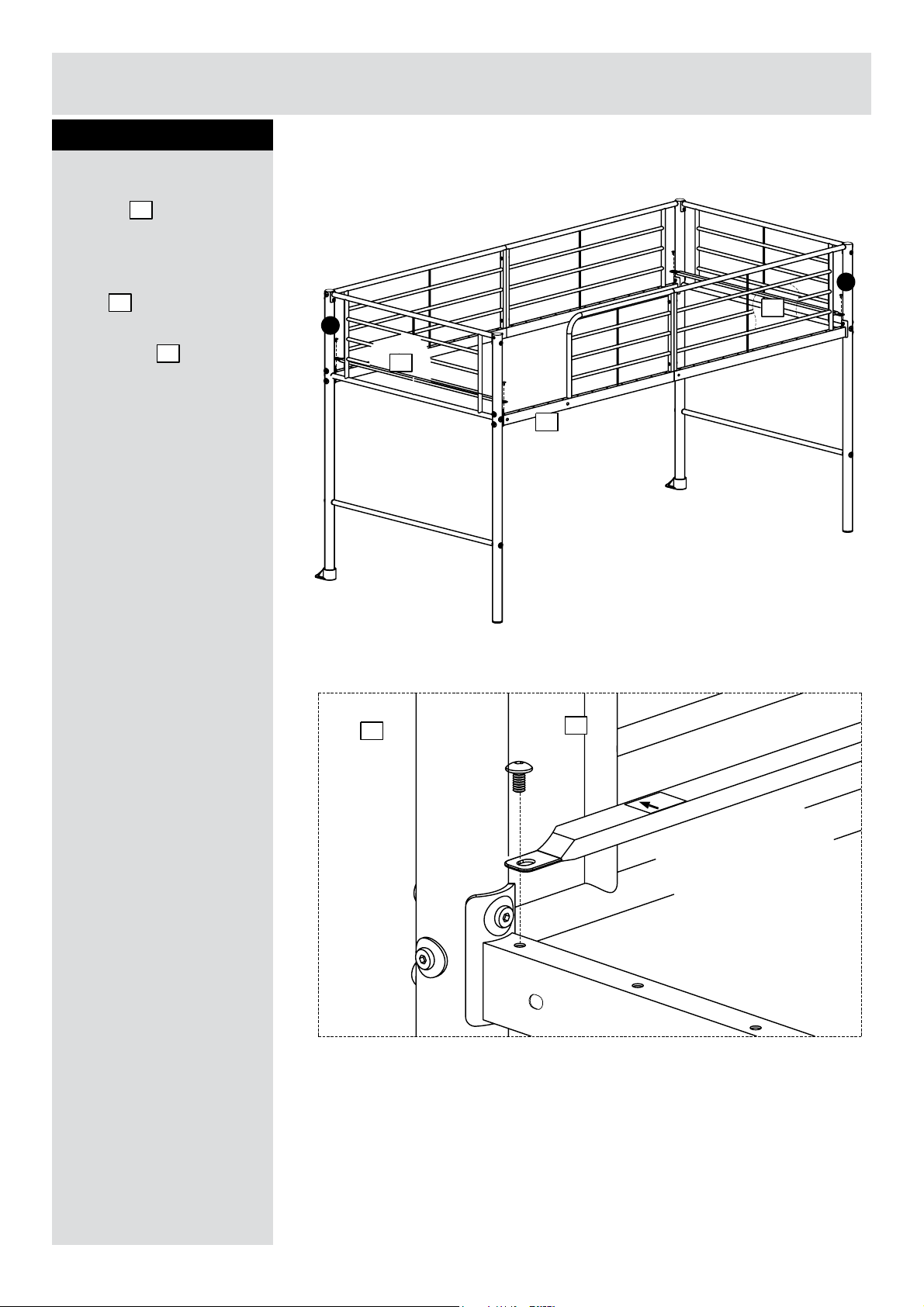

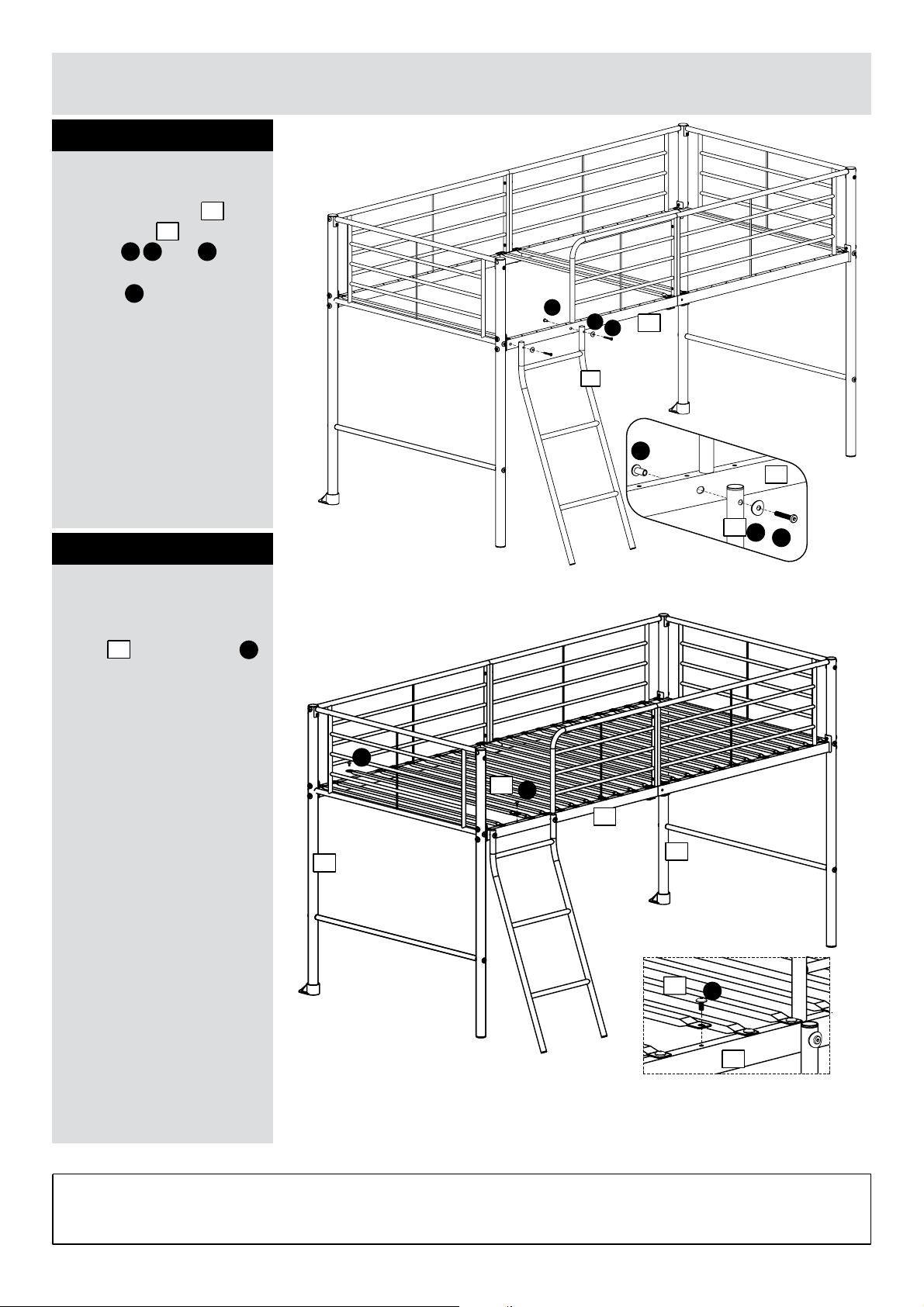

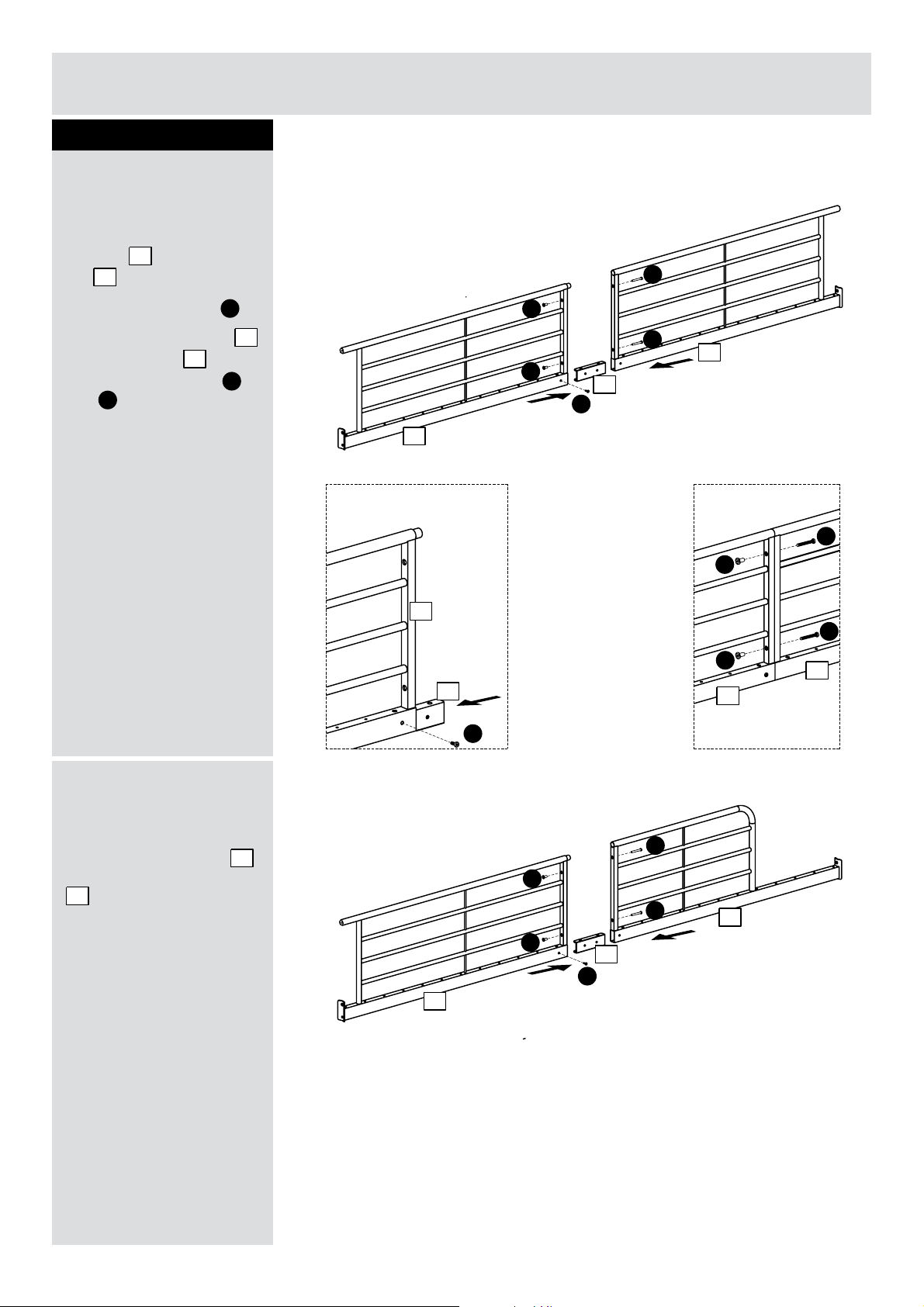

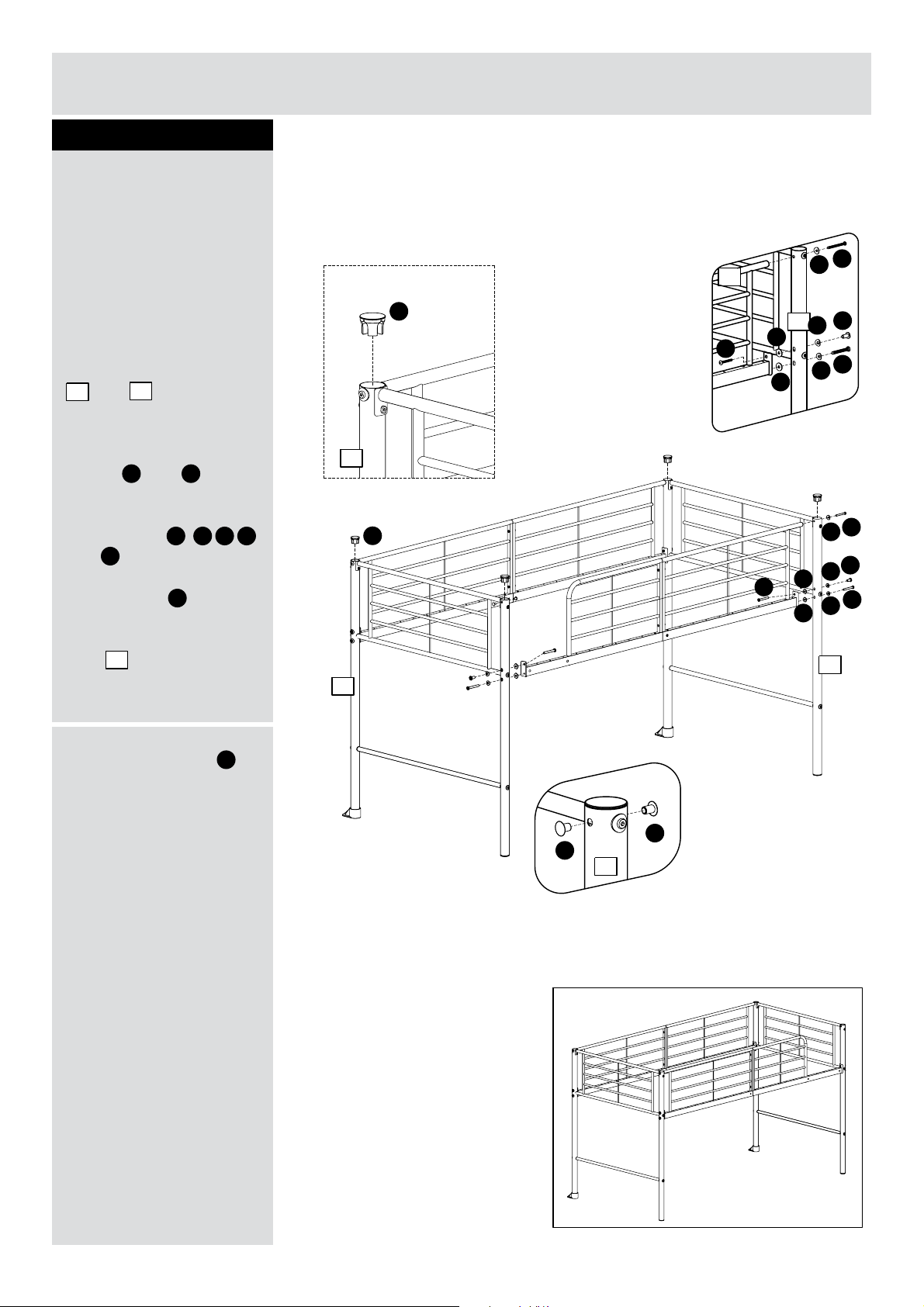

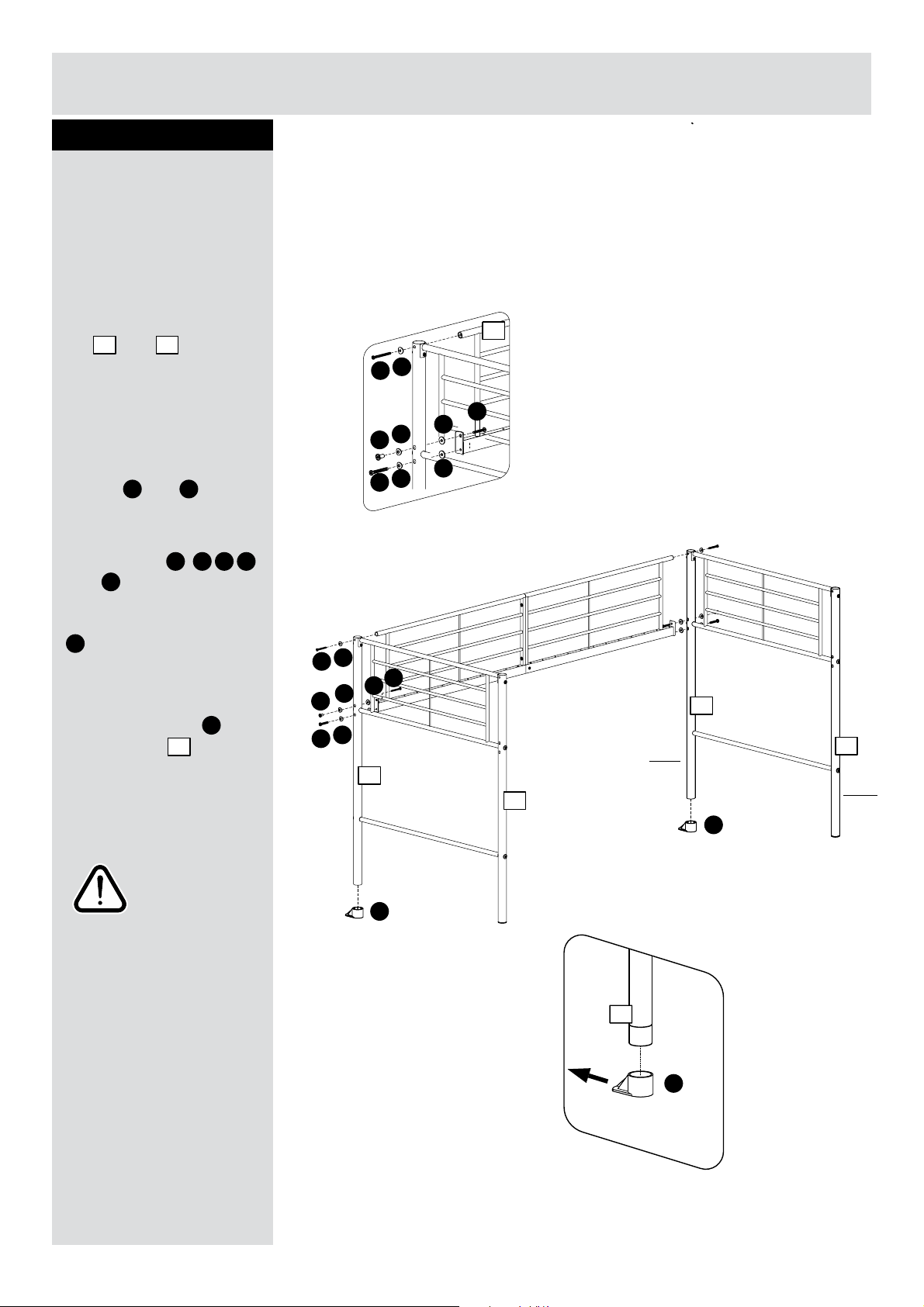

Argos 8058638 ASSEMBLY INSTRUCTIONS

Lucas Midsleeper

Important - Please read these instructions fully before starting assembly

Dimensions

If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800

Issue 1 -12/10/17

810/7565

Assembly Instructions - Please keep for future reference

Length - 197cm

Width - 128cm

Height - 117cm

805/8638

1

Important – Please read these instructions fully before starting assembly

• Check you have all the
components and tools listed on
pages 2 and 3.

• Remove all fittings from the
plastic bags and separate them
into their groups.

• Keep children and animals
away from the work area, small
parts could choke if swallowed.

• Parts of the assembly will be
easier with 2 people.

• Make sure you have enough
space to layout the parts before
starting.

• Assemble the item as close
to its final position (in the same

room) as possible.

• Assemble on a soft level

surface to avoid damaging the
unit or your floor.

• Dispose of all packaging

carefully and responsibly.

• Place the product on flat and
steady surface during use.

• Keep these instructions for
future use.

• To ensure an easier assembly,

we strongly advise that all

fittings are only finger tightened

during initial assembly. Only
upon completion of the
assembly should all fixing
points be fully tightened.

• Periodically check that all
fixings remain fully tightened.

Mattress height safety notice

• Safety: To avoid any risk of
suffocation to animals or
children dispose of the plastic
bags immediately.

• Cleaning: As with all surfaces
clean with a damp cloth and
mild detergent, do not use
bleach or abrasive products.

Care and maintenance

• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.

• From time to time check that
there are no loose screws on
this unit.

• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.

Important

1) Please note the maximum mattress height is indicated on the corner post inside the opening at the
top of the ladder.

2) This is legal requirement and it is vital that the mattress does not exceed this mark.

3) Maximum thickness of the mattress is 16cm:The top of the mattress shall not come above the line
marked on the bed.

4) All assembly fixings should always be tightened properly.Take care to ensure that no fixings are loose.

5) Recommended size of the mattress for the top bunk is 90×190cm.

6) The bed complies with EN747-1:2012+A1:2015

Warning

1) WARNING "High beds and the upper bed of bunk beds are not suitable for children under six years
due to the risk of injury from falls".

2) WARNING "Bunk beds and high beds can present a serious risk of injury from strangulation if not
used correctly. Never attach or hang items to any part of the bunk bed that are not designed to be
used with the bed, for example, but not limited to ropes, strings, cords, hooks, belts and bags".

3)

WARNING "Children can become trapped between the bed and the wall, a roof pitch, the ceiling,

adjoining pieces of furniture (e.g. cupboards) and the like. To avoid risk of serious injury the distance
between the top safety barrier and the adjoining structure shall not exceed 75 mm or shall be more
than 230 mm".

4)

WARNING Do not use the bunk bed/high bed if any structural part is broken or missing.

• The ventilation of the room is

necessary in order to keep the
humidity low and to prevent
mould in and around the bed.

• Please climb the bed through the stairs,

Do not climb from another way.

IMPORTANT - READ CAREFULLY - RETAIN FOR FUTURE REFERENCE

Please check you have all the parts listed below

1

Components - Parts

2

Front corner post x 2 (3.8 x 116.4cm)

8

Ladder (85 x 35.7cm)

3

End panel x 2 (96.1 x 35.1cm)

4

Lower stretcher x 2 (1.9 x 89.1cm)

7

Front guard rail (95.5 x 37.3cm)

5

Rear guard rail (95.5 x 37.3cm)

10

Slats x 22 (□2 x 1 x 95cm)

6

Guard rail x 2 (97 x 37.3cm)

9

Slats x 2 (□2 x 1 x 95cm)

2

Rear corner post x 2 (3.8 x 116.4cm)

12

External bracket x 2 (4.3 x 2.3 x 12cm)

11

Internal bracket x 2 (3.7 x 1.7 x 12cm)

Please check you have all the fittings listed below

Components - Fittings

3

If you have damaged or missing components,

call the Customer Helpline:

0345 6400 800

Note:

The quantities below are the correct amount to complete the assembly. In some cases more

fittings may be supplied than are required.

A

B

C

M6x15mm Allen screw x 4

D E

M6x40mm Allen screw x 4

F

Curved washer-large x 8

G H

J

Nut x 18

K M

Plastic plug x 2

A

Curved washer-small x 13

Plastic washer x 8

M6x60mm Allen screw x 7

M8x60mm Allen screw x 4

M6x10mm Allen screw x 46

L

Plastic cap x 4

M6x35mm Allen screw x 6

R

M6x42mm Allen screw x 4

N

M6x25mm Allen screw x 4

P

Q

Small allen key x 2 Large allen key x 1

S

0

5

10 15 20 25 30 35 40

45

50

55

60 65 70

75

80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170

0

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115120 125 130135 140 145150

1 2 3 4 5 6

Ruler/tape
measure

Ruler - Use this ruler to help correctly identify the screws

Tools required

Foot x 2
