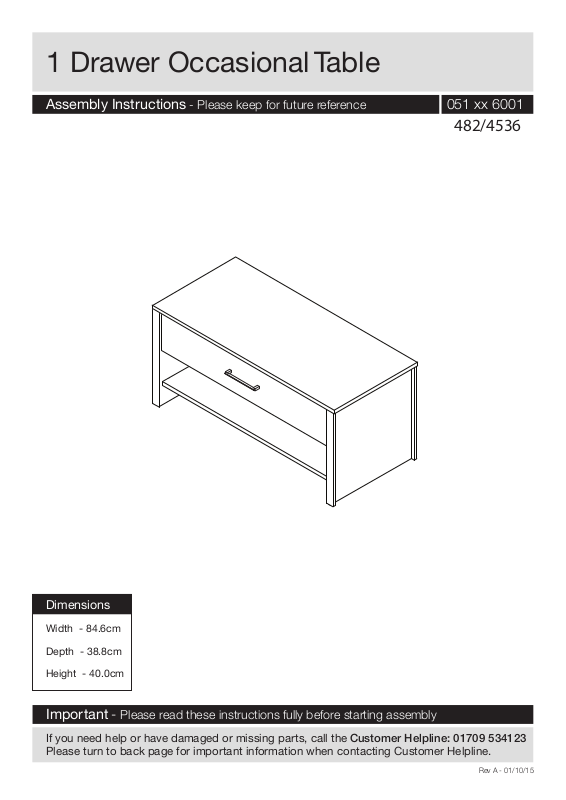

Assembly Instructions -Please keep for future reference
051 xx 6001
482/4536
Dimensions
Width - 84.6cm
Depth - 38.8cm
Height - 40.0cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 01709 534123
Please turn to back page for important information when contacting Customer Helpline.
Rev A - 01/10/15
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and seperate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
Parts of the assembly will be
easier with 2 people.
We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
Do Not dispose of packaging
until assembly complete.
Dispose of all packaging
carefully and responsibly
when assembly complete.
To protect the furniture,
position the furniture out of
direct sunlight and away from
direct heat sources such as
radiators and fires.
Do not place the furniture in
excessively dry and humid
conditions.
From time to time check that
there are no loose screws on
this unit.
Always lift furniture when
moving it (do not drag)
otherwise the joints may be
damaged.
Do not place hot or cold
objects on the surface, always
use protective mats to avoid
marking the furniture.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Clean spills up immediately
Dust surfaces with a soft, dry,
lint free cloth.
More stubborn marks can be
removed using a damp
(not wet) cloth. Wipe the
surface dry immediately
using a soft lint free cloth.
Do not use detergents, abrasive
cleaning products or cleaning
products that contain ammonia,
solvents or silicone as these
may damage the surface finish.
1
Components - Panels
Please check you have all the panels listed below
Important - Thick lines indicate finished edges
0024
0029
0030
Draw Front
(77.2x15.7cm)
Top (84.6x38.8cm)
Plinth (77.6x76cm)
Left drawer side (30x10cm)
Code -
622xx7002
0025
0028
Drawer back
Code -
Bottom (77.6x34.4cm)
Back Rail (77.6x15.6cm)
684xx6520
Trim x 4
(384x30x12cm)
624xx7007
(74.5x10cm)
0026
End Panel x 2
(38.4x37.6m)
Right drawer side
Code -
(30x10cm)
623xx7002
2
If you have damaged or missing components, call the
Components-Fittings
Customer Helpline: 01709 534123 Please turn to back page
for important information when contacting Customer Helpline.
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly, In some case more fittings
may be supplied than are required.
A
D
K
Large cam x 16
Code 760001103
18mm bolt x 2
Code 700002021
Runner x 2
Code 760001040
B
Metal dowel x 18
Code 760003004
E
Tube of glue x 1 - Code 680001037
M
8mm screw x 4
Code 700003510
C
I
N
Small cam x 2
Code 760003005
Handle x 1
Code 644003511
9mm bolt x 2
Code 690001078
Tools required
Cross headed screwdriver
(small)
Small Hammer
Tape Measure
Eye protection
(when using a
hammer)
Ruler - Use this ruler to help correctly identify the screws
mm
10
0
20
30
3
40
50
60
70
80
90
100
110
120
130
140
150
Drill
160
170
Exploded View
684xx6520
0026
0024
0028
0025
622xx7002
0026
0029
684xx6520
624xx7007
623xx7002
7019
0030
4
Assembly Instructions
Step 1
Fitting dowels to top
panel.
B
Note: Insert metal
dowels as far as
B
shown by arrows.
Do not over tighten.
Step 2
Fitting cams to the
bottom panel
Fittings you will need for this step:
B
x4
B
B
0024
Fittings you will need for this step:
A
x4
A
B
B
A
Note: Ensure cam
arrow points towards
the edge with hole.
Step5
Step 3
Fitting cams to the
plinth and back rail.
A
A
x8
A
0025
A
A
A
A
0028
A
A
A
A
0029
Note: Ensure cam
arrow points towards
the edge with hole.
5
A
A
Assembly Instructions
Step 4
Attaching runners to
end panels
Important :Lay end panels out
as shown
Position the runner so
that the second hole
from the front of the
runner lines up with the
pre-drilled hole nearest
to the edge of the panel.
Use screws to secure
Front of runner
the runner.
Slide the runner forward
revealing the back of the
runner. The second hole
to the back of the runner
should now line up with
the second pre-drilled
hole.
M
K
x2
M
x4
0026
0026
M
K
M
K
6
Assembly Instructions
Step 5
Fitting cams & dowels
to the end panels.
A
Note: Ensure cam
arrow points towards
the edge with hole.
B
x12
A
A
x4
A
B
B
0026
B
B
B
B
B
B
B
B
0026
A
B
B
A
B
Note: Insert metal
dowels as far as
B
shown by arrows.
Do not over tighten.
7
Assembly Instructions
Step 6
Drawer assembly
B
a: Insert dowels into
drawer fronts .
Note: Insert metal
dowels as far as
shown by arrows.
Do not over tighten.
0030
B
C
B
x2
Fittings you will need for this step:
C
x2
Small
B
a:
b:
B
0030
Right hand side
623xx7002
b: Insert small cams
into left
and right
drawer sides.
Note: Ensure cam arrow
points towards the edge
with hole.
622xx7002
623xx7002
C
c: Insert wooden dowels
in drawer back
into holes in
624xx7007
left
622xx7002
right hand
623xx7002
drawer sides.
Left hand side
622xx7002
Left hand side
622xx7002
C
C
c:
Drawer Back
624xx7007
Continued on next page.
Right hand side
623xx7002
8
Assembly Instructions
Step 6 - Continued
Drawer assembly
Continued...
d: Using glue put a
few drops into grooves in
drawer sides and back.
Slide drawer bottom
7019
into grooves in
left,right drawer sides
and drawer back.
Ensure foil on the
drawer bottom is facing
upwards.
e: Insert cams already
inserted in left and right
drawer sides onto
dowels in drawer
front .
B
0030
E
C
E
x1
d:
7019
FOIL FACE
e:
Ensure drawer sides are
pressed against drawer
front.
C
Turn cam 180 degrees
to lock
f: Secure handles to
drawer front
using bolts .
Important:
Please allow 40 minutes
for the glue to set before
using the drawer.
0030
I
D
D
x2
0030
I
x1
f:
D
D
0030
I
9
Assembly Instructions
Step 7
Connect end panel to
back rail.
Connect the dowels in
the end panel
into the cams in the
back rail
0026
0028
Turn cams 180° to lock.
Step 8
Connect end panel to
bottom.
Connect the dowels in
the end panel
into the cams in the
bottom,
0026
0025
0028
0026
Turn cams 180° to lock.
0025
0026
10
Assembly Instructions
Step 9
Connect end panel to
plinth.
Connect the dowels in
the end panel
into the cams in the
plinth
0029
0026
Cams to back
of unit
Turn cams 180° to lock.
Step 10
Connect end panel to
bottom, back rail and
plinth.
Ensure plinth sits
flush.
0029
Ensure plinth is
not overhanging.
0026
0026
Connect end panel
to bottom , back rail
and plinth
0028
Turn cams 180° to lock.
0025
0026
0029
0028
0025
0029
11
Assembly Instructions
Step 11
Connect end panels to
top.
Stand unit upright.
Warning:
May require
2 people
Connect the dowels in
the top panel
into the cams in the
end panels
Turn cams 180° to lock.
0024
0026
0026
0024
0026
Step 12
Attach silver trims
Turn unit over.
Remove protective film
from silver trim.
Warning:
May require
2 people
Locate the notch on
silver trim into
groove on ends .
Ensure the silver
trims are positioned
correctly.
To insert silver trims
use a hammer, place a
cardboard packing piece
between the hammer
and silver trims to
protect the silver
trims.
0026
0026
0026
684xx6520
Trim
TO ATTACH TRIMS TO REAR OF UNIT
TURN UNIT ON OPPOSITE FACE
AND REPEAT STEP 12
12
Assembly Instructions
Step 13
Lift unit up and
locate drawer
Warning:
May require
2 people
For this step we
recommend you follow
the helpful hints page.
N
x 2
Detailed View
N
2nd Hole
13
Assembly Instructions
Step 14
Locate drawers helpful
hints
a: Pull sliding part of
drawer runners out
so they are fully
extended.
K
b: Locate drawer onto
runners.
c: Locate screwdriver
into second threaded
hole in drawer runner .
K
d: Keeping screwdriver
in place push the drawer
in until the screwdriver
pushes against the
panel.
Remove the screwdriver.
A
C
B
K
K
D
K
2nd Hole
e/f: Pull drawer out slowly
and line the front hole in the
drawer side with the 2nd
threaded hole in runner .
Holding runner and
drawer side together
insert bolts through the
drawer side and
into threaded hole in
runner .
Now repeat these
steps for the other
side of the drawer.
N
J
LK
K
E
F
N
2nd Hole
14
Assembly Instructions
Congratulations! Your unit is complete.
Important Information
If you need help or have damaged or missing parts, call the Customer Helpline:
8am - 4.30pm (Monday to Thursday)
01709 534123
(by contacting the customer service line your statutory rights are not affected)
Please have the following information to hand:
>> Unit Description
>> Product Code
>> Product Colour
>> Place of Purchase
>> Catalogue Ref. No.
>> Item Code
>> Assembly Instructions
We do have an answer machine should you contact us out of office hours, so in addition to
the above information could you leave your name, address, daytime telephone number and
the nature of your call on the answerphone. All calls will be actioned asap.
8am - 2.30pm (Fridays)
You can also e-mail your requests to us at:
customer.helpdesk@addspacefl.co.uk
Alternatively, you can write to us at: Customer Service Department, Addspace Furniture Limited,
Braithwell Way, Hellaby Industrial Estate, Hellaby, Rotherham, South Yorkshire, S66 8QY.
