MADE IN
BRITAIN
Dimensions
Width - 38cm
Depth - 40cm
Height - 44.5cm
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 4 - 09/09/14
Important - Please read these instructions fully before starting assembly
274/6661
228/9300
258/1187
1 Drawer Bedside
358/9896
331/5929
346/8302
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 10kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
Components - Panels
Please check you have all the panels listed below
2
1
3
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
4
2
8
7
Drawer Back (W314-124)
(314 x 124mm)
Drawer Base (T325-367)
(325 x 367mm)
11
9 10
5
Left Side (D2350A)
(422 x 372mm)
Drawer Front (D2353A)
(367 x 176mm)
Right Side (D2351A)
(422 x 372mm)
Base (D2352A)
(347 x 368mm)
6
Plinth (D2354A)
(347 x 60mm)
Back (X380-373)
(380 x 373mm)
Top (D2349A)
(380 x 396mm)
Left Drawer Side (W370-124LH)
(370 x 124mm)
Right Drawer Side (W370-124RH)
(370 x 124mm)
Please check you have all the fittings listed below
Tools required
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 4
B
Metal dowel (F901) x 10
C
D
Large locking
nut (F900) x 8
E
Small locking
nut (F3) x 2
F
H
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Nail (F51) x 10
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
J
9mm Screw (F74) x 2
9mm Screw (F73) x 4
Drawer runner (F1004) x 2
G
Knock-in Peg (F171) x 4
K
Handle (F847a ) x 1
a
K
Handle Screw (F847b) x 2
b
I
Plastic Nail (F91) x 4
L
Wedgefix (F639) x 2
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
Step 1
B
B
B
7
Step 2
Prepare the drawer
front
Screw 2 metal dowels
into the holes shown on
the back of the drawer
front .
Note: Tighten metal
dowels up fully against
the panels.
B
7
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
F
8
9
Attach the drawer
sides to the drawer
front
Push the left drawer side
. and right drawer side
. onto the back of the
drawer front .
Use a screwdriver to
tighten the 2 small
locking nuts fitted to
the left drawer side
and right drawer side .
Note: Turn the small
locking nuts as far as
they will go - more than
1/2 a turn.
8
9
7
F
F
8
9
F
B
B
F
7
Small groove
9
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
Note: The locking nuts can be on
either surface of the drawer sides.
Make sure that the small groove
is on the inside, as shown.
F
F
8
9
9
8
Assembly Instructions
5
Step 4
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 6
11
8 9
7
10
8 9
11
10
10
G
8 9
Attach the handle
Attach a handle to
the drawer front
using 2 screws .
7
7
11
K a
K a
K b
325mm
G
G
Step 7
Fit the wedgefixes
Turn the drawer
assemblies over and
slide 2 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
L
G
G
L
L
L
10
8
9
11
9
11
8
7
K b
K b
7
Assembly Instructions
6
Step 8
10mm
A
Finished
front edge
C
J
c:
b:
a:
Prepare the left side
a: Place a runner on
the left side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the left side .
c: Insert 1 large locking
nut into the left side
. as shown.
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Tap a wooden dowel
into the left side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Screw 3 metal dowels
into the left side .
1
J
C
C
E
A
B
1
C
J
1
Finished front edge
C
1
1
A
E
B
B
E
B
1
1
1
Finished front edge
Finished front edge
Assembly Instructions
7
Step 9
A
Prepare the right side
a: Place a runner on
the right side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the right side .
c: Insert 1 large locking
nut into the right side
. .
Tap a wooden dowel
into the right side .
Screw 3 metal dowels
into the right side .
2
J
C
C
a:
b:
E
Finished
front edge
C
J
c:
2
2
2
A
B
C
J
C
2
2
2
B
B
E
Finished front edge
2
Finished front edge
Finished front edge
B
Finished
front edge
Assembly Instructions

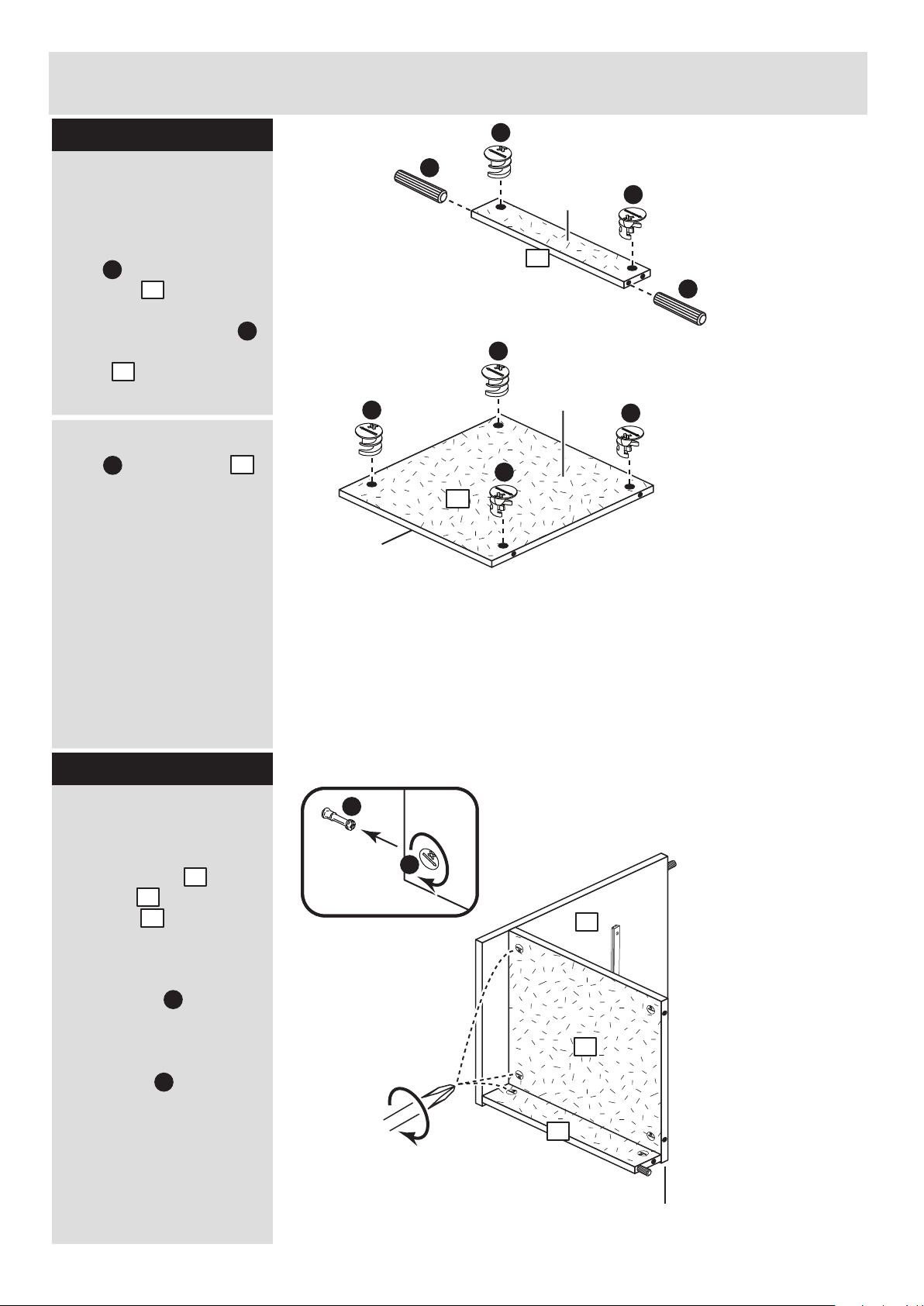

Prepare the plinth and
base
a: Insert 2 large locking
nuts into the holes in
the plinth .
Tap 2 wooden dowels
into the ends of the
plinth .
b: Insert 4 large locking
nuts into the base
6
Step 10
Step 11
8
E
A
6
a:
Fit the plinth and base
to the right side
Push the plinth and
the base onto the
right side .
Use a screwdriver to
tighten the 3 large
locking nuts fitted to
the plinth and base.
Note: Turn each large
locking nut as far as it
will go - more than 1/2 a
turn.
E
E
B
E
6
2
E
4
.
b:
4
A
A
E
E
6
E
E
E
E
4
Plain
chipboard
surface
Plain
chipboard
surface
Finished
front edge
2
4
6
Rounded
front edge
Assembly Instructions
9
Step 12
Fit the left side
Push the left side
onto the assembly.
Use a screwdriver to
tighten the 3 large
locking nuts fitted to
the plinth and base
. .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Step 13
1
E
4
E
Prepare the top
Screw 2 metal dowels
into the top .
Note: Tighten metal
dowels up fully against
the panel.
Step 14
B
3
Fit the top
Push the top onto
side panels and .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the inside of the side
panels and .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
3
1 2
1 2
E
E
6
B
B
Rounded
front edge
3
4
6
1
3
1
2
Assembly Instructions
10
Step 15
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should
be spaced about 150mm
apart.
5
D
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
5
5
b:
D
y
y
x
x
Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
I
1
2
Stand the unit up
for the next step.
I
I
I
I
1
2
Assembly Instructions
11
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 16
Fit the drawer
Slide both the runners
forward and locate the
drawer sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner .
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
Assembly is complete
H
J
2nd threaded
hole
H
8
9
J
J
H
8
J
ALR3001
H
H
8
9
