Hamlin - 4 Drawers Chest
Assembly Instructions - Please keep for future reference
h y g e n a
152/6909
144/9691
152/5687
Dimensions
Width - 80,2cm
Depth - 44,8cm
Height - 90cm
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400 800
Issue 1 - 28/10/13
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and separate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be
easier with 2 people.
Dispose of all packaging
carefully and responsibly.
Care and maintenance
Avoid placing the furniture in
direct sunlight as this will cause
the timber to prematurely age.
Use a dry cloth to clean the
product, furniture polish is
not recommended.
From time to time check
that there are no loose
screws on this unit.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal
centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
1

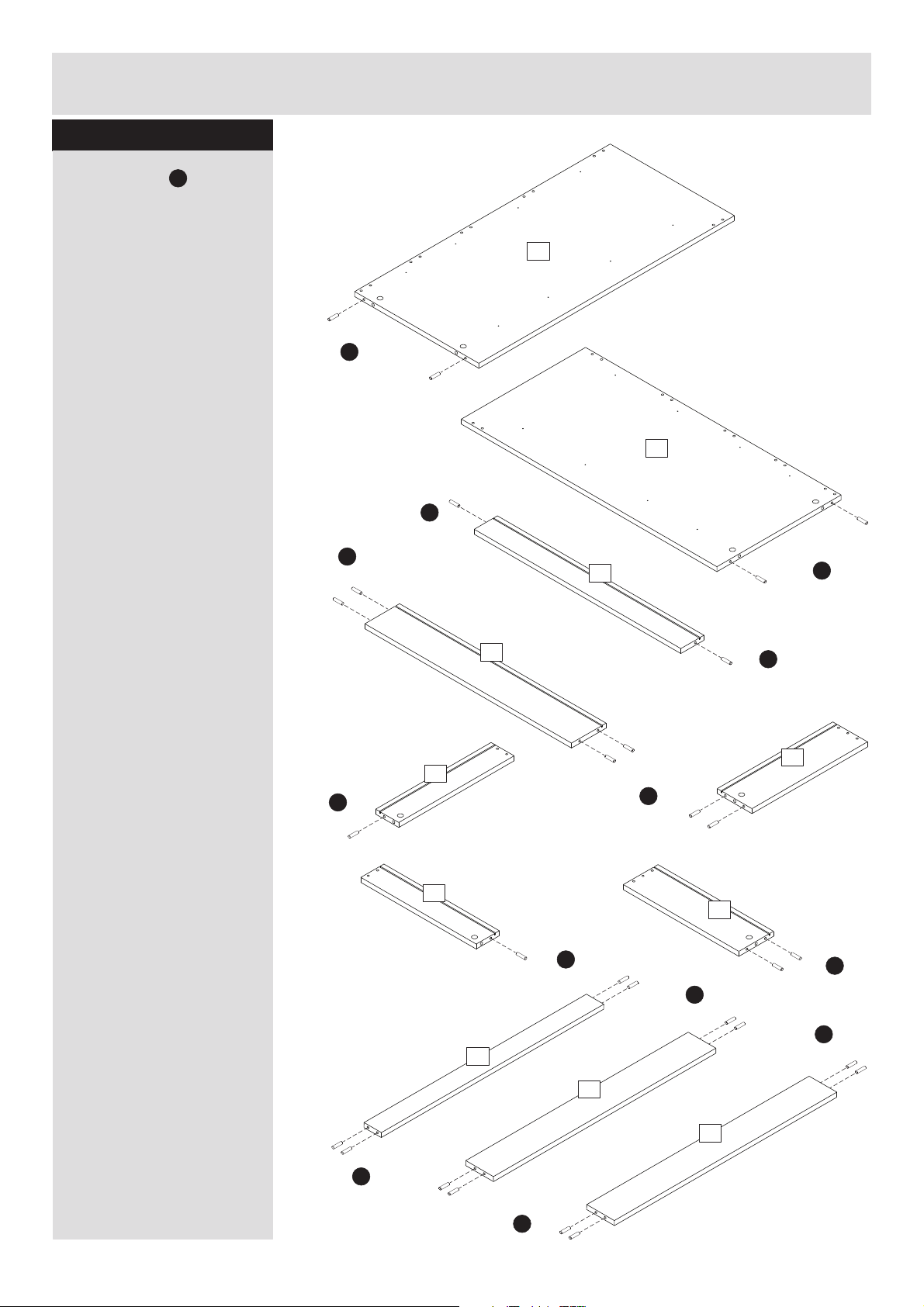

Components - Panels
Please check you have all the panels listed below
Large drawer front x 2 (78 x 19cm)
6
Top panel (80.2 x 44.8cm)
1
Small drawer front x 2 (78 x 15cm)
7
Top
Large drawer back x 2 (71.6 x 12cm)
8
Right side panel (88.5 x 43cm)
2
Top
Left side panel (88.5 x 43cm)
3
Back panel x 2 (79 x 41cm)
4
Small drawer back x 2 (71.6 x 8cm)
9
Large drawer right
10
side x 2 (40 x 12cm)
Small drawer right
12
side x 2
Bottom frame (77 x 9.6cm)
14
Unfinished bottom frame (77 x 9.6cm)
15
(40 x 8cm)
Large drawer left
11
side x 2
Small drawer left
13
side x 2
(40 x 12cm)
(40 x 8cm)
Drawer bottom x 4 (72.9 x 39.8cm)
5
Top front frame x 4 (77 x 6cm)
16
H profile (77 x 1.8cm)
17
2
If you have damaged or missing components,
Components - Fittings
call the
Customer Helpline: 08456 400 800
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
A B
Wooden dowel x 52
D
20mm Screw x 16
Locking
nut x 12
J
Plastic
feet x 4
M
Washer x 2
P
C
14mm Screw x 64 16mm Screw x 1
E
40mm Screw x 8
F
Metal dowel x 12
IG H
Nail x 40
K
Plastic
bracket x 16
N
Nail x 4
L
L shaped
bracket x 8
O
Plastic
cap
x 12
Wall strap x 1
Q
Right runner
x 4 pair
Left runner
x 4 pair
Tools required
Phillips screwdriver
(small & medium)
Small
hammer
Ruler - Use this ruler to help correctly identify the screws
m
2
Ruler/tape
measure
Eye protection
(when using a
hammer or glue)
5
0
10 15 20 25 30 35 40
55
45
50
60 65 70
75
80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
3
Assembly Instructions
Step 1
Insert dowels into the
A
indicated parts.
2
A
3
A
A
2x
9
A
2x
8
A
2x
2x
12
A
A
10
2x
13
A
16
4x
15
A
2x
11
A
A
A
14
A
4
Assembly Instructions

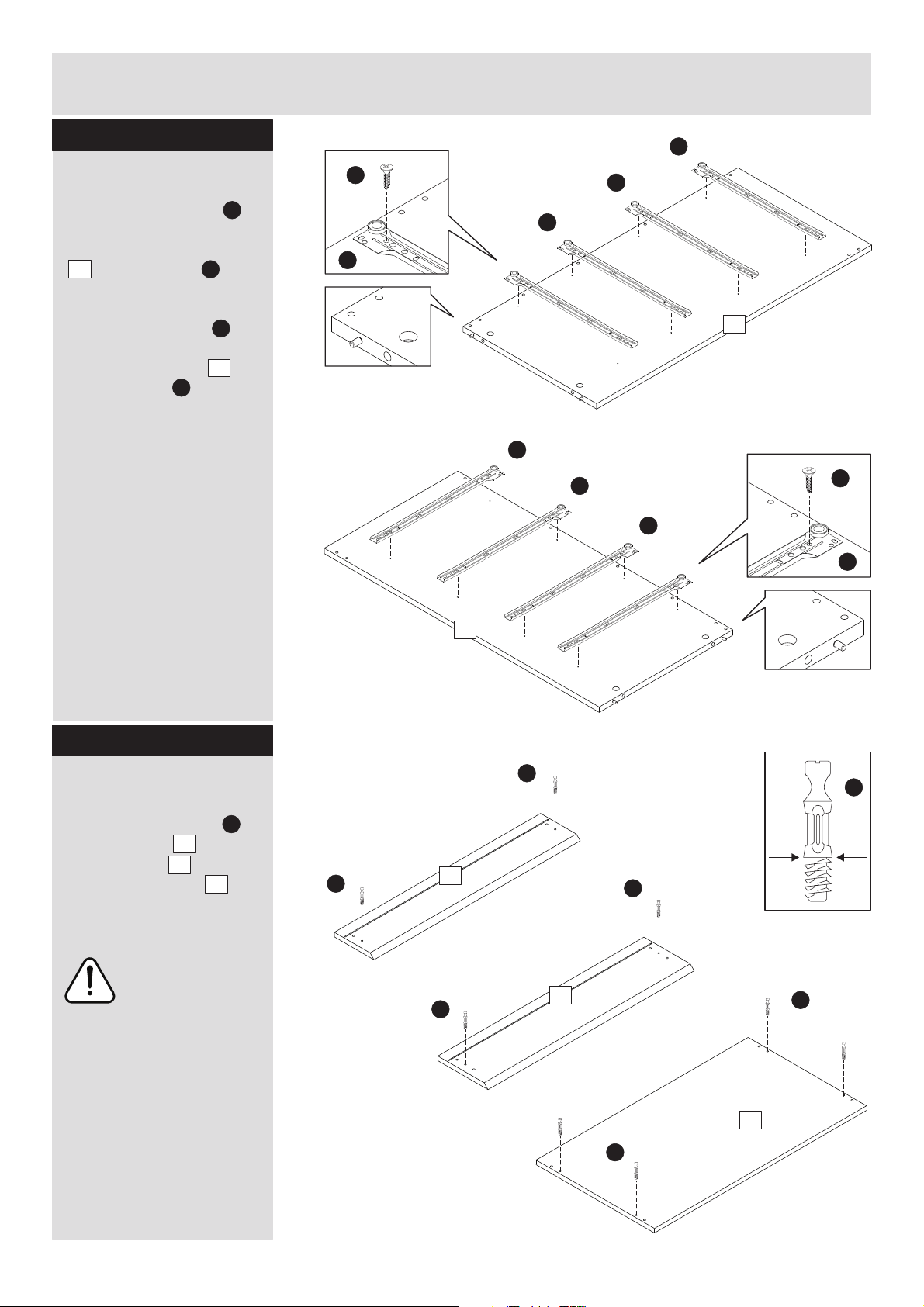

Step 2
Fixing runners.
Attach right runners
to the pre drilled holes
on the right side panel
using screws .
Attach left runners
to the pre drilled holes on
the left side panel
using screws .
B
P
B2
Q
3
P
B
P
P
Q
P
2
Q
Q
B
Q
Step 3
Fitting Metal dowels.
Screw metal dowels
into top panel , large
drawer fronts and
6
small drawer front .
Insert metalNote:
dowels as far as
shown.
Do not over tighten.
F
1
7
3
F
F
2x
F
7
F
2x
F
6
F
1
F
5
Assembly Instructions

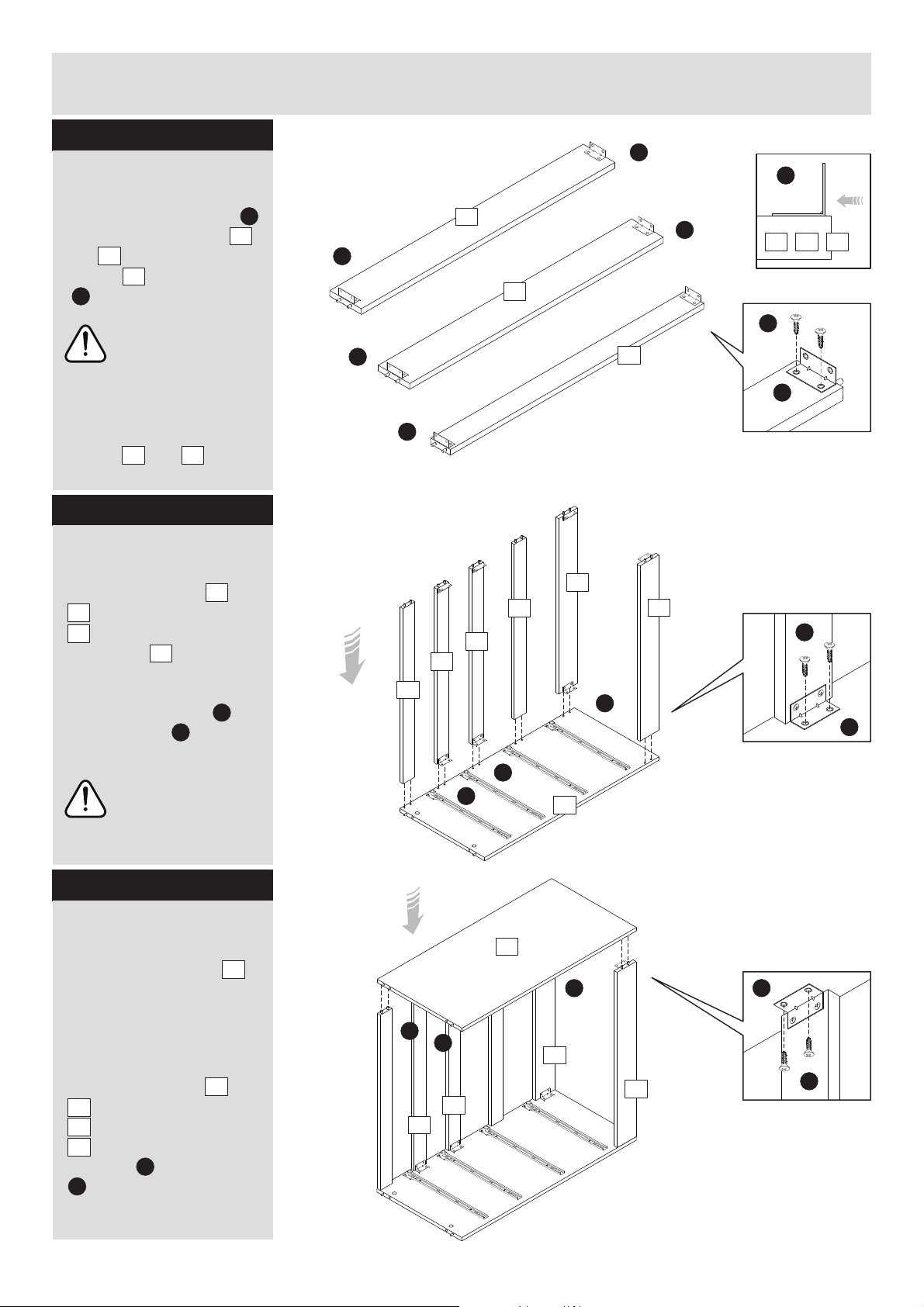

Step 4
Fixing L shaped brackets.
Fix L shaped brackets
in the bottom frames
15
and and top front
frames using screws
B
16
, as shown.
L
14
LeaveAttention:
gap from the1mm
edge of the bars as
shown. L shaped
brackets must be fixed to
the unfinished side in
frames and .
14 16
Step 5
Assembling frames.
Fit bottom frames and
15
and top front frames
16
into holes on right
side panel , as shown.
2
Then, fix frames in the
right side panel through
L shaped brackets
using screws .
14
L
B
Unfinished side
L
L
L
Finished sides to face
outside and finished
edges to face up.
16
16
14
16
15
16
14
L
L
16
2x
15
L
Attention:
L
1514
B
L
B
1mm
16
L
Finished sides to
face outside and
finished edges to face up.
Step 6
Fixing left side panel.
Place left side panel
properly ensuring dowels
and front frames are all
fitted into their holes at
the same time.
Fix bottom frames and
15
and top front frames
16
in the left side panel
3
through
brackets using screws
B
,as shown.
L shaped
L
3
14
L
16
L
L
3
L
16
14
2
L
15
L
B
6
Assembly Instructions
Step 7
Fixing top panel.
With help, carefully
stand the product upright.
With help, fit top panel
1
to the cabinet.
Insert 4 locking nuts
G
into side panels where
shown.
Use a screwdriver to turn
locking nuts clockwise
G
to lock.
Do not over tighten.
After screwing locking
nuts, insert plastic caps
N
.
Finished edge
1
G
G
G
G
N
Step 8
Fixing back panels.
Important:
Cabinet beMUST
‘square’ when back
panels are attached.
a: Attach top back panel
4
first using nails .
b: Position profile onto
back panel (just attach).
c: Carefully slot the
second back panel into
the profile and fix it to the
cabinet using nails .
H
17
4
H
17
4
H
4
H
4
17
H
4
7
Assembly Instructions
Step 9
Attach plastic feet.
With help, carefully lay
down the product.
Attach p inlastic feet
the bottom edge of the
right and left side panels
using nails .
I
J
J
I
J
Make sure nails
are fully nailed.
After attach plastic feet,
with help, carefully stand
the product upright.
Step 10
Large drawer
assembly.
a: Fix large drawer
10 11
sides and to the
large drawer back
using screws .
E
b: Slide drawer bottom
5
into slots on drawer
sides.
8
J
J
E
a:
8
E
11
10
b:
c: With help, fit large
drawer front to the
drawer sides.
Insert 2 locking nuts
into drawer sides where
shown.
Use a screwdriver to turn
locking nuts clockwise
to lock.
Do not over tighten.
After screwing locking
nuts, insert plastic caps
N
.
Repeat step 10 for the
other large drawer.
6
G
G
c:
5
6
G
G
G
G
N
8
Assembly Instructions
Step 11
Small drawer
assembly.
a: Fix small drawer
12 13
sides and to the
small drawer back
using screws .
b: Slide drawer bottom
5
into slots on drawer
sides.
c: With help, fit small
drawer front to the
drawer sides.
Insert 2 locking nuts
into drawer sides where
shown.
Use a screwdriver to turn
locking nuts clockwise
to lock.
G
9
E
7
G
E
a:
9
E
13
12
b:
5
c:
7
G
G
Do not over tighten.
After screwing locking
nuts, insert plastic caps
N
.
Repeat step 11 for the
other small drawer.
Step 12
Attach plastic bracket.
Attach p
and small drawers using
screws .
lastic bracket
of thein the bottom large
D
K
G
K
K
K
G
K
N
D
9
Assembly Instructions
Step 13
Fixing runners.
Attach right runners
and left runners in the
bottom edge largeof the
and small drawers using
screws , as shown.
B
Make sure
runners are
correctly positioned
according to the diagram
prior to fixing.
P
Q
Correct position of the screws.
BB
B
B
B
B
IN FLUSH
Q
P
IN FLUSH
Step 14
Hook the wheels of the
runner on the back of the
drawers over the wheels
of the runners on the left
and right sides, then hold
the drawers level and
slide backwards into
position.
10
Assembly Instructions
Step 15
Note: Wall plugs not supplied.
Fixing to wall.
Furniture must be fixed to
a wall. Fix wall strap to
top of furniture using
washer and screw .
With help, move furniture
into position.
O
CM
The correct type of fixing must
be used for your wall, seek
professional advice if in doubt.
wall
C
M
O
M
Assembly is complete.
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400 800
11
A Guide to - Wall Mounting & Fixings
Important note:
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fixings is the
responsibility of the installer.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualifed
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Types of walls
You can use one of the following types of wall plug if your
walls are made of brick, breeze block, concrete, stone or wood.
No.1 “General Purpose” wall plug No.3 “Cavity Fixing” wall plug No.5 “Hammer Fixing” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can
be used.
No.2 “Plasterboard” wall plug
For use with plasterboard partitions or
hollow wooden doors.
No.4 “Cavity Fixing-Heavy Duty”
wall plug
For use with walls stuck with
plasterboard. The hammer fixing allows
it to be fixed to the wall rather than the
plasterboard. Always check the fixing
is secure to the retaining wall.
No.6 “Shield Anchor” wall plug
Heavy loads
For use when attaching light loads on
to plasterboard partitions.
Care &
Maintenance
For use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
Loading...
