Argos 1464669 ASSEMBLY INSTRUCTIONS

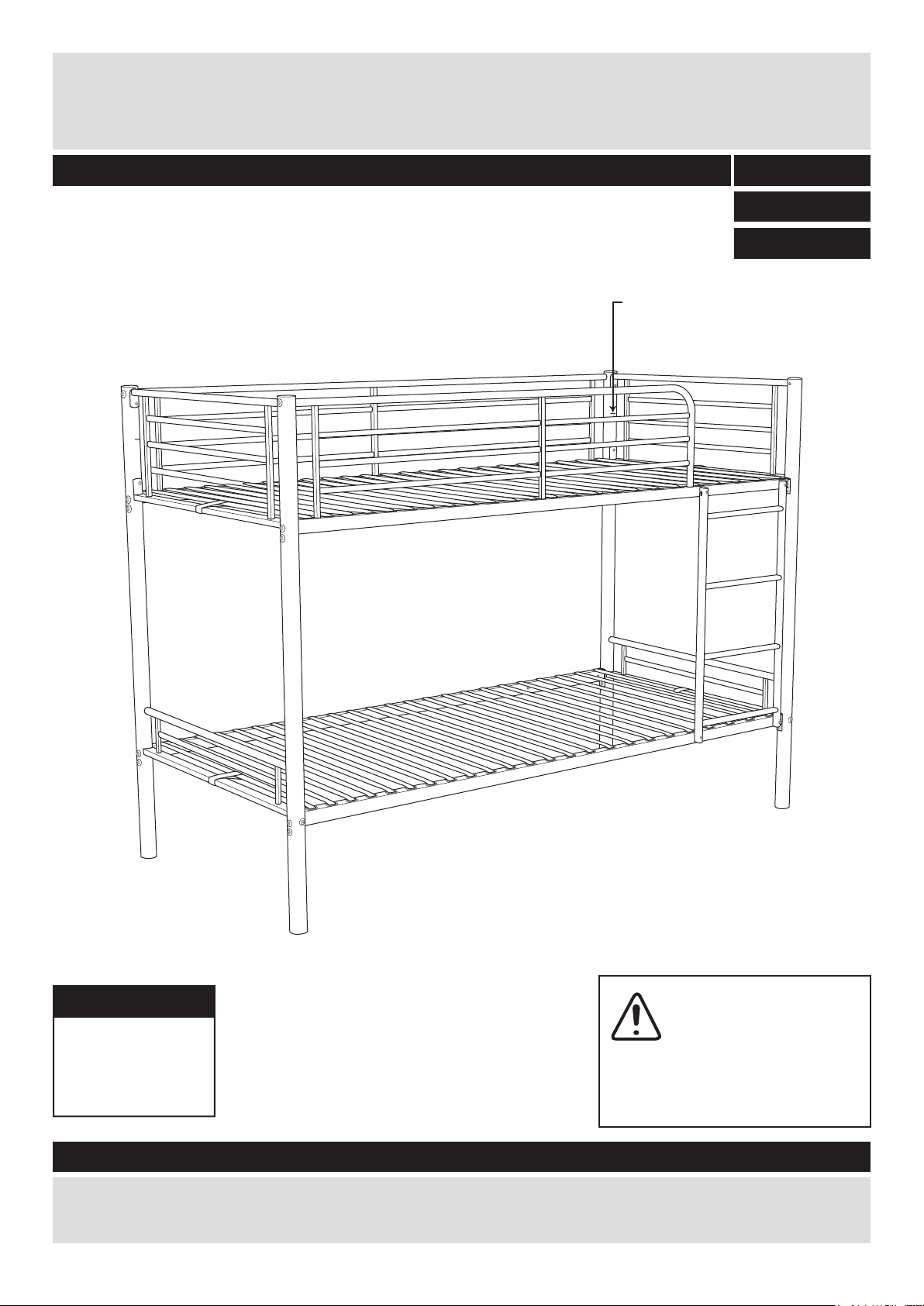

Samuel Bunk Shorty Bed

Assembly Instructions - Please keep for future reference 162/4131

188/9299

170/8253

IMPORTANT NOTE:

The top surface of the mattress should not come above this line.

Dimensions

Width - 181cm

Depth - 82cm

Height - 160cm

Important

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

- Please read these instructions fully before starting assembly

Issue 1 - 18/10/13

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

• Because of the size of this unit,

it is recommended to assemble it in the room intended for use.

• Do not discard any of the

packaging until you have checked that you have all the parts and the pack of fittings.

• Check you have all the

components and tools listed on page 2 and 3.

• Remove all fittings from the

plastic bags and separate them into their groups.

Warnings

• READ CAREFULLY - RETAIN FOR FUTURE REFERENCE

• Regularly check and ensure

that all bolts and fittings are tightened properly.

• Always use the ladder for

entering and leaving the upper bunk.

• The recommended mattress size is L1750 x W750 mm.

• Ensure thickness of mattress

does not exceed 220 mm.

• Refrain from using the bunk

bed if any structural part is broken or missing.

• Keep children and animals

away from the work area, small parts could choke if swallowed.

• Make sure you have enough

space to layout the parts before starting.

• Assemble this product on a flat

surface.

• Assemble all parts loosely before tightening any bolts.

• At least 2 people are required

to assemble this product.

• Please prohibit more that one

person on the upper bunk.

• Please advise your children to

only enter and leave the upper bunk by using the ladder.

• Please prohibit children from

jumping on the upper and lower beds.

• WARNING: Children can become trapped between the bed and the wall. To avoid risk of serious injury the distance between the top safety barrier and the wall shall not exceed 75 mm or shall be more than 230 mm.

• We do not

recommend the use of power drill/drivers for inserting screws, as this could damage the unit. Only use hand screwdrivers.

• Unit weight: 34.6kgs.

• Retain Assembly Instructions

for future reference.

• Discard all extra fittings and

keep fittings out of reach of children.

• WARNING: Do not allow children under 6 years of age to use the upper bunk due to risk of injury and falls.

• STRANGULATION HAZARD - Never attach or hang items such as ropes, strings, cords, harnesses and belts to any part of the bunk bed.

• THIS BED COMPLIES WITH EN747-1:2012 / EN747-2:2012

Manufacturer: BL Packaging Co. Ltd.

Care and maintenance

• Please clean this product

using either damp (not wet) cloth and a mild domestic soap solution or by using an appropriate polish.

1

• Do not use any abrasive

materials when cleaning.

• From time to time check that

there are no loose bolts on this unit.

• This product should not be

discarded with household waste. Take to your local authority waste disposal centre.

Note: if required the next page can be cut out and used as reference throughout the assembly. Keep this page with these instructions for future reference.

If you have damaged or missing components,

Components - Parts

call the Customer Helpline: 08456 400800

Please check you have all the parts listed below

without holewith hole

Upper side safety rail x 2

3

(73.5 x 35.5 x 3.5cm)

End post x 3

1

(Ø4.5 x 160cm)

Back lower rail

5 Front lower rail

(173 x 7 x 2.5cm)

7 Upper back safety rail

Upper front safety rail

(173 x 41.5 x 2.5cm)

2

(Ø4.5 x 160cm)

6

(173 x 7 x 2.5cm)

8

(173 x 41.5 x 2.5cm)

4Front right-hand end post

Lower side safety rail x 2

(75 x 18.5 x 3cm)

with holewithout hole

Slats (with webbing attached) x 44

9 Ladder side rail x 2

(77.5 x 2.5 x 2.5 x Ø1.6cm)

10 Ladder step x 4

(3 x 1.5 x 93.5cm)

11

(32 x 3 x 1.5cm)

2

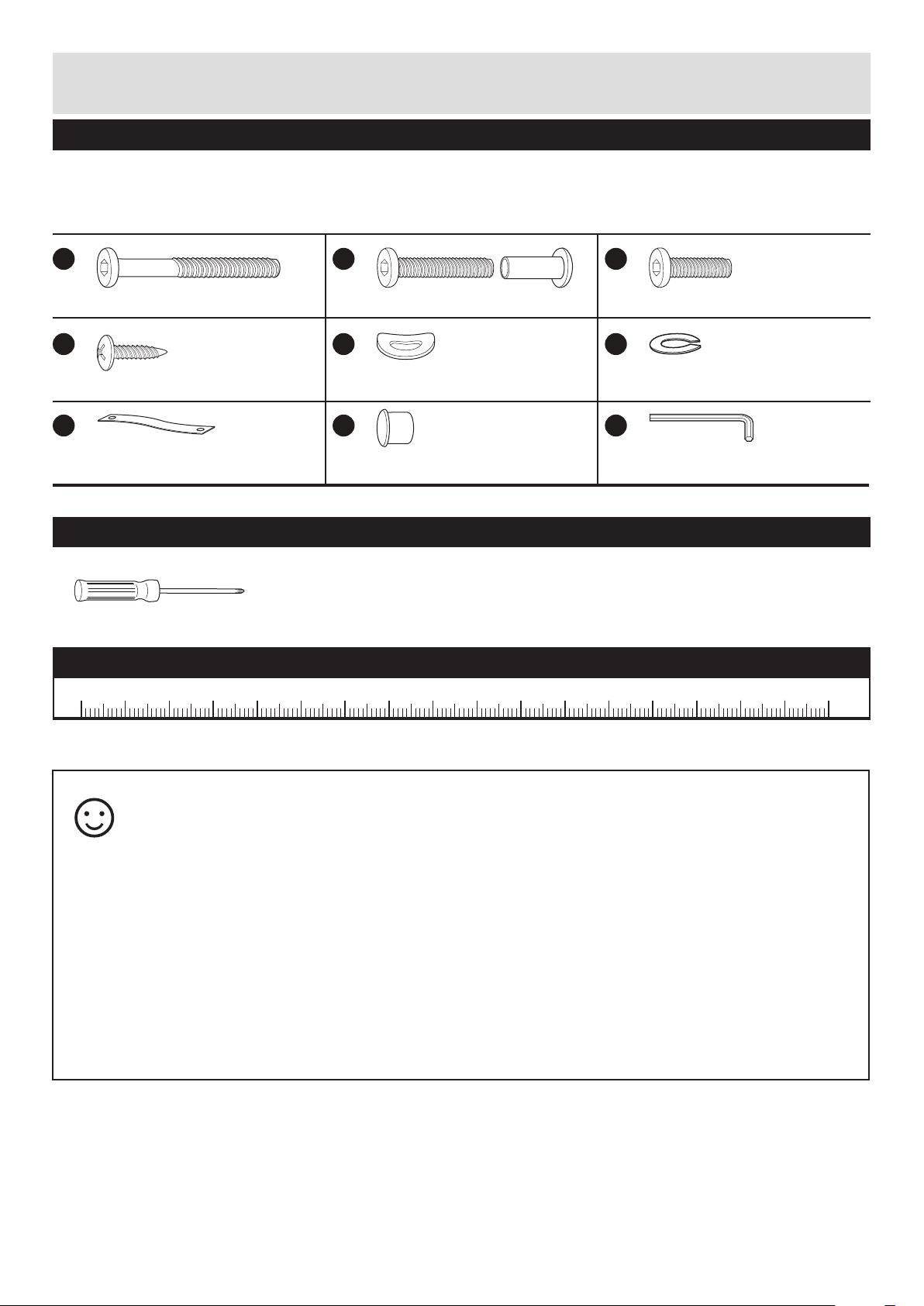

Components - Fittings

Please check you have all the fittings listed below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

A

M6 x 70mm Bolt x 7

D

M6 x 15mm Bolt x 8

G

M8 Curved washer x 15

J

Spring washer x 8

M

Allen key x 2

Tools required

B

M8 x 55mm Bolt x 15

E

Bolt Nut x 5

H

M6 Curved washer x 8

K

Lock nut x 7

N

Spanner x 1

C

M6 x 40mm Bolt x 13

F

Screw x 4

I

Flat washer x 8

L

Wall strap x 1

Crosshead screwdriver

Ruler - Use this ruler to help correctly identify the screws

0 15 30 45 60 75 905 20 35 50 65 80 9510 25 40 55 70 85 100 120 140105 125 145110 130 150115 135 155 160 165 170

3

Assembly Instructions

Step 1

Assembling end panels

Lay all parts flat on a soft

surface on the floor to avoid damaging any of the parts.

a: Identify the correct

posts for assembly then insert top tube of lower side safety rail into end posts and front right-hand end post &

4

1

2

secure the bottom rail using washers and

A

bolts .

H

Important:

Fasten bolts

using allen key

M

but do not fully tighten at this stage.

b: Attach the upper side

safety rail into position & secure using bolts .

3

D

a: b:

1

A H

1

A

H

4

RIGHT-HAND END PANEL

D

3

4

D

1

3

D

2

AH

Important:

After all bolts are positioned, fully tighten all bolts using allen key .

M

Repeat above steps to assemble the left-hand end panel.

LEFT-HAND END PANEL

D

1

A H AH

3

4

D

1

4

Assembly Instructions

Step 2

Attaching rails

a: Identify the correct

rails for assembly & with the help of an assistant attach the upper rails & to end posts using

8

bolts and washers .

A

7

H

Important:

Fasten bolts

using allen key

M

but do not fully tighten at this stage.

b: Attach the two lower

5 6

rails & and bottom rails of safety rails & to end posts using bolts , washers and nuts .

G

7 8

B

K

c: Fix the right edge of

upper front safety rail using bolts & , washers & and bolt

E

nut .

B C

G H

Important:

After all bolts are positioned, fully tighten all bolts using allen key and spanner .

7

M

N

H

A

G

B

K

G

B

1

G

B

G

B

A

B

K

B

a: b: c:

H

A

H

B

G

8

G

K

G

1

5

G

K

G

8

1

B

G

B

1

K

7

K

6

K

B

G

E

1

B

G

B

G

K

2

7

E

B

G

C

H

2

B

G

B

G

B

G

C

H

Step 3

Assembling ladder

Referring to diagram,

attach the ladder steps to ladder side rails using bolts , spring washers & flat washers . Tighten all

C

J

I

bolts using allen key .

5

10

C

J

I

J

C

11

10

I

J

C

M

I

J

C

I

J

C

11

10

C

J

I

C

J

I

C

J

I

10

I

J

11
