Argos 144-3556 ASSEMBLY INSTRUCTIONS

Rattan Corner Unit
Assembly Instructions-Please keep for future reference
144/3556

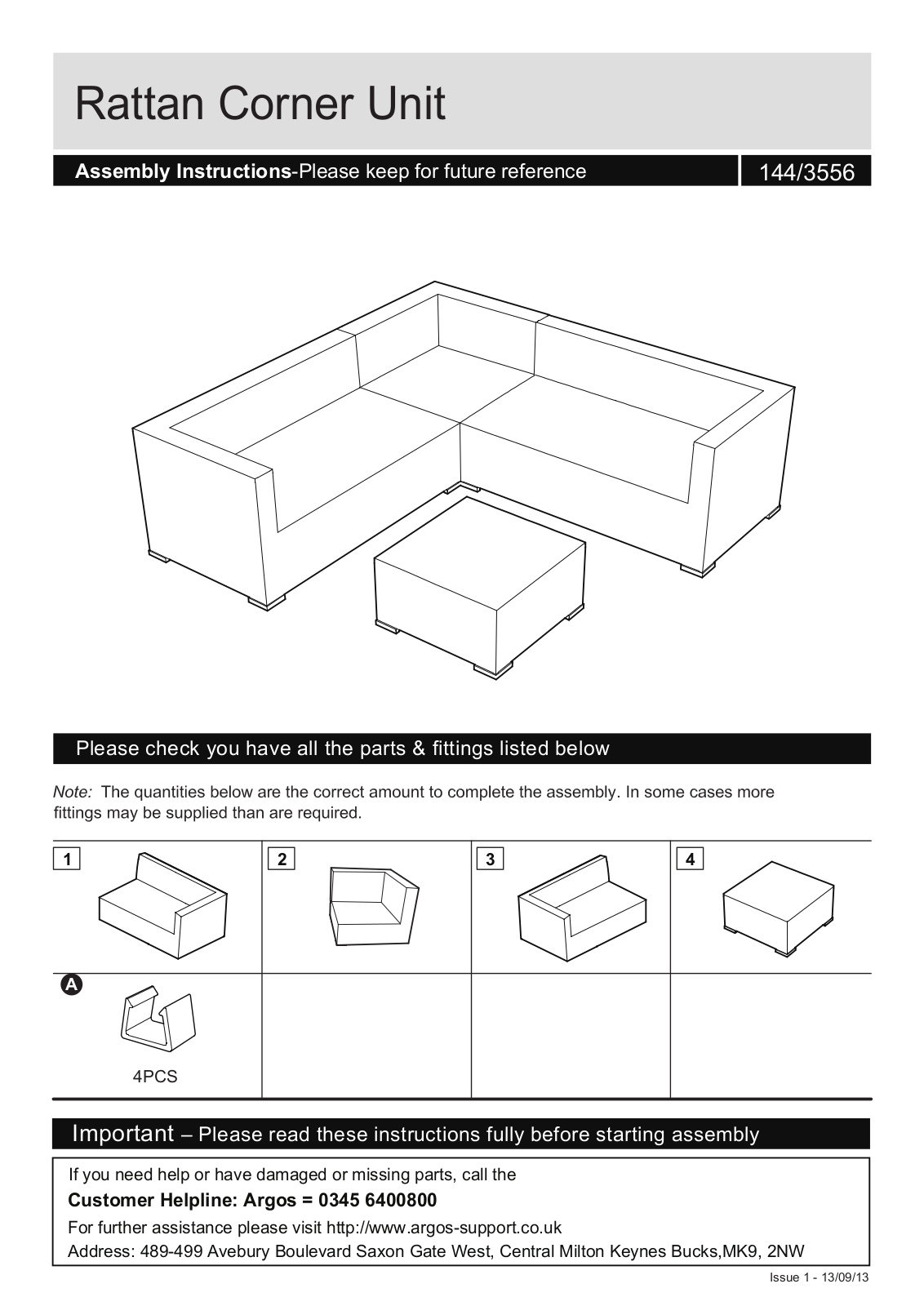

Please check you have all the parts & fittings listed below
1
A
4PCS
Important
If you need help or have damaged or missing parts, call the
– Please read these instructions fully before starting assembly
2 3 4
Customer Helpline: Argos = 0345 6400800
For further assistance please visit http://www.argos-support.co.uk
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks,MK9, 2NW
Issue 1 - 13/09/13
Assembly Instructions

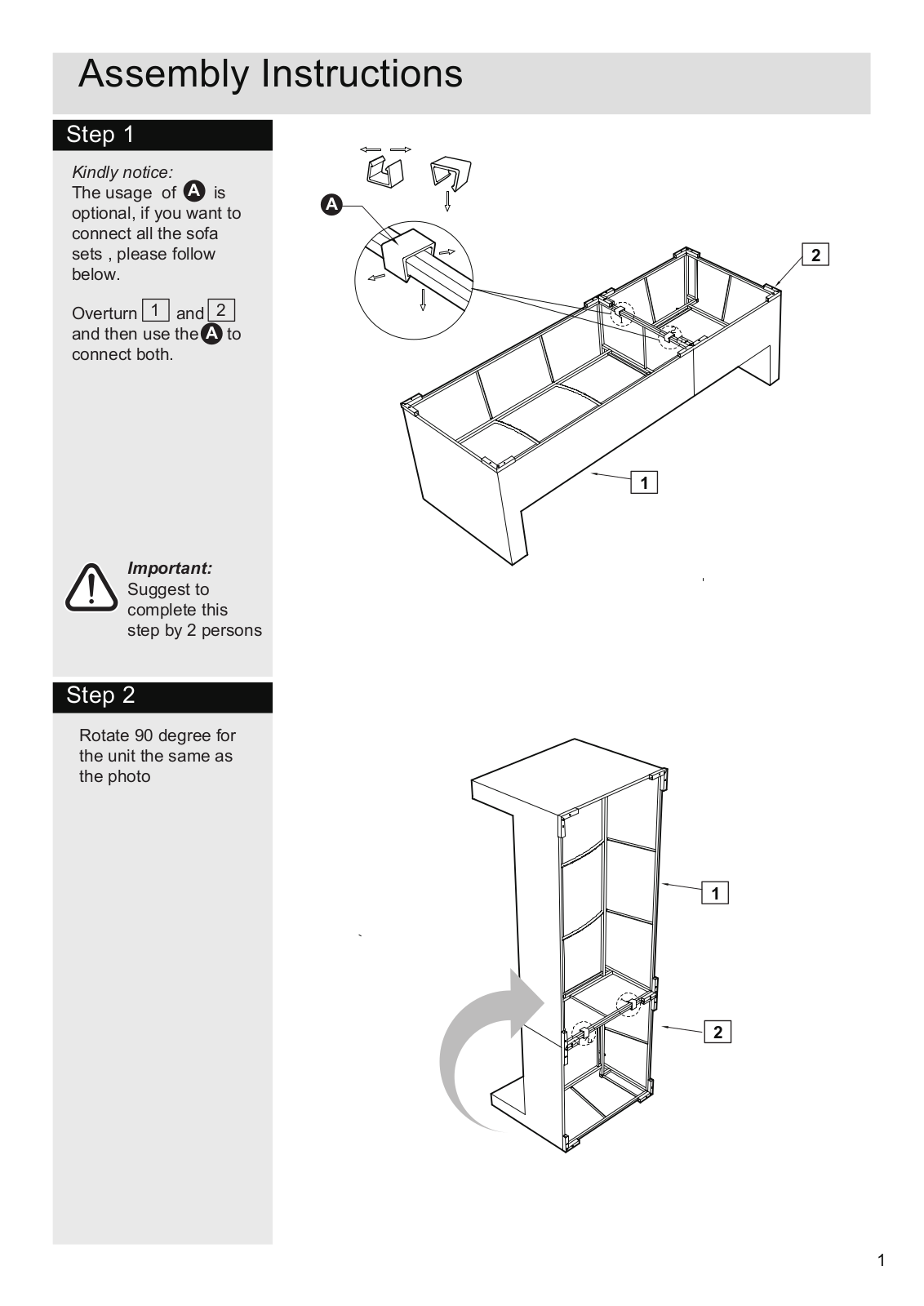

Step 1
Kindly notice:
The usage of is optional, if you want to connect all the sofa sets , please follow below.
A
A
2
Overturn and and then use the to connect both.
1 2
A
Important:
Suggest to complete this step by 2 persons
Step 2
Rotate 90 degree for the unit the same as the photo
1
1
2
1
Assembly Instructions

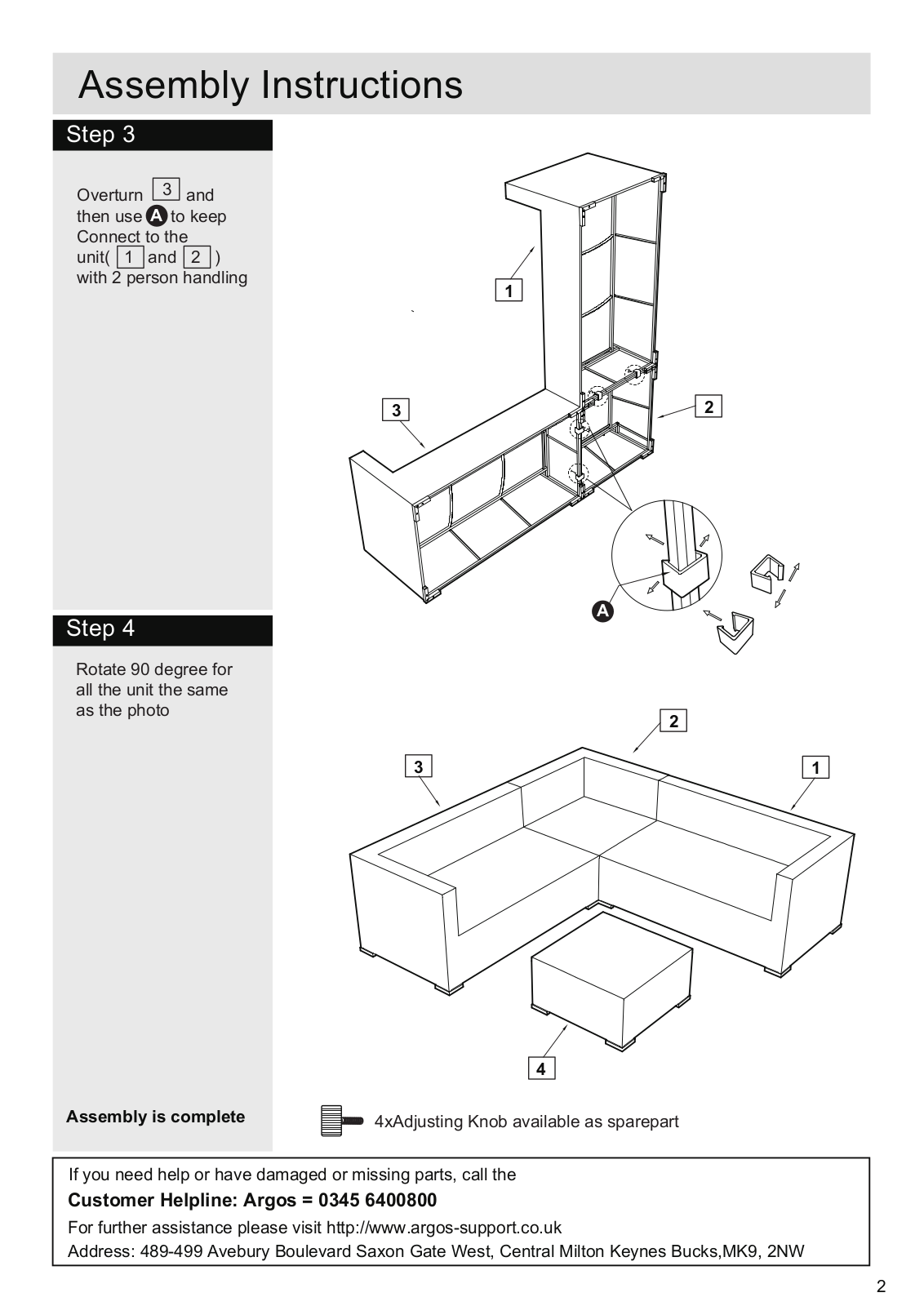

Step 3
Overturn and then use to keep Connect to the unit( 1 and 2 ) with 2 person handling
3
A
Step 4
1
3
A
2
Rotate 90 degree for all the unit the same as the photo
Assembly is complete
3
4
4xAdjusting Knob available as sparepart
2
1
If you need help or have damaged or missing parts, call the
Customer Helpline: Argos = 0345 6400800
For further assistance please visit http://www.argos-support.co.uk
Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks,MK9, 2NW
