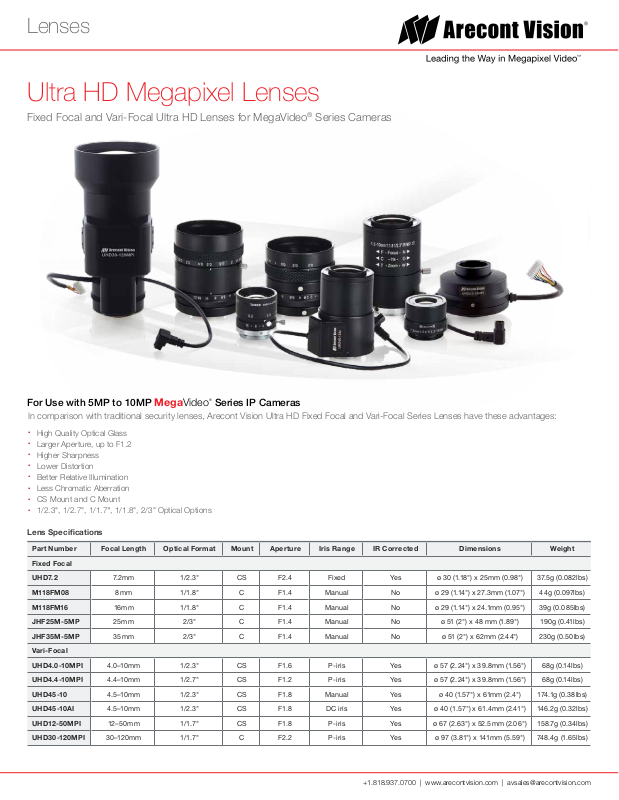

Lenses

Ultra HD Megapixel Lenses

Fixed Focal and Vari-Focal Ultra HD Lenses for MegaVideo® Series Cameras

For Use with 5MP to 10MP MegaVideo® Series IP Cameras

In comparison with traditional security lenses, Arecont Vision Ultra HD Fixed Focal and Vari-Focal Series Lenses have these advantages:

•

High Quality Optical Glass

•

Larger Aperture, up to F1.2

•

Higher Sharpness

•

Lower Distortion

•

Better Relative Illumination

•

Less Chromatic Aberration

•

CS Mount and C Mount

•

1/2.3", 1/2.7", 1/1.7", 1/1.8", 2/3" Optical Options

Lens Specications

Part Number Focal Length Optical Format Mount Aperture Iris Range IR Corrected Dimensions Weight

Fixed Focal

UH D7. 2 7. 2m m 1/2.3" CS F2.4 Fixed Yes ø 30 (1.18") x 25mm (0.98") 37.5g (0.082lbs)

M118 FM 08 8mm 1/1.8" C F1.4 Manual No ø 29 (1.14") x 27.3mm (1.07") 44g (0.097lbs)

M118FM16 16mm 1/1.8" C F1.4 Manual No ø 29 (1.14") x 24.1mm (0.95") 39g (0.085lbs)

JHF25M-5MP 25mm 2/3" C F1.4 Manual No ø 51 (2") x 48 mm (1.89") 190 g (0.41lbs)

JHF35M-5MP 35mm 2/3" C F1.4 Manual No ø 51 (2") x 62mm (2.44") 230g (0.50lbs)

Vari-Focal

UHD4.0-10MPI 4. 0–10mm 1/2.3" CS F1.6 P-iris Ye s ø 57 (2.24") x 39.8mm (1.56") 68g (0.14lbs)

UHD4.4-10MPI 4.4–10mm 1/2.7 " CS F1.2 P-iris Ye s ø 57 (2.24") x 39.8mm (1.56") 68g (0.14lbs)

UHD45-10 4.5 –10mm 1/2. 3" CS F1. 8 Manual Yes ø 40 (1.57") x 61mm (2.4") 174.1g (0.38lbs)

UHD45-10AI 4.5 –10mm 1/2.3" CS F1.8 DC iris Yes ø 40 (1.57") x 61.4mm (2.41") 146 .2g (0.32lbs)

UHD12-50MPI 12– 50m m 1/1.7" CS F1. 8 P-iris Ye s ø 67 (2.63") x 52.5mm (2.06") 158.7g (0.34lbs)

UHD30-120MPI 30 –120m m 1/1.7" C F2.2 P-iris Ye s ø 97 (3.81") x 141mm (5.59") 748 .4 g (1.65l bs)

+1.818.937.0700 | www.arecontvision.com | [e-mail]

Lenses

Specications

FOV-Horizontal Lens Specications

Part Number Focal Length A V1115 * AV2115* AV211 6* AV3115* AV3116* AV3236* AV5115 AV5215 AV10115 AV10215 AV08ZMV

Fixed Focal Day Night

UH D7. 2 7. 2m m 30.4° 44.4° 32.7° 35.3° 34.9° 34.9° 3 7.2° 44.2° - 47° - -

M118 FM 08 8mm 27. 2° 40.8° 29.9° 31. 8° 31. 8° 31.8° 33.9° 40.3° - 41° - -

M118FM16 16m m 13 .7° 20.5° 15.0° 16 .0° 16.0° 16 .0° 17.1 ° 20.3° - 20.8° - -

JHF25M-5MP 25mm 8.8° 13. 2° 9.6° 10. 3° 10.3 ° 10.3° 10.9 ° 13° - 14.6° - -

JHF35M-5MP 35mm 6.3° 9.4° 6.9° 7. 3° 7.3° 7. 3° 7.8° 9.3° - 10.5° - -

Vari-Focal

UHD4.0-10MPI

UHD4.4-10MPI

UHD45-10

UHD45-10AI

UHD12-50MPI

UHD30-120MPI

* Not Recommended

“

-” Not Compatible

Wide @ 4.0mm - - - - - - - - 82.8° - 90° -

Tele @ 10mm - - - - - - - - 34.3° - 37° -

Wide @ 4.4mm - - - - - - - - - - - 96°

Tele @ 10mm - - - - - - - - - - - 43°

Wide @ 4.5mm 46.6° 71.2° 52.1° 55° 55.6° 55.6° 59.3° 70.4° - 75.7° - -

Tele @ 10mm 22.4° 33.6° 24.6° 26.2° 26.2° 26.2° 2 7.9° 33.2° - 35.7° - -

Wide @ 4.5mm 46.6° 71.2° 52.1° 55° 55.6° 55.6° 59.3° 70.4° - 75.7° - -

Tele @ 10mm 22.4° 33.6° 24.6° 26.2° 26.2° 26.2° 2 7.9° 33.2° - 35.7° - -

Wide @ 12mm - - - - - - - - 28° - 32° 37°

Tele @ 50mm - - - - - - - - 6.8° - 7.7 ° 9°

Wide @ 30mm - - - - - - - - 10.3° - 11. 7° 13°

Tele @ 120mm - - - - - - - - 2.8° - 3 .1° 3.5°

Fixed Focal Lens Options

UHD7.2

Ø 30mm

(1.18")

25mm
(0.98")

JHF25M-5MP

Ø 51mm

48mm
(1.89")

(2")

Arecont 7.2mm

1/2.3"

F2.4

CS-mount

IR Corrected

25mm

2/3"

F1.4

C-mount

M118FM08

Ø 29mm

(1.14")

27.3mm
(1.07")

JHF35M-5MP

Ø 51mm

(2")

62mm
(2.44")

8mm

1/1.8"

F1.4

C-mount

35mm

2/3"

F1.4

C-mount

M118FM16

24.1mm
(0.95")

Ø 29mm

(1.14")

16mm

1/1.8"

F1.4

C-mount
