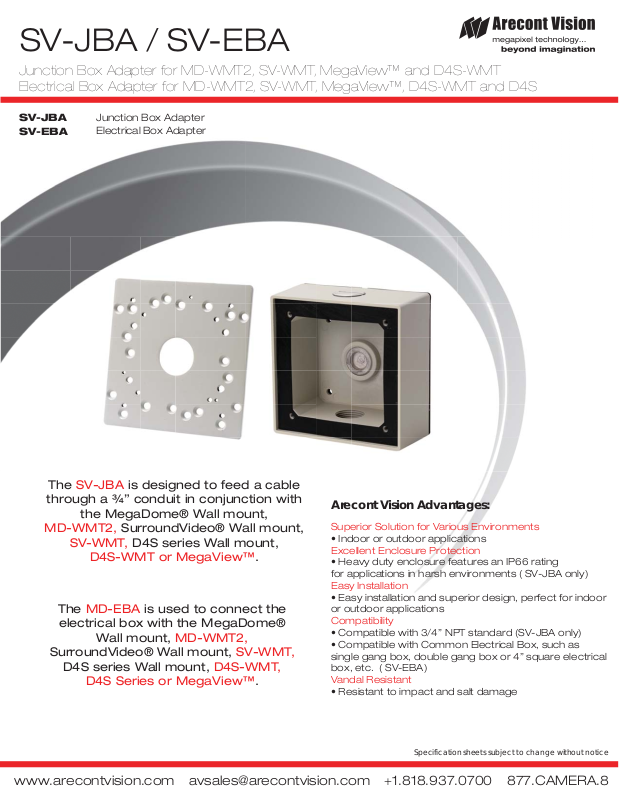

Arecont Vision SV-EBA, SV-JBA Specsheet

SV-JBA / SV-EBA

Junction Box Adapter for MD-WMT2, SV-WMT, MegaView™ and D4S-WMT
Electrical Box Adapter for MD-WMT2, SV-WMT, MegaView™, D4S-WMT and D4S

SV-JBA
SV-EBA

Junction Box Adapter
Electrical Box Adapter

MD-WMT2, SurroundVideo® Wall mount,

The SV-JBA is designed to feed a cable

through a ¾” conduit in conjunction with

the MegaDome® Wall mount,

SV-WMT, D4S series Wall mount,

D4S-WMT or MegaView™.

The MD-EBA is used to connect the

electrical box with the MegaDome®

Wall mount, MD-WMT2,

SurroundVideo® Wall mount, SV-WMT,

D4S series Wall mount, D4S-WMT,

D4S Series or MegaView™.

Arecont Vision Advantages:

Superior Solution for Various Environments

• Indoor or outdoor applications

Excellent Enclosure Protection

• Heavy duty enclosure features an IP66 rating
for applications in harsh environments ( SV-JBA only)

Easy Installation

• Easy installation and superior design, perfect for indoor
or outdoor applications

Compatibility

• Compatible with 3/4” NPT standard (SV-JBA only)

• Compatible with Common Electrical Box, such as
single gang box, double gang box or 4” square electrical
box, etc. ( SV-EBA)

Vandal Resistant

• Resistant to impact and salt damage

®

Learn more about our products at

Specification sheets subject to change without notice

www.arecontvision.com

www.arecontvision.com [e-mail] +1.818.937.0700 877.CAMERA.8

Specifications

SV-J

BA

Model Numbers:

SV-JBA
SV-EBA

Mechanical

• Housing material:
Aluminum

• Color:
Ivory (pantone cool gray 1c)

• Accessory Dimension L x W x H:

4.7x4.7x2 in (120x120x52 mm) ( SV-JBA)

4.7x4.7x0.15 in (120x120x4 mm) ( SV-EBA)

• Weight w/o camera:
635 g (1.3 lbs) (SV-JBA)
140 g (0.3 lbs) (SV-EBA)

Environmental

• Enclosure Protection: IP66 Outdoor
Protection Grade (SV-JBA only)

Compatibility

• Compatible with 3/4” NPT standard (SV-JBA only)

• Compatible with Common Electrical Box, such as
single gang box, double gang box or 4” square
electrical box, etc. ( SV-EBA Only)

,

Compatible Accessories and Cameras

MD-WMT2 : 1.5” NPT Wall Mount for MegaDome® Series
SV-WMT: 1.5” NPT Wall Mount for SurroundVideo® Series
D4S-WMT: ¾” NPT Wall Mount for Indoor 4” Dome Series, D4S
D4S series: Indoor 4” Dome Series ( SV-EBA only)
MegaView™

Junction Box Adapter
Electrical Box Adapter

)

SV-JBA / SV-EBA

SV-EBA

SV-JBA

Specification sheets subject to change without notice Revised 1-6-2012

www.arecontvision.com [e-mail] +1.818.937.0700 877.CAMERA.8

©2011 Arecont Vision
