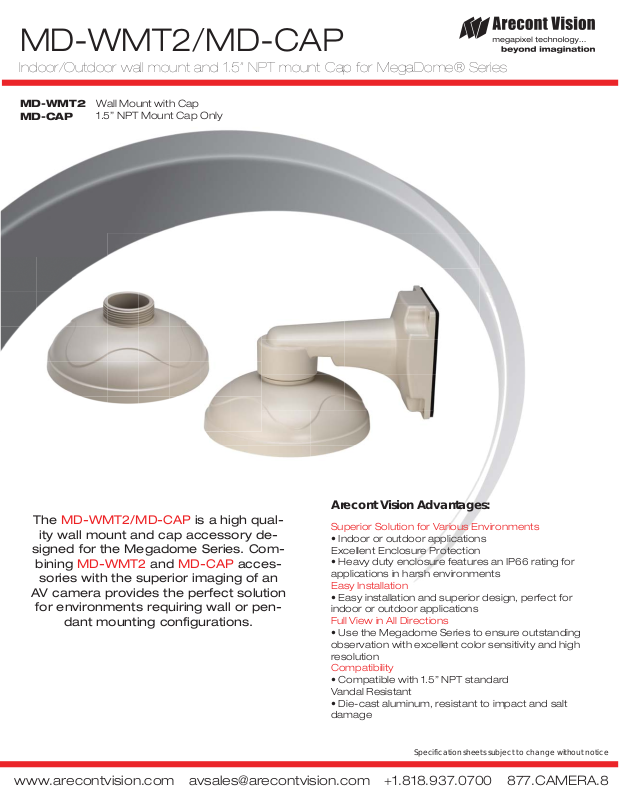

Arecont Vision MD-WMT2 Specsheet
MD-WMT2/MD-CAP
Indoor/Outdoor wall mount and 1.5” NPT mount Cap for MegaDome® Series
MD-WMT2
MD-CAP
Wall Mount with Cap
1.5” NPT Mount Cap Only
The MD-WMT2/MD-CAP is a high qual-
ity wall mount and cap accessory de-
signed for the Megadome Series. Com-
bining MD-WMT2 and MD-CAP acces-
sories with the superior imaging of an
AV camera provides the perfect solution
for environments requiring wall or pen-
dant mounting configurations.
Arecont Vision Advantages:
Superior Solution for Various Environments
• Indoor or outdoor applications
Excellent Enclosure Protection
• Heavy duty enclosure features an IP66 rating for
applications in harsh environments
Easy Installation
• Easy installation and superior design, perfect for
indoor or outdoor applications
Full View in All Directions
• Use the Megadome Series to ensure outstanding
observation with excellent color sensitivity and high
resolution
Compatibility
• Compatible with 1.5” NPT standard
Vandal Resistant
• Die-cast aluminum, resistant to impact and salt
damage
®
Learn more about our products at
Specification sheets subject to change without notice
www.arecontvision.com
www.arecontvision.com avsales@arecontvision.com +1.818.937.0700 877.CAMERA.8
Specifications
ont
V
i
sio
n
•
es
ifi
e
Revi
2
l
Comp
•
l
osure
i
on
:
•
MD-WMT
MD-C
Model Numbers:
MD-WMT2
MD-CAP
Mechanical
• Housing material:
Aluminum
• Color:
Ivory (pantone cool gray 1c)
• Housing Height:
MD-CAP : 2.57 in (65.3mm)
MD-WMT2 : 4.76in (121 mm)
• Housing Diameter:
6.06 in (154.1 mm)
• Weight w/o camera:
MD-CAP: 1.02 lbs ( 465kg)
MD-WMT2 : 1.66 lbs (755g)
Wall Mount with CAP
1.5”NPT Mount CAP Only
MD-WMT2/ MD-CAP
Environmental
Environmenta
• Enclosure Protection:
Enc
IP66 Outdoor Protection Grade
• IP66 Outdoor Protection Grade
Compatible Cameras
• MegaDome® Series
MegaDome® Seri
Protect
atible Cameras
AP
MD-CAP
MD-WMT2
www.arecontvision.com avsales@arecontvision.com +1.818.937.0700 877.CAMERA.8
2
Specification sheets subject to change without notice Revised 1-6-2012
Spec
cation sheets subject to change without notic
sed 1-6-201
©2008 Arecont Vision
