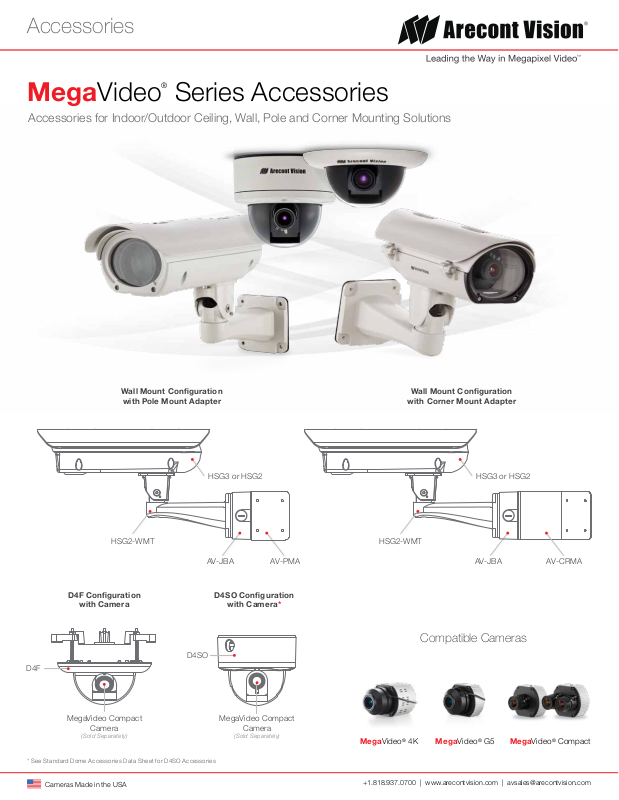

Accessories
MegaVideo® Series Accessories
Accessories for Indoor/Outdoor Ceiling, Wall, Pole and Corner Mounting Solutions
D4F
Wall Mount Conguration
with Pole Mount Adapter
HSG2-WMT HSG2-WMT
D4F Conguration
with Camera
Wall Mount Conguration
with Corner Mount Adapter
HSG3 or HSG2 HSG3 or HSG2
AV-PMAAV-JBA AV-JBA
D4SO Conguration
with Camera*
Compatible Cameras
D4SO
AV-CRMA
MegaVideo Compact
Camera
(Sold Sepa rately)
* See Standard Dome Accessories Data Sheet for D4SO Accessories
Cameras Made in the USA
MegaVideo Compact
Camera
(Sold Sepa rately)
MegaVideo® CompactMegaVideo® G5MegaVideo® 4K
+1.818.937.0700 | www.arecontvision.com | avsales@arecontvision.com
Page 2
HSG3** HSG2**
Outdoor Impact-Resistant Housing Outdoor Impact-Resistant Housing
Features: Features:
•
Easy Installation and Superior Design
for Various Environments
•
Excellent Outdoor Rated IP67 Enclosure
Protection and Impact-Resistant
•
Heater and Dual Fans
•
Easy Installation and Superior Design
for Various Environments
•
Excellent Outdoor Rated IP67 Enclosure
Protection and Impact-Resistant
•
Heater and Dual Fans
AccessoriesMegaVideo® Series
Compatibility
Mechanical
Works with MegaVideo® Series cameras
Casing
Color Ivory (Pantone
Dimensions
Weight
Mounting Hole
Die-cast aluminum
IP67 weather proof stand ard
IK-10 impact-resistant
®
Cool Gray 1C)
6.5" W (165mm) x 4.3" H (109.1mm) x 16.9" L (430mm)
w/o Camera 4.3lbs (1.95kg)
16.9"
430.0mm
(430mm )
[16.9"]
2.4"
3 1/4-20 UNC
1/4-20UNC
60.0mm
(60mm)
[2.4"]
2.4"
60.0mm
(60mm)
[2.4"]
4.3"
109.1mm
[4.3"]
(10 9.1mm )
Compatibility
Mechanical
Works with MegaVideo® Series cameras
Casing
Color Ivory (Pantone
Dimensions
Weight
Die-cast aluminum
IP67 weather proof stand ard
IK-10 impact-resistant
®
Cool Gray 1C)
5.7" W (147mm) x 3.7" H (95mm) x 12.7" L (324mm)
w/o Camera 3.76lbs (1.71kg)
12.7" (324m m)
11.1" (284mm)
6.5"
165.0mm
(165m m)
[6.5"]
** Compatible with UHD30-120MPI lens. HSG2 is compatible with large Arecont Vision lenses when using HSG-LLA large lens adapter.
2
Cameras Made in the USA
+1.818.937.0700 | www.arecontvision.com | avsales@arecontvision.com
5.7"
(147mm)
5.35"
(136 mm)
3.85"
(98mm)
3 1/4 UNC
Mounting Hole
3.7"
(95mm)
Page 3
AccessoriesMegaVideo® Series
HSG2-WMT
Wall Mount
Compatibility
Mechanical
Works with HSG3 and HSG2
Casing
Color Ivory (Pantone
Dimensions
Weight
Features:
•
Easy Installation and Superior Design
•
Heavy Duty Outdoor Rated IP67
Enclosure Protection for Applications in
Harsh Environments
•
Die-Cast Aluminum is Resistant to
Impact and Salt Damage
Die-cast aluminum
IP67 weather proof stand ard
IK-10 impact-resistant
®
Cool Gray 1C)
4.4" W (111mm) x 6.4" H (162mm) x 9.1" L (230mm)
w/o Camera 1.49lbs (0.68kg)
9.1"
(230mm)
AV-EBAS
Electrical Box Adapter Square
Features:
•
Easy Installation and Superior Design
•
Heavy Duty Enclosure Protection for
Applications in Harsh Environments
•
Die-Cast Aluminum is Resistant to
Impact and Salt Damage
Compatibility
Mechanical
Compatible with 3/4" NPT standard
Works with MegaDome
SurroundVideo
AV-WMJB, AV-SWMJB, MCD-WMT, MDD-WMT, HSG2-WMT, and AV-PMJB
Casing
Color Ivory (Pantone Cool Gray 1C)
Dimensions 4.7" L (120mm) x 0.15" W (4mm) x 4.7" H (120mm)
Weight
®
®
Panoramic Series, MegaVideo® D4SO Housing, AV-JBA,
Die-Cast Aluminum
IP66 Weather Proof Standard
IK-10 Impact-Resistant
w/o Camera 0.33lbs (0.13kg)
Series, MegaView® Series, MicroBullet®,
3.8"
(96 .7mm)
4.4"
(111m m)
4.4"
(111m m)
4- Ø .23
(6mm)
6.4"
(162.4 mm)
4.7"
(120mm)
4.7"
(120mm)
Hole No. Model Compatibility
1
2
3 AV-SWMJB, MCD-WMT, MDD-WM T
4 MicroBullet
5 Single Gang Box
6 Double Gang Box
7 4S Box (4" Square, 4" Octag onal)
8 4-11/16" Squa re Box
The mounting plate on MegaDome 4K and SurroundVideo G5 Mini negate
***
the need for a separate electrical box adapter and therefore this accessory
is not applicable.
AV-JBA, AV-WM JB, AV -PM JB, M eg aDo me 2***,
MegaView 2 (standard), SurroundVideo Panoramics***,
MegaVideo D4SO Housing
HSG2-WMT, AV-WMJB b racket,
AV-PMJB bracket, MegaView 2 bracket
Quick Installation:
1. Pass cables through the center hole of the adapter plate.
2. Attach the adapter plate to the electrical box (sold separately)
using the appropriate hardware and mounting holes.
3. Attach the compatible part noted above.
0.15"
(4mm)
3
Cameras Made in the USA
+1.818.937.0700 | www.arecontvision.com | avsales@arecontvision.com
Page 4
AccessoriesMegaVideo® Series
D4SO*
Outdoor Surface Mount Dome
Features:
•
Outdoor Rated IP66 and IK-10
Impact-Resistant Housing
•
Die-Cast Aluminum is Resistant to
Impact and Salt Damage
Compatibility
Mechanical
Works with MegaVideo® Compact Series cameras
Casing
Color Ivory (Pantone
Dimensions
Weight
Die-cast aluminum chassis, polycarbonate dome
IP66 wea ther pr oof standard
IK-10 impact-resistant
Ø 5.5" (140.3mm) x 4.9" H (124.6mm)
w/o Camera 2.0lbs (0.91kg)
Ø 5.5"
(140.3mm)
®
Cool Gray 1C)
2.47"
(62.8mm)
D4F
Indoor Flush Mount Dome
Compatibility
Mechanical
Works with MegaVideo® Compact Series cameras
Casing
Color Ivory (Pantone
Dimensions
Weight
Features:
•
Easy Installation and Superior Design
•
Low Prole Installation
Acrylonitrile Butadiene Styrene (ABS) plastic
housing, acrylic (PMMA) dome
®
Cool Gray 1C)
Ø 6" (152.5mm) x 4.9" H (124mm)
w/o Camera 2.0lbs (0.91kg)
1.3"
(33.5mm)
4.9"
(124mm)
2.7"
2"
(68.5mm)
(52mm)
1.77"
(45mm)
0.84"
(21.5mm)
Ø 4.01"
(102mm)
Ø 5.5"
(140.3mm)
Ø 3.54"
(90mm)
Ø 3.34"
(85mm)
2.43"
(61.8mm)
Ø 4"
Ø4"
(101mm)
(101mm)
Ø 7.6"
Ø7.6"
(194mm)
(194mm)
Ø 6"
Ø6"
(152.5mm)
(152.5mm)
* See Standard Dome Accessories Data Sheet for D4SO Accessories
4
Cameras Made in the USA
+1.818.937.0700 | www.arecontvision.com | avsales@arecontvision.com
Page 5
AccessoriesMegaVideo® Series
AV-PMA
Pole Mount Adapter
Compatibility
Mechanical
Compatible with 2"–7" pole diameter
Works wit h AV-WMJB, AV-SWMJ B, MDD-WMT, MCD-WM T, and AV- JBA
Casing
Color Ivory (Pantone
Dimensions 5.01" W (127.32mm) x 4.9 2" H (125mm)
Weight w/o Camera 0.32lbs (0.15kg)
Features:
•
Easy Installation and Superior Design
•
Heavy Duty Enclosure Protection for
Applications in Harsh Environments
•
Die-Cast Aluminum is Resistant to
Impact and Salt Damage
Die-cast aluminum
IP66 weather proof standard
IK-10 impact-resistant
®
Cool Gr ay 1C)
AV-CRMA
Corner Mount Adapter
Compatibility
Mechanical
Works wit h AV-WM JB, AV-SW MJB, MDD -WMT, MCD-WMT, and AV-JB A
Casing
Color Ivory (Pantone
Dimensions 13.04" W (331.25mm) x 4.9 2" H (125mm)
Weight w/o Camera 0.59lbs (0.27kg)
Features:
•
Easy Installation and Superior Design
•
Heavy Duty Enclosure Protection for
Applications in Harsh Environments
•
Die-Cast Aluminum is Resistant to
Impact and Salt Damage
Die-cast aluminum
IP66 weather proof standard
IK-10 impact-resistant
®
Cool Gr ay 1C)
Ø 1.2"
(31.7mm)
2.6"
(67.9mm)
5.0"
(127.3mm)
3"
(76.2mm)
4.9"
(125mm)
4.0"
(101.6mm)
Ø 1.2"
(31.7mm)
5.0"
(128mm)
4.0"
(104mm)
4.9"
(125mm)
5
Cameras Made in the USA
+1.818.937.0700 | www.arecontvision.com | avsales@arecontvision.com
Page 6
AV-JBA
Square Standard Junction Box
Features:
•
Easy Installation and Superior Design
•
Heavy Duty Enclosure Protection for
Applications in Harsh Environments
•
Die-Cast Aluminum is Resistant to
Impact and Salt Damage
AccessoriesMegaVideo® Series
Compatibility
Mechanical
Compatible with 3/4" NPT st andar d
Works wit h AV-PMJB†, AV-WM JB†, HSG2-WMT, MCD -JBAS,
MCB-JBAS, and MegaView
Casing
Color Ivory (Pantone
Dimensions 4.7" L (120 mm) x 4.7" W (12 0mm) x 1.8 9" H (48.1mm)
Weight w/o Camera 1.3lbs (0.63kg)
4.7"
(120mm)
® 2†
Die-cast aluminum
IP66 weather proof standard
IK-10 impact-resistant
NPT 3 /4"
®
Cool Gr ay 1C)
3.37"
(85.6mm)
NPT 3 /4"
1.89"
(48.1mm)
4.7"
(120mm)
†
Replacement part for these models
