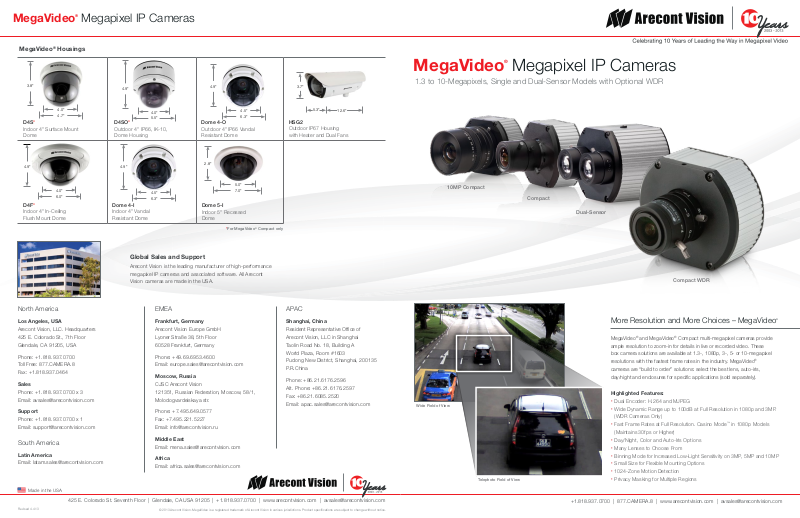

Arecont Vision AV3135 Brochure

MegaVideo® Megapixel IP Cameras

MegaVideo® Housings

MegaVideo

®

Megapixel IP Cameras

3.8"

4.0"

4.7"

D4S*

Indoor 4" Surface Mount
Dome

4.9"

4.0"

6.0"

D4F*

Indoor 4" In-Ceiling
Flush Mount Dome

4.9"

4.0"

D4SO*

5.5"

Outdoor 4" IP66, IK-10,
Dome Housing

4.9"

4.5"

6.3"

Dome 4-I

Indoor 4" Vandal
Resistant Dome

4.9" 3.7"

Dome 4-O

Outdoor 4" IP66 Vandal
Resistant Dome

2.8"

Dome 5-I

Indoor 5" Recessed
Dome

*For MegaVideo® Compact only

Global Sales and Support

Arecont Vision is the leading manufacturer of high-performance
megapixel IP cameras and associated software. All Arecont
Vision cameras are made in the USA.

5.0"

7.0"

4.5"

6.3"

5.3"

12.6"

HSG2

Outdoor IP67 Housing
with Heater and Dual Fans

1.3 to 10-Megapixels, Single and Dual-Sensor Models with Optional WDR

10MP Compact

Compact

Dual-Sensor

Compact WDR

North America

Los Angeles, USA

Arecont Vision, LLC. Headquarters
425 E. Colorado St., 7th Floor
Glendale, CA 91205, USA

Phone: [phone]
Toll Free: 877.CAMERA.8
Fax: [phone]

Sales

Phone: [phone] x 3
Email: [email protected]

Support

Phone: [phone] x 1
Email: [email protected]

South America

Latin America

Email: [email protected]

Made in the USA

425 E. Colorado St. Seventh Floor | Glendale, CA USA 91205 | +1.818.937.0700 | www.arecontvision.com | [email protected]

Revised 4.4.13

EMEA

Frankfurt, Germany

Arecont Vision Europe GmbH
Lyoner Straße 38, 5th Floor
60528 Frankfurt, Germany

Phone: [phone]
Email: [email protected]

Moscow, Russia

CJSC Arecont Vision
121351, Russian Federation, Moscow, 58/1,
Molodogvardeiskaya str.

APAC

Shanghai, China

Resident Representative Ofce of
Arecont Vision, LLC in Shanghai
Taolin Road No. 18, Building A
World Plaza, Room #1603
Pudong New District, Shanghai, 200135
P.R.China

Phone: [phone]
Alt. Phone: [phone]
Fax: [phone]

Email: [email protected]
Phone: [phone]
Fax: [phone]
Email: [email protected]

Middle East

Email: [email protected]

Africa

Email: [email protected]

© 2013 Arecont Vision. MegaVideo is a registered trademark of Arecont Vision in various jurisdictions. Product specifications are subject to change without notice.

Wide Field of View

Telephoto Field of View

More Resolution and More Choices – MegaVideo

®

MegaVideo® and MegaVideo® Compact multi-megapixel cameras provide
ample resolution to zoom-in for details in live or recorded video. These
box camera solutions are available at 1.3-, 1080p, 3-, 5- or 10-megapixel
resolutions with the fastest frame rates in the industry. MegaVideo®
cameras are “build to order” solutions: select the best lens, auto-iris,
day/night and enclosures for specic applications (sold separately).

Highlighted Features:

•

Dual Encoder: H.264 and MJPEG

•

Wide Dynamic Range up to 100dB at Full Resolution in 1080p and 3MP.
(WDR Cameras Only)

•

Fast Frame Rates at Full Resolution. Casino Mode™ in 1080p Models
(Maintains 30fps or Higher)

•

Day/Night, Color and Auto-Iris Options

•

Many Lenses to Choose From

•

Binning Mode for Increased Low-Light Sensitivity on 3MP, 5MP and 10MP

•

Small Size for Flexible Mounting Options

•

1024-Zone Motion Detection

•

Privacy Masking for Multiple Regions

+1.818.937.0700 | 877.CAMERA.8 | www.arecontvision.com | [email protected]

See Every Detail with Forensic Zooming Increased Resolution

9%

CPU Usage

Covering Wider Areas with Fewer Cameras

In applications where large areas need to be secured, Arecont Vision
megapixel cameras provide maximum return on investment. As an
example, if a VGA camera could cover one lane of trafc, a 10MP
camera could cover 5.5 lanes at the same resolution. In addition to

Whether for license plate recognition, face recognition or simply general situational awareness, Arecont
Vision provides a resolution to meet the need. In applications where greater detail is needed, a higher
resolution camera can be selected to ensure the required pixel density is delivered. In this example the
pixel density increases for each higher resolution megapixel camera covering the same eld of view.

their performance advantages, Arecont Vision megapixel cameras
minimize equipment and installation labor costs resulting in less
cameras, lenses, NVR licenses and supporting accessories.

LANE 1 LANE 2 LANE 3 LANE 4 LANE 5 LANE 6

VGA

(18PPF/59PPM)

1.3MP

(36PPF/118PPM)

VGA

1.3MP

2MP

(45PPF/148PPM)

2MP

3MP

MegaVideo Compact with Wide Dynamic Range (WDR)

35' (10.7m) wide FOV at front bumper

3MP

(58PPF/190PPM)

5MP

(73PPF/240PPM)

PPF = Pixels Per Foot
PPM = Pixels Per Meter

Wide Array of Resolutions

Class Resolution Pixels Benet

VGA 640 x 480 0.3MP –

HDTV 720p 1280 x 720 0.9MP 300%

1.3 MP 1280 x 1024 1.3MP 425%

2MP 1600 x 1200 2MP 625%

HDTV 1080p 1920 x 1080 2 .1M P 675%

3MP 2048 x 1536 3MP 1025%

5MP 2592 x 1944 5MP 1640%

8MP 6400 x 1200 8MP 2500%

10MP 3648 x 2752 10MP 3270%

Arecont Vision offers the most complete suite of
resolutions available.

Arecont Vision megapixel cameras deliver outstanding resolution to capture
every detail whether viewing live or recorded/archived video. With the ability to
electronically Pan-Tilt-Zoom (PTZ) images, you can view the details you need
to see at any time. Examples are applications requiring license plate, face and
object recognition. The superior resolution of megapixel cameras also results in
an extended eld of view, allowing them to do the work of multiple conventional
cameras—all without the need and associated expense of system operators having
to “catch” activities of interest as they occur using conventional PTZ technology.

Enhanced Low-Light Performance

Day Night

Low-light performance is a critical element to any surveillance project. In addition
to offering cameras with Day/Night capabilities, some Arecont Vision megapixel
cameras feature low-light enhancing technology such as pixel binning, and dual
sensor operation. 3, 5 and 10MP MegaVideo
binning mode at night to provide low-light performance. If a project requires extreme
low light, Arecont Vision offers the dual sensor AV3135 which has a 1.3MP true
monochrome sensor that provides the best low-light performance in the industry.

®

H.264 MegaVideo

Dual Sensor Series

®

Compact cameras can be put in pixel

Model Resolution

AV3135

3MP (Color)

1.3MP (B/W)

2048 x 1536 (Color)

1280 x 1024 (B/W)

Features at a Glance:

•

Dual Sensor 3MP/1.3MP

•

H.264/MJPEG

•

32fps @ 1.3MP (Night Mode)

•

15fps @ 3MP (Day Mode)

•

•

•

•

Compliant H.264 Compression

•

Compliant implementation of H.264 allows full frame rates and full
resolution without sacricing image quality

•

H.264 and MJPEG dual compression support with simultaneous
streaming

•

Decreases the CPU load both at the client (decompression) side
and the server/storage side

•

Lower bandwidth and storage relative to MJPEG

•

Bit rate control to maintain desired bandwidth and storage size

•

Real Time Streaming Protocol (RTSP) allows for compatibility with
media players such as Apple QuickTime®, VLC and others

H.264 Decompression (example)

CPU Usage

47%

2MP with live video in MJPEG

Minimum

Illumination

0.2 Lux (Color)
0 Lux, IR (B/W)

Day/Night Version
Superior Low-Light Performance
Multi-Streaming
Increased Resolution and Sensitivity

Frame Rate

15fps (Color)

2MP with live video in H.264

Maximum

32fps (B/W)

5MP

10MP

CPU Usage

9%

H.264/MJPEG Day/Night

• •

Megapixel image without WDR

Megapixel image with WDR

Users can achieve clear images in extreme lighting conditions with MegaVideo® Compact WDR
cameras in resolutions of 1080p and 3MP. Wide Dynamic Range up to 100dB at full resolution balances
light and dark areas in the same scene, such as in the lobby of an ofce building, the loading dock at a
distribution facility or many retail environments.

H.264 MegaVideo® Compact Series

Features at a Glance:

•

Full HD 1080p and 1.3, 3 and 5MP

•

H.264/MJPEG

•

30fps @ 1080p, 9fps @ 5MP

•

Color, Day/Night, Auto-Iris Versions

•

ONVIF and PSIA Compliance

•

Privacy Masking

•

Extended Motion Detection Grids

•

Multi-Streaming

Model Resolution

AV1115v1 1.3MP 1280 x 1024 0.1 Lux 42fps • • • •

AV1115DNv1 1.3MP 1280 x 1024 0 Lux, IR 42fps • • • •

AV1115DNAIv1 1.3MP 1280 x 1024 0.1 Lux 42fps • • • • •

AV2115v1 1080p 1920 x 1080 0.1 Lux 32fps • • • •

AV2115DNv1 1080p 1920 x 1080 0 Lux, IR 32fps • • • •

AV2115DNAIv1 1080p 1920 x 1080 0.1 Lux 32fps • • • • •

AV2116DNv1 1080p 1920 x 1080

AV3115v1 3MP 2048 x 1536

AV3115DNv1 3MP 2048 x 1536 0 Lux, IR 21fps • • • •

AV3115DNAIv1 3MP 2048 x 1536

AV3116DNv1 3MP 2048 x 1536

AV5115v1 5MP 2592 x 1944

AV5115DNv1 5MP 2592 x 1944 0 Lux, IR 14fps • • • •

AV5115DNAIv1 5MP 2592 x 1944

10MP

AV10115v1

AV10115DNv1

AV10115DNAIv1

1080p

10MP
1080p

10MP
1080p

3648 x 2752
1920 x 1080

3648 x 2752
1920 x 1080

3648 x 2752
1920 x 1080

Minimum

Illumination

0.3 Lux @ F1.4

Binning 0.15 Lux @ F1.4

Day/Night: 0 Lux, IR sensitive

0.3 Lux

Binning 0.15 Lux

0.3 Lux

Binning 0.15 Lux

0.3 Lux @ F1.4

Binning 0.15 Lux @ F1.4

Day/Night: 0 Lux, IR sensitive

0.3 Lux

Binning 0.15 Lux

0.3 Lux

Binning 0.15 Lux

0.42 Lux

Binning 0.21 Lux

0 Lux, IR

0.42 Lux

Binning 0.21 Lux

32fps @ 1080p

32fps @ 1080p

32fps @ 1080p

Broad Line-up

•

Largest selection of resolutions from 1.3 to 10MP

•

Largest variety of camera models: Color,
Day/Night, Auto-Iris and WDR.

Cost Efciency

•

The cost of an Arecont Vision compact series
megapixel camera = the cost of an analog camera
+ the cost of an encoder while delivering higher
resolution images with greater forensic detail.

Maximum

Frame Rate

32fps • • • • • •

21fps • • • •

21fps • • • • •

21fps • • • • • •

14fps • • • •

14fps • • • • •

7fps @ 10MP

7fps @ 10MP

7fps @ 10MP

Compact

H.264/

ONVIF/

Color

Day/

MJPEG

• • • •

• • • •

• • • • •

PSIA

Only

Night

WDR

Auto-

Iris

Made in the USA
