Arecont Vision AV12975DN-08, AV12975DN-28, AV12975DN-NL, AV12976DN-08, AV12976DN-28 Specsheet

MegaIP

™

SurroundVideo® Omni SX IP Megapixel Cameras

12 or 20 Megapixel (MP) H.264 All-in-One Remote Focus Omni-Directional User-Congurable Multi-Sensor
True Day/Night Indoor/Outdoor Dome IP Cameras with SNAPstream™ (Smart Noise Adaptation and Processing)
and Enhanced WDR™ (Wide Dynamic Range) Models

The SurroundVideo Omni SX delivers enhanced image quality and increased
product reliability with our latest model in the award-winning omnidirectional camera
series. The unique, future-proof platform of the SurroundVideo Omni SX provides
organizations of all sizes the exibility to deploy a security system that truly matches
their video surveillance needs now; and again if requirements change in the future.
With its ground-breaking exibility such as the ability to easily move each of the four
sensors around the magnetic 70+ placement-point Omni track, the 3-axis gimbals
for an increased range of motion when positioning the sensors, and the ability to
interchange the remote focus modular lenses for a customized eld of view, the
SurroundVideo Omni SX provides customers with the condence in a future-proof
investment. The SurroundVideo Omni SX changes when you do.

The SurroundVideo Omni SX multi-megapixel camera series features a choice
of 12- or 20-megapixel resolution options. These cameras provide an all-in-one
solution for capturing wide area video surveillance while maximizing the eld-of-view
and reducing the total number of cameras required saving installers time and end
users money.

Regardless of time-of-day, this camera is ideal for applications with challenging
lighting conditions. The series combines a day/night mechanical IR cut lter for the
highest image quality at any time of day. For applications with bright or over saturated

™

lighting conditions, optional Enhanced WDR

wide dynamic range delivers up to
120dB at full resolution and is available on select 12MP models. For applications
with poor low lighting conditions, Binning Mode increases the camera’s low light

performance by combining pixels so that more light can be collected.

Once mounted, the operator can quickly focus and position the camera remotely,
eliminating the need to adjust the camera on-site. No more hassle individually
installing multiple cameras to cover a wide area, manually focusing lenses, or risk
missing critical information.

SurroundVideo Omni SX is designed for demanding environments. Subjected and
certied to rigorous dust and water tests, the IP66 rating, and its extended operating
temperature range make it ideal for outdoor applications. The IK-10 rated, rugged
dome housing is perfect for deterring vandals since it can withstand the equivalent
of 55 kg (120 lbs) of force.

™

SurroundVideo Omni SX models feature SNAPstream

(Smart Noise Adaptation
and Processing) technology to reduce bandwidth without impacting image quality.
The camera offers advanced streaming capabilities and is designed on an efcient
H.264 encoding platform capable of delivering high quality video without straining
the network. Power can be supplied via a single Power-over-Ethernet compliant
network cable or with power from a 18–48V DC/24V AC power supply.

The camera's interface allows for an intuitive, fast, and easy conguration; while

™

the free AV IP Utility

tool allows users to quickly congure multiple cameras at one
time. SurroundVideo Omni SX is ONVIF Prole S (Open Network Video Interface
Forum) compliant, providing interoperability between network video products
regardless of manufacturer.

Interchangeable

Lenses with Remote

Focus Module

Omni-Directional Track

with 4 Customizable

Sensors

SNAPstream

Technology

™

270° FOV

Capable

Enhanced WDR

Wide Dynamic Range

on Select 12MP Models

Series Features

•

12MP and 20MP Models

•

Remote Focus

•

Forensic Zooming – Zoom Live or After the Event While Recording
Full Field-of-View in HD – Replace PTZ Devices

•

3-Axis Gimbal – Up to 4 Individual Camera Gimbals can be Independently
Placed in Any Orientation Around a 360° Track with Extra Positions for Looking
Straight Down

•

Multiple Lens Options in a Single Camera Housing from 2.1mm up to 16mm

•

SNAPstream™ Capability to Reduce Bandwidth without Impacting
Image Quality

•

Enhanced WDR™ up to 120dB at Full Resolution: See Clearly in Shaded and
Bright Light Conditions Simultaneously on Select 12MP Models

Made in the USA

+1.818.937.0700 | www.arecontvision.com | [e-mail]

™

True Day/Night

with IR Cut Filter

•

True Day/Night Functionality with Mechanical IR Cut Filter

•

Binning Mode for Strong Low Light Performance

•

Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control,

Pixel Binning Mode

Ultra Low Prole

Design

3-Axis Gimbal

Impact / Weather Resistant

IK-10 and IP66 Rated

Multi-Streaming, and Multicasting

•

Dual Encoder H.264/MJPEG

•

Network Protocols Include 802.1x, IPv4, DHCP, and More

•

PoE and Auxiliary Power: 18–48V DC/24V AC

•

Ultra Discrete, Low-Prole Housing

•

Outdoor Rated IP66 and IK-10 Impact-Resistant Housing

•

Complete Mounting Options

SurroundVideo® Omni SX IP Megapixel Cameras Specications

Camera Imaging Specications

Model AV1297 5DN AV1297 6DN AV20 975D N

Image Sensor (CMOS) 12MP (4 x 3MP) 12MP (4 x 3MP) 20MP (4 x 5MP)

Optical Format 1/3" 1/3. 2" 1/2. 5"

Pixel Pitch 2.2μm 2.2μm 2.2μm

Minimum
Illumination

Full FOV Re solu tion

1/4 Resolution

Dynamic Range 69.5dB WDR up to 120dB 70.1d B

Frame Rates*

Lens (x4)

Color (Day Mode) 0.2 Lux 0.2 Lux 0.3 Lux

Color Binning (Day Mode) 0.1 L ux 0.1 L ux 0.15 Lu x

B/W (Night Mode) 0.02 Lux, IR sensi tive 0.02 Lux, IR sensi tive 0.03 Lu x, IR sens itive

Total 8192 H x 1536 V Total 8192 H x 1536 V Total 10240 H x 1920 V

Per Sensor 2048 H x 1536 V Per Sensor 2048 H x 1536 V Per Sensor 2560 H x 1920 V

Total 4 096 H x 768 V Total 4 096 H x 768 V Total 5120 H x 960 V

Per Sensor 1024 H x 768 V Per Sensor 1024 H x 768 V Per Sensor 1280 H x 960 V

At Max Re soluti on 10fps (8192x1536) 10fps (8192x1536) 7fps (10240x1920)

1/4 Resolution 14fps (4096x768) 14fps (4096x768) 10f ps ( 5120x 960)

Binning Mode 29fps (4096x768) 14fps (4096x768) 24f ps (5120 x9 60)

2.8mm Lens Option (-28 Models) 2.8mm, F1.8, H- FOV = 89° 2.8mm, F1.8, H- FOV = 89° 2.8mm, F1.6, H- FOV = 113°

8mm Len s Option (- 08 Mod els) 8mm, F1.6, H-FOV = 33° 8mm, F1.6, H-FOV = 33° 8mm, F1.6, H- FOV = 42°

Programmability

Optics

Low Light Performance

Picture-in-Picture Simultaneous delivery of full eld-of-view and zoomed images

Programmable
Shutter Speed

Motion Detection Real-time, 1024 detection zones

Privacy Masking Unlimited

MoonLight

Flexible Cropping Resolution windowing down to 1x1 pixel for JPEG and 2x2

Backlight Compensation Auto multi-matrix white balance

Flicker Control 5Hz–255Hz adjustable

Wide Dynamic Range Auto switch control adjustment between WDR and LDR modes

Efficiency

Sharpness Selectable enhancement level

Miscellaneous

™

Mode Extended exposure and noise cancellation

M12 lens and remote focus module

Pixel Binning Mode

Controls motion blur, 1ms–500ms

pixels for H.264

(WDR models)

SNAPstream

Bit rate and bandwidth limitation control

Bandwidth and storage savings by running at 1/4 resolution

Programmable resolution, brightness, saturation, gamma, tint

Simultaneous delivery of full field-of-view and zoomed images

Electronic pan, tilt, zoom (PTZ)

Auto Exposure (AE) and Gain Control (AGC) > 120dB

Programmable shutter speed to help control motion blur

™

(Smart Noise Adaptation and Processing)

Data Transmission

Compression Type H.264 (MPEG-4, Part 10)/Motion JPEG

21 levels of quality

Network Protocols HTTP, IPv4, 802.1x, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP

Network Interface 100Base-T Ether net

Multi-Streaming 8 non-identical streams

Compliance

Industry Standard ONVIF Profile S conformant

Listings UL (CB)

FCC Compliance 47 CFR 15 Class A

Environmental RoHS, REACH, WEEE

Markings (CE) EN 55022:2010 Class A, EN 55024:2010,

CoO Made in the USA

EN 61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3: 2008,
EN60950-1:2006+A11:2009+A1:2010+A12:2011, (UL) IEC
60950-1 (ed. 2) and IEC 60950-22 (ed. 1)

Environmental

Operating Temperature -40°C (-40°F) to +50°C (122°F)

Humidity 0% to 90% (non-condensing)

Storage Temperature -40°C (-40°F) to +60°C (140°F)

* Maximum with H.264 compression

2

+1.818.937.0700 | www.arecontvision.com | [e-mail]

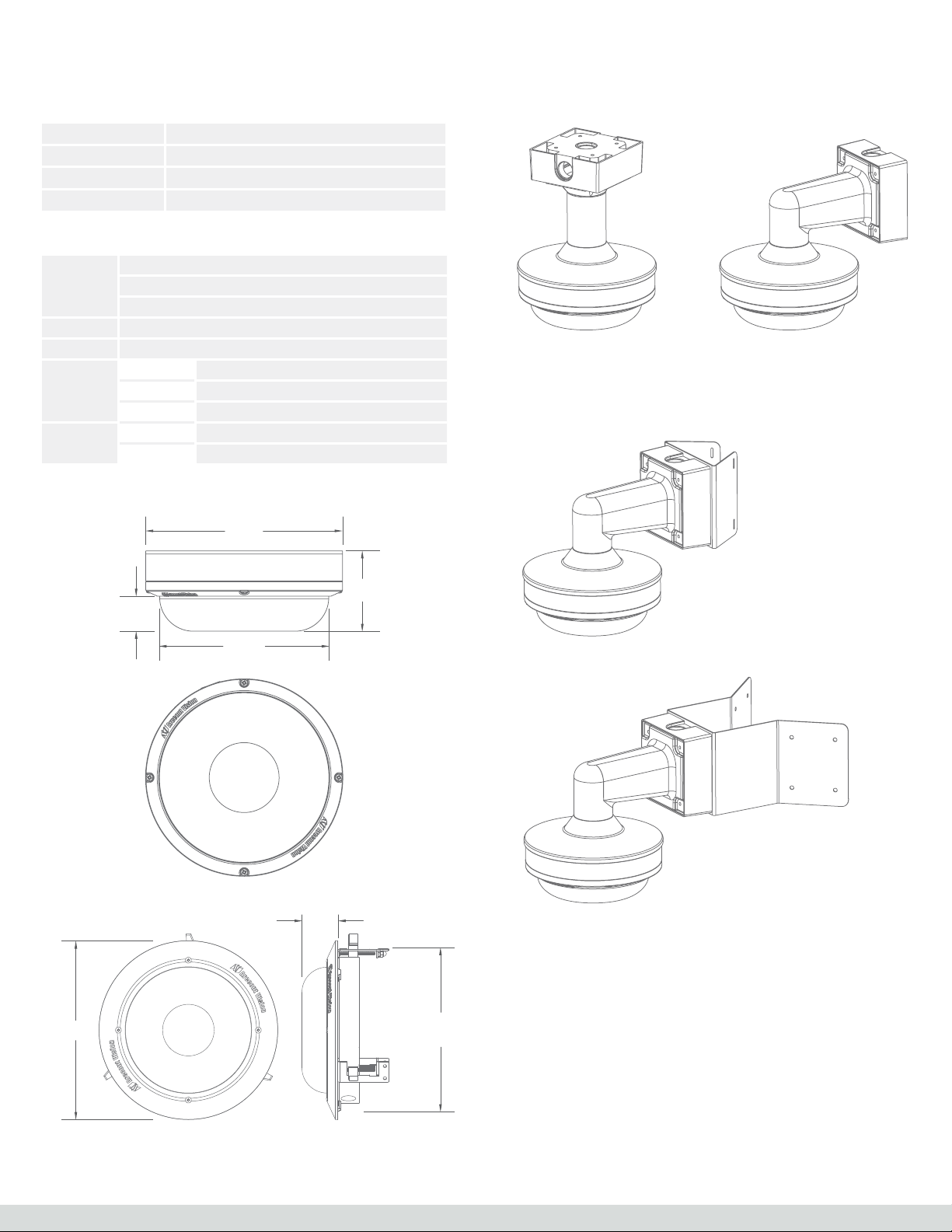

SurroundVideo® Omni SX IP Megapixel Cameras Specications

Electrical

Alarm Input/Output 1 input / 1 output

Power Over Ethernet PoE 802.3 af, Class 3

Auxiliary Power 18–4 8V DC, 24V AC

Power Consumption 14W max (auxilia ry)

AV-PMJB-W

AV-WMJB-W

Mechanical

Casing

Color Arecont Vision® White (Pantone® Cool Grey 1C)

Gimbal Easily adjustable, 3-axis w/360° pan, 90° tilt, and 360° z-axis

Dimensions

(See Dimensions)

Weight

Die-cast aluminum chassis with polycarbonate dome bubble

IP66 weather proof standard

Impact resistant, IK-10 rated

Unit Ø 7.7" (196mm) x 3.1" H (78.5mm)

Bubble Only Ø 6.7" (169.2mm) x 1.3" H (33.4mm)

Packaged 8" W (203mm) x 8" L (203mm) x 4" H (102mm)

Unit 2.8lbs (1.27kg)

Packaged 3.4lbs (1.54kg)

Dimensions

7.7"

(196 m m)

3.1"

(78.5 mm)

1.3"

(33.4 mm)

6.7"

(169. 2 mm)

SO-CAP-W SO-CAP-W

Ceiling Mount
Conguration

AV-WMJB-W

AV-PMA-W

SO-CAP-W

Wall Mount Con gur ation

with Pole Mount Adapter

Wall Mount

Conguration

9.46"

(240.3 mm)

SO-FMA

(48 mm)

Flush Mount Adapter

1.89 "

8.75"

(222.3 mm)

Min. Hole Si ze

AV-CRMA-W

AV-WMJB-W

SO-CAP-W

Wall Mount Con gur ation

with Corner Mount Adapter

See Next Page for Ordering Information

+1.818.937.0700 | www.arecontvision.com | [e-mail]

3

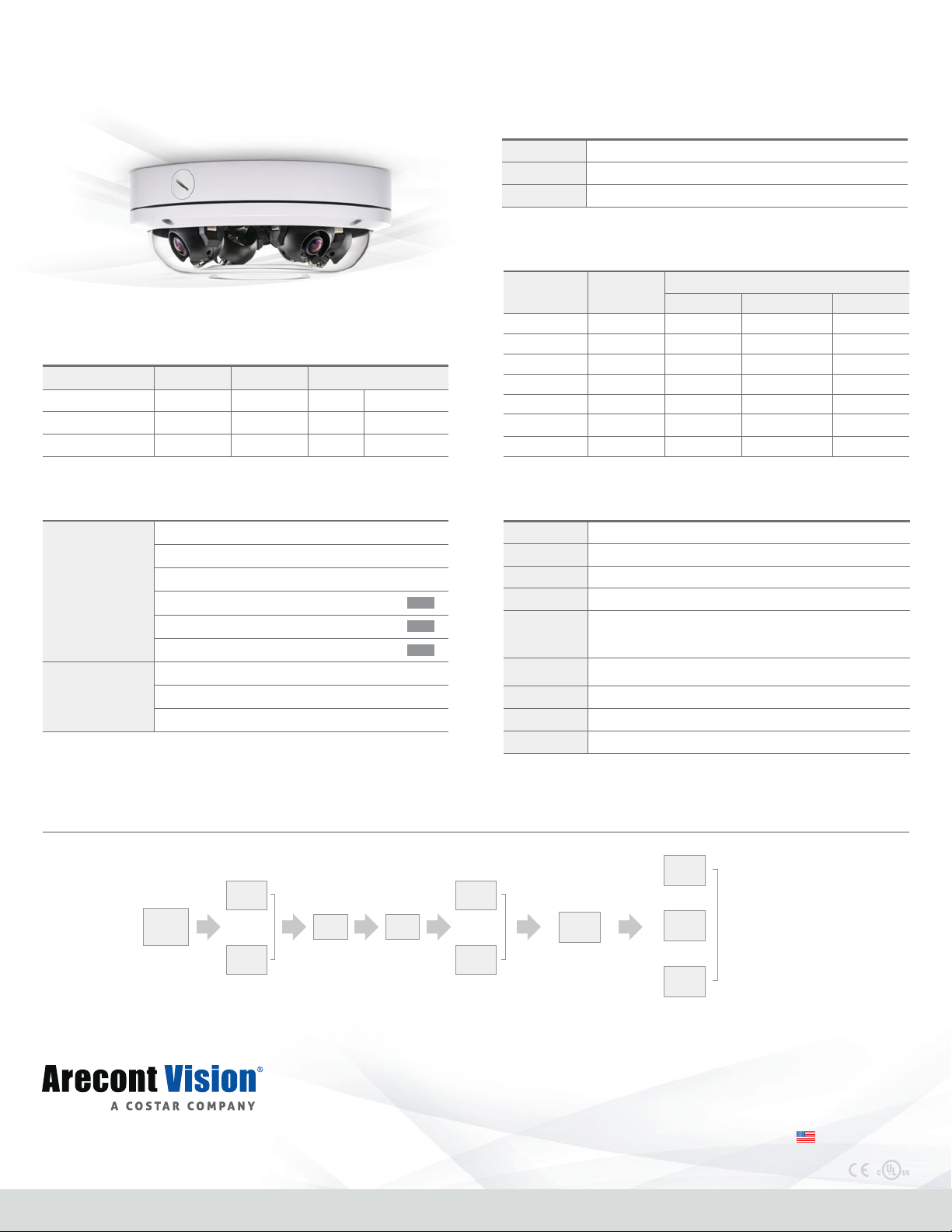

SurroundVideo® Omni SX IP Megapixel Cameras Ordering Information

Options

-NL No Lenses (User Configurable and Ordered Separately)

-28 Configured with 2.8mm Lenses

-08 Configured with 8mm Lenses

Lens Options

(Sold Separately)

1

2

1 Good option for a 270° Corner Mount conguration

2

Good configuration option for a hallway intersection

Model Specic Features

Model Resolution Frame Rate* Features

AV12975DN 12MP 10fps - Binning

AV12976DN 12MP 10fps WDR Binning

AV20975DN 20MP 7fps - Binning

* Maximum with H.264 compression

Model Numbers

12MP AV129 75D N- NL

AV12975DN-28

AV129 75D N- 08

AV12976DN-NL

AV12976DN-28

AV12976DN-08

20MP AV20 975DN -N L

AV20 975DN -28

AV20 975DN -0 8

Create Your Model

(Example: AV12976DN-28)

Megapixel

Resolution

Generation Body Type Compression True Day/Night Lens

WDR

WDR

WDR

Model Focal

MPM2.1 2.1m m 121° 121° -

MPM2.8A

MPM4.0A 4mm 63° 63° 80°

MPM6.0 6mm 43° 43° 56°

3

MPM8.0

MPM12.0A 12m m 22° 22° 28°

MPM16.0 16mm 16° 16° 20°

Accessories

AV-CRMA-W Corner Mount Adapter, Arecont Vision® White

AV-EBAR-W Round Electrical Box Adapter Plate, Arecont Vision

4

AV-JBA-W

AV-PMA-W Pole Mount Adapter, Arecont Vision® White

AV-PMJB-W

AV-WMJB-W

SO-CAP-W Mounting Cap for SurroundVideo® Omni Series, Arecont Vision® White

SO-FMA Flush Mount Adapter for SurroundVideo Omni Series

SO-SSA Sun Shield for SurroundVideo Omni Series

Length

3

2.8mm 89° 89° 113°

8mm 33° 33° 42°

3 MPM2.8A (2.8mm) is the default lens for “-28” models and

(Sold Separately)

Standard Junction Box, Arecont Vision® White

Pendant Mount Bracket with Standard Junction Box,
Arecont Vision

(Fits Cap 1.5" NPT, Box Fits 3/4" NPT)

Wall Mount Bracket with Standard Junction Box, Arecont Vision® White

(Fits Cap 1.5" NPT, Box Fits 3/4" NPT)

®

White

4

Replacement part for AV-PMJB-W and AV-WMJB-W

5

SurroundVideo Omni G2 and SX only

Horizontal Field of View

3MP 3MP WDR 5MP

MPM8.0 (8mm) is the default lens for “-08” models

®

White

5

5

5

12 5

6

AV

79

20 6

+1.818.937.0700 | www.arecontvision.com | [e-mail]

© 2019 Arecont Vi sion Costar, LLC. All rig hts reserved. Ar econt Vis ion, the Arecont V ision logo, and Sur roundVideo ar e registered trade marks of the compa ny.
AV IP Utility, Enh anced WDR, Mega IP, and SNAPstrea m are business use t radema rks of the com pany.

H.264

H.264 + WDR

DN

True Day/Night

7

28

2.8mm Lens

08

8mm Lens

NL

No Lens

6

“7” represents SurroundVideo Omni product line

7

WDR for AV12976 models only

Made in the USA

Rev 001.003
