Arecont Vision AV10115DNv1, AV10115v1, AV1115DNv1, AV1115v1, AV2115DNv1 Specsheet

1.2–10 Megapixel

MegaVideo® Compact IP Megapixel Cameras

1.3, 1080p, 3, 5, and 10 Megapixel (MP) H.264 True Day/Night Indoor Box-Style Compact IP Cameras with
SNAPstream™ (Smart Noise Adaptation and Processing) and WDR (Wide Dynamic Range) Models

MegaVideo® Compact multi-megapixel cameras provide ample resolution to
zoom-in for details in live or recorded video. These box camera solutions are
available at 1.2-, 1.3- 1080p, 3-, 5- or 10-megapixel resolutions with the fastest

Customizable Lens

and Housing Options

SNAPstream

Technology

Wide Dynamic Range

Available on Select

1080p and 3MP Models

Dual Sensor

(AV3236)

True Day/Night

with IR Cut Filter

™

Series Features

•

1.3, 1080p, 3, 5, or 10MP Models

•

SNAPstream™ Capability to Reduce Bandwidth without Impacting
Image Quality

•

True WDR up to 100dB at Full Resolution Available on Select 1080p
and 3MP Models

•

3MP WDR + 1.2MP B/W Dual Sensor Camera Offers Strong
Performance in Low Light and High Contrast Lighting Conditions

•

True Day/Night Functionality with Mechanical IR Cut Filter (DN Models)

•

Binning Mode for Strong Low Light Performance on 3MP, 5MP, and 10MP
Models

•

Casino Mode™ Guarantees Continuous 30fps Frame Rate Required by
Gaming Industry Regulations (Select 1080p Models)

•

CorridorView™ Allows 90° Image Rotation for Better Coverage in Hallways
and Corridors

frame rates in the industry. MegaVideo Compact cameras are “build to order”
solutions: select the best lens, auto-iris, True Day/Night, Wide Dynamic Range
(WDR), color-only and enclosures for specic applications (sold separately).

Pixel Binning

Mode on 3, 5, and

10MP Models

•

Dual Mode Allows 10MP Models to Switch Between 10MP and 1080p

•

Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control,

Casino Mode

Maintains at Least 30fps

on Select 1080p Models

™

CorridorView

with 90° Image Flip

™

Dual Mode:

1080p/10MP on

10MP Models

Multi-Streaming, Multicasting, and Forensic Zooming

•

Dual Encoder H.264/MJPEG

•

Network Protocols Include 802.1x, DHCP, QoS, IPv6, and More

•

PoE and Auxiliary Power: 12–48V DC/24V AC (Auxiliary Power Not
Available for Dual Sensor Model)

•

Many Lenses to Choose From (Sold Separately)

•

Small Size for Flexible Mounting Options

•

Use with Arecont Vision Housings, or as a Standalone Camera (Dual
Sensor Model is Incompatible with D4 Series Housings)

Made in the USA

+1.818.937.0700 | www.arecontvision.com | [e-mail]

MegaVideo® Compact IP Megapixel Cameras Specications

Camera Imaging Specications

Model

Image Sensor 1.3MP* 1080 p 1080 p* 3MP* 3MP

Day/Ni ght - Yes - Yes Yes - Yes Yes Yes - Yes - Yes

Optical Format 1/2.7" 1/2.7" 1/3.2 " 1/2. 5" 1/3. 2"

Pixel Pitch 3μm 3μm 2. 2μm 2.2μm 2.2μm

Color (Day Mode)

Minimum
Illumination

Color Binning
(Day Mode)

B/W (Night Mode)

Full FOV Re solu tion 1280 H x 1024 V 1920 H x 1080 V 1920 H x 1080 V 2048 H x 1536 V 2048 H x 1536 V

1/4 Resolution 640 H x 480 V 960 H x 540 V 960 H x 540 V 1024 H x 768 V 1024 H x 768 V

Dynamic Range 69dB 69dB

Maximum SNR 45dB 45dB 49dB 45dB 49dB 45dB 45dB 40dB

At Max Re soluti on

Cropped

†

Frame Rates

Binning Mode

Upscaled

Dual St ream

Dual Str eam
Upscaled

Lens (Sold separately) See MPL Megapixel Lenses and Ultra HD Megapixel Lenses specification sheets for lens options

†

* Effective

Maximum with H.264 compression

AV111 5 AV2115 AV211 6 AV3115 AV3 116 AV32 36 AV5115 AV10115

v1 DNv1 v1 DNv1 DNv1 v1 DNv1 DNv1 DN v1 DNv1 v1 DNv1

3MP Color

1.2M P B/W

3MP 1/3.2"

1.2M P 1/3"

3MP 2.2μm

1.2M P 3.75μm

5MP 10 MP

1/2. 5" 1/2.3"

2.2μm 1. 67μ m

0.1 Lux 0.1 L ux 0.2 Lux 0.3 Lux 0 .2 Lux 0.2 Lux 0.3 Lux 0.42 Lux

- - - 0.15 Lu x 0.15 Lux - 0 .15 Lux 0. 21 Lux

0.01 Lux,

IR sensitive

42fps (1280x1024) 30fps (1920x1080) 30fps (1920x1080) 21fps (2048x1536) 21fps (2048x1536)

- 42fps (1280x1024) 30fps (1280x1024)

- - -

- - - - - 1.2MP 18fps (2048x1536) - -

- - - - -

- - - - -

0.01 Lux,

IR sensitive

0.02 Lux,

IR sensitive

WDR up to 100d B

0.03 Lux,

IR sensitive

70 .1d B

29fps (1920x1080)
41fps (1280x1024)

46fps (1024x768)

64fps (960x540)

0.02 Lux,

IR sensitive

WDR up to 100d B WD R up to 100dB

30fps (1920x1080)
30fps (1280x1024)

21fps (1024x768)

21fps (800x600)
21fps (960x540)
21fp s (6 40x512)

0.01 Lux, IR s ensitiv e

3MP 2048 H x 1536 V

1.2M P 1280 H x 1024 V

3MP 1024 H x 768 V

1.2M P 640 H x 512 V

3MP 18fps (2048x1536)

1.2M P 40fp s (128 0x 960 )

-

-

3MP

1.2M P 1280 x960

3MP

1.2M P 2048x1536

11f ps @

8fps @

2048x1536

2048x1536

0.03 Lux,

IR sensitive

0.04 Lux,

IR sensitive

2592 H x 1944 V 3648 H x 2752 V

1296 H x 972 V 1824 H x 1376 V

70 .1d B 5 7. 2d B

14fps (2592x1944) 7fps (3 648x2752)

21fps (2048x1536)
29fps (1920x1080)
41fps (1280x1024)

34fps (1296x972)
46fps (1024x768)

64fps (960x540)

12fps (2592x1944)
18fps (2048x1536)
25fps (1920x1080)
37fps (1280x1024)

29fps (1920x1080)
26fps (1824x1376)

43f ps (1296 x972)

54fps (1024x768)

- -

- -

Programmability

Low Light Performance Pixel Binning Mode 3, 5, and 10MP models

Picture-in-Picture Simultaneous delivery of full eld-of-view and zoomed images

Programmable
Shutter Speed

Motion Detection Real-time, 1024 detection zones

Privacy Masking Unlimited

Casino Mode

MoonLight

™

™

Mode Extended exposure and noise cancellation

Flexible Cropping Resolution windowing down to 1x1 pixel for JPEG and 2x2

Backlight Compensation Auto multi-matrix white balance

Flicker Control 5Hz–255Hz adjustable

Image Rotation 180° image ip or CorridorView

Wide Dynamic Range Auto adju stment betwee n WDR and L DR mode s

Noise Reduction Low light noise filter control

Efficiency SNAPstream

Sharpness Selectable enhancement level

Miscellaneous Programmable resolution, brightness, saturation, gamma, tint

Controls motion blur, 1ms–500ms

Maintains 30fps or higher (AV2115 model)

pixels for H.264

™

rotation)

(90°, 180° and 270° image

(WDR m odels on ly)

™

(Smar t Noise A daptat ion and Process ing)

Bit rate and bandwidth limitation control

Bandwidth and storage savings by running at 1/4 resolution

Electronic pan, tilt, zoom (PTZ)

Data Transmission

Compression Type H.264 (MPEG-4, Par t 10) / Motion JPEG

21 levels of qu ality

Netw ork Protocols RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, QoS, IPv4, IPv6,

802.1x

Network Interface 100Base-T Ethernet

Multi-Streaming 1.3–5MP Models 8 non-identical streams

10MP Models 4 non-identical streams

Compliance

Industry Standard ONVIF Profile S conformant

Listings UL (CB)

FCC Compliance 47 CFR 15 Class A

Environmental RoHS, REACH, WEEE

Markings CE: EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3,

EN60950-1

CoO Made in the USA

Environmental

Operating temperature -5°C (23°F) to +45°C (113°F)

-5°C (23°F) to +40°C (104°F) in D4SO housings

Humidity 0% to 90% (non-condensing)

Storage temperature -20°C (-4°F) to +60°C (140°F)

2

Made in the USA

+1.818.937.0700 | www.arecontvision.com | [e-mail]

MegaVideo® Compact IP Megapixel Cameras Specications

Electrical

Alarm Input/Output 1 input /1 ou tput

Power Over Ethernet PoE 802. 3af, Clas s 3

Auxiliary Power 12–4 8V DC, 24V AC (AV3236 is PoE only)

Max Power Consumption (Watts DC Power)

Model Watts (Includes lens)

AV1115 / AV2115 5.0W

AV2116 / AV3116 6.0W

AV3115 / AV5115 5.3W

AV3236 PoE power only

AV10115 5.4W

Mechanical

Casing Die-cast aluminum chassis

C/CS lens mount

Dimensions

(See Dimensions)

Weight Unit 0.6lbs (0.272kg) w/o lens

Unit 3" W (76mm) x 1.25" D (31.7mm) x 2.5" H (63.5mm) (w/o lens)

Packaged 4" W (102mm) x 4" L (102mm) x 3.7" H (94mm)

Packaged

0.7lbs (0.318kg)

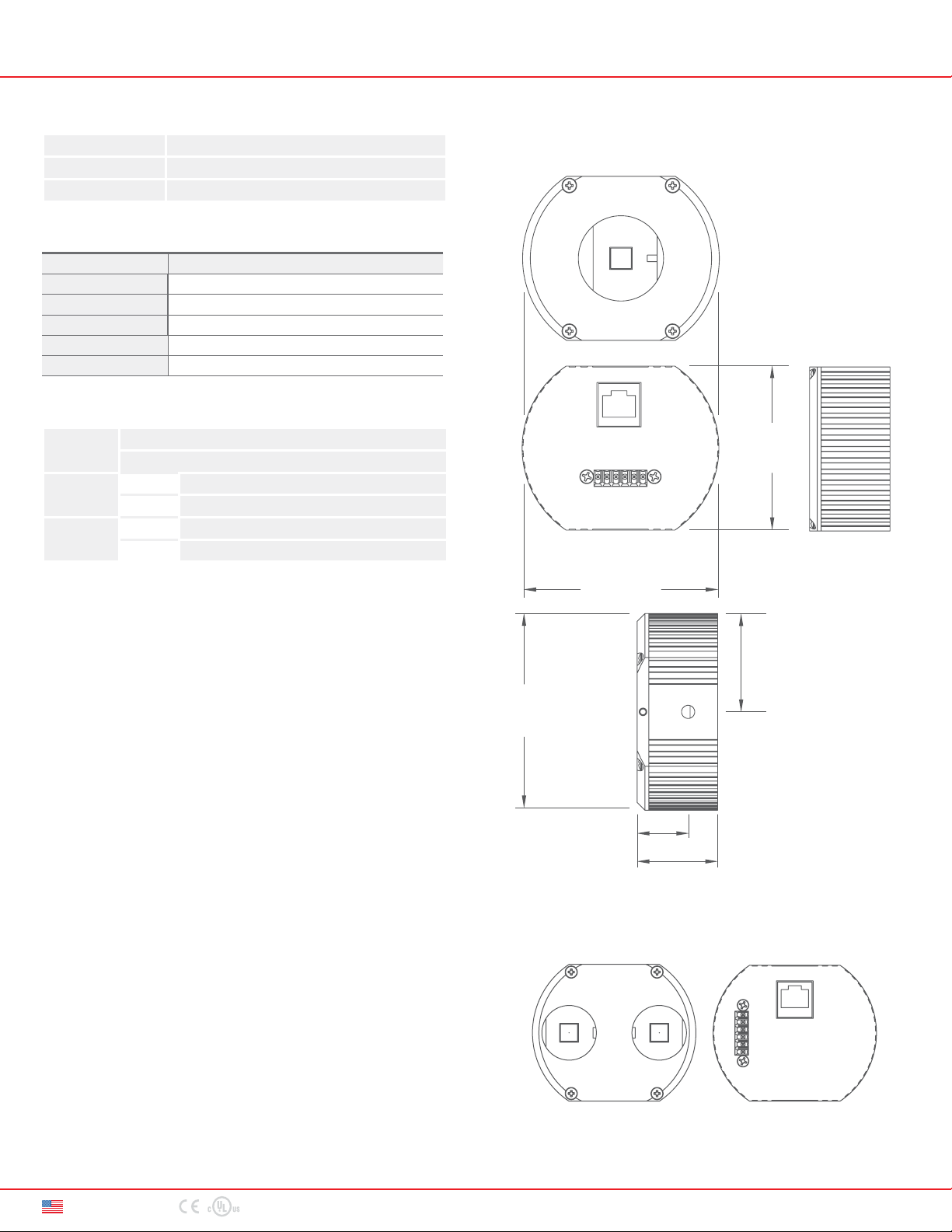

Dimensions

Single Sensor

2.5"

(63.5mm)

3.0"

(76mm)

3.0" ( 76mm)

0.8" (21mm)

1.25"

(31.7mm)

Dual Sensor

1.5" (3 8m m)

Made in the USA

See Next Page for Ordering Information

3

+1.818.937.0700 | www.arecontvision.com | [e-mail]

MegaVideo® Compact IP Megapixel Cameras Specications

Ordering Information

Model Specic Features

Model Resolution Frame Rate

AV1115 1.3MP 42fps - - -

AV2115 1080p 30fps - Casino Mode

AV2116 1080p 30fps WDR - -

AV3115 3MP 21fps - - Binning

AV3116 3MP 21fps WDR - Binning

AV3236 3MP/1.2MP 18fps/40fps WDR Dual Sensor Binning

AV5115 5MP 14fps - - Binning

AV10115 10MP 7fps - - Binning

Model Numbers

1.3MP AV1115 v1

AV 1115 DN v1

1080p AV2115v1

AV2115DNv1

AV2116DNv1

3MP AV3115v1

AV3115DNv1

AV3116DNv1

AV3236DN

5MP AV5115v1

AV5115DNv1

10MP AV 10 115 v1

AV 1011 5D Nv1

Create Your Model

(Example: AV5115DNv1)

†

Megapixel
Resolution

Features

™

Dual Sensor

Generation Body Type Compression Day/Night

-

WDR

WDR

WDR

Dual Mode

Dual Mode

Conguration

Single Sensor

Dual Sensor

Lens Options (Sold Separately)

Manual Vari-Focal

Manual Fixed Focal MPL1.55 (1.55mm)

1

Recommended for WDR models

MP L4 -10 (4.5–10mm)

MP L4 -12 (4–12mm)

MP L8 -16 (8–16mm)

MP L12 -4 0 (12–40mm)

MP L3 3-12A

1

(3.3–10.5mm)

UHD45-10 (4.5–10mm)

1

MPL3.5

(3.5mm)

MPL4.0 (4mm)

MPL6.0 (6mm)

1

MPL6.2

(6.2mm)

MPL8.0 (7.8mm)

UHD7.2 (7.2mm)

JHF25M (25mm)

JHF35M (35mm)

Compatible Housings (Sold Separately)

D4F Indoor Flush Mount Housing

D4SO Outdoor 4" Dome Housing

HSG2 11" Outdoor PoE Bullet-Style Housing

HSG2 Housing Accessories (Sold Separately)

AV-PMA Pole Mount Adapter

AV-CRMA Corner Mount Adapter

AV-EBAS Square Electrical Box Adapter

AV-JBA Standard Junction Box

HSG2-WMT Wall Mount for HSG2 Housing

(See MegaVideo D4 specifications for D4SO housing compatible accessories)

Sensor Revision

3MP

3MP

3MP

3MP

3MP

3MP

3MP

3MP

3MP

3MP

3MP

5MP

5MP

5MP

5MP

5MP

5MP

5MP

5MP

5MP

5MP

5MP

5MP

5MP

5MP

5MP

10MP

10MP

10MP

10MP

1.3MP1.2MP

1080p

1.3MP1.2MP

1080p

1.3MP1.2MP

1080p

1.3MP1.2MP

1080p

1.3MP1.2MP

1080p

1.3MP1.2MP

1080p

1.3MP1.2MP

1080p

1.3MP1.2MP

1080p

1.3MP1.2MP

1080p

1.3MP1.2MP

1080p

1.3MP1.2MP

1080p

1

2

2

AV

3

5

†

Maximum with H.264 compression

2

“1” represents MegaVideo product line

3

“3” represents Dual Sensor sub-product line

4

WDR for AV2116, AV3116, and AV3236 models only
