Arecont Vision AV10255PMIR-SH, AV10255PMTIR-SH, AV1255PMIR-S, AV2255DN-H, AV2255PMIR-SAH Brochure
...
MegaDome® 2 Megapixel IP Cameras
1.2–10MP H.264 All-in-One Motorized P-Iris Lens Day/Night IR Indoor/Outdoor Dome IP Cameras
with Wide Dynamic Range (WDR) and STELLAR™ Low Light Models
Motorized Lens
with IR Illuminator
Motorized Lens
Wide Field of View
Integrated Motorized Lens
with Remote Focus and Zoom
(AM/PM Version)
All-in-One Dome
Solution
P-Iris Control for
Best Depth of Field and
Image Clarity (PM Models)
Pixel Binning Mode
on 3, 5, and 10MP Models
Zoom-In Details
Wide Dynamic Range
Available on Some
1080p and 3MP Models
CorridorView
with 90° Image Flip
(-S Models)
Dual Mode: 1080p/10MP
on 10MP Models
™
SDHC Card Slot
(-S Models)
™
STELLAR
Low Light Technology
on 1.2MP Models
Dual Encoder
H.264/MJPEG
All-in-One Solutions –
MegaDome® 2
MegaDome® 2 multi-megapixel cameras provide superior
resolution to zoom-in for details in live or recorded video. These
indoor/outdoor all-in-one solutions integrate a 1.2-, 1.3-, 1080p,
3-, 5- or 10-megapixel (MP) camera with fast frame rates and an
IR corrected motorized wide angle or telephoto vari-focal lens into
an IP66 environmental rated and IK-10 impact-resistant dome
housing. Remote focus and remote zoom make MegaDome® 2
easy to install and manage. MegaDome® 2 cameras are also
available in manual lens models.
Casino Mode
IR LEDs
(IR Models)
™
Impact / Weather Resistant
IK-10 and IP66 Rated
Audio Input/Output
(-A Models)
Heater
(-H Models)
True Day/Night
with IR Cut Filter
Wide Angle or Telephoto
Lens Option
Maintains at Least 30fps
on AV2255 Models
Made in the USA
+1.818.937.0700 | 877.CAMERA.8 | www.arecontvision.com | avsales@arecontvision.com
MegaDome® 2 Megapixel IP Cameras
Highlighted Features:
•
Remote Focus/Zoom Motorized Auto-Iris or P-Iris Lens (AM/PM Models)
•
P-Iris Control to Get Best Depth of Field and Image Clarity (PM Models)
•
Wide Angle or Telephoto Lens Options
•
Optional True WDR up to 100dB at Full Resolution Available on Some
1080p and 3MP Models: See Clearly in Shaded
and Bright Light Conditions Simultaneously
•
STELLAR™ Low Light Technology Reduces Motion Blur,
Noise and Storage Requirements, While Enhancing Contrast and
Allowing Color Imaging in Near Complete Darkness on 1.2MP Models
•
True Day/Night Functionality with Mechanical IR Cut Filter
and Optional IR LEDs
•
Binning Mode for Strong Low Light Performance on 3MP, 5MP and
10MP Cameras
•
Casino Mode™ Guarantees Continuous 30fps Frame Rate Required
by Gaming Industry Regulations (AV2255 Models)
•
CorridorView™ Allows 90° Image Rotation for Better Coverage in
Hallways and Corridors
Telephoto Field of View
Wide Field of View
•
Dual Encoder H.264/MJPEG
•
Privacy Mask, Motion Detection, Flexible Cropping,
Bit Rate Control, Multi-Streaming, Forensic Zooming
and Non-Integer Scaling
•
Fast Frame Rates
•
Heater and Optional Audio and IR LEDs (No Heater
Required for WDR Models)
•
SDHC Card Slot for Onboard Storage (-S Models)
•
Total PoE Solution (No External Power Required for
Heater and IR LEDs)
•
Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
•
PoE and Auxiliary Power: 12–48V DC/24V AC
•
Easily Adjustable 3-Axis Gimbal
•
PSIA Conformant
•
User-Friendly Web Interface
•
Made in the USA
See Details with Forensic Zooming
Arecont Vision MegaDome® 2 megapixel cameras deliver outstanding
resolution to capture every detail whether viewing live or recorded/
archived video. With the ability to digitally Pan-Tilt-Zoom (PTZ)
images, you can view the details you need to see at any time,
such as license plates, faces and other objects of interest. The
superior resolution of MegaDome® 2 megapixel cameras along with
their varying elds of view allows them to do the work of multiple
conventional cameras and provide critical forensic information—all
without the need and associated expense of system operators having
to “catch” activities of interest as they occur.
STELLAR
™
Technology and Enhanced Low Light Performance
MegaDome® 2 now features a 1.2MP model with Spatio
Temporal Low Light Architecture (STELLAR™) technology, which
allows for color imaging in near complete darkness. Arecont
Vision® STELLAR™ technology utilizes a patented algorithm that
reduces noise, motion blur, bit rate and storage requirements.
Along with adaptive contrast enhancement, MegaDome® 2 with
STELLAR™ has superior low light sensitivity, making it capable of
covering areas where very little light is present.
™
In addition to STELLAR
models, all MegaDome® 2 camera models are equipped with Day/Night operation, and MegaDome® 2 cameras that are 3MP or higher
Color Image without STELLAR™ Technology at .01 Lux Color Image with STELLAR™ Technology at .01 Lux
include pixel binning to reduce noise. These functionalities along with integrated IR illumination provide a winning combination in complete darkness.
MegaDynamic® Wide Dynamic Range (WDR)
Users can achieve clear images in extreme lighting conditions with MegaDome® 2
WDR cameras in resolutions of 1080p and 3MP. Wide Dynamic Range up to 100dB
at full resolution balances light and dark areas in the same scene, such as in the
lobby of an ofce building or the loading dock at a distribution facility. Optional IR
illuminators provide coverage in total darkness for a 24-hour solution.
CorridorView
With CorridorView
rotate or ip pixels in 90° increments.
This works great for narrow hallways
where pixels are often wasted capturing
the surrounding walls.
™
™
, MegaDome® 2 can
Made in the USA
Megapixel image with WDRMegapixel image without WDR Standard View CorridorView™
IR Illuminator Specications
AMIR/PMIR PMTIR
IR LEDs 24 pc s 24 p cs
IR Wavelength 850nm 850nm
IR Distance 50ft (15m) 120ft (36m)
IR Angle 40° 30°
Total PoE Solution
No additional power wiring is needed for
the camera, the heater and IR LED ring.
IR LED Ring
2 Watt Heater
Remote Focus/Zoom with User-Friendly Web Interface
For easy installation, MegaDome® 2 can be
installed without locally adjusting the eld
of view or focus. Remote focus and remote
zoom can be controlled through the camera
webpage. Just click “short range focus” or
“full range focus” to get a clear image through
the IK-10 rated dome bubble. The added
P-iris functionality provides an automatic,
precise iris control. Short or full range focus
scan functions analyze the local or full scene
Telephoto P-Iris Lens Option
MegaDome® 2 cameras are available
with motorized telephoto lenses, further
boosting their exibility as all-in-one
solutions. Telephoto lenses offer a
broad optical range for every sensor
resolution in the MegaDome® 2 family
and feature P-iris technology to achieve
the best possible image quality.
Product Comparison
Model Resolution
AV1255PM-SH* 1.2MP 1280 x 1024
AV1255PMIR-SH* 1.2MP 1280 x 1024
AV1255DN-H 1.3MP 1280 x 1024
AV2255DN-H 1080p 1920 x 1080
AV2255AM-H 1080p 1920 x 1080
AV2255PMIR-SH 1080p 1920 x 1080
AV2255PMIR-SAH 1080p 1920 x 1080
AV2255PMTIR-SH 1080p 1920 x 1080
AV2256DN 1080p 1920 x 1080
AV2256PM 1080p 1920 x 1080
AV2256PMIR-S 1080p 1920 x 1080
AV2256PMTIR-S 1080p 1920 x 1080
AV3255DN-H 3MP 2048 x 1536
AV3255AM-H 3MP 2048 x 1536
AV3255PMIR-SH 3MP 2048 x 1536
AV3255PMTIR-SH 3MP 2048 x 1536
AV3256DN 3MP 2048 x 1536
AV3256PM 3MP 2048 x 1536
AV3256PMIR-S 3MP 2048 x 1536
AV3256PMIR-SA 3MP 2048 x 1536
AV3256PMTIR-S 3MP 2048 x 1536
AV5255DN-H 5MP 2592 x 1944
AV5255AM-H 5MP 2592 x 1944
AV5255PMIR-SH 5MP 2592 x 1944
A
V5255PMIR-SAH 5MP 2592 x 1944
AV5255PMTIR-SH 5MP 2592 x 1944
AV10255PMIR-SH 10MP 3648 x 2752
AV10255PMTIR-SH 10MP 3648 x 2752
*STELLAR™Note: All part numbers with -S have SDHC Card Slot, CorridorView™ w/ 90° Image Flip, Non-Integer Scaling (except STELLAR models).
B/W: 0.002 Lux, IR Sensitive
B/W: 0.002 Lux, IR Sensitive
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Color (Non-Binning): 0.3 Lux
Optical Range Per Sensor
1080p 8–22mm
1080p WDR 8–22mm
3MP 8–22mm
3MP WDR 8–22mm
5MP 9–22mm
10MP WDR 12–22mm
Minimum
Illumination
Color: 0.02 Lux
Color: 0.02 Lux
Color: 0.1 Lux
B/W: 0 Lux, IR Sensitive
Color: 0.1 Lux
B/W: 0 Lux, IR Sensitive
Color: 0.1 Lux
B/W: 0 Lux, IR Sensitive
Color: 0.1 Lux
B/W: 0 Lux, IR Sensitive
Color: 0.1 Lux
B/W: 0 Lux, IR Sensitive
Color: 0.1 Lux
B/W: 0 Lux, IR Sensitive
Color: 0.3 Lux
B/W: 0 Lux, IR Sensitive
Color: 0.3 Lux
B/W: 0 Lux, IR Sensitive
Color: 0.3 Lux
B/W: 0 Lux, IR Sensitive
Color: 0.3 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Color (Binning): 0.15 Lux
B/W: 0 Lux, IR Sensitive
Lens
3–9mm, 1/3", F1.2,
RZ, RF, P-Iris, H-FOV = 92°–31°
3–9mm, 1/3", F1.2,
RZ, RF, P-Iris, H-FOV = 92°–31°
3.4–10.5mm, 1/2.5", F1.6,
H-FOV = 62°–24°
3.4–10.5mm, 1/2.5", F1.6,
H-FOV = 93°–36°
3–9mm, 1/2.7", F1.2,
RZ, RF, Auto-Iris, H-FOV = 115°–37°
2.8–8mm, 1/2.7", F1.2,
H-FOV = 120°–44°
2.8–8mm, 1/2.7”, F1.2,
H-FOV = 120°–44°
8–22mm, 1/2.7", F1.6, RZ, RF,
P-iris, Telephoto, H-FOV = 42°–16°
3.4–10.5mm, 1/2.5", F1.6,
H-FOV = 68°–26°
3–9mm, 1/3.2", F1.2,
RZ, RF, P-Iris, H-FOV = 82°–27°
3–9mm, 1/3.2", F1.2,
RZ, RF, P-iris, H-FOV = 82°–27°
8–22mm, 1/2.7", F1.6, RZ, RF,
P-iris, Telephoto, H-FOV = 30°–12°
3.4–10.5mm, 1/2.5", F1.6,
H-FOV = 73°–28°
3.6–9mm, 1/2.5", F1.8,
RZ, RF, Auto-Iris,
H-FOV = 76°–28°
2.8–8mm, 1/2.5", F1.2,
H-FOV = 94°–34°
8–22mm, 1/2.7", F1.6, RZ, RF,
P-iris, Telephoto, H-FOV = 29°–12°
3.4–10.5mm, 1/2.5", F1.6,
H-FOV = 72°–28°
3–9mm, 1/3.2", F1.2,
RZ, RF, P-iris, H-FOV = 87°–29°
3–9mm, 1/3.2", F1.2,
RZ, RF, P-iris, H-FOV = 87°–29°
3–9mm, 1/3.2", F1.2,
RZ, RF, P-iris, H-FOV = 87°–29°
8–22mm, 1/2.7", F1.6, RZ, RF,
P-iris, Telephoto, H-FOV = 32°–12°
3.4–10.5mm, 1/2.5", F1.6,
H-FOV = 92°–36°
3.6–9mm, 1/2.5", F1.6,
H-FOV = 92°–36°
3–8mm, 1/2.5", F1.4,
H-FOV = 113°–43°
3–8mm, 1/2.5", F1.4,
H-FOV = 113°–43°
9–22mm, 1/2.5", F2.0, RZ, RF,
P-iris, Telephoto, H-FOV = 38°–16°
4–8mm, 1/2.3", F1.6,
H-FOV = 89°–47°
12–22mm, 1/2.3", F2.2, RZ, RF,
P-iris, Telephoto, H-FOV = 30°–17°
to determine the best focus for the chosen
eld of view.
Additional Benets Include:
•
Fine tuning for a better image after
installation
•
Quicker installation
•
Ability to choose wide or telephoto
depending on application requirements
Max Frame
Rate @ Full
Resolution
Day/
WDR
Night
37fps • • • • •
37fps • • • • • •
42fps • • •
32fps • • •
32fps • • • •
31fps • • • • • •
31fps • • • • • • •
31fps • • • • • •
30fps • • •
30fps • • • •
30fps • • • • • •
30fps • • • • • •
21fps • • • •
21fps • • • • •
21fps • • • • • • •
21fps • • • • • • •
21fps • • • •
21fps • • • • •
21fps • • • • • • •
21fps • • • • • • • •
21fps • • • • • • •
14fps • • • • •
14fps • • • • • •
14fps • • • •
14fps • • • • • • • •
14fps • • • • • • •
7fps • • • • • • •
7fps • • • • • • •
Binning
Mode
Remote
Focus/
Zoom
•
P-iris is designed to provide
improvements in image quality and
depth of eld
P-Iris
Lens
P-Iris
Telephoto
Lens
IR Heater Audio
• • •
Auto Iris
Lens
Manual
Lens
SDHC
Card
+1.818.937.0700 | 877.CAMERA.8 | www.arecontvision.com | avsales@arecontvision.com

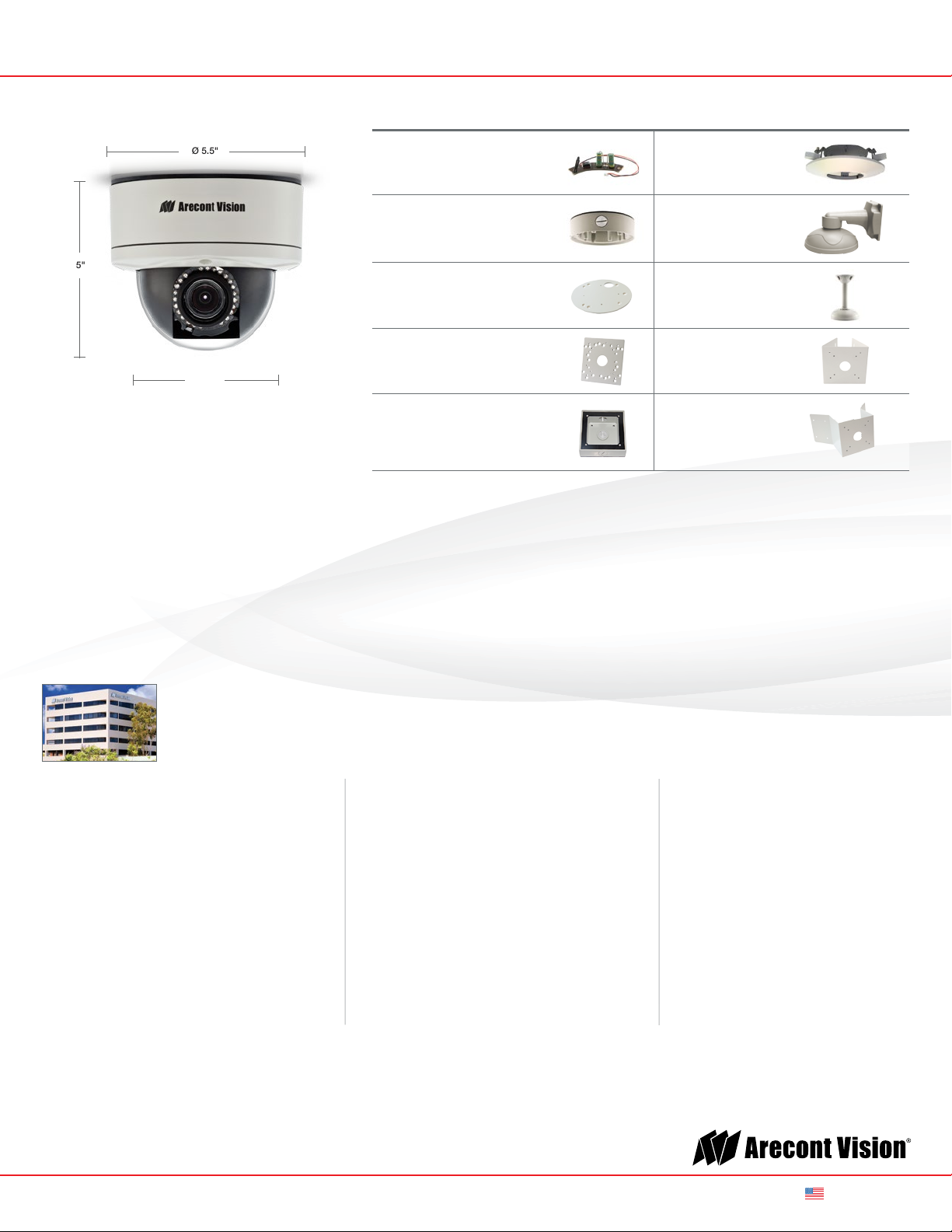

MegaDome® 2 Megapixel IP Cameras
AccessoriesCongurations
Ø 5.5"
5"
Ø 4"
MD2-HK
2 Watt Heater
MD-JBA
Indoor/Outdoor Junction Box
Adapter (For MD-CMT Only)
MD-EBA
Electrical Box Adapter Plate
SV-EBA
Electrical Box Adapter
SV-JBA
Junction Box Adapter
(For MD-WMT2 Only)
MD-FMA
Flush Mount Adapter
MD-WMT2
Wall Mount
(1.5" NPT Standard)
MD-CMT
Pendant Mount
AV-PMA
Pole Mount Adapter
AV-CRMA
Corner Mount Adapter
Global Sales and Support
Arecont Vision is the leading manufacturer of high-performance megapixel IP cameras and associated software.
All Arecont Vision cameras are made in the USA.
Americas
Los Angeles, CA, USA
Arecont Vision, LLC. Headquarters
425 E. Colorado St., 7th Floor
Glendale, CA 91205, USA
Phone: +1.818.937.0700
Toll Free: 877.CAMERA.8
Fax: +1.818.937.0464
Sales
Phone: +1.818.937.0700 x 3
Email: avsales@arecontvision.com
Support
Phone: +1.818.937.0700 x 1
Email: support@arecontvision.com
Latin America
Email: latam.sales@arecontvision.com
EMEA
Frankfurt, Germany
Phone: +49.69.6953.4600
Email: europe.sales@arecontvision.com
Moscow, Russia
CJSC Arecont Vision
Phone: +7.495.649.0577
Fax: +7.495.221.5227
Email: info@arecontvision.ru
Middle East
Email: mena.sales@arecontvision.com
Africa
Email: africa.sales@arecontvision.com
APAC
China
Phone: +86.180.0179.1799
Alt. Phone: +1.626.215.5300
Fax: +1.818.649.3404
Email: apac.sales@arecontvision.com
Rev 003.002
425 E. Colorado St. 7th Floor | Glendale, CA USA 91205 | +1.818.937.0700 | www.arecontvision.com | avsales@arecontvision.com
© 2014 Arecont Vision. Arecont Vision and MegaDome are registered trademarks of Arecont Vision in various jurisdictions. Product specifications are subject to change without notice.
Made in the USA
Loading...
