Arecont Vision AV10225PMIR-S, AV10225PMTIR-S, AV1225PMIR-S, AV2225PMIR-S, AV2225PMIR-SA Specsheet

1.2–10 Megapixel

10MP Models

on Select 1080p Models

MegaView® 2 IP Megapixel Bullet Cameras

1.2, 1080p, 3, 5, and 10 Megapixel (MP) H.264 All-in-One Motorized P-Iris Lens True Day/Night IR Indoor/Outdoor
Bullet-Style IP Cameras with SNAPstream™ (Smart Noise Adaptation and Processing), WDR (Wide Dynamic Range),
and STELLAR™ (Spatio Temporal Low Light Architecture) Models

Telephoto Lens

Junction Box IncludedWide Angle Lens

MegaView® 2 second generation multi-megapixel cameras provide ample
resolution to zoom-in for details in live or recorded video. These indoor/
outdoor all-in-one solutions integrate a 1.2-, 1080p, 3-, 5-, or 10-megapixel
camera with fast frame rates and an IR corrected motorized wide angle or

Integrated Motorized Lens

with Remote Focus and Zoom

™

SNAPstream

Technology

P-Iris Control for

Best Depth of Field

and Image Clarity

True Day/Night

with IR Cut Filter

Wide Dynamic Range

Available on Select

1080p and 3MP Models

All-in-One Bullet-Style

Solution

Dual Mode: 1080p/10MP

Pixel Binning

Mode on 3, 5, and

on 10MP Models

CorridorView

with 90° Image Flip

Series Features

•

1.2, 1080p, 3, 5, or 10MP Models

•

Remote Focus/Zoom Motorized P-Iris Lens

•

P-Iris Control to Get Best Depth of Field and Image Clarity

•

SNAPstream™ Capability to Reduce Bandwidth without Impacting
Image Quality

•

Wide Angle or Telephoto Lens Options

•

STELLAR™ Reduces Motion Blur, Noise and Storage Requirements,
While Enhancing Contrast and Allowing Color Imaging in Near Complete
Darkness on 1.2MP Models

•

True WDR up to 100dB at Full Resolution Available on Select 1080p
and 3MP Models

•

True Day/Night Functionality with Mechanical IR Cut Filter and IR LEDs

•

Binning Mode for Strong Low Light Performance on 3MP, 5MP and
10MP Cameras

‡

telephoto, P-iris lens into an IP66 environmental rated, IK-10 impact-resistant
bullet-style housing. H.264 compression reduces bandwidth and storage
requirements while delivering full frame rates and full resolution without
sacricing image quality.

™

STELLAR

Low Light Technology

on 1.2MP Models

™

SDHC Card Slot

(-S Models)

•

Casino Mode™ Guarantees Continuous 30fps† Frame Rate Required by

Wide Angle or Telephoto

Lens Option

Dual Encoder
H.264/MJPEG

IR LEDs

Casino Mode™

Maintains at Least 30fps

Impact / Weather Resistant

IK-10 and IP66 Rated

Audio Input/Output

(-A Models)

Gaming Industry Regulations (Select 1080p Models)

•

CorridorView™ Allows 90° Image Rotation for Better Coverage in Hallways
and Corridors

•

Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control,
Multi-Streaming, Multicasting, Forensic Zooming, and Non-Integer Scaling

•

Dual Encoder H.264/MJPEG

•

SDHC Card Slot for Onboard Storage (-S Models)

•

Network Protocols Include 802.1x‡, DHCP, QoS, IPv6, and More

•

Total PoE Solution (No External Power Required for IR LEDs), PoE and
Auxiliary Power: 12–48V DC/24V AC

•

Outdoor Rated IP66 and IK-10 Impact-Resistant Housing

•

Easily Adjustable 3-Axis Wall Mount, Junction Box Included

•

Optional Audio (-A Models)

†

Maximum with H.264 compression

‡

SNAPstream and 802.1x not available on “-S” models

+1.818.937.0700 | www.arecontvision.com | [e-mail]

SpecicationsMegaView® 2 IP Megapixel Bullet Cameras

Camera Specications

Model

Image Sensor 1.2 MP * 1080p (2.1MP)** 1080p (2.1MP)** 3MP 3MP 5MP 10MP

Day/Ni ght True Day/Night with automatic removable IR cut filter

Optical Format 1/3" 1/3" 1/3. 2" 1/3" 1/3. 2" 1/2.5 " 1/2. 3"

Pixel Pitch 3.75μ m 2.2μm 2.2μm 2.2μm 2.2μm 2.2μm 1.67μm

Minimum
Illumination

Full FOV Re solu tion 1280 H x 960 V 1920 H x 1080 V 1920 H x 1080 V 2048 H x 1536 V 2048 H x 1536 V 2592 H x 1944 V 3648 H x 2752 V

1/4 Resolution 640 H x 480 V 960 H x 540 V 960 H x 540 V 1024 H x 768 V 1024 H x 768 V 1296 H x 972 V 1824 H x 1376 V

Scaling

Dynamic Range 83.5dB 69.5dB WDR up to 100d B 69.5dB WDR up to 100dB 70 .1d B 5 7. 2d B

Maximum SNR 54dB 44dB 49dB 44dB 49dB 45dB 40dB

Frame
Rates

Lens

Remot e Focu s / Remote Zoom / P-ir is Yes Ye s Yes Yes Yes Ye s Yes

IR-corrected

Color (Day Mode) 0.02 Lux 0.2 Lux 0.2 Lux 0.2 Lux 0.2 Lux 0.3 Lux 0.42 Lux

Color Binning (Day Mode) - - - 0.1 Lux 0.1 Lux 0.1 5 L ux 0.21 Lux

B/W (Night Mode) 0.002 Lux, IR sensitive 0.02 Lux, IR sensitive 0.02 Lux, IR sensitive 0.02 Lux, IR sensitive 0.02 Lux, IR se nsitive 0.03 Lux, IR se nsitive 0.04 Lux, IR sensitive

(See Scaling Resolution Chart Below) - - Yes - Yes - Ye s - Yes - Yes Yes

At Max Re solution 37fps (1280 x 960) 30fps (1920 x 1080) 30fps (1920 x 1080) 21fps (2048 x 1536) 21fps (2048 x 1536) 14fps (2592 x 1944) 7fps (36 48 x 2752)

†

Cropped - 30fps (1280 x 1024) 30fps (1280 x 1024) 30fps (1920 x 1080)

Binning Mode - - - 46fps (1024 x 768)

Wide Angle Vari-focal
(PMIR Models) H-FOV

Telephoto Vari-focal
(PMTIR Models) H-FOV

** Effective* STELLAR™ Model

AV122 5 AV2225 AV2226 AV32 25 AV3226 AV52 25 AV1022 5

-S -S -S -S -S -S -S

30fps (1280 x 1024)

64fps (960 x 540)

3–9 mm, 1/2.7", F1.2 2.8– 8mm, 1/2.7", F1.2 2.8– 8mm, 1/2.7”, F1.2 2.8– 8mm, 1/2.7”, F1.2 2.8– 8mm, 1/2.7”, F1.2 3– 8mm, 1/2.5", F1.4 4–8mm, 1/2.3", F1.6

101°–32° 86°–32° 86°– 32° 105°–3 9° 105°–3 9° 113°–43° 89°–47 °

- 8–22mm, 1/2.7", F1.6 8–22mm, 1/2.7”, F1.6 8–22mm, 1/2.7”, F1.6 8–22mm, 1/2.7”, F1.6 9–22mm, 1/2.5", F1.6 12–22mm, 1/2.3", F2.2

- 26 °–11° 3 0° –11° 28 °–12° 32°–12° 38°–16° 30 °–17 °

Yes Yes Yes Ye s Ye s Yes Yes

30fps (1920 x 1080)
30fps (1280 x 1024)

21fps (1024 x 768)
21fps (800 x 60 0)
21fps (960 x 540)

21fps (640 x 512)

21fps (2048 x 1536)
29fps (1920 x 1080)
41fps (1280 x 1024)

34fps (1296 x 972)
46fps (1024 x 768)

64fps (960 x 540)

12fps (2592 x 1944)
18fps (2048 x 1536)
25fps (1920 x 1080)
37fps (1280 x 1024)

29fps (1920 x 1080)
26fps (1824 x 1376)

43fps (1296 x 972)
54fps (1024 x 768)

Scaling Resolution Chart***

Scaled Resolution Horizontal Vertical Pixel Count

720p 1280 720 921600

XVGA 1024 768 786432

DVGA (16:9) 1136 640 727040

DVGA (3:2) 960 640 614400

SVGA 800 600 480000

D1 (PAL) 720 576 414720

4CIF (PAL) 704 576 405504

D1 (NTSC) 720 480 345600

4CIF (NTSC) 704 480 337920

VGA 640 480 307200

2CIF (PAL) 704 288 202752

HVGA (4:3) 480 360 172800

2CIF (NTSC) 704 240 168960

HVGA (8:3) 640 240 153600

HVGA (3:2) 480 320 153600

HVGA (16:9) 480 272 130560

CIF (PAL) 352 288 101376

CIF (NTSC) 352 240 84480

QVGA (SIF) 320 240 76800

QCIF (PAL) 176 144 25344

QCIF (NTSC) 176 120 21120

SQCIF 128 96 12288

*** All scaled resolutions are available on all cameras that support scaling

†

Maximum with H.264 compression

‡

SNAPstream and 802.1x not available on “-S” models

2

Programmability

Optics Remote f ocus, re mote zoom an d P-iris control

Low Light Performance STELLAR Technology 1.2MP models

Pixel Binning Mode 3, 5, and 10MP m odels

Programmable
Shutter Speed

Motion Detection Real-time, 1024 detection zones

Privacy Masking Unlimited

Scaling Non-integer sc aling dow n to 128x96

Casino Mode

Flexible Cropping

Backlight
Compensation

Flicker Control 5Hz–255Hz adjustable

Image Rotation CorridorView

Wide Dynamic Range

Noise Reduction Low light noise filter control

Efficiency SNAPstream

Sharpness Selectable enhancement level

Miscellaneous Programmable resolution, brightness, saturation, gamma, tint

™

Controls motion blur, 1ms–500ms

Mainta ins 30fps or highe r (AV2225 mod els)

Resolution win dowing dow n to 1x1 pixel for JPEG a nd
2x2 pixe ls for H.2 64

Multi-matrix white balance

™

(90°, 180° and 270 ° image rot ation)

Auto adju stment b etween W DR and LDR modes
(WDR m odels only)

™

(Smar t Noise Adaptation and Proc essing)

Bit rate and bandwidth limitation control

Bandwi dth and sto rage sav ings by run ning at 1/4 resol ution

Electronic pan , tilt, zoom ( PTZ)

†

‡

+1.818.937.0700 | www.arecontvision.com | [e-mail]

SpecicationsMegaView® 2 IP Megapixel Bullet Cameras

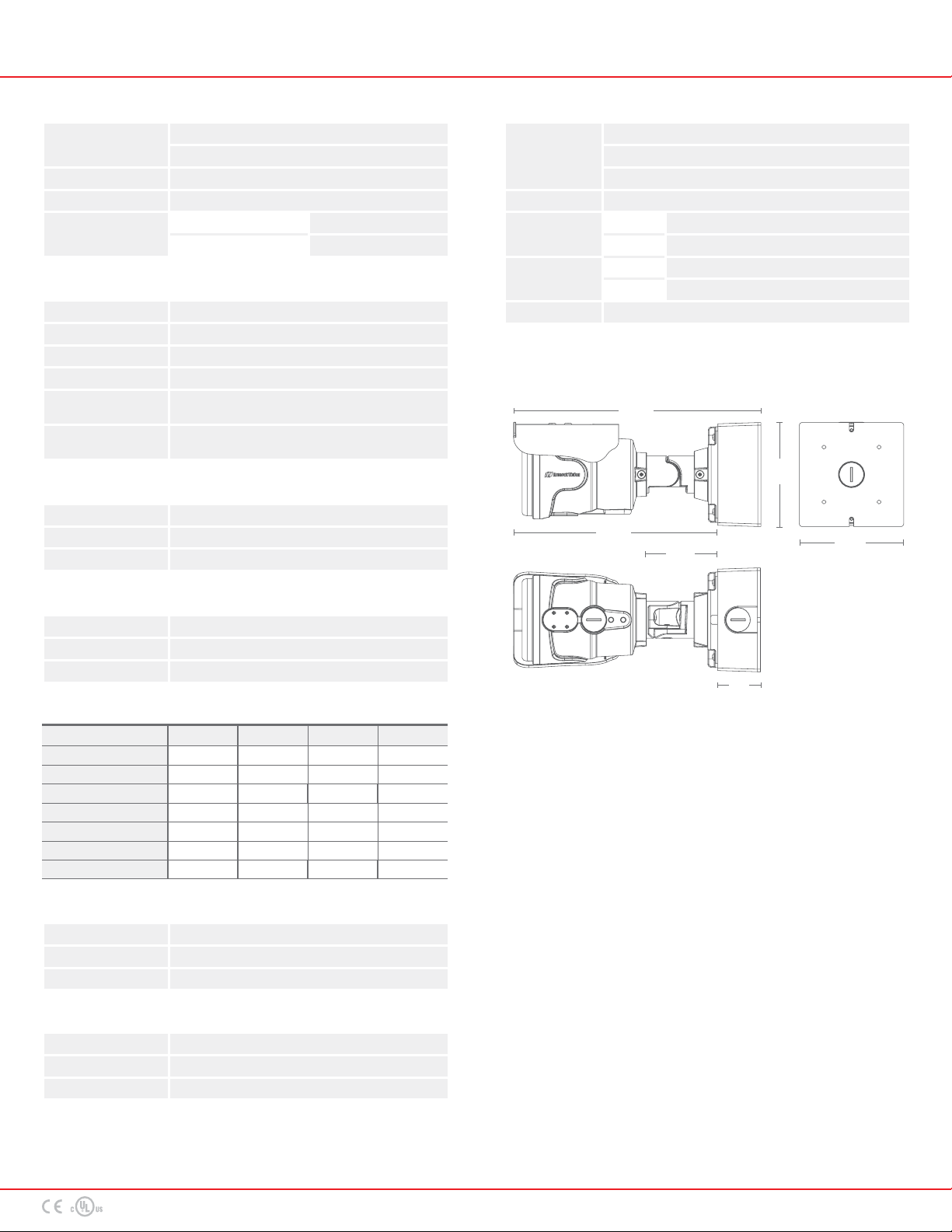

Data Transmission

Compression Type H.264 (MPEG -4, Par t 10) / Motion JPEG

21 levels of qu ality

Netw ork Protocols RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, 8 02.1x

Network Interface 100Base-T Ethernet

Multi-Streaming 1.2–5MP Models 8 non-identical streams

10MP Models 4 non-identical streams

‡

Compliance

Industry Standard ONVIF Profile S conformant

Listings UL (CB)

FCC Compliance 47 CFR 15 Class A

Environmental RoHS, REACH, WEEE

Markings

Mechanical

CE: EN55022 Class A, EN55024, EN61000-3-2,

EN61000-3-3, EN60950-1

IP66 weather proof standard (EN60529),
IK-10 impact-resistant

Environmental

Operating temperature -40° C (-40°F ) to +50°C (122°F )

Humidity 0% to 90% (non-condensing)

Storage temperature -40°C (- 40°F) to +60°C (140°F )

Mechanical

Casing Die-cast aluminum cylindrical (bullet-style) housing

IP66 weather proof standard

IK-10 impact-resistant

Mount Easily adjustable 3-axis with 360° pan, 90° tilt and 360° z-axis

Dimensions

(See Dimensions)

Weight Unit 3.9lb (1.76 kg)

On Board Storage SDHC slot up to 32GB (card not included) (-S models)

Unit 4.7" H (119mm) x 4.7" W (119mm) x 11.11" D (282mm)

Packaged 7.1" H (180mm) x 7.1" W (180mm) x 13.5" D (342.9mm)

Packaged 5.2lb (2.35 kg)

Dimensions

11.1"

(282mm)

4.7"

(119mm)

9.3"

(236mm)

3.3"

(84mm)

4.7"

(119mm)

Electrical

Alarm Input/Output General pu rpose opto-cou pled, 1 inp ut / 1 outpu t

Power Over Ethernet PoE 802.3af, Class 3

Auxiliary Power 12–48V DC, 24V AC

Max Power Consumption (Watts DC power)

Model PMIR PMTIR PMIR-S PMTIR-S

AV1225 - - 12.0 -

AV2225 11.3 10.9 12.1 11.1

AV2226 12.4 11.8 13.4 12.0

AV3225 11.5 11.1 12.1 11.8

AV3226 12.4 11.8 13.4 12.0

AV5225 11.5 11.1 12.5 11.2

AV10225 11.8 11.3 12.4 11.3

IR Illuminator

PMIR 48 pcs 850 nm LEDs / 100 f t IR dista nce (max) / 50° IR ang le

PMTIR 4 pcs 850 nm LEDs / 20 0 ft IR dis tance (ma x) / 33° IR angle

Power Over Ethernet Total PoE solu tion (No ex ternal p ower requ irement)

Audio Electrical (-A models only)

Streaming Two-way

Compression G.711 PCM 8 kHz

Input/Output Microphone in / line output

1.8"

(46mm)

‡

SNAPstream and 802.1x not available on “-S” models

3

+1.818.937.0700 | www.arecontvision.com | [e-mail]

SpecicationsMegaView® 2 IP Megapixel Bullet Cameras

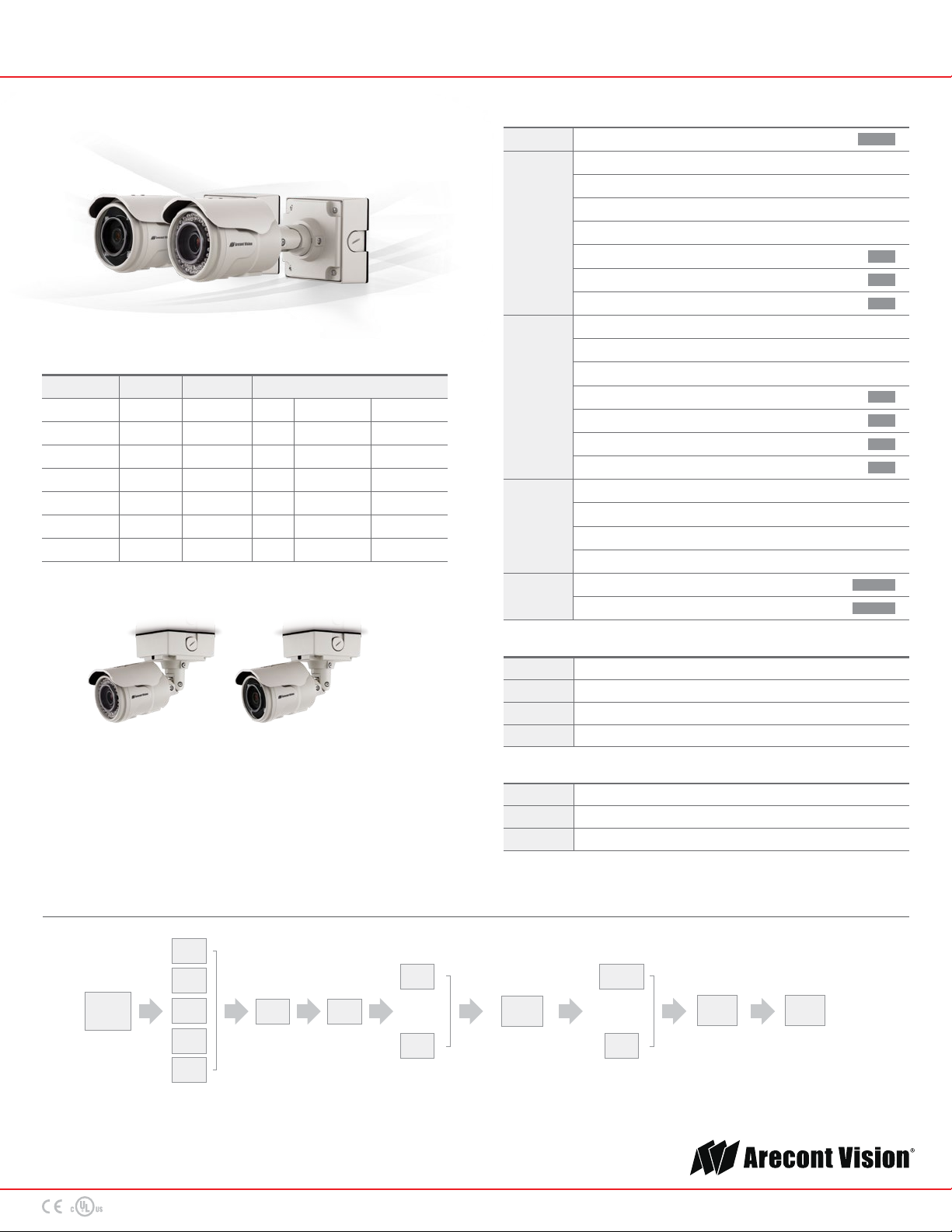

Ordering Information

Model Specic Features

Model Resolution Frame Rate

AV1225 1.2MP 37fps - STELLAR

AV2225 1080p 30fps - Casino Mode

AV2226 1080p 30fps WDR -

AV3225 3MP 21fps - Binning

AV3226 3MP 21fps WDR Binning

AV5225 5MP 14fps - Binning

AV10225 10MP 7fps - Binning

Congurations

†

Features

™

Model Numbers

1.2MP AV1225PMIR-S

1080p AV2225PMIR

AV2225PMIR-S

AV2225PMIR-SA

AV2225PMTIR-S

AV2226PMIR

AV2226PMIR-S

AV2226PMTIR-S

3MP AV3225PMIR

AV3225PMIR-S

AV3225PMTIR-S

™

-

5MP AV5225PMIR

10MP AV10225PMIR-S

AV3226PMIR

AV3226PMIR-S

AV3226PMIR-SA

AV3226PMTIR-S

AV5225PMIR-S

AV5225PMIR-SA

AV5225PMTIR-S

AV10225PMTIR-S

STELLAR

WDR

WDR

WDR

WDR

WDR

WDR

WDR

Dual Mode

Dual Mode

Wide Angle Lens

Create Your Model

AV

Telephoto Lens

(Example: AV3226PMIR-SA)

Megapixel
Resolution

Generation Body Type Compression Lens AudioOnboard StorageInfrared

1

2

3

5

10

Options

PMIR Wide Angle Lens w/ Remote Focus/Zoom, P-Iris, True Day/Night, IR LEDs

PMTIR Telephoto Lens w/ Remote Focus/Zoom, P-Iris, True Day/Night, IR LEDs

-S SDHC Card Slot, Non-Integer Scaling

-A Audio

Note: Not all options available on all models.

Accessories

AV-CRMA Corner Mount Adapter

AV-EBAS Square Electrical Box Adapter

AV-PMA Pole Mount Adapter

5 TIR

1

22

Standard Telephoto

PM

Motorized P-Iris Lens,

6 IR

2

WDR

True Day/Night

Infrared

Wide Angle

Infrared

S A

SDHC

Card Slot

1

“2” represents MegaView product line

2

WDR for AV2226 and AV3226 models only

3

Wide angle lens cameras only

†

Maximum with H.264 compression

3

Rev 004.004 © 2017 Arecont Vision®. All rights reserved. Arecont Vision, the Arecont Vision logo, and MegaView are registered trademarks of the company.

Casino Mode, CorridorView, SNAPstream, and STELLAR are business use trademarks of the company.

+1.818.937.0700 | www.arecontvision.com | [e-mail]
