Archos GAMEPAD User Manual

ENEN

Table of contents

Package Contents..................................................................................................................................

Getting started.......................................................................................................................................

Description of the device....................................................................................................................

Through the wizard...............................................................................................................................

Connecting to a WiFi network...........................................................................................................

ARCHOS mapping tool........................................................................................................................

AndroidTM interface..............................................................................................................................

Getting familiar with AndroidTM......................................................................................................

Troubleshooting...................................................................................................................................

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device’s software may have a slightly different appearance or modified functionality than presented in this quick start guide.

Warranty

Package Contents

ARCHOS GamePad

QSG booklet

Warranty legal & safety booklet

USB cable

Charger

EUR

Getting Started

Charging

Charge your device by plugging your power cable into the micro-USB port. The GamePad will turn on and start charging.

You can use your GamePad whilst it charges.

TIPS:

- Let your device charge completely the first time you use it.

- Use only the supplied charger.

- To receive more complete service, please register your product on www.archos.com/register.

Description of the device

3 4 6

13 14

Volume buttons Directional pad

ON/OFF button A, B, Y, X buttons

Micro-USB port L2 button

Headphone jack R2 button

Microphone Analog sticks

Mini-HDMI video output* SELECT button

7 16

L1 button START button

Camera Loudspeakers

R1 button Micro-SD card slot

9 18

* With optional Mini-HDMI to HDMI cable.

112

134

Through the Wizard

The rst time you start up your GamePad, the installation wizard will help you set up your device:

- Touch-screen calibration

- Language

- Date & time

- WiFi connection

- Location service options

- 3rd party apps

TIP:

We recommend that you set up your GamePad in the WiFi zone of the network that you will regularly be using.

Connecting to a WiFi Network

WARNING: Make sure that you are in a WiFi zone.

1. Touch the time in the status bar. The status dashboard is displayed.

2. Touch the time a second time in the status dashboard. The quick settings will be displayed.

3. Touch "WiFi" to open the WiFi settings menu.

4. If the WiFi is o, slide the WiFi switch to the "ON" position. Once the WiFi is on, the GamePad will scan for WiFi networks in range.

5. Touch the name of network you want to connect to. Private networks are shown with a lock icon and will require you to enter a password.

TIPS:

- When entering a WiFi password, we recommend that you select “Show password” so you can see the

characters you are typing.

- To get the correct WiFi password (or settings) for the network, contact the WiFi network provider.

- If your WiFi is on and you are in range of a network that you previously connected to, your GamePad

will automatically attempt to connect to it.

ARCHOS mapping tool

ARCHOS mapping tool is an application installed in your GamePad. It allows you to link the virtual controls of games to the physical controls of the GamePad by using mapping controls.

mapping

physical

control

virtual

control

Tip1:

Within ARCHOS mapping tool, there are already mapping profiles for over 100 games. Also, many games function automatically with physical buttons.

Tip2:

Whenever you launch a game whose virtual controls are mapped, the right mapping profile will automatically be selected.

Starting ARCHOS mapping tool

1. Launch a game. When you reach the starting screen, the virtual controls are displayed.

2. Select the ARCHOS mapping tool icon from the system bar.

ARCHOS mapping tool icon

The mapping overlay is displayed with the mapping tool interface.

ARCHOS mapping tool interface

ARCHOS mapping tool

Positioning a mapping control

Hold and drag a type of mapping control to the desired virtual button.

There are three types of mapping control

Button It is for the directional pad , , , , the X, Y, B, A, buttons and the L1, R1, L2, R2, Start, Select buttons.

Stick It is for the analog directional sticks.

Target It is for analog stick targetting. It is placed normally in the central area of the screen on shooting games.

Linking a mapping control to a physical control

1. When a mapping control is placed on a virtual control, you are asked to select the desired physical control you want to associate with it.

2. Once a physical control is associated to the mapping control, the name of the physical control is displayed on the mapping control.

ARCHOS mapping tool

Enlarging a mapping control

Some virtual controls are larger than the mapping controls. Enlarge the mapping control so that it is tailored to the virtual control.

Saving your parameters

When you have mapped the virtual controls of a game, select "Play" The prole is saved and associated with that game. The mapping overlay disappears and you can play. Whenever you start the game, you are informed that the emulation of virtual controls is running. Press the notication to display the mapping prole of the game. You can either modify it, or delete it.

Tips:

- You can only enlarge the mapping controls Stick and Target.

- Each mapping is specific to a game.

to validate .

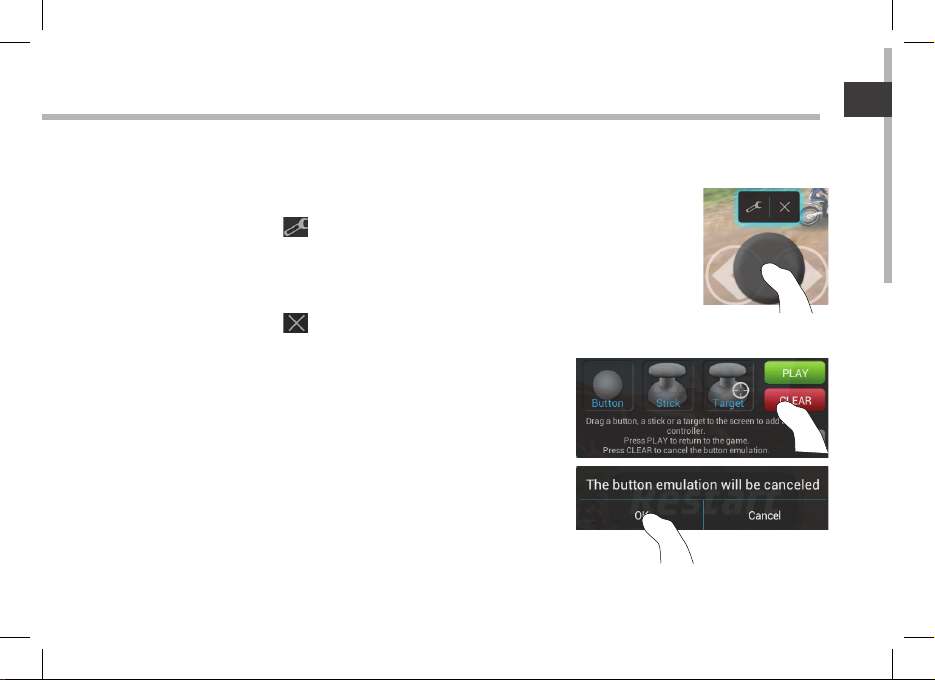

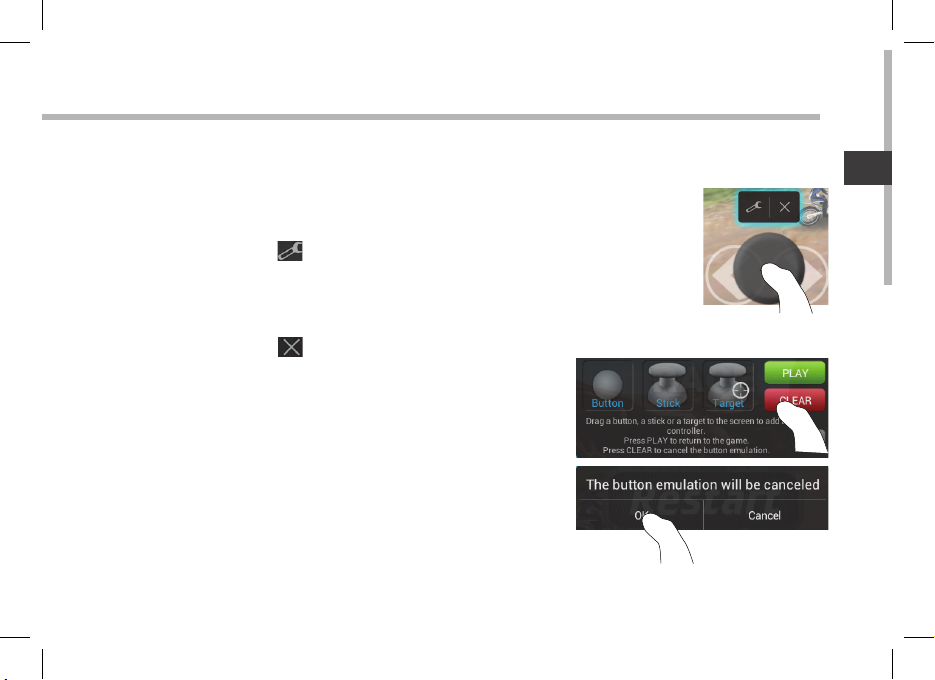

Q&A about the mapping

You placed a mapping control on a virtual control but no option is available?

1. Hold your nger on the mapping control. A menu box is displayed

2. Select the

You want to remove a mapping control that you set?

1. Hold your nger on the mapping control. A menu box is displayed

2. Select the

You want to remove a mapping prole set for a game?

1. From ARCHOS mapping tool, select "Clear".

2. Select "OK" to conrm.

icon to set up the mapping control.

icon to remove the mapping control.

Removing a mapping prole

Displaying options

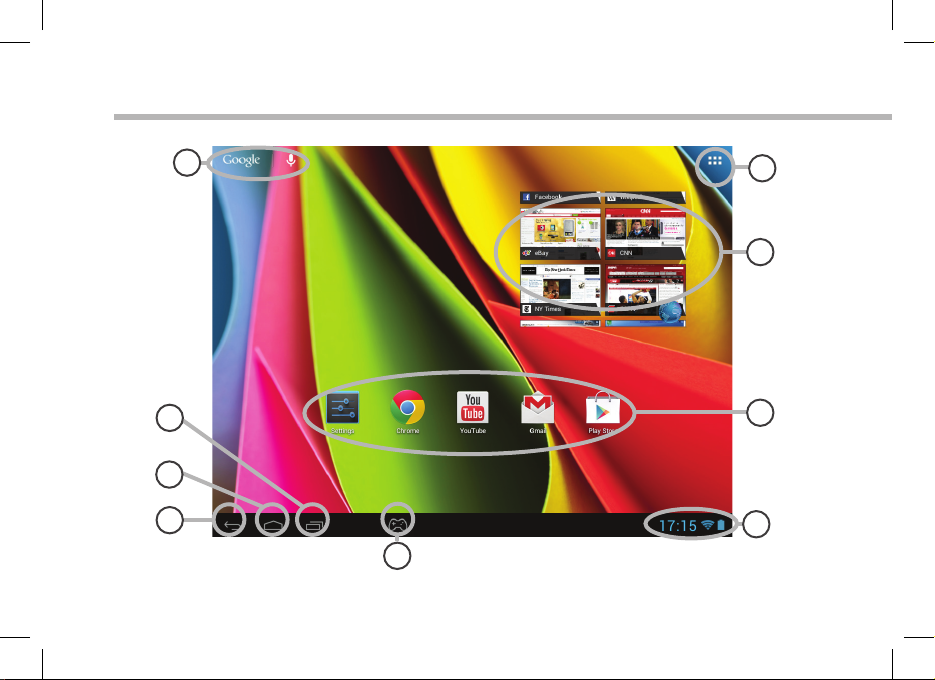

The AndroidTM Interface

GoogleTM Search

Touch "Google" for text search or touch the microphone icon for voice search.

"Recent apps" button

"Home" button

"Back" button

"All Apps" button

Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.

Widget

Android

Touch to start an application.

The status bar

Displays notications and quick settings

ARCHOS mapping tool icon

apps shortcuts

The AndroidTM Interface

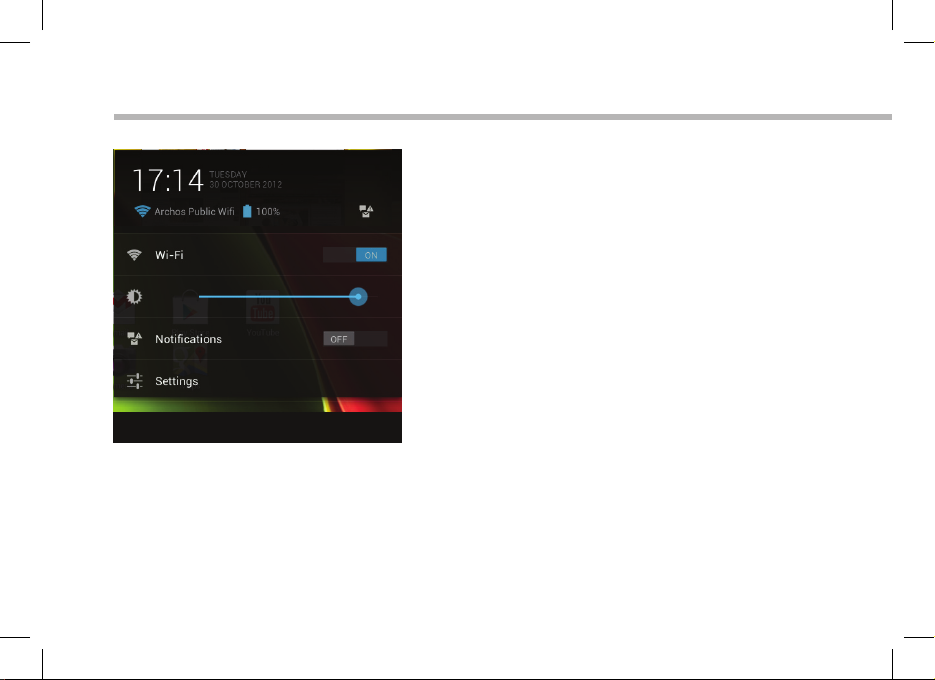

The Quick settings

WiFi:

To turn on/o your WiFi connection.

Brightness:

To adjust the screen brightness.

Notications:

To activate/deactivate incoming notications.

Settings:

To access all your settings.

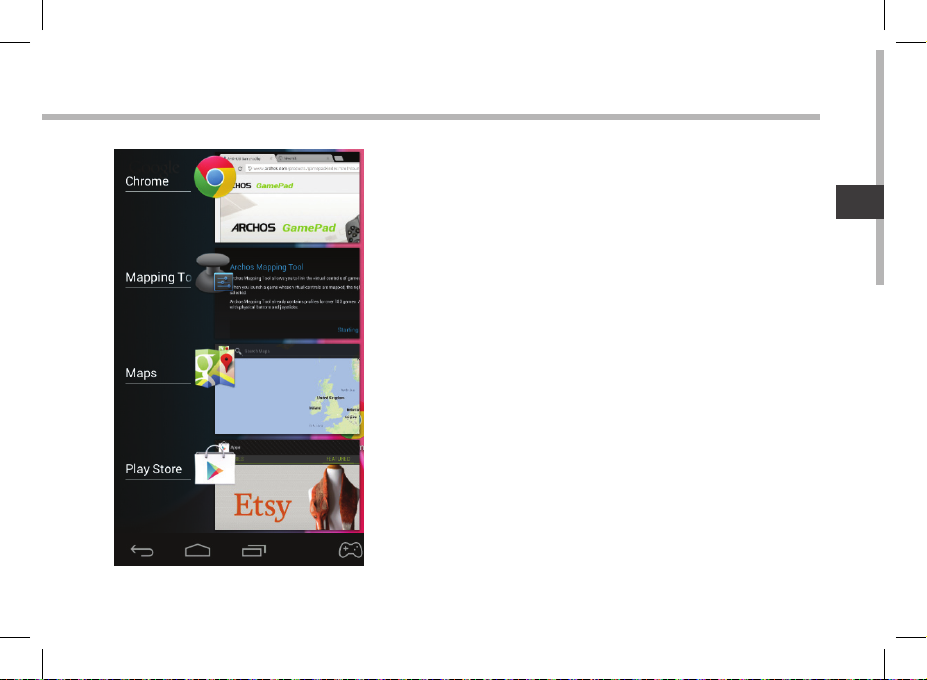

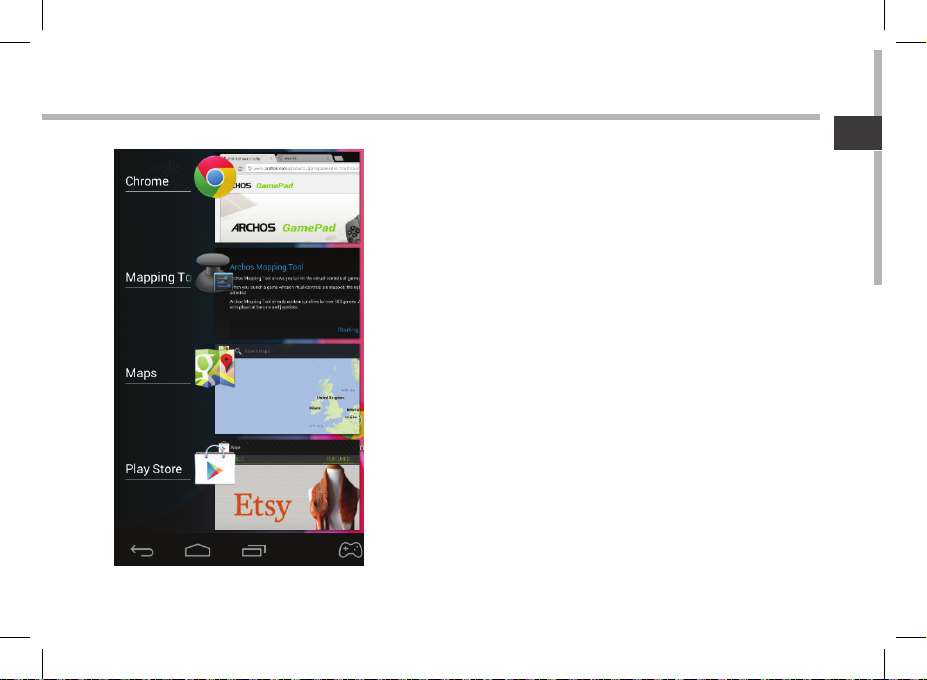

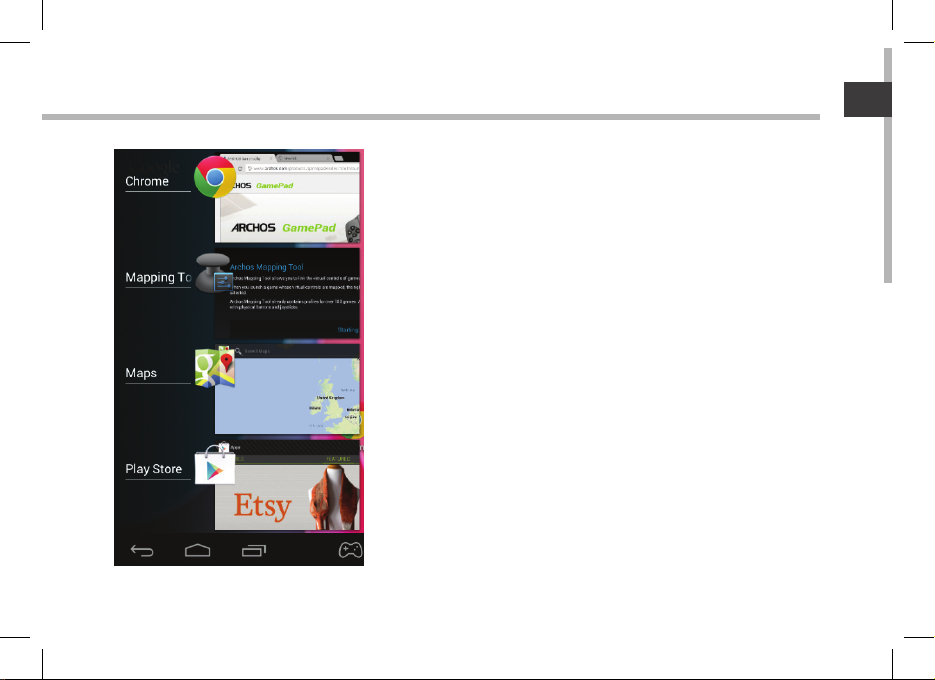

The Recent Apps

You can open a list of thumbnail images of apps you’ve worked with recently:

- To open an app, touch it.

- To close an app, swipe it left or right.

Getting familiar with Android

Google account

A Google account lets you take full advantage of any Google apps and services.

1. Go to "Settings" > "Personal" > "Accounts & sync".

2. Select "Add account".

3. Select "Google".

4. Follow the onscreen instructions.

The extended home screen:

Navigate between dierent home screen panels by swiping left and right.

Moving a home screen item:

Touch and hold your nger onto it, then slide it to the desired location, and release your nger.

Removing a home screen item:

Touch and hold it, then slide your nger towards the top of the screen and drop it over the "Remove" icon.

Uninstalling an item:

From the "All apps" screens, touch and hold it, then slide your nger towards the top of the screen and drop it over the "Uninstall" bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Touch the "All Apps" icon on your home screen. Touch "Widgets" at the top of the screen. From the main widgets screen, you can move around widgets just as you do for app icons.

Changing your wallpaper:

Hold your nger on a home screen at an empty location, then choose from the list.

Locking the touchscreen:

From the quick settings dashboard in the status bar, touch "Settings". In settings, scroll down and touch "Security". Touch "Screen lock". Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specied key.

Troubleshooting

If a new software is available for your device

You can download it from www.archos.com/support in the page Downloads > Firmware.

If your device is frozen:

Press the ON/OFF button for 10 seconds.

If your device doesn’t turn on:

1. Charge your device.

2. Press the ON/OFF button for 10 seconds.

If you want to extend the life of your battery:

Decrease the screen brightness and turn o the wireless connections if not in use.

If your device functioning is too slow:

Close all apps which are not currently used.

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot. Update the rmware of the device by downloading from http://www.archos.com/support. Reset and redene your connection parameters. Contact your WiFi connection provider.
