Archgard 72-DVT30N User Manual

Optima 72

72-DVT30N

Gas Fired Vented Room

Heater (Direct Vent)

For serial #42794 and up

FOR USE WITH NATURAL GAS AND PROPANE*

USERS’ INSTALLATION OPERATION AND

WARNING: If the information in this manual is not followed exactly, fire or explosion may result causing property damage, personal injury or loss of life.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS:

 Do not try to light any appliance.  Do not touch any electrical switch; do not use

any phone in your building.

 Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s

instructions.

 If you cannot reach your gas supplier, call the

fire department.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

MAINTENANCE MANUAL

This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.

*Conversion kit required for Propane use

Installer: Please leave this manual with the appliance owner for future reference

7116 Beatty Dr Mission, BC V2V 6B4 Canada

200-1907

March 2013

Requirements for the state of Massachusetts

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level. b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a)1 through 4. (b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes. (c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system. (d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies "special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions. (e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

For the State of Massachusetts, installation and repair must be done by a plumber or gasfitter licensed in the Common-

wealth of Massachusetts.

For the State of Massachusetts, flexible connectors shall not exceed 36 inches in length.

The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA 720 and a

CO alarm with battery back up in the same room where the gas appliance is installed.

For the State of Massachusetts the appliances individual shut – off must be a t-handle type valve.

INTRODUCTION

Congratulations on choosing an Archgard fireplace!

The Optima 72-DVT30N is one of the most advanced direct vent fireplace heaters available. It is solidly designed using the latest technology and manufactured to the highest quality. It is our aim to provide you with an appliance for many trouble-free years of reliable service.

The following are just some of the many features of your new gas fireplace:

 Heater Classification. The Optima 72 is classified as a heating appliance.

In conjunction with an optional thermostat, the Optima 72 can be operated continuously for zone heating.

 High Efficiency. The Optima 72 has one of the highest efficiencies of any gas

fireplace, which means that it is less expensive to operate.

 Adjustable Fan Speed. Heat circulation fan can be fully adjusted from high, medium

or low speeds to suit your comfort level.

 Adjustable Flame. The flame aesthetics and heat output can be adjusted to suit

your heating needs.

 Solid Construction. The Optima 72 is constructed mainly of 14 and 18 gauge

galvanized and aluminized steel for long life and durability.

 Millivolt Control System. The gas control system is “thermostat” ready for any optional

millivolt wall thermostat or wireless remote control.

Please read the manual carefully prior to installation and operation of the appliance. Proper installation, operation and maintenance of the appliance will provide you with many years of enjoyment.

We recommend you record the following information:

Fireplace Model Number: 72-DVT30N Serial Number:

Date of Installation:

Type of Gas Used by the Fireplace: Natural Gas Propane

Dealer’s Name & Address:

Dealer’s Phone Number:

TABLE OF CONTENTS

Caution and Safety Instructions

Appliance Certification, Installation Codes and Specifications, High Altitude Installation

Gas Connections

Appliance Dimensions and Clearance to Combustibles

Mantle Clearances

Framing Dimensions, Termination

Locating Gas Fireplace and Vent Termination Locations

Allowable Termination Locations

Approved Vent Components and Venting Connection

Venting

Electrical Connections (Fan System) and Fan Wiring Diagram

Log Placement

Optional Brick Installation

Optional Wall Switch, Thermostat or Remote Control. Suggested wiring.

First Fire and Lighting Instructions (CAUTION)

Final Installation Check and Initial Operation

Lighting Instructions on Rating Plate

Glass Door Removal and If your Glass Breaks

Louver (grill) instructions

Troubleshooting Guide

Maintenance and Cleaning the Appliance

Servicing Under Warranty & Adjusting Primary Air Shutter

Adjusting Primary Air Shutter (Continued) Changing Main Burner Orifice

Checking Inlet/Outlet gas pressures, Adjusting Pilot and Convertible Pilot Orifice

Replacing Convection Blower (Fan)

Valve Tray Assembly and parts list

Log and Pan Burner parts list

Replacement Parts List

Warranty

Frequently Asked Questions

Warranty Registration

72-DVT30N

CAUTION

FOR YOUR SAFETY - Do not install or operate your Archgard Optima 72 Direct Vent Gas Fireplace without reading and understanding this manual. Any installation or operational deviation from this instruction manual voids the Archgard Industries Warranty and may prove hazardous.

This appliance must be installed by a qualified gas installer and the installation must conform to the installation codes.

Provide adequate clearance around air openings of the appliance.

Never obstruct front openings.

Provide adequate clearances for proper operation and servicing of the appliance.

This appliance must be properly connected to an approved venting system and must not be connected to a chimney flue serving a separate solid fuel burning appliance.

SAFETY

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

Children and adults should be alerted to the hazards of high surface temperature and stay away to avoid burns or clothing ignition.

Young children should be carefully supervised when they are in the same room as the appliance.

Clothing or other flammable material should not be placed on or near the appliance.

Do not operate with cracked or broken glass. Be careful not to strike or slam the glass.

Any safety screen or guard removed for servicing an appliance must be replaced prior to operating.

Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding materials, etc. It is imperative that the control compartments, burners and circulating air passageways of the appliance are kept clean.

72-DVT30N

APPLIANCE CERTIFICATION

This appliance is tested and safety approved under the following US and Canadian gas appliance standards:

- ANSI Z21.88b-2003 / CSA 2.33b-2003, Vented Gas Fireplace Heaters,

- CAN/CGA-2.17-M91, Gas-Fired Appliances for Use at High Altitudes

Please contact Archgard Industries Ltd., if you have any questions regarding the certification of this appliance.

INSTALLATION CODES

This appliance must be installed by a qualified gas appliance installer. The installation must conform with the local codes or, in the absence of local codes, with the current National Fuel Gas Code, ANSI Z223.1/ NFPA 54, in the US or Installation Code, CAN/CGA-B149.1, in Canada. Electrical connections and grounding must conform with local codes, or current National Electrical code, ANSI/NFPA No. 70-1987, in the US and in Canada, the current Canadian Electrical Code, CSA C22.1.

We recommend that our gas hearth products be installed and serviced by professionals who are certified in the U.S. by the National Fireplace Institute® (NFI) as NFI Gas Specialists.

SPECIFICATIONS

Manifold Pressure

Min. Supply Pressure Max Supply Pressure

Orifice Size

Nominal Input Rating

Output (Fan On) @ Max. Rating

Output (Fan Off) @ Max. Rating

Altitude

Primary Air Opening

1.6-3.5 in. w.c. (0.4 - 0.9 kPa) 6.3-10.0 in. w.c. (1.6 - 2.5 kPa)

#37 DMS (2.65 mm dia.) #52 DMS (1.62 mm dia.)

HIGH ALTITUDE INSTALLATION

Natural Gas (NG) Propane (LP)

4.5 in. w.c. (1.2 kPa)

14.0 in. w.c. (3.5 kPa)

20,100 - 30,000 BTU/hr

(5.9 - 8.8 kW)

22,500 BTU/hr (6.6 kW) 23,100 BTU/hr (6.8 kW)

0-4500 ft (0 - 1372 M) 0 - 4500 ft (0 - 1372 M)

¼” (6 mm) OPEN ½” (13 mm) OPEN

11.0 in. w.c. (2.8 kPa)

14.0 in. w.c. (3.5 kPa)

23,000 - 30,000 BTU/hr

(6.7 - 8.8 kW)

When installing this appliance beyond 4500 ft. (1372m) above sea level, the appliance must be properly de-rated and installed according to local codes; in the absence of local codes, with the current National Fuel Gas Code, ANSI Z223.1/ NFPA 54 in the U.S., or Installation Code CAN/ CGA-B149.1 in Canada.

72-DVT30N

GAS CONNECTIONS

Before connecting the appliance to the gas supply line, double check that the appliance you have purchased is designed for the gas type you are using. The gas type markings are located on the certification label and also on the appliance’s gas valve.

Adequate clearance for proper installation and checking of the gas connections must be provided. All gas connections must be checked for gas leaks.

Have your gas supplier or a qualified gas fitter run a gas supply line into the fireplace. The line must be properly sized and fitted according to the installation codes. Immediately upstream of the supply connection, the fitter shall provide an accessible manual shut-off valve and a ⅛” (3mm) NPT plugged tapping accessible for connection to a test gauge. When connecting the supply line to the gas valve, the installer should brace the gas valve to ensure that it is not moved from its bracket. If the valve is not braced when the supply line is

connected, the valve may be moved and cause a “break” in the main burner supply line. Such damage is not covered by the manufacturer’s warranty.

CAUTION: The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure-testing of that system at test pressures in excess of ½ psig (3.5 kPa). The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure-testing of the gas supply piping system at test pressures equal to or less than ½ psig (3.5 kPa). Failure to do so will damage the appliance’s gas valve. Such damage is not covered by the manufacturer’s warranty.

Natural Gas Pressure Settings:

The inlet supply or line pressure must be a minimum of 4.5” W.C. 1.1 kPa) and a maximum of

14 W.C. (3.5 kPa). The orifice is a #37 DMS (2.65 mm) drill size.

ELEVATION INPUT RATING 0-4500 ft (0-1372 M) 30,000 BTU/hr (8.8 kW) 4500 ft (1372 M) and above 30,000 BTU/hr (8.8 kW) less 4% per 1000 ft. (305 M) Please contact your local distributor for the appropriate orifice size you require.

Propane Pressure Settings:

The inlet supply or line pressure must be a minimum of 11” W.C. (2.8 kPa) and a maximum of 14” W.C. (3.5 kPa). The orifice is a #52 DMS (1.62 mm) drill size.

ELEVATION INPUT RATING 0-4500 ft. (0-1372 M) 30,000 BTU/hr (8.8 kW) 4500 ft. (1372 M) and above 30,000 BTU/hr (8.8 kW) less 4% per 1000 ft. (305 M) Please contact your local distributor for the appropriate orifice size you require

NOTE: THE INPUT RATING SHOULD ALWAYS BE CHECKED WHEN FIRST RUNNING THIS APPLIANCE. To do this, reduce the background flow rate, time the meter, light the fireplace and take another reading after 15 minutes of operation. Check with your gas supplier for the gas BTU content at your elevation. Input is the rate of flow multiplied by the heating value of the gas (cubic feet/hour x BTU per cubic feet). Adjust the manifold pressure so that the unit does not operate above the rated input.

72-DVT30N

APPLIANCE DIMENSIONS

FRONT VIEW

SIDE VIEW

DIMENSIONS

A 31” (787 mm)

B 6” (152 mm)

C 3” (76 mm)

D 29-¾” (756 mm)

E 38” (965 mm)

F 38” (965 mm)

G 21-½” (545 mm)

TOP VIEW

CLEARANCES TO COMBUSTIBLES

BACK 0” to stand-offs

SIDES 0” to stand-offs

TOP 0” to stand-offs

BOTTOM 0”

ADJACENT SIDE WALL 1” (25 mm) to side of faceplate

MANTLE see diagram

VENT

1” (25 mm) to outside side and bottom surface, 2” (50 mm) to outside top surface.

H 39-¾” (1010 mm)

I 6-½” (164 mm)

J 16-¼” (412 mm)

72-DVT30N

MANTLE CLEARANCE

NOTE:

Low profile wooden crowns and moldings above the unit are not considered as mantles. I.E. 1” (25 mm) or less protrusions on the upper mantle facing are acceptable.

Combustible mantle allowed in shaded area. Mantle extension may be increased 1” (25 mm) for each additional 1” (25 mm) increase in clearance height.

6” (152 mm) projection

Minimum Height

From Bottom of Appliance:

45” (1143 mm) with a

6” (152 mm) mantle

Minimum Height from Top of Surround:

14” (356 mm) from front top of appliance to a

6” (152 mm) mantle

Mantle may start 39” (990

mm) and above

72-DVT30N

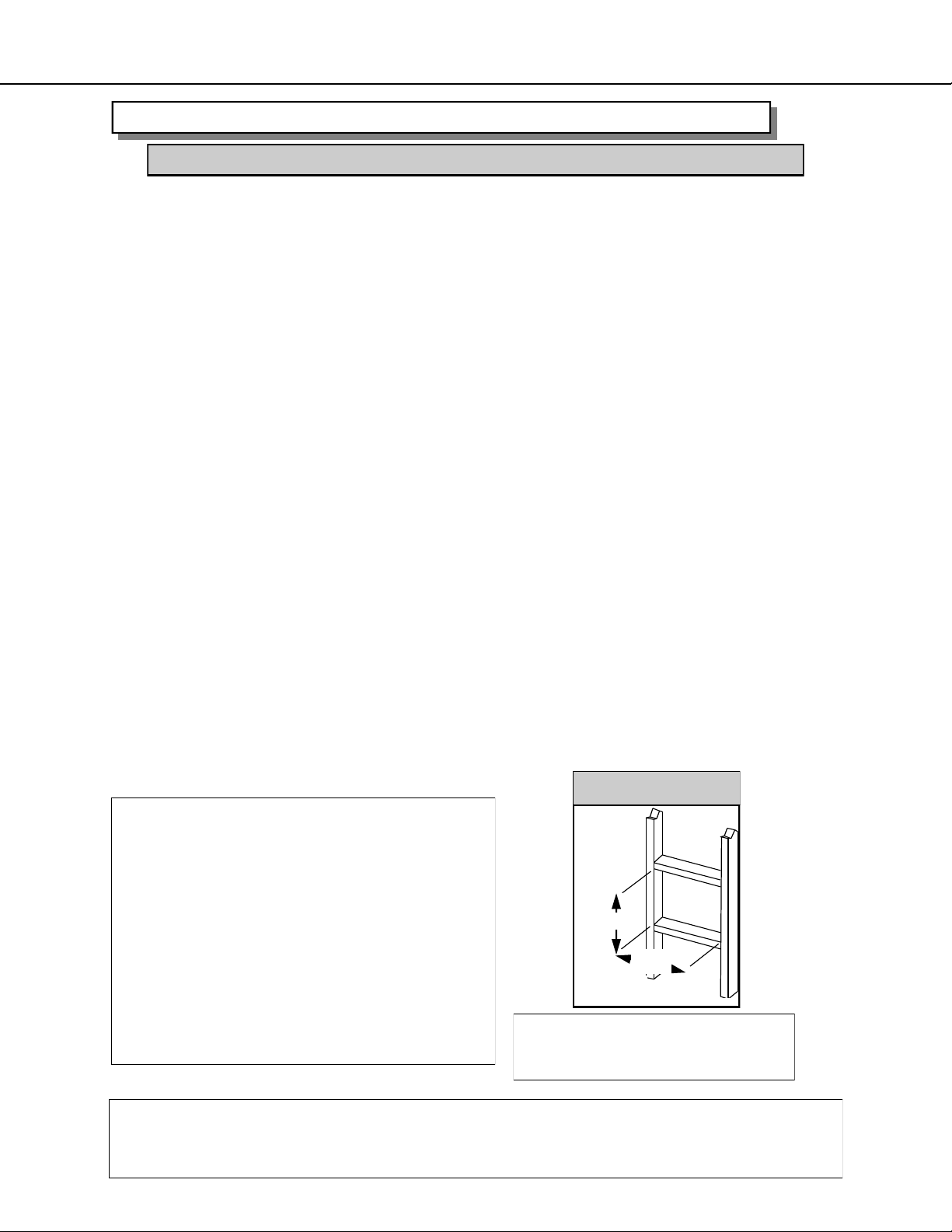

FRAMING DIMENSIONS

Dimensions

A * 38” (965 mm)

B 16-¼” (412 mm)

* This dimension allows the top of

C 38” (965 mm)

the fireplace to slide under. If more rigidity is required, a steel stud may be added to the back of the fireplace top nailing flange after the fireplace is installed.

CORNER FRAMING

DIMENSIONS

D 39-⅛”” (994 mm)

E 27-⅝”” (700 mm)

F 38” (965 mm)

G 55-¼” (1403 mm)

TERMINATION

FRAMING

DIMENSIONS

H 11” (279 mm)

I 10” (254 mm)

NOTE: Be sure to include

¼” (6mm) rise per 12” (305

mm) of horizontal length

72-DVT30N

LOCATING GAS FIREPLACE

This appliance must be installed in any location that is free of plumbing, electrical wiring and heating or air conditioning ducts. Select a location that is accessible for venting. See ALLOWABLE TERMINATION LOCATIONS listed in this manual. The fireplace may be

installed in any location that maintains proper clearances to combustibles, air conditioning ducts, electrical wiring and plumbing. Select a location that is accessible for venting See section Allowable Termination Locations listed in this manual. When the appliance is installed directly on carpeting, vinyl tile or other combustible materials, other than wood flooring, the appliance must be installed on metal or wood panel extending the full width and depth of the appliance.

NOTE: See venting chart for maximum and minimum vertical / horizontal venting configurations.

VENT TERMINATION LOCATIONS

ALLOWABLE TERMINATION LOCATIONS and establish a suitable vent termination location.

1. In heavy snowfall areas make sure the vent termination is located where it can not be blocked by snowfall and / or snow from snow-removal equipment.

2. Locate the vent termination away from plants, bushes or any other object near the vent termination that will interfere with or obstruct the airflow around it.

3. DO NOT recess vent termination into walls, sidings or planters.

4. Vent terminations located below 7ft (2.13 M) from grade level or anywhere that it can be a

burn hazard to the public, such as patios and balconies, must be protected with an approved termination cage. If using Archgard Venting System, order Part # C-1.

72-DVT30N

ALLOWABLE TERMINATION LOCATIONS

(++) Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.

(*) For clearances not specified in ANSI Z223.1/NFPA 54 or CSA B149.1, “Clearances shall be in accordance with local installation codes and the requirements of the gas supplier.”

zontally

within 10 feet (3 m) hori-

12 inches (30 cm) 9 inches (23 cm)

supply inlet to building or the

6 feet (1.83 m) 3 feet (91 cm) above if

combustion air inlet o any other

appliance

7 feet (2.13 m) + *

air supply inlet

12 inches (30 cm) ++ *

(1) In accordance with the current CSA B149.1, National Gas and Propane Installation Code

(2) In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code

sidewalk or paved driveway

located on public property

porch, deck, or balcony

(+) A vent shall not terminate directly above a side walk or paved driveway that is located between two single family dwellings and serves both dwellings

* * L= Clearance above paved

12 inches (30 cm) 12 inches (30 cm) J= Clearance to non-mechanical air

12 inches (30 cm) 12 inches (30 cm) K= Clearance to a mechanical

* * M= Clearance under veranda,

the

3 feet (91 cm) *

3 feet (91 cm) within a

meter/regulator assembly

height 15 feet (4.5 m) above

Canadian Installations (1) US Installations (2) Canadian Installations (1) US Installations (2)

A= Clearance above grade, veranda,

porch, deck, or balcony

B= Clearance to window or

door that may be opened

C= Clearance to permanently

closed window

D= Vertical clearance to

ventilated soffit located

above the terminal within a

horizontal distance of 2 feet

(61 cm) from the center line

of the terminal

E= Clearance to unventilated soffit * *

F= Clearance to outside corner * *

G= Clearance to inside corner 9” (22.5cm) 9” (22.5cm)

H= Clearance to each side of

center line extended above

meter/regulator assembly

L= Clearance to service

regulator vent outlet

72-DVT30N

APPROVED VENT COMPONENTS

The appliance will not function without being connected to a proper venting system. This appliance may only use direct vent system supplied by Archgard Industries or Simpson DuraVent direct vent systems with the appropriate adaptor dependent upon the venting guidelines within this manual.

NOTE: Only the venting components listed below are approved for the Optima 72

PART # DESCRIPTION

999-DV-TVK3 Archgard Flex Vent Kit with 36” (914 mm) vent length (includes 999-

DV-HTC)

999-DV-TVK5 Archgard Flex Vent Kit with 60” (1.52 M) vent length (includes 999-DV

-HTC)

999-DV-DV-HTC Archgard Horizontal termination head only

999-DV-SC Archgard Safety Cage for Horizontal termination head (999-DV-HTC)

999-DV-VSD Archgard Vinyl siding deflector

999-DV-SDA Universal Adapter, Simpson Dura-Vent / Flex

DV-GS Simpson Dura-Vent venting system

VENTING CONNECTION

For best and safe venting performance, here are some general venting rules:

 Use only Archgard or Simpson Dura-Vent direct vent systems and components.

 Maintain a minimum of 1” (25mm) clearance to combustibles from the outside

surfaces of vertical vents and minimum of 1” (25mm) sides and bottom, and 2” (50mm)

from top surfaces of horizontal vents.

 Observe local code restrictions, if any, regarding the installation of this type of gas appliance.

 Observe the venting charts given in this manual.

 Use vent spacers between the inside 4” (101mm) and outside 7” (178mm) vents at 3 ft

(915mm) intervals (Archgard Direct Vent System ONLY).

 Never slope horizontal vents downwards towards the vent termination.

 Maintain a minimum ¼” rise (6mm) for every linear foot (305mm) of horizontal vent.

 Terminate (Horizontally) the vent only with an approved vent termination supplied by

Archgard Industries (Part # 999-DV-HTC) or Simpson Dura-Vent Termination Cap.

 Terminate (Vertically) the vent only with Simpson Dura-Vent Vertical Termination Cap.

 Support horizontal vents every 3 ft (915mm) to prevent sagging.

Please strictly follow the venting instructions for optimum performance from the

appliance and to avoid sooting and/or service calls.

72-DVT30N

VENTING - RESTRICTOR PLACEMENT

RESTRICTOR PLACEMENT FOR ROOFTOP VENTED APPLICATIONS ONLY

WARNING: These restrictors are only to be installed in the vent system if the vent exceeds 10’ in

vertical height. Restrictor Number 1 below is required if the vent system is between 10’-18’ and Restrictor Number 2 below is required if the vent system exceeds 18’. Installing them under any

other circumstances may cause hazardous venting conditions and may result in personal injury, property damage or death.

NOT FOR USE IN SIDEWALL VENTED APPLICATIONS

Restrictor Number #1

Rooftop Venting Above

Ten Feet (10’)

NOTE: Vent restrictors are designed to reduce vertical stack action for vent terminations which will reduce the velocity of incoming combustion air and not adversely affect the standing pilot or the efficiency of the appliance.

Simpson Dura-Vent

With Simpson Dura-Vent, locate

the restrictor in the exhaust

section fitting into the formed lip.

Restrictor Number #2

Rooftop Venting Above

Eighteen Feet (18’)

Archgard System

In the Archgard system, the restrictors

are placed on the exhaust outlet on

the appliance.

Simpson Dura-Vent

Archgard System

72-DVT30N

VENTING - VERTICAL TERMINATION CHART

The appliance will not function without being connected to a proper venting system. This appliance may only use direct vent system approved by Archgard, or Simpson Dura-Vent direct vent systems with Archgard 999-DV-SDA adapter.

VENTING CHART

7.93 M

7.32 M

6.71 M

V E

6.10 M

5.49 M

4.88 M

4.27 M

3.66 M

H E

3.05 M

2.44 M

1.83 M

1.22 M

610 mm

SEE PAGE 14 FOR RESTRICTOR

SHAPE & PLACEMENT

NOTE: NO INSTALLATIONS ARE PERMITTED OUTSIDE

OF THIS RANGE

.610 m

HORIZONTAL LENGTH

 Chart is for one 90° bend, with a 1/4” (6 mm) minimum vertical rise per running foot of

1.22 m 1.83 m

2.44 m

3.05 m 3.66 m

horizontal length.

 For each additional 90° or two 45°, add one foot of vertical height.  Maximum three 90º bends, or equivalent allowed in the system.  Minimum 2 ft (610 mm) straight length between bends.

VENTING ABOVE ROOF OF THE HOUSE USING A VERTICAL TERMINATION

Use Simpson Dura-Vent listed direct vent system caps for all vertical vent termination applications (through the roof).

Please strictly follow the venting instructions for optimum performance

from the appliance and to avoid sooting and/or service calls.

72-DVT30N

VENTING - VERTICAL TERMINATION USING SIMPSON DURA-VENT PIPE ONLY

The Optima 72 can be vented vertically using Simpson Dura-Vent Direct Vent System. To vent using Simpson Dura-Vent exclusively, you must use the Archgard 999-DV-SDA Adapter and connect the adapter to the top of flue outlet on the Optima 72 gas fireplace.

1. Maintain 1” (25mm) clearance (air space) to combustibles when passing through ceilings,

walls, roof, enclosures, attic rafter, or other nearby combustible surfaces. Do not pack air spaces with insulation. Check Page 15 (Venting Chart) for the maximum vertical rise of the venting system.

2. Set the gas appliance in its desired location. Drop a plumb bob down from the ceiling to the

position of the appliance flue exit, and mark the location where the vent will penetrate the ceiling. Drill a small hole at this point. Next, drop a plumb bob from the roof to the hole previously drilled in the ceiling, and mark the spot where the vent will penetrate the roof.

NOTE: you may wish to relocate the appliance to avoid cutting load-bearing members.

3. A Firestop spacer must be installed in the floor or ceiling of every level. To install the Firestop

spacer in a flat ceiling cut a 10” (254mm) square hole. Frame the hole as shown Fig. 1 and

install the firestop.

4. Assemble the desired lengths of pipe and elbows as outlined in the Venting Chart, necessary

to reach from the Appliance adaptor (999-DV-SDA). Ensure that all Simpson Dura-Vent and/ or flexible gas liners are connected and sealed accordingly.

5. Cut a hole in the roof centered on the small drill hole placed in the roof as outlined in Step 2.

6. The hole should be of sufficient size to meet the minimum requirements for each combusti-

bles of 1” (25mm). Slip the flashing under the shingles (shingles should overlap half of the

flashing) as per Fig.2.

7. Continue to assemble pipe lengths and/or flexible gas venting.

8. Ensure vent is vertical and secure the base of the flashing to the roof with roofing nails; slide storm collar over the section and seal with a mastic.

9. Install the vertical termination cap by twist-locking it.

10” (254mm)

square hole

framing

Fig. 1

firestop

spacer

Fig. 2

Female Locking

Lugs

Male

Locking

Lugs

Fig. 3

+ 37 hidden pages

Archgard 72-DVT30N User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
