Page 1
CD23
Service Manual
Issue 1.1
Page 2
TITLE FMJ CD 23 Main/Display PCB
DWG. NO. L879TS ISSUE 1 DATE 17/01/2000
DRAWN BY Edd Stonham TEST SPECIFICATION
SHEET 1 of 7
SUMMARY
The Main/Display PCB for the new FMJ CD23.it will only the Accept 9 CD Ring Dac
Module(L816) FMJ Changes Will Not Power up existing 8SE Dac Modules.
This Board is Based on the ALPHA 7SE CD Board used without DAC Circuitry
This Board Is designed to accept a second transformer which supplys the analogue
Supply instaed of the frame (as in the standard 9CD Version)
The system is based on a Sony kit, comprising CDM14-5BD10 laser mechanism &
loader, micro-controller and fluorescent display.

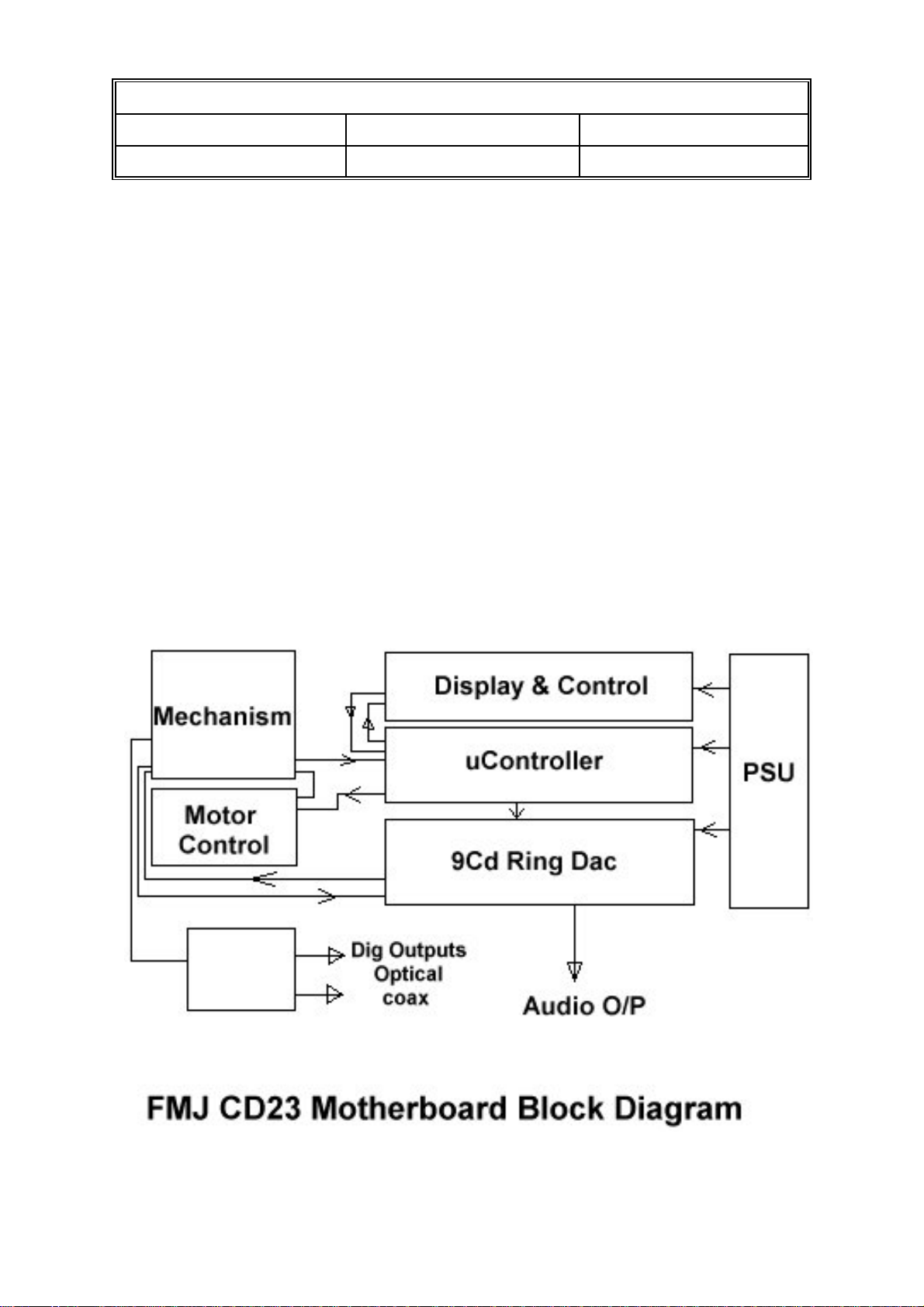

BLOCK DIAGRAM
Page 3
TITLE FMJ CD 23 Main/Display PCB
DWG. NO. L879TS ISSUE 1 DATE 17/01/2000
DRAWN BY Edd Stonham TEST SPECIFICATION
SHEET 2 of 7
TECHNICAL SPECIFICATION
FMJ CD 23
CD Mechanism Sony CDM14-5BD10
Laser pick-up 3 beam
Optical Digital Output Toslink
Coaxial digital output (75 ohm) Class 1
Power consumption (max) 30VA
Size W/D/H mm 430x290x85
Weight, nett 3.8kg
NB Dimensions include connectors, buttons and feet.
Page 4
TITLE FMJ CD 23 Main/Display PCB
DWG. NO. L879TS ISSUE 1 DATE 17/01/2000
DRAWN BY Edd Stonham TEST SPECIFICATION
SHEET 3 of 7
CIRCUIT DESCRIPTION

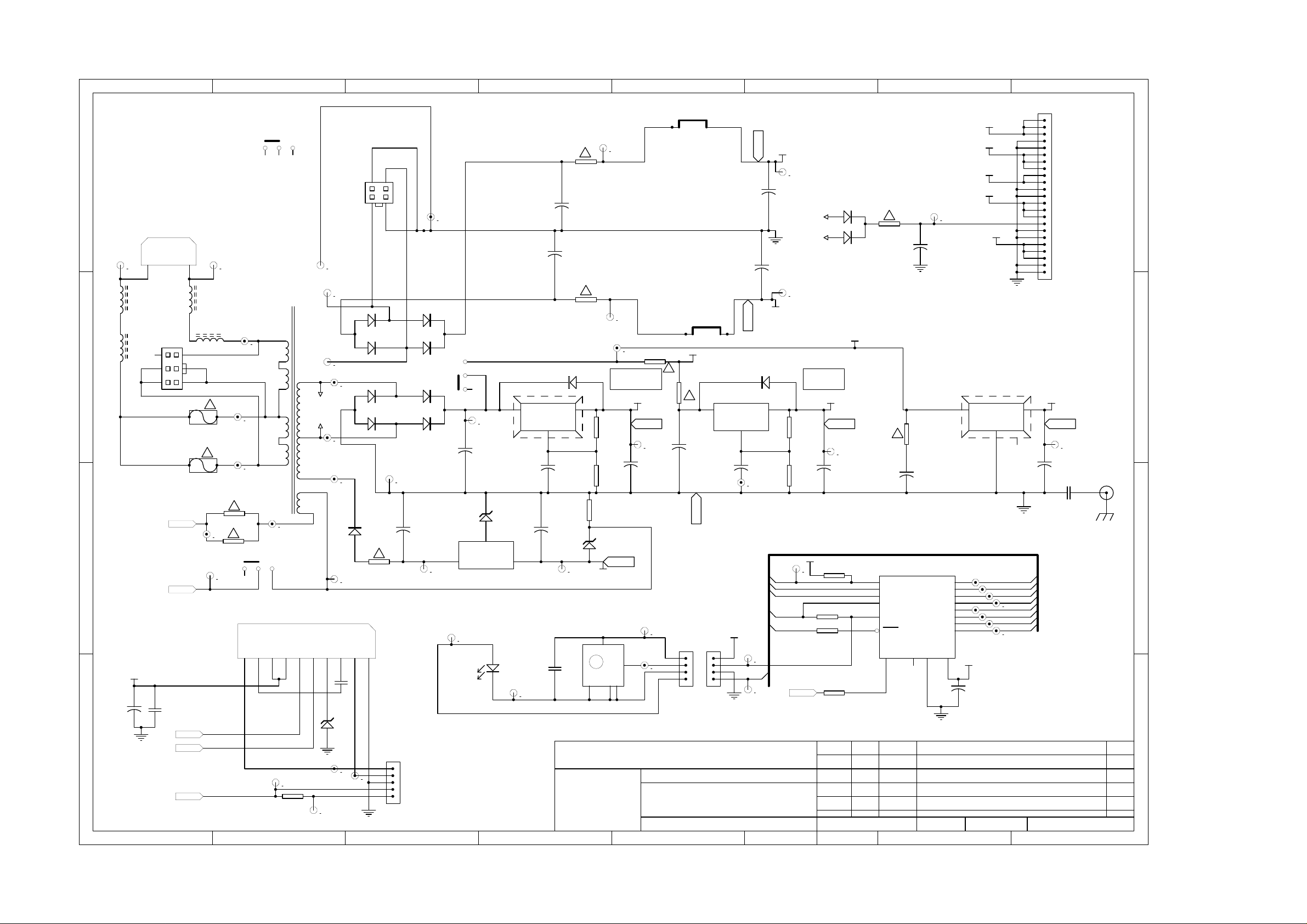

Power Supplies & Reset/Mute
Selection of 230V or 115V mains operation is made by inserting a fuse into the
appropriate position and placing in the correct mains frame transformer . The
mains transformer has three secondary windings:
1. Provides a unregulated +19 and -19V supplies for the 9 DAC discrete
regulators
2. This produces the digital, motor drive and fluorescent display grid
supplies:
+7.3V (Z206) Mechanism and motor driver supply
+5V (Z208) General digital logic supply
+5V (DAC) (Z207) Supply to DAC
+5V (CLK) (Z203) Supply to system clock generator
-30V (Z209) Display grid voltage.
3. Provides an AC supply for the display filament.
The power-on reset signal XRST is generated by R17 and C29. When the power
switch is turned off one of its poles discharges C29 quickly. This, along with the
AMUTE signal from the micro, controls the output mute transistors via level
shifter Q3.
Remote Control/PIC Micro
The remote control receiver is mounted on a separate PCB, joined to the main
PCB by a 4-way ribbon cable. The PIC micro controller converts the RC-5 format
data into the NEC format required by the Sony micro. The PIC also controls the
configuration of the digital filter/DAC on the DAC board.
Page 5
TITLE FMJ CD 23 Main/Display PCB
DWG. NO. L879TS ISSUE 1 DATE 17/01/2000
DRAWN BY Edd Stonham TEST SPECIFICATION
SHEET 4 of 7
Micro controller & Display Board
The system micro controller Z212 has the following functions:
! Control of the mechanism & decoder on the CDM14
! Control of mute, attenuation and de-emphasise for the DAC
! Direct drive of the fluorescent display
! Remote control decoding
! Keyboard scanning
The keyboard scanning works by connecting the keys to a resistor ladder on an
ADC input to the micro. Pressing a key presents a unique voltage to this input.
The remote control data contains a ‘Customer Code’ that identifies this as an
Arcam product. The diode network D291 to D297 configures the micro to accept
this code.
Motor Driver
The status of the drawer is indicated to the micro by two micro switches ‘INSW’
and ‘OUTSW’ on SK205. The micro controls the drawer motor via driver Z210.
Digital Output
SPDIF format digital output signal is generated by the decoder on the mechanism
assembly. This is passed through isolating transformer T202 to a single phono
socket SK5.
Optical digital output via Z2 is also tapped off the digital output signal. Power is
supplied to Z2 via Z3 a 78L05 regulator.
Page 6
TITLE FMJ CD 23 Main/Display PCB
DWG. NO. L879TS ISSUE 1 DATE 17/01/2000
DRAWN BY Edd Stonham TEST SPECIFICATION
SHEET 5 of 7
TEST METHOD
The test procedure for the FMJ CD23 is essentially the same as for the Alpha 9
CD with reductions in the digital and analogue supply voltages
Test in the same way as is usual for Alpha 8/8se/9CD but with Following Changes.
ATE PADS
Main Board - Power Supplies
LIVE Live mains input
NEUT Neutral mains input
NEUT2 Neutral input after inductor
230V 230V mains after fuse
115V 115V mains after fuse
P22VUN Unregulated positive audio supply, nominally 19.5V
N22VUN Unregulated negative audio supply, nominally 19.5V
P18V Removed as Unregulated Audio Supply P22VUN
N18V Removed as Unregulated Audio Supply N22VUN
P11V Unregulated digital supply, nominally 12.5V
P11VSW As P11V but after power switch
FILAC Display filament supply, transformer winding
FILASW Display filament supply, other winding, before power switch
FILA Filament supply, after power switch
FILB Filament supply, after limiting resistors
P7V Regulated supply to mechanism and motor driver, +7.3V +/-0.3V
P5VDAC Reg. supply to on-board DAC, +5V +/-0.3V, before config plug,
A7DAC5V +5V supply to on-board DAC after configuration plug
GND5VDAC 0V for power supply regulator, DAC.
DACGND 0V for on-board DAC
P5V Regulated digital supply, +5V +/-0.3V
P5VCLK Regulated supply to on-board system clock, +5V +/-0.3V
P5VTOS Regulated supply for optical digital output, +5V +/-0.3V
N35V Unregualted suppy to display grid regulator
N30V Regulated supply to display grid, -30V +/-0.5V
RLYV Unregulated rail to power mute relay on DAC board
ACAUD1 AC power signals
ACAUD2
ACAUDG
ACDIG1
ACDIG2
ACDIG3
AUDGND
AGND Analogue power supply ground
Page 7
TITLE FMJ CD 23 Main/Display PCB
DWG. NO. L879TS ISSUE 1 DATE 17/01/2000
DRAWN BY Edd Stonham TEST SPECIFICATION
SHEET 6 of 7
DGND Digital power supply ground
HDCD HDCD LED drive, connects to LED anode
XRST System master reset control signal, active low.
PMUTE Power mute, pulled to 0V when unit switched off
17MHZ System clock, 16.9344MHz
LRCK Digital audio Left/Right word clock, 44.1kHz(Sony Format)
ADATA Digital audio data
BCLK Digital audio bit clock
WDCK Alternative Word Clock - not used
DIGOUT Digital Audio SPDIF Output
AMUTE Active high mute signal from micro
SMUTE Active low mute signal from micro
K0M Keyboard line 1
K1M Keyboard line 2
RMIN Remote control sugnal output from PIC micro
REMIN Remote control input signal from receiver PCB
LOADOUT Controls drawer open
LOADIN Controls drawer close
INSW Connects to ‘In’ switch on drawer
OUTSW Connects to ‘Out’ switch on drawer
DEEM Active high de-emphasise control line
RA0, RB0-7 Control lines from PIC micro to DAC PCB
VOUTL L-channel DAC output
LEFT1 L-channel active filter output
LOUT L-channel audio output
VOUTR R-channel DAC output
RIGHT1 R-channel active filter output
ROUT R-channel audio output
GNDOUT Audio output ground
PGML Data latch signal from micro to DAC
CLK Data clock from micro to mechanism and DAC
DATA Data from micro to mechanism and DAC
4MHZ 4 MHz clock for main and PIC micros
DIGOUTP Digital output, positive
DIGOUTN Digital output, negative
Remote Board
REMOUT Remote signal from receiver module
Page 8
TITLE FMJ CD 23 Main/Display PCB
DWG. NO. L879TS ISSUE 1 DATE 17/01/2000
DRAWN BY Edd Stonham TEST SPECIFICATION
SHEET 7 of 7
HDCDREM Drives HDCD LED on remote board
P5VREM 5V supply to remote receiver
GNDREM 0V supply to remote receiver
Display Board
NEXT Front panel switches; connect to 0V to activate
PREV
FF
FR
PAUSE
STOP
PLAY
OPEN
CHECK
PROG
DISP
REPEAT
VF1, VF2 Display filament power supply
DIS5V Power supply 5V, to ‘Power’ LED
DISGND Power supply 0V
K0, K1 Keyboard scanning inputs
TEST POINTS
TP1 0V Ground
TP2 +5V Digital supply
TP3 +7V Mechanism and motor supply
TP4 +5V DAC DAC supply
TP5 +19V Unregulated Audio supply
TP6 -19V Unregulated Audio supply
TP7 -30V Display supply
TP8 LRCK Digital audio word clock
TP9 ADATA Digital audio data
TP10 BCLK Digital audio bit clock
TP11 17MHz System clock
TP12 DEEM De-emphasise flag
TP13 MUTE Mute control
Page 9
TITLE FMJ CD23 MOTHER & DISPLAY PCB
DWG. No. L879RS ISSUE 2.1 ECO No 00_0002 DATE 18/1/00
DRAWN BY MGM RUN-OUT SHEET SHEET 1 of 4
(Including parts for A8.)
Part Qty Iss Description Designators
******** PCB Finish items:
******** (For drawing office use only. Will be
******** kitted from mechanical run-out sheet.)
5H16C54X 1 IC CMOS MICRO PIC16C54XT/P Z211
A1014 1 SW PUSH 4PCO PBT SW201
C11166 1 FUSE 20mm 160mA T S504160mA F1
F022 2 INS COVER PCB FUSEHOLDER F1 F2
L859TX 1 FMJ COOL MULTI-VOLTAGE TX T201
******** PCB Build items:
1G010 5 RES MF FU W3 10R 5% NFR25 R37 R48 R58 R64 R65
1G022 2 RES MF FU W3 22R 5% NFR25 R51 R52
1G210 1 RES MF FU W3 1K0 5% NFR25 R70
1G810 2 RES MF FU W3 1R0 5% NFR25 R44 R45
1G833 1 RES MF FU W3 3R3 5% NFR25 R291
1H022 1 RES MF W4 22R 1% R20
1H122 1 RES MF W4 220R 1% R314
1H133 5 RES MF W4 330R 1% R38 R43 R54 R59 R16
1H139 1 RES MF W4 390R 1% R22
1H210 2 RES MF W4 1K0 1% R42 R294
1H212 3 RES MF W4 1K2 1% R55 R307 R312
1H215 2 RES MF W4 1K5 1% R36 R306
1H216 1 RES MF W4 1% 1K6 R41
1H220 1 RES MF W4 1% 2K R311A
1H222 1 RES MF W4 2K2 1% R305
1H227 1 RES MF W4 1% 2K7 R310A
1H233 1 RES MF W4 3K3 1% R304
1H236 1 RES MF W4 1% 3K6 R309A
1H256 2 RES MF W4 5K6 1% R303 R311
1H282 7 RES MF W4 8K2 1% R69 R61 R71 R292
R293 R308 R313
1H310 6 RES MF W4 10K 1% R17 R34 R295 R296
R297 R298
1H312 2 RES MF W4 12K 1% R302 R310
1H333 4 RES MF W4 33K 1% R53 R63 R301 R309
1H410 2 RES MF W4 1% 100K R27 R50
1X005 2 LINK PLAIN 5mm L2 L3
1X010A 90 LINK PLAIN 10mm D15 D16 LK100 LK101
LK102 LK103 LK104
LK105 LK2 LK8 LK13
LK16 LK17 LK18 LK19
LK20 LK21 LK22 LK24
LK25 LK26 LK27 LK28
LK29 LK30 LK31 LK32
LK33 LK34 LK35 LK36
LK37 LK38 LK39 LK40
LK41 LK42 LK43 LK44
LK45 LK46 LK47 LK48
LK49 LK50 LK51 LK52
Page 10
TITLE FMJ CD23 MOTHER & DISPLAY PCB
DWG. No. L879RS ISSUE 2.1 ECO No 00_0002 DATE 18/1/00
DRAWN BY MGM RUN-OUT SHEET SHEET 2 of 4
LK53 LK54 LK55 LK56
LK57 LK58 LK59 LK60
LK61 LK62 LK63 LK64
LK65 LK67 LK68 LK69
LK70 LK71 LK72 LK73
LK74 LK75 LK76 LK77
LK78 LK79 LK80 LK81
LK82 LK83 LK84 LK85
LK86 LK87 LK88 LK89
LK90 LK91 LK92 LK93
LK96 LK97 LK107
2A033 1 CERD 33P 63V 20% RA C14
2A310 8 CERD 10N 63V -20% +80% RA C1 C18 C19 C32 C52
C54 C55 C57
2A347 3 CERD 47N 63V -20% +80% RA C291 C293 C294
2N610 1 ELST 10U 50V C37
2N622 1 ELST 22U 63V C30
2N647 1 ELST 47 35V C56
2N710 5 ELST 100U 25V C9 C29 C41 C42 C292
2N710B 2 ELST 100U 100V C34 C35
2N747 2 ELST 470U 25V RA C49 C50
2N810 4 ELST 1M0 25V C33 C43 C46 C51
2N810C 2 ELST 1M0 35V C44 C45
2N833 1 ELST 3M3 25V C36
2P622 1 ELST 22U 20V OSCON C53
2P710ZA 1 ELST 100U 25V ZA RUBYCON C38
3A4148 9 SSDIODE 1N4148 75V D1 D21 D291 D292
D293 D294 D295 D296
D297
3B4003 5 RECTIFIER 1N4003F 1A 200V D12 D13 D14 D22 D23
3B4003F 8 ULTRAFAST RECTIFIER DIODE UF4003 1A D4 D5 D6 D7 D8 D9
D10 D11
3C04704 1 ZENER 4V7 400MW D19
3C07504 1 ZENER 7V5 400MW D18
3C11504 1 ZENER 15V 400MW D17
3D001 1 LED GREEN 5MM LED301
3D003 1 LED ULTRARED 5MM LED201
4A547 1 TRANS LF SS N BC547B Q6
5D1086A 1 A IC VREG POS LM1086A LDO Z206
5D317T 1 IC VREG POS LM317T Z207
5D7805 1 IC VREG POS 7805 Z208
5D78L05 1 IC VREG POS 78L05 Z3
5D7915 1 IC VREG NEG 7915 Z209
5G826 1 IC CD CXP826P16Q MICRO Z212
5Q1641 1 IC MOTOR DRIVER LB1641 Z210
5T173T 1 OPTO TRANSMITTER TOSLINK TOTX173 Z2
7D968A 2 6U8H INDUCTOR L6 L7
7E015 1 DIGITAL OUTPUT COUPLER K T202
7W005 1 CER RESON 4.00MHz X201
8A014 1 IEC MAINS 2-PIN PCB SK1
8D220 1 PHONO SKT SINGLE EMC SK5
8K2005 1 5-WAY AMP CT CONN SK205
8K2304 1 MOLEX MINI FIT HCS 4 WAY SK3
8K2306 1 MOLEX MINI FIT HCS 6 WAY SK6
Page 11
TITLE FMJ CD23 MOTHER & DISPLAY PCB
DWG. No. L879RS ISSUE 2.1 ECO No 00_0002 DATE 18/1/00
DRAWN BY MGM RUN-OUT SHEET SHEET 3 of 4
8K8023 2 23-WAY FFC CONN VERT SK201 SK204
8K8032 2 32-WAY FFC CONN VERT SK203 SK291
8K8132 1 32-WAY FFC CONN HORIZ SK301
8S004 2 FUSEHOLDER 20mm PCB F1 F2
8S018 1 IC SOCKET 18 PIN 0.3'' Z211
A1504 12 TACT SWITCH 2-PIN LOW PROF SW301 SW302 SW303
SW304 SW305 SW306
SW307 SW308 SW309
SW310 SW311 SW312
B1008 1 DISPLAY ALPHA 7/8/9 (SONY) DISP301
B2103 1 REMOTE RX SBX1610-52 38KHZ RX201
E846PM 2 LCD and Backlight clip EL1 EL2
F006 1 HEATSINK CLIP TO220 13/8.6 DC/W HS2
F007 1 HEATSINK TO220 CLIP 30 HS1
F008 1 HEATSINK TO220 8.6 DEGC/W HS2
HP007 2 COPPER RIVET TCP/D48 BS SK1 SK1
L814CA 1 JUMPER 4-WAY LEAD LK101A
L868/869/879PB_2
1 X PRINTED CIRCUIT BOARD PCB
***************************************************************************
********************* Additions Since L869RS Issue 2 **********************
***************************************************************************
Part Qty Iss Description Designators
******** PCB Finish items:
******** (For drawing office use only. Will be
******** kitted from mechanical run-out sheet.)
L859TX 1 FMJ COOL MULTI-VOLTAGE TX T201
******** PCB Build items:
1X010A 2 LINK PLAIN 10mm D15 D16
2N810 1 ELST 1M0 25V C46
5D1086A 1 A IC VREG POS LM1086A LDO Z206
HP007 2 COPPER RIVET TCP/D48 BS SK1 SK1
L868/869/879PB_2
1 X PRINTED CIRCUIT BOARD PCB
***************************************************************************
********************* Deletions Since L869RS Issue 2 **********************
***************************************************************************
Part Qty Iss Description Designators
******** PCB Finish items:
******** (For drawing office use only. Will be
******** kitted from mechanical run-out sheet.)
L849TX 1 ALPHA 7CD MAINS TRANSFORMER T201
******** PCB Build items:
1H122 2 RES MF W4 220R 1% R39 R40
1H230 2 RES MF W4 3K0 1% R46 R47
2N710 2 ELST 100U 25V C39 C40
Page 12
TITLE FMJ CD23 MOTHER & DISPLAY PCB
DWG. No. L879RS ISSUE 2.1 ECO No 00_0002 DATE 18/1/00
DRAWN BY MGM RUN-OUT SHEET SHEET 4 of 4
2N810C 2 ELST 1M0 35V C47 C48
2P622AS 1 ELEC 22U 25V SILMIC C46
3B4003 2 RECTIFIER 1N4003F 1A 200V D15 D16
5D317T 2 IC VREG POS LM317T Z204 Z206
5D337 1 IC VREG POS LM337T Z205
F007 1 HEATSINK TO220 CLIP 30 HS4
HP007 2 COPPER RIVET RIV1 RIV2
L868PB 1 PRINTED CIRCUIT BOARD PCB

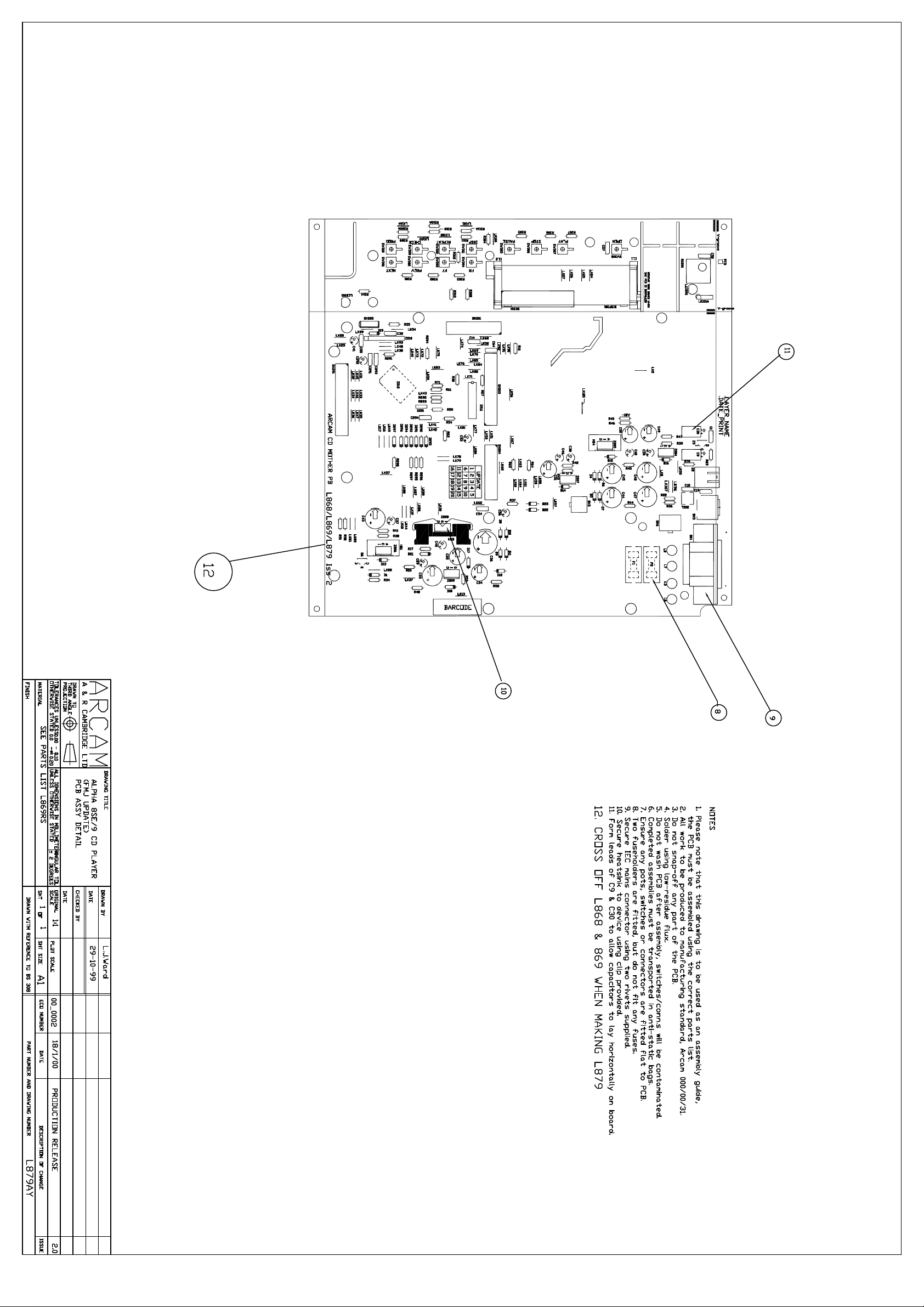

Page 13
Page 14

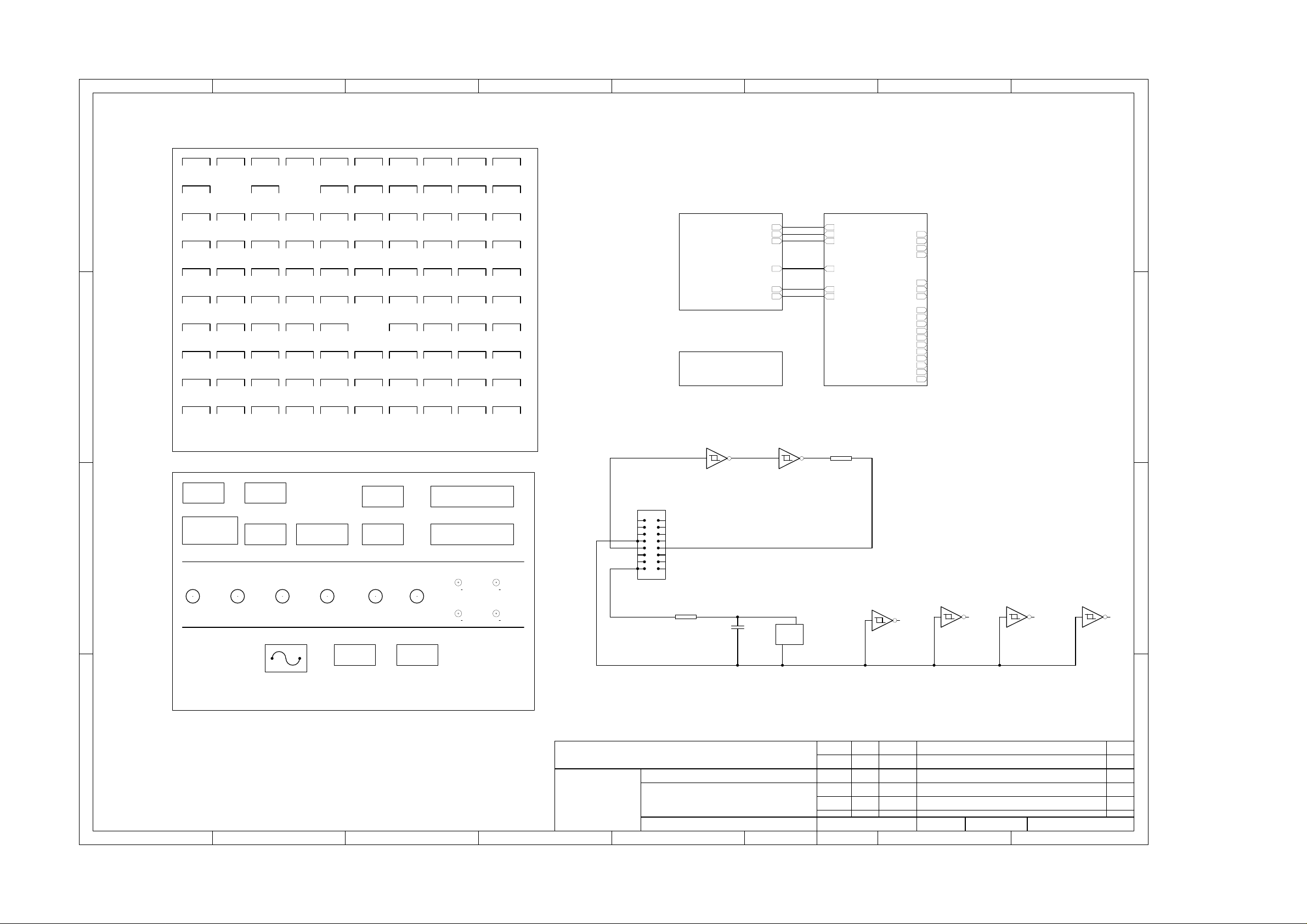

87654321
LK1
LK2
D
C
LINK10NP
LK11
LINK10NP
LK21
LINK10NP
LK31
LINK10NP
LK41
LINK10NP
LK51
LINK10NP
LK61
LINK10NP
LK71
LINK10NP
LK81
LINK10NP
LK91
LINK10NP
DD1
DRILL_DWG
PCB
Drilling
Detail
LINK10NP
LK22
LINK10NP
LK32
LINK10NP
LK42
LINK10NP
LK52
LINK10NP
LK62
LINK10NP
LK72
LINK10NP
LK82
LINK10NP
LK92
LINK10NP
PCB
L868/869/879PB
B
TL1
TOOLING3.0
LK3
LINK10NP
LK13
LINK10NP
LK23
LINK10NP
LK33
LINK10NP
LK43
LINK10NP
LK53
LINK10NP
LK63
LINK10NP
LK73
LINK10NP
LK83
LINK10NP
LK93
LINK10NP
DD2
A2 Vertical
Paper Marker
DD_A2V
DD3
A2 Horizontal
Paper Marker
DD_A2H
TL2
TOOLING4.1
LK4
LINK10NP
LK24
LINK10NP
LK34
LINK10NP
LK44
LINK10NP
LK54
LINK10NP
LK64
LINK10NP
LK74
LINK10NP
LK84
LINK10NP
LK94
LINK10NP
TL3
TOOLING3.0
Tooling Holes & Alignment Marks
F4
T160MASP
LK5
LINK10NP
LK15
LINK10NP
LK25
LINK10NP
LK35
LINK10NP
LK45
LINK10NP
LK55
LINK10NP
LK65
LINK10NP
LK75
LINK10NP
LK85
LINK10NP
LK95
LINK10NP
DD5
PCB MATERIAL
CEM1, 2 OZ Cu
CEM1_20Z
Documentation
TL4
TOOLING3.0
Spare Fuse
EL1
LCD CLIP
E846PM
E846PM
LK6
LINK10NP
LK16
LINK10NP
LK26
LINK10NP
LK36
LINK10NP
LK46
LINK10NP
LK56
LINK10NP
LK76
LINK10NP
LK86
LINK10NP
LK96
LINK10NP
PS
Photo Strip
PHOTO_STRIP
A2
Update Box
UPDATE_BOX
TL5
TOOLING3.0
LK7
LINK10NP
LK17
LINK10NP
LK27
LINK10NP
LK37
LINK10NP
LK47
LINK10NP
LK57
LINK10NP
LK67
LINK10NP
LK77
LINK10NP
LK87
LINK10NP
LK97
LINK10NP
EL2
LCD CLIP
E846PM
E846PM
LK8
LINK10NP
LK18
LINK10NP
LK28
LINK10NP
LK38
LINK10NP
LK48
LINK10NP
LK58
LINK10NP
LK68
LINK10NP
LK78
LINK10NP
LK88
LINK10NP
LK98
LINK10NP
A1
BARCODE_A7CD
A3
BARCODE_A8CD
TL6
TOOLING_OPT
LK9
LINK10NP
LK19
LINK10NP
LK29
LINK10NP
LK39
LINK10NP
LK49
LINK10NP
LK59
LINK10NP
LK69
LINK10NP
LK79
LINK10NP
LK89
LINK10NP
LK99
LINK10NP
BARCODE LABEL
BARCODE LABEL
FD_1
FIDUCIAL
FD_3
FIDUCIAL
LK10
LINK10NP
LK20
LINK10NP
LK30
LINK10NP
LK40
LINK10NP
LK50
LINK10NP
LK60
LINK10NP
LK70
LINK10NP
LK80
LINK10NP
LK90
LINK10NP
LK107
LINK10NP
Links
FD_2
FIDUCIAL
FD_4
FIDUCIAL
SK2
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
DIL16 HSKT
Power Supplies
L879C2_2.1.SCH
DAC & Audio outputs
L879C3_2.1.SCH
Z4A
1 2
74HC14
R67
47R MF
INOUT
LDIN
LDOUT
4MHZ
FILA
FILB
C58
10N CD
Microcontroller & Display
L879C4_2.1.SCH
Z4B
3 4
74HC14
14
Z4G
7
74HC14
Alpha 7 CD Schmitt Buffer Module.
INOUT
LDIN
LDOUT
4MHZ
FILA
FILB
R68
330R MF
DEEM
SMUTE
AMUTE
PGML
SCOR
SQCK
LDON
SENSE
SUBQ
Z4C
5 6
74HC14
K0
K1
K0
K1
RMIN
CLK
DATA
XRST
XLT
Z4D
74HC14
D
C
B
89
Z4E
1011
74HC14
Z4F
1213
74HC14
FOR ROS PROGRAMME INCLUDE A7 FOR ALPHA 7 CD
A
1 2 3 4 5 6 7 8
DRAWING TITLE
FMJ CD23 Project Sheet
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
Notes:
Filename
J:\FILES\L-ELECT\PCB complete packages\L879 PLUS ECO 00_0002 FMJ CD23\L879PB_2.1.DDB - Documents\L879c1_2.1.prj
Circuit Diagram
00_0002
ECO No. DESCRIPTION OF CHANGE
Date Printed
MGM 18/1/00 2.1
INITIALS
15-Mar-2000
DATE
PRODUCTION RELEASE ISSUE 1 NOT USED
Drawn by:
MGM
1 4Sheet of
DRAWING NO.
L879C1
A
ISSUE
Page 15
Spare fuseSpare fuseSpare fuseSpare fuse
D
C
B
100U EL
A
SK1
IEC2
LIVE NEUT
NL
L3
1U0H RADIAL
L2
L6
6U8H RADIAL
SK6
3
2
1
1U0H RADIAL
6
5
4
MOLEXPWR6
F2
T250MA115V
115V units only
F1
T160MA
230V units only
FILB
FILB
FILA
P7V
+
C41
C55
10N CD
LDOUT
LDIN
INOUT
1 2 3 4 5 6 7 8
L7
6U8H RADIAL
!
!
R51 22R FU
R52
FILA
NEUT2
115V
230V
!
!
22R FU
101112
10
T201
115V
230V
L859TX
O/P 'Out'
9
SW201B
A1014
4
5
1
2
7
6
4
5
10
9
FILAC
SW201D
Vcc
8
1K2 MF
A1014
Vcc
7
R55
6
Z210
LB1641
LoadOut
6
ACAUD2
11
AC1
AC
AC2
13
ACDIG2
15
19
20
LoadIn
5
OUTSW
MOLEXPWR4
ACAUDG
ACAUD1
ACDIG1
ACDIG3
FILASW
Bias
3
4
C32
10N CD
D19
4V7 400MW
LOADOUT
LOADININSW
SK3
O/P 'In'
2
D4
UF4003
D6
UF4003
D8
UF4003
D10
UF4003
D12
1N4003F
1
2
3
4
DGND
!
R58 10R FU
GND
1
SK205
8K2005
1
2
3
4
5
Motor Ground
AGND
D5
UF4003
D7
UF4003
D9
UF4003
D11
UF4003
+
C34
100U EL 100V
N35V
LOADOUT
LOADIN
GND
INSW
OUTSW
SW201C
A1014
9
8
7
+
C36
3M3 EL
I
Vin
Z209
7915
HDCDREM
LED201
LED ULTRARED
Alpha 8 only
P11VSW
HS1
TO220HS30REG
D17
15V 400MW
G
GND
Vout
GNDREM
I
Z206
LM1086A
Vin
O
P22VUN
!
R44 1R0 FU
+
C44
1M0 35V
+
C45
1M0 35V
!
R45
1R0 FU
N22VUN
D13
1N4003F
O
Vout
ADJ
R38
330R MF
A
C37
+
10U EL
R41
1K6 MF
R53
N30V
RX201
SBX1610-52
33K MF
D18
7V5 400MW
N30V
3
C35
100U EL 100V
+
+5V
C52
10N CD
GND
1
DRAWING TITLE
FMJ CD23 Player
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
D16
1 2
10MM LINK
TP5
P18V
+
C49
470U EL 25V
+
C50
470U EL 25V
N18V
TP6
D15
1 2
!
R64
10MM LINK
P11V CLK
!
I
Z207
LM317T
Vin
D14
1N4003F
Vout
O
P11V
R65 10R FU
CDM14 Supply
+7.3V
P7V P5VP5V DAC
10R FU
ADJ
C51
+
1M0 25V
P7V
C43
+
1M0 25V
GND5VDAC
A
+
C38
100U 25V ZA EL
TP1
TP7
RA0
RA0
AMUTE
DEEM
RMIN
O/P
Case
P5VREM
P5V
LK101B
LK101A
1
REMOUT
2
2
3
4
L814CA
L814CA
Notes:
Filename
J:\FILES\L-ELECT\PCB complete packages\L879 PLUS ECO 00_0002 FMJ CD23\L879PB_2.1.DDB - Documents\L879C2_2.1.SCH
Circuit Diagram
POWER SUPPLIES
REMIN
1
2
3
4
HDCD
XRST
HDCD
P18V
N18V
P18V
N18V
P5V DAC
P5V
P11V
AC1
AC2
AC
D22
1N4003F
D23
1N4003F
!
R3710R FU
RLYV
+
C56
47U EL 35V
P11V
DAC Supply
+5V
R43
330R MF
P5VDAC
+
R42
C46
1M0 25V
1K0 MF
P5V
R27
100K MF
R50
100K MF
R54
330R MF
R59
4MHZ
330R MF
00_0002
ECO No. DESCRIPTION OF CHANGE
Date Printed
Z211
PIC16C54XT
17
18
1
2
3
4
MGM 18/1/00 2.0
INITIALS
15-Mar-2000
RA0
RA1
RA2
RA3
RTCC
MCLR
OSC1
16
DATE
R48
!
10R FU
TO220HS08REG
C33
+
1M0 25V
RB0
RB1
RB2
RB3
RB4
RB5
RB6
RB7
VSS
OSC2
5
15
14
PRODUCTION RELEASE ISSUE 1 NOT USED
Drawn by:
MGM
VDD
I
HS2
+
Vin
6
RB0
7
8
9
10
RB4
11
12
13
P5V
C53
22U EL OS
Z208 7805
RB1
RB5
SK204
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
FFC23V
Power connector to DAC PCB
O
Vout
TP2TP3 TP4
C42
+
100U EL
P5V
G
GND
HS
C54
10N CD
RB0
RB1
RB2
RB2
RB3
RB3
RB4
RB5
RB6
RB6
RB7
RB7
2 4Sheet of
DRAWING NO.
87654321
PD1
PAD300/4.1
CGND2
L879C2_2.1
D
C
B
A
ISSUE
Page 16
D
Flex connector from CDM14 mech
SK201
ADATA
FFC23V
P11V CLK
23
SUBQ
22
SENSE
21
XLT
20
LDON
19
18
P5V
17
16
DIGOUT
15
14
XRST
13
AMUTE
12
SQCK
11
SCOR
10
DATA
9
CLK
8
BCLK
7
ADATA
6
LRCK
5
WDCK
4
3
2
1
WDCK 17MHZ
LRCK
ADATA
BCLK
R49
120R MF
Z202B
74HCU04
Z202C
74HCU04
33P CD
C14
17MHZ
SCLK
FOK
GFS
C
BCLK
LRCK
P7V
B
A
TP10
SMUTE
XRST
TP8
TP9
34
56
WD
R16
C60
22P CD
C59
22P CD
I
C26
+
100U EL
12 Z202A
74HCU04
L4
33UH AX
330R MF
C64
22P CD
22P CD
Vin
C12
10N CD
C63
22P CD
C61
G
P5V DAC(A7)
R23
120R MF
LK66
1 2
10MM LINK
C24
+
100U EL
C62
22P CD
P5V DAC
LRCK
ADATA
BCLK
C66
10P CD
Vout
GND
Z203
78L05
10MM LINK
P5V DAC(A7)
PL1
DIL16 VPLG
O
+
C25
22U EL OS
A7DAC5V
1N4148
C28
1N0 PP
LK12
1 2
10MM LINK
R66
220R MF
PGML
CLK
DEEM
LK14
1 2
12
34
56
78
910
1112
1314
1516
74HCU04
Z202G
7
DATA
R31 330R MF
R32 330R MF
R33 330R MF
26
27
28
ML/IIS
MD/DM0
MC/DM1
LRCIN1DIN2BCKIN3CLKO4XTI5XTO6DGND7Vdd8Vcc2R9AGND2R10EXT1R11NC12VOUTR13AGND1
R1
120R MF
17MHZ
R62 220R MF
P5VCLK
TP14
Z202F
14
74HCU04
X1
16.9344MHZ
33P CD
LK105
1 2
10MM LINK
10MM LINK
1 2LK106
22
23
24
25
Q_13 Q_16 Q_17
MUTE
Q_14 Q_15
C13
RST
MODE
CS/IWO
R25
120R MF
680P PP
Z202D
8 9
74HCU04
TP11
17MHz
1213
R18
33K MF
D24
19
20
21
Vcc2L
ZERO
AGND2L
C11
Analogue ground
R57
330R MF
R19
33K MF
C15
100P CD
C16
100P CD
+
18
EXTL
+
R60
10K MF
SK203
+
FFC32V
10U EL
C31
F13
!
R24
10R FU
C23
100U EL
15
16NC17
Vcc
VOUTL
Q_18
14
C22
100U EL
DACGND
10 11
Z202E 74HCU04
R35
4M7 MF
C17
10N CD
Q2
BC547B
C10
1N0 CD
R21
470R MF
HDCD
RB3
RB1
RB2
12345678910111213141516171819202122232425262728293031
PMUTE
RB0
RB4
RB5
RB6
RB7
RA0
DEEM
SMUTE
DIGOUT
AMUTE
XRST
WD
Data connector to DAC PCB
L5
33UH AX
R4
3K9 MF
3
2
R5
10K MF
Z1A
1
NJM2114
Z201
VOUTL
R2
3K3 MF
C2
680P PP
R3
3K3 MF
C3
680P PP
PCM1716#
AUDGND
C21
10U NP
C20
680P PP
VOUTR
R56
330R MF
DRAWING TITLE
R102
3K3 MF
D21
1N4148
P5V
R17
10K MF
22R MF
XRST
C29
+
100U EL
680P PP
R103
3K3 MF
C103
680P PP
R20
C102
1
2
3
D1
1N4148
SW201A
A1014
R28
10K MF
R104
3K9 MF
R105
10K MF
PMUTE
3
2
PMUTE
10K MF
BC547B
Z101A
1
NJM2114
Analogue Ground
P5V
R34
Q6
Q5
BC547B
FMJ CD23 Player
LRCK
ADATA
R6
10K MF
R7
33K MF
R106
10K MF
R107
33K MF
R30
10K MF
D3
1N4148
BCLK
LEFT1
RIGHT1
1N4148
D2
17MHZ
32
P18V
5
6
R8
3K9 MF
5
6
R108
3K9 MF
R14
10K MF
Q4
BC547B
R70
1K0 FU
DIGOUT
DIGOUT
R9
3K9 MF
Z1B
NJM2114
Analogue Ground
R109
3K9 MF
Z101B
NJM2114
R29
1K0 MF
R15
10K MF
Q3
BC557B
Z3
78L05
I
Vin
C9
+
100U EL
C4
7
10U CERAFINE
C104
7
10U CERAFINE
R110
22K MF
P18V
R26
100K MF
N18V
+
+
C27
10U EL
+
G
GND
Vout
22U EL
R10
22K MF
O
C30
R11
120R MF
R111
120R MF
D20
4V7 400MW
TP13
+
R13
1K2 MF
R113
1K2 MF
Mute
P5VTOS
22U EL OS
R22
390R MF
1K5 MF
P5V TOS
C8
R36
R12
22R MF
Q1
FST239
R112
22R MF
Q101
FST239
R69
8k2 MF
1
2
3
4
C1
+
10N CD
DIGOUT_TX
T202
1
2
3
SCRN
C18 10N CD
LOUT
L
R
ROUT
C65
10N CD
L1
7F003
P18V C6
84
Z1C
NJM2114
N18V
Z2
TOTX173
Gnd
Radj
Vcc
Vin
DIGOUTP
5
4
DIGOUTN
1
84
GND
SK5
PHONO1
EMC
C5
100P PP
SK4
PHONO2HG
EMC
GNDOUT
680P PP
Z101C
NJM2114
C7
680P PP
87654321
RFB011T
C19
10N CD
CGND1
CGND1
EMCPHONO2
SH1
C105
100P PP
CGND3
D
C
B
A
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
1 2 3 4 5 6 7 8
Notes:
Filename
J:\FILES\L-ELECT\PCB complete packages\L879 PLUS ECO 00_0002 FMJ CD23\L879PB_2.1.DDB - Documents\L879C3_2.1.SCH

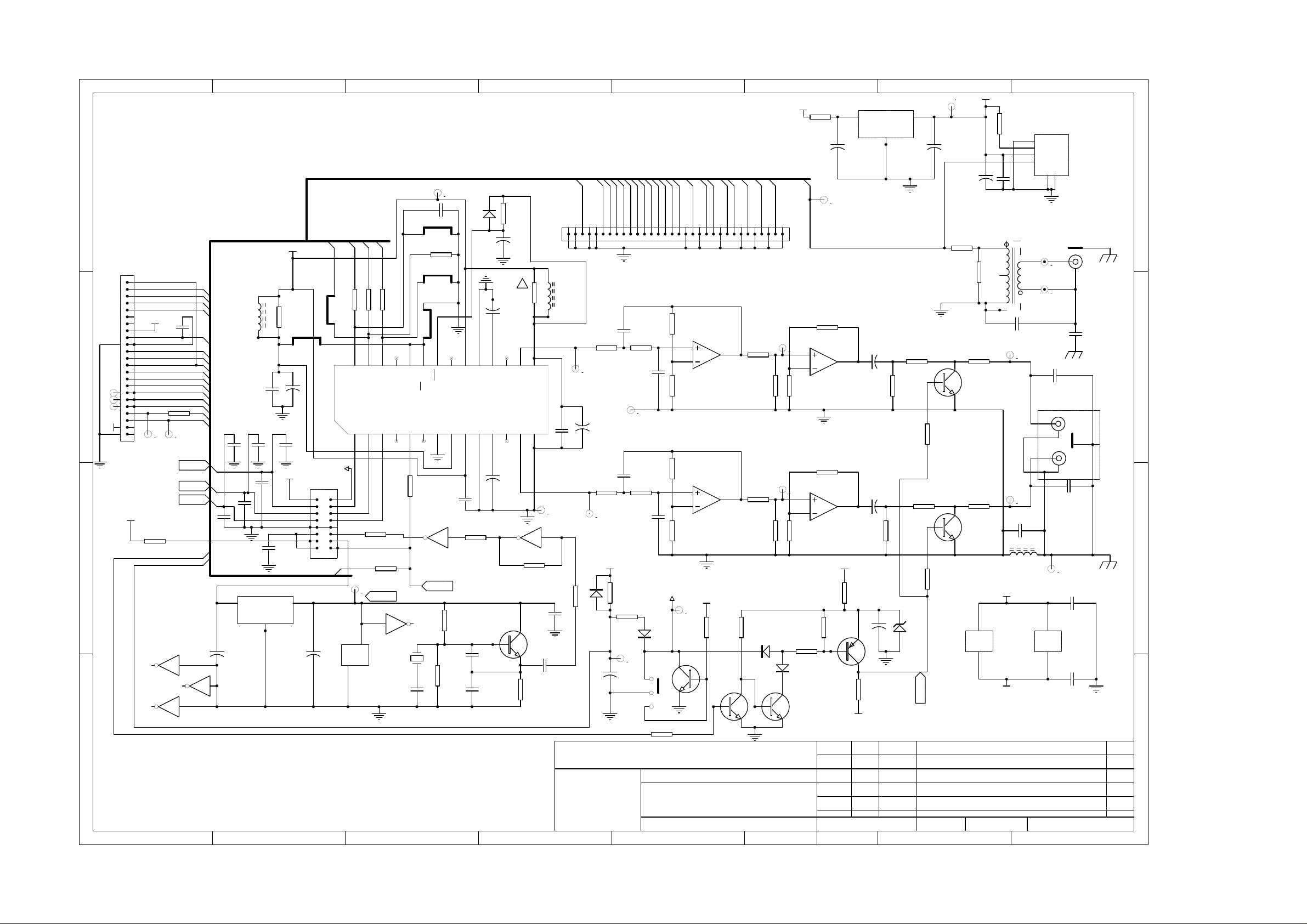

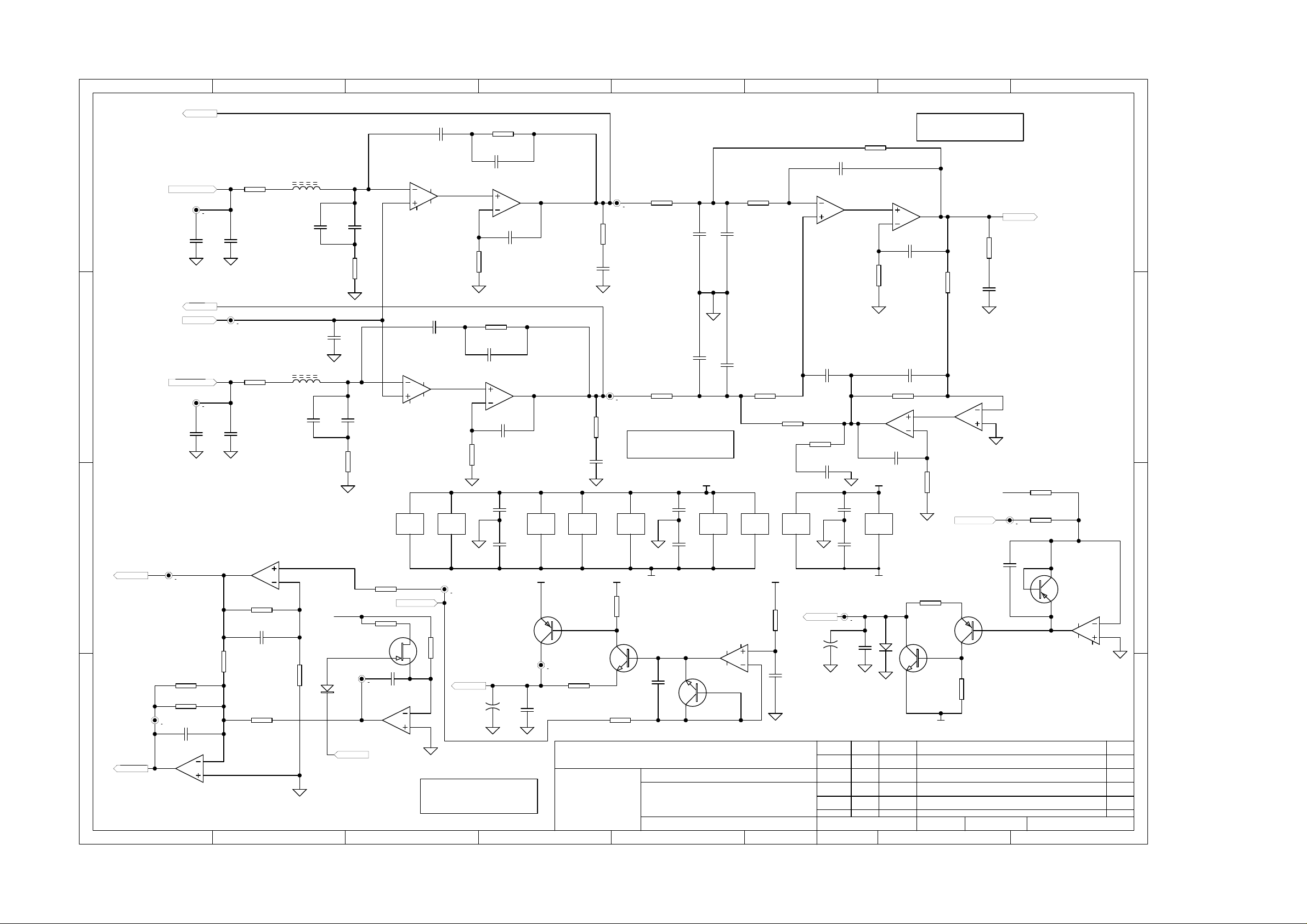

Circuit Diagram
DAC & Audio outputs
00_0002
ECO No. DESCRIPTION OF CHANGE
Date Printed
MGM 18/1/00 2.1
INITIALS
15-Mar-2000
DATE
PRODUCTION RELEASE ISSUE 1 NOT USED
Drawn by:
MGM
3 4Sheet of
DRAWING NO.
ISSUE
L879C3
Page 17
87654321
LDIN
30
40
50
60
70
80
LDOUT
SCOR
P5V
P1P3P4P6P8P9P10
P2
20
65
30
66
40
67
50
68
60
69
70
70
80
71
-30v
72
+5V
73
+5V
74
+5V
75
+5V
76
LOADIN
77
LOADOUT
78
SCOR
79
SEL2
80
SEL1
TIMER1RMIN2+5V3NC4NC5M/C6POML7CLK8SENSE9DATA10SQCK11SUBQ12NC13AMUTE14LDON15XLT16NC17R1118R1219R1320R1421KEY022KEY123KEY2
RMIN
Flexfoil connector to Display PCB
P15
57NC58NC59NC60NC61NC6210632064
CLK
P13
P14
DATA
SENSE
P12
P11
P11
P12
SUBQ
SQCK
P13
P10
P1052P1153P1254P1355P1456P15
Q_4
P5
P7
Q_9
Q_6
Q_8
Q_5
Q_7
10
Q_1
Q_2
PGML
1011121314151617181920212223242526272829303132
P14
P1520405060
10
30
Q_3
R294 1K0 MF
XLT
LDON
AMUTE
R295
10K MF
R296
10K MF
R297
10K MF
123456789
70
80
Q_10Q_11
P1P2P3P4P5P6P7P8P9
42P143P244P345P446P547P648P749P850P951
NC41NC
SMUTE
DEEM
RO4
RO3
RO2
RO1
VSS
XTAL
EXTAL
RST
IN/OUTSW
AF ADJ
+5V
+5V
KEY3
24
K1M
K0M
R298
10K MF
NC
R71
8K2 MF
R11
R12
R13
R14
Z212
CXP826P16Q
40
39
Q_12
38
37
R4
36
R3
35
R2
34
R1
33
32
31
30
29
28
27
26
25
R61
8K2 MF
K1
K0
R292
8K2 MF
R293 8K2 MF
SMUTE
DEEM
X201
CST4.00
C294
47N CD
4MHZ
XRST
INOUT
R1
R2
R3
R4
R11
D291
1N4148
D294
1N4148
D295
1N4148
D292
C0' C1' C3'
1N4148
C4'
C0
R12
D293
1N4148
D296
1N4148
D297
1N4148
D
R13
R14
C
C2
C7
SK291
FFC32V
FILA FILB
INOUT
D
C
LDIN
LDOUT
DEEM
SMUTE
AMUTE
4MHZ
RMIN
PGML
CLK
DATA
SCOR
SQCK
XRST
LDON
XLT
SENSE
SUBQ
SMUTE
DEEM
R63
33K MF
4MHZ
RMIN
PGML CLK DATA
INOUT
LDIN
LDOUT
DEEM
TP12
DEEM
SMUTE
AMUTE
AMUTE
4MHZ
RMIN
PGML
CLK
DATA
SCOR
SQCK
XRST
LDON
XLT
SENSE
SUBQ
P5V
F14
!
R2913R3 FU
C291
47N CD
N30V
K1
K0
C292
100U EL
+
C293
47N CD
B
NEXT PLAY
SW301 SW302 SW303 SW304 SW305 SW306 SW307 SW308
NEXT PREV FF FR PAUSE STOP PLAY OPEN
CHECK
A
SW309 SW310 SW311 SW312
CHECK PROGRAM DISPLAY REPEAT
1 2 3 4 5 6 7 8
R309A
3K6 MF
R309
3K3 MF
PREV FF FR PAUSE STOP
R301
33K MF
1 2
R302
12K MF
LK103
1 2
10MM LINK
LK104
10MM LINK
PROG DISP REPEAT
R303
5K6 MF
R304
3K3 MF
R310A
2K7 MF
R310
2K2 MF
LK100
1 2
10MM LINK
LK101
1 2
10MM LINK
R305
2K2 MF
R306
1K5 MF
R311A
2K MF
R311
1K5 MF
LK102
10MM LINK
R307
1K2 MF
12
R308
8K2 MF
OPEN
R313
8K2 MF
R312
1K2 MF
C57
10N CD
K1
DISP301
B1008
K0
SK301
FFC32H
DRAWING TITLE
FMJ CD23 Player
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
> ||
DISC
SHUFFLE
VF1VF
P155P146P13
P1297010P11116012P1013P9145015P8164017P718P6
2
3804
7
8
D80
DP15
VF2
D80
D70
32
Notes:

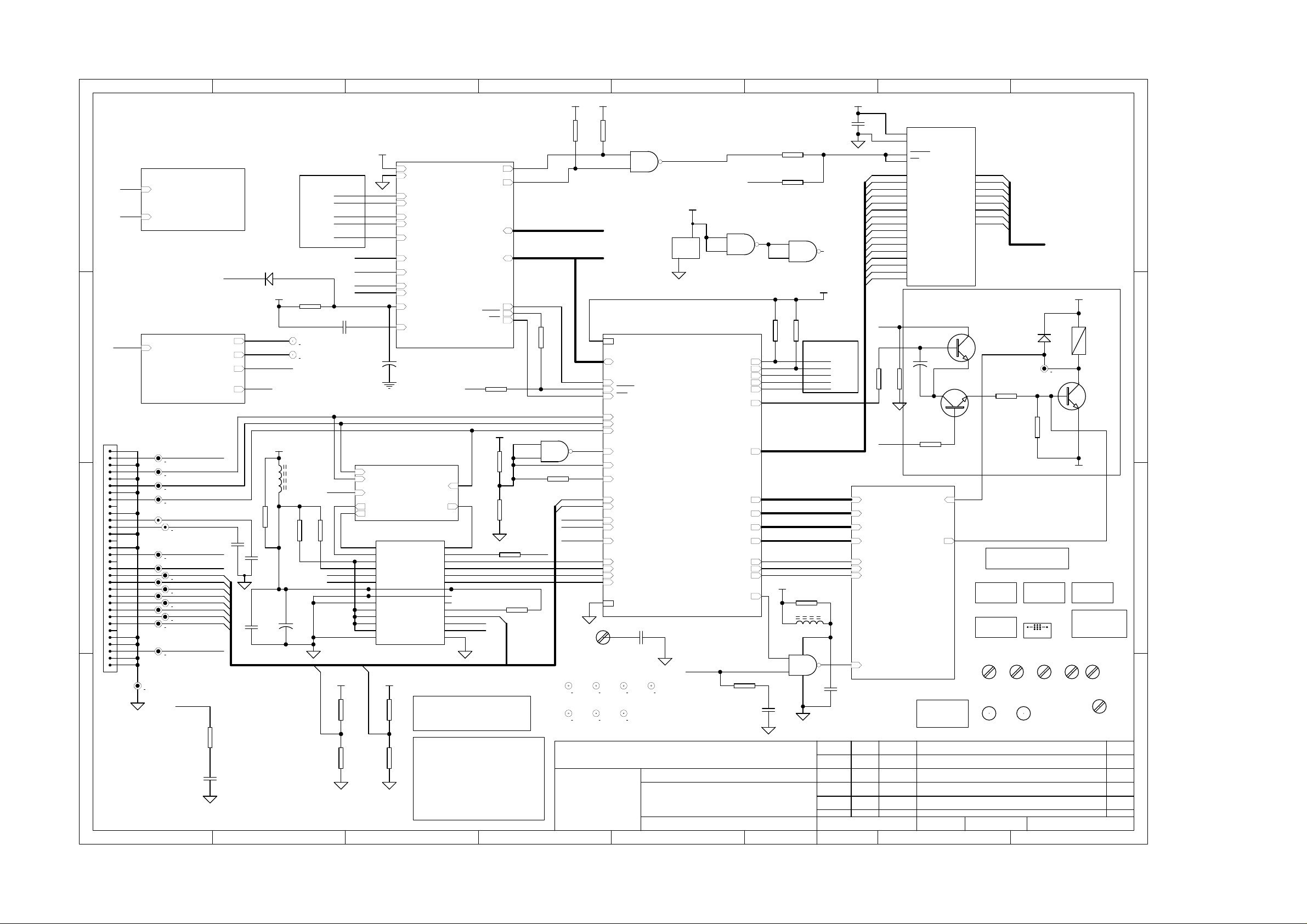

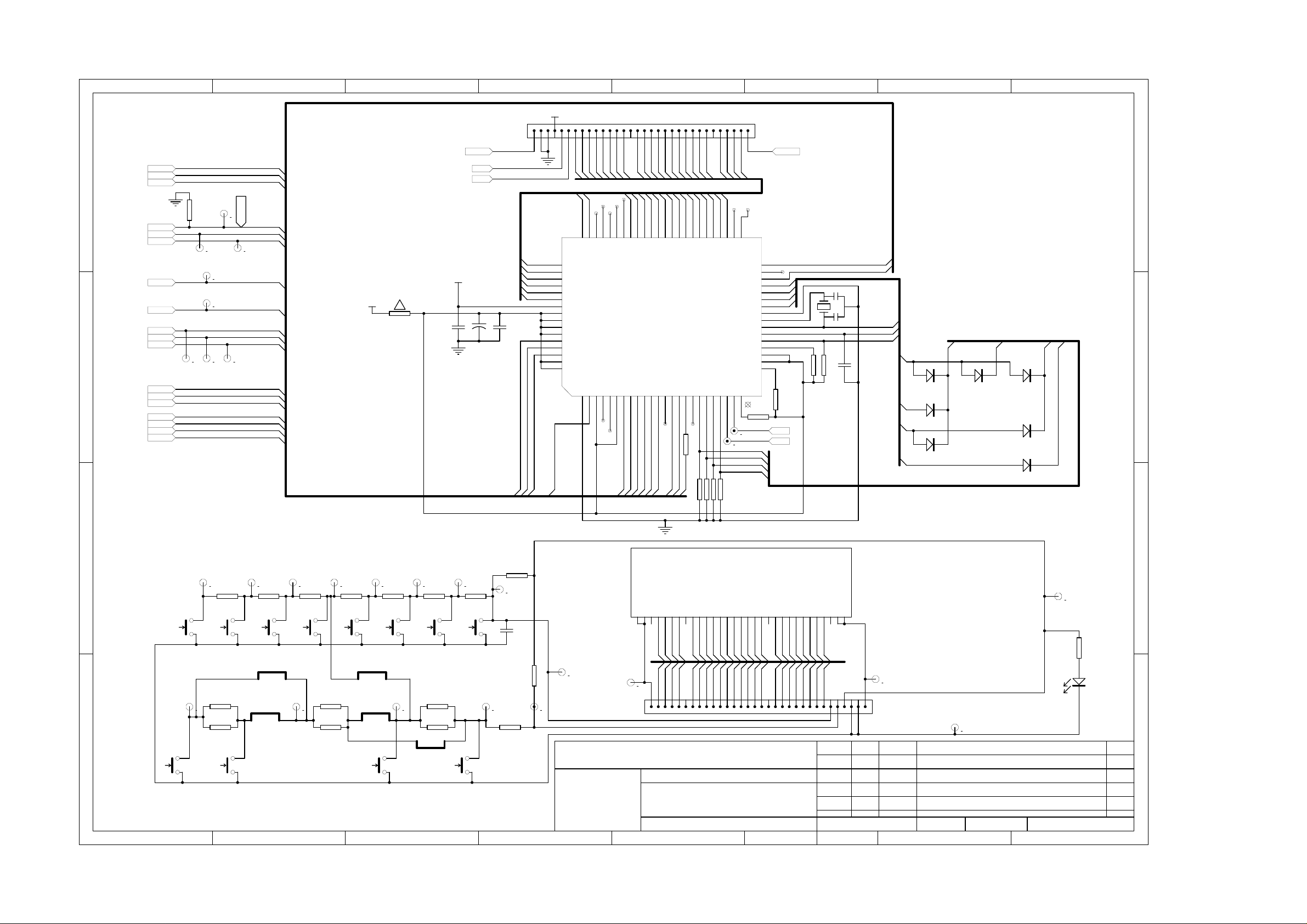

Microcontroller & Display
Filename
J:\FILES\L-ELECT\PCB complete packages\L879 PLUS ECO 00_0002 FMJ CD23\L879PB_2.1.DDB - Documents\L879C4_2.1.SCH
D70
DP12
DP13
DP14
D60
D50
D40
D30
Circuit Diagram
DP11
D20
D60
D10
DP10
DP15
DP9
DP14
88
D50
DP13
DP8
DP12
D40
DP7
DP10
DP11
19
DP6
DP9
-88.8888
20P5213022P4232024P325P2261027P128
D30
D20
D10
DP2
DP3
DP4
DP5
DP2
DP3
DP4
DP5
DP6
DP7
DP8
ECO No. DESCRIPTION OF CHANGE
VF30VF
29
DP1
DP1
00_0002
Date Printed
31
VF1
12345678910111213141516171819202122232425262728293031
MGM 18/1/00 2.1
INITIALS
15-Mar-2000
DATE
DISGND
PRODUCTION RELEASE ISSUE 1 NOT USED
Drawn by:
MGM
4 4Sheet of
DIS5V
DRAWING NO.
R314
220R MF
LED301
LED GREEN
L879C4
B
A
ISSUE
Page 18

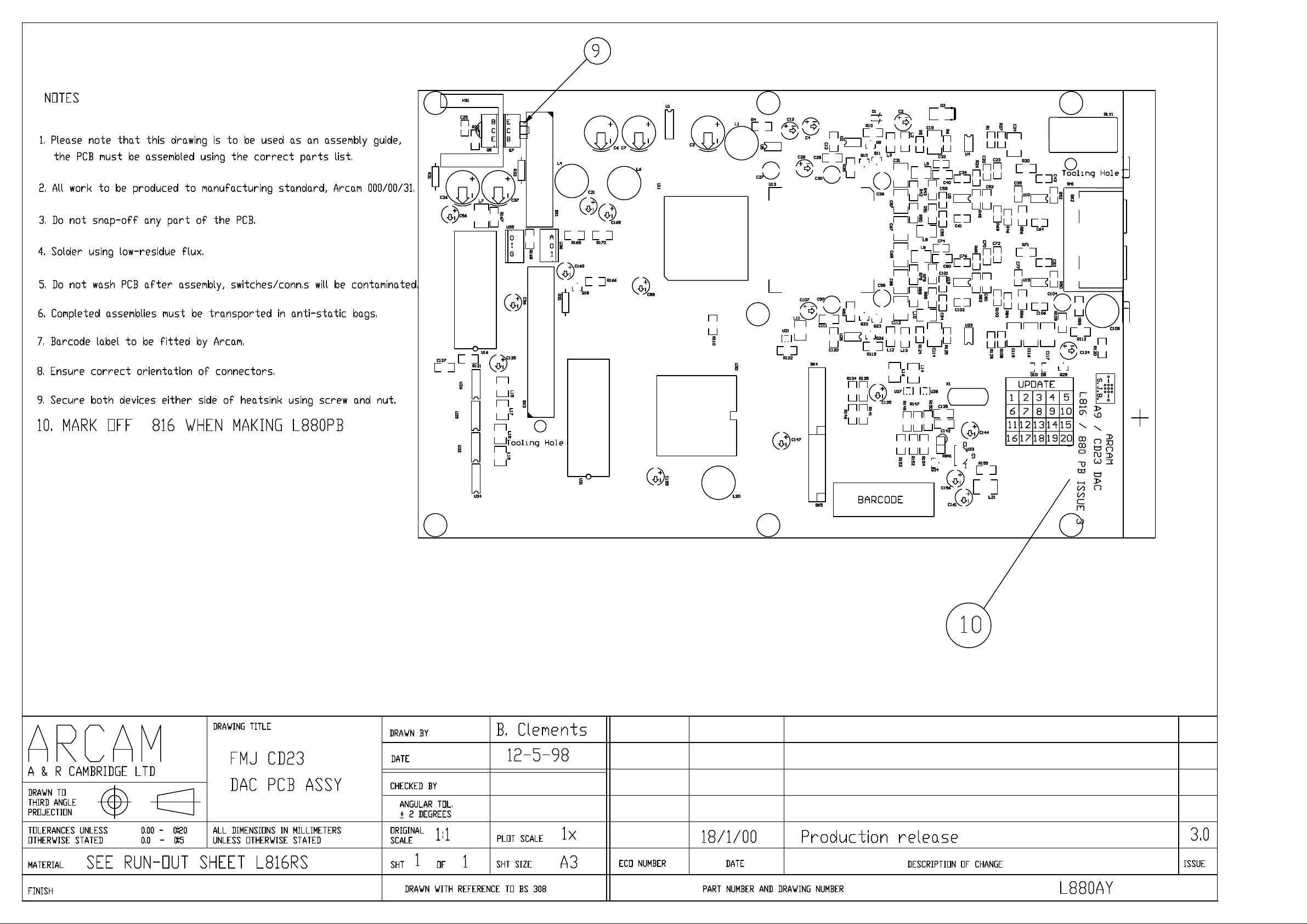

TITLE FMJ CD23 DAC PCB
DWG. No. L880RS ISSUE 3.1 ECO No 00_0002 DATE 18/1/00
DRAWN BY MGM RUN-OUT SHEET SHEET 1 of 4
(Including parts for HDCD.)
Part Qty Iss Description Designators
******** PCB Finish items:
******** (For drawing office use only. Will be
******** kitted from mechanical run-out sheet.)
5G27512 1 IC CMOS EPROM 27C512 120NS U31
******** PCB Build items:
1A000 4 RES SM W4 2% 0R0 L2 L3 L12 L13
1A000 6 RES SM W4 2% 0R0 R76 R3 R4 R28 R81
R144
1A010 11 RES SM W4 2% 10R R40 R43 R51 R79 R89
R152 R154 R15 R41
R70 R111
1A015 4 RES SM W4 1% 15R R42 R50 R78 R88
1A047 3 RES SM W4 1% 47R 1206 R159 R57 R73
1A062 4 RES SM W4 1% 62R R45 R55 R83 R94
1A110 12 RES SM W4 1% 100R R7 R11 R141 R164
R173 R174 R175 R176
R177 R178 R179 R180
1A115 4 RES SM W4 1% 150R R10 R25 R107 R119
1A122 3 RES SM W4 1% 220R R147 R148 R150
1A122A 1 RES SM W8 220R 1% R168
1A147 13 RES SM W4 2% 470R R18 R24 R29 R35 R92
R101 R118 R123 R137
R138 R149 R14 R122
1A210 17 RES SM W4 2% 1K0 R36 R54 R67 R72 R75
R93 R134 R135 R140
R146 R155 R157 R158
R82 R87 R105 R117
1A215 8 RES SM W4 1% 1K5 1206 R34 R38 R59 R65
R133 R136 R100 R116
1A222 1 RES SM W4 2% 2K2 R23
1A227A 2 RES SM W8 2K7 1% R169 R170
1A233 4 RES SM W4 1% 3K3 R30 R56 R71 R96
1A247 8 RES SM W4 2% 4K7 R17 R22 R58 R142
R153 R156 R8 R166
1A256 1 RES SM W4 1% 5K6 R160
1A268A 1 RES SM W8 6K8 1% R44
1A310 9 RES SM W4 1% 10K 1206 R32 R37 R66 R102
R109 R121 R151 R161
R120
1A311 1 RES SM W4 1% 11K R39
1A315 8 RES SM W4 2% 15K R47 R48 R49 R53 R77
R145 R162 R167
1A322 2 RES SM W4 1% 22K 1206 R64 R80
1A339 1 RES SM W4 1% 39K 1206 R98
1A410 10 RES SM W4 2% 100K R86 R99 R112 R113
R132 R9 R12 R13 R74
R114
1A422 2 RES SM W4 1% 220K R16 R115
Page 19
TITLE FMJ CD23 DAC PCB
DWG. No. L880RS ISSUE 3.1 ECO No 00_0002 DATE 18/1/00
DRAWN BY MGM RUN-OUT SHEET SHEET 2 of 4
1A510 1 RES SM W4 1% 1M0 R126
1A522 4 RES SM W4 1% 2M2 R97 R104 R171 R172
1G110 2 RES MF FU W3 100R 5% NFR25 R31 R33
1H122 1 RES MF W4 1% 220R R91
1L1412 4 RES SM 0805 0.1% 4K12 R19 R21 R60 R63
1L2221 2 RES SM 0805 0.1% 22K1 R2 R128
1L227 8 RES SM 0805 0.1% 2K7 R26 R46 R61 R68 R69
R84 R95 R103
1L310 12 RES SM 0805 0.1% 10K R1 R5 R6 R20 R27
R52 R62 R90 R108
R124 R125 R129
2C047 7 MLC 47P 100V NPO 5% SM C13 C14 C120 C121
C137 C142 C150
2C056A 2 MLC 56P 100V NPO 5% SM C41 C82
2C082 6 MLC 82P 100V NPO 5% SM C52 C62 C90 C105
C139 C145
2C110 1 MLC 100P 100V NPO 5% SM C136
2C210 2 MLC 1N0 50V X7R 10% SM C66 C164
2C310 26 MLC 10N 50V X7R 10% SM C8 C45 C49 C75 C78
C88 C91 C92 C110
C119 C132 C133 C134
C138 C140 C141 C143
C146 C149 C152 C157
C158 C159 C162 C170
C171
2C410 8 MLC 100N 50V X7R 10% SM C15 C17 C54 C118
C127 C148 C154 C160
2G110 4 PPHEN 100P 50V 2% SM 0805 C43 C64 C83 C106
2G127 6 PPHEN 270P 50V 2% SM 0805 C9 C10 C34 C61 C76
C102
2G139 12 PPHEN 390P 50V 2% SM 0805 C35 C63 C77 C103
C166 C167 C168 C169
C172 C173 C174 C175
2G147 2 PPHEN 470P 50V 2% SM 0805 C25 C26
2G210 10 PPHEN 1N0 50V 2% SM 0805 C16 C55 C58 C59 C60
C94 C95 C100 C101
C122
2G222 8 PPHEN 2N2 50V 2% SM 0805 C22 C23 C33 C39 C71
C72 C74 C79
2G247 17 PPHEN 4N7 50V 2% SM 1206 C1 C5 C11 C29 C40
C42 C44 C47 C50 C53
C80 C81 C84 C85 C86
C111 C126
2G310 9 PPHEN 10N 50V 2% SM 1206 C32 C46 C51 C65 C69
C73 C93 C108 C113
2G347 4 PPHEN 47N 50V 2% SM 1812 C31 C67 C68 C112
2G410 8 PPHEN 100N 50V 2% SM 1812 C19 C24 C57 C99
C114 C115 C116 C117
2N610 3 ELST 10U 50V C124 C125 C165
2N710 9 ELST 100U 25V C2 C4 C12 C21 C56
C96 C107 C135 C156
2N722 1 ELST 220U 16V C163
2N747 2 ELST 470U 25V RA C36 C37
2P622 2 ELST 22U 20V OSCON C144 C161
Page 20
TITLE FMJ CD23 DAC PCB
DWG. No. L880RS ISSUE 3.1 ECO No 00_0002 DATE 18/1/00
DRAWN BY MGM RUN-OUT SHEET SHEET 3 of 4
2P622AS 1 ELEC 22U 25V SILMIC C28
2P710AC 1 A ELEC 100U 25V CERAFINE C3
2P710AS 2 ELEC 100U 25V SILMIC C6 C7
2P710ZA 1 ELST 100U 25V ZA RUBYCON C89
2U610 6 ELST NON POLAR 10UF 35V C27 C30 C38 C97 C98
C104
2V710 1 ELST NON POLAR 100UF 16V C109
3AS16W 5 DIODE SS SM BAS16W D3 D6 D7 D8 D10
3AV99W 3 DIODE SS SM BAV99W D4 D5 D9
4A847 7 TRANS LF SS N SM BC847B Q8 Q9 Q12 Q16 Q21
Q24 Q26
4A849B 13 TRANS LF SS N SM BC849B Q1 Q2 Q6 Q14 Q17
Q18 Q19 Q25 Q30 Q31
Q32 Q34 Q35
4A857B 6 TRANS LF SS P SM BC857B Q10 Q11 Q15 Q20 Q22
Q23
4A859B 5 TRANS LF SS P SM BC859B Q3 Q4 Q13 Q29 Q33
4B1964 1 TRANS AUDIO DRIVER P 2SA1964 Q7
4B5248 1 TRANS AUDIO DRIVER N 2SC5248 Q5
4JF113 2 TRANS JFET SM MMBFJ113 Q27 Q28
5B027S 1 IC OPAMP SM OP27 U5
5B072D 1 IC AUDIO SM DUAL TL072 U22
5B2244 4 IC AUDIO DUAL EL2244 U9 U10 U18 U19
5B275S 4 IC AUDIO DUAL SM OP275 U4 U7 U15 U23
5B797 8 IC OPAMP SM AD797AR U2 U3 U6 U8 U14 U17
U24 U25
5D317T 1 IC VREG POS LM317T U36
5D500 1 IC VREF POS ZRB500F01 SOT32 1% U12
5D78L05 1 IC VREG POS 78L05 U33
5D7905 1 IC VREG NEG 7905 U35
5G100 1 IC CMOS HDCD DIG FILTER PMD-100 U16
5K7400 1 IC HCMOS SM 74HC00 U1
5K7404 1 IC HCMOS SM 74HCU04 U26
5K7474V 3 IC VHCMOS SM 74VHC74MX U29 U32 U34
5KA100 1 IC AHC SN74AHC1G00 U21
5KA1U04 2 IC AHC SN74AHC1GU04 U27 U28
5M393AD 1 IC COMPARATOR SM DUAL LM393A U20
5R2C002 1 IC CMOS FPGA ATT2C002 U11
5XDSY1 1 IC ASIC SUPER-DAC U13
7B010 5 10UH IND SM NL322522T-100J L5 L8 L9 L10 L11
7B033 2 33UH IND SM 1812 180mA L7 L21
7B810 1 1UH0 IND SM NL322522T-1R0J L18
7B822 5 2UH2 IND SM NL322522T-2R2J L14 L15 L16 L17 L19
7C033 3 33UH IND 2A RA 34-62086 L1 L4 L6
7X012 1 CRYSTAL 16.9344MHz PARALLEL X1
8D225 1 PHONO SKT 4-WAY EMC GOLD SK2
8K698X2 2 HEADER 2x8-WAY 0.1'' PCB SK4 SK5
8K8023 1 23-WAY FFC CONN VERT SK1
8K8032 1 32-WAY FFC CONN VERT SK3
8S028 1 IC SOCKET 28 PIN U31
A205 1 RELAY 960 OHM 51SB12T RLY1
E821MC 1 PHONO EMC SHIELD SH1
F002 1 HEATSINK TO220 13 DEGC/W HS1
HA3A12B 1 M/C PAN SUPA M3x12 STBK HS1
Page 21
TITLE FMJ CD23 DAC PCB
DWG. No. L880RS ISSUE 3.1 ECO No 00_0002 DATE 18/1/00
DRAWN BY MGM RUN-OUT SHEET SHEET 4 of 4
HJ3A00F 1 M3 NYLOC NUT HS1
L816/880PB
1 X PRINTED CIRCUIT BOARD PCB
***************************************************************************
********************* Additions Since L816RS Issue 5 **********************
***************************************************************************
Part Qty Iss Description Designators
2C410 1 MLC 100N 50V X7R 10% SM C54
L816/880PB
1 X PRINTED CIRCUIT BOARD PCB
***************************************************************************
********************* Deletions Since L816RS Issue 5 **********************
***************************************************************************
Part Qty Iss Description Designators
2C310 1 MLC 10N 50V X7R 10% SM C54
L816PB 1 PRINTED CIRCUIT BOARD PCB
Page 22
Page 23
VCCD
VCCD
87654321
VCCD
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
RA0
R74
XRST
AA[0..15]
L[0..15]
R[0..15]
SEL[0..2]
A/D
NMODE
PMODE
RDY
28
VCC
14
GND
22
OE/VPP
20
CE
10
A0
9
A1
8
A2
7
A3
6
A4
5
A5
4
A6
3
A7
25
A8
24
A9
21
A10
23
2
26
27
1
A11
A12
A13
A14
A15
U31
27C512
Power ON/OFF MUTE relay
C163
+
220U EL
Q25
4K7 SM
R114
100K SM
MUTERLY
VPROT
DD3
PCB MATERIAL
FR4, 1 OZ Cu
MULTI LAYER
FR4_MULTI
Drawn by:
SJB7-Feb-2000
BC849B
R166
100K SM

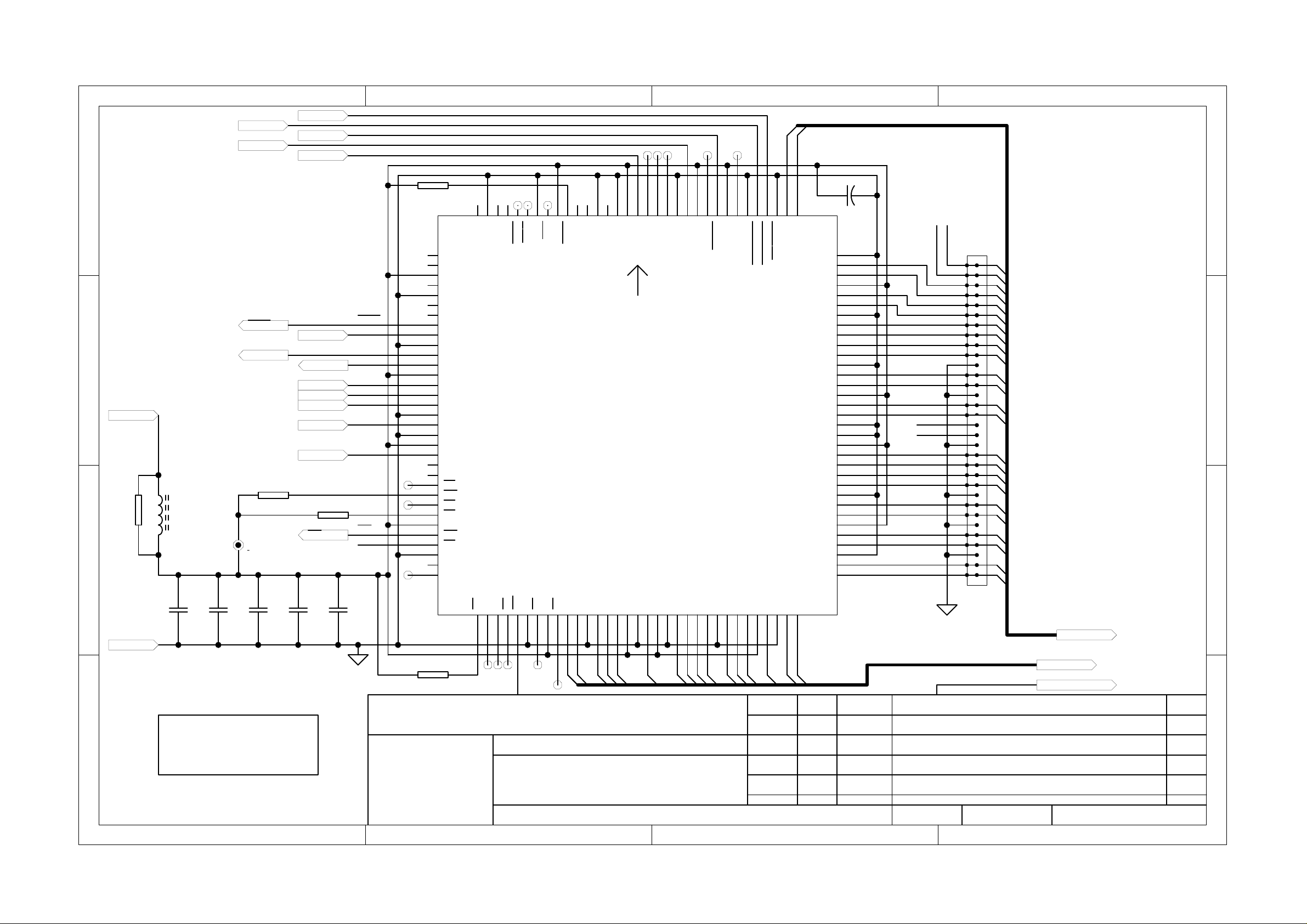

ASIC DAC
L880C4_3.1.SCH
18/1/00
DATE
11
D0
D1
D2
D3
D4
D5
D6
D7
VPROT
D0
12
D1
13
D2
15
D3
16
D4
17
D5
18
D6
19
D7
Q18
BC849B
R23
2K2 SM
BARCD
BARCODE
UDB
Update Box
UPDATE_BOX
PS
Photo Strip
PHOTO_STRIP
THL1
FIXING HOLE
FIXING HOLE
THL6
TOOLING
Production Issue
1 9Sheet of
D[0..7]
D3
MUTERLY
R8
4K7 SM
BARCODE LABEL
DD1
A3 Vertical
Paper Marker
DD_A3V
SJB
S.J.B.
SJB
THL2
THL3
FIXING HOLE
THL4
TOOLING
DRAWING NO.
RLYPWR
BAS16W SM
RLY1C
RLY_GND
DD2
Drilling
Detail
DRILL_DWG
THL9
FIXING HOLE
FIXING HOLE
FIXING HOLE
L880CT
RLY 51SB12T
Q1
BC849B
PCB
L816/880PB
THL8
THL5
ISSUE
D
C
B
A
3.1
C146
R13
100K SM
R12
100K SM
U1C
M2
M0
DSP
THL7
FIXING HOLE
FD_2
FIDUCIAL
FD_6
FIDUCIAL
9
10
VCCD
D[0..23]
CCLK
PRGM
WR
SER_CLK
SER_DIN
SER_CH
M2
M0
DSP
MODE0
MODE1
HDCD
MUTE
CLK
BCKO
WCKO
DOL
DOR
DGND
FD_3
FIDUCIAL
FD_7
FIDUCIAL
74HC00 SM
U1E
74HC00 SM
10N SM
8
DONE
VCCD
14
GND
7

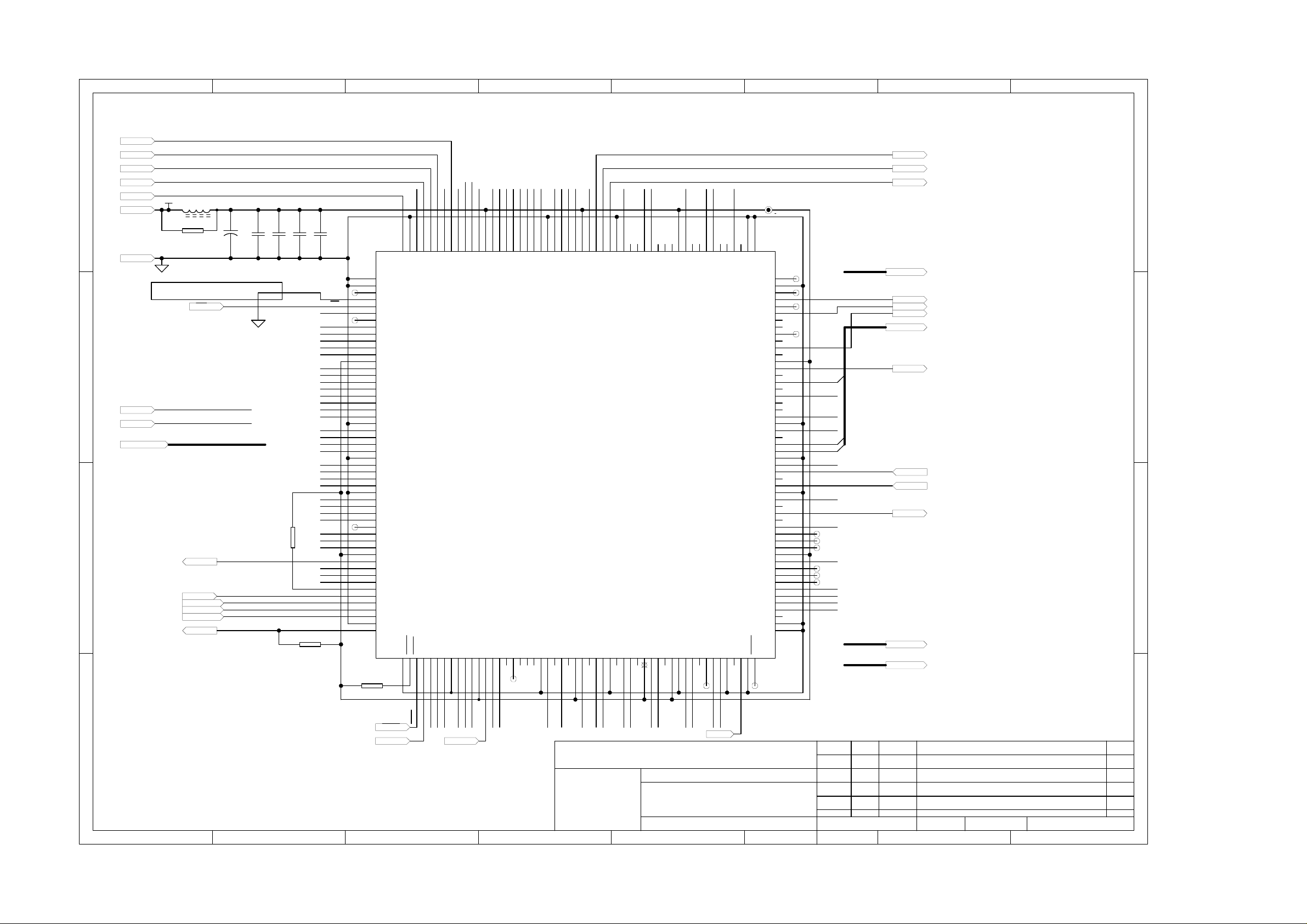

FPGA
L880C2_3.1.SCH
C159
FD_4
FIDUCIAL
Notes:
Filename
G:\DATA\ECO\Eco meeting Agenda\00_0002 cd23 tx change\pcb\L880C1_3.DDB - Documents\L880C1_3.PRJ
CLKDAC
Circuit Diagram
1
2
VDD
U21
74AHC1G00 SM
U1A
74HC00 SM
LDC
INTR
SCK
SRD
SER_CH2
DONE
A[0..15]
AA[0..15]
L[0..15]
R[0..15]
SEL[0..2]
A/D
NMODE
PMODE
RDYO
R122
470R SM
3
C119
VCCD
VCCD
D
C
B
A
XRST
SK3
FFC32V
GO
GAIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
GO

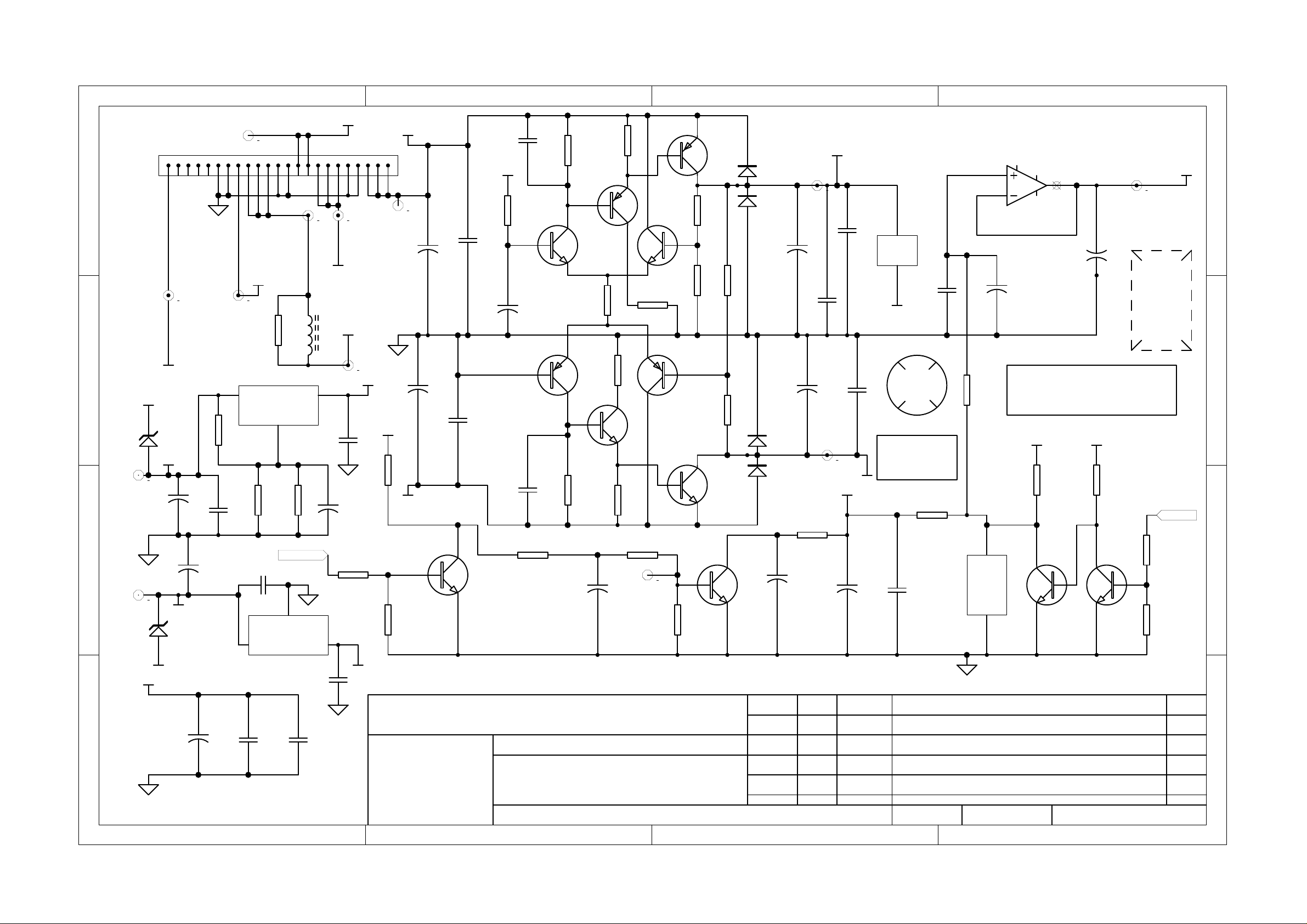

POWER SUPPLY
L880C7_3.1.SCH
GAIN
XRST
CLOCK
L880C8_3.1.SCH
CLKMECH
SER_CLK
SER_DIN
SER_CH
MUTE
XRST
DEEMPH
RA0
RB7
RB6
RB5
RB4
RB0
RB1
RB2
RB3
HDCDLED
DGND
CLK17M
CLK17M
CLKDAC
CLKMECH
GO
CLKMECH
SER_CLK
SER_DIN
SER_CH
MUTE
XRST
C170
10N SM
DEEMPH
RA0
RB7
RB6
RB5
RB4
RB0
RB1
RB2
RB3
HDCDLED
R14
470R SM
C8
GO
10N SM
**
D11
BAS16W SM
CLK17M
CLKDAC
CLKMECH
GO
R167
C171
10N SM
*
C88
10N SM
RB[0..7]
Clock Terminator
VCCD
VCCD
*
L7
15K SM
*
C96
From FPGA
R163
100K SM
CLK17M
CLKDAC
33UH SM
VHDCD
* *
R82
1K0 SM
+
100U EL
INTR
LDC
SRD
SCK
SER_CH2
SER_CH
CLK17M
DEEMPH
MUTE
**
**
C128
330P PPS
RE-LATCH
L880C9_3.1.SCH
CLK17M
R105
1K0 SM
GAIN
CLK17M
VCCD VCCD
RB4
R106
10K SM
* **
R87
1K0 SM
PCAP
DIin
BKin
CLK17M
DIout
U16
1
2
3
4
5
6
7
8
9
10
11
12
13
PMD-100 HDCD
RB5
DSP HDCD
PCB ID
1 2 3 4 5 6 7 8
DGND
INTR
LDC
SRD
SCK
SER_CH2
SER_CH
CLK17M
DEEMPH
MUTE
XRST
PCAP
+
C147
1U0 EL
**
LRoutBKout
*
DIN
BCKI
XTIM
DITH
GAIN
XTI
VDD1
VSS1
PROG
OSIZ0/MS1
OSIZ1/MS2
-COB/MS3
JUST/MS4
BCPL/-MEN14SMUTE
LRCI
HDCD
BCKO
WCKO
DOL
DOR
VDD2
VSS2
DG
SCAL
FSEL
HMUTE
DEEMPH
***
* Fit to HDCD version only
** Fit to DSP version only
R117
1K0 SM
Runout Sheet Program
R85
Kit mask for DSP
10K SM
version : DSP
Kit mask for HDCD
version : HDCD
DSP
L880C3_3.1.SCH
LRin
ROM_ENABLE
A[0..15]
D[0..23]
CCLK
PRGM
GO
28
27
HDCD
26
25
24
23
22
21
20
19
18
RB7
17
MUTE
16
DEEMPH
15
SCO
WR
R4
0R0 SM
*
VCCD
R9
R3
220R MF
100K SM
*
0R0 SM
R91
*
R81
0R0 SM
ROM_ENABLE
R110
**
74HC00 SM
12
U1D
13
R28
0R0 SM
HDCDLED
A[0..15]
D[0..23]
0R0 SM
11
RB0
RB6
HDCD
MUTE
CLK17M
BCKO
WCKO
DOL
DOR
FD_1
FIDUCIAL
FD_5
FIDUCIAL
DRAWING TITLE
FMJ CD23 DAC PCB Top
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
4
5
R145
+5VCLK
RDYO
1
2
R143
0R0 SM
R144
0R0 SM
U1B
74HC00 SM
15K SM
R162
R111
10R SM
L11
10UH SM
10N SM
**
*
VCCD
15K SM
To DSP
SER_CH2
A[0..15]
AA[0..15]
L[0..15]
R[0..15]
SEL[0..2]
3 5
10N SM
6
LDC
INTR
SCK
SRD
DONE
4
RDY
C110
10N SM
00_0002
ECO No. DESCRIPTION OF CHANGE
Date Printed
MGM
INITIALS
Page 24
87654321
C91
BCKO
WCKO
DOL
DOR
CCLK
10N SM
C49
10N SM
C45
R53
10N SM
15K SM
R47
15K SM
C92
R0
R1
R2
R3
R4
R5
R6
R7
R8
R9
R10
R11
R12
R13
R14
R15
L15
L14
L13
L12
L11
L10
L9
L8
L7
L6
L5
L4
L3
L2
L1
L0
10N SM
Q_12
WR
Q_11
Q_10
VFPGA
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
R48
15K SM
VSS6
VSS7
IO44/A16
IO45
IO46
IO47
IO48/A17
IO49
IO50
IO51
IO52
IO53
VDD4
IO54
IO55
IO56
IO57
IO58
IO59
IO60
IO61
VSS8
IO62
IO63
IO64
IO65
VSS9
IO66
IO67
IO68
IO69
VSS10
IO70
IO71
IO72
IO73
IO74/HDC
IO75
IO76
IO77
VDD5
IO78/LDC
IO79
IO80
IO81
IO82/INIT
IO83
IO84
IO85
IO86
VSS11
DONE
52
CCLK
VSS12
105
A15
50
51
VSS5
RESET
106
107
49
IO43/A15
PGRM
IO87/M0
IO88
108
109
IO4047IO4148IO42
IO89
110
A13
A14
44
45
46
IO38
IO39/A14
IO90
IO91/M1
111
112
113
MODE0
MODE1
43
IO3542IO36
IO37/A13
IO92
IO93
IO94
114
115
A12
40
41
VDD3
IO34/A12
VDD6
IO95/M2
116
117
A11
AA8
AA9
38
39
IO33/A11
IO96
IO97
118
119
120
AA10
IO3036IO3137IO32
IO98
IO99/M3
121
Q_1
A10
A10
AA11
34
35
IO29/A10
IO100
IO101
122
123
AA12
IO2733IO28
IO102
124
A9
A9
31
32
VSS4
IO26/A9
VSS13
IO103
125
126
A8
A8
AA13
29
30
IO25/A8
IO104
IO105
127
128
AA14
IO106
129
AA15
IO2227IO2328IO24
VDD7
130
26
VDD2
IO107
131
A7
24
25
IO21/A7
IO108
IO109
132
133
IO110
134
21
IO1822IO1923IO20
VSS14
135
136
A6
20
VSS3
IO17/A6
IO111
IO112
137
19
IO113
138
A/D
NMODE
PMODE
A5
17
IO1518IO16
IO14/A5
IO114
IO115/CS1
139
140
A4
15
16
IO13/A4
IO116
IO117
141
142
IO118
143
12
IO1013IO1114IO12
VDD1
VDD8
IO119/CS0
144
145
A3
11
IO9/A3
IO120
146
10
IO121
147
148
A1
A2
6
7
8
IO79IO8
IO5/A1
IO6/A2
U11
ATT2C002
IO122
IO123/RD
IO124
149
150
151
A0
4
IO35IO4
IO125
IO126/WR
152
153
1
2
3
IO1
VSS1
VSS2
IO2/A0
RD_DT
VSS21
IO171/TCK
IO170
IO169
IO168
IO167/TMS
IO166
IO165/TDI
IO164
IO163
IO162
VDD10
IO161/DOUT
IO160
IO159
IO158
IO157/D0
IO156
IO155
IO154/D1
VSS20
IO153/D2
IO152
IO151
IO150
VSS19
IO149/D3
IO148
IO147
IO146
VSS18
IO145/D4
IO144
IO143
IO142
IO141/D5
IO140
IO139
IO138
VDD9
IO137/D6
IO136
IO135
IO134
IO133/D7
IO132
IO131
IO130/RCLK
IO129
VSS17
VSS16
IO127
IO128
VSS15
RD/CF
154
155
156
Q_8
VFPGA
208
207
206
205
204
203
202
201
200
199
198
197
196
195
194
193
192
191
190
189
188
187
186
185
184
183
182
181
180
179
178
177
176
175
174
173
172
171
170
169
168
167
166
165
164
163
162
161
160
159
158
157
Q_16
Q_15
Q_13
Q_14
SEL2
D0
D1
D2
SEL1
SEL0
D3
D4
D5
D6
D8
D9
D10
Q_6
Q_7
Q_9
Q_2
Q_3
D7
Q_4
A[0..15]
SEL[0..2]
SER_CH2
L[0..15]
R[0..15]
SRD
SCK
INTR
RDYO
A/D
NMODE
PMODE
A[0..15]
SRD
SCK
INTR
SEL[0..2]
RDYO
MUTE
HDCD
SER_CH2
L[0..15]
R[0..15]
D
C
B
BCKO
WCKO
DOL
D
DOR
CCLK
VCCD
DGND
VCCD
L6
33UH 2A RA
R41
10R SM
+
C89
100U 25V ZA EL
MRESET must be tied LOW
WR
C
D[0..23]
LDC
DSP
SER_CLK
SER_DIN
SER_CH
DONE
MODE0
MODE1
LDC
DSP
SER_CLK
SER_DIN
SER_CH
DONE
MODE0
MODE1
D[0..23]
B
Q_5
PRGM
AA0
AA1
AA2
AA4
AA5
AA6
PRGM
M0
AA3
AA7
M2
M0 M2
A
D23
D22
D21
D20
D19
DRAWING TITLE
FMJ CD23 DAC DRIVER
D18
D17
D16
D15
D14
D13
D12
CLK
D11
CLK17M
A
Circuit Diagram
00_0002
ECO No. DESCRIPTION OF CHANGE
Date Printed
MGM
INITIALS
18/1/00
DATE
Drawn by:
MGM7-Feb-2000
Production Issue
2 9Sheet of
DRAWING NO.
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
Notes:
Filename
G:\DATA\ECO\Eco meeting Agenda\00_0002 cd23 tx change\pcb\L880C1_3.DDB - Documents\L880C2_3.1.SCH
1 2 3 4 5 6 7 8
3.1
ISSUE
L880CT
Page 25
4321
INTR
LDC
XRST
PCAP
CLK17M
LDC
INTR
PCAP
CLK17M
Q_29
Q_30
Q_28
Q_31
Q_32
D23
D22
Q_19
D21
D20
D19
D18
D17
D16
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
C155
+
100U EL
116
115
114
113
112
111
110
109
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
D17
D16
D15
D14
D13
D12
D11
D10
WR
RD
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
A[0..15]
D22
D21
D20
D19
D18
D23
16
15
14
13
12
11
10
16
15
14
13
12
11
10
D
SK4
9
8
7
6
5
4
C
3
2
1
HEADER 2X8WAY
9
8
7
6
5
4
3
2
1
HEADER 2X8WAY
B
SK5
D[0..23]
D[0..23]
A[0..15]
ROM_ENABLE
12
11
10
Q_25Q_26
2
3
4
5
6
7
8
9
1
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
D
R139
13H714H615
16H517
15K SM
D22
HA2
HA1
HA0
HEN
18
H4
19
H3
20
HVCC2
21
H2
22
HGND4
23
H1
24
H0
PRGM
SER_CH
CCLK
SCO
C
SCK
PRGM
SER_CH
CCLK
SCO
SCK
MUTE
DEEMPH
VCCD
SER_CH2
VCCD
SRD
R131
L20
33UH 2A RA
R165
10R SM
B
15K SM
VDSP
R130
15K SM
WR
VDSP
SRD
Q_18
Q_17
WR
RD
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
RXD
TXD
SGND1
SCLK
SC0
SVCC1
SCK
SC2
STD
SGND2
SC1
QGND2
QVCC2
SRD
NC1
NC2
BN
WT
BG
BR
CVCC1
WR
RD
CGND1
NC3
DSCK/OS1
HGND3
HW/R
HREQ
HVCC1
HGND2
HACK
HGND1
QGND1
U30
DSP56002
XTAL
EXTAL
QVCC1
PINT
PLOCK
PCAP
PVCC1
PGND1
CKP
RESET
CKOUT
CLVCC1
CLGND1
D23
DGND6
NMI/MODC
IRQB/MODB
IRQA/MODA
DVCC3
DGND5
DGND4
DVCC2
DGND3
QGND4
QVCC4
DGND2
DVCC1
DGND1
Q_24
DGND
C153
C131
10N SM
C130
10N SM
C151
10N SM
C129
10N SM
10N SM
R127
15K SM
DR51DSO52DSI53BS54Y/X55NGND1
Q_27
Q_21
Q_23
NVCC158PS59A060A161NGND262A263A364A465QVCC366QGND367A568NVCC269NGND370A671A772A873A974HGND475A1076A1177A1278NVCC379A1380NGND581A1482A15
56DS57
A0A1A2A3A4
A0
Q_20
Q_22
A1
A5
A6A7A8A9A10
ROM_ENABLE
A11
A12
A13
A14
83
A15
DRAWING TITLE
FMJ CD23 DAC DSP
Only fit components
on this sheet for DSP
A
version.
Notes:
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
1 2 3 4
Filename
G:\DATA\ECO\Eco meeting Agenda\00_0002 cd23 tx change\pcb\L880C1_3.DDB - Documents\L880C3_3.1.SCH
Circuit Diagram
00_0002
ECO No. DESCRIPTION OF CHANGE
Date Printed
MGM
INITIALS
7-Feb-2000
18/1/00
DATE
Drawn by:
MGM
Production issue
3 9Sheet of
DRAWING NO.
A
3.1
ISSUE
L880CT

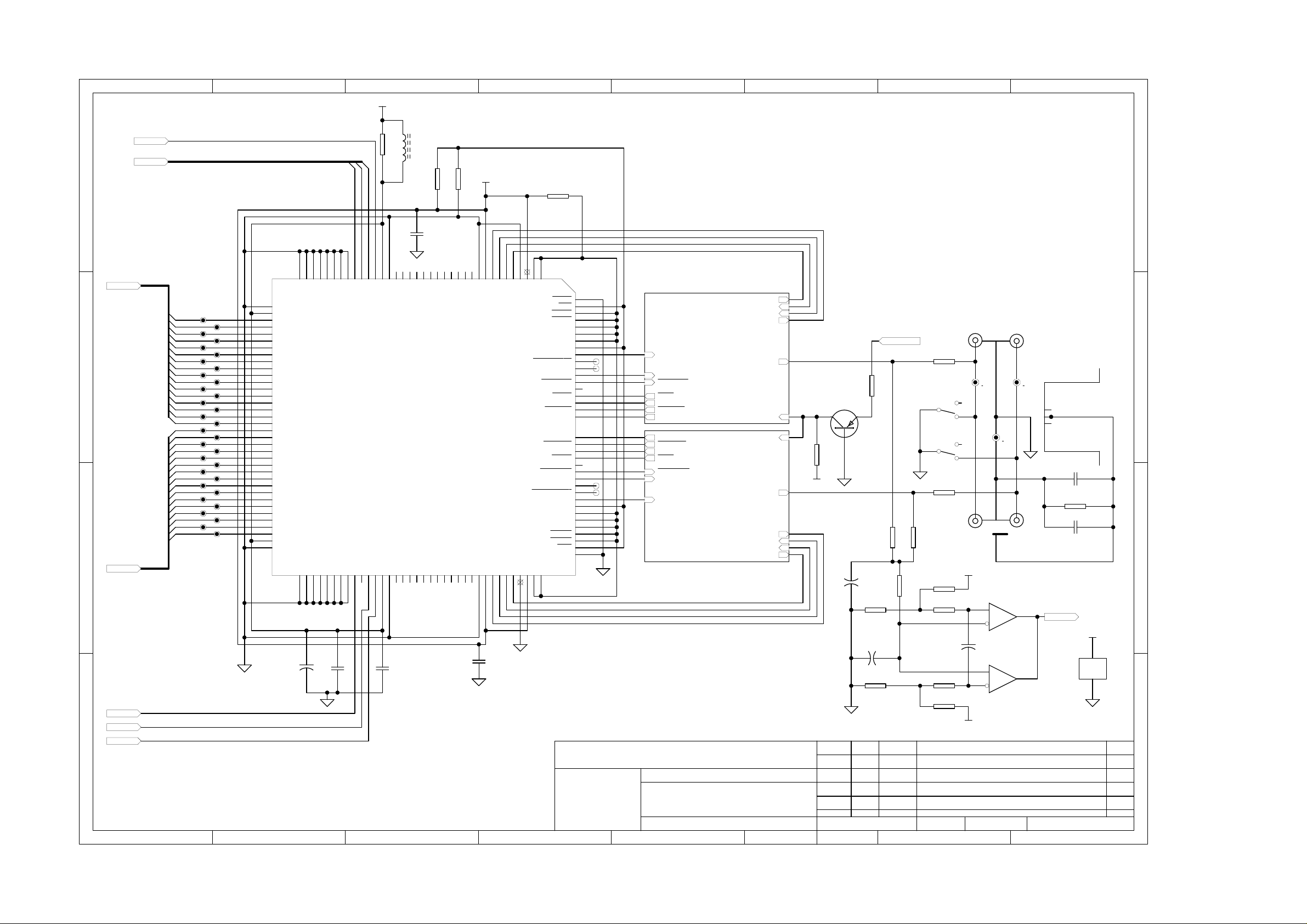

Page 26
87654321
VDDAC
R15
RDY
L[0..15]
R[0..15]
SEL[0..2]
L0
L1
L2
L3
L4
L5
L6
L7
L8
L9
L10
L11
L12
L13
L14
L15
R15
R14
R13
R12
R11
R10
R9
R8
R7
R6
R5
R4
R3
R2
R1
R0
SEL0
SEL1
SEL2
VASICDIG
27
26NC22
28
31
34
A135A2
A036A432A333A7
37
GNDD
38
VCCD
39
L0
40
L1
41
L2
42
L3
43
L4
44
L5
45
L6
46
L7
47
L8
48
L9
49
L10
50
L11
51
L12
52
L13
53
L14
54
L15
55
R15
56
R14
57
R13
58
R12
59
R11
60
R10
61
R9
62
R8
63
R7
64
R6
65
R5
66
R4
67
R3
68
R2
69
R1
70
R0
71
VCCD
72
GNDD
A873A974A1075A1176A1277A1378A1479A1580A/D81NC82NMODE83PMODE84VCCD85GNDD
+
C3
29
30
A5
A6
SEL2
C78
10N SM
100U CERAFINE
SEL1
25
SEL0
SEL[0..2]
D
L[0..15]
C
B
R[0..15]
A/D
NMODE
PMODE
A
L1
33UH 2A RA
10R SM
C50
24
RDY
19
20
23
NC21NC17NC18NC
NC
NC
VCCD
GNDD
U13
ASIC DAC
NC87NC88NC89NC90NC91NC92NC93NC94NC95NC96NC97NC
86
100N SM
C54
R77
R49
15K SM
4N7 PPS SM
14
15
13
NC16NC
NC
VCCA
15K SM
11
10
NC12NC
98
C85
7
9
8
VCCA2
GNDA2
GNDA1L
GNDA299VCCA2
GNDA1R
100
101
102
4N7 PPS SM
3
4
5
6
0VREFL
VCCA1L
GND1L(2)
VCCA1L(2)
GNDA1R(2)
VCCA1R(2)
VCCA1R
0VREFR
103
104
105
106
R76
0R0 SM
1
2
BIAS_L
SPRL2
SPRL1
5VREFL
IN1L
OUT1L
OUT2L
OUTC_L
OUT1L
OUT2L
IN1L
MID_L
FBCKLSNS(2)
FBCKLSNS(2)
FBCKLSNS
FBCKLSNS
NC
FBCKL
FBCKL
DCSET_L
DCSET_L
DCSET_R
DCSET_R
FBCKR
FBCKR
NC
FBCKRSNS
FBCKRSNS
FBCKRSNS(2)
FBCKRSNS(2)
MID_R
IN1R
OUT2R
OUT1R
OUTC_R
OUT2R
OUT1R
IN1R
BIAS_R
5VREFR
SPRR1
SPRR2
107
108
144
143
142
141
140
139
138
137
136
135
FLN
134
FL
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
FR
118
FRN
117
116
115
114
113
112
111
110
109
DRAWING TITLE
FMJ CD23 DAC ASIC
MID_L
FBCKLSNS
FBCKLSNS
FBCKL
FBCKL
DCSET_L
DCSET_L
DCSET_R
DCSET_R
FBCKR
FBCKR
FBCKRSNS
FBCKRSNS
MID_R
Left Audio Stage
L880C6_3.1.SCH
Right Audio Stage
L880C5_3.1.SCH
VCCA1L
VCCA1L(2)
GNDA1L(2)
GNDA1L
Audio_L
SERVQK
SERVQK
Audio_R
GNDA1R
GNDA1R(2)
VCCA1R(2)
VCCA1R
R132
-13V
Q29
BC859B
100K SM
R120
C109
100U NP
R116
1K5 SM
C104
10U NP
R100
1K5 SM
MUTERLY
10K SM
R64
R98
22K SM
39K SM
R80
R57
47R SM
RLY1A
RLY DPDT SM
RLY1B
RLY DPDT SM
R73
47R SM
22K SM
R112
100K SM
R113
100K SM
R86
100K SM
R99
100K SM
N
OUTL
N
+13V
3
2
+
C124
10U EL
5
6
+/- 200mV
Voltage Offset
Protection
-13V
F
GNDAN
F
EMC
U20A
LM393A SM
U20B
LM393A SM
OUTR
1
SK2A
PHONO4G
1
7
SK2B
PHONO4G
SH1
EMCPHONO
VPROT
EMC Shield
R70
10R SM
CHASS
C66
1N0 SM
C164
1N0 SM
+13V
U20C
LM393A SM
D
C
B
84
A
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
1 2 3 4 5 6 7 8
Notes:
Filename
G:\DATA\ECO\Eco meeting Agenda\00_0002 cd23 tx change\pcb\L880C1_3.DDB - Documents\L880C4_3.1.SCH
Circuit Diagram
00_0002
ECO No. DESCRIPTION OF CHANGE
Date Printed
MGM
INITIALS
18/1/00
DATE
Drawn by:
MGM7-Feb-2000
Production Issue
4 9Sheet of
DRAWING NO.
L880CT
3.1
ISSUE

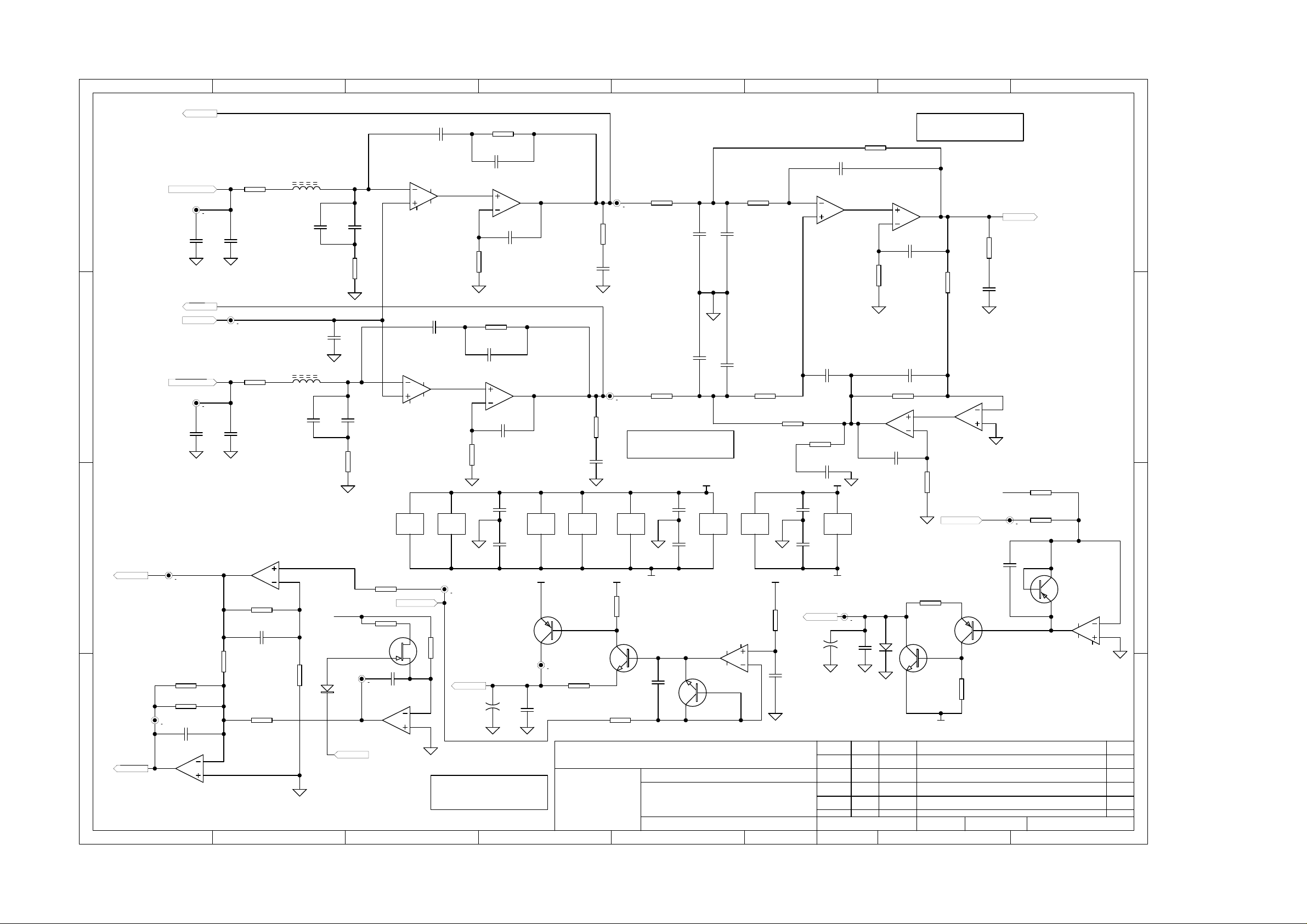

Page 27
87654321
FBCKR
D
FBCKRSNS
FBKRSNS
C113
FBCKR
MID_R
C
FBCKRSNS
FBKRSNSN
C73
10N PPS SM
10N PPS SM
MIDR
R78
15R SM
C112
47N PPS SM
R88
15R SM
C68
47N PPS SM
L9
10UH SM
L10
10UH SM
C79
C74
C80
2N2 PPS SM
R79
C99
100N PPS SM
C86
2N2 PPS SM
R89
4N7 PPS SM
10R SM
4N7 PPS SM
10R SM
2
3
2
3
U23C
OP275 SM
1N0 PPS SM
1
1N0 PPS SM
8 5
1
84
C101
U14A
6
8 5
AD797A SM
C94
U17A
6
AD797A SM
74
U17B
AD797A SM
5
6
R93
3
2
R72
R94
62R SM
C105
82P SM
U18B
EL2244 SM
1K0 SM
R83
62R SM
C90
82P SM
U18A
EL2244 SM
C76
270P PPS SM
1K0 SM
C102
270P PPS SM
C95
7
1N0 PPS SMC100
1
Hot_R
84
U18C
EL2244 SM
Cold_R
REF/4
C172
REF/4
R176
C173
74
U14B
AD797A SM
COLDR
2K7 0805 0.1%
R175
100R SM
390P PPS SM
HOTR
2K7 0805 0.1%
100R SM
On DSP Version only:
R13=2K0, C103=560P
390P PPS SM
84
U15C
OP275 SM
R68
R103
C84
C87
**
C70
**
+13V
U19C
EL2244 SM
4N7 PPS SMC81
2K7 0805 0.1%
C71
2N2 PPS SM
220P PPS SM#
C72
220P PPS SM#
2N2 PPS SM
2K7 0805 0.1%
84
U24B
AD797A SM
R95
R84
74
2
3
R63
4K12 0805 0.1%
390P PPS SM
C126
R60
4K12 0805 0.1%
C103
390P PPS SM
U15A
1
5
OP275 SM
6
R96
Ballun & Lowpass Filter
C77
390P PPS SM
R174
100R SM
C168
4N7 PPS SMC111
+8V9
74
U25B
AD797A SM
Outn_R
1
EL2244 SM
100P PPS SM
10K 0805 0.1%
U19A
On DSP Version only:
R1=2K0, C70=560P
U19B
EL2244 SM
C106
100P PPS SM
3K3 SM
C82
56P SM
R62
3
2
C83
R71
7
3K3 SM
R90
10K 0805 0.1%
U15B
7
OP275 SM
GNDA1R(2)
Out_R
R173
C166
Audio_R
100R SM
390P PPS SM
6
5
Distortion Cancelation
Hot_R
GRSNS
D
C
R172
2M2 SM
R92
470R SM
7
100N PPS SM
R128
22K1 0805 0.1%
U23B
OP275 SM
R125
10K 0805 0.1%
C114
R115
220K SM
DC Bias
5
6
R124
Out_R
10K 0805 0.1%
D10
SERVQK
R102
Q27
MMBFJ113
DC Servo
SERVOR
BAS16W SM
1
R118
470R SM
10K SM
C117
100N PPS SM
U22A
TL072 SM
RFRSNS
VCCA1R(2)
R97
2M2 SM
2
3
* Fit to HDCD version only
B
DCSET_R
DCNR
A
DCSET_R
DCR
R129
10K 0805 0.1%
R108
10K 0805 0.1%
100N PPS SM
U23A
1
-REF/2
OP275 SM
REFx2
C115
2
3
** Fit to DSP version only
1 2 3 4 5 6 7 8
VCCA1R
C98
10U NP
1N0 PPS SM
REF
+8V9 +8V9
Q20
BC857B
REFR
L13
0R0 SM
C108
10N PPS SM
DRAWING TITLE
FMJ CD23 DAC Right Audio Stage
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
R107
150R SM
R101
470R SM
4N7 PPS SM
-13V
DAC 5V Reference
U24A
AD797A SM
6
Q21
BC847B
1
85
3
2
Q24
BC847B
C121
47P SM
Notes:
Filename
G:\DATA\ECO\Eco meeting Agenda\00_0002 cd23 tx change\pcb\L880C1_3.DDB - Documents\L880C5_3.1.SCH
Circuit Diagram
REF
R123
4N7 PPS SM
470R SM
C118
100N SM
-5V
GNDAR
GNDA1R
C97
10U NP
0V
C93
18/1/00
ECO No. DESCRIPTION OF CHANGE
Date Printed
MGM
INITIALS
DAC 0V Reference
10N PPS SM
D7 BAS16W SM
18/1/00
DATE
L12
0R0 SM
Q26
BC847B
Drawn by:
MGM7-Feb-2000
-5V
Q23
BC857B
R119
150R SM
Production Issue
5 9Sheet of
C120
47P SM
DRAWING NO.
Q22
BC857B
U25A
AD797A SM
6
8 5
1
L880CT
2
3
3.1
ISSUE
B
A
Page 28
87654321
FBCKL
D
FBCKLSNS
FBKLSNS
C32
FBCKL
MID_L
C
FBCKLSNS
FBKLSNSN
C69
10N PPS SM
10N PPS SM
MIDL
R50
15R SM
C31
47N PPS SM
R42
15R SM
C67
47N PPS SM
L8
10UH SM
L5
10UH SM
C33
C39
C47
2N2 PPS SM
R51
C57
100N PPS SM
C40
2N2 PPS SM
R43
4N7 PPS SM
10R SM
4N7 PPS SM
10R SM
2
3
2
3
U4C
OP275 SM
1N0 PPS SM
1
1N0 PPS SM
8 5
1
84
C55
U8A
6
8 5
AD797A SM
C59
U6A
6
AD797A SM
74
U6B
AD797A SM
3
2
R36
5
6
R54
R45
62R SM
C52
82P SM
U9A
EL2244 SM
1K0 SM
R55
62R SM
C62
82P SM
U9B
EL2244 SM
C61
270P PPS SM
1K0 SM
C34
270P PPS SM
C60
1
1N0 PPS SMC58
7
Hot_L
84
U9C
EL2244 SM
Cold_L
REF/4
C174
REF/4
R180
C175
74
U8B
AD797A SM
COLDL
2K7 0805 0.1%
R179
100R SM
390P PPS SM
HOTL
2K7 0805 0.1%
100R SM
On DSP Version only:
R27=2K0, C105=560P
390P PPS SM
84
U7C
OP275 SM
R26
R69
C44
C48
**
C20
**
+13V
U10C
EL2244 SM
4N7 PPS SMC42
2K7 0805 0.1%
C22
2N2 PPS SM
220P PPS SM#
C23
220P PPS SM#
2N2 PPS SM
2K7 0805 0.1%
84
U22C
TL072 SM
R61
R46
84
U7A
2
3
OP275 SM
390P PPS SM
R21
4K12 0805 0.1%
R178
100R SM
C169
390P PPS SM
74
U3B
AD797A SM
R19
4K12 0805 0.1%
C63
390P PPS SM
1
5
6
R56
Ballun & Lowpass Filter
C35
Outn_L
10K 0805 0.1%
U10A
1
EL2244 SM
100P PPS SM
+8V9
74
C5
U2B
AD797A SM
4N7 PPS SMC29
On DSP Version only:
R14=2K0, C104=560P
U10B
7
EL2244 SM
C64
100P PPS SM
3K3 SM
C41
56P SM
R20
3
2
C43
R30
R52
7
3K3 SM
Out_L
R177
C167
10K 0805 0.1%
U7B
OP275 SM
GNDA1L(2)
Audio_L
100R SM
390P PPS SM
6
5
Hot_L
GLSNS
D
C
Distortion Cancelation
R171
2M2 SM
R35
470R SM
1
100N PPS SM
R2
22K1 0805 0.1%
U4A
OP275 SM
R6
10K 0805 0.1%
C19
R16
220K SM
DC Bias
3
2
R5
Out_L
10K 0805 0.1%
D8
SERVQK
Q28
R109 10K SM
MMBFJ113
DC Servo
SERVOL
BAS16W SM
7
R24
470R SM
C116
100N PPS SM
U22B
TL072 SM
RFLSNS
VCCA1L(2)
R104
2M2 SM
6
5
* Fit to HDCD version only
B
DCSET_L
DCNL
A
DCSET_L
DCL
R1
10K 0805 0.1%
R27
10K 0805 0.1%
100N PPS SM
U4B
7
-REF/2
OP275 SM
REFx2
C24
6
5
** Fit to DSP version only
1 2 3 4 5 6 7 8
VCCA1L
10U NP
1N0 PPS SM
C38
REF
+8V9 +8V9
Q15
BC857B
REFL
L2
0R0 SM
C51
10N PPS SM
DRAWING TITLE
FMJ CD23 DAC Left Audio Stage
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
R25
150R SM
R29
470R SM
4N7 PPS SM
-13V
REF
DAC 5V Reference
U3A
Q9
BC847B
C14
47P SM
Notes:
Filename
G:\DATA\ECO\Eco meeting Agenda\00_0002 cd23 tx change\pcb\L880C1_3.DDB - Documents\L880C6_3.1.SCH
AD797A SM
85
6
Q12
BC847B
Circuit Diagram
R18
1
470R SM
3
2
C17
100N SM
4N7 PPS SM
GNDAL
GNDA1L
10U NP
0V
C30
C46
00_0002
ECO No. DESCRIPTION OF CHANGE
Date Printed
MGM
INITIALS
-5V
10N PPS SM
18/1/00
DATE
DAC 0V Reference
L3
0R0 SM
D6 BAS16W SM
Q8
BC847B
-5V
Drawn by:
MGM7-Feb-2000
Q11
BC857B
R10
150R SM
Production Issue
6 9Sheet of
C13
47P SM
DRAWING NO.
Q10
BC857B
U2A
AD797A SM
6
8 5
1
L880CT
2
3
3.1
ISSUE
B
A
Page 29
4321
VDDAC
7
8
9
VN18V
VN18
L4
33UH 2A RA
I
+
2K7 SM1%
Vin
Not Fitted
1N0 PPS SM
4
5
6
VCCD
VCCD
+13V
Not Fitted
C123
C165
10U EL
R133
1K5 SM
I
-13V
VP18
1
2
3
VP18V
C37
C36
+5VCLK
1N0 PPS SM
*
R146
1K0 SM
VN18
Q30
BC849B
*
*
R136
1K5 SM
C18
DRAWING TITLE
+
470U EL 25V
+
470U EL 25V
C53
*
C1
4N7 PPS SM
C26
+5VCLK
R155
1K0 SM
4N7 PPS SM
Q6
BC849B
+
C56
100U EL
Q4
BC859B
C25
R141
100R SM
R22
470P PPS SM
R17
470P PPS SM
*
100U EL
HDCD 6dB Gain Shift
4K7 SM
Q2
BC849B
4K7 SM
C135
Q3
BC859B
R38
R31
R11
+
R7
1K5 SM
100R FU
100R SM
R135
1K0 SM
LGAIN
*
100R SM
Q14
BC849B
R33
100R FU
Q13
BC859B
*
R134
Q7
2SA1964
R39
11K SM
R44
6K8 SM1%
Q5
2SC5248
*
1K0 SM
R32
R37
D5
10K SM
10K SM
D4
*
Q19
BC849B
VP13V
BAV99W DUAL SM
+
C7
100U SILMIC
C10
+
C6
R75
1K0 SM
C107
100U EL
VN13V
*
BAV99W DUAL SM
+
*
+13V
C11 4N7 PPS SM
270P PPS SM
C9
100U SILMIC
-13V
REF
+
C28
22U SILMIC
74
U5B
OP27 SM
-5V
HS1B
270P PPS SM
TO220_TV5
Heatsink HS1
Shared between
Q5 and Q7.
R67
1K0 SM
C65
10N PPS SM
C15 100N SM
R34
U12
3
2
U5A
OP27 SM
+
1K5 SM
VRGND
ZRB500F01
1
85
6
C12
100U EL
VCCA
C27
10U NP
* Fit to HDCD version only
** Fit to DSP version only
+13V
R59
1K5 SM
Q16
BC847B
+13V
R66
10K SM
Q17
R58
BC849B
R65
VCCA
GO
4K7 SM
1K5 SM
D
C
B
20
21
22
23
RLYPWRRLY_GND
Not Fitted
+
+
-5V
8V2 1W SM
VDAC
18
19
O
220R SM1%
C122
C4
100U EL
15
16
17
RLYPWR
Vout
R168
R169
1N0 PPS SM
1N0 PPS SM
O
13
14
VDIG
R40
U36
LM317T
2K7 SM1%
C16
Vout
U35
7905
12
ADJ
A
10
11
10R SM
Vin
R170
GAIN
G
GND
SK1
FFC23V
D
C
B
RLY_GND
+13V
D1
3V9 0W5 SM
P8V9
100U EL
N5V
+8V9
C2
PSU for DAC references
D2
Not Fitted
-13V
VCCD
FMJ CD23 DAC PSU
+
C21
100U EL
C75
10N SM
C158
A
10N SM
Notes:
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
1 2 3 4
Filename
G:\DATA\ECO\Eco meeting Agenda\00_0002 cd23 tx change\pcb\L880C1_3.DDB - Documents\L880C7_3.1.SCH
Circuit Diagram
00_0002
ECO No. DESCRIPTION OF CHANGE
Date Printed
MGM
INITIALS
7-Feb-2000
18/1/00
DATE
Drawn by:
MGM
Production Issue
7 9Sheet of
DRAWING NO.
A
3.1
ISSUE
L880CT
Page 30
4321

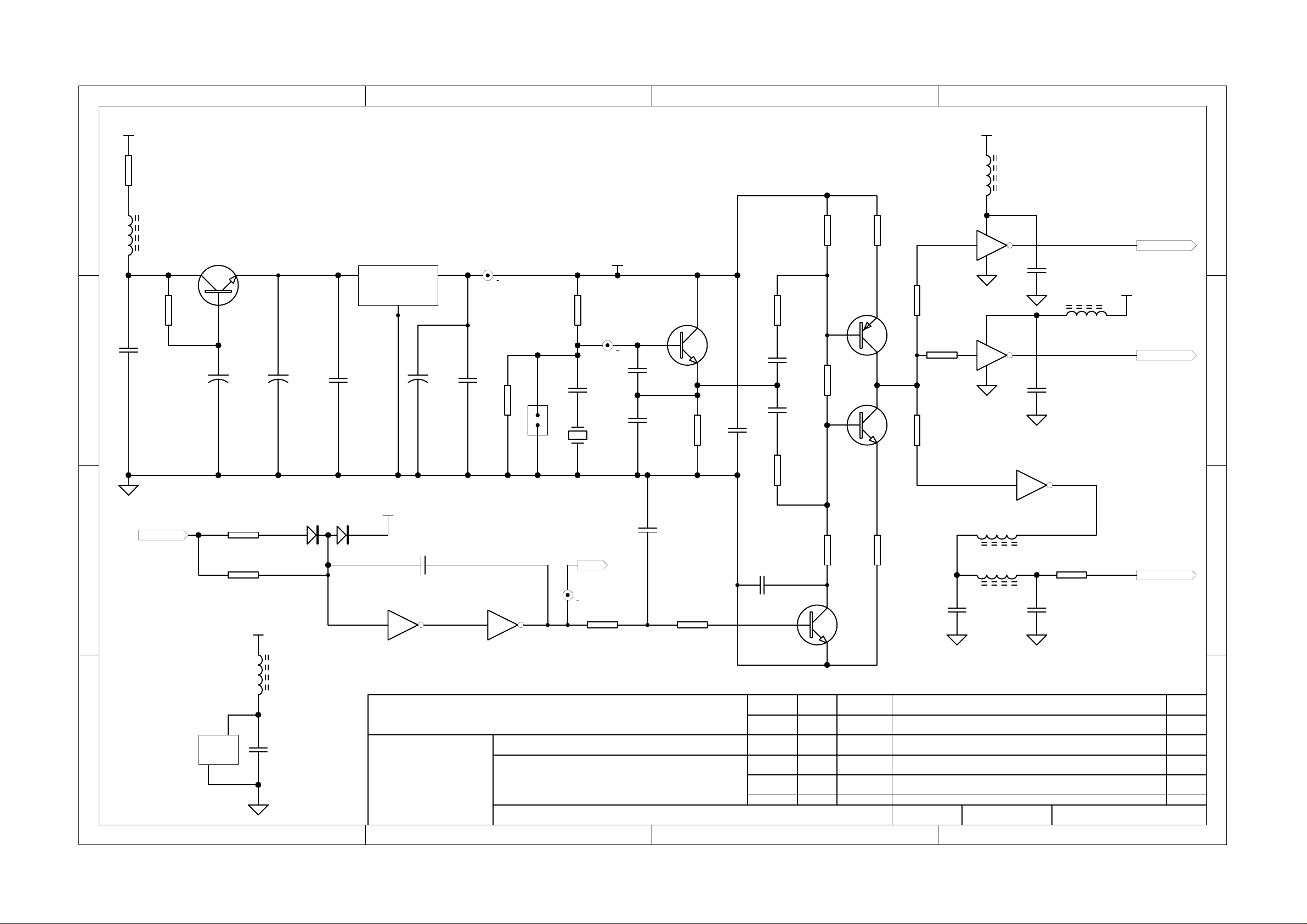

VP18
R159
C162
47R SM
L21
33UH SM
R161
10N SM
Q35
BC849B
10K SM
+
C156
100U EL
+
C161
22U EL OS
U33
78L05
I
C160
100N SM
Vin
GND
G
Vout
+
C144
P5VCLK
O
C143
22U EL OS
10N SM
R151
12
10K SM
RBN1
1Y100
R142
C137
+5VCLK
4K7 SM
CLKSYNC
C139
47P SM
X1
C142
16.9344MHZNO_GR
Q31
BC849B
82P SM
47P SM
R149
C152
470R SM
R150
C141
C140
10N SM
R147
220R SM
10N SM
10N SM
220R SM
R158
R160
1K0 SM
5K6 SM
R154
Q33
BC859B
Q32
BC849B
10R SM
R137
74AHC1GU04 SM
470R SM
R138
470R SM
R148
220R SM
D
C
+5VCLK
L16
53
2 4
53
2 4
74AHC1GU04 SM
2U2H SM
U27
U28
U26F
C133
10N SM
L14
2U2H SM
C134
10N SM
1213
CLKDAC
VCCD
CLK17M
D
CLKDAC
CLK17M
C
D9
XRST
B
R121
10K SM
R126
1M0 SM
VCCD
L17
BAV99W DUAL SM
2U2H SM
VCCD
U26E
74HCU04 SM
C127
100N SM
1011
U26D
89
74HCU04 SM
GO
GO
R153
4K7 SM
C148
100N SM
R156
4K7 SM
C154
100N SM
Q34
BC849B
R157
1K0 SM
R152
10R SM
L18
1U0H SM
L19
2U2H SM
C145
82P SM
74HCU04 SM
R164
100R SM
C150
47P SM
CLKMECH
CLKMECH
B
DRAWING TITLE
14
U26G
A
74HCU04 SM
7
1 2 3 4
C132
10N SM
FMJ CD23 DAC Clock
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
Circuit Diagram
Notes:
00_0002
ECO No. DESCRIPTION OF CHANGE
Filename
G:\DATA\ECO\Eco meeting Agenda\00_0002 cd23 tx change\pcb\L880C1_3.DDB - Documents\L880C8_3.1.SCH
Date Printed
MGM
INITIALS
7-Feb-2000
18/1/00
DATE
Drawn by:
MGM
Production Issue
8 9Sheet of
DRAWING NO.
A
3.1
ISSUE
L880CT
Page 31
4321

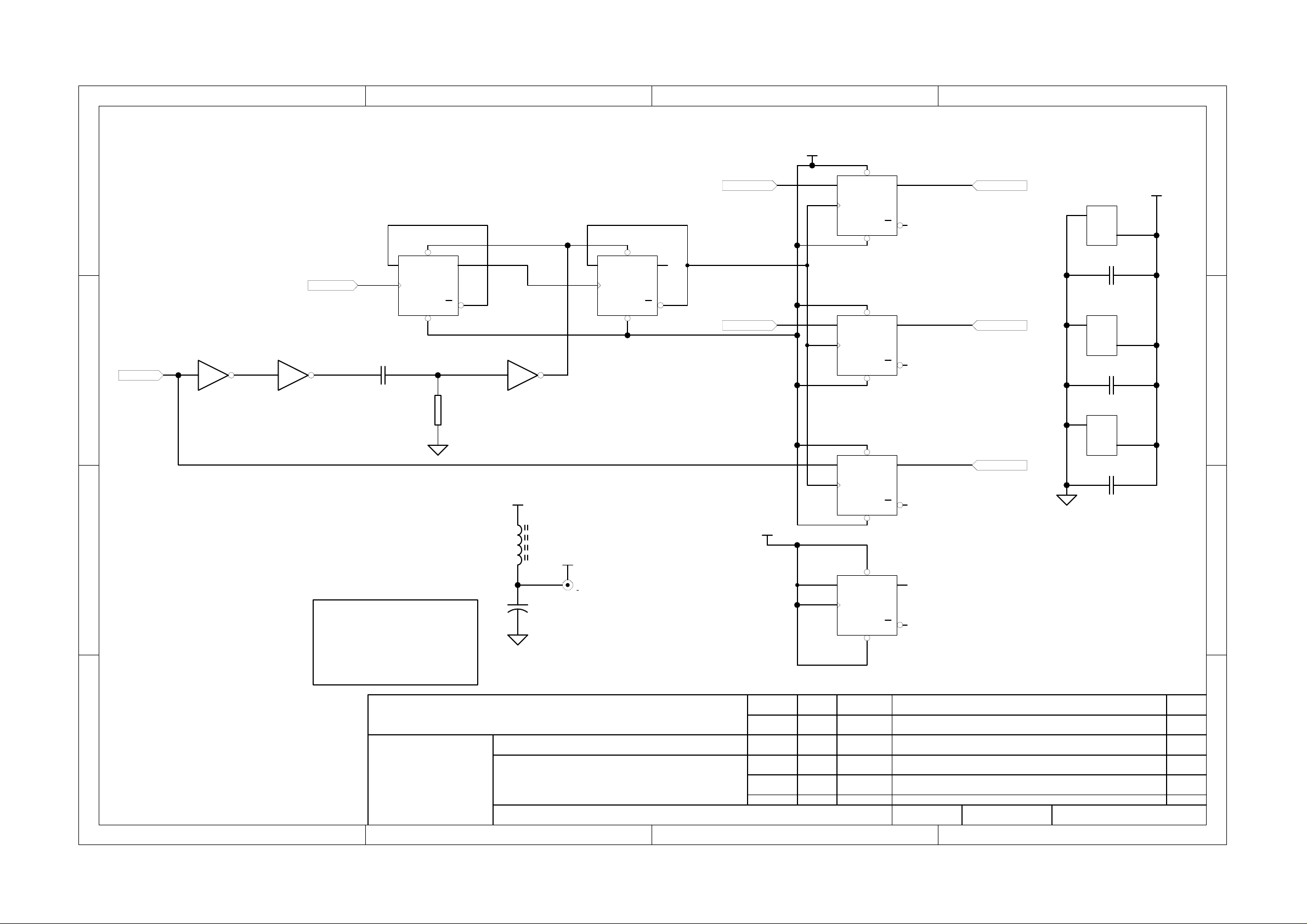

All parts on this sheet
VCCRCK
D
4
2
D
CLK17M
74VHC74MX SM
U26A
C
BKin
1 2
74HCU04 SM
U26B
3 4
74HCU04 SM
3
C136
100P SM
SD
CLK
CD
1
R140
Q
Q
1K0 SM
5
6U32A
U26C
5 6
74HCU04 SM
VCCD
12
11
D
CLK
10
13
SD
CD
Q
Q
U32B
9
8
74VHC74MX SM
DIin DIout
LRin
VCCRCK
2
3
2
3
12
11
D
CLK
D
CLK
D
CLK
4
1
4
1
10
13
SD
CD
SD
CD
SD
CD
Q
Q
Q
Q
Q
Q
U34A
5
6
74VHC74MX SM
U29A
5
6
74VHC74MX SM
U34B
9
8
74VHC74MX SM
LRout
BKout
U32C
7
GND
VCC
74VHC74MX SM
C149
10N SM
U34C
7
GND
VCC
74VHC74MX SM
C157
10N SM
U29C
7
GND
VCC
74VHC74MX SM
C138
10N SM
VCCRCK
14
14
14
D
C
D
CLK
10
13
SD
CD
Q
Q
U29B
9
8
74VHC74MX SM
B
+
C125
10U EL
VCCRCK
2U2H SM
VCCRCK
12
11
B
L15
are only fitted to HDCD
version except U8 and
R83.
DRAWING TITLE
FMJ CD23 DAC Re-clocking for PMD-100
A
Notes:
Circuit Diagram
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
1 2 3 4
Filename
G:\DATA\ECO\Eco meeting Agenda\00_0002 cd23 tx change\pcb\L880C1_3.DDB - Documents\L880C9_3.1.SCH
00_0002
ECO No. DESCRIPTION OF CHANGE
Date Printed
MGM
INITIALS
7-Feb-2000
18/1/00
DATE
Drawn by:
MGM
9 9Sheet of
DRAWING NO.
L880CT
3.1Production Issue
ISSUE
A
Loading...
