Model AR 525
Owner’s Manual
AR 525-93344-JQ
WARNING:
before using this product.
To reduce the risk of injury, the user must read and understand the instructions
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
www.arblueclean.com
INTRODUCTION
Congratulations on the purchase of your BLUE CLEAN POWER WASHER!
Your BLUE CLEAN POWER WASHER is a power tool in every sense of the word that may be
in the marketplace today.
AR525 features include:
A proprietary, all-aluminum water pump.
A full 12-month “bumper to bumper” warranty on the power washer and all parts/
accessories.
valve.
One high pressure lance: Vari-spray lance.
A Total Stop System (TSS) which turns the washer on only when the spray gun trigger is
pressed.
Industry-leading customer service with one goal “Happy Customers!”
Please familiarize yourself with the following assembly, operating and safety information. Read
this manual before using the power washer. Failure to follow these instructions could cause
personal injury, property damage, or both. Save this manual for other users to read prior to
using the power washer.
If you have any questions about or problems with your power washer please call our tollfree number 1-866-235-5112 and talk with our Customer Service Support Team at AR North
America Inc. We are available to talk with you Monday through Friday from 8 a.m. to 5 p.m.
Central Standard Time (CST). We can help you with questions regarding operation, warranty,
replacement or optional parts, or contact us at info@ar-blueclean.com.
For more information 24/7 on BLUE CLEAN POWER WASHERS go to www.arblueclean.
com. Power washers, parts, and accessories can be ordered online 24 hours a day, 7 days a
week for your convenience.
en 2
TABLE OF CONTENTS Page
Introduction 2
Safeguards, Warnings, and Safety Tips 3,4,5
Package Contents 6
Unpacking & Assembly 7, 8
Operating Instructions 9
Operating Tips and Maintenance 9,10
Storage 11

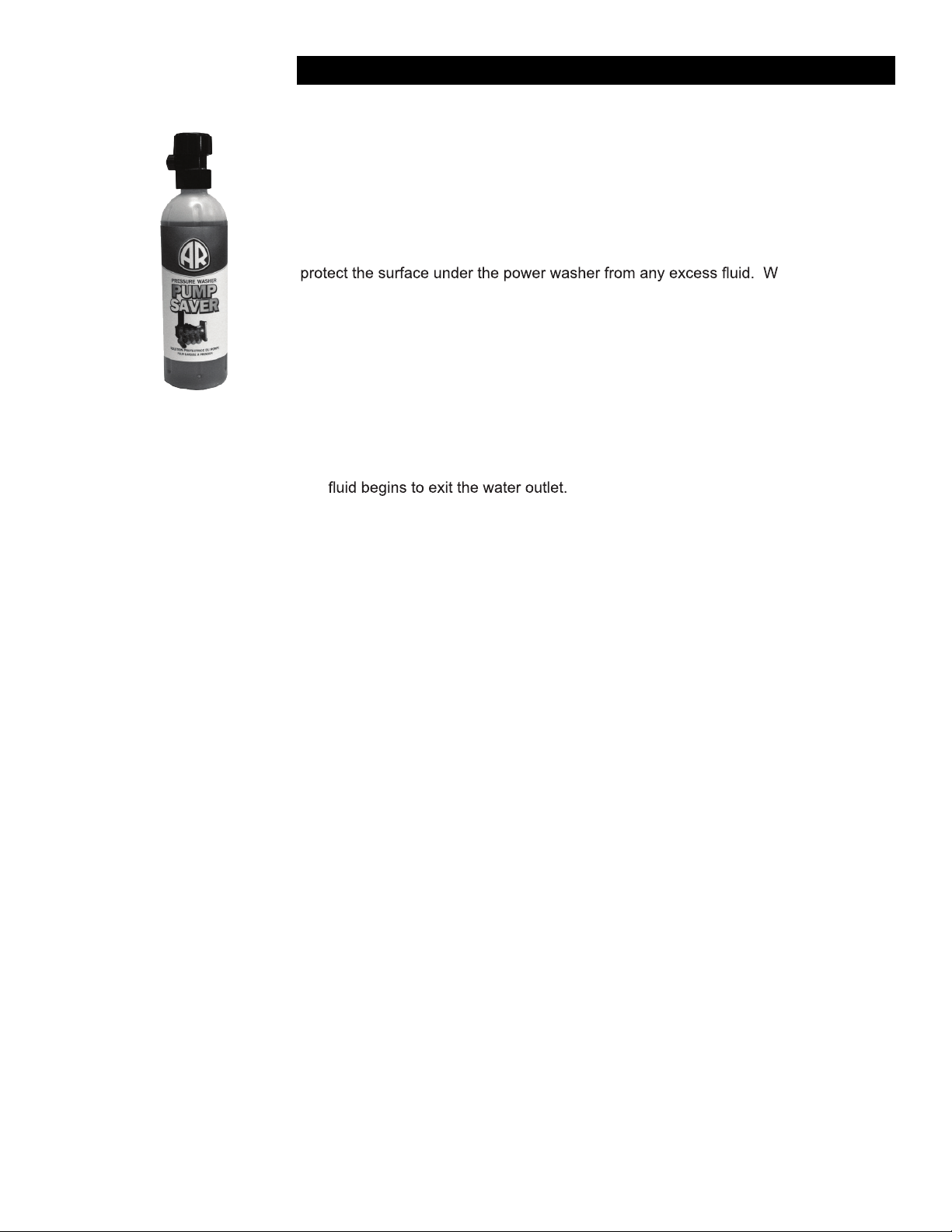

Pump Saver 12
Troubleshooting 13
Replacement Parts 14
15
Limited Warranty & Warranty Returns 15
SAFEGUARDS, WARNINGS AND SAFETY TIPS
• To avoid personal injury and/or damage to property and to maximize your power washing
experience, carefully follow all of the safety tips, instructions, warnings and safeguards
and become familiar with all of the controls. Be sure you know how to quickly bleed off the
pressure from all parts of your power washer, and how to turn off the power washer .
• This power washer conforms to CSA and other safety and consumer standards. Do not
modify or rebuild any part of your power washer.
•
this power tool carefully and only when you are alert .
• Watch your balance and footing while using your power washer. Surfaces become slippery
when wet and are extra slippery when using a detergent or cleaner.
en 3
• Never operate the power washer in bare feet, sandals, or open-toed shoes.
• When using the power washer near children make sure they are closely
supervised by an adult to avoid injury. Never let a child use the power
washer.
•
high pressure water. The powerful spray can cause blindness or blast holes
in the skin. It can break a window if you are too close when you pull the
trigger on the spray gun .
• Always wear eye protection to prevent injury to eyes when operating the
power washer.
• To avoid mishaps or injury, always use the trigger safety lock when not using
the power washer even if the spraying stops for a moment.
• The power washer is equipped with a Ground Fault Circuit Interrupter (GFCI)
which greatly reduces the chance of electric shock while the unit is in use.
• Point the spray gun in a safe direction when beginning a power washing
session.
•
when pulling the trigger until you get used to the “kick back” from the spray
gun (one hand to pull the trigger and the other to stabilize the gun assembly).
• When you press the power switch to turn off the power washer, water
pressure may remain in the system. To discharge the pressure, point the
spray gun in a safe direction and pull the trigger.
en 4
•
• Never use the power washer in areas that contain combustible dust, liquids
or vapors.
• Avoid contact of the pressure hose with sharp objects and examine the hose
regularly. Replace if damaged. Due to the high pressure involved, it cannot
be repaired if cut of damaged.
•
instructions on the detergent’s label. We have a selection of power
washer detergents to choose from. Go to www.arblueclean.com for more
information and to order the detergents. Power washer detergents are also
available at your local hardware store.
• Protect eyes, lungs, and skin from exposure to detergent. Dish or laundry
soap is too thick and will clog the nozzle of your detergent bottle.
• IMPORTANT: Store the power washer indoors to prevent the water in the
unit from expanding under freezing conditions. When the water freezes and
expands, your power washer will be damaged and become inoperable. Or,
if storing outdoors, it is recommended you use Pump Saver. Pump Saver
can be purchased on our website: www.arblueclean.com. See details in the
Pump Saver section of this manual.
• Never use hot water with your power washer. It will overheat and damage
the high pressure pump.
• Never leave the power washer unattended while it is powered “on”.
• Always turn the water supply “on ” before turning the power washer power to
“on”. Running the pump dry will cause damage to the internal components.
• Never use a water supply to your power washer that exceeds 150 psi
maximum.
• Never disconnect the high pressure hose from the power washer while the
system is pressurized.
• Never permanently engage the trigger mechanisms on the spray gun.
• Never operate the power washer unless all components are properly and
securely connected.
• Never allow the power washer pump to run for more than one minute, after
you have turned off the water supply. This can cause the motor and pump to
overheat and fail.
• Never use lances or other parts that have not been supplied with your power
washer.
• Never use an extension power cord since it defeats the effectiveness of the
GFCI and increases the chance of electrocuting the operator.
• Never spray any electrical outlet with your power washer.
• Inspect the power cord before using. Do not use it if it is damaged.
Servicing of a Double-Insulated Appliance
In a double-insulated product, two systems of insulation are provided instead of
grounding. Grounding means are not provided for a double-insulated product,
nor should grounding means be added to the product.
Servicing a double-insulated product requires extreme care and knowledge of the
Replacement parts for a double-insulated product must be identical to the original
parts. A double-insulated product is marked with the words “Double Insulation” or
“Double Insulated”. Product may also be marked with symbol shown here.
en 5

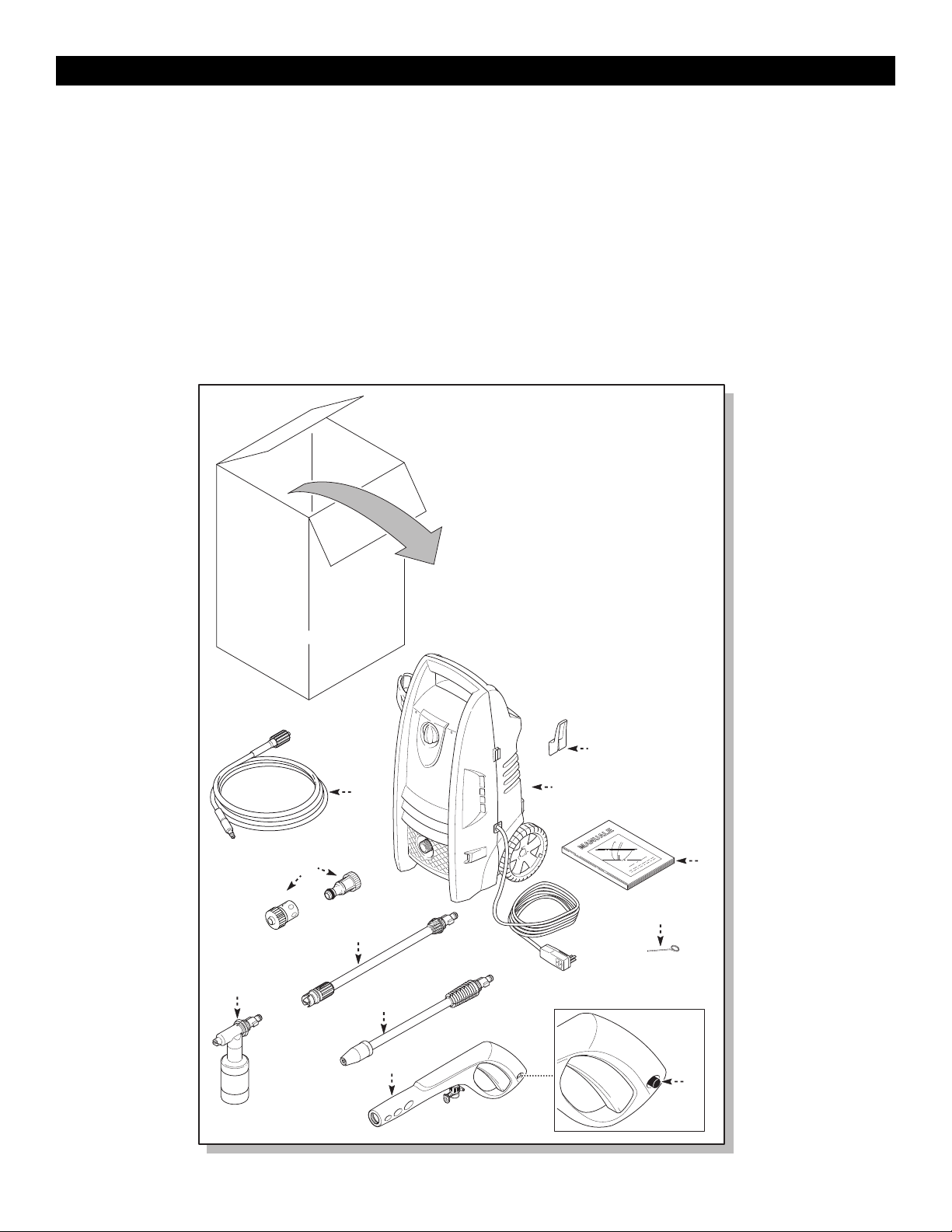

PACKAGE CONTENTS
1. Power washer unit
2. Manual
3. Adjustable spray lance
4. Spray gun-picture (4A shows trigger lock button)
5. Detergent bottle
6. Nozzle cleaning wire-taped to the manual for safe keeping
7. High-pressure hose
8. Garden hose adapter kit-2 pieces: clear plastic adapter & blue/black collar attachment
9. Power cord clip
10. Turbo Lance
en 6
9
7
8
3
5
10
4
1
2
6
4A
Fig. 2

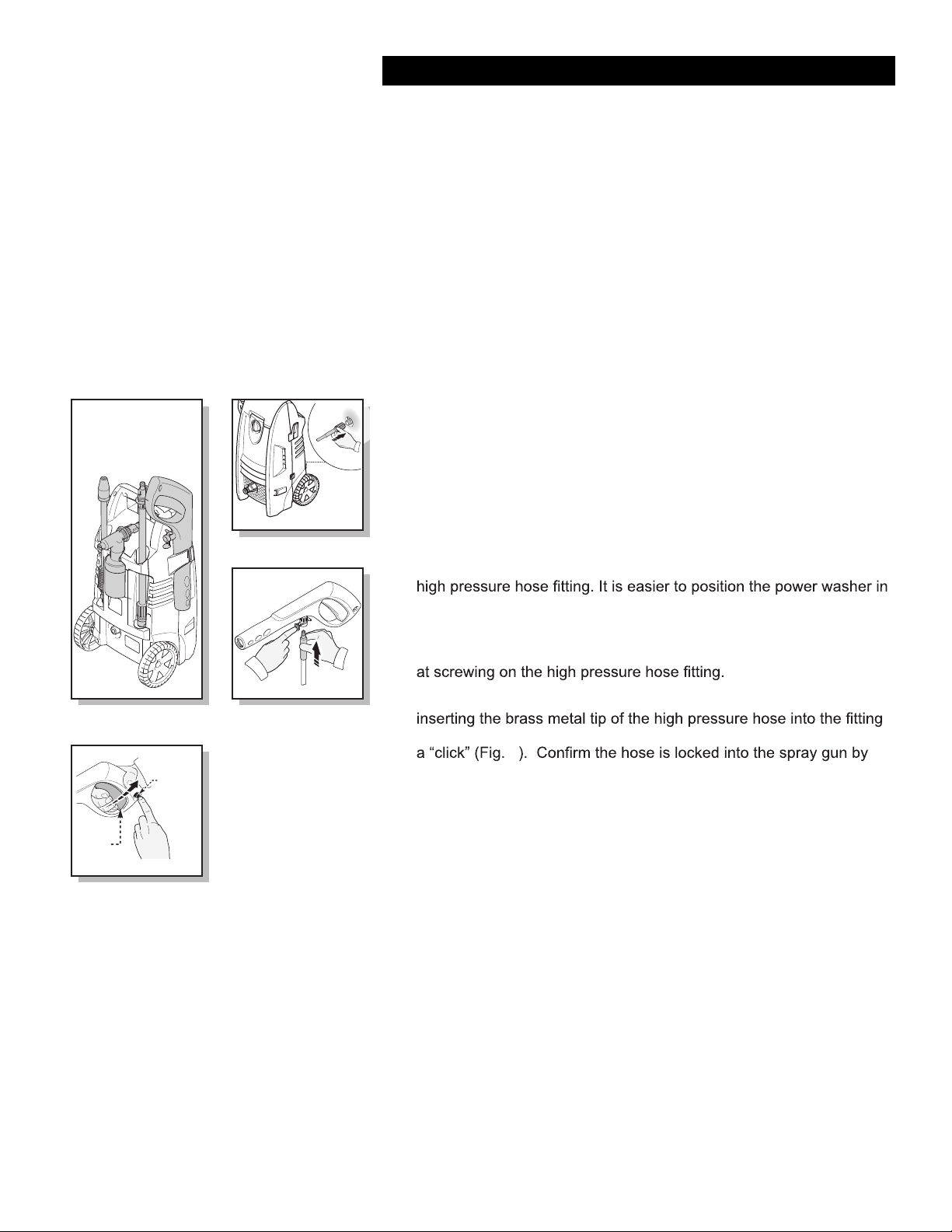

UNPACKING & ASSEMBLY
• After unpacking the BLUE CLEAN POWER WASHER, lay out parts
and accessories. Familiarize yourself with the parts in the package
by comparing them to those listed on the “PACKAGE CONTENTS”
page.
• The BLUE CLEAN POWER WASHER requires some minor
assembly.
• Install the power cord holder by sliding the clip onto the groove onto
the side of the power washer (Fig. 1).
• Please refer to (Fig. 1) for accessory storage locations on the power
washer.
High Pressure Hose
• Screw the high pressure hose (clockwise) on the back of the unit
at the bottom (Fig. 2). The end of the hose must be inserted into
the water outlet far enough so the collar can thread onto the outlet
threads until hand tight. Do not use pliers or vice grips to tighten. If it
takes fewer than six or so turns you have not properly tightened the
Fig. 1
Trigger
Fig. 4
Gun
Safety
Button
front of you so to ensure that the threads are started correctly. Failure
to properly tighten the high pressure hose will result in the hose
slipping or popping off immediately upon turning the unit on. Do not
worry about damage if this occurs - just reinstall and take extra care
• Connect the other end of the high pressure hose to the spray gun by
Fig. 3
just ahead of the trigger guard. It will lock into the spray gun with
3
pulling slightly on the hose. The hose is now securely attached to the
spray gun.
• To release the hose from the spray gun, press the blue button on the
underside of the gun toward the trigger guard. The hose will slide out
from the connection.
Spray Gun
• To lock the trigger of the spray gun aim the gun away from you and
push the lock button from right to left, (Fig. 4), after doing so, squeeze
or pull the trigger to make sure it is locked and will not move. Get in
the habit of leaving the lock button in the “locked” position when the
power washer is not in use. This ensures the gun is in “safe” mode
until it is ready for use.
en 7
Fig. 5 Fig. 6

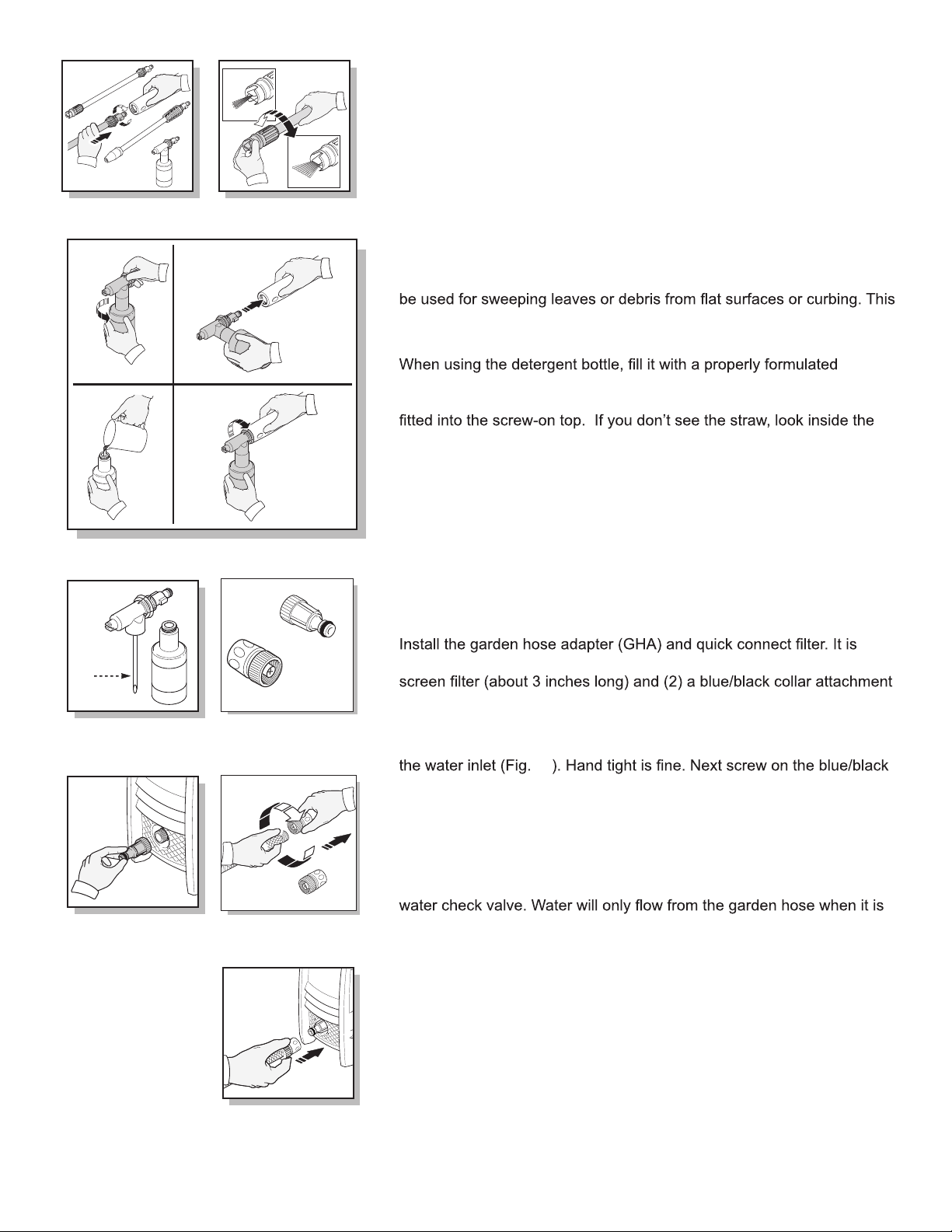

Lance and Detergent bottle
• While the spray gun is in the locked position, the adjustable spray lance,
turbo lance, or the detergent bottle directly into the end of the spray gun
by inserting and pushing together and turning clockwise simultaneously
(Fig. 5). To remove push together and turn counter clockwise Push the
safety lock button to lock the trigger on the spray gun when changing
lances or detergent tank, to ensure that they do not accidentally eject
with force during removal.
•
When using the adjustable spray lance, the spray pattern and intensity
can be controlled according to power of water needed for each task by
twisting the spray nozzle at the far end of the lance (Fig. 6). These can
lance has the widest variety of applications as the fan degree allows for
good impact pressure and cleaning coverage.
•
detergent or cleaner with water ratio according to instructions on the
container (Fig. 7). The detergent bottle comes with a straw which is
bottle and attach it to the screw-on top (Fig. 8).
Note: the ratio of water to detergent is 10:1 or 10 parts water to 1 part
detergent.
Fig. 7
QC - Clear
Adapter
Straw
Fig. 8 Fig. 9
(GHA)
Fig. 10 Fig. 11
Garden Hose
Adapter (GHA)
Garden Hose Adapter
•
made up of two separate pieces. (1) A clear plastic adapter with a
(Fig. 9).
• First, remove the plastic shipping cover on the water inlet on the front
of the power washer. Attach the clear plastic adapter by screwing it into
10
collar attachment to your garden hose (Fig. 11). Slide the blue/black
collar onto the clear adapter (Fig. 12), it will “click” into place. The
water is now connected to your power washer.
• To remove the water hose, simply pull back on the blue collar and it will
slide off the clear adapter. Note: this can be done at any time. Water
will not come out of the garden hose as the blue/black collar has a
connected to the clear adapter.
• You have now completed the assembly of your BLUE CLEAN POWER
WASHER and are now ready to begin using your electric power washer.
Read and observe all safety instructions.
en 8
Fig. 12

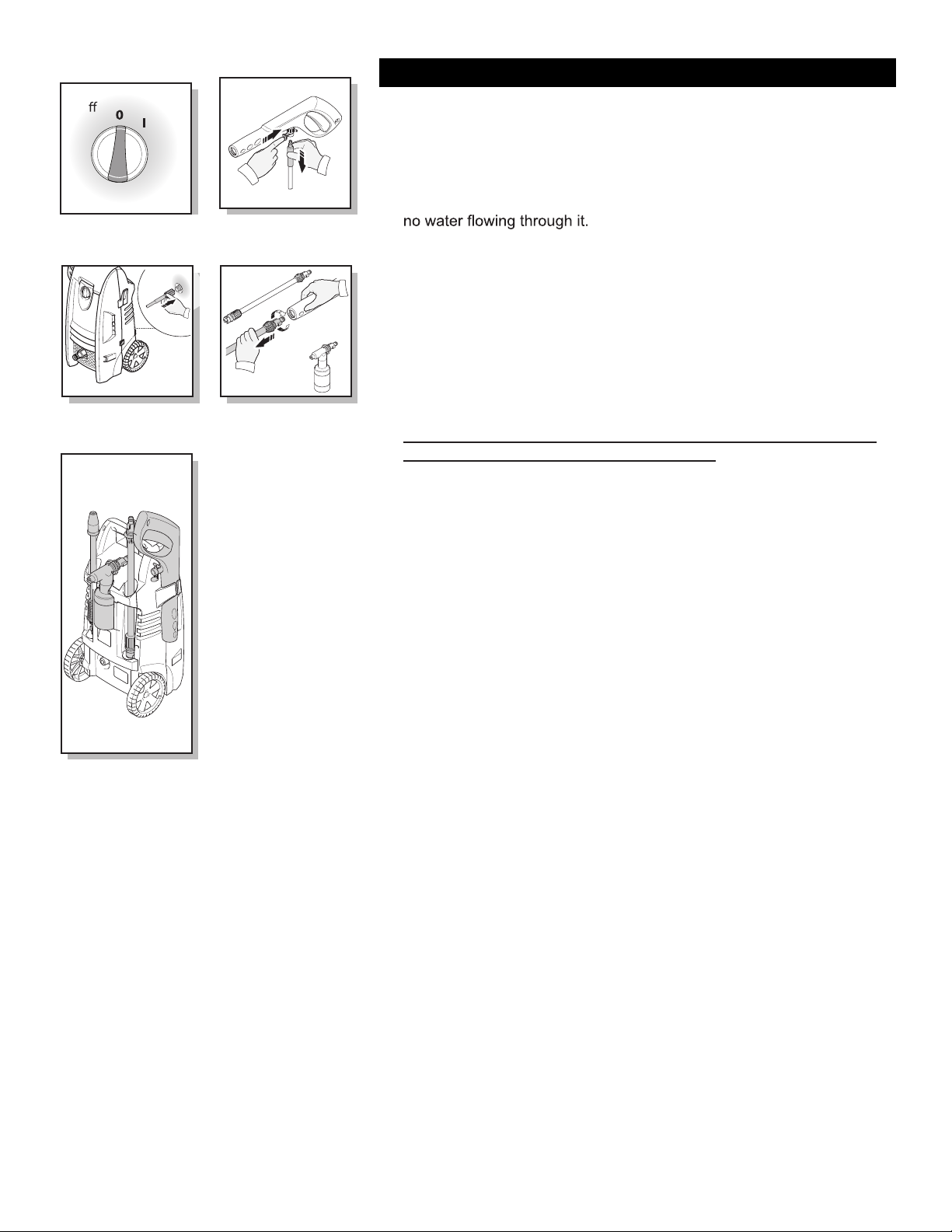

OPERATING INSTRUCTIONS
O
On
Fig. 13 Fig. 14
Gun
Safety
Button
Trigger
Fig. 15 Fig. 16
Fig. 17 Fig. 18
• Turn on the water supply at the faucet.
• Make sure the “ON/OFF” knob is in the “OFF” position. The power
switch has international symbols for ‘on’ and ‘off’: On (--) Off (O). (Fig.
13)
• Unwind the power cord completely and plug the GFCI into a grounded
120 volt outlet. Press the ‘reset’ button on the GFCI box (Fig. 14). The
indicator window should show a red color. This must be done each time
the unit is plugged in.
• Release the safety lock button on spray gun (Fig. 15) while pointing the
spray gun in a safe direction, away from yourself and others squeeze
the trigger on the spray gun until there is a steady stream of water,
letting the water and air out of the hose.
• Turn the dial to ‘ON’ (Fig. 13) The motor and pump should now be
running and providing a powerful spray.
OPERATING TIPS AND MAINTENANCE
• If you hear the motor run intermittently when the trigger is not being
squeezed, that is normal. The pump is priming itself so it is ready to
operate when the trigger is squeezed. Turn off the power washer if not
• The o-rings on the bayonet end of the adjustable lance and detergent
bottle should be cleaned regularly and lubricated with non-water soluble
grease.
• The screen inside the clear adapter should be cleaned periodically.
Insert a pen or pencil in small hole at the end of the adapter. The screen
16
back in the adapter.
• Keep the nozzle cleaning wire, Which is taped to this manual for use
in unclogging the lance nozzle. If you lose the cleaning wire an unbent
Cleaning nozzles
•
of water pressure coming out of the nozzle and/or cause the unit to
pulsate while spraying.
• Turn off the unit
• Turn off the water supply to the unit
• Relieve any pressure trapped in the hose by squeezing the trigger 2-3
times, and then lock the spray gun by pushing the lock button from left
to right.
• Take off the adjustable lance. Rotate the nozzle on the adjustable lance
to the narrow stream setting which opens up the fan blades (Fig. 17).
• Using the nozzle tip cleaner provided (or an unfolded paper clip), insert
the wire into the nozzle hole and move back and forth until debris is
18
hose and highest pressure available (either standard water
nozzle or use your thumb over the nozzle to create water
en 9
How to Avoid Damaging Surfaces
• Damage to surfaces being cleaned occurs because the impact force of
the water pressure exceeds the durability of the surface. Bare wood can
be penetrated; paint can be peeled off, etc. You can vary the force of your
power washer by controlling:
o the fan pattern of the nozzle
Fig. 19
o the angle of the surface being cleaned
o the distance of the nozzle from the surface being cleaned
• Never use a narrow high pressure stream of water on soft surfaces
susceptible to damage.

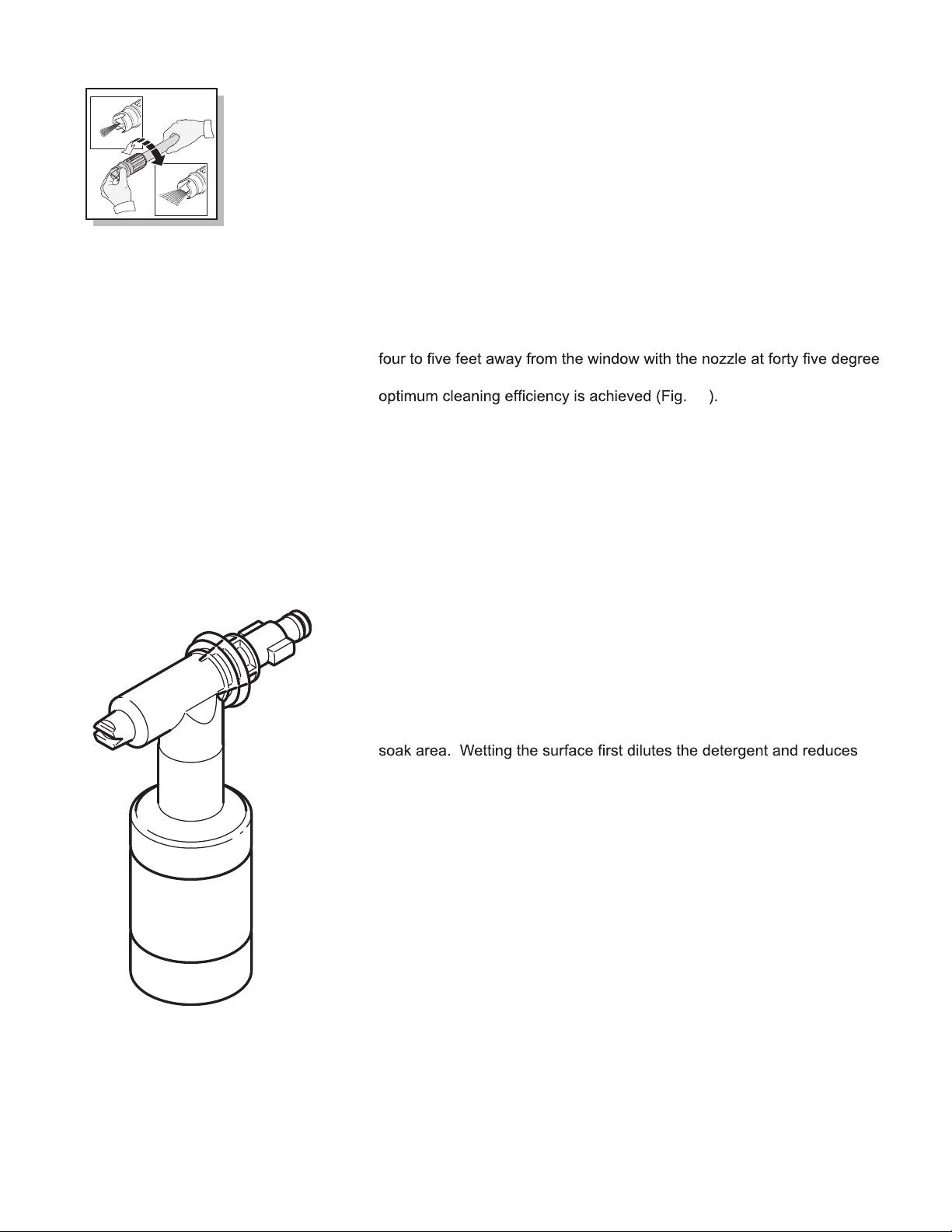

• Use the adjustable spray lance when cleaning windows. Be sure to adjust
the nozzle to a wide fan spray pattern and place the nozzle approximately
angle. Squeeze the trigger and vary the fan spray pattern and angle until
19
Detergent Bottle
• Use detergents designed for power washers. We offer four power washer
detergents. They are Auto, Motorcycle, Boat and Universal. These can be
purchased online at our website www.arblueclean.com. Hardware stores
or home centers also have power washer detergents for different cleaning
projects. The cleaning solution should be the consistency of water in order
to prevent clogging your detergent bottle and nozzle.
• When using the detergent bottle, our power washer’s application ratio of
water to detergent is 10:1 or 10 parts water to 1 part detergent. You will
need to adjust the concentration ratio of the detergent, according to the
manufacturer’s instructions.
• This system applies detergent under low pressure. The cleaning power of
the detergents is enhanced when applied with low pressure; and time is
allowed to break down the dirt and grime. The combination of low pressure
and chemical action is very effective and can be better than scrubbing
if applied properly. Always spray detergent on a dry surface, do not pre-
en 10
its cleaning ability. Do not allow detergent to dry on surface. On vertical
surfaces being cleaned, apply detergent to lower surfaces and work your
way up to prevent detergent from causing streaks in the dirt and grime.
Rinse detergent by pressure washing from bottom up for same reason.
• If a stain is particularly tough, it may be necessary to reapply the detergent
and use a stiff bristled brush to scrub the stain. Subsequent power
washing after brushing should successfully complete your cleaning job.
STORAGE
O
On
Fig. 20 Fig. 21
Fig. 22 Fig. 23
• When your pressure washing session has been completed, turn off
the power switch located on the front of the power washer (Fig. 20).
Unplug the power cord from the outlet. Turn off the water supply. Pull
the trigger on the spray gun 2-3 times to drain out the excess water and
to release any remaining water pressure. Disconnect the garden hose
adapter from the water inlet. Do not allow the power washer to run with
• Remove high pressure hose from spray gun (Fig. 21) and unscrew the
other end of the high pressure hose from the power washer (Fig. 22).
• Remove lance or detergent bottle from the gun and place in the
accessory holder (Fig. 23). Place the gun in the accessory holder on
the side of the power washer. Slide lance into the slot provided on
the back of the power washer. Make sure to discard any remaining
detergent from the bottle. Flush the bottle and nozzle head with fresh
water to prevent clogging. Press the detergent bottle into the space
between the lance holders (Fig. 24)
• DO NOT store the power washer where it is exposed to freezing
temperatures unless you use Pump Saver. It is recommended that
you use Pump Saver for storing in freezing temperatures. Freezing will
damage the pump unless Pump Saver is added to the power washer.
If not using or if storing your power washer for more than one month,
run Pump Saver through it. See the section on Pump Saver for more
information.
Fig. 24
en 11
PUMP SAVER
Pump Saver is a product that protects and prolongs the life of the pump. This will keep
the internal parts of the pump lubricated and protected from freezing while being stored
in ALL climates. It also assists with protection from internal corrosion. The Blue Clean
part # is: PW64511 (16oz. bottle ).
Pump Saver Instructions
Follow the previous storage instructions for your power washer. To prevent staining,
ear eye
protection when using this product.
1. Turn off your power washer.
2. Disconnect all hoses.
3. Shake the bottle well before connecting to the power washer.
4. Screw the dispensing valve on the bottle of the Pump Saver into the water inlet on
your power washer.
5. Turn the valve on the bottle to the open position.
6. Turn the power washer on. Turn the power washer off as soon as the Pump Saver
7. Turn the valve on the bottle to the off position and remove the Pump Saver bottle
and valve assembly from the power washer.
en 12

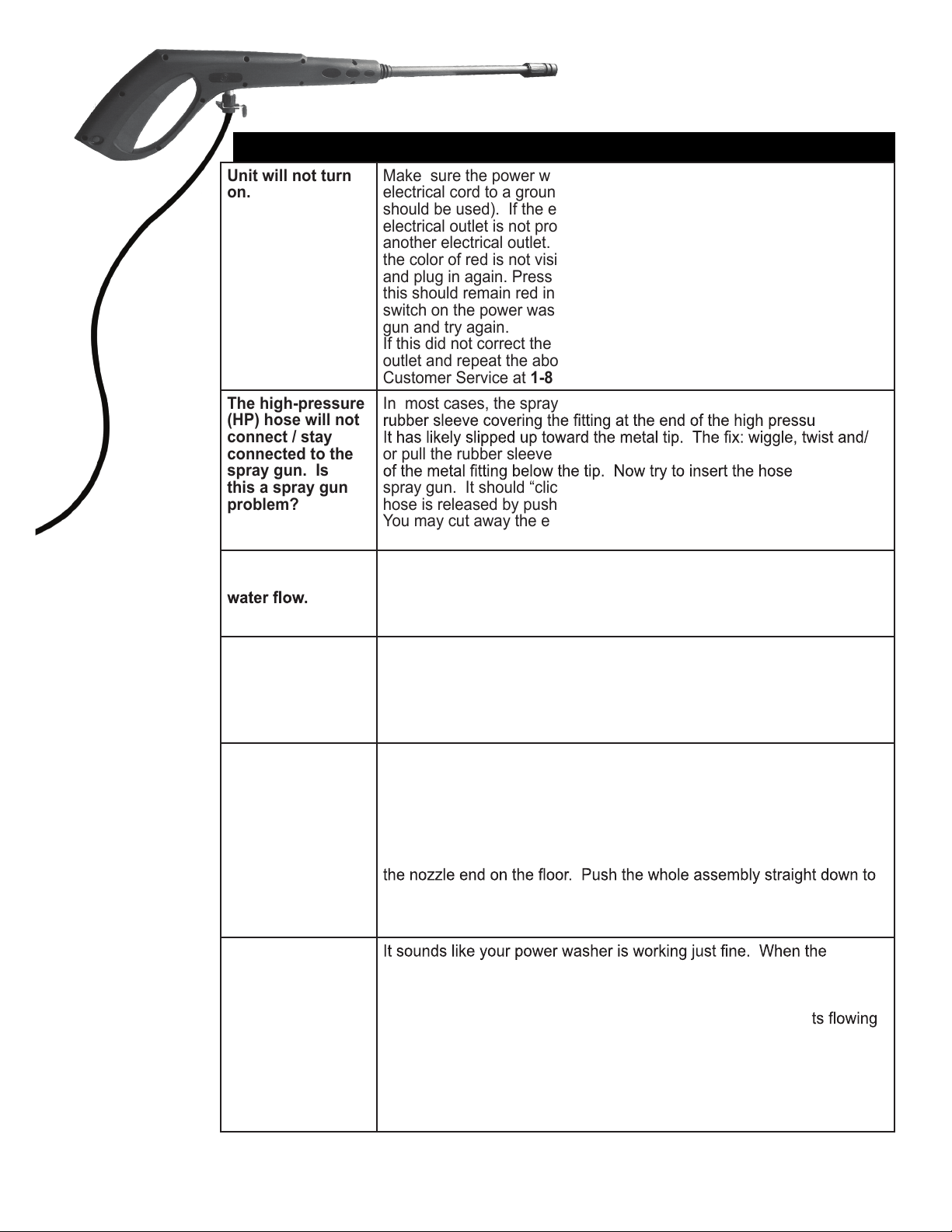

TROUBLESHOOTING AND FAQs
Unit will not turn
on.
The high-pressure
(HP) hose will not
connect / stay
connected to the
spray gun. Is
this a spray gun
problem?
The unit is running
but there is not
Why is water
leaking where the
high-pressure
hose connects to
the spray gun?
I can’t remove the
lance from the
spray gun. What
should I do?
Make sure the power washer is in the “OFF” position. Plug in the
electrical cord to a grounded 120 volt outlet (no electrical extension cord
should be used). If the electrical cord will not plug into your outlet, your
electrical outlet is not properly grounded and should not be used. Use
another electrical outlet. Press the reset button on GFCI power box. If
the color of red is not visible in the little window on the GFCI, unplug
and plug in again. Press reset, and look for the red color in the window,
this should remain red in color. If the color is staying red, turn the power
switch on the power washer to “ON”. Squeeze the trigger on the spray
gun and try again.
If this did not correct the problem, try plugging into another electrical
outlet and repeat the above procedure. If it is still not working, call
Customer Service at 1-866-235-5112.
In most cases, the spray gun is not the problem. The problem is the
or pull the rubber sleeve down until the entire tip is visible plus an 1/8”
spray gun. It should “click” into place and will not come out until the
hose is released by pushing in the lever on the underside of the gun.
You may cut away the end of the sleeve with a sharp knife if unable to
move the sleeve down. Be careful not to cut or puncture the hose.
Check the water source. Unclog the nozzle on the lance. (See nozzle
cleaning instructions under “Cleaning nozzles”.) Or take off the lance
and just spray out of the spray gun. This will indicate if the problem is
with the lance.
Make sure there is an o-ring at the end of the metal tip of the high
pressure hose. If no o-ring is present, the connection between the
hose and spray gun will leak. O-Ring Kits are available online at www.
arblueclean.com or call Customer Service at 1-866-235-5112 to place
an order.
Al l lances and the detergent tank are attached and removed from the
spray gun in the same manner. Insert the quick-release end of the
lance/detergent bottle into the spray gun. Press the spray gun and
lance together (about a 1/8”) and turn clockwise. The lance will lock in
place. Remove the lance by reversing this procedure. Press the spray
gun and lance together and turn counter clockwise. The lance will
slide out. Or, hold the spray gun and lance in an upright position with
re hose.
tip into the
The power washer
turns on for 2
seconds, shuts
off, and will not
turn back on. Do
I have a defective
unit?
loosen the connection, and then follow the removal process again. You
may also spray soapy water or a lubricant in the area where the lance
connects to the spray gun.
water
is connected, the accessories are assembled properly, and the power
switch is turned on, the power washer may turn on for 1 - 2 seconds to
prime the pump. It automatically shuts off and waits for the spray gun
trigger to be pressed. When the trigger is pressed, water star
through the pump. The water sensor in the pump “senses” the moving
water and automatically turns the power washer on. Or, turn the power
switch to off, hold in the trigger on the spray gun, so that you
have a steady stream of water. While you are holding the trigger
open on the spray gun, at the same time, turn the power switch
on.
en 13

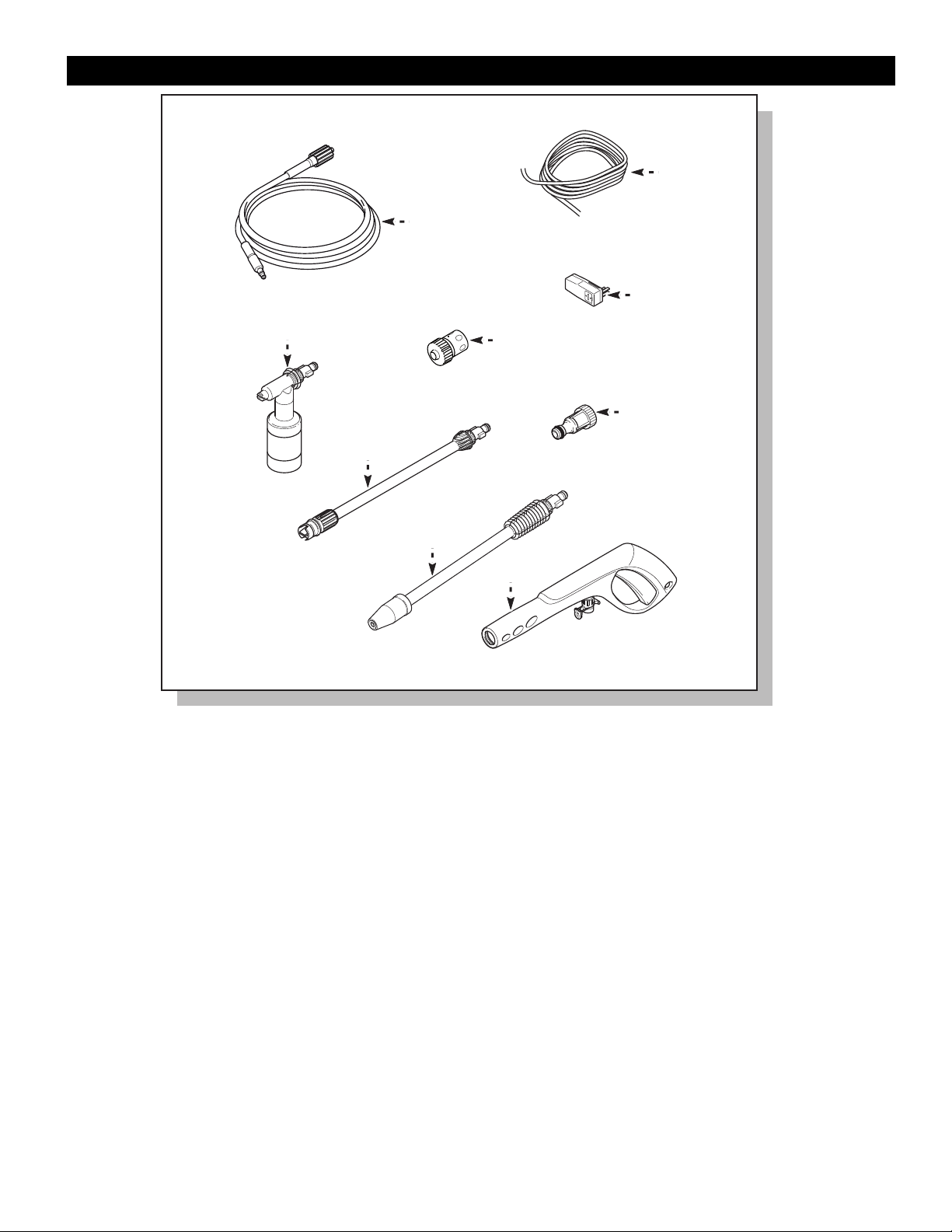

REPLACEMENT PARTS
7
2
8
1
4
9
6
5
3
Pos. Description Part Number Qty.
1 Detergent Bottle PW50954 1
2 Hose (QC) PW50969 1
3 Spray Gun PW50968 1
4 Adjustable Lance/Nozzle PW50975 1
5
6
7
8
Quick Connect Adapter (clear plastic) PW3082130 1
Garden Hose Adapter
(blue/black) PW3082301 1
Electric Cord w/GFCI PW4221200 1
GFCI Assembly PW4221160 1
9 Turbo Lance PW50976 1
en 14
Pump Spare Part Kits
Water Seals & Valves PW3081290 1
Pre-Assembly TSS PW3082350 1
O-Ring Kit PW909104K 1
SPECIFICATIONS
Model Max PSI
(lbs/sq/in)
AR 525 1,800 1.5 122° F 120 13 19.5
Max GPM
(gal/per/min)
Max Temp Volts Amps Weight (lbs)
LIMITED WARRANTY
This product is under warranty to the original retail consumer against defects in material and
workmanship for a period of 1 (one) year and is a complete “bumper to bumper” warranty including
the spray gun, the high-pressure hose and all accessories from the date of purchase. The
warranty is not transferable or assignable. This warranty covers replacement parts. This limited
one year warranty applies only to products used in consumer applications and is void in rental
or any commercial application. Reasonable care must be used in conformity with operation and
maintenance instructions in the owner’s manual and quick start guide. Failure to follow these
instructions will void this warranty. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
WARRANTY RETURNS
Keep your original receipt of purchase in case of warranty claim. Any power washer or parts
returned for a warranty claim must have a “RETURNED MERCHANDISE AUTHORIZATION (RMA)
NUMBER.” You must obtain an RMA NUMBER by calling A.R. NORTH AMERICA, INC. at 1-866235-5112 Monday through Friday, 8 a.m. to 5 p.m. (CST), or e-mail info@ar-blueclean.com. Any
return without an RMA NUMBER will be considered unauthorized and will be shipped back at
the expense of the sender. Freight costs to the company for warranty work must be paid by the
purchaser.
Cleaning and troubleshooting tips, manuals and other helpful information are available on our
website. For parts and accessories for your Blue Clean washer, visit www.arblueclean.com.
Ordering is easy and all major credit cards are accepted.
A.R. NORTH AMERICA, INC.
Attn: Power washer Warranty Department
140 81st. Avenue NE, Fridley, MN 55432
Phone: 1-866-235-5112
Fax: 1-866-331-2762
Email: info@ar-blueclean.com
Website: www.arblueclean.com
en 15
www.arblueclean.com
Model AR 525
Loading...
