Page 1

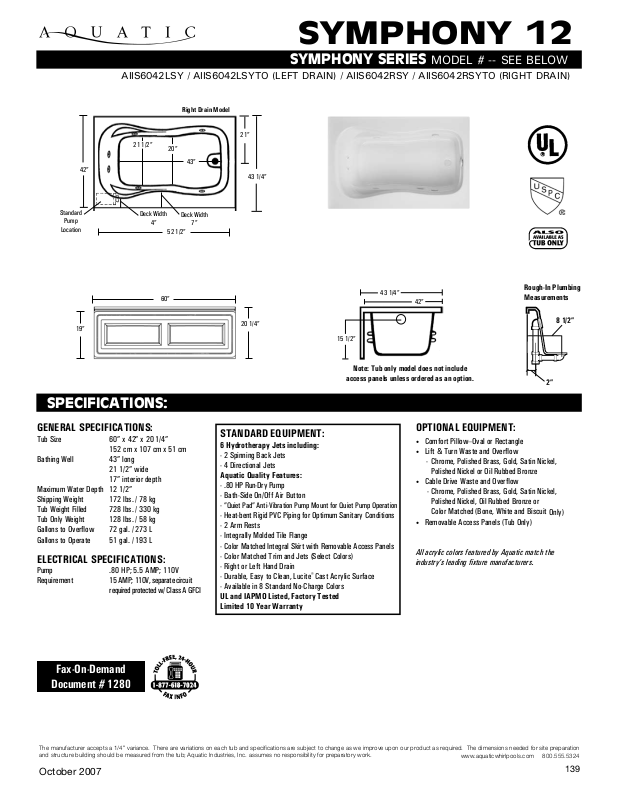

SymPhONy 12
SymPhONy SErIES Model # -- See below
aiiS6042lSY / aiiS6042lSYTo (lefT drain) / aiiS6042rSY / aiiS6042rSYTo (righT drain)

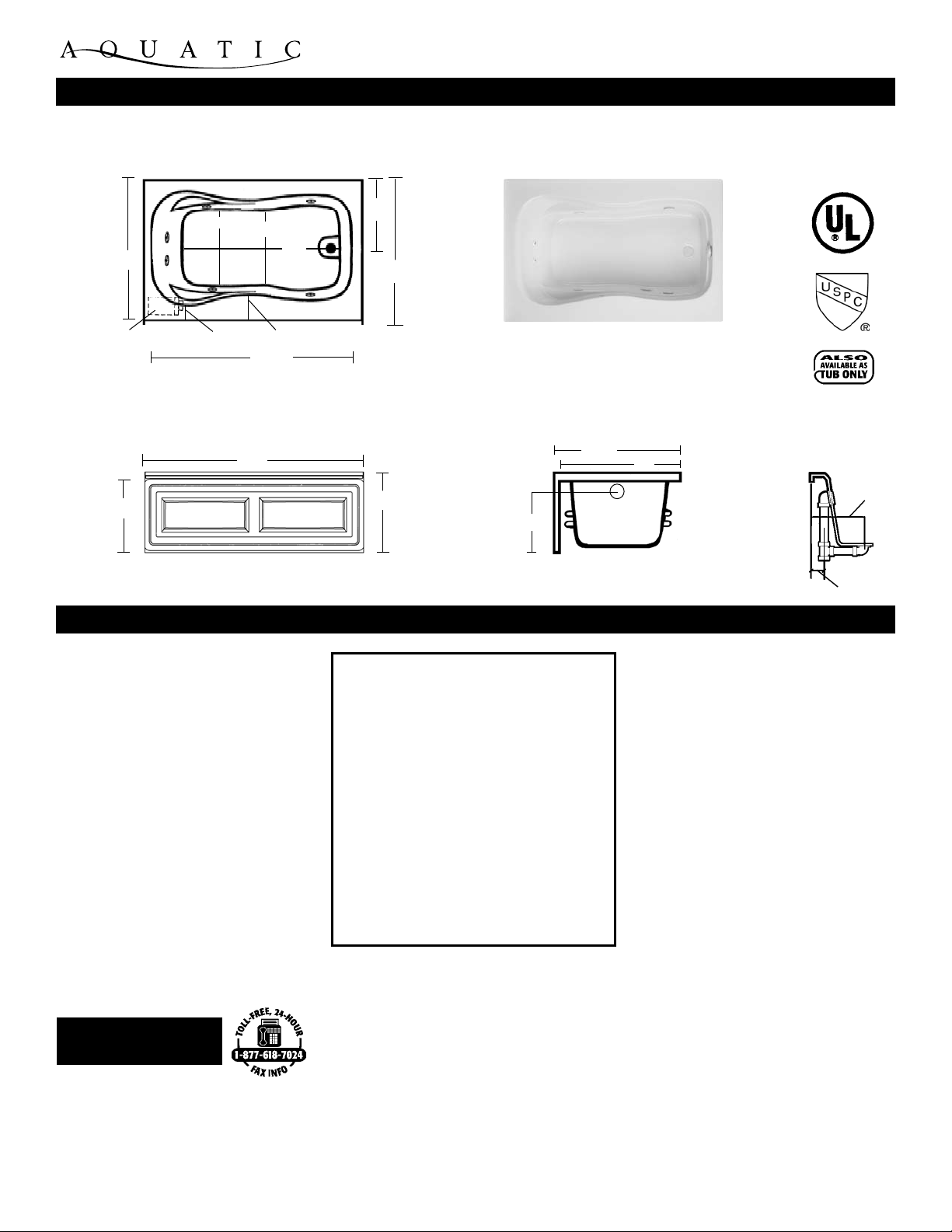

Right Drain Model
21 1/2”
42”
Standard
Pump
Location
19”
Deck Width
4”
SPECIFICATIONS:
60”
20”
52 1/2”
43”
Deck Width
7”
21”
43 1/4”
20 1/4”
43 1/4”
42”
15 1/2”
Note: Tub only model does not include
access panels unless ordered as an option.
Rough-In Plumbing
Measurements
8 1/2”
2”
GENERAL SPECIFICATIONS:
Tub Size 60” x 42” x 20 1/4”
152 cm x 107 cm x 51 cm
Bathing Well 43” long
21 1/2” wide
17” interior depth
Maximum Water Depth 12 1/2”
Shipping Weight 172 lbs. / 78 kg
Tub Weight Filled 728 lbs. / 330 kg
Tub Only Weight 128 lbs. / 58 kg
Gallons to Overow 72 gal. / 273 L
Gallons to Operate 51 gal. / 193 L
ELECTRICAL SPECIFICATIONS:
Pump .80 HP; 5.5 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Fax-On-Demand
Document # 1280
STANDARD EQUIPMENT:
6 Hydrotherapy Jets including:
- 2 Spinning Back Jets
- 4 Directional Jets
Aquatic Quality Features:
- .80 HP Run-Dry Pump
- Bath-Side On/Off Air Button
- ”Quiet Pad”
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- 2 Arm Rests
- Integrally Molded Tile Flange
- Color Matched Integral Skirt with Removable Access Panels
- Color Matched Trim and Jets (Select Colors)
- Right or Left Hand Drain
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
UL and IAPMO Listed, Factory Tested
Limited 10 Year Warranty
Anti-Vibration Pump Mount for Quiet Pump Operation
OPTIONAL EQUIPMENT:
• Comfort Pillow--Oval or Rectangle
• Lift & Turn Waste and Overow
- Chrome, Polished Brass, Gold, Satin Nickel,
Polished Nickel or Oil Rubbed Bronze
• Cable Drive Waste and Overow
- Chrome, Polished Brass, Gold, Satin Nickel,
Polished Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit
• Removable Access Panels (Tub Only)
All acrylic colors featured by Aquatic match the
industry’s leading xture manufacturers.
Only)
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
October 2007
www.aquaticwhirlpools.com 800.555.5324
139
