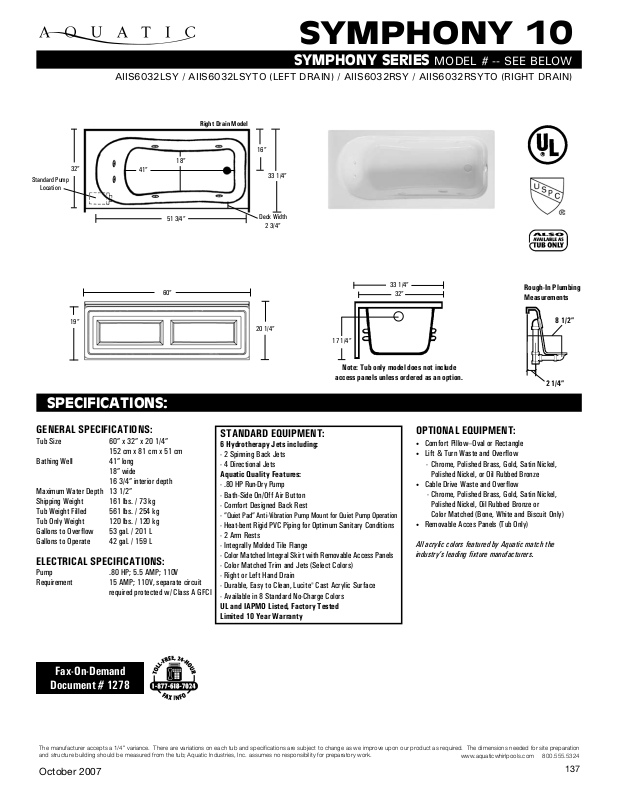

Aquatic SYMPHONY 10 None User Manual
Standard Pump
Location
32”
SymPhONy 10
SymPhONy SErIES Model # -- See below
aiiS6032lSY / aiiS6032lSYTo (lefT drain) / aiiS6032rSY / aiiS6032rSYTo (righT drain)
Right Drain Model
16”
41”
18”
33 1/4”
51 3/4”
60”
19”
SPECIFICATIONS:
GENERAL SPECIFICATIONS:
Tub Size 60” x 32” x 20 1/4”
152 cm x 81 cm x 51 cm
Bathing Well 41” long
18” wide
16 3/4” interior depth
Maximum Water Depth 13 1/2”
Shipping Weight 161 lbs. / 73 kg
Tub Weight Filled 561 lbs. / 254 kg
Tub Only Weight 120 lbs. / 120 kg
Gallons to Overow 53 gal. / 201 L
Gallons to Operate 42 gal. / 159 L
ELECTRICAL SPECIFICATIONS:
Pump .80 HP; 5.5 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Deck Width
2 3/4”
20 1/4”
17 1/4”
Note: Tub only model does not include
access panels unless ordered as an option.
STANDARD EQUIPMENT:
6 Hydrotherapy Jets including:
- 2 Spinning Back Jets
- 4 Directional Jets
Aquatic Quality Features:
- .80 HP Run-Dry Pump
- Bath-Side On/Off Air Button
- Comfort Designed Back Rest
- ”Quiet Pad”
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- 2 Arm Rests
- Integrally Molded Tile Flange
- Color Matched Integral Skirt with Removable Access Panels
- Color Matched Trim and Jets (Select Colors)
- Right or Left Hand Drain
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
UL and IAPMO Listed, Factory Tested
Limited 10 Year Warranty
Anti-Vibration Pump Mount for Quiet Pump Operation
33 1/4”
32”
OPTIONAL EQUIPMENT:
• Comfort Pillow--Oval or Rectangle
• Lift & Turn Waste and Overow
- Chrome, Polished Brass, Gold, Satin Nickel,
Polished Nickel, or Oil Rubbed Bronze
• Cable Drive Waste and Overow
- Chrome, Polished Brass, Gold, Satin Nickel,
Polished Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit
• Removable Acces Panels (Tub Only)
All acrylic colors featured by Aquatic match the
industry’s leading xture manufacturers.
Rough-In Plumbing
Measurements
8 1/2”
2 1/4”
Only)
Fax-On-Demand
Document # 1278
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
October 2007
www.aquaticwhirlpools.com 800.555.5324
