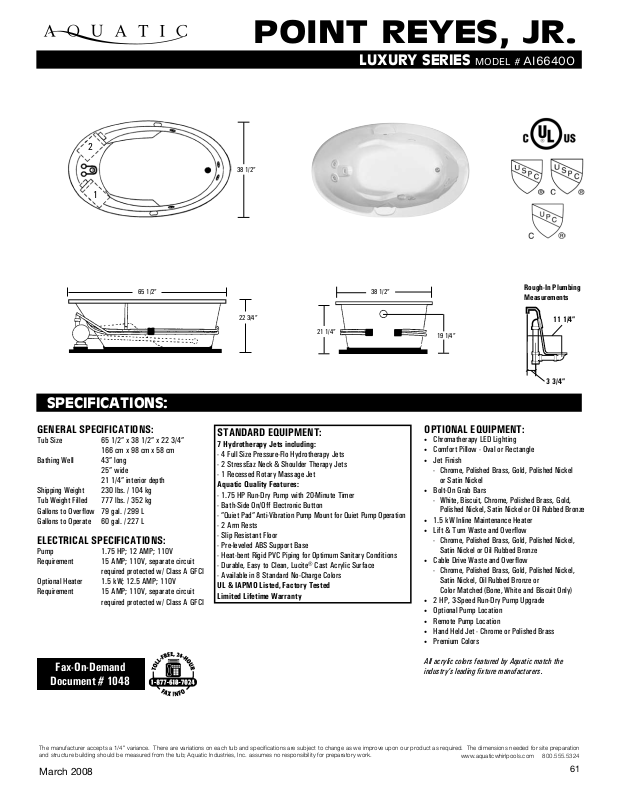

Aquatic POINT REYES User Manual

POINT rEyES, jr.

luxury SErIES Model # ai6640o

2

38 1/2”

1

65 1/2”

SPECIFICATIONS:

GENERAL SPECIFICATIONS:

Tub Size 65 1/2” x 38 1/2” x 22 3/4”
166 cm x 98 cm x 58 cm
Bathing Well 43” long
25” wide
21 1/4” interior depth
Shipping Weight 230 lbs. / 104 kg
Tub Weight Filled 777 lbs. / 352 kg

Gallons to Overow 79 gal. / 299 L
Gallons to Operate 60 gal. / 227 L

ELECTRICAL SPECIFICATIONS:

Pump 1.75 HP; 12 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Optional Heater 1.5 kW; 12.5 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI

38 1/2”

22 3/4”

21 1/4”

STANDARD EQUIPMENT:

7 Hydrotherapy Jets including:

- 4 Full Size Pressure-Flo Hydrotherapy Jets

- 2 StressEaz Neck & Shoulder Therapy Jets

- 1 Recessed Rotary Massage Jet

Aquatic Quality Features:

- 1.75 HP Run-Dry Pump with 20-Minute Timer

- Bath-Side On/Off Electronic Button

- ”Quiet Pad” Anti-Vibration Pump Mount for Quiet Pump Operation

- 2 Arm Rests

- Slip Resistant Floor

- Pre-leveled ABS Support Base

- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions

- Durable, Easy to Clean, Lucite® Cast Acrylic Surface

- Available in 8 Standard No-Charge Colors

UL & IAPMO Listed, Factory Tested
Limited Lifetime Warranty

Rough-In Plumbing
Measurements

11 1/4”

19 1/4”

3 3/4”

OPTIONAL EQUIPMENT:

• Chromatherapy LED Lighting

• Comfort Pillow - Oval or Rectangle

• Jet Finish

- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel

• Bolt-On Grab Bars

- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze

• 1.5 kW Inline Maintenance Heater

• Lift & Turn Waste and Overow

- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze

• Cable Drive Waste and Overow

- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit

• 2 HP, 3-Speed Run-Dry Pump Upgrade

• Optional Pump Location

• Remote Pump Location

• Hand Held Jet - Chrome or Polished Brass

• Premium Colors

Only)

Fax-On-Demand

All acrylic colors featured by Aquatic match the

industry’s leading xture manufacturers.

Document # 1048

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.

March 2008

www.aquaticwhirlpools.com 800.555.5324

61
