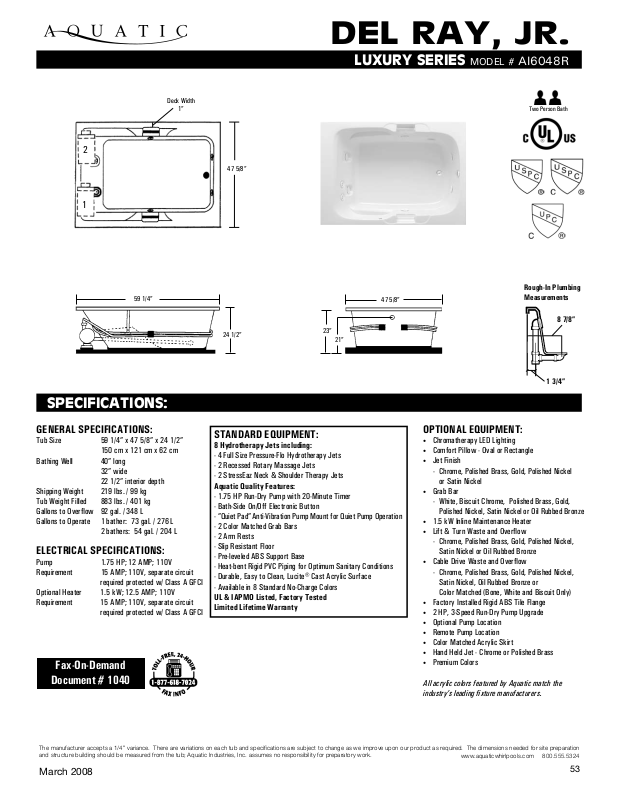

Aquatic DEL RAY User Manual

DEl rAy, jr.

luxury SErIES Model # ai6048R

Deck Width

1”

2

47 5/8”

1

59 1/4”

24 1/2”

23”

21”

47 5/8”

Two Person Bath

Rough-In Plumbing
Measurements

8 7/8”

SPECIFICATIONS:

GENERAL SPECIFICATIONS:

Tub Size 59 1/4” x 47 5/8” x 24 1/2”
150 cm x 121 cm x 62 cm
Bathing Well 40” long
32” wide
22 1/2” interior depth
Shipping Weight 219 lbs. / 99 kg
Tub Weight Filled 883 lbs. / 401 kg

Gallons to Overow 92 gal. / 348 L
Gallons to Operate 1 bather: 73 gal. / 276 L
2 bathers: 54 gal. / 204 L

ELECTRICAL SPECIFICATIONS:

Pump 1.75 HP; 12 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Optional Heater 1.5 kW; 12.5 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI

Fax-On-Demand

Document # 1040

STANDARD EQUIPMENT:

8 Hydrotherapy Jets including:

- 4 Full Size Pressure-Flo Hydrotherapy Jets

- 2 Recessed Rotary Massage Jets

- 2 StressEaz Neck & Shoulder Therapy Jets

Aquatic Quality Features:

- 1.75 HP Run-Dry Pump with 20-Minute Timer

- Bath-Side On/Off Electronic Button

- ”Quiet Pad” Anti-Vibration Pump Mount for Quiet Pump Operation

- 2 Color Matched Grab Bars

- 2 Arm Rests

- Slip Resistant Floor

- Pre-leveled ABS Support Base

- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions

- Durable, Easy to Clean, Lucite® Cast Acrylic Surface

- Available in 8 Standard No-Charge Colors

UL & IAPMO Listed, Factory Tested
Limited Lifetime Warranty

1 3/4”

OPTIONAL EQUIPMENT:

• Chromatherapy LED Lighting

• Comfort Pillow - Oval or Rectangle

• Jet Finish

- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel

• Grab Bar

- White, Biscuit Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze

• 1.5 kW Inline Maintenance Heater

• Lift & Turn Waste and Overow

- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze

• Cable Drive Waste and Overow

- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit

• Factory Installed Rigid ABS Tile Flange

• 2 HP, 3-Speed Run-Dry Pump Upgrade

• Optional Pump Location

• Remote Pump Location

• Color Matched Acrylic Skirt

• Hand Held Jet - Chrome or Polished Brass

• Premium Colors

All acrylic colors featured by Aquatic match the

industry’s leading xture manufacturers.

Only)

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.

March 2008

www.aquaticwhirlpools.com 800.555.5324

53
