AquaMetrix SHARK Operating Manual

S H A R K

Rev 3

SHARK MULTI-PARAMETER CONTROLLER

& ANALYZER USER’S MANUAL

AquaMetrix Inc. 1245 Maple Hill Ct., Unit 7 Newmarket, ON Canada, L3Y 9E8

Tel: (800) 742-1413

Fax: (905) 954-0415

www.aquametrix.com

(905) 954-0841

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

Table of Contents

Subject Page No.

Introduction 1

Section 1 - Specifications 2

Section 2 - Installation 3 - 5

Section 3 - Electrical Connections & Setup 6 - 14

Differential Probe connection & setup 7 Combination Probe connection & setup 8 Conductivity Cell (Contacting style) connection & setup 9 Paddle Wheel Flow Sensor connection & setup 10 Relay connections 11 Relay A & B setup 12 Alarm relay setup 13 Manual test mode & Relay override 14 4-20mA Isolated Outputs Channel 1 & Channel 2 15 Service & Fuse Replacements 16

Section 4 - Using the SHARK in pH Mode 17

LCD Menu 18 - 44 LED Menu 45 - 46

Section 5 - Using the SHARK in ORP Mode 47

LCD Menu 48 - 73 LED Menu 74

Section 6 - Using the SHARK in Conductivity Mode 75

LCD Menu 76 - 102 LED Menu 103

Section 7 - Using the SHARK in Flow Mode 104

LCD Menu 105 - 128

Appendix A - Probe Configuration Table 129

Return Policy and Warranty Plan 130

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

Introduction

The SHARK multi-parameter controller is a microprocessor based controller capable of measuring one of the following parameters, pH, ORP, conductivity or flow.

When shipped from the factory, the SHARK is not set to measure any one parameter. When the SHARK is powered up for the first time, it will display the meter selection screen where the meter type must be selected. (refer to section 4.6 Meter Selection)

This meter selection screen will only be displayed when the SHARK is powered up for the first time.

After the user selects a meter type the SHARK will remain set to that meter type until it is changed with the meter selection menu function in the Utilities menu.

To return the SHARK to its factory settings, the user must re-select the current meter type from the meter selection menu function. This will override all set-points and return all settings back to the factory settings.

The SHARK User’s menu has been divided into five main categories

- Calibration, used to calibrate the SHARK with the selected sensor

- Utilities, Used to manually control or override the outputs.

- Setup, used to configure the SHARKs many options

- Diagnostics, used to troubleshoot any problems with the SHARK

- Outputs, used to configure the SHARK’s outputs.

There are two displays on the SHARK. A bright LED numeric display with bar graph on the outside front panel, and a 2-line, 16-character LCD display on the inside. The LED readout on the outside panel can be seen several yards away. The distinctive,colorcoded bar graph will immediately indicate if you are within the process parameters that you set (green), if the control relays are on (yellow) and if you are in alarm condition (red). This makes diagnosing pump and alarm malfunctions easy. All configuration and control functions are performed on the LCD menu on the inside front panel.

A universal mounting kit is included for surface,panel and pipe-mount applications. The 1/4 DIN enclosure makes panel-mount cutouts and engineering simple.

SHARK is packaged in a rugged NEMA 4X polycarbonate enclosure making it ideally suited for heavy-duty applications such as industrial wastewater neutralization, municipal water and wastewater, pulp and paper, and process control.

Introduction Page 1

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

Section I - Specifications

pH ORP Conductivity Flow

Display

Power Requirements 120Vac (±10%) 50/60Hz (less than 12VA) or 240Vac (±10%) 50/60Hz (less than 12VA)

Measuring Range pH: 0.01 to 14.00 ORP: -1999 to +1999mV

Temperature Automatic or Manual

Compensation 0 to 100°C (32° to +212°F)

Temperature Unit °C or °F Not required

Temperature Sensor User selectable: 300Ω NTC Thermistor, 3000Ω NTC Thermistor or Pt. 1000 RTD Not required

Calibration Modes Manual Calibration

Ambient Conditions Temperature:-20°C to +60°C or -4°F to +140°F Humidity: 0 to 90% RH (non-condensing)

Menu Access

Front Panel

Menu Access Inside Panel Full Access to all parameters of operations menu

Sensor to SHARK Differential Sensor: 3000 ft

Distance Combination Sensor: 10 ft

Relay Outputs

Analog Outputs 4 to 20mA Channel 2

Memory Back-up All user settings are retained indefinitely in memory (EEPROM)

Mechanical

Sensor Input

Invalid Entries Invalid entries cannot be stored

Manual Test Mode Process value can be simulated with arrow keys to verify correct setup of outputs

Manual Relay Override Relays can be set to on / off / auto, to verify correct wiring of auxiliary devices,or to manually adjust process

Output Hold All outputs are placed on hold when SHARK is in Menu mode

Calibration Data

Auto Return User selectable auto return if SHARK is left in menu mode or if relays are left in manual override mode for more than 10 min.

Display Damping User can select rate at which SHARK updates display. Enables display damping of unstable process

Net Weight 2.2lbs (1kg)

Approvals ULC (pending)

Front Panel:4 x 7 segment 1/2” LED display, 1 LED indicator 0n-line,7 LED Bar Graph Inside Panel: 2 x 16 alpha-numeric LCD display

MΩ/cm30 to 19.99 0.01

0 to 2.000 0.01 0 to 20.00 0.1

3

(Dependent on sensor)

Temp: 0 to 100°C or Temp: 0 to 100°C or

32° to +212°F 32° to +212°F (

uS/cm

mS/cm

0 to 200.0 0.1 0 to 2000 1.0 0 to 20.00 10

3

0 to 200.0 50

Temp: 0 to 100°C or 32° to +212°F

Flow: 0 to 9999 with selectable

flow rate units

Volume: 0 to 9999 with Auto Range

Flow rate units: Gallons (GP), Cubic Feet (CF), Liters (LP), Cubic Meters

CM), custom by entering factor

related to Gallons

Time units: Seconds (S), Minutes (M), Hours (H)

Automatic or Manual

Not required

User selectable temperature compensation slope 0.0 to 10.0%/°C.

Not required

0 to 100°C (32° to +212°F)

Auto-Calibration

Temperature Calibration Temperature Calibration

Auto-Calibration,Manual Calibration,Temperature Display

Manual Calibration Temperature Calibration

Manual-Calibration, Manual Calibration Temperature Display Temperature Display

Dry Calibration Sample Calibration K factor Input

Not available

300 ft 2000 ft

Two Control Relays, 10A / NO, 5A / NC @ 240VAC or 28VDC. Mode: Process control, Adjustable parameters: process direction,(rising or falling) on-set-point, off set-point, (0 to 100% of full scale), cycle timer (on / off, 0 to 600 seconds),failsafe (on / off). One Alarm Relay, 10A / NO, 5A / NC @ 240VAC or 28VDC. Mode: High / Low Alarm, Adjustable parameters: Low on / Low off set-point (0 to 100% of full scale, low on must be less than low off), High On / High Off set-point (0 to 100% of full scale,High on must be greater than High off). 4 to 20mA Channel 1 Isolated Output, Range expand 0 - 100% of full scale (min segment 10% of full scale), max. load 800Ω

Isolated Output, Range expand 0 - 100% of full scale (min segment 10% of full scale), max. load 800Ω Can be set to track temperature if sensor is equipped with a temperature sensor

Enclosure: NEMA 4X, 1/4 DIN, polycarbonate enclosure with four 1/2”conduit holes Mounting: Universal Mounting kit for surface, pipe and panel mount, is included Probe: -600 to +600mV Probe:-1999 to +1999mV Cell: 0 to 9999Ω Temp. Sensor: 0 to 9999Ω Temp. Sensor: 0 to 9999Ω Temp. Sensor: 0 to 9999Ω

Recall data from last calibration, calibration mode, 1st & 2nd accepted buffer value and probe mV output, calibration temperature, calibration slope, and probe efficiency

Recall data from last calibration, calibration buffer accepted value, and cell Recall store K factor. resistance, calibration temperature

Paddle: 0 to 2000Hz

Section I - Specifications Page 2

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

Section 2 - Installation

2.1 Unpacking

Save the shipping carton and packing material in case the instrument needs to be stored or returned. Inspect the instrument and packing material for shipping damage and report any problems immediately.

2.2 Location

Locate the controller/analyzer close to the sensor. The list below gives typical maximum distances for various sensors. Refer to the sensor specifications for exact information.

• Aquametrix Differential PH Probe 3000 ft (914 meters)

• Aquametrix Combination PH Probe 10 ft (3 meters)

• Aquametrix Conductivity Probe 300 ft (91 meters)

• Aquametrix Flow sensor 2000 ft (610 meters)

2.3 Mounting

Fig 2.1 Controller dimensions

Section 2 - Installation Page 3

Dwg# N106-127

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

MIN. PIPE DIA.

1" PIPE (NOMINAL)

MAX. PIPE DIA.

2" PIPE (NOMINAL)

NUT 10-24 QTY.4

SCREW 10-24 X 3-1/2" QTY.4

UNIVERSAL MOUNTING BRACKET QTY.1

SCREW 1/4-20 X 6" QTY.4

UNIVERSAL MOUNTING BRACKET QTY.1

PANEL (CUSTOMER SUPPLIED)

EXTERNAL PANEL GASKET QTY.1

UNIVERSAL MOUNTING CLAMP QTY.2

NUT 1/4-20 QTY.4

SCREW 10-24 X 1/2" QTY.4

Section 2 - Installation

Panel Mount – The Shark can be panel mounted to a panel using the hardware kit provided. The panel cutout dimensions are shown in fig.

2.1.

Figure 2.2 Panel Mount

Dwg# N105-100

Pipe Mount – The Shark can also be mounted to a horizontal or vertical pipe with:

• a minimum outside diameter of 1.30” (33mm) (for example 1” CPVC pipe)

• and a maximum of

2.375” (60mm) (for example 2” CPVC pipe)

Fig. 2.3 Vertical Pipe Mount

Dwg# N105-100

Section 2 - Installation Page 4

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

UNIVERSAL MOUNTING BRACKET QTY.1

SCREW 10-24 X 1/2" QTY.4

HOLES Ø1/4" FOR MOUNTING SCREWS QTY.4 (CUSTOMER SUPPLIED)

MIN. PIPE DIA.

1" PIPE (NOMINAL)

MAX. PIPE DIA.

2" PIPE (NOMINAL)

SCREW 10-24 X 3-1/2" QTY.4

UNIVERSAL MOUNTING BRACKET QTY.1

NUT 10-24 QTY.4

Section 2 - Installation

Figure 2.4 Horizontal Pipe Mount

Dwg# N105-100

Surface Mount – The Shark can be surface mounted using the hardware kit provided with the unit.

Figure 2.5 Surface Mount

Section 2 - Installation Page 5

Dwg# N105-100

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

AC POWER CONNECTIONS FOR 120 VAC

AC POWER CONNECTIONS FOR 240 VAC

LINE

GROUND

SHARK-240

NEUTRAL

LINE GROUND

SHARK-120

L L

P3

G N

L G

P3

Section 3 - Electrical Connections and Setup

3.1 Conduit Connections

The Shark has four 1/2” conduit holes, 2 on each side of the enclosure as shown on fig. 2.1. The unit is shipped with these holes plugged with liquid tight conduit seals. These must be left in unused holes to maintain the NEMA 4X integrity. Use approved conduit hubs to connect the conduit, connect these to the conduit before connecting to the enclosure.

Wire Specification

: Size and fuse wire accroding to local electrical code. Maximum current not

to exceed 10A when used to power auxillary decvices powered via internal connections.

3.2 A.C. Power Connections

Caution: This instrument uses 120 or 240 50/60 Hz AC power. Opening the enclosure door exposes you to potentially hazardous line power voltage which might be present on the terminals of plug P3 and P4. Always remove line power before working in this area. If the relay contacts on P4 are powered from a seperate source from the line power on P3, be sure to disconnect that power before proceeding. The Shark flip out door contains only low voltage and is safe to handle.

The Shark is available in two power models. The Shark-240 is designed to operate at 240 VAC. The Shark-120 is designed to operate at 120 VAC. To connect power to the Shark, remove the terminal block plug P3 and connect the wiring as shown below.

Figure 3.1 A.C. Power Connections

Section 3 - Electrical Connections and Setup Page 6

Dwg# N104-33

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

BLACK (4)

YELLOW (5)

SHIELD (8)

WHITE (10)

RED (3)

GREEN (2)

P6

843

2

1

7

65

11109

1514

1312

17

16

DIFFERENTIAL pH or ORP PROBE

SELECT pH SEC. 4.6

MANUAL CALIBRATE

SELECT DIFFERENTIAL PROBE

pH PROBE SEC. 4.1 or ORP PROBE SEC. 5.1

pH SEC. 4.7 or ORP SEC. 5.6 (IF NECESSARY)

or ORP SEC. 5.5 (IF NECESSARY)

MANUAL CAL PH

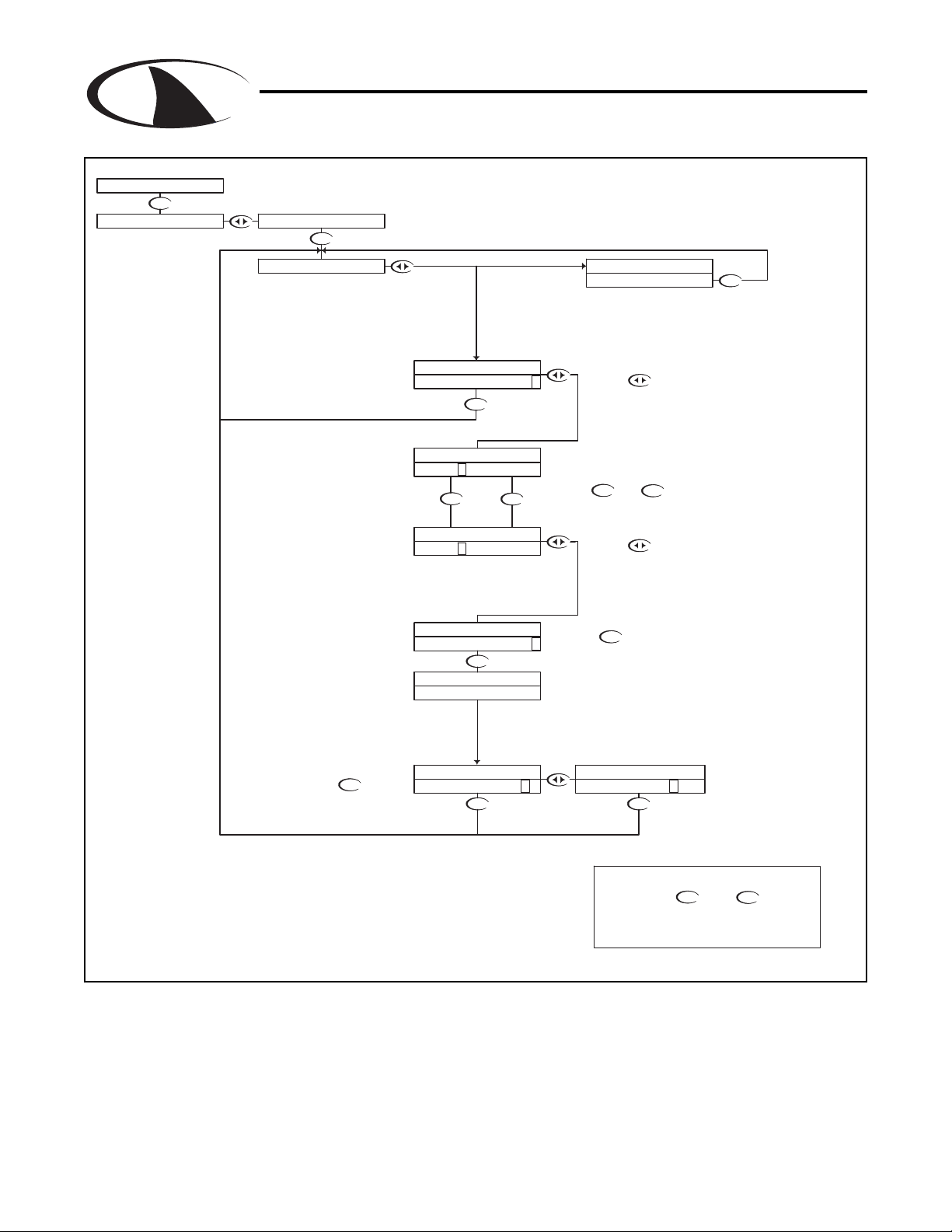

7.15pH 25.0C

PROBE SELECT

METER SELECTION

RUN MODE

Section 3 - Electrical Connections and Setup

3.3 pH and ORP Differential Probe connections and setup

The drawing shows the connections for the Aquametrix Differential (5 wire) probe. The cable should be run in a conduit separate from AC power wires, and via a separate conduit hole.

Note: Leave 4” to 6” slack for all wires connected to the terminals of P6. Slack required so that wires do not interfere with opening or closing of the front door.

If the cable of the differential probe is cut, the blue wire is not used.

CAUTION:

Always remove line power before unplugging or plugging in the P6 connector

Once connected, step through the LCD menus to select the probe in the order shown. The first two steps may be skipped if the meter is already configured for pH or ORP and a Differential Probe. When using a pH probe, it is important to ensure that the Shark is reading the probe temperature correctly for accurate temperature compensation. The ORP probe does not require temperature compensation, although the Shark can display process temperature measured by the probe. The factory temperature calibration is usually accurate enough that no adjustments are necessary.

Section 3 - Electrical Connections and Setup Page 7

Figure 3.2 Connections for Differential (5 wire) pH or ORP probe

Dwg# N104-34

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

These wires are only present with 4-wire combination probe.

JUMPER 2-4 MUST BE INSTALLED FOR COMBINATION PROBE (CUSTOMER SUPPLIED)

COAX SHIELD (4)

COAX CENTER (3)

WHITE (5)

GREEN (4)

P6

8

1

2

34 65

7

1091112 13

14 15

17

16

COMBINATION pH or ORP PROBE

SEC. 5.8

SEC. 5.5

SEC. 5.1

ORP PROBE

SELECT COMBINATION PROBE

SELECT ORP METER

MANUAL CALIBRATE

PH PROBE

MANUAL CALIBRATE

SELECT PH METER

SELECT COMBINATION PROBE

SEC. 4.1

SEC. 4.6

SEC. 4.7

SEC 4.10

MANUAL PROBE TEMPERATURE SETUP

DISABLE TEMPERATURE

SEC 5.10

DISPLAY

MANUAL CAL PH

METER SELECTION

PROBE SELECT

7.15pH 25.0C

T.COMP OVERRIDE

7.15pH 25.0C

PROBE SELECT

METER SELECTION

MANUAL CAL PH

T.DISP OVERRIDE

RUN MODE

TWO WIRE PROBE WITH NO TEMP SENSORTWO WIRE PROBE WITH NO TEMP SENSOR

RUN MODE

ORPpH

Section 3 - Electrical Connections and Setup

3.4 pH or ORP Combination Probe connections and setup

The drawing shows the connections for the Aquametrix Combination probe. The cable should be run in a conduit separate from AC power wires, and via a separate conduit hole. The cable length should not exceed 10 feet (3 meters).

Fig. 3.3 Connections for the 2 and 4 wire Combination Probe

The 2 wire version has no temperature sensor and is connected via a coaxial wire. In a pH meter, the user should set the OVERRIDE menu to ON (Section 4.11) and adjust the temperature setting to the actual probe temperature. In an ORP meter, the user should set the RIDE to ON (Section 5.10) to blank the temperature reading on the display.

T COMP

T.DISP OVER-

4 wire version has two

The additional wires for the probe internal temperature sensor. Ensure that the

T COMP OVERRIDE or T.DISP OVERRIDE

Note

: Leave 4” to 6” slack for all wires connected to the terminals of P6. Slack required

is OFF.

so wires do not interfere with opening/closing of front door.

CAUTION:

Always remove line power before unplugging or plugging in the P6 connector

Dwg# N104-35

Once connected, step throught the LCD menus to select the probe in the order shown. The first two steps may be skipped if the meter is already configured for a Combination Probe. If a two wire pH probe is used, which has no temperature sensor, ensure that the Temp. Comp. Override is set to same temperature as the buffer before calibrating. If a two wire ORP probe is used, you can blank the Temp display with the T DISP OVERRIDE menu.

Section 3 - Electrical Connections and Setup Page 8

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

WHITE (CELL) (1)

BLACK (CELL) (4)

RED (TEMP. SENSOR) (4)

GREEN (TEMP. SENSOR) (5)

P6

8

1

2

34 65

7

1091112 13

14 15

17

16

CONTACTING

CONDUCTIVITY

CELL

SET TEMPERATURE COMPENSATION

3Kohm NTC (thermistor) 1Kohm RTD

ENSURE SENSOR IS CORRECT TYPE

SEC. 6.7

SELECT CONDUCTIVITY RANGE

SELECT COND METER

SEC. 6.13

OR

FOR PROCESS

SEC 6.9

SEC. 6.6

1000uS 25.0C

MANUAL CAL COND

TEMP COMP CURVE

TEMP SENSOR

COND RANGE

METER SELECTION

CALIBRATE WITH

RUN MODE

REFERENCE SOLUTIONS SEC 6.1

DRY CAL COND

CALIBRATE WITH FACTORY SPECIFIED CELL CONSTANT SEC 6.2

Section 3 - Electrical Connections and Setup

3.5 Conductivity Cell (Contacting style) connections and setup

The drawing shows the connections for the Aquametrix Conductivity Cells (Contacting style). The cable should be run in a conduit seperate from the AC power wires, and via a seperate conduit hole. The cell cable length should not exceed 300ft. (91 meters).

Note: Leave 4” to 6” slack for all wires connected to the terminals of P6. Slack required so that wires do not interfere with opening or closing of the front door.

CAUTION:

Always remove line power before unplugging or plugging in the P6 connector

Figure 3.4 Connections for Conductivity Cells

Once connnected, step through the LCD menus to select the cell in the order shown. The TEMP COMP CURVE setup default is

1.8%/deg C. This is acceptable for most process applications. If your process is significantly different from this, change the setting in the TEMP COMP CURVE menu.

Section 3 - Electrical Connections and Setup Page 9

Dwg# N104-36

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

P6

8

1

2

34 65

7

1091112 13

14 15

17

16

+12V (6)

GND (15)

(FLOW SWITCH INPUT) (13)

SIGNAL + (14)

SIGNAL - (GND) (15)

COLLECTOR

CONTACT

CLOSING THE FLOW SWITCH INPUT TO GROUND WILL ZERO THE FLOW DISPLAY

DRY

OPEN

OR

9ma

+12V O.C.

FLOW SENSOR

EXTERNAL POWERED

FLOW SENSOR

SELF POWERED

16

171514

1312119 108

7

5 643

2

1

SIGNAL - (15)

SIGNAL + (14)

SHIELD

SHIELD (15)

SETUP OF UNITS

OF VOLUME

SETUP OF UNITS

CALIBRATION FACTOR

ENTER FLOW SENSOR

SELECT FLOW METER

SEC. 7.6

OF TIME

SEC 7.5

SEC. 7.4

SEC. 7.1

TOTAL 0

TOTALIZER RESET

UNITS OF TIME

UNITS OF VOLUME

K FACTOR

METER SELECTION

RESET TOTALIZER

RUN MODE

TO ZERO SEC 7.0

Section 3 - Electrical Connections and Setup

3.6 Paddle Wheel Flow Sensor connections and setup

The drawing shows the connnections for a typical paddle wheel flow sensor. The cable to the sensor should not exceed 2000’ (600 meters). The Shark controller also supports the use of an external “flow switch”. When the flow switch input is grounded, either through a dry contact or solid state input, the flow display will be held at zero. This is useful to ensure the flow reading remains locked at zero when conditions require it. The flow will start reading again when the input is opened. If the flow switch function is not desired, simply leave it disconnected and the flow meter will read as normal.

Figure 3.5 Connections for Flow Sensor

Dwg# N104-37

Note: Leave 4” to 6” slack for all wires connected to the terminals of P6. Slack required so that wires do not interfere with opening or closing of the front door.

Once connected, step through the LCD menus to select the sensor in the order shown. The Sensor K factor (pulses per U.S. Gallon) is usually printed on the side of the sensor or on a label attached to the sensor cable.

Section 3 - Electrical Connections and Setup Page 10

CAUTION:

Always remove line power before unplugging or plugging in the P6 connector

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

N.C.

N.O.

N.C.

N.O.

N.C.

N.0

GND

RELAY B

ALARMRELAY A

NEUTRAL

GROUND

LINE

LINE OUT (21)

connections

Internal

NEUTRAL OUT (22)

RELAY CONNECTIONS FOR 120VAC

SHARK-120

P3

G

L

N

21

P4

22

23

24 25

26

27

28

29

30

31

WARNING

PIN 21 must be connected to relays for power.

PIN 22 cannot be connected to the relays.

N.C.

N.O.

N.C.

N.O.

N.C.

N.0

GND

RELAY B

ALARMRELAY A

RELAY CONNECTIONS FOR 240vac

SHARK-240

LINE

GROUND

LINE

LINE OUT (21)

connections

Internal

LINE OUT (22)

G

L

P3

21

P4

22

23

24 25

26

27

28

29

30

31

WARNING

PIN 21 must be connected to relays for power.

PIN 22 cannot be connected to the relays.

Section 3 - Electrical Connections and Setup

3.7 Relay connections

The Shark controller has three internal relays. Relays A and B are for control, the Alarm Relay can be configured for alarm functions or as an additional control relay.

The connections to the relays are shown in the drawing. Note that the AC power is internally connected to the relay terminal plug P4. This is used to provide 120V or 240V AC power for the relay contacts.

Wire Specification

: Size and fuse wire accroding to local

electrical code. Wire size not to exceed 14 AWG.

Figure 3.6 Connections for Relay A, B and Alarm

DISCONNECT POWER FROM

CONTROLLER AND LOADS WHILE

CONNECTING TO THE RELAY

OUTPUT

WARNING

TERMINAL PLUG.

The contacts are rated at 10 amp N.O. and 5 amp N.C. Do not exceed this rating.When switching larger currents, use an auxillary relay switched by the controller relay to extend the controller relay life. If the relays are controlling an inductive

Dwg# N104-38

load, use appropriate transient suppression at the load.

Section 3 - Electrical Connections and Setup Page 11

Caution:

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

Section 3 - Electrical Connections and Setup

3.8 RELAY A and B Setup

(LCD MENU SECTIONS - pH: 4.18 & 4.19, ORP: 5.17 & 5.18, Conductivity: 6.18 & 6.19, Flow: 7.15 & 7.16)

Relay A & Relay B on the SHARK are SPDT dry contact relays.They are configurable to operate in response to rising or falling process values. Each relay has independently adjustable on and off setpoints, cycle times, and fail-safe options.

The operator would use the control relays if the device to be controlled is a simple on/off device. For example a pump, solenoid valve, fan, or an indicating light.

The control relays have 6 user configurable settings:

DIRECTION a rising or falling process. If for example the relay is set to control a falling process, the ON set-point must be set lower than the OFF set-point. If the relay is set to control a falling process the SHARK will not allow the RELAY OFF set point to be set lower than the RELAY ON set-point. This rule will also apply to a rising process.

Y ON set-point: This is the process value at

RELA which the relay will energize.This value can be set anywhere between 0-100% of the range.

Y OFF set-point: This is the process value at

RELA which the relay will de-energize.Depending on the direction for which the relay is configured, the RELAY OFF set-point will only be setable in a limited range.

CYCLE ON time trol, and limit over-shoot, the control relay can be set with the cycling feature. This feature, if enabled, will cause the control relay to cycle when the process is between the RELAY ON set-point and RELAY OFF set-point. The cycle on time is the amount of time in seconds that the relay will be energized. It can be set between 0 and 600 seconds.

: The relay can be set to control either

: To obtain a tighter process con-

CYCLE OFF time: The CYCLE OFF time is the amount of time in seconds that the relay will be deenergized, it can be set between 0 and 600 seconds. To disable the cycling feature set the cycle off time to 0.

VERFEED TIMER: The overfeed timer is

O designed to help safeguard against a process or instrumentation error causing one of the control relays to remain energized for extended periods of time.

When enabled, the overfeed timer will time out if the control RELAY OFF set point is not reached inside the overfeed time out. The control relays will de-energize, the alarm relay will energize and an LED will flash at the front.

AILSAFE: The FAILSAFE feature is designed to

F reverse the normal action of the control relay.

When the relay is set to FAILSAFE OFF the relay will operate as a normal relay. When the relay is de-energized the NO contacts are open and the NC contacts are closed. Thus the device connected via the NO contacts will be off. When the relay becomes energized the device will be on.

When the relay is set to FAILSAFE ON, the normal action of the relay is reversed. Thus the NO contacts act as the NC contact and the NC act as the NO. The device connected to the NC contacts will be energized when the RELAY ON set-point is reached. The relay will be de-energized but because it is acting in reverse the device will be energized. When the RELAY OFF set-point is reached the relay will energize and the device connected to the NC contact will de-energize.

The purpose of the Fail Safe option is to have the device turned on in the event of a power interruption.

The factory default for FAILSAFE is OFF.

Section 3 - Electrical Connections and Setup Page 12

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

Section 3 - Electrical Connections and Setup

3.9 ALARM RELAY Setup

(LCD MENU SECTIONS - pH: 4.20, ORP: 5.19, Conductivity: 6.20, Flow: 7.17)

The third relay (Relay C) is used as an alarm relay. The alarm relay on the SHARK is a SPDT dry contact relay.

This relay will respond to both a rising and falling process. The alarm relay will act as a low alarm (falling process) and a high alarm (rising process). Both relays will have independently adjustable on and off set-points. The ALARM ON set-points will always be set before the ALARM OFF set-points. The shark will not let the user input a value below the ALARM ON set-point. The same rule holds true for the high alarm.

The control relays have 5 user configurable settings:

ALARM LO value that will cause the relay to energize. This value can be set anywhere between 0-100% of the range.

ALARM LO the process must reach in order to de-energize the alarm relay after it has dropped below the ALARM LOW ON set-point.This value must be higher than the ALARM LOW ON set-point.

ALARM HIGH ON set-point value that will cause the relay to energize. This value can be set anywhere between 0-100% of the range.

ALARM HIGH OFF set-point the process must reach in order to de-energize the alarm relay after it has increased over the ALARM HIGH ON set-point. This value must be lower than the ALARM HIGH ON set-point.

W ON set-point:This is the low process

W OFF set-point: This is the value that

: This is the process

: This is the value that

ALARM SET

-POINT ERROR: If the ALARM LOW ON set-point is set higher than the factory default ALARM LOW OFF set-point, when the user advances from the ALARM LOW ON set-point to the ALARM LOW OFF set-point the shark will adjust the ALARM LOW OFF set-point to be equal to the ALARM LOW ON set-point. If the user then tries to decrease the ALARM LOW OFF set-point the Shark will display the ALARM LOW ALARM setup error screen.

This screen will be displayed for 10 seconds, then return back to the setup screen that was previously displayed. If the user presses the down key again the error message will be displayed again for 10 seconds. The user must accept the LOW OFF set-point, equal to, or greater than the LOW ON set-point.

The same conditions apply to the ALARM HIGH set-points. Except the ALARM HIGH OFF setpoint must be lower than the ALARM HIGH ON set-point. If the user tries to increase the ALARM HIGH OFF set-point higher than the ALARM HIGH ON set-point the High Alarm setup error screen will be displayed.

ALARM RELA

Y DISABLE: If the user sets the ALARM LOW ON set-point and the ALARM LOW OFF set-point equal to 0% of the range. It will disable the low alarm relay.

If the user sets the ALARM HIGH ON set-point and the ALARM HIGH OFF set-point equal to 100% of the range. It will disable the high alarm relay.

AILSAFE: This option can be turned on or off. It

F reverses the normal action of the relay. (see description under control relay)

Section 3 - Electrical Connections and Setup Page 13

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

Section 3 - Electrical Connections and Setup

3.10 MANUAL TEST MODE

(LCD MENU SECTIONS - pH: 4.4, ORP: 5.3, Conductivity: 6.4, Flow: 7.2)

Once the relays are configured, the setup can be tested using Manual Test Mode to simulate process changes.

MANUAL TEST MODE is used to simulate a process reading in order to verify the correct response of the outputs. When in the MANUAL TEST MODE, the relays and outputs are no longer placed on hold as they are when in the rest of the menu. The relays and outputs will react to the simulated change in process as if the Shark was in RUN MODE.

Note that when the user exits the MANUAL TEST MODE, the relays and outputs will remain in the MANUAL TEST MODE state until the user enters RUN MODE.

3.11 RELAY OVERRIDE

(LCD MENU SECTION - pH: 4.5, ORP: 5.4, Conductivity: 6.5, Flow: 7.3)

Relay Override is used to manually override the state of the relays. The user is able to set the operating mode of the relay as AUTO/ON/OFF (the default and RUN MODE states are AUTO).

This feature can be used to energize or de-energize the relays to manually correct the process, or to shut down an ancillary device to perform maintenance. When in the RELAY OVERRIDE mode, the relays are no longer placed on hold as they are when in the other menus.

Note that if the RELAY AUTO RETURN is set to "ON", the controller will place all the relay settings back to AUTO 10 minutes after the Shark returns to the run mode..

Section 3 - Electrical Connections and Setup Page 14

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

P6

54

P1

P4

P3

423

1

7

895 6

15

1311 12

141017

16

24 23

21 22

29 28

26 25

27

6364 6267

66

65 57 56 55

61

60 59 58

CH1 4-20mA -

CH1 4-20mA +

Primary Output

CH2 4-20mA -

CH2 4-20mA +

Secondary Output

31 30

52 53 51

Section 3 - Electrical Connections and Setup

3.12 4-20 mA Isolated Outputs Channel 1 and Channel 2

(LCD MENU SECTIONS - pH: 4.21 & 4.22, ORP: 5.20 & 5.21, Conductivity: 6.21 & 6.22, Flow: 7.18 & 7.19)

The Shark Controller has two 4 to 20mA outputs, electrically isolated from each other and ground. Either output can source current into a maximum of 800 ohms.

Channel 1 (the primary output) is located on the flip out door, terminal plug P6. Channel 1 is dedicated to track the process and has fully independent and fully adjustable 4 & 20 mA output setpoints.This will enable the operator to span the output over the desired range.

Channel 2 (the secondary output) is located in the enclosure terminal plug P1. Channel 2 can be selected to track the process value or temperature and has fully independent and adjustable 4 & 20 mA output setpoints.

Both Channel 1 and 2 can be precisely trimmed through the LCD menu for precision applications.

The drawing shows the connections for both outputs.

Figure 3.7 Connections for the 4-20mA outputs

Dwg# N104-39

Note: Leave 4” to 6” slack for all wires connected to the terminals of P6. Slack required so that wires do not interfere with opening or closing of the front door.

Wire Specification insulation 0.010”

Section 3 - Electrical Connections and Setup Page 15

: 22 AWG 7/30,

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

FUSE

P6

54

P1

P4

P3

423

1

7

895 6

15

1311 121410

17

16

24 23

21 22

29 28

26 25

27

6364 6267

66

65 57 56 55

61

60 59 58

31 30

52 53 51

Section 3 - Electrical Connections and Setup

3.13 Service

SHARK SERVICE TO BE PERFORMED BY QUALIFIED PERSONNEL ONLY.

3.14 Fuse Replacement

DISCONNECT LINE POWER TO THE UNIT

1. Proceed after disconnecting line power from the instrument.

2. Open the front panel by rotating the quarter-turn fasteners, using a flat blade screwdriver, to expose the relay board.

WARNING:

TO AVOID THE POSSIBILITY

OF ELECTRICAL SHOCK.

Figure 3.8 Fuse Location

3. The fuse, F1, is located in the middle of the relay board, directly above the three terminal connectors.

4. Remove the open fuse and replace it only with a fuse of the same type and rating. REFER TO THE FUSE RATING TABLES BELOW.

5. Close the front panel and secure using the quarter-turn fasteners.

6. Restore power to the unit.

Fuse Rating Table for

Fuse Type: Slo-Blo fuse 5 x 20mm

120 volt operation

Fuse Ratings: 250 VAC, 100mA

Dwg# N104-40

Fuse Rating Table for

Fuse Type: Slo-Blo fuse 5 x 20mm

Fuse Ratings: 250 VAC, 50mA

240 volt operation

Section 3 - Electrical Connections and Setup Page 16

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

RUN LED (GREEN)

LED WILL BE ILLUMINATED WHEN SHARK IS IN THE RUN MODE. WILL BE OFF WHEN SHARK IS IN THE MENU MODE.

4 DIGIT, 7 SEGMENT LED DISPLAY

DISPLAYS PROCESS VALUE IN RUN MODE. DISPLAYS CALIBRATION DATA IN CALIBRATION MODE.

RELAY C (ALARM RELAY)

STATUS LED's (RED)



BOTTOM LED WILL ILLUMINATE

WHEN ALARM RELAY IS

ENERGIZED BECAUSE OF LOW

ALARM CONDITION.

TOP LED WILL ILLUMINATE WHEN

ALARM RELAY IS ENERGIZED

BECAUSE OF HIGH ALARM

CONDITION.

BAR GRAPH LED's (GREEN)

LINEAR INDICATOR OF PROCESS

VALUE.

(REFER TO SECTION 4.13)

1/4" TURN SCREWS

RELAY A STATUS LED (YELLOW)

LED WILL BE ILLUMINATED WHEN RELAY A IS ENERGIZED.

REMOVABLE TERMINAL BLOCK

CONNECTORS

"SNAP-ON" CONNECTORS FOR EASY

WIRING OF YOUR pH SENSOR AND

PRIMARY 4-20mA OUTPUT.

(REFER TO SECTIONS 3.3, 3.4 & 3.12)

SIMPLE THREE-BUTTON INTERFACE

FOR FAST & EASY SETUP (REFER TO SECTIONS 4.0 TO 4.21)

RELAY B STATUS LED (YELLOW)

LED WILL BE ILLUMINATED WHEN RELAY B IS ENERGIZED.

UNIT LABEL

LABEL TO INDICATE UNIT OF MEASURE SHARK IS CONFIGURED FOR.

AUXILLARY LED's

NOT USED IN pH MODE.

OVERFEED LED (RED)

LED WILL FLASH WHEN THE OVERFEED TIMER IS ACTIVATED.

CALIBRATION FROM THE

FRONT PANEL



4 PUSH BUTTONS USED TO

CALIBRATE THE SHARK FROM THE

FRONT PANEL.

(REFER TO SECTIONS 4.22 & 4.23)

2 LINE, 16 CHARACTER

LCD DISPLAY



MAIN MENU INTERFACE

SCREEN

TEMPERATURE DISPLAY

WHEN THE 'UP' AND 'DOWN' ARROW KEYS ARE PRESSED SIMULTANEOUSLY, THE LED WILL DISPLAY THE CURRENT PROCESS TEMPERATURE FOR 5 SECONDS.  THIS FEATURE WILL BE DISABLED IF THE 'TEMPERATURE COMPENSATION OVERRIDE' IS TURNED ON IN THE SETUP MENU. IN THIS CASE THE LED WILL DISPLAY

---- IN PLACE OF THE

TEMPERATURE.

P6

843

2

1

7

65

11109

1514

1312

17

16

FRONT PANEL

INSIDE PANEL

NOTE

WHEN THE SHARK IS TAKEN INTO

MENU MODE VIA THE INSIDE LCD

SCREEN, THE FRONT 7-SEGMENT LED

WILL DISPLAY

----. THE STATUS &

BAR GRAPH LED's WILL BE TURNED OFF. THE 4 PUSH BUTTONS ON THE

FRONT WILL NOT RESPOND.

Section 4 - Using the SHARK in pH Mode

Section 4 - Using the SHARK in pH Mode Page 17

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWNDOWN

DOWN

DOWNDOWN

DOWN

DOWNDOWN

DOWN

DOWNDOWN

DOWN

DOWNDOWN

SELECT DEG C OR DEG F

ENABLE TIME OUT

PROBE W/O TEMP. SENSOR

TEMPERATURE SETUP FOR

SETUP DISPLAY AND OUTPUT RESPONSE TIME

SELECT TYPE OF

4-20 mA CH 1 OUTPUT

4-20 mA CH. 2 OUTPUT

SETUP ALARM RELAY SEC 4.20

SETUP

SEC 4.21 SETUP

SEC 4.22

SETUP RELAY A SEC 4.18

SETUP RELAY B SEC 4.19

FROM MENU

DISPLAY FIRMWAVE REVISION SEC. 4.15

DISPLAY PREVIOUS CALIBRATION DATA SEC 4.16

DISPLAY UNCALIBRATED PROBE DATA SEC 4.17

SEC. 4.11

SEC 4.12

SEC 4.13 SETUP RESOLUTION

OF FRONT PANEL BAR GRAPH SEC 4.14

SEC. 4.8

SEC 4.9

SELECT TYPE OF TEMP SENSOR SEC 4.10

pH PROBE

RUN MODE

SEC. 4.3

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

RELAYS

SELECT TYPE OF METER

SEC. 4.5

SEC. 4.6 RESETS RELAY

OVERFEED TIMER SEC. 4.7

VERIFY OUTPUTS

SIMULATE PROCESS

MANUALLY OVERRIDE

SEC. 4.4

AUTO CALIBRATE

MANUAL CALIBRATE

SENSOR IN pH PROBE

CALIBRATE TEMP.

pH PROBE SEC. 4.1

pH PROBE SEC. 4.2

DIAGNOSTICS

EXIT

ALARM RELAY

4-20mA CH1

4-20mA CH2

RELAY A

RELAY B

SENSOR INPUT

CALIBRATION DATA

FIRMWARE REV

EXIT

OUTPUTS

DISPLAY DAMPING

BAR GRAPH O/R

T.COMP OVERRIDE

EXIT

AUTO RETURN

TEMP UNIT

TEMP SENSOR

PROBE SELECT

7.15pH 25.0C

UTILITIES

SETUP

CALIBRATION

MANUAL TEST MODE

METER SELECTION

RESET OVERFD TMR

RELAY OVERRIDE

EXIT

TEMP CALIBRATION

MANUAL CAL PH

AUTO CAL PH

pH - Menu Overview 4.0

pH - Menu Overview 4.0 Page 18

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP DOWN

DOWN

UP DOWN

DOWN

UP

DOWN

UP

DOWN

Please wait for the controller to complete the measurement

After 5 seconds, the controller will compute the slope of the calibration, the estimated probe efficiency and the probe temperature.

Then press to store the value and complete the Manual Calibration

Then press to store the value and move to BUFFER2

Use the and keys to adjust the reading until it agrees with the actual buffer pH value

When complete, the controller will report the measured value

The controller will read the pH value, averaging a number of results to get a stable calibration value.

Place the probe in the second buffer. Be sure to clean and rinse the Probe first with D.I. water and then insert it in the 4.00 buffer.

Press

Use the and keys to adjust the reading until it agrees with the actual buffer pH value

When complete, the controller will report the measured value

Please wait for the controller to complete the measurement

The controller will read the pH value, averaging a number of results to get a stable calibration value.

Place the probe in the first buffer solution, be sure to clean and rinse the Probe first with D.I. water and then insert it in the 7.00 buffer.

Press

If the calibration is OK, use the key to move the cursor over the Y text and press the down key.

If the calibration did not appear to be correct, press the key which will return back to the Manual Cal menu.

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Press to store the calibration data and return back to the Manual Cal menu so the user can select another function.

Then press to move the cursor to the RH position

STORE? Y N STORE? Y N

IF BUFFER1 READYCALIBRATION MANUAL CAL PH

MANUAL CAL PH

MANUAL CAL PH BUFFER2 4.00 >

SLOPE 61.22MV/PH EFF 95% 24.8C

BUFFER1 7.00 >

MANUAL CAL PH BUFFER2 4.4 0 >

MANUAL CAL PH BUFFER2 4.0 0 >

BUFFER2 WAIT...

RUNNING MANU CAL

IF BUFFER2 READY PRESS 'DOWN'

MANUAL CAL PH

MANUAL CAL PH BUFFER1 7.0 0 >

RUNNING MANU CAL BUFFER1 WAIT...

PRESS 'DOWN'

BUFFER1 7.3 5 >

MANUAL CAL PH

7.15pH 25.0C

MANUAL CAL PH

This example shows a MANUAL calibration with buffers of 7pH & 4pH.

When performing a manual calibration, any two known buffer solutions can be used.

pH - Calibration Menu - Manual Calibrate 4.1

pH - Calibration Menu - Manual Calibrate 4.1 Page 19

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWN DOWN

DOWN

If an errors occurs, the controller will indicate a "BUFFER ERROR" alarm. This could be caused by

- using a defective buffer

- incorrect probe wiring

- defective probe Press to return to the Auto cal menu, try to

correct the problem and calibrate again, or go to the diagnotics menus to test the probe see Section 4.17

If an errors occurs, the controller will indicate a "BUFFER ERROR" alarm. This could be caused by

- using the same buffer twice

- using a defective buffer

- incorrect probe wiring

- defective probe Press to return to the Auto cal menu, try to

correct the problem and calibrate again, or go to the diagnotics menus to test the probe

If the calibration did not appear to be correct, press the key which will return back to the Auto cal menu.

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

This will store the calibration data and return back to the Auto cal setup so the user can select another function.

If the calibration is OK, use the key to move the cursor over the Y text and press the down key.

After 5 seconds, the controller will compute the slope of the calibration, the estimated probe efficiency and the probe temperature.

When complete, the controller will report the measured value

Press the key to move to Buffer 2

Please wait for the controller to complete the measurement

The controller will read the pH value, averaging a number of results to get a stable calibration value.

Place the probe in the second buffer solution.Be sure to clean and rinse the Probe first with D.I. water and then insert it in the 4.00 buffer.

Press the key

Please wait for the controller to complete the measurement

The controller will read the pH value, averaging a number of results to get a stable calibration value.

Place the probe in the first buffer solution, be sure to clean and rinse the Probe first with D.I. water and then insert it in the 7.00 buffer.

Press

RUN MODE

AUTO CAL PH

STORE? Y N STORE? Y N

AUTO CAL PH

EFF 95% 24.8C

SLOPE 61.22MV/PH

BUFFER2 4.00 >

AUTO CAL PH

BUFFER ERROR

CONTINUE >

RUNNING AUTO CAL BUFFER2 WAIT...

BUFFER1 7.00 >

PRESS 'DOWN'

IF BUFFER2 READY

BUFFER ERROR

CONTINUE >

PRESS 'DOWN'

IF BUFFER1 READY

RUNNING AUTO CAL BUFFER1 WAIT...

CALIBRATION

7.15pH 25.0C

MANUAL CAL PH

This example shows an AUTO calibration with buffers of 7pH & 4pH.

When performing an auto calibration, any two standard buffers of 4.00, 7.00 or 10.00 pH can be used. The buffers will be automatically recognized if the probe measures them within +/- 1 pH of their nominal value.

pH - Calibration Menu - Auto Calibrate 4.2

pH - Calibration Menu - Auto Calibrate 4.2 Page 20

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWN DOWN

DOWNUP

DOWN

UP

DOWN

If the Temperature Compensation Override is set to ON (see section 4.12), the Shark cannot calibrate the temperature sensor. This display will appear to alert the user to the condition.

If the calibration did not appear to be correct, press the key which will return back to the Temp Calibration menu.

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

This will store the calibration data and return back to the Temp Calibration setup so the user can select another function.

Use the and to adjust the reading until it agrees with the known temperature of the probe

Press the key to accept the reading and move to the store function

"T FACTOR SHIFTED" will be displayed for 5 seconds to indicate that the temperature sensor has been calibrated. The Shark will then move to the store function.

The controller displays the current probe temperature. If this incorrect, the controller can be adjusted to compensate.

Press the key once which will move the cursor back to the RH side of temperature display.

Press the key once which will move the cursor over the least sign. digit of the temperature display.

RUN MODE

AUTO CAL PH

STORE? Y N

TEMP CALIBRATION

STORE? Y N

TEMP CALIBRATION

25.0C >

T FACTOR SHIFTED

25. 0 C >

TEMP CALIBRATION

22. 4 C >

22.4C >

TEMP CALIBRATION TEMP O/R ON >

7.15pH 25.0C

CALIBRATION MANUAL CAL PH

pH - Calibration Menu - Temperature Calibration 4.3

pH - Calibration Menu - Temperature Calibration 4.3 Page 21

S H A R K

DOWN

UP DOWN

DOWN

UP

DOWN

Manual Test Mode is used to simulate a process reading in order to verify the correct response of the outputs. When in the Manual Test Mode, the outputs are no longer placed on hold as they are when in the rest of the menu.

NOTE: When the user exits the Manual Test Mode, the relays and 4-20mA outputs will remain in the Test Mode state until the operator enters the run mode. The relays and

outputs will then revert back to the previous On-line state.

The CH1 4-20 mA output will track the change in process

When a relay is energized, the characters a,b,c will change to upper case A,B,C

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

As the value is changed, the state of the relays will change depending on their settings in the OUTPUTS menu. a/A - state of Relay A b/B - state of Relay B c/C - state of Alarm relay

Press the key once to move the cursor to the RH side of the display

As well, Channel 1 4-20 ma output will also follow the process value change. The actual change will depend on how the CH1 output was scaled in the OUTPUTS menus. (See Section 4.21)

Press the key to return to the MANUAL TEST MODE menu

Use the and keys to change the simulated process value.

Press the key once which will move the cursor over the least digit of the simulated process value.

TEST 7.0 0 >

TEST 7.00 >

7.15pH 25.0C

CALIBRATION

UTILITIES

a b c 19.0mA

TEST 13.1 5 >

TEST 13.15 >

MANUAL TEST MODE

a b c 12.0mA

a B c 19.0mA

TEST 13.1 5 >

DOWN

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

pH - Utilities Menu - Manual Test Mode 4.4

pH - Utilities Menu - Manual Test Mode 4.4 Page 22

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

UP

To Alarm Relay (Relay C) Override

UP

DOWN

UP

DOWN

DOWN DOWN

DOWN

UP DOWN

DOWN

Use the or key to change the Override state from AUTO - controlled by process settings ON - relay forced on OFF- relay forced off The relay will react immediately.

Relay Override is used to manually override the state of the relays, the user is able to set the operating mode of the relay as AUTO/ON/OFF (the default and run mode state are AUTO). This feature can be used to turn the relays ON or OFF to manually correct the process, or to shut down an ancillary device to perform maintenance. When in the Relay Override mode, the outputs are no longer placed on hold as they are when in the other menus.

If you wish to Override Relay B, Press the key once which will move the cursor over to the AUTO/ON/OFF text

If you wish to Override Relay A, Press the key once which will move the cursor over to the AUTO/ON/OFF text

If you do not wish to Override Relay B, then use the key to the Alarm Relay

If you do not wish to Override Relay A, then use the key to move to Relay B

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

If you wish to accept the Override setting, Press the key once to move the cursor to the RH of the display

Then use the key to move to the Override setting for Relay B

CAUTION:

Note that if the Relay Auto Return Menu is set to "ON", the controller will place all these settings back to AUTO 10 minutes after the Shark returns to the run mode.

If you wish to accept the Override setting, Press the key once to move the cursor to the RH of the display

To use the Relay Override function, press the key

Then use the key to move to the Override setting for Relay A

UP DOWN

Use the or key to change the Override state from AUTO - controlled by process settings ON - relay forced on OFF- relay forced off The relay will react immediately.

RELAY OVERRIDE RELAY B A UTO >

RELAY OVERRIDE RELAY B O N >

RELAY OVERRIDE RELAY B O FF >

RELAY A O FF >

RELAY OVERRIDE RELAY A O N >

RELAY OVERRIDE

RELAY A A UTO >

RELAY OVERRIDE

MANUAL TEST MODE

RELAY OVERRIDE RELAY B AUTO >

RELAY A AUTO >

RELAY OVERRIDE

CALIBRATION

7.15pH 25.0C

UTILITIES

RELAY B ON >

RELAY B AUTO >

RELAY B OFF >

RELAY OVERRIDE

RELAY A ON >

RELAY A AUTO >

RELAY A OFF >

RELAY OVERRIDE

pH - Utilities Menu - Relay Override 4.5

pH - Utilities Menu - Relay Override 4.5 Page 23

S H A R K

DOWN

UP DOWN

DOWN

DOWNUP

UP

DOWN

UP DOWN

Use the or key to change the Override state from AUTO - controlled by process settings ON - relay forced on OFF- relay forced off The relay will react immediately.

If you do not wish to Override Relay C, then use the key to the Store function

With "N" highlighted, pressing the key will NOT store the Override states of the relays, but they will revert to the state they were in before the menu was entered. Note that, if any of the relays were in a specific Override state before the menu was entered (i.e. not in AUTO), they will revert to that state again unless the changes are STORED.

TO RELAY OVERRIDE MENU

NOT STORED

FROM RELAY B OVERRIDE MENU

Then press the key to store the Override states of all the relays and return back to the Override menu

STORED

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

If you wish to accept the Override setting, Press the key once to move the cursor to the RH of the display

If you wish to store the state of the Relay Overrides, press the key to highlight the Y character

If you wish to Override Relay C, Press the key once which will move the

Then use the key to move to the Override setting for Relay C

NOTE Relay C is the Alarm Relay

STORE? Y N

RELAY C AUTO >

RELAY OVERRIDE

STORE? Y N

RELAY OVERRIDE

RELAY C O N >

RELAY C O FF >

RELAY OVERRIDE RELAY C A UTO >

RELAY OVERRIDE

RELAY OVERRIDE RELAY C ON >

RELAY C OFF >

RELAY OVERRIDE RELAY C AUTO >

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

pH - Utilities Menu - Relay Override 4.5

pH - Utilities Menu - Relay Override 4.5 Page 24

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWNDOWN

DOWN

DOWN DOWN

DOWN

If you do not wish to initialize to this type of meter after all, then press key to return back to the Meter Selection menu

To reset the controller back to all the factory default values, reselect the current meter type

Then press The controller will initialize itself for a specific meter

If you do wish to initialize to this type of meter, press the key to highlight the Y character

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Press the key to Exit and return to the Utilities menu

RUN MODE

Press the key to initialize the controller as a Flow meter

Press the key to initialize the controller as a Conductivity meter

The Meter Selection menu is used to select the meter type that the controller is configured for, either pH, ORP, Conductivity or FLow. Once selected, the controller will initialize itself for the selected meter's functionality and move to run mode.

Press the key to initialize the controller as an ORP meter

Press the key to initialize the controller as a pH meter.

INITIALIZE? Y N

PH

E XIT

MANUAL TEST MODE

7.15pH 25.0C

UTILITIES

CALIBRATION

RELAY OVERRIDE

METER SELECTION

C ONDUCTIVITY

FLOW

EXIT

F LOW

CONDUCTIVITY

O RP

CONDUCTIVITY

FLOW

ORP

P H ORP

PH

pH - Utilities Menu - Meter Selection 4.6

pH - Utilities Menu - Meter Selection 4.6 Page 25

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWNDOWN

DOWN

If you wish to reset the overfeed timer, then press the key to proceed and return back to the Utilities menu.

If you do not wish to reset the overfeed timer after all, press the key to highlight the N character and press the key to return back to the Utilities menu.

DOWN

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

RUN MODE

Press the key to choose between Y or N.

If the control relay overfeed timer has been enabled, the relay will “time out” after the specified overfeed time. When the relay times out, it must be manually reset. The time out will be signaled by the time out LED flashing on the front panel.

The reset overfeed timer will reset the timers for both relay A & relay B at the same time.

Y N

MANUAL TEST MODE

7.15pH 25.0C

UTILITIES

CALIBRATION

RELAY OVERRIDE

METER SELECTION

RESET OVERFD TMR

Y N

RESET OVERFD TMR

pH - Utilities Menu - Overfeed Timer Reset 4.7

pH - Utilities Menu - Overfeed Timer Reset 4.7 Page 26

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP DOWN

DOWN

UP

DOWN

Then press the key to store the selection and return to the PROBE SELECT Menu.

With "N" selected, pressing the key will NOT store the selection, but simply return to the PROBE SELECT Menu. This function is useful if you wish to view the current selection without making any changes.

Not stored

Stored

Or press the key to highlight the Y character.

Note:

If using the 2 wire Combination Probe (which doesn't have a temperature sensor), T COMP OVERRIDE must be set to ON, and the actual probe temperature set through the T COMP OVERRIDE menu. (see sec. 4.12)

PROBE SELECT will allow the user to select whether the probe is a 2 or 4 wire combination probe, or a 5 wire differential probe.

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Use the or keys to scroll through the probe types available. In this case, the user can select

- the 2 or 4 wire combination probe

- the 5 wire differential probe

Press the key to accept the setting and move to the store function

Press the key once which will move the cursor back to the RH side of the display.

Once the correct probe type is selected, move to the store function to save the selection

Press the key once which will move the cursor over the first character of the probe type.

STORE? Y N STORE? Y N

PROBE SELECT PROBE SELECT

7.15pH 25.0C

UTILITIES

SETUP

CALIBRATION

PROBE SELECT COMBINATION >

C OMBINATION

PROBE SELECT

D IFFERENTIAL

PROBE SELECT

PROBE SELECT PROBE SELECT

DIFFERENTIAL >

Note: Refer to Appendix A - Probe Configuration Table

pH - Setup Menu - Probe Select 4.8

pH - Setup Menu - Probe Select 4.8 Page 27

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP DOWN

DOWN

UP

DOWN

With "N" selected, pressing the key will NOT store the selection, but simply return to the TEMP UNIT Selection Menu. This function is useful if you wish to view the current selection without making any changes.

RUN MODE

Or press the key to highlight

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Then press the key to store the selection and return to the TEMP UNIT Selection Menu.

Not stored

Stored

the Y character.

Use the or to select C or F

Press the key to accept the change and move to the store function

Press the key once which will move the cursor over the unit type, C or F.

Press the key once which will move the cursor back to the RH side of the display.

TEMP UNIT allows the user to select either Degrees Centigrade or Fahrenheit units for display

7.15pH 25.0C

CALIBRATION

UTILITIES

SETUP

TEMP UNIT

PROBE SELECT

STORE? Y N

TEMP UNIT TEMP UNIT

DEGREE C >

DEGREE F >

TEMP UNIT

DEGREE F >

DEGREE C >

TEMP UNIT

pH - Setup Menu -Temp Unit 4.9

pH - Setup Menu - Temp Unit 4.9 Page 28

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

DOWN

UP

DOWN

the Y character.

Or press the key to highlight

With "N" selected, pressing the key will NOT store the selection, but simply return to the TEMP SENSOR Selection Menu. This function is useful if you wish to view the current selection without making any changes.

Not stored

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Press the key to accept the change and move to the store function

Then press the key to store the selection and return to the TEMP SENSOR Selection Menu.

Stored

TEMP SENSOR allows the user to select the type of temperature sensor used the in the probe.

The factory default for pH is a 300 NTC Thermistor. The user can also select a 3000 NTC Thermistor or a 1000 RTD.

RUN MODE

Use the or to select the sensor type

Once the correct Sensor has been selected press the key once which will move the cursor back to the RH side of the display.

Press the key once which will move the cursor over to the sensor type.

7.15pH 25.0C

SETUP

UTILITIES

CALIBRATION

STORE? Y N

TEMP SENSOR

300 NTC >

3 000 NTC >

TEMP SENSOR

Ω

TEMP SENSOR

TEMP UNIT

TEMP SENSOR

1 000 RTD >

TEMP SENSOR

3 00 NTC >

TEMP SENSOR

Ω

300 NTC >

TEMP SENSOR

PROBE SELECT

Ω

pH - Setup Menu - Temp. Sensor 4.10

pH - Setup Menu - Temp. Sensor 4.10 Page 29

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

Not stored

DOWN

Stored

DOWN

UP DOWN

DOWN

UP

DOWN

UP DOWN

DOWN

UP

CAUTION:

If AUTO RETURN RELAYS is ON, regardless of the user settings of the states of the relays, Relays will default to AUTO 10 minutes after the Shark returns to Run Mode.

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

With "N" selected, pressing the key will NOT store the selection, but simply return to the AUTO RETURN Selection Menu. This function is useful if you wish to view the current selection without making any changes.

Then press the key to store the selection and return to the Auto Return Selection Menu.

Press the key to accept the change and move to the STORE function

Or press the key to highlight the Y character.

Press the key to accept the change and move to the RELAYS auto return function. RELAYS ON will cause the relays to return to the AUTO mode if the controller returns to Online after 10 minutes of inactivity. This ensures the controller will be put back in control of the process if accidentally left offline.

Use the or keys to select either ON or OFF.

Press the key once which will move the cursor to the ON or OFF text

Press the key once which will move the cursor back to the RH side of the display.

RUN MODE

To change the MENU RETURN setting, Press the key once which will move the cursor to the ON or OFF text

Use the or keys to select either ON or OFF.

Press the key once which will move the cursor back to the RH side of the display.

MENU ON will cause the controller to exit the menu and revert back to the online run mode after 10 minutes with no buttons pressed. This feature ensures that if a user forgets to return back to run mode, the controller will not be left in an offline state. If for some reason, the user would like to remain in the menu mode for extended periods of time, the AUTO RETURN function can be set to "OFF".

AUTO RETURN is used to select what conditions will cause the controller to time-out of the operations menu, or reset the relay override function.

7.15pH 25.0C

SETUP

UTILITIES

CALIBRATION

STORE? Y N

AUTO RETURN

RELAYS OFF >

AUTO RETURN

RELAYS ON >

RELAYS O N >

RELAYS O FF >

AUTO RETURN

AUTO RETURNAUTO RETURN MENU ON >

TEMP SENSOR

TEMP UNIT

PROBE SELECTION

AUTO RETURN

MENU OFF >

AUTO RETURN

MENU O FF >

MENU O N >

pH - Setup Menu - Auto Return 4.11

pH - Setup Menu - Auto Return 4.11 Page 30

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

UP

DOWN

UP

DOWN

DOWN DOWN

DOWN

DOWNUP

DOWN

DOWNUP

DOWN

Use the or keys to select either ON or OFF.

Press the key to accept the change and move to the Temperature Entry function

Press the key once which will move the cursor back to the RH side of the display.

Press the key once which will move the cursor over the least significant digit of the temperature display.

Use the and to adjust the reading until it agrees with the known temperature of the probe or process

Press the key to accept the reading and move to the store function

Press the key once which will move the cursor back to the RH side of temperature display.

The user can now enter the actual probe or process temperature

Then press the key to store the selection and return to the T. COMP OVERRIDE Menu.

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

With "N" selected, pressing the key will NOT store the selection, but simply return to the T. Comp Override Menu. This function is useful if you wish to view the current selection without making any changes.

If you wish to save the setting, press the key to highlight the Y character

Not stored

Stored

RUN MODE

Press the key once which will move the cursor to the ON or OFF text

Temperature Compensation Override is used to manually set the actual probe or process temperature. This is useful if the probe does not have a temperature sensor or if the process temperature is constant. When the override is enabled, the controller will use the selected temperature when performing temperature compensation calculations.

T.COMP OVERRIDE

STORE? Y N

TEMP 35. 7 C >

TEMP 35.7C >

T.COMP OVERRIDE

T.COMP OVERRIDE T.COMP OVERRIDE

TEMP 25. 4 C >

T.COMP OVERRIDE

T.COMP OVERRIDE TEMP 25.4C >

AUTO RETURN

T.COMP OVERRIDE

CALIBRATION

UTILITIES

SETUP

7.15pH 25.0C

TEMP UNIT

TEMP SENSOR

PROBE SELECTION

COMPENSATE O FF >

COMPENSATE O N >

T.COMP OVERRIDE

COMPENSATE O N >

T.COMP OVERRIDE

COMPENSATE OFF >

T.COMP OVERRIDE

pH - Setup Menu - T.Comp Override 4.12

pH - Setup Menu - T.Comp Override 4.12 Page 31

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

DOWNUP

DOWN

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

The Display Damping menu allows the user to adjust the rate at which the display and all outputs are updated. This allows the user to dampen out unstable process readings. The damping can be set from 0 seconds to 10 seconds. (default value is 0 sec.)

With "N" selected, pressing the key will NOT store the selection, but simply return to the Display Damping Menu. This function is useful if you wish to view the current selection without making any changes.

Not stored

RUN MODE

Use the and to adjust the damping time, the default setting is 0 seconds. The setting can be adjusted from 0 to 10 seconds.

Then press the key to store the selection and return to the Display Damping Menu.

Stored

If you wish to save the setting, press the key to highlight the Y character

Press the key once which will move the cursor back to the RH side of the display.

Press the key to accept the setting and move to the store function

Press the key once which will move the cursor over the seconds digit

STORE? Y N

UPDATE 10 SEC >

UPDATE 0 SEC >

DISPLAY DAMPING

UPDATE 1 0 SEC >

DISPLAY DAMPING

STORE? Y N

DISPLAY DAMPING

7.15pH 25.0C

CALIBRATION

SETUP

UTILITIES

DISPLAY DAMPING

AUTO RETURN

T.COMP OVERRIDE

DISPLAY DAMPING

UPDATE 0SEC >

TEMP UNIT

PROBE SELECTION

DOWN

TEMP SENSOR

pH - Setup Menu - Display Damping 4.13

pH - Setup Menu - Display Damping 4.13 Page 32

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

DOWN

UP

DOWN

UP

DOWN

DOWNUP

DOWN

UP

DOWN

DOWNUP

DOWN

Then press the key to store the selection and return to the Bar Graph O/R Menu.

Stored

Not stored

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Press the key skip the setting for the Low Green Led and move to the setting for the High Green Led.

With "N" selected, pressing the key will NOT store the selection, but simply return to theBar Graph O/R Menu. This function is useful if you wish to view the current selection without making any changes.

Press the key skip the setting for the HIgh Green Led and move to store function.

Use the and to adjust the setting for the High Green Led.

Press the key to accept the reading and move to the store function.

Press the key once which will move the cursor back to the RH side.

If you wish to save the setting, press the key to highlight the Y character

The controller displays the current setting for the highest green Led of the bar graph.

Press the key to accept the reading and move to the High Green Led setting.

Press the key once which will move the cursor over the least sign. digit.

Press the key once which will move the cursor back to the RH side.

Use the and to adjust the setting for the Low Green Led.

The BAR GRAPH O/R menu allows the user control over the resolution of the bar graph on the front panel of the Shark. The factory default for this function is "OFF" which means the 3 green LEDS are set to operate between the ON set points of Relay A and B. This may not always be acceptable, and this function allows the user to override these settings.

The controller displays the current setting for the lowest green led of the bar graph.

RUN MODE

Press the key once which will move the cursor back to the RH side of the display.

Press the key to adjust the resolution setting. If OFF was selected, the menu will move to the store function directly.

Press the key once which will move the cursor over the least sign. digit.

Use the and to select the override either ON or OFF.

Press the key once which will move the cursor over the first character

7.15pH 25.0C

SETUP

UTILITIES

CALIBRATION

LOW GRN 0.0 0 >

STORE? Y N

BAR GRAPH O/R

STORE? Y N

HIGH GRN 10.80 >

HIGH GRN 10.8 0 >

BAR GRAPH O/R

BAR GRAPH O/R HIGH GRN 14.00 >

HIGH GRN 14.0 0 >

BAR GRAPH O/R

BAR GRAPH O/R LOW GRN 2.5 0 >

LOW GRN 2.50 >

BAR GRAPH O/R

OVERRIDE OFF >

BAR GRAPH O/R

DISPLAY DAMPING

T.COMP OVERRIDE

AUTO RETURN

TEMP SENSOR

PROBE SELECTION

TEMP UNIT

BAR GRAPH O/R

BAR GRAPH O/R LOW GRN 0.00 >

OVERRIDE ON >

BAR GRAPH O/R

OVERRIDE O FF >

BAR GRAPH O/R

OVERRIDE O N >

BAR GRAPH O/R

pH - Setup Menu - Bar Graph O/R 4.14

pH - Setup Menu - Bar Graph O/R 4.14 Page 33

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

The FIRMWARE REV menu allows the user to see what revision of the firmware is currently installed in the controller. This is a Read Only menu item.

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

7.15pH 25.0C

DIAGNOSTICS

SETUP

UTILITIES

CALIBRATION

FIRMWARE REV. FIRMWARE REV.

1.15 >

pH - Diagnostics Menu - Firmware Rev 4.15

pH - Diagnostics Menu - Firmware Rev 4.15 Page 34

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

The Calibration Data menu is a series of read only screens which allow the user to view the data collected during the last calibration.

RUN MODE

Press to view the first Calibration Data screen.

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

1st POINT PH = 7.00 INPUT FROM PROBE = - 19 mV

Calculated efficiency based on 2 point calibration = 91 %

Calculated slope based on 2 point calibration = 59.16 mV/pH

Probe Temperature at which calibration was performed = 19.4°C

2nd POINT PH = 4.00 INPUT FROM PROBE = + 143 mV

Calibration Mode 2 point calibration

Press to view the next Calibration Data screen.

EFF 91% >

59.16MV/PH >

CALIBRATION DATA CAL TEMP 19.4C >

CALIBRATION DATA 2P 4.00/ 143 >

CALIBRATION DATA 1P 7.00/ -19 >

MODE 2PT >

CALIBRATION DATA

7.15pH 25.0C

DIAGNOSTICS

CALIBRATION

UTILITIES

SETUP

CAL EFFICIENCY

CAL SLOPE

CALIBRATION DATA

FIRMWARE REV.

pH - Diagnostics Menu - Calibration Data 4.16

pH - Diagnostics Menu - Calibration Data 4.16 Page 35

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

The Sensor Input Menu allows the user to view real time, uncompensated process data from the probe. This is a Read only menu item.

The top line shows the mV input from the probe The bottom line shows the actual value of the temperature sensor in ohms.

Press to view the Sensor Input data.

CALIBRATION DATA

SETUP

DIAGNOSTICS

SENSOR INPUT

FIRMWARE REV.

7.15pH 25.0C

UTILITIES

CALIBRATION

TEMP 331Ω >

PROBE -18mV

RUN MODE

pH - Diagnostics Menu - Sensor Input 4.17

Troubleshooting a pH probe using the sensor input

Sensor input displays the uncompensated sensor input data. The pH probe values are displayed in mV (millivolts). The temperature sensor value is displayed in Ω (ohm).

Connect the pH probe as per Probe Configuration Table in Appendix A.

1. Place the probe in buffer 7pH (allow temperature to stabilize)

• Probe should read 0mV [±50mV]

• Temperature should read 300Ω [±50Ω] @ 25°C

• Record both of these numbers.

2. Place the probe in buffer 4pH

• Probe should read +160mV more than probe value at 7pH

• Temperature should read the same as in 7pH

3. Place the probe in buffer 10pH

• Probe should read -160mV less then probe value at 7pH

• Temperature should read the same as in 7pH

pH - Diagnostics Menu - Sensor Input 4.17 Page 36

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWN UP DOWN

DOWN

UP DOWN

DOWN

UP

DOWN

DOWNUP

UP

DOWN

UP

DOWN

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Relay A can be configured for the following operations

- Response to rising or falling process values

- Adjustable on and off set-points

- Cycle on and off times

- Failsafe operation

TO CYCLE ON

The relay can be set to control either a RISING or FALLING process.

In a FALLING process, the control relay will energize when the process falls below a set value. In this case, the ON set-point must be set lower than the OFF set-point.

In a RISING process, the control relay will energize when the process rises above a set value. In this case, the ON set-point must be set higher than the OFF set-point.

The RELAY OFF setting is the process value at which the relay will de-energize. The setting must be rationalized against the On setting. For example, in a falling process, the Off setting must be higher than the ON setting.

The controller will not allow you to select the RELAY OFF value on the wrong side of the RELAY ON value for the selected direction. If the user tries to set the RELAY OFF on the wrong side, the following errors will de displayed:

Error when trying to set OFF point lower than ON point when set to falling.

Error when trying to set OFF point higher than ON point when set to rising.

The RELAY ON setting is the process value at which the relay will energize. It may be set anywhere between 0-100% of the range.

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

RELAY OFF 5.6 0 >

RELAY OFF 4.5 0 >

RELAY ON 4.2 0 >

RELAY ON 4.0 0 >

DIRECTION FALL >

DIRECTION F ALL >

RELAY OFF 4.50 >

RELAY ON 4.00 >

DIRECTION R ISE >

RELAY A

RELAY OFF 5.60 >

RELAY A

ON SPT < OFF SPT

FALLING PROCESS

ON SPT > OFF SPT

RISING PROCESS

RELAY A

RELAY ON 4.20 >

RELAY A RELAY A

RELAY A

7.15pH 25.0C

CALIBRATION

OUTPUTS

UTILITIES

DIAGNOSTICS

SETUP

DIRECTION FALL >

RELAY A

pH - Outputs Menu - Relay A 4.18

pH - Outputs Menu - Relay A 4.18 Page 37

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

TO OUTPUTS MENU

DOWN

UP DOWN

DOWN

DOWNUP

DOWN

UP DOWN

DOWN

UP

DOWN

UP

DOWN

DOWN UP DOWN

DOWN

UP DOWN

Use the and keys to change the setting

UP DOWN

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Press the key to accept the setting and move to the next setting

OVERFD TIMER OFF >

RELAY A

TIME (MIN) 6 >

OVERFD TIMER O N >

RELAY A OVERFD

RELAY A

OVERFD TIMER O FF >

RELAY A

DOWN

Press the key to accept the setting and move to the next setting

OVERFD TIMER ON >

RELAY A

Press the key once which will move the cursor back to the RH side of the display.

TIME (MIN) 6 >

RELAY A OVERFD

UP DOWN

TIME (MIN) 1 0 >

RELAY A OVERFD

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

FROM CYCLE ON

The CYCLE OFF time is the amount of time in seconds that the relay will be off for, it can be set between 0 - 600 seconds.

To disable the cycling feature set the cycle off time to 0.

The Default OFF time is 0 seconds.

The OVERFEED TIMER is designed to help safeguard against a process or instrumentation error causing one of the control relays to remain energized for extended periods of time.

When enabled, the user must select the desired overfeed timeout time (1-999 min.)

If the overfeed timer times out:

• Alarm relay will energize.

• Control (A&B) will de-energize

• LED on front will flash

Must be reset via Utilities Menu or Power reset.

The FAIL SAFE feature is designed to reverse the normal action of the relay.

When set to FAIL SAFE OFF, the relay will operate as a normal relay, which means that when the relay is not energized the NO contacts are open, and a device connected via the NO contacts is turned off. When the relay becomes energized the device turns on.

When the relay is set to FAIL SAFE ON, the normal action of the relay is reversed. Thus the NO contact acts as the NC contacts and the NC acts as the NO. Therefore the device connected to the NC contacts will be turned on when the relay on set-point is reached. Actually the relay will be de-energized but because it is acting in reverse the device will be turned on. When the relay off set-point is reached the relay will energize and the device connected to the NC contact will turn off.

The reason that the Fail Safe option would be used is to have the device turned on in the event of a power interruption.

With "N" selected, pressing the key will NOT store the selection, but simply return to the OUTPUTS Menu. This function is useful if you wish to view the current selection without making any changes.

The relay can be set to CYCLE when the process is between the RELAY ON setting and the RELAY OFF setting. This is meant to help eliminate overshoot.

The CYCLE ON time is the amount of time in seconds that the relay will be on. The value can be set between 0 and 600 seconds. The default ON time is 5 seconds.

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

Press the key to accept the setting and move to the STORE fuction.

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

DOWN

Or press the key to highlight the Y character

Then press the key to store the selection and return to the OUTPUTS menu

Not stored

Stored

STORE? Y N

RELAY A

FAIL SAFE OFF >

CYCLE OFF 0S >

CYCLE ON 5S >

RELAY A

FAIL SAFE ON >

FAIL SAFE O N >

FAIL SAFE O FF >

CYCLE OFF 200S >

CYCLE OFF 20 0 S >

RELAY A

CYCLE OFF 0 S >

CYCLE ON 100 S >

CYCLE ON 10 0 S >

CYCLE ON 5 S >

RELAY A

pH - Outputs Menu - Relay A 4.18

pH - Outputs Menu - Relay A 4.18 Page 38

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP DOWN

DOWN UP DOWN

DOWN

UP

DOWN

UP

DOWN

DOWNUP

DOWN

DOWNUP

DOWN

The RELAY ON setting is the process value at which the relay will energize. It may be set anywhere between 0-100% of the range.

The relay can be set to control either a RISING or FALLING process.

In a RISING process, the control relay will energize when the process rises above a set value. In this case, the ON set-point must be set higher than the OFF set-point.

In a FALLING process, the control relay will energize when the process falls below a set value. In this case, the ON set-point must be set lower than the OFF set-point.

TO CYCLE ON

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Use the and keys to change the setting

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

Press the key to accept the setting and move to the next setting

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Relay B can be configured for the following operations

- Response to rising or falling process values

- Adjustable on and off set-points

- Cycle on and off times

- Failsafe operation Each function will be explained below

RUN MODE

7.15pH 25.0C

CALIBRATION

OUTPUTS

UTILITIES

DIAGNOSTICS

SETUP

RELAY B

RELAY OFF 8.40 >

RELAY B

RELAY OFF 9.5 0 >

RELAY OFF 8.4 0 >

RELAY OFF 9.50 >

RELAY B

RELAY ON 10.0 0 >

RELAY ON 10.00 >

RELAY B

RELAY ON 9.80 >

RELAY B

DIRECTION RISE >

RELAY ON 9.8 0 >

RELAY B

DIRECTION R ISE >

RELAY B DIRECTION F ALL >

RELAY B

DIRECTION RISE >

RELAY A

RELAY B

DIRECTION R ISE >

RELAY B

The RELAY OFF setting is the process value at which the relay will de-energize. The setting must be rationalized against the On setting. For example, in a falling process, the Off setting must be higher than the ON setting.

The controller will not allow you to select the RELAY OFF value on the wrong side of the RELAY ON value for the selected direction. If the user tries to set the RELAY OFF on the wrong side, the following errors will de displayed:

Error when trying to set OFF point lower than ON point when set to falling.

Error when trying to set OFF point higher than ON point when set to rising.

ON SPT < OFF SPT

FALLING PROCESS

ON SPT > OFF SPT

RISING PROCESS

pH - Outputs Menu - Relay B 4.19

pH - Outputs Menu - Relay B 4.19 Page 39

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

TO OUTPUTS MENU

DOWN

UP DOWN

DOWN

DOWNUP

DOWN

UP DOWN

DOWN

UP

DOWN

UP

DOWN

DOWN UP DOWN

DOWN

UP DOWN

Use the and keys to change the setting

UP DOWN

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Press the key to accept the setting and move to the next setting

OVERFD TIMER OFF >

RELAY B

TIME (MIN) 6 >

OVERFD TIMER O N >

RELAY B OVERFD

RELAY B

OVERFD TIMER O FF >

RELAY B

DOWN

Press the key to accept the setting and move to the next setting

OVERFD TIMER ON >

RELAY B

Press the key once which will move the cursor back to the RH side of the display.

TIME (MIN) 6 >

RELAY B OVERFD

UP DOWN

TIME (MIN) 1 0 >

RELAY B OVERFD

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

FROM CYCLE ON

The CYCLE OFF time is the amount of time in seconds that the relay will be off for, it can be set between 0 - 600 seconds.

To disable the cycling feature set the cycle off time to 0.

The Default OFF time is 0 seconds.

The FAIL SAFE feature is designed to reverse the normal action of the relay.

When set to FAIL SAFE OFF, the relay will operate as a normal relay, which means that when the relay is not energized the NO contacts are open, and a device connected via the NO contacts is turned off. When the relay becomes energized the device turns on.

When the relay is set to FAIL SAFE ON, the normal action of the relay is reversed. Thus the NO contact acts as the NC contacts and the NC acts as the NO. Therefore the device connected to the NC contacts will be turned on when the relay on set-point is reached. Actually the relay will be de-energized but because it is acting in reverse the device will be turned on. When the relay off set-point is reached the relay will energize and the device connected to the NC contact will turn off.

The reason that the Fail Safe option would be used is to have the device turned on in the event of a power interruption. For example, a process that needs a constant feed, would want a pump to turn on in the event of a controller power failure.

With "N" selected, pressing the key will NOT store the selection, but simply return to the OUTPUTS Menu. This function is useful if you wish to view the current selection without making any changes.

The relay can be set to CYCLE when the process is between the RELAY ON setting and the RELAY OFF setting. This is meant to help eliminate overshoot.

The CYCLE ON time is the amount of time in seconds that the relay will be on. The value can be set between 0 and 600 seconds. The default ON time is 5 seconds.

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

Press the key to accept the setting and move to the STORE fuction.

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

DOWN

Or press the key to highlight the Y character

Then press the key to store the selection and return to the OUTPUTS menu

Not stored

Stored

STORE? Y N

RELAY B

The OVERFEED TIMER is designed to help safeguard against a process or instrumentation error causing one of the control relays to remain energized for extended periods of time.

When enabled, the user must select the desired overfeed timeout time (1-999 min.)

If the overfeed timer times out:

• Alarm relay will energize.

• Control (A&B) will de-energize

• LED on front will flash

Must be reset via Utilities Menu or Power reset.

FAIL SAFE OFF >

CYCLE OFF 0S >

CYCLE ON 5S >

RELAY B

FAIL SAFE ON >

FAIL SAFE O N >

FAIL SAFE O FF >

CYCLE OFF 200S >

CYCLE OFF 20 0 S >

RELAY B

CYCLE OFF 0 S >

CYCLE ON 100 S >

CYCLE ON 10 0 S >

CYCLE ON 5 S >

RELAY B

pH - Outputs Menu - Relay B 4.19

pH - Outputs Menu - Relay B 4.19 Page 40

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWNUPDOWN

DOWN UP DOWN

DOWN

UP DOWN

DOWN

DOWNUP

DOWN

UP

DOWNUP

TO HIGH OFF

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

The ALARM RELAY will respond to both a rising and falling process. The ALARM RELAY will act as a low alarm (falling process) and a high alarm (rising process). Both relay bands will have independently adjustable on and off set-points. If a low alarm set-point is set at a value 3.00pH for example, the off setpoint must be set higher. The controller will not let the user input a value below 3.00pH. The same rule holds true for the high alarm.

The Alarm Relay can be configured for the following operations

-LOW ON Set-point

-LOW OFF Set-point

-HIGH ON Set-point

-HIGH OFF Set-point

-Failsafe

The HIGH ON set-point is the high process value that will cause the relay to energize. This value can be set anywhere 0-100% of Full Scale.

The LOW ON set point is the low process value that will cause the relay to energize. This value can be set anywhere 0-100% of Full Scale.

The LOW OFF set point is the value that the process must reach in order to deenergize the alarm relay after it has dropped below and tripped the LOW ON set-point. This value must be higher than the LOW ON Set-point.

RUN MODE

Press the key once which will move the cursor back to the RH side of the display.

HIGH ON 13.2 0 >

ALARM RELAY HIGH ON 10.50 >

HIGH ON 13.2 0 >

HIGH ON 10.5 0 >

ALARM RELAY

LOW OFF 3.00 >

LOW OFF 3.0 0 >

ALARM RELAY

LOW OFF 4.20 >

ALARM RELAY

ALARM RELAY LOW ON 3.50 >

ALARM RELAY

LOW OFF 4.2 0 >

ALARM RELAY

LOW ON 2.0 0 >

ALARM RELAY

ALARM RELAY LOW ON 2.0 0 >

LOW ON 3.5 0 >

OUTPUTS

UTILITIES

DIAGNOSTICS

CALIBRATION

SETUP

7.15pH 25.0C

ALARM RELAY

RELAY A

RELAY B

pH - Outputs Menu - Alarm Relay 4.20

pH - Outputs Menu - Alarm Relay 4.20 Page 41

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

TO OUTPUTS MENU

DOWN

DOWNUP

DOWN

UP DOWN

With "N" selected, pressing the key will NOT store the selection, but simply return to the OUTPUTS Menu. This function is useful if you wish to view the current selection without making any changes.

Not stored

The FAIL SAFE feature is designed to reverse the normal action of the relay.

When set to FAIL SAFE OFF, the relay will operate as a normal relay, which means that when the relay is not energized the NO contacts are open, and a device connected via the NO contacts is turned off. When the relay becomes energized the device turns on.

When the relay is set to FAIL SAFE ON, the normal action of the relay is reversed. Thus the NO contact acts as the NC contacts and the NC acts as the NO. Therefore the device connected to the NC contacts will be turned on when the relay on set-point is reached. Actually the relay will be de-energized but because it is acting in reverse the device will be turned on. When the relay off set-point is reached the relay will energize and the device connected to the NC contact will turn off.

The reason that the Fail Safe option would be used is to have the device turned on in the event of a power interruption.

If the Low On set-point is set higher than the factory default Low Off set-point, when the user advances from the low on set-point to the Low Off set-point the shark will adjust the Low Off set-point to be equal to the Low On set-point. If the user then tries to decrease the Low Off set-point the Controller will display the Low Alarm setup error screen.

This screen will be displayed for 10 seconds, then return back to the setup screen that was previously displayed. The same conditions apply to the High alarm set-points. Except the High Off set-point must be lower than the High On setpoint. If the user tries to increase the High Off set-point higher than the High On set-point the High Alarm setup error screen will be displayed.

If the user sets the low on set-point and the low off setpoint equal to 0, it will disable the Low Alarm relay. Similarly, setting the High On set-point and the HIGH OFF set-point to 0 will disable the High Alarm.

The HIGH OFF set- point is the value that the must reach in order to de-energize the alarm relay after it has increased over and tripped the HIGH ON setpoint. This value must be lower than the HIGH ON Set-point.

FROM HIGH ON

Then press the key to store the selection and return to the OUTPUTS menu

Stored

Use the and keys to change the setting

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

the Y character.

Or press the key to highlight

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

STORE? Y N STORE? Y N

FAILSAFE OFF >

HIGH OFF 9.80 >

ALARM RELAY

ON SPT < OFF SPT

LOW ALARM

ON SPT > OFF SPT

HIGH ALARM

ALARM RELAY

FAIL SAFE ON >

FAIL SAFE O N >

ALARM RELAY

FAIL SAFE O FF >

HIGH OFF 12.00 >

HIGH OFF 12.0 0 >

HIGH OFF 9.8 0 >

ALARM RELAY

pH - Outputs Menu - Alarm Relay 4.20

pH - Outputs Menu - Alarm Relay 4.20 Page 42

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

DOWN

UP DOWN

DOWN

UP DOWN

DOWN

DOWNUP

DOWN

UP

DOWN

Press the key once which will move the cursor back to the RH side of the display.

Or press the key to highlight the Y character

Then press the key to store the selection and return to the OUTPUTS menu

Not stored

Stored

Press the key to accept the setting and move to the next setting

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

The TUNE fuction allows the user to precisely adjust the 4-20 mA output to compensate for any errors in the output circuitry. Normally, find turning the 4-20mA output is not necessary. To make the adjustment, place an accurate current meter in series with the 4-20 mA output, with the appropriate loads connected. When the TUNE menu is selected, the controller puts 20 mA out the terminals. Use the or keys to adjust the 20mA output to get exactly 20.

The TUNE value can be adjusted over the range from 0 to 1000, these are unitless numbers used for tuning purposes only.

RUN MODE

With "N" selected, pressing the key will NOT store the selection, but simply return to the OUTPUTS Menu. This function is useful if you wish to view the current selection without making any changes.

The example below shows the 4-20 mA set to 4mA =7.00pH and 20mA = 14pH. The output would then span 4 to 20 mA for a pH swing of 7.0 to 14.0. Note that the span can reversed, in that 4 mA can be set to a high pH value, and 20 mA can be set to a low pH value, effectively reversing the control direction.

Use the and keys to change the setting

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Press the key to accept the setting and move to the next setting

Use the and keys to change the setting

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

The Controller has 2 4-20mA outputs, electrically isolated from each other and ground. Either output can source current into a maximum of 800 ohms. See Section 3.12 for wiring diagram. Channel 1 (the primary output) is located on the flip out door, terminal plug P6. Channel 1 is dedicated to track the process and has fully independent and fully adjustable 4 & 20 mA output adjustments. This will enable the operator to span the output over the desired range.

STORE? Y N

4-20mA CH1 PROC

20mA TUNE 54 0 >

4-20mA CH1 PROC

20mA TUNE 54 0 >

4-20mA CH1 PROC

OUTPUTS

CALIBRATION

DIAGNOSTICS

UTILITIES

SETUP

7.15pH 25.0C

4-20mA CH1

20mA TUNE 512 >

4-20mA CH1 PROC

20mA OUT 14.00 >

20mA TUNE 51 2 >

4-20mA CH1 PROC

20mA OUT 14.0 0 >

20mA OUT 14.00 >

20mA OUT 14.0 0 >

4-20mA CH1 PROC

4mA OUT 0.00 >

4-20mA CH1 PROC

4mA OUT 7.00 >

4mA OUT 7.0 0 >

4-20mA CH1 PROC

4mA OUT 0.0 0 >

ALARM RELAY

RELAY A

RELAY B

pH - Outputs Menu - 4-20mA CH1 Output 4.21

pH - Outputs Menu - 4-20mA CH1 Output 4.21 Page 43

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

DOWN

DOWNUP

DOWN

UP

DOWNUP

DOWN

Or press the key to highlight the Y character

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Then press the key to store the selection and return to the OUTPUTS menu

Stored

The example below shows the 4-20 mA set to 4mA = 0°C and 20mA = 100°C

The output would then span 4 to 20 mA for a temperature swing of 0°C to 100°C.

Note that the span can reversed, in that 4 mA can be set to a high process value, and 20 mA can be set to a low process value, effectively reversing the control direction.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

The TUNE function allows the user to precisely adjust the 4-20mA output to compensate for any errors in the output circuitry. Normally, fine tuning the 420mA output is not necessary.

The make the adjustment, place an accurate current meter in series with the 4-20 mA output, with the appropriate loads connected. When the TUNE menu is selected, the controller puts 20mA out to the terminals. Use the or keys to adjust the 20mA output to get exactly 20.

The TUNE value can be adjusted over the range from 0 to 1000, these are unitless numbers used for tuning purposes only.

Not stored

With "N" selected, pressing the key will NOT store the selection, but simply return to the OUTPUTS Menu. This function is useful if you wish to view the current selection without making any changes.

Press the key to accept the setting and move to the next setting

The 4mA, 20mA and TUNE functions are set up the same way as 4 - 20 mA CH 1 output.

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

RUN MODE

The Controller has 2 4-20mA outputs, electrically isolated from each other and ground. Either output can source current into a maximum of 800 ohms. Channel 2 can be selected to track the process or temperature. Channel 2 has fully independent and fully adjustable 4 & 20 mA output adjustments. This will enable the operator to span the output over the desired range.

Note that if the T COMP OVERRIDE is ON and Channel 2 output is set to track temperature, the output will not change, but hold at a value representing the temperature set in the T COMP OVERRIDE.

STORE? Y N

4-20mA CH2 TEMP

STORE? Y N

20MA TUNE 512 >

4-20 CH2 TEMP

4-20mA CH2 TEMP

20MA OUT 100.0 >

4MA OUT 0.0 >

4-20 CH2 TEMP

4-20mA CH2

TEMPERATURE >

4-20mA CH2

P ROCESS >

T EMPERATURE >

TEMPERATURE >

4-20mA CH2

T EMPERATURE >

CALIBRATION

OUTPUTS

DIAGNOSTICS

UTILITIES

SETUP

4-20mA CH1

ALARM RELAY

RELAY A

RELAY B

7.15pH 25.0C

pH - Outputs Menu - 4-20mA CH2 Output 4.22

pH - Outputs Menu - 4-20mA CH2 Output 4.22 Page 44

S H A R K

ENTER

AUTO CALIBRATE

CAL

Press the key to go immediately back to Run mode

CAL

ENTER

CAL

ENTER

CAL

RUN

TO MANUAL CALIBRATE

ENTER

The Controller will display bUF2, prompting the user to place the probe in the second buffer solution.

Be sure to clean and rinse the Probe first with D.I. water and then insert it in the 4.00/10.00 buffer. Press the key.

The Controller will display EFF for 3 seconds to indicate it is calculating the probe efficiency value.

It will then display the actual efficiency for a few seconds and then revert back to run mode.

Press the key again to confirm the entry.

If the displayed value is correct, press the key.

The controller will flash "bUF2" for about 10 seconds while it reads the buffer. The controller will determine which one of the standard buffers is being used, and will set the display to that value.

If the controller detects an error, it will flash the Err (Error) screen and return back to Auto Calibrate

The display will flash

Press the key to select Auto Calibration

The controller will flash "bUF1" for about 10 seconds while it reads the buffer. The controller will determine which one of the standard buffers is being used, either 4, 7 or 10, and will set the display to that value.

The Controller will display bUF1, prompting the user to place the probe in the first buffer solution.

Be sure to clean and rinse the Probe first with D.I. water and then insert it in the 7.00 buffer. Press the key.

If the displayed value is correct, press the key.

Press the key again to confirm the entry.

If the controller detects a problem, it will flash the Err (Error) screen and return back to Auto Calibrate

The display will flash

AUTO CALIBRATE Auto Calibrate will automatically detect the buffers used to calibrate, and set the display to the appropriate settings.

MANUAL CALIBRATE This menu allows the user to manually calibrate the probe, the user enters the known buffer values

Press the key to select Manual Calibration

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

pH - LED Display Menu - pH Auto Calibrate 4.23

pH - LED Display Menu - pH Auto Calibrate 4.23 Page 45

S H A R K

Press the key to go immediately back to Run mode

CAL

ENTER

UP

DOWN

ENTER

UP

DOWN

UP

ENTER

MANUAL CALIBRATE

The Controller will display bUF2, prompting the user to place the probe in the second buffer solution.

Be sure to clean and rinse the Probe first with D.I. water and then insert it in the

4.00/10.00 buffer. Press the key.

The Controller will display EFF for 3 seconds to indicate it is calculating the probe efficiency value.

It will then display the actual efficiency for a few seconds and then revert back to run mode.

Press the key again to confirm the change in calibration value.

The controller will flash "bUF2" for about 10 seconds while is reads the buffer. It will then display the pH value based on an ideal theoretical pH slope.

Use the and keys to adjust the display until it reads the correct value of the buffer.

Press the key to accept the setting. The display will flash.

TO AUTO CALIBRATE

If the controller detects an error, it will flash the Err (Error) screen and return back to Manual

The controller will flash "bUF1" for about 10 seconds while is reads the buffer. It will then display the pH value based on an ideal theoretical pH slope.

Press the key again to confirm the change in calibration value.

Press the key to accept the setting.

Use the and keys to adjust the display until it reads the correct value of the buffer.

The Controller will display bUF1, prompting the user to place the probe in the first buffer solution.

Be sure to clean and rinse the Probe first with D.I. water and then insert it in the 7.00 buffer. Press the key.

The display will flash

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

pH - LED Display Menu - pH Manual Calibrate 4.24

pH - LED Display Menu - pH Manual Calibrate 4.24 Page 46

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

RUN LED (GREEN)

LED WILL BE ILLUMINATED WHEN SHARK IS IN THE RUN MODE. WILL BE OFF WHEN SHARK IS IN THE MENU MODE.

4 DIGIT, 7 SEGMENT LED DISPLAY

DISPLAYS PROCESS VALUE IN RUN MODE. DISPLAYS CALIBRATION DATA IN CALIBRATION MODE.

RELAY C (ALARM RELAY)

STATUS LED's (RED)



BOTTOM LED WILL ILLUMINATE

WHEN ALARM RELAY IS

ENERGIZED BECAUSE OF LOW

ALARM CONDITION.

TOP LED WILL ILLUMINATE WHEN

ALARM RELAY IS ENERGIZED

BECAUSE OF HIGH ALARM

BAR GRAPH LED's (GREEN)

LINEAR INDICATOR OF PROCESS

VALUE.

(REFER TO SECTION 5.12)

1/4" TURN SCREWS

RELAY A STATUS LED (YELLOW)

LED WILL BE ILLUMINATED WHEN RELAY A IS ENERGIZED.

REMOVABLE TERMINAL BLOCK

CONNECTORS

"SNAP-ON" CONNECTORS FOR EASY WIRING OF YOUR ORP SENSOR AND

PRIMARY 4-20mA OUTPUT.

(REFER TO SECTIONS 3.3, 3.4 & 3.12)

SIMPLE THREE-BUTTON INTERFACE

FOR FAST & EASY SETUP (REFER TO SECTIONS 5.0 TO 5.20)

RELAY B STATUS LED (YELLOW)

LED WILL BE ILLUMINATED WHEN RELAY B IS ENERGIZED.

UNIT LABEL

LABEL TO INDICATE UNIT OF MEASURE SHARK IS CONFIGURED FOR.

AUXILLARY LED's

NOT USED IN ORP MODE.

CALIBRATION FROM THE

FRONT PANEL



4 PUSH BUTTONS USED TO

CALIBRATE THE SHARK FROM THE

FRONT PANEL.

(REFER TO SECTIONS 5.21)

2 LINE, 16 CHARACTER

LCD DISPLAY



MAIN MENU INTERFACE

SCREEN

TEMPERATURE DISPLAY

WHEN THE 'UP' AND 'DOWN' ARROW KEYS ARE PRESSED SIMULTANEOUSLY, THE LED WILL DISPLAY THE CURRENT PROCESS TEMPERATURE FOR 5 SECONDS.  THIS FEATURE WILL BE DISABLED IF THE 'TEMPERATURE COMPENSATION OVERRIDE' IS TURNED ON IN THE SETUP MENU. IN THIS CASE THE LED WILL DISPLAY

---- IN PLACE OF THE

TEMPERATURE.

P6

843

2

1

7

65

11109

1514

1312

17

16

FRONT PANEL

INSIDE PANEL

NOTE

WHEN THE SHARK IS TAKEN INTO

MENU MODE VIA THE INSIDE LCD

SCREEN, THE FRONT 7-SEGMENT LED

WILL DISPLAY

----. THE STATUS &

BAR GRAPH LED's WILL BE TURNED

OFF. THE 4 PUSH BUTTONS ON THE

FRONT WILL NOT RESPOND.

OVERFEED LED (RED)

LED WILL FLASH WHEN THE OVERFEED TIMER IS ACTIVATED.

Section 5 - Using the SHARK in ORP Mode

Section 5 - Using the SHARK in ORP Mode Page 47

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWNDOWN

DOWN

DOWNDOWN

DOWN

DOWNDOWN

DOWN

DOWNDOWN

DOWN

SELECT DEG C OR DEG F

ENABLE TIME OUT

ON LCD AND LED DISPLAYS

DISABLE TEMP. DISPLAY

SETUP DISPLAY AND OUTPUT RESPONSE TIME

SELECT TYPE OF

4-20 mA CH 1 OUTPUT

4-20 mA CH. 2 OUTPUT

SETUP ALARM RELAY SEC 5.19

SETUP

SEC 5.20 SETUP

SEC 5.21

SETUP RELAY A SEC 5.17

SETUP RELAY B SEC 5.18

FROM MENU

DISPLAY FIRMWAVE REVISION SEC. 5.14

DISPLAY PREVIOUS CALIBRATION DATA SEC 5.15

DISPLAY UNCALIBRATED PROBE DATA SEC 5.16

SEC. 5.10

SELECT TYPE OF TEMP SENSOR SEC. 5.9

SEC 5.11

SEC 5.12 SETUP RESOLUTION

OF FRONT PANEL BAR GRAPH SEC 5.13

SEC. 5.7

SEC 5.8

ORP PROBE

RUN MODE

SEC. 5.2

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

RELAYS

SELECT TYPE OF METER

SEC. 5.4

SEC. 5.5

VERIFY OUTPUTS

SIMULATE PROCESS

MANUALLY OVERRIDE

SEC. 5.3

MANUAL CALIBRATE

SENSOR IN ORP PROBE

CALIBRATE TEMP.

ORP PROBE SEC. 5.1

DIAGNOSTICS

EXIT

ALARM RELAY

4-20mA CH1

4-20mA CH2

RELAY A

RELAY B

SENSOR INPUT

CALIBRATION DATA

FIRMWARE REV

EXIT

OUTPUTS

DISPLAY DAMPING

BAR GRAPH O/R

T. DISP OVERRIDE

EXIT

AUTO RETURN

TEMP SENSOR

TEMP UNIT

PROBE SELECT

500mV 25.0C

UTILITIES

SETUP

CALIBRATION

MANUAL TEST MODE

METER SELECTION

RELAY OVERRIDE

EXIT

TEMP CALIBRATION

MANUAL CAL ORP

DOWN

RESETS RELAY OVERFEED TIMER SEC. 5.6

RESET OVERFD TMR

ORP - Menu Overview 5.0

ORP - Menu Overview 5.0 Page 48

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

DOWN

UP

DOWN

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Press to store the calibration data and return back to the Manual Cal menu so the user can select another function.

Place the probe in the buffer solution, be sure to clean and rinse the Probe first with D.I. water and then insert it in the mV buffer.

Press

If the calibration did not appear to be correct, press the key which will return back to the Manual Cal menu.

The controller will display the mV value and the probe temperature for 5 seconds. If the T.DISPLAY O/R is enabled, the display will show.

If the calibration is OK, use the key to move the cursor over the Y text and press the down key.

Then press to move the cursor to the RH position

Use the and keys to adjust the reading until it agrees with the actual buffer mV value

When complete, the controller will report the measured value

Please wait for the controller to complete the measurement

The controller will read the mV value, averaging a number of results to get a stable calibration value.

RUN MODE

IF BUFFER READYCALIBRATION MANUAL CAL ORP

STORE? Y N

TEMP 25.0C

BUFFER 600mV

MANUAL CAL ORP BUFFER 600 >

RUNNING MANU CAL BUFFER WAIT...

PRESS 'DOWN'

BUFFER 50 0 >

MANUAL CAL ORP BUFFER 60 0 >

MANUAL CAL ORP

TEMP O/R ON

MANUAL CAL ORP

500mV 25.0C

ORP - Calibration Menu - Manual Calibrate 5.1

ORP - Calibration Menu - Manual Calibrate 5.1 Page 49

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWN DOWN

DOWNUP

DOWN

UP

DOWN

If the Temperature Display Override is set to ON (see section 5.11), the Shark cannot calibrate the temperature sensor. This display will appear to alert the user to the condition.

If the calibration did not appear to be correct, press the key which will return back to the Temp Calibration menu.

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

This will store the calibration data and return back to the Temp Calibration setup so the user can select another function.

Use the and to adjust the reading until it agrees with the known temperature of the probe

Press the key to accept the reading and move to the store function

"T FACTOR SHIFTED" will be displayed for 5 seconds to indicate that the temperature sensor has been calibrated. The Shark will then move to the store function.

The controller displays the current probe temperature. If this incorrect, the controller can be adjusted to compensate.

Press the key once which will move the cursor back to the RH side of temperature display.

Press the key once which will move the cursor over the least sign. digit of the temperature display.

RUN MODE

STORE? Y N

TEMP CALIBRATION

STORE? Y N

TEMP CALIBRATION

25.0C >

T FACTOR SHIFTED

25. 0 C >

TEMP CALIBRATION

22. 4 C >

22.4C >

TEMP CALIBRATION TEMP O/R ON >

500mV 25.0C

CALIBRATION MANUAL CAL PH

DOWN

ORP - Calibration Menu - Temp. Calibration 5.2

ORP - Calibration Menu - Temp. Calibration 5.2 Page 50

S H A R K

DOWN

UP DOWN

DOWN

UP

DOWN

Manual Test Mode is used to simulate a process reading in order to verify the correct response of the outputs. When in the Manual Test Mode, the outputs are no longer placed on hold as they are when in the rest of the menu.

The range is 0 to +1000mV.

NOTE: When the user exits the Manual Test Mode, the relays and 4-20mA outputs will remain in the Test Mode state until the operator enters the run mode. The relays and

outputs will then revert back to the previous On-line state.

The CH1 4-20 mA output will track the change in process

When a relay is energized, the characters a,b,c will change to upper case A,B,C

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

As the value is changed, the state of the relays will change depending on their settings in the OUTPUTS menu. a/A - state of Relay A b/B - state of Relay B c/C - state of Alarm relay

Press the key once to move the cursor to the RH side of the display

As well, Channel 1 4-20 mA output will also follow the process value change. The actual change will depend on how the CH1 output was scaled in the OUTPUTS menus. (See Section 5.20)

Press the key to return to the MANUAL TEST MODE menu

Use the and keys to change the simulated process value.

Press the key once which will move the cursor over the least digit of the simulated process value.

TEST 50 0 >

TEST 500 >

500mV 25.0C

CALIBRATION

UTILITIES

a b c 12.0mA

TEST 50 0 >

TEST 500 >

MANUAL TEST MODE

a b c 12.0mA

a B c 16.8mA

TEST 80 0 >

DOWN

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

ORP - Utilities Menu - Manual Test Mode 5.3

ORP - Utilities Menu - Manual Test Mode 5.3 Page 51

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

UP

To Alarm Relay (Relay C) Override

UP

DOWN

UP

DOWN

DOWN DOWN

DOWN

UP

DOWN

Relay Override is used to manually override the state of the relays, the user is able to set the operating mode of the relay as AUTO/ON/OFF (the default and run mode state are AUTO). This feature can be used to turn the relays ON or OFF to manually correct the process, or to shut down an ancillary device to perform maintenance. When in the Relay Override mode, the outputs are no longer placed on hold as they are when in the other menus.

If you wish to Override Relay B, Press the key once which will move the cursor over to the AUTO/ON/OFF text

If you wish to Override Relay A, Press the key once which will move the cursor over to the AUTO/ON/OFF text

If you do not wish to Override Relay B, then use the key to the Alarm Relay

If you do not wish to Override Relay A, then use the key to move to Relay B

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

If you wish to accept the Override setting, Press the key once to move the cursor to the RH of the display

Then use the key to move to the Override setting for Relay B

CAUTION:

Note that if the Relay Auto Return Menu is set to "ON", the controller will place all these settings back to AUTO if the controller is put back in run mode, and there is no button activity for 10 minutes.

Use the or key to change the Override state from AUTO - controlled by process settings ON - relay forced on OFF- relay forced off The relay will react immediately.

If you wish to accept the Override setting, Press the key once to move the cursor to the RH of the display

To use the Relay Override function, press the key

Then use the key to move to the Override setting for Relay A

RELAY OVERRIDE RELAY B A UTO >

RELAY OVERRIDE RELAY B O N >

RELAY OVERRIDE RELAY B O FF >

RELAY A O FF >

RELAY OVERRIDE RELAY A O N >

RELAY OVERRIDE

RELAY A A UTO >

RELAY OVERRIDE

MANUAL TEST MODE

RELAY OVERRIDE RELAY B AUTO >

RELAY A AUTO >

RELAY OVERRIDE

CALIBRATION

500mV 25.0C

UTILITIES

RELAY B ON >

RELAY B AUTO >

RELAY B OFF >

RELAY OVERRIDE

RELAY A ON >

RELAY A AUTO >

RELAY A OFF >

RELAY OVERRIDE

ORP - Utilities Menu - Relay Override 5.4

ORP - Utilities Menu - Relay Override 5.4 Page 52

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP DOWN

DOWN

DOWNUP

UP

DOWN

If you do not wish to Override Relay C, then use the key to the Alarm Relay

With "N" highlighted, pressing the key will NOT store the Override states of the relays, but they will revert to the state they were in before the menu was entered. Note that, if any of the relays were in a specific Override state before the menu was entered (i.e. not in AUTO), they will revert to that state again unless the changes are STORED.

TO RELAY OVERRIDE MENU

NOT STORED

FROM RELAY B OVERRIDE MENU

Then press the key to store the Override states of all the relays and return back to the Override menu

STORED

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

If you wish to accept the Override setting, Press the key once to move the cursor to the RH of the display

If you wish to store the state of the Relay Overrides, press the key to highlight the Y character

If you wish to Override Relay C, Press the key once which will move the cursor over to the AUTO/ON/OFF text

Then use the key to move to the Override setting for Relay C

NOTE Relay C is the Alarm Relay

UP

DOWN

Use the or key to change the Override state from AUTO - controlled by process settings ON - relay forced on OFF- relay forced off The relay will react immediately.

STORE? Y N

RELAY C AUTO >

RELAY OVERRIDE

STORE? Y N

RELAY OVERRIDE

RELAY C O N >

RELAY C O FF >

RELAY OVERRIDE RELAY C A UTO >

RELAY OVERRIDE

RELAY OVERRIDE RELAY C ON >

RELAY C OFF >

RELAY OVERRIDE RELAY C AUTO >

ORP - Utilities Menu - Relay Override 5.4

ORP - Utilities Menu - Relay Override 5.4 Page 53

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWNDOWN

DOWN

DOWN DOWN

DOWN

If you do not wish to initialize to this type of meter after all, then press key to return back to the Meter Selection menu

Then press The controller will initialize itself for a specific meter

If you do wish to initialize to this type of meter, press the key to highlight the Y character

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Press the key to Exit and return to the Utilities menu

RUN MODE

Press the key to initialize the controller as a Flow meter

Press the key to initialize the controller as a Conductivity meter

The Meter Selection menu is used to select the meter type that the controller is configured for, either pH, ORP, Conductivity or FLow. Once selected, the controller will initialize itself for the selected meter's functionality and move to run mode.

Press the key to initialize the controller as an ORP meter

Press the key to initialize the controller as a pH meter.

INITIALIZE? Y N

ORP

PH

E XIT

MANUAL TEST MODE

500mV 25.0C

UTILITIES

CALIBRATION

RELAY OVERRIDE

METER SELECTION

C ONDUCTIVITY

FLOW

EXIT

F LOW

CONDUCTIVITY

O RP

CONDUCTIVITY

FLOW

ORP

P H ORP

PH

To reset the controller back to all the factory default values, reselect the current meter type

ORP - Utilities Menu - Meter Selection 5.5

ORP - Utilities Menu - Meter Selection 5.5 Page 54

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWNDOWN

DOWN

If you wish to reset the overfeed timer, then press the key to proceed and return back to the Utilities menu.

If you do not wish to reset the overfeed timer after all, press the key to highlight the N character and press the key to return back to the Utilities menu.

DOWN

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

RUN MODE

If the control relay overfeed timer has been enabled, the relay will “time out” after the specified overfeed time. When the relay times out, it must be manually reset. The time out will be signaled by the time out LED flashing on the front panel.

The reset overfeed timer will reset the timers for both relay A & relay B at the same time.

Press the key to choose between Y or N.

Y N

MANUAL TEST MODE

500mV 25.0C

UTILITIES

CALIBRATION

RELAY OVERRIDE

METER SELECTION

RESET OVERFD TMR

Y N

RESET OVERFD TMR

ORP - Utilities Menu - Overfeed Timer Reset 5.6

ORP - Utilities Menu - Overfeed Timer Reset 5.6 Page 55

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP DOWN

DOWN

UP

DOWN

Then press the key to store the selection and return to the PROBE SELECT Menu.

With "N" selected, pressing the key will NOT store the selection, but simply return to the PROBE SELECT Menu. This function is useful if you wish to view the current selection without making any changes.

Not stored

Stored

Or press the key to highlight the Y character.

Note:

If using the 2 wire Combination Probe (which doesn't have a temperature sensor), T DISP OVERRIDE must be set to ON, and the actual probe temperature set through the T DISP OVERRIDE menu. (see sec. 5.11)

PROBE SELECT will allow the user to select whether the probe is a 2 or 4 wire combination probe, or a 5 wire differential probe.

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Use the or keys to scroll through the probe styles available. In this case, the user can select

- the 2 or 4 wire combination probe

- the 5 wire differential probe

Press the key to accept the setting and move to the store function

Press the key once which will move the cursor back to the RH side of the display.

Once the correct style probe is selected, move to the store function to save the selection

Press the key once which will move the cursor over the first character of the probe type.

STORE? Y N STORE? Y N

PROBE SELECT PROBE SELECT

500mV 25.0C

UTILITIES

SETUP

CALIBRATION

PROBE SELECT COMBINATION >

C OMBINATION

PROBE SELECT

D IFFERENTIAL

PROBE SELECT

PROBE SELECT PROBE SELECT

DIFFERENTIAL >

Note: Refer to Appendix A - Probe Configuration Table

ORP - Setup Menu - Probe Select 5.7

ORP - Setup Menu - Probe Select 5.7 Page 56

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP DOWN

DOWN

UP

DOWN

With "N" selected, pressing the key will NOT store the selection, but simply return to the TEMP UNIT Selection Menu. This function is useful if you wish to view the current selection without making any changes.

RUN MODE

Or press the key to highlight

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Then press the key to store the selection and return to the TEMP UNIT Selection Menu.

Not stored

Stored

the Y character.

Use the or to select C or F

Press the key to accept the change and move to the store function

Press the key once which will move the cursor over the unit type, C or F.

Press the key once which will move the cursor back to the RH side of the display.

TEMP UNIT allows the user to select either Degrees Centigrade or Fahrenheit units for display

500mV 25.0C

CALIBRATION

UTILITIES

SETUP

TEMP UNIT

PROBE SELECT

STORE? Y N

TEMP UNIT TEMP UNIT

DEGREE C >

DEGREE F >

TEMP UNIT

DEGREE F >

DEGREE C >

TEMP UNIT

ORP - Setup Menu - Temp. Unit 5.8

ORP - Setup Menu - Temp. Unit 5.8 Page 57

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

DOWN

UP

DOWN

the Y character.

Or press the key to highlight

With "N" selected, pressing the key will NOT store the selection, but simply return to the TEMP SENSOR Selection Menu. This function is useful if you wish to view the current selection without making any changes.

Not stored

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Press the key to accept the change and move to the store function

Then press the key to store the selection and return to the TEMP SENSOR Selection Menu.

Stored

TEMP SENSOR allows the user to select the type of temperature sensor used the in the probe.

The factory default for ORP is a 300 NTC Thermistor. The user can also select a 3000 NTC Thermistor or a 1000 RTD.

RUN MODE

Use the or to select the sensor type

Once the correct Sensor has been selected press the key once which will move the cursor back to the RH side of the display.

Press the key once which will move the cursor over to the sensor type.

500mV 25.0C

SETUP

UTILITIES

CALIBRATION

STORE? Y N

TEMP SENSOR

300 NTC >

3 000 NTC >

TEMP SENSOR

Ω

TEMP SENSOR

TEMP UNIT

TEMP SENSOR

1 000 RTD >

TEMP SENSOR

3 00 NTC >

TEMP SENSOR

Ω

300 NTC >

TEMP SENSOR

PROBE SELECT

ORP - Setup Menu - Temp. Sensor 5.9

ORP - Setup Menu - Temp. Sensor 5.9 Page 58

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

Not stored

DOWN

Stored

DOWN

UP DOWN

DOWN

UP

DOWN

UP DOWN

DOWN

UP

CAUTION:

If AUTO RETURN RELAYS is ON, regardless of the user settings of the states of the relays, Relays will default to AUTO 10 minutes after the Shark returns to Run Mode.

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

With "N" selected, pressing the key will NOT store the selection, but simply return to the AUTO RETURN Selection Menu. This function is useful if you wish to view the current selection without making any changes.

Then press the key to store the selection and return to the Auto Return Selection Menu.

Press the key to accept the change and move to the STORE function

Or press the key to highlight the Y character.

Press the key to accept the change and move to the RELAYS auto return function. RELAYS ON will cause the relays to return to the AUTO mode if the controller returns to Online after 10 minutes of inactivity. This ensures the controller will be put back in control of the process if accidentally left offline.

Use the or keys to select either ON or OFF.

Press the key once which will move the cursor to the ON or OFF text

Press the key once which will move the cursor back to the RH side of the display.

RUN MODE

To change the MENU RETURN setting, Press the key once which will move the cursor to the ON or OFF text

Use the or keys to select either ON or OFF.

Press the key once which will move the cursor back to the RH side of the display.

MENU ON will cause the controller to exit the menu and revert back to the online run mode after 10 minutes with no buttons pressed. This feature ensures that if a user forgets to return back to run mode, the controller will not be left in an offline state. If for some reason, the user would like to remain in the menu mode for extended periods of time, the AUTO RETURN function can be set to "OFF".

AUTO RETURN is used to select what conditions will cause the controller to time-out of the operations menu or reset the relay override function.

500mV 25.0C

SETUP

UTILITIES

CALIBRATION

STORE? Y N

AUTO RETURN

RELAYS OFF >

AUTO RETURN

RELAYS ON >

RELAYS O N >

RELAYS O FF >

AUTO RETURN

AUTO RETURNAUTO RETURN MENU ON >

TEMP UNIT

PROBE SELECTION

AUTO RETURN

MENU OFF >

AUTO RETURN

MENU O FF >

MENU O N >

ORP - Setup Menu - Auto Return 5.10

ORP - Setup Menu - Auto Return 5.10 Page 59

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

UP

DOWN

DOWN DOWN

DOWN

DOWNUP

DOWN

Use the or keys to select either ON or OFF.

Press the key to accept the change and move to the store function

Press the key once which will move the cursor back to the RH side of the display.

Then press the key to store the selection and return to the T. DISP OVERRIDE Menu.

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

With "N" selected, pressing the key will NOT store the selection, but simply return to the T. Disp. Override Menu. This function is useful if you wish to view the current selection without making any changes.

If you wish to save the setting, press the key to highlight the Y character

Not stored

Stored

RUN MODE

Press the key once which will move the cursor to the ON or OFF text

T. Display Override is used to blank the Temperature Display on the LCD menu and place 4 dots on the LED menu when Temp display is requested.This is to ensure the user isn't shown a temperature value that isn't valid.

STORE? Y N STORE? Y N

T. DISP OVERRIDE T. DISP OVERRIDE

AUTO RETURN

T. DISP OVERRIDE

CALIBRATION

UTILITIES

SETUP

500mV 25.0C

TEMP UNIT

TEMP SENSOR

PROBE SELECTION

OVERRIDE O FF >

OVERRIDE O N >

T. DISP OVERRIDE

OVERRIDE ON >

T. DISP OVERRIDE

OVERRIDE OFF >

T. DISP OVERRIDE

ORP - Setup Menu - Temp. Display Override 5.11

ORP - Setup Menu - Temp. Display Override 5.11 Page 60

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

DOWNUP

DOWN

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

The Display Damping menu allows the user to adjust the rate at which the display and all outputs are updated. This allows the user to dampen out unstable process readings. The damping can be set from 0 seconds to 10 seconds. (default value is 0 sec.)

With "N" selected, pressing the key will NOT store the selection, but simply return to the Display Damping Menu. This function is useful if you wish to view the current selection without making any changes.

Not stored

RUN MODE

Use the and to adjust the damping time, the default setting is 0 seconds. The setting can be adjusted from 0 to 10 seconds.

Then press the key to store the selection and return to the Display Damping Menu.

Stored

If you wish to save the setting, press the key to highlight the Y character

Press the key once which will move the cursor back to the RH side of the display.

Press the key to accept the setting and move to the store function

Press the key once which will move the cursor over the seconds digit

STORE? Y N

UPDATE 10 SEC >

UPDATE 0 SEC >

DISPLAY DAMPING

UPDATE 1 0 SEC >

DISPLAY DAMPING

STORE? Y N

DISPLAY DAMPING

500mV 25.0C

CALIBRATION

SETUP

UTILITIES

DISPLAY DAMPING

TEMP SENSOR

AUTO RETURN

T. DISP OVERRIDE

DISPLAY DAMPING

UPDATE 0SEC >

TEMP UNIT

PROBE SELECTION

ORP - Setup Menu - Display Damping 5.12

ORP - Setup Menu - Display Damping 5.12 Page 61

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

DOWN

UP

DOWN

UP

DOWN

DOWNUP

DOWN

UP

DOWN

DOWNUP

DOWN

Then press the key to store the selection and return to the Bar Graph O/R Menu.

Stored

Not stored

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Press the key skip the setting for the Low Green Led and move to the setting for the High Green Led.

With "N" selected, pressing the key will NOT store the selection, but simply return to theBar Graph O/R Menu. This function is useful if you wish to view the current selection without making any changes.

Press the key skip the setting for the HIgh Green Led and move to store function.

Use the and to adjust the setting for the High Green Led.

Press the key to accept the reading and move to the store function.

Press the key once which will move the cursor back to the RH side.

If you wish to save the setting, press the key to highlight the Y character

The controller displays the current setting for the highest green Led of the bar graph.

Press the key to accept the reading and move to the High Green Led setting.

Press the key once which will move the cursor over the least sign. digit.

Press the key once which will move the cursor back to the RH side.

Use the and to adjust the setting for the Low Green Led.

The BAR GRAPH O/R menu allows the user control over the resolution of the bar graph on the front panel of the Shark. The factory default for this function is "OFF" which means the 3 green LEDS are set to operate between the ON set points of Relay A and B. This may not always be acceptable, and this function allows the user to override these settings.

The controller displays the current setting for the lowest green led of the bar graph.

RUN MODE

Press the key once which will move the cursor back to the RH side of the display.

Press the key to adjust the resolution setting. If OFF was selected, the menu will move to the store function directly.

Press the key once which will move the cursor over the least sign. digit.

Use the and to select the override either ON or OFF.

Press the key once which will move the cursor over the first character

500mV 25.0C

SETUP

UTILITIES

CALIBRATION

LOW GRN -199 9 >

STORE? Y N

BAR GRAPH O/R

STORE? Y N

HIGH GRN 1000 >

HIGH GRN 100 0 >

BAR GRAPH O/R

BAR GRAPH O/R HIGH GRN 1999 >

HIGH GRN 199 9 >

BAR GRAPH O/R

BAR GRAPH O/R LOW GRN -100 0 >

LOW GRN -1000 >

BAR GRAPH O/R

OVERRIDE OFF >

BAR GRAPH O/R

DISPLAY DAMPING

T.DISP OVERRIDE

AUTO RETURN

TEMP SENSOR

PROBE SELECTION

TEMP UNIT

BAR GRAPH O/R

BAR GRAPH O/R LOW GRN -1999 >

OVERRIDE ON >

BAR GRAPH O/R

OVERRIDE O FF >

BAR GRAPH O/R

OVERRIDE O N >

BAR GRAPH O/R

ORP - Setup Menu - Bar Graph O/R 5.13

ORP - Setup Menu - Bar Graph O/R 5.13 Page 62

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

The FIRMWARE REV menu allows the user to see what revision of the firmware is currently installed in the controller. This is a Read Only menu item.

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

500mV 25.0C

DIAGNOSTICS

SETUP

UTILITIES

CALIBRATION

FIRMWARE REV. FIRMWARE REV.

1.15 >

ORP - Diagnostics Menu - Firmware Rev 5.14

ORP - Diagnostics Menu - Firmware Rev 5.14 Page 63

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

The Calibration Data menu is a series of read only screens which allow the user to view the data collected during the last calibration.

RUN MODE

If the Temperature Display Override is ON (Section 5.11), the display will show

Press to view the first Calibration Data screen.

1st POINT 600mV

Probe Temperature at which calibration was performed = 19.4 C

Calibration Mode 1 point calibration

Press to view the next Calibration Data screen.

CALIBRATION

UTILITIES

DIAGNOSTICS

SETUP

500mV 25.0C

CALIBRATION DATA TEMP O/R ON

CAL TEMP 19.4C >

CALIBRATION DATA

MODE 1PT >

CALIBRATION DATACALIBRATION DATA

FIRMWARE REV.

BUFFER 600mV >

ORP - Diagnostics Menu - Calibration Data 5.15

ORP - Diagnostics Menu - Calibration Data 5.15 Page 64

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

The Sensor Input Menu allows the user to view real time, uncompensated process data from the probe. This is a Read only menu item.

The top line shows the mV input from the probe The bottom line shows the actual value of the temperature sensor in ohms.

Press to view the Sensor Input data.

CALIBRATION DATA

SETUP

DIAGNOSTICS

SENSOR INPUT

FIRMWARE REV.

500mV 25.0C

UTILITIES

CALIBRATION

TEMP 331Ω >

PROBE 500mV

If the Probe is not equiped with a Temperature Sensing Device, and Temperature Display Override is ON (Section 5.11), the display will show

PROBE 500mV TEMP O/R ON

RUN MODE

ORP - Diagnostics Menu - Sensor Input 5.16

ORP - Diagnostics Menu - Sensor Input 5.16 Page 65

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWN UP DOWN

DOWN

UP DOWN

DOWN

UP

DOWN

DOWNUP

UP

DOWN

UP

DOWN

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Relay A can be configured for the following operations

- Response to rising or falling process values

- Adjustable on and off set-points

- Cycle on and off times

- Failsafe operation

TO CYCLE ON

The relay can be set to control either a RISING or FALLING process.

In a FALLING process, the control relay will energize when the process falls below a set value. In this case, the ON set-point must be set lower than the OFF set-point.

In a RISING process, the control relay will energize when the process rises above a set value. In this case, the ON set-point must be set higher than the OFF set-point.

The RELAY ON setting is the process value at which the relay will energize. It may be set anywhere between 0-100% of the range.

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

RELAY OFF 40 0 >

RELAY OFF 45 0 >

RELAY ON 30 0 >

RELAY ON 35 0 >

DIRECTION FALL >

DIRECTION F ALL >

RELAY OFF 450 >

RELAY ON 350 >

DIRECTION R ISE >

RELAY A

RELAY OFF 400 >

RELAY A

RELAY ON 300 >

RELAY A RELAY A

RELAY A

500mV 25.0C

CALIBRATION

OUTPUTS

UTILITIES

DIAGNOSTICS

SETUP

DIRECTION FALL >

RELAY A

The RELAY OFF setting is the process value at which the relay will de-energize. The setting must be rationalized against the On setting. For example, in a falling process, the Off setting must be higher than the ON setting.

The controller will not allow you to select the RELAY OFF value on the wrong side of the RELAY ON value for the selected direction. If the user tries to set the RELAY OFF on the wrong side, the following errors will de displayed:

Error when trying to set OFF point lower than ON point when set to falling.

Error when trying to set OFF point higher than ON point when set to rising.

ON SPT < OFF SPT

FALLING PROCESS

ON SPT > OFF SPT

RISING PROCESS

ORP - Outputs Menu - Relay A 5.17

ORP - Outputs Menu - Relay A 5.17 Page 66

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

TO OUTPUTS MENU

DOWN

UP DOWN

DOWN

DOWNUP

DOWN

UP DOWN

DOWN

UP

DOWN

UP

DOWN

DOWN UP DOWN

DOWN

UP DOWN

Use the and keys to change the setting

UP DOWN

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Press the key to accept the setting and move to the next setting

OVERFD TIMER OFF >

RELAY A

TIME (MIN) 6 >

OVERFD TIMER O N >

RELAY A OVERFD

RELAY A

OVERFD TIMER O FF >

RELAY A

DOWN

Press the key to accept the setting and move to the next setting

OVERFD TIMER ON >

RELAY A

Press the key once which will move the cursor back to the RH side of the display.

TIME (MIN) 6 >

RELAY A OVERFD

UP DOWN

TIME (MIN) 1 0 >

RELAY A OVERFD

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

FROM CYCLE ON

The CYCLE OFF time is the amount of time in seconds that the relay will be off for, it can be set between 0 - 600 seconds.

To disable the cycling feature set the cycle off time to 0.

The Default OFF time is 0 seconds.

The FAIL SAFE feature is designed to reverse the normal action of the relay.

When set to FAIL SAFE OFF, the relay will operate as a normal relay, which means that when the relay is not energized the NO contacts are open, and a device connected via the NO contacts is turned off. When the relay becomes energized the device turns on.

When the relay is set to FAIL SAFE ON, the normal action of the relay is reversed. Thus the NO contact acts as the NC contacts and the NC acts as the NO. Therefore the device connected to the NC contacts will be turned on when the relay on set-point is reached. Actually the relay will be de-energized but because it is acting in reverse the device will be turned on. When the relay off set-point is reached the relay will energize and the device connected to the NC contact will turn off.

The reason that the Fail Safe option would be used is to have the device turned on in the event of a power interruption.

With "N" selected, pressing the key will NOT store the selection, but simply return to the OUTPUTS Menu. This function is useful if you wish to view the current selection without making any changes.

The relay can be set to CYCLE when the process is between the RELAY ON setting and the RELAY OFF setting. This is meant to help eliminate overshoot.

The CYCLE ON time is the amount of time in seconds that the relay will be on. The value can be set between 0 and 600 seconds. The default ON time is 5 seconds.

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

Press the key to accept the setting and move to the STORE fuction.

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

DOWN

Or press the key to highlight the Y character

Then press the key to store the selection and return to the OUTPUTS menu

Not stored

Stored

STORE? Y N

RELAY A

The OVERFEED TIMER is designed to help safeguard against a process or instrumentation error causing one of the control relays to remain energized for extended periods of time.

When enabled, the user must select the desired overfeed timeout time (1-999 min.)

If the overfeed timer times out:

• Alarm relay will energize.

• Control (A&B) will de-energize

• LED on front will flash

Must be reset via Utilities Menu or Power reset.

FAIL SAFE OFF >

CYCLE OFF 0S >

CYCLE ON 5S >

RELAY A

FAIL SAFE ON >

FAIL SAFE O N >

FAIL SAFE O FF >

CYCLE OFF 200S >

CYCLE OFF 20 0 S >

RELAY A

CYCLE OFF 0 S >

CYCLE ON 100 S >

CYCLE ON 10 0 S >

CYCLE ON 5 S >

RELAY A

ORP - Outputs Menu - Relay A 5.17

ORP - Outputs Menu - Relay A 5.17 Page 67

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP DOWN

DOWN UP DOWN

DOWN

UP

DOWN

UP

DOWN

DOWNUP

DOWN

DOWNUP

DOWN

The RELAY ON setting is the process value at which the relay will energize. It may be set anywhere between 0-100% of the range.

The relay can be set to control either a RISING or FALLING process.

In a RISING process, the control relay will energize when the process rises above a set value. In this case, the ON set-point must be set higher than the OFF set-point.

In a FALLING process, the control relay will energize when the process falls below a set value. In this case, the ON set-point must be set lower than the OFF set-point.

TO CYCLE ON

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Use the and keys to change the setting

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

Press the key to accept the setting and move to the next setting

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Relay B can be configured for the following operations

- Response to rising or falling process values

- Adjustable on and off set-points

- Cycle on and off times

- Failsafe operation Each function will be explained below

RUN MODE

500mV 25.0C

CALIBRATION

OUTPUTS

UTILITIES

DIAGNOSTICS

SETUP

RELAY B

RELAY OFF 600 >

RELAY B

RELAY OFF 75 0 >

RELAY OFF 60 0 >

RELAY OFF 750 >

RELAY B

RELAY ON 80 0 >

RELAY ON 800 >

RELAY B

RELAY ON 700 >

RELAY B

DIRECTION RISE >

RELAY ON 70 0 >

RELAY B

DIRECTION R ISE >

RELAY B DIRECTION F ALL >

RELAY B

DIRECTION RISE >

RELAY A

RELAY B

DIRECTION R ISE >

RELAY B

The RELAY OFF setting is the process value at which the relay will de-energize. The setting must be rationalized against the On setting. For example, in a falling process, the Off setting must be higher than the ON setting.

The controller will not allow you to select the RELAY OFF value on the wrong side of the RELAY ON value for the selected direction. If the user tries to set the RELAY OFF on the wrong side, the following errors will de displayed:

Error when trying to set OFF point lower than ON point when set to falling.

Error when trying to set OFF point higher than ON point when set to rising.

ON SPT < OFF SPT

FALLING PROCESS

ON SPT > OFF SPT

RISING PROCESS

ORP - Outputs Menu - Relay B 5.18

ORP - Outputs Menu - Relay B 5.18 Page 68

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

TO OUTPUTS MENU

DOWN

UP DOWN

DOWN

DOWNUP

DOWN

UP DOWN

DOWN

UP

DOWN

UP

DOWN

DOWN UP DOWN

DOWN

UP DOWN

Use the and keys to change the setting

UP DOWN

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Press the key to accept the setting and move to the next setting

OVERFD TIMER OFF >

RELAY B

TIME (MIN) 6 >

OVERFD TIMER O N >

RELAY B OVERFD

RELAY B

OVERFD TIMER O FF >

RELAY B

DOWN

Press the key to accept the setting and move to the next setting

OVERFD TIMER ON >

RELAY B

Press the key once which will move the cursor back to the RH side of the display.

TIME (MIN) 6 >

RELAY B OVERFD

UP DOWN

TIME (MIN) 1 0 >

RELAY B OVERFD

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

FROM CYCLE ON

The CYCLE OFF time is the amount of time in seconds that the relay will be off for, it can be set between 0 - 600 seconds.

To disable the cycling feature set the cycle off time to 0.

The Default OFF time is 0 seconds.

The FAIL SAFE feature is designed to reverse the normal action of the relay.

When set to FAIL SAFE OFF, the relay will operate as a normal relay, which means that when the relay is not energized the NO contacts are open, and a device connected via the NO contacts is turned off. When the relay becomes energized the device turns on.

When the relay is set to FAIL SAFE ON, the normal action of the relay is reversed. Thus the NO contact acts as the NC contacts and the NC acts as the NO. Therefore the device connected to the NC contacts will be turned on when the relay on set-point is reached. Actually the relay will be de-energized but because it is acting in reverse the device will be turned on. When the relay off set-point is reached the relay will energize and the device connected to the NC contact will turn off.

The reason that the Fail Safe option would be used is to have the device turned on in the event of a power interruption. For example, a process that needs a constant feed, would want a pump to turn on in the event of a controller power failure.

With "N" selected, pressing the key will NOT store the selection, but simply return to the OUTPUTS Menu. This function is useful if you wish to view the current selection without making any changes.

The relay can be set to CYCLE when the process is between the RELAY ON setting and the RELAY OFF setting. This is meant to help eliminate overshoot.

The CYCLE ON time is the amount of time in seconds that the relay will be on. The value can be set between 0 and 600 seconds. The default ON time is 5 seconds.

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

Press the key to accept the setting and move to the STORE fuction.

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

DOWN

Or press the key to highlight the Y character

Then press the key to store the selection and return to the OUTPUTS menu

Not stored

Stored

STORE? Y N

RELAY B

FAIL SAFE OFF >

CYCLE OFF 0S >

CYCLE ON 5S >

RELAY B

FAIL SAFE ON >

FAIL SAFE O N >

FAIL SAFE O FF >

CYCLE OFF 200S >

CYCLE OFF 20 0 S >

RELAY B

CYCLE OFF 0 S >

CYCLE ON 100 S >

CYCLE ON 10 0 S >

CYCLE ON 5 S >

RELAY B

The OVERFEED TIMER is designed to help safeguard against a process or instrumentation error causing one of the control relays to remain energized for extended periods of time.

When enabled, the user must select the desired overfeed timeout time (1-999 min.)

If the overfeed timer times out:

• Alarm relay will energize.

• Control (A&B) will de-energize

• LED on front will flash

Must be reset via Utilities Menu or Power reset.

ORP - Outputs Menu - Relay B 5.18

ORP - Outputs Menu - Relay B 5.18 Page 69

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWNUPDOWN

DOWN UP DOWN

DOWN

UP DOWN

DOWN

DOWNUP

DOWN

UP

DOWNUP

TO HIGH OFF

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

The ALARM RELAY will respond to both a rising and falling process. The ALARM RELAY will act as a low alarm (falling process) and a high alarm (rising process). Both relay bands will have independently adjustable on and off set-points. If a low alarm set-point is set at a value 800mV for example, the off setpoint must be set higher. The controller will not let the user input a value below 800mV. The same rule holds true for the high alarm.

The Alarm Relay can be configured for the following operations

-LOW ON Set-point

-LOW OFF Set-point

-HIGH ON Set-point

-HIGH OFF Set-point

-Failsafe

The HIGH ON set-point is the high process value that will cause the relay to energize. This value can be set anywhere 0-100% of Full Scale.

The LOW ON set point is the low process value that will cause the relay to energize. This value can be set anywhere 0-100% of Full Scale.

The LOW OFF set point is the value that the process must reach in order to deenergize the alarm relay after it has dropped below and tripped the LOW ON set-point. This value must be higher than the LOW ON Set-point.

RUN MODE

Press the key once which will move the cursor back to the RH side of the display.

HIGH ON 900 >

ALARM RELAY HIGH ON 750 >

HIGH ON 900 >

HIGH ON 75 0 >

ALARM RELAY

LOW OFF 325 >

LOW OFF 32 5 >

ALARM RELAY

LOW OFF 300 >

ALARM RELAY

ALARM RELAY LOW ON 250 >

ALARM RELAY

LOW OFF 30 0 >

ALARM RELAY

LOW ON 275 >

ALARM RELAY

ALARM RELAY LOW ON 27 5 >

LOW ON 25 0 >

OUTPUTS

UTILITIES

DIAGNOSTICS

CALIBRATION

SETUP

500mV 25.0C

ALARM RELAY

RELAY A

RELAY B

ORP - Outputs Menu - Alarm Relay 5.19

ORP - Outputs Menu - Alarm Relay 5.19 Page 70

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

TO OUTPUTS MENU

DOWN

DOWNUP

DOWN

UP DOWN

With "N" selected, pressing the key will NOT store the selection, but simply return to the OUTPUTS Menu. This function is useful if you wish to view the current selection without making any changes.

Not stored

The FAIL SAFE feature is designed to reverse the normal action of the relay.

When set to FAIL SAFE OFF, the relay will operate as a normal relay, which means that when the relay is not energized the NO contacts are open, and a device connected via the NO contacts is turned off. When the relay becomes energized the device turns on.

When the relay is set to FAIL SAFE ON, the normal action of the relay is reversed. Thus the NO contact acts as the NC contacts and the NC acts as the NO. Therefore the device connected to the NC contacts will be turned on when the relay on set-point is reached. Actually the relay will be de-energized but because it is acting in reverse the device will be turned on. When the relay off set-point is reached the relay will energize and the device connected to the NC contact will turn off.

The reason that the Fail Safe option would be used is to have the device turned on in the event of a power interruption.

The HIGH OFF set- point is the value that the must reach in order to de-energize the alarm relay after it has increased over and tripped the HIGH ON setpoint. This value must be lower than the HIGH ON Set-point.

FROM HIGH ON

Then press the key to store the selection and return to the OUTPUTS menu

Stored

Use the and keys to change the setting

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

the Y character.

Or press the key to highlight

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

If the Low On set-point is set higher than the factory default Low Off set-point, when the user advances from the low on set-point to the Low Off set-point the controller will adjust the Low Off set-point to be equal to the Low On set-point. If the user then tries to decrease the Low Off set-point the Controller will display the Low Alarm setup error screen.

This screen will be displayed for 10 seconds, then return back to the setup screen that was previously displayed. The same conditions apply to the High alarm set-points. Except the High Off set-point must be lower than the High On setpoint. If the user tries to increase the High Off set-point higher than the High On set-point the High Alarm setup error screen will be displayed.

If the user sets the low on set-point and the low off setpoint equal to 0, it will disable the Low Alarm relay. Similarly, setting the High On set-point and the HIGH OFF set-point to 0 will disable the High Alarm.

ON SPT < OFF SPT

LOW ALARM

ON SPT > OFF SPT

HIGH ALARM

STORE? Y N STORE? Y N

FAILSAFE OFF >

HIGH OFF 700 >

ALARM RELAY

FAIL SAFE ON >

FAIL SAFE O N >

ALARM RELAY

FAIL SAFE O FF >

HIGH OFF 850 >

HIGH OFF 85 0 >

HIGH OFF 70 0 >

ALARM RELAY

ORP - Outputs Menu - Alarm Relay 5.19

ORP - Outputs Menu - Alarm Relay 5.19 Page 71

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

DOWN

UP DOWN

DOWN

UP DOWN

DOWN

DOWNUP

DOWN

UP

DOWN

Press the key once which will move the cursor back to the RH side of the display.

Or press the key to highlight the Y character

Then press the key to store the selection and return to the OUTPUTS menu

Not stored

Stored

Press the key to accept the setting and move to the next setting

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

The TUNE fuction allows the user to precisely adjust the 4-20 mA output to compensate for any errors in the output circuitry. Normally, find turning the 4-20mA output is not necessary. To make the adjustment, place an accurate current meter in series with the 4-20 mA output, with the appropriate loads connected. When the TUNE menu is selected, the controller puts 20 mA out the terminals. Use the or keys to adjust the 20mA output to get exactly 20.

The TUNE value can be adjusted over the range from 0 to 1000, these are unitless numbers used for tuning purposes only.

RUN MODE

With "N" selected, pressing the key will NOT store the selection, but simply return to the OUTPUTS Menu. This function is useful if you wish to view the current selection without making any changes.

The example below shows the 4-20 mA set to 4mA =200mV and 20mA = 800mV. The output would then span 4 to 20 mA for a mV swing of 200mV to 800mV. Note that the span can be reversed, in that 4 mA can be set to a high mV value, and 20 mA can be set to a low mV value, effectively reversing the control direction.

Use the and keys to change the setting

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Press the key to accept the setting and move to the next setting

Use the and keys to change the setting

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

The Controller has 2 4-20mA outputs, electrically isolated from each other and ground. Either output can source current into a maximum of 800 ohms. See Section 3.12 for wiring diagram. Channel 1 (the primary output) is located on the flip out door, terminal plug P6. Channel 1 is dedicated to track the process and has fully independent and fully adjustable 4 & 20 mA output adjustments. This will enable the operator to span the output over the desired range.

STORE? Y N

4-20mA CH1 PROC

20mA TUNE 54 0 >

4-20mA CH1 PROC

20mA TUNE 54 0 >

4-20mA CH1 PROC

OUTPUTS

CALIBRATION

DIAGNOSTICS

UTILITIES

SETUP

500mV 25.0C

4-20mA CH1

20mA TUNE 512 >

4-20mA CH1 PROC

20mA OUT 1000 >

20mA TUNE 51 2 >

4-20mA CH1 PROC

20mA OUT 80 0 >

20mA OUT 800 >

20mA OUT 100 0 >

4-20mA CH1 PROC

4mA OUT 0 >

4-20mA CH1 PROC

4mA OUT 200 >

4mA OUT 20 0 >

4-20mA CH1 PROC

4mA OUT 0 >

ALARM RELAY

RELAY A

RELAY B

ORP - Outputs Menu - 4-20mA CH1 Output 5.20

ORP - Outputs Menu - 4-20mA CH1 Output 5.20 Page 72

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

DOWN

DOWNUP

DOWN

UP

DOWNUP

DOWN

Or press the key to highlight the Y character

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Then press the key to store the selection and return to the OUTPUTS menu

Stored

The example below shows the 4-20 mA set to 4mA = 0°C and 20mA = 100°C

The output would then span 4 to 20 mA for a temperature swing of 0°C to 100°C.

Note that the span can reversed, in that 4 mA can be set to a high process value, and 20 mA can be set to a low process value, effectively reversing the control direction.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

The TUNE function allows the user to precisely adjust the 4-20mA output to compensate for any errors in the output circuitry. Normally, fine tuning the 420mA output is not necessary.

The make the adjustment, place an accurate current meter in series with the 4-20mA output, with the appropriate loads connected. When the TUNE menu is selected, the controller puts 20mA out to the terminals. Use the or keys to adjust the 20mA output to get exactly 20.

The TUNE value can be adjusted over the range from 0 to 1000, these are unitless numbers used for tuning purposes only.

Not stored

With "N" selected, pressing the key will NOT store the selection, but simply return to the OUTPUTS Menu. This function is useful if you wish to view the current selection without making any changes.

Press the key to accept the setting and move to the next setting

The 4mA, 20mA and TUNE functions are set up the same way as 4 - 20 mA CH 1 output.

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

RUN MODE

The Controller has 2 4-20mA outputs, electrically isolated from each other and ground. Either output can source current into a maximum of 800 ohms. Channel 2 can be selected to track the process or temperature. Channel 2 has fully independent and fully adjustable 4 & 20 mA output adjustments. This will enable the operator to span the output over the desired range.

Note that if the T DISP OVERRIDE is ON and Channel 2 output is set to track temperature, the output will not change, but hold at a value representing the temperature set in the T DISP OVERRIDE.

STORE? Y N

4-20mA CH2 TEMP

STORE? Y N

20MA TUNE 512 >

4-20 CH2 TEMP

4-20mA CH2 TEMP

20MA OUT 100.0 >

4MA OUT 0.0 >

4-20 CH2 TEMP

4-20mA CH2

TEMPERATURE >

4-20mA CH2

P ROCESS >

T EMPERATURE >

TEMPERATURE >

4-20mA CH2

T EMPERATURE >

CALIBRATION

OUTPUTS

DIAGNOSTICS

UTILITIES

SETUP

4-20mA CH1

ALARM RELAY

RELAY A

RELAY B

500mV 25.0C

ORP - Outputs Menu - 4-20mA CH2 Output 5.21

ORP - Outputs Menu - 4-20mA CH2 Output 5.21 Page 73

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

Press the key to go immediately back to Run mode

CAL

DOWN

ENTER

UP

DOWN

UP

ENTER

CAL

RUN MODE

MANUAL CALIBRATE

ENTER

The Controller will display bUFF, prompting the user to place the probe in the buffer solution.

Be sure to clean and rinse the Probe first with D.I. water and then insert it in the Buffer. Press the key.

Use the and keys to adjust the display until it reads the correct value of the buffer.

Press the key to accept the setting.

Press the key again to confirm the change in calibration value.

The controller will flash "bUFF" for about 10 seconds while is reads the buffer. It will then display the mV value.

The display will flash

MANUAL CALIBRATE This menu allows the user to manually calibrate the probe, the user enters the known mV buffer value

Press the key to select Manual Calibration

ORP - LED Display Menu - ORP Manual Calibrate 5.22

ORP - LED Display Menu - ORP Manual Calibrate 5.22 Page 74

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

RUN LED (GREEN)

LED WILL BE ILLUMINATED WHEN SHARK IS IN THE RUN MODE. WILL BE OFF WHEN SHARK IS IN THE MENU MODE.

4 DIGIT, 7 SEGMENT LED DISPLAY

DISPLAYS PROCESS VALUE IN RUN MODE. DISPLAYS CALIBRATION DATA IN CALIBRATION MODE.

RELAY C (ALARM RELAY)

STATUS LED's (RED)



BOTTOM LED WILL ILLUMINATE

WHEN ALARM RELAY IS

ENERGIZED BECAUSE OF LOW

ALARM CONDITION.

TOP LED WILL ILLUMINATE WHEN

ALARM RELAY IS ENERGIZED

BECAUSE OF HIGH ALARM

BAR GRAPH LED's (GREEN)

LINEAR INDICATOR OF PROCESS

VALUE.

1/4" TURN SCREWS

RELAY A STATUS LED (YELLOW)

LED WILL BE ILLUMINATED WHEN RELAY A IS ENERGIZED.

REMOVABLE TERMINAL

BLOCK CONNECTORS

"SNAP-ON" CONNECTORS FOR

EASY WIRING OF YOUR

CONDUCTIVITY SENSORS AND

PRIMARY 4-20mA OUTPUT.

(REFER TO SECTIONS 3.5, & 3.12)

SIMPLE THREE-BUTTON INTERFACE

FOR FAST & EASY SETUP (REFER TO SECTIONS 6.0 TO 6.21)

RELAY B STATUS LED (YELLOW)

LED WILL BE ILLUMINATED WHEN RELAY B IS ENERGIZED.

UNIT LABEL

LABEL TO INDICATE UNIT OF MEASURE SHARK IS CONFIGURED FOR.

AUXILLARY LED's

NOT USED IN CONDUCTIVITY MODE.

CALIBRATION FROM THE

FRONT PANEL



4 PUSH BUTTONS USED TO

CALIBRATE THE SHARK FROM THE

FRONT PANEL.

(REFER TO SECTIONS 6.22)

2 LINE, 16 CHARACTER

LCD DISPLAY



MAIN MENU INTERFACE

SCREEN

TEMPERATURE DISPLAY

WHEN THE 'UP' AND 'DOWN' ARROW KEYS ARE PRESSED SIMULTANEOUSLY, THE LED WILL DISPLAY THE CURRENT PROCESS TEMPERATURE FOR 5 SECONDS.  THIS FEATURE WILL BE DISABLED IF THE 'TEMPERATURE COMPENSATION OVERRIDE' IS TURNED ON IN THE SETUP MENU. IN THIS CASE THE LED WILL DISPLAY

---- IN PLACE OF THE

TEMPERATURE.

uS

P6

843

2

1

7

65

11109

1514

1312

17

16

FRONT PANEL

INSIDE PANEL

NOTE

WHEN THE SHARK IS TAKEN INTO

MENU MODE VIA THE INSIDE LCD

SCREEN, THE FRONT 7-SEGMENT LED

WILL DISPLAY

----. THE STATUS &

BAR GRAPH LED's WILL BE TURNED

OFF. THE 4 PUSH BUTTONS ON THE

FRONT WILL NOT RESPOND.

OVERFEED LED (RED)

LED WILL FLASH WHEN THE OVERFEED TIMER IS ACTIVATED.

Section 6 - Using the SHARK in Conductivity Mode

Section 6 - Using the SHARK in Conductivity Mode Page 75

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWNDOWN

DOWN

DOWNDOWN

DOWN

DOWNDOWN

DOWN

DOWNDOWN

DOWN

DOWNDOWN

DOWN

DOWNDOWN

COMPENSATION VALUE

OUTPUT RESPONSE TIME

SELECT TYPE OF

SELECT DEG C OR DEG F

SELECT MEASURING

ENABLE TIME OUT

PROBE W/O TEMP. SENSOR

TEMPERATURE SETUP FOR

SETUP DISPLAY AND

4-20 mA CH 1 OUTPUT

4-20 mA CH. 2 OUTPUT SEC 6.22

SEC 6.21

SEC 6.20

ALARM RELAY

SETUP

SEC 6.18

SEC 6.19

SETUP RELAY A

SETUP RELAY B

SEC 6.17

SEC 6.16

SEC. 6.15

DISPLAY FIRMWAVE REVISION

DISPLAY PREVIOUS CALIBRATION DATA

DISPLAY UNCALIBRATED PROBE DATA

SEC 6.14

SETUP TEMP

SEC 6.13

SEC 6.12

SEC. 6.8

SEC. 6.11

SEC 6.9

SEC 6.10

TEMP SENSOR

FROM MENU

RANGE

RUN MODE

SEC. 6.3

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

VERIFY OUTPUTS

MANUALLY OVERRIDE

SELECT TYPE

SEC. 6.6

SEC. 6.5

SEC. 6.4

OF METER

RESETS RELAY

SEC. 6.7

OVERFEED TIMER

RELAYS

SIMULATE PROCESS

SENSOR IN PROBE

MANUFACTURER'S DATA

CALIBRATE PROBE WITH

CALIBRATE PROBE

CALIBRATE TEMP.

WITH BUFFER SOL'N

SEC. 6.2

SEC. 6.1

DIAGNOSTICS

EXIT

ALARM RELAY

4-20mA CH1

4-20mA CH2

RELAY A

RELAY B

SENSOR INPUT

CALIBRATION DATA

FIRMWARE REV

EXIT

OUTPUTS

TEMP COMP CURVE

DISPLAY DAMPING

EXIT

AUTO RETURN

TEMP SENSOR

TEMP UNIT

COND. RANGE

T.COMP OVERRIDE

1000uS 25.0C

UTILITIES

SETUP

CALIBRATION

RELAY OVERRIDE

METER SELECTION

RESET OVERFD TIMER

MANUAL TEST MODE

EXIT

MANUAL CAL COND

TEMP CALIBRATION

DRY CAL COND

Conductivity - Menu Overview 6.0

Conductivity - Menu Overview 6.0 Page 76

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWN DOWN

UP DOWN

Manual Calibration is used to "wet calibrate the cell". This can be done with the cell installed in the process, or with the cell suspended in a known buffer solution. When calibrated "In Process", the actual conductivity is determined with a grab sample or a hand held meter, and the value entered in the display. When calibrated with buffers, the cell is placed in a known buffer solution, and the value of the buffer entered on the display. In both cases, make sure the cell has time to stabilize both in temperature and conductivity before entering any data.

If the calibration did not appear to be correct, press the key which will return back to the Manual Cal Cond menu.

DOWN

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Place the cell in the buffer solution

Press to store the calibration data and return back to the Manual Cal Cond menu so the user can select another function.

The controller will read the Conductivity value, averaging a number of results to get a stable calibration value.

Use the and keys to adjust the reading until it agrees with the actual buffer conductivity value

If the calibration is OK, use the key to move the cursor over the Y text and press the down key.

Then press to move the cursor to the RH position

Press the key once which will move the cursor over the least sign. digit of the display.

UP

DOWN

CALIBRATION

1000uS 25.0C

MANUAL CAL COND

STORE? Y N

MANUAL CAL COND

MANUAL CAL COND 100 0 uS >

1000 uS >

MANUAL CAL COND

967 uS >

MANUAL CAL COND

96 7 uS >

MANUAL CAL COND

Conductivity - Calibration Menu - Manual Calibrate 6.1

Conductivity - Calibration Menu - Manual Calibrate 6.1 Page 77

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

Dry Calibration eliminates the need for conductivity reference solutions, the user inputs the Cell K factor supplied by the factory.

If the conductivity cell has a tag attached to it, specifying the exact cell constant, the user is prompted to enter this value.

DOWN

UP

DOWN

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Press to store the calibration data and return back to the Dry Cal Cond menu so the user can select another function.

If the calibration did not appear to be correct, press the key which will return back to the Manual Cal Cond menu.

DOWN

NOTE: ACCELERATOR KEYS Pressing the or key once will change the value by the smallest digit. Holding the key down will cause the value to change at an increasing rate until the key is released. Pressing the key again will cause the value to start changing at it's slowest rate again. This allows the user to get to the new multiplier value quickly.

DOWN

UP

If the setting is OK, use the key to move the cursor over the Y text and press the down key.

DOWN

UP

Then press to move the cursor to the RH position

Use the and keys to adjust the value to the K factor specified on the probe tag

Press the key once which will move the cursor over the least sign. digit of the display.

DOWN

RUN MODE

CALIBRATION

K FACTOR 10.000 >

K FACTOR 10.00 0 >

DRY CALIBRATION

STORE? Y N

K FACTOR 1.000 0 >

DRY CALIBRATION

K FACTOR 1.0000 >

DRY CALIBRATION

MANUAL CAL COND

DRY CAL COND

DRY CALIBRATION

1000uS 25.0C

Conductivity - Calibration Menu - Dry Cal Cond 6.2

Conductivity - Calibration Menu - Dry Cal Cond 6.2 Page 78

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWN DOWN

DOWNUP

DOWN

UP

DOWN

If the Temperature Compensation Override is set to ON (see section 6.12), the Shark cannot calibrate the temperature sensor. This display will appear to alert the user to the condition.

If the calibration did not appear to be correct, press the key which will return back to the Temp Calibration menu.

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

This will store the calibration data and return back to the Temp Calibration setup so the user can select another function.

Use the and to adjust the reading until it agrees with the known temperature of the probe

Press the key to accept the reading and move to the store function

"T FACTOR SHIFTED" will be displayed for 5 seconds to indicate that the temperature sensor has been calibrated. The Shark will then move to the store function.

The controller displays the current probe temperature. If this incorrect, the controller can be adjusted to compensate.

Press the key once which will move the cursor back to the RH side of temperature display.

Press the key once which will move the cursor over the least sign. digit of the temperature display.

RUN MODE

DRY CAL COND

STORE? Y N

TEMP CALIBRATION

STORE? Y N

TEMP CALIBRATION

25.0C >

T FACTOR SHIFTED

25. 0 C >

TEMP CALIBRATION

22. 4 C >

22.4C >

TEMP CALIBRATION TEMP O/R ON >

1000uS 25.0C

CALIBRATION MANUAL CAL COND

Temperature Calibration In most cases, the factor temperature calibration is accurate enough to ensure correct temperature readings. However, in some circumstances, the user may wish to ensure the temperature sensor is calibrated accurately, especially when operating at the extreme end of the conductivity cell temperature operating range, or where the temperature compensation is critical to correct process readings. This menu allows to user to calibrate the temperature anywhere within it's range.

Be aware, that the conductivity reading is affected by the temperature reading (due to the temperature compensation) so accurate temperature calibration is vital to obtaining accurate conductivity readings. If the user is unsure of the calibration test fixture, then it would be best to leave the temperature calibration at it's factory setting.

Be sure to allow the temperature of the cell to stabilize before attempting to calibrate the temperature sensor, this may take a significant amount of time as the sensor is buried behind a protective layer of epoxy which will cause some delay.

Conductivity - Calibration Menu - Temp. Calibration 6.3

Conductivity - Calibration Menu - Temp. Calibration 6.3 Page 79

S H A R K

DOWN

UP DOWN

DOWN

UP

DOWN

Manual Test Mode is used to simulate a process reading in order to verify the correct response of the outputs. When in the Manual Test Mode, the outputs are no longer placed on hold as they are when in the rest of the menu.

NOTE:

When the user exits the Manual Test Mode, the relays and

4-20mA outputs will remain in the Test Mode state until the

operator enters the run mode. The relays and outputs will

then revert back to the previous On-line state.

The CH1 4-20 mA output will track the change in process value

When a relay is energized, the characters a,b,c will change to upper case A,B,C

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

As the value is changed, the state of the relays will change depending on their settings in the OUTPUTS menu. a/A - state of Relay A b/B - state of Relay B c/C - state of Alarm relay

Press the key once to move the cursor to the RH side of the display

As well, Channel 1 4-20 mA output will also follow the process value change. The actual change will depend on how the CH1 output was scaled in the OUTPUTS menus. (See Section 6.21)

Press the key to return to the MANUAL TEST MODE menu

Use the and keys to change the simulated process value.

Press the key once which will move the cursor over the least digit of the simulated process value.

TEST 100 0 >

TEST 1000 >

1000uS 25.0C

CALIBRATION

UTILITIES

a b c 14.4mA

TEST 1310 >

TEST 131 0 > a b c 14.4mA

MANUAL TEST MODE

a b c 12.0mA

a B c 14.4mA

TEST 131 0 >

a b c 12.0mA

DOWN

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

Conductivity - Utilities Menu - Manual Test Mode 6.4

Conductivity - Utilities Menu - Manual Test Mode 6.4 Page 80

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

UP

To Alarm Relay (Relay C) Override

UP

DOWN

UP

DOWN

DOWN DOWN

DOWN

UP

DOWN

Relay Override is used to manually override the state of the relays, the user is able to set the operating mode of the relay as AUTO/ON/OFF (the default and run mode state are AUTO). This feature can be used to turn the relays ON or OFF to manually correct the process, or to shut down an ancillary device to perform maintenance. When in the Relay Override mode, the outputs are no longer placed on hold as they are when in the other menus.

If you wish to Override Relay B, Press the key once which will move the cursor over to the AUTO/ON/OFF text

If you wish to Override Relay A, Press the key once which will move the cursor over to the AUTO/ON/OFF text

If you do not wish to Override Relay B, then use the key to the Alarm Relay

If you do not wish to Override Relay A, then use the key to move to Relay B

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

If you wish to accept the Override setting, Press the key once to move the cursor to the RH of the display

Then use the key to move to the Override setting for Relay B

CAUTION:

Note that if the Relay Auto Return Menu is set to "ON", the controller will place all these settings back to AUTO if the controller is put back in run mode, and there is no button activity for 10 minutes.

Use the or key to change the Override state from AUTO - controlled by process settings ON - relay forced on OFF- relay forced off The relay will react immediately.

If you wish to accept the Override setting, Press the key once to move the cursor to the RH of the display

To use the Relay Override function, press the key

Then use the key to move to the Override setting for Relay A

RELAY OVERRIDE RELAY B A UTO >

RELAY OVERRIDE RELAY B O N >

RELAY OVERRIDE RELAY B O FF >

RELAY A O FF >

RELAY OVERRIDE RELAY A O N >

RELAY OVERRIDE

RELAY A A UTO >

RELAY OVERRIDE

MANUAL TEST MODE

RELAY OVERRIDE RELAY B AUTO >

1000uS 25.0C

RELAY A AUTO >

RELAY OVERRIDE

CALIBRATION

UTILITIES

RELAY B ON >

RELAY B AUTO >

RELAY B OFF >

RELAY OVERRIDE

RELAY A ON >

RELAY A AUTO >

RELAY A OFF >

RELAY OVERRIDE

Conductivity - Utilities Menu - Relay Override 6.5

Conductivity - Utilities Menu - Relay Override 6.5 Page 81

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP DOWN

DOWN

DOWNUP

UP

DOWN

If you do not wish to Override Relay C, then use the key to the Alarm Relay

With "N" highlighted, pressing the key will NOT store the Override states of the relays, but they will revert to the state they were in before the menu was entered. Note that, if any of the relays were in a specific Override state before the menu was entered (i.e. not in AUTO), they will revert to that state again unless the changes are STORED.

TO RELAY OVERRIDE MENU

NOT STORED

FROM RELAY B OVERRIDE MENU

Then press the key to store the Override states of all the relays and return back to the Override menu

STORED

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

If you wish to accept the Override setting, Press the key once to move the cursor to the RH of the display

If you wish to store the state of the Relay Overrides, press the key to highlight the Y character

If you wish to Override Relay C, Press the key once which will move the cursor over to the AUTO/ON/OFF text

Then use the key to move to the Override setting for Relay C

NOTE Relay C is the Alarm Relay

UP

DOWN

Use the or key to change the Override state from AUTO - controlled by process settings ON - relay forced on OFF- relay forced off The relay will react immediately.

STORE? Y N

RELAY C AUTO >

RELAY OVERRIDE

STORE? Y N

RELAY OVERRIDE

RELAY C O N >

RELAY C O FF >

RELAY OVERRIDE RELAY C A UTO >

RELAY OVERRIDE

RELAY OVERRIDE RELAY C ON >

RELAY C OFF >

RELAY OVERRIDE RELAY C AUTO >

Conductivity - Utilities Menu - Relay Override 6.5

Conductivity - Utilities Menu - Relay Override 6.5 Page 82

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWNDOWN

DOWN

DOWN DOWN

DOWN

Then press The controller will initialize itself for a specific meter

If you do wish to initialize to this type of meter, press the key to highlight the Y character

If you do not wish to initialize to this type of meter after all, then press key to return back to the Meter Selection menu

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Press the key to Exit and return to the Utilities menu

RUN MODE

Press the key to initialize the controller as a Flow meter

Press the key to initialize the controller as a Conductivity meter

The Meter Selection menu is used to select the meter type that the controller is configured for, either pH, ORP, Conductivity or Flow. Once selected, the controller will initialize itself for the selected meter's functionality and move to run mode.

Press the key to initialize the controller as an ORP meter

Press the key to initialize the controller as a pH meter.

INITIALIZE? Y N

C ONDUCTIVITY

PH

E XIT

MANUAL TEST MODE

1000uS 25.0C

UTILITIES

CALIBRATION

RELAY OVERRIDE

METER SELECTION

C ONDUCTIVITY

FLOW

EXIT

F LOW

EXIT

O RP

CONDUCTIVITY

FLOW

ORP

P H ORP

PH

To reset the controller back to all the factory default values, reselect the current meter type

Conductivity - Utilities Menu - Meter Selection 6.6

Conductivity - Utilities Menu - Meter Selection 6.6 Page 83

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWNDOWN

DOWN

If you wish to reset the overfeed timer, then press the key to proceed and return back to the Utilities menu.

If you do not wish to reset the overfeed timer after all, press the key to highlight the N character and press the key to return back to the Utilities menu.

DOWN

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

RUN MODE

Press the key to choose between Y or N.

If the control relay overfeed timer has been enabled, the relay will “time out” after the specified overfeed time. When the relay times out, it must be manually reset. The time out will be signaled by the time out LED flashing on the front panel.

The reset overfeed timer will reset the timers for both relay A & relay B at the same time.

Y N

MANUAL TEST MODE

1000uS 25.0C

UTILITIES

CALIBRATION

RELAY OVERRIDE

METER SELECTION

RESET OVERFD TMR

Y N

RESET OVERFD TMR

Conductivity - Utilities Menu - Overfeed Timer Reset 6.7

Conductivity - Utilities Menu - Overfeed Timer Reset 6.7 Page 84

S H A R K

UP DOWN

DOWN

UP

DOWN

DOWNUP

UP DOWN

DOWN

UP

DOWN

Conductivity Range will allow the user to select the measuring range of the instrument. The ranges can be selected from any of the following: 200 mS/cm - cell constant 50 20 mS/cm - cell constant 10 2000 uS/cm - cell constant 1 200 uS/cm - cell constant 0.1 20 uS/cm - cell constant 0.1 2 uS/cm - cell constant 0.01

19.99 M

Ω - cell constant 0.01

With "N" selected, pressing the key will NOT store the selection, but simply return to the COND RANGE Menu. This function is useful if you wish to view the current selection without making any changes.

Not stored

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Then press the key to store the selection and return to the COND RANGE Menu.

Stored

Or press the key to highlight the Y character.

Press the key to accept the setting and move to the store function

Once the correct range is selected, move to the store function to save the selection

Press the key once which will move the cursor back to the RH side of the display.

Use the or keys to scroll through the available ranges

Press the key once which will move the cursor over the last character of the range.

STORE? Y N STORE? Y N

COND. RANGE

20.00mS/cm >

COND. RANGE

20.0 0 mS/cm >

200. 0 mS/cm >

19.9 9 M

Ω

/cm >

COND. RANGE

1000uS 25.0C

CALIBRATION

SETUP

UTILITIES

20.0 0 uS/cm >

COND. RANGE

2.0 0 uS/cm >

200. 0 uS/cm >

COND. RANGE

COND. RANGE 200 0 uS/cm >

COND. RANGE COND. RANGE

2000uS/cm >

COND. RANGE

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

Conductivity - Setup Menu - Conductivity Range 6.8

Conductivity - Setup Menu - Conductivity Range 6.8 Page 85

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP DOWN

DOWN

UP

DOWN

With "N" selected, pressing the key will NOT store the selection, but simply return to the TEMP UNIT Selection Menu. This function is useful if you wish to view the current selection without making any changes.

Not stored

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Then press the key to store the selection and return to the TEMP UNIT Selection Menu.

Stored

Or press the key to highlight the Y character.

TEMP UNIT allows the user to select either Degrees Centigrade or Fahrenheit units for display

RUN MODE

Press the key once which will move the cursor over the unit type, C or F.

Use the or to select C or F

Press the key to accept the change and move to the store function

Press the key once which will move the cursor back to the RH side of the display.

1000uS 25.0C

UTILITIES

SETUP

CALIBRATION

STORE? Y N

TEMP UNIT TEMP UNIT

DEGREE C >

DEGREE F >

DEGREE C >

TEMP UNIT TEMP UNIT

TEMP UNIT

COND RANGE

Conductivity - Setup Menu - Temp. Unit 6.9

Conductivity - Setup Menu - Temp. Unit 6.9 Page 86

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

DOWN

UP

DOWN

With "N" selected, pressing the key will NOT store the selection, but simply return to the TEMP SENSOR Selection Menu. This function is useful if you wish to view the current selection without making any changes.

RUN MODE

Then press the key to store the selection and return to the TEMP SENSOR Selection Menu.

Press the key to accept the change and move to the store function

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Not stored

Stored

Or press the key to highlight the Y character.

Press the key once which will move the cursor over to the sensor type.

Once the correct Sensor has been selected press the key once which will move the cursor back to the RH side of the display.

Use the or to select the sensor type

TEMP SENSOR allows the user to select the type of temperature sensor used the in the probe. The factory default for Conductivity is a 3000

Ω

NTC thermistor. The user can also select a 300

Ω NTC thermistor or a Pt. 1000 RTD.

TEMP SENSOR

1000uS 25.0C

CALIBRATION

UTILITIES

SETUP COND RANGE

TEMP UNIT

STORE? Y N

3 00 NTC >

TEMP SENSOR

3000 NTC >

3 000 NTC >

1 000 RTD >

3000 NTC >

Ω

TEMP SENSOR

Ω

TEMP SENSOR

Ω

Conductivity - Setup Menu - Temp. Sensor 6.10

Conductivity - Setup Menu - Temp. Sensor 6.10 Page 87

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

Not stored

DOWN

Stored

DOWN

UP DOWN

DOWN

UP DOWN

DOWN

UP

DOWN

UP

Press the key to accept the change and move to the RELAYS auto return function. RELAYS ON will cause the relays to return to the AUTO mode if the controller returns to Online after 10 minutes of inactivity. This ensures the controller will be put back in control of the process if accidentally left offline.

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Then press the key to store the selection and return to the Auto Return Selection Menu.

Press the key to accept the change and move to the STORE function

Use the or keys to select either ON or OFF.

Press the key once which will move the cursor to the ON or OFF text

To change the MENU RETURN setting, Press the key once which will move the cursor to the ON or OFF text

MENU ON will cause the controller to exit the menu and revert back to the online run mode after 10 minutes with no buttons pressed. This feature ensures that if a user forgets to return back to run mode, the controller will not be left in an offline state. If for some reason, the user would like to remain in the menu mode for extended periods of time, the AUTO RETURN function can be set to "OFF".

AUTO RETURN is used to select what conditions will cause the controller to time-out of the operations menu, or reset the relay override function.

With "N" selected, pressing the key will NOT store the selection, but simply return to the AUTO RETURN Selection Menu. This function is useful if you wish to view the current selection without making any changes.

CAUTION:

If AUTO RETURN RELAYS is ON, regardless of the user settings of the states of the relays, Relays will default to AUTO 10 minutes after the Shark returns to Run Mode.

Or press the key to highlight the Y character.

RUN MODE

Press the key once which will move the cursor back to the RH side of the display.

Use the or keys to select either ON or OFF.

Press the key once which will move the cursor back to the RH side of the display.

MENU O FF >

MENU O N >

STORE? Y N STORE? Y N

AUTO RETURN AUTO RETURN

RELAYS ON >

RELAYS OFF >

AUTO RETURN

RELAYS O N >

RELAYS O FF >

AUTO RETURN

UTILITIES

SETUP

1000uS 25.0C

CALIBRATION

TEMP SENSOR

TEMP UNIT

COND RANGE

AUTO RETURN MENU ON >

AUTO RETURN

MENU OFF >

AUTO RETURN

Conductivity - Setup Menu - Auto Return 6.11

Conductivity - Setup Menu - Auto Return 6.11 Page 88

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

DOWN

DOWNUP

DOWN

UP

DOWNUP

DOWN

Not stored

Stored

If you wish to save the setting, press the key to highlight the Y character

Temperature Compensation Override is used to manually set the actual probe or process temperature. This is useful if the probe does not have a temperature sensor or if the process temperature is constant. When the override is enabled, the controller will use the selected temperature when performing temperature compensation calculations.

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

With "N" selected, pressing the key will NOT store the selection, but simply return to the T. Comp Override Menu. This function is useful if you wish to view the current selection without making any changes.

RUN MODE

Press the key to accept the reading and move to the store function

Press the key once which will move the cursor back to the RH side of temperature display.

Then press the key to store the selection and return to the T. COMP OVERRIDE Menu.

Press the key to accept the change and move to the Temperature Entry function

Press the key once which will move the cursor over the least significant digit of the temperature display.

Use the and to adjust the reading until it agrees with the known temperature of the probe or process

The user can now enter the actual probe or process temperature

Use the or keys to select either ON or OFF.

Press the key once which will move the cursor back to the RH side of the

Press the key once which will move the cursor to the ON or OFF text

STORE? Y N STORE? Y N

TEMP 35. 7 C >

TEMP 25. 4 C >

COMPENSATE O FF >

COMPENSATE O N >

T.COMP OVERRIDE

COMPENSATE ON >

T.COMP OVERRIDE

T.COMP OVERRIDE TEMP 25.4C >

TEMP 35.7C >

T.COMP OVERRIDE

CALIBRATION

UTILITIES

SETUP

1000uS 25.0C

AUTO RETURN

TEMP SENSOR

T.COMP OVERRIDE

COMPENSATE OFF >

T.COMP OVERRIDE

TEMP UNIT

COND RANGE

T.COMP OVERRIDE

Conductivity - Setup Menu - T. Comp Override 6.12

Conductivity - Setup Menu - T. Comp Override 6.12 Page 89

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

DOWN

DOWNUP

DOWN

With "N" selected, pressing the key will NOT store the selection, but simply return to the Display Damping Menu. This function is useful if you wish to view the current selection without making any changes.

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Use the and to adjust the damping time, the default setting is 0 seconds. The setting can be adjusted from 0 to 10 seconds.

If you wish to save the setting, press the key to highlight the Y character

Then press the key to store the selection and return to the Display Damping Menu.

Press the key once which will move the cursor back to the RH side of the display.

Press the key to accept the setting and move to the store function

Not stored

Stored

The Display Damping menu allows the user to adjust the rate at which the display and all outputs are updated. This allows the user to dampen out unstable process readings. The damping can be set from 0 seconds to 10 seconds. (default value is 0 sec.)

Press the key once which will move the cursor over the seconds digit

DISPLAY DAMPING

TEMP SENSOR

AUTO RETURN

T.COMP OVERRIDE

1000uS 25.0C

CALIBRATION

SETUP

UTILITIES

TEMP UNIT

COND RANGE

STORE? Y N

DISPLAY DAMPING

UPDATE 10 SEC >

UPDATE 1 0 SEC >

DISPLAY DAMPING

STORE? Y N

DISPLAY DAMPING

UPDATE 0 SEC >

DISPLAY DAMPING

UPDATE 0 SEC >

Conductivity - Setup Menu - Display Damping 6.13

Conductivity - Setup Menu - Display Damping 6.13 Page 90

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP DOWN

DOWN

UP

DOWN

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

With "N" selected, pressing the key will NOT store the selection, but simply return to the Temp Cond Curve setting menu. This function is useful if you wish to view the current selection without making any changes.

Not stored

Then press the key to store the selection and return to Temp Cond Curve settting menu.

Stored

Press the key to accept the setting and move to the store function

Use the and to adjust the percent compensation. The setting can be changed from 0%/C to 10%/C

If you wish to save the setting, press the key to highlight the Y character

Press the key once which will move the cursor back to the RH side of the display.

The Temperature Compensation Curve setting allows the user to select the temperature compensation to match a specific process. The variation of Conductivity versus Temperature is dependent on the type of solids and liquids in water, so no fixed compensation value will accuratly compensate every process. This setting allows the user to fine tune the compensation to their specific process. Estimates of the correct compensation for certain chemicals are available and can be preset via this menu, otherwise the user will need to set the compensation to 0%/C, measure the effect of temperature for a specific process, calculate the actual compensation required and enter it through this menu. The Compensation can be varied from 0%/C to 10%/C.

RUN MODE

Press the key once which will move the cursor over the least digit

1000uS 25.0C

UTILITIES

SETUP

CALIBRATION

2. 0 %/C >

TEMP COMP CURVE

STORE? Y N

2.5%/C >

TEMP COMP CURVE STORE? Y N

TEMP COMP CURVE

2. 5 %/C >

TEMP COMP CURVE

DISPLAY DAMPING

T.COMP OVERRIDE

AUTO RETURN

TEMP SENSOR

TEMP COMP CURVE

2.0%/C >

COND RANGE

TEMP UNIT

Conductivity - Setup Menu - Temp. Comp. Curve 6.14

Conductivity - Setup Menu - Temp. Comp. Curve 6.14 Page 91

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

RUN MODE

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

The FIRMWARE REV menu allows the user to see what revision of the firmware is currently installed in the controller. This is a Read Only menu item.

UP

DOWN

DIAGNOSTICS

SETUP

FIRMWARE REV.

1000uS 25.0C

UTILITIES

CALIBRATION

FIRMWARE REV.

1.15 >

Conductivity - Diagnostics Menu - Firmware Rev. 6.15

Conductivity - Diagnostics Menu - Firmware Rev. 6.15 Page 92

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

The Calibration Data menu is a series of read only screens which allow the user to view the data collected during the last calibration.

Calibration Mode 1 point calibration

Probe Temperature at which calibration was performed =

25.2° C

Calculated Cell Constant

Conductivity of Buffer/ Input Resistance

Press to view the next Calibration Data screen.

Press to view the first Calibration Data screen.

TYPICAL DISPLAYS FOR MANUAL CAL

Calibration Mode Dry Cal

Dry Cal does not used a buffer, so Probe Temperature was not recorded

Cell Constant Setting

No Buffer used in this Calibration Mode

Press to view the next Calibration Data screen.

TYPCIAL DISPLAYS FOR DRY CAL

CALIBRATION DATA

CAL TEMP 25.2C >

K FACTOR 0.9774 >

1P 1000/1000 >

MODE 1PT >

Ω

DIAGNOSTICS

CALIBRATION

UTILITIES

SETUP

FIRMWARE REV.

1000uS 25.0C

CALIBRATION DATA

CAL TEMP - - - - >

K FACTOR 1.0000 >

CALIBRATION DATA

1P - - - - >

MODE DRY >

CALIBRATION DATA

Conductivity - Diagnostics Menu - Calibration Data 6.16

Conductivity - Diagnostics Menu - Calibration Data 6.16 Page 93

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Press to view the Sensor Input data.

The Sensor Input Menu allows the user to view real time, uncompensated process data from the conductivity cell. This is a Read only menu item. This "Live Data" screen is useful for trouble shooting purposes when diagnosing cell or process problems.

The top line shows the resistance of the cell, The bottom line shows the actual value of the temperature sensor in ohms.

RUN MODE

1000uS 25.0C

DIAGNOSTICS

UTILITIES

CALIBRATION

SETUP

CELL 966

TEMP 2953 >

SENSOR INPUT

FIRMWARE REV.

CALIBRATION DATA

Ω Ω

Conductivity - Diagnostics Menu - Sensor Input 6.17

Conductivity - Diagnostics Menu - Sensor Input 6.17 Page 94

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

DOWN UP DOWN

DOWN

UP DOWN

DOWN

UP

DOWN

DOWNUP

UP DOWN

DOWN

UP

DOWN

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Relay A can be configured for the following operations

- Response to rising or falling process values

- Adjustable on and off set-points

- Cycle on and off times

- Failsafe operation

TO CYCLE ON

The relay can be set to control either a RISING or FALLING process. In a FALLING process, the control relay will energize when the process falls below a set value. In this case, the ON set-point must be set lower than the OFF set-point. In a RISING process, the control relay will energize when the process rises above a set value. In this case, the ON set-point must be set higher than the OFF set-point.

The RELAY ON setting is the process value at which the relay will energize. It may be set anywhere in the normal range of the sensor.

RUN MODE

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

RELAY OFF 80 0 >

RELAY OFF 88 0 >

RELAY ON 60 0 >

RELAY ON 68 0 >

DIRECTION FALL >

DIRECTION F ALL >

RELAY OFF 880 >

RELAY ON 680 >

DIRECTION R ISE >

RELAY A

RELAY OFF 800 >

RELAY A

RELAY ON 600 >

RELAY A RELAY A

RELAY A

1000uS 25.0C

CALIBRATION

OUTPUTS

UTILITIES

DIAGNOSTICS

SETUP

DIRECTION FALL >

RELAY A

The RELAY OFF setting is the process value at which the relay will de-energize. The setting must be rationalized against the On setting. For example, in a falling process, the Off setting must be higher than the ON setting.

The controller will not allow you to select the RELAY OFF value on the wrong side of the RELAY ON value for the selected direction. If the user tries to set the RELAY OFF on the wrong side, the following errors will de displayed:

Error when trying to set OFF point lower than ON point when set to falling.

Error when trying to set OFF point higher than ON point when set to rising.

ON SPT < OFF SPT

FALLING PROCESS

ON SPT > OFF SPT

RISING PROCESS

Conductivity - Outputs Menu - Relay A 6.18

Conductivity - Outputs Menu - Relay A 6.18 Page 95

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

TO OUTPUTS MENU

DOWN

UP DOWN

DOWN

DOWNUP

DOWN

UP DOWN

DOWN

UP

DOWN

UP

DOWN

DOWN UP DOWN

DOWN

UP DOWN

Use the and keys to change the setting

UP DOWN

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Press the key to accept the setting and move to the next setting

OVERFD TIMER OFF >

RELAY A

TIME (MIN) 6 >

OVERFD TIMER O N >

RELAY A OVERFD

RELAY A

OVERFD TIMER O FF >

RELAY A

DOWN

Press the key to accept the setting and move to the next setting

OVERFD TIMER ON >

RELAY A

Press the key once which will move the cursor back to the RH side of the display.

TIME (MIN) 6 >

RELAY A OVERFD

UP DOWN

TIME (MIN) 1 0 >

RELAY A OVERFD

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

FROM CYCLE ON

The CYCLE OFF time is the amount of time in seconds that the relay will be off for, it can be set between 0 - 600 seconds.

To disable the cycling feature set the cycle off time to 0.

The Default OFF time is 0 seconds.

The FAIL SAFE feature is designed to reverse the normal action of the relay.

When set to FAIL SAFE OFF, the relay will operate as a normal relay, which means that when the relay is not energized the NO contacts are open, and a device connected via the NO contacts is turned off. When the relay becomes energized the device turns on.

When the relay is set to FAIL SAFE ON, the normal action of the relay is reversed. Thus the NO contact acts as the NC contacts and the NC acts as the NO. Therefore the device connected to the NC contacts will be turned on when the relay on set-point is reached. Actually the relay will be de-energized but because it is acting in reverse the device will be turned on. When the relay off set-point is reached the relay will energize and the device connected to the NC contact will turn off.

The reason that the Fail Safe option would be used is to have the device turned on in the event of a power interruption.

With "N" selected, pressing the key will NOT store the selection, but simply return to the OUTPUTS Menu. This function is useful if you wish to view the current selection without making any changes.

The relay can be set to CYCLE when the process is between the RELAY ON setting and the RELAY OFF setting. This is meant to help eliminate overshoot.

The CYCLE ON time is the amount of time in seconds that the relay will be on. The value can be set between 0 and 600 seconds. The default ON time is 5 seconds.

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

Press the key to accept the setting and move to the STORE fuction.

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

DOWN

Or press the key to highlight the Y character

Then press the key to store the selection and return to the OUTPUTS menu

Not stored

Stored

STORE? Y N

RELAY A

The OVERFEED TIMER is designed to help safeguard against a process or instrumentation error causing one of the control relays to remain energized for extended periods of time.

When enabled, the user must select the desired overfeed timeout time (1-999 min.)

If the overfeed timer times out:

• Alarm relay will energize.

• Control (A&B) will de-energize

• LED on front will flash

Must be reset via Utilities Menu or Power reset.

FAIL SAFE OFF >

CYCLE OFF 0S >

CYCLE ON 5S >

RELAY A

FAIL SAFE ON >

FAIL SAFE O N >

FAIL SAFE O FF >

CYCLE OFF 200S >

CYCLE OFF 20 0 S >

RELAY A

CYCLE OFF 0 S >

CYCLE ON 100 S >

CYCLE ON 10 0 S >

CYCLE ON 5 S >

RELAY A

Conductivity - Outputs Menu - Relay A 6.18

Conductivity - Outputs Menu - Relay A 6.18 Page 96

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

UP DOWN

DOWN UP DOWN

DOWN

UP

DOWN

UP

DOWN

The RELAY ON setting is the process value at which the relay will energize. It may be set anywhere in the normal range of the sensor.

The relay can be set to control either a RISING or FALLING process. In a RISING process, the control relay will energize when the process rises above a set value. In this case, the ON set-point must be set higher than the OFF set-point. In a FALLING process, the control relay will energize when the process falls below a set value. In this case, the ON set-point must be set lower than the OFF set-point.

TO CYCLE ON

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

Use the and keys to change the setting

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Relay B can be configured for the following operations

- Response to rising or falling process values

- Adjustable on and off set-points

- Cycle on and off times

- Failsafe operation Each function will be explained below

RUN MODE

1000uS 25.0C

CALIBRATION

OUTPUTS

UTILITIES

DIAGNOSTICS

SETUP

RELAY B

RELAY OFF 1200 >

RELAY B

RELAY OFF 135 0 >

RELAY OFF 120 0 >

RELAY OFF 1350 >

RELAY B

RELAY ON 155 0 >

RELAY ON 1550 >

RELAY B

RELAY ON 1400 >

RELAY B

DIRECTION RISE >

RELAY ON 140 0 >

RELAY B

DIRECTION R ISE >

RELAY B

DIRECTION F ALL >

RELAY B

DIRECTION RISE >

RELAY A

RELAY B

DIRECTION R ISE >

RELAY B

The RELAY OFF setting is the process value at which the relay will de-energize. The setting must be rationalized against the On setting. For example, in a falling process, the Off setting must be higher than the ON setting.

The controller will not allow you to select the RELAY OFF value on the wrong side of the RELAY ON value for the selected direction. If the user tries to set the RELAY OFF on the wrong side, the following errors will de displayed:

Error when trying to set OFF point lower than ON point when set to falling.

Error when trying to set OFF point higher than ON point when set to rising.

ON SPT < OFF SPT

FALLING PROCESS

ON SPT > OFF SPT

RISING PROCESS

Conductivity - Outputs Menu - Relay B 6.19

Conductivity - Outputs Menu - Relay B 6.19 Page 97

S H A R K

MULTI-PARAMETER CONTROLLER & ANALYZER USER’S MANUAL

DOWN

TO OUTPUTS MENU

DOWN

UP DOWN

DOWN

DOWNUP

DOWN

UP DOWN

DOWN

UP

DOWN

UP

DOWN

DOWN UP DOWN

DOWN

UP DOWN

Use the and keys to change the setting

UP DOWN

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Press the key to accept the setting and move to the next setting

OVERFD TIMER OFF >

RELAY B

TIME (MIN) 6 >

OVERFD TIMER O N >

RELAY B OVERFD

RELAY B

OVERFD TIMER O FF >

RELAY B

DOWN

Press the key to accept the setting and move to the next setting

OVERFD TIMER ON >

RELAY B

Press the key once which will move the cursor back to the RH side of the display.

TIME (MIN) 6 >

RELAY B OVERFD

UP DOWN

TIME (MIN) 1 0 >

RELAY B OVERFD

UP

NOTE

PRESS THE AND KEYS

TOGETHER TO GO IMMEDIATELY BACK TO

RUN MODE

DOWN

FROM CYCLE ON

The CYCLE OFF time is the amount of time in seconds that the relay will be off for, it can be set between 0 - 600 seconds.

To disable the cycling feature set the cycle off time to 0.

The Default OFF time is 0 seconds.

The FAIL SAFE feature is designed to reverse the normal action of the relay.

When set to FAIL SAFE OFF, the relay will operate as a normal relay, which means that when the relay is not energized the NO contacts are open, and a device connected via the NO contacts is turned off. When the relay becomes energized the device turns on.

When the relay is set to FAIL SAFE ON, the normal action of the relay is reversed. Thus the NO contact acts as the NC contacts and the NC acts as the NO. Therefore the device connected to the NC contacts will be turned on when the relay on set-point is reached. Actually the relay will be de-energized but because it is acting in reverse the device will be turned on. When the relay off set-point is reached the relay will energize and the device connected to the NC contact will turn off.

The reason that the Fail Safe option would be used is to have the device turned on in the event of a power interruption. For example, a process that needs a constant feed, would want a pump to turn on in the event of a controller power failure.

With "N" selected, pressing the key will NOT store the selection, but simply return to the OUTPUTS Menu. This function is useful if you wish to view the current selection without making any changes.

The relay can be set to CYCLE when the process is between the RELAY ON setting and the RELAY OFF setting. This is meant to help eliminate overshoot.

The CYCLE ON time is the amount of time in seconds that the relay will be on. The value can be set between 0 and 600 seconds. The default ON time is 5 seconds.

Use the and keys to change the setting

Press the key once which will move the cursor back to the RH side of the display.

Press the key to accept the setting and move to the STORE fuction.

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

Press the key to accept the setting and move to the next setting

Press the key once which will move the cursor back to the RH side of the display.

If you wish to change the setting, press the key once which will move the cursor to the first character of the value to be changed

Use the and keys to change the setting

DOWN

Or press the key to highlight the Y character

Then press the key to store the selection and return to the OUTPUTS menu

Not stored

Stored

STORE? Y N

RELAY B

The OVERFEED TIMER is designed to help safeguard against a process or instrumentation error causing one of the control relays to remain energized for extended periods of time.

When enabled, the user must select the desired overfeed timeout time (1-999 min.)

If the overfeed timer times out:

• Alarm relay will energize.

• Control (A&B) will de-energize

• LED on front will flash

Must be reset via Utilities Menu or Power reset.

FAIL SAFE OFF >

CYCLE OFF 0S >

CYCLE ON 5S >

RELAY B

FAIL SAFE ON >

FAIL SAFE O N >

FAIL SAFE O FF >

CYCLE OFF 200S >

CYCLE OFF 20 0 S >

RELAY B

CYCLE OFF 0 S >

CYCLE ON 100 S >

CYCLE ON 10 0 S >

CYCLE ON 5 S >

RELAY B

Conductivity - Outputs Menu - Relay B 6.19

Conductivity - Outputs Menu - Relay B 6.19 Page 98

AquaMetrix SHARK Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
