Aquametrix P/R60C-8 User Manual

Aquametrix Model P/R60C-8

Differential pH or ORP Probes

Great Lakes

Replacement

Features

• Replaceable Salt Bridge

• Low Maintenance Cost

• Field-proven

Encapsulated Preamplier

• Transmits up to 3000 ft.

Options

• 4-20 mA two-wire blind transmit-

ter version available (model P/R65)

• ORP available with

gold electrode

Description

The P60C-8 pH and the R60C-8
ORP probe are dependable indus­trial grade sensors designed to pro­vide accurate measurement and
longer service life under the most
demanding conditions. Some fea­tures of these probes include: dif­ferential measurement technology,
replaceable salt bridge and encap­sulated preamp.

The P/R60C-8 incorporates all the
benets of differential measure­ment found in other models of the
60 series, eld proven in thousands
of installations. This technique uses
two glass electrodes to make the
measurement differentially with re­spect to a third metal electrode. The
domed glass process electrode is
specially designed for tough ap­plications. The second electrode is
immersed in a pH 7 buffer encapsu­lated in the probe.

This second electrode is protected
from the process by a double junc-

tion replaceable salt bridge. The re­sulting true differential measurement
has several advantages over con­ventional probes: ground loop prob­lems are virtually eliminated, and the
salt bridge is easily replaced.

If the internal solution becomes con­taminated, the probe can be rejuve­nated at modest cost by replacing
the salt bridge and reference solu­tion. Automatic temperature com­pensation is accomplished through
the use of a thermistor at the tip of
the probe. This thermistor place­ment provides rapid response for
process temperature variations.

The encapsulated preamplier pro­vides an output signal which can
be transmitted 3000 feet over in­expensive cable. Another version
encapsulates a blind 4-20 mA two
wire transmitter which can transmit
a virtually unlimited distance over a
twisted pair cable. (See P/R65 data
sheet).

• Password protection

and watchdog timer

Applications

• Process Control

• Industrial and Municipal Water

Treatment

• Industrial and Municipal Waste

Treatment and Neutralization

• Fume Scrubbers

• Plating

• Circuit Board Manufacturing

• Food and Beverage

• Chemical Processing

• Pulp and Paper

• Mining

• Power Generation

• Pharmaceutical Industry

100 School Street

Andover, MA 01810

978-749-9949

Toll free - 855-747-7623

www.WaterAnalytics.net

Model P/R60C-8 Differential pH or ORP Probes

Technical Data

Measuring Range

pH 0 to 14 pH

(Call factory for applications below 2 or above 12).

ORP -2000 to +2000 mV

Flow Rate 10 ft./sec maximum (3 meters/sec)

Flow should be as low as possible in
water with low conductivity water or suspended solids

Wetted Materials CPVC, Kynar, glass, titanium palladium alloy and EPDM

(platinum for ORP probe). Opt. Viton and ceramic

Transmission Distance 3000 ft. (900 m)

Sensitivity

pH 0.001 pH

ORP 0.1 mV

Stability

pH 0.03 pH per day, non-cumulative

ORP 2 mV per day, non-cumulative

Temperature Compensation

3000 Ω NTC or 1000 Ω
RTD

Pressure Limit 100 psig at 65°C maximum

Temperature Limits -5 to 95°C (23 to 203°F)

Probe Cable 5 Conductor plus shield, 15 ft. (4.6m)

-5 to 95°C (23 to 203°F)

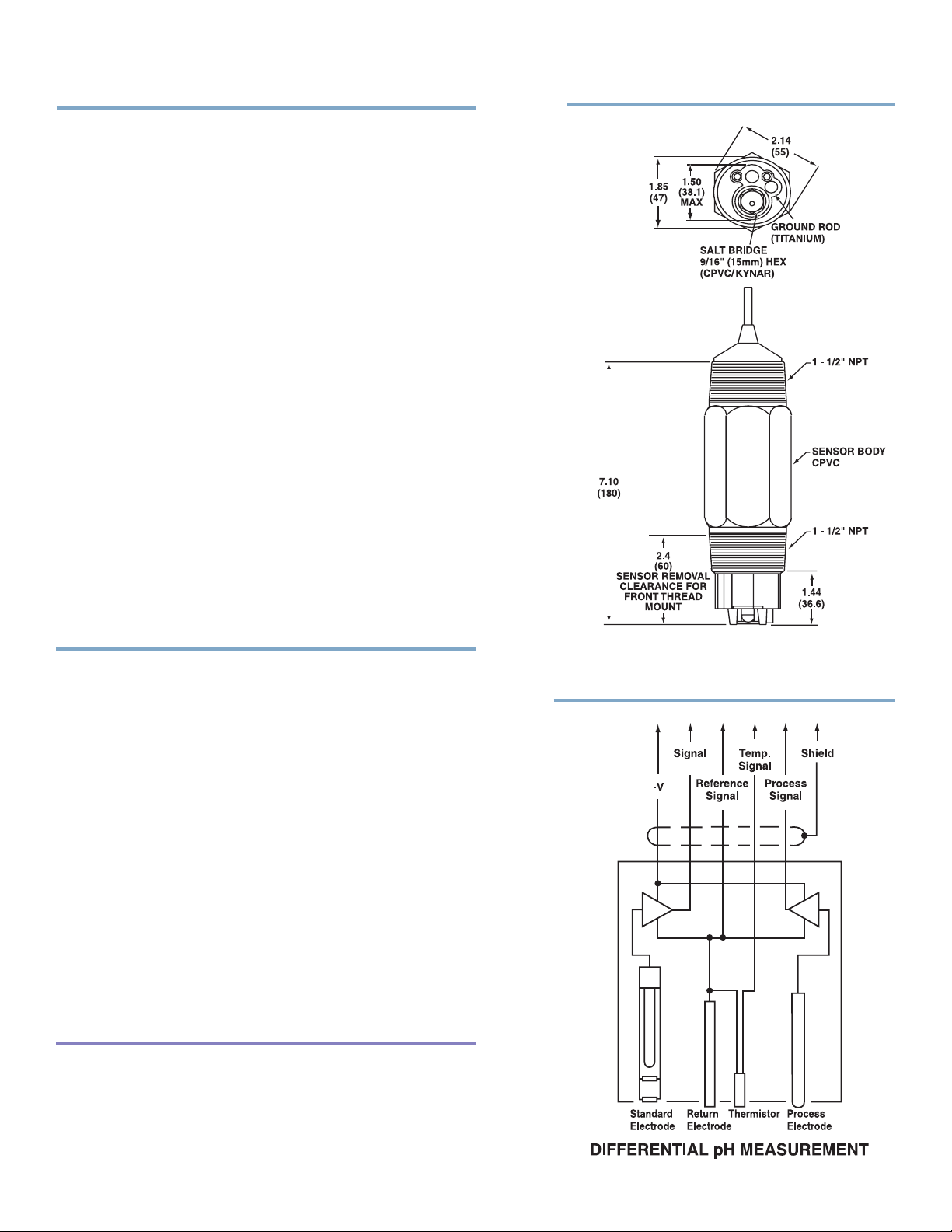

Dimensions

Related Products

CABLES & ACCESORIES

JB1 NEMA 4X junction box

STC60-L Mounting kit for submersion applications includes

1-1/2” NPT x 1” reducer, 4 feet of 1” CPVC pipe with
watertight strain relief tting and securing assembly

C42-5PXXX Interconnect cable; specify length

AM60-9765K Salt bridge kit w/ Kynar outer junction (Package of 3)

AM60-9765 Salt bridge kit w/ ceramic outer junction (Package of 3)

Protector-3 Protection shroud for submersion applications

CALIBRATION SOLUTIONS

A35-13 pH 4 Buffer, 500 mL.

A35-14 pH 7 Buffer, 500 mL

A35-24 pH 10 Buffer, 500 mL

A35-40 ORP Buffer, 200 mV, 500 mL

A35-41 ORP Buffer, 600 mV, 500 mL

Ordering Information

P60C-8 pH probe, 1-1/2” NPT threaded body
P60C-8H pH probe with Hard glass electrode
P60C-8A pH probe with Antimony electrode
R60C-8 ORP probe, 1-1/2” NPT threaded body
R60C-8-H ORP probe with Hard glass electrode
R60C-8-G ORP probe with Gold electrode

Differential Measurement

www.WaterAnalytics.net 978-749-9949 Toll free - 855-747-7623 (855-pHProbe)
