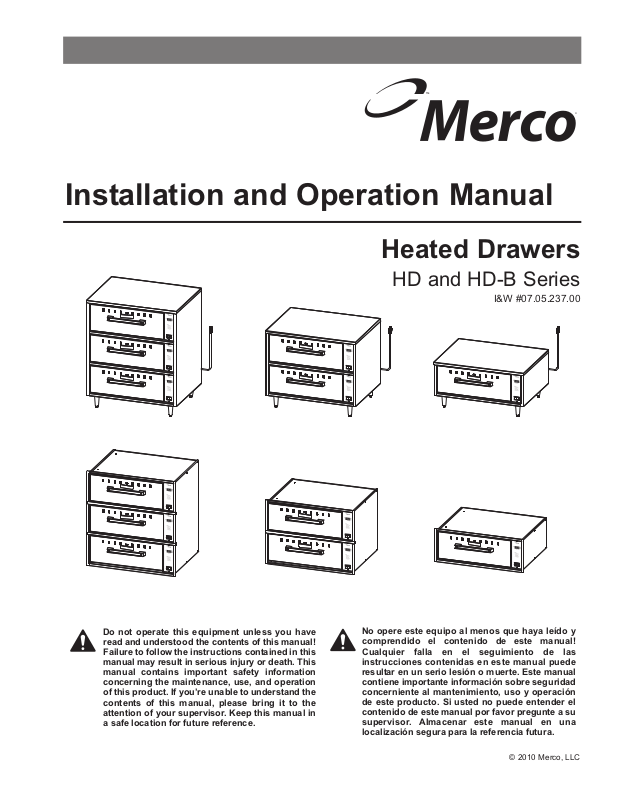

APW Wyott HD-1 Installation Manual

Installation and Operation Manual

Heated Drawers

HD and HD-B Series

I&W #07.05.237.00

Do not operate this equipment unless you have
read and understood the contents of this manual!
Failure to follow the instructions contained in this
manual may result in serious injury or death. This
manual contains important safety information
concerning the maintenance, use, and operation
of this product. If you’re unable to understand the
contents of this manual, please bring it to the
attention of your supervisor. Keep this manual in
a safe location for future reference.

No opere este equipo al menos que haya leído y
comprendido el contenido de este manual!
Cualquier falla en el seguimiento de las
instrucciones contenidas en este manual puede
resultar en un serio lesión o muerte. Este manual
contiene importante información sobre seguridad
concerniente al mantenimiento, uso y operación
de este producto. Si usted no puede entender el
contenido de este manual por favor pregunte a su
supervisor. Almacenar este manual en una
localización segura para la referencia futura.

© 2010 Merco, LLC

CONTENTS

WARNING

NOTICE

CAUTION

Important Owner Information ...............................................i

Introduction............................................................................i

Important Safety Information...............................................1

Model Description.................................................................2

Model Designation ................................................................2

Specifications........................................................................3

Plug Configurations .........................................................3

Electrical Rating Chart — HD-X Models .........................3

Electrical Rating Chart — HD-XB Models .......................3

Food Holding Capacity ....................................................3

Dimensions......................................................................4

Installation.............................................................................5

General............................................................................5

Installing HD-X Models ....................................................5

Installing HD-XB Models..................................................6

IMPORTANT OWNER INFORMATION

Record the model number, serial number (specification label
on back of HD-X models, inside left panel of HD-XB models),
voltage, and purchase date of the unit in the spaces below.
Please have this information available when calling Merco for
service assistance.

Model No. ____________________________________

Serial No. ____________________________________

Voltage ______________________________________

Date of Purchase ______________________________

Operation...............................................................................7

General............................................................................7

Changing the Setpoint Temperature................................7

Food Holding Guide ........................................................8

Maintenance ..........................................................................8

General............................................................................8

Cleaning ..........................................................................8

Removing Lime and Mineral Deposits.............................8

Troubleshooting Guide ........................................................9

Options and Accessories...................................................10

Merco Limited Warranty.......................................Back Page

Business 8:00
Hours: Central Standard Time (C.S.T.)

Telephone: [phone] (Technical Support)

Additional information can be found by visiting our web site at
www.mercoproducts.com.

AM to 5:00 PM

888.417.5462 (Customer Service)

Merco, LLC
1111 North Hadley Road
Fort Wayne, Indiana 46804
United States of America

INTRODUCTION

Merco Heated Drawers are designed to keep foods at optimum
serving temperatures without affecting quality. They are built
for tough kitchen duty with rugged stainless steel construction,
heavy-duty hardware, stainless steel slides, and positive­closing drawers. Heated Drawers keep everything from meat
to vegetables to rolls hot and flavor-fresh until served.

On multiple drawer units, each drawer features individual
controls for holding a wider variety of hot foods during peak
serving periods.

Merco Heated Drawers are products of extensive research and
field testing. The materials used were selected for maximum
durability, attractive appearance, and optimum performance.
Every unit is inspected and tested thoroughly prior to shipment.

This manual provides the installation, safety, and operating
instructions for Heated Drawers. Merco recommends all
installation, operating, and safety instructions appearing in this
manual be read prior to installation or operation of the unit.

Safety information that appears in this manual is identified by
the following signal word panels:

WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.

CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.

NOTICE is used to address practices not related to personal
injury.

i

Form No. HDM-0210

IMPORTANT SAFETY INFORMATION

WARNING

NOTICE

CAUTION

WARNING

Read the following important safety information before using this equipment to avoid serious injury or death and
to avoid damage to equipment or property.

ELECTRIC SHOCK HAZARD:

• Plug unit into a properly grounded electrical receptacle
of the correct voltage, size, and plug configuration. If
plug and receptacle do not match, contact a qualified
electrician to determine and install the proper voltage
and size electrical receptacle.

• Built-in units must be installed by a qualified
electrician. Installation must conform to all local
electrical codes. Installation by unqualified personnel
will void the unit warranty and may lead to electric
shock or burn, as well as damage to unit and/or its
surroundings.

• Turn power switch OFF, unplug power cord/turn off
power at circuit breaker, and allow unit to cool before
performing any maintenance or cleaning.

• DO NOT submerge or saturate with water. Unit is not
waterproof. Do not operate if unit has been submerged
or saturated with water.

• Unit is not weatherproof. Locate unit indoors where
ambient air temperature is a minimum of 70°F (21°C).

• Do not steam clean or use excessive water on the unit.

• This unit is not “jet-proof” construction. Do not use jet­clean spray to clean this unit.

• Do not pull unit by power cord.

• Discontinue use if power cord is frayed or worn.

• Do not attempt to repair or replace a damaged power
cord. The cord must be replaced by Merco, a Factory
Authorized Service Agent, or a person with similar
qualifications.

• Do not clean unit when it is energized or hot.

• Do not allow liquids to spill into the unit.

• Use only Original Equipment Manufacturer (OEM)
Replacement Parts when service is required. Failure to
use OEM Replacement Parts will void all warranties and
may subject operators of the equipment to hazardous
electrical voltage, resulting in electrical shock or burn.
OEM Replacement Parts are specified to operate safely
in the environments in which they are used. Some
aftermarket or generic replacement parts do not have
the characteristics that will allow them to operate safely
in Merco equipment.

FIRE HAZARD:

• Locate unit a minimum of 1″ (25 mm) from combustible
walls and materials. If safe distances are not
maintained, discoloration or combustion could occur.

• Do not use harsh chemicals such as bleach (or cleaners
containing bleach), oven cleaners, or flammable
cleaning solutions to clean this unit.

Make sure food product has been heated to the proper
food-safe temperature before placing in unit. Failure to heat
food product properly may result in serious health risks.
This unit is for holding preheated food product only.

This unit is not intended for use by children or persons
with reduced physical, sensory, or mental capabilities.
Ensure proper supervision of children and keep them away
from the unit.

Make sure all operators have been instructed on the safe
and proper use of the unit.

This unit must be serviced by qualified personnel only.
Service by unqualified personnel may lead to electric
shock or burn.

This unit has no “user-serviceable” parts. If service is
required on this unit, contact a Factory Authorized Service
Agent or contact the Merco Service Department at
800-506-9565.

BURN HAZARD:

• Some exterior surfaces on the unit will get hot. Use
caution when touching these areas.

• Use caution when opening drawer. Hot air escapes
when drawer is open.

Locate unit in an area that is convenient for use. The
location should be level and strong enough to support the
weight of the unit and contents.

Do not lay unit on the front or back side. Damage to the
unit could occur.

Use non-abrasive cleaners only. Abrasive cleaners could
scratch the finish of the unit, marring its appearance and
making it susceptible to soil accumulation.

Form No. HDM-0210

1

MODEL DESCRIPTION

Drawer

Vents

POWER ON/OFF Switch

Digital TEMPERATURE Controller

Drawer

Vents

POWER ON/OFF Switch

Digital TEMPERATURE Controller

H D - X B

Heated Drawer

Built-In

Quantity of Drawers

All Models

All Merco Heated Drawers are built of rugged aluminized and
stainless steel with durable nylon rollers, 12 gauge stainless
steel slides, and heavy-duty hardware. Each drawer features
adjustable drawer vents for humidity control, a POWER
ON/OFF switch, and a Digital TEMPERATURE controller.
Standard size pans 6″ (152 mm) deep are supplied with each
drawer. The insulated top and sides provide maximum energy
efficiency and the heating elements are warranted for two
years.

HD-X Models

HD-X Models are freestanding units available in one, two, and
three-drawer versions. All versions are equipped with 4″
(102 mm) legs. Freestanding HD-X models include an attached
6′ (1829 mm) power cord with plug.

NOTE: Additional caster and leg sizes are available for the

freestanding units. Refer to the OPTIONS AND
ACCESSORIES section for details.

Model HD-XB Models

HD-XB Models are built-in units available in one, two, and three­drawer versions. Built-in HD-XB models include 4′ (1219 mm) of
flexible conduit for direct power connection.

Figure 2. Model HD-2B

Figure 1. Model HD-2

MODEL DESIGNATION

Figure 3. Model Designation

2

Form No. HDM-0210

SPECIFICATIONS

WARNING

NEMA 5-15P

NEMA 5-20P

NEMA 6-15P

Plug Configurations

Units are supplied from the factory with an electrical cord and
plug installed. Plugs are supplied according to the application.

ELECTRIC SHOCK HAZARD: Plug unit into a properly
grounded electrical receptacle of the correct voltage, size,
and plug configuration. If plug and receptacle do not
match, contact a qualified electrician to determine and
install the proper voltage and size electrical receptacle.

NOTE: The specification label is located on the back of HD-X

Electrical Rating Chart — HD-X Models

models and the inside left panel of HD-XB models. See
label for serial number and verification of unit electrical
information.

NOTE: Receptacle not supplied by Merco.

Model Voltage Watts Amps Plug Configuration Shipping Weight

HD-1 120 450 3.8 NEMA 5-15P 97 lbs. (44 kg)

208 450 2.2 NEMA 6-15P 97 lbs. (44 kg)
240 450 1.9 NEMA 6-15P 97 lbs. (44 kg)

HD-2 120 900 7.5 NEMA 5-15P 168 lbs. (76 kg)

208 900 4.3 NEMA 6-15P 168 lbs. (76 kg)
240 900 3.8 NEMA 6-15P 168 lbs. (76 kg)

Figure 4. Plug Configurations

HD-3 120 1350 11.3 NEMA 5-15P 232 lbs. (106 kg)

208 1350 6.5 NEMA 6-15P 232 lbs. (106 kg)
240 1350 5.6 NEMA 6-15P 232 lbs. (106 kg)

Electrical Rating Chart — HD-XB Models

Model Voltage Watts Amps Plug Configuration Shipping Weight

HD-1B 120 450 3.8 Hardwired w/Conduit 88 lbs. (40 kg)

208 450 2.2 Hardwired w/Conduit 88 lbs. (40 kg)
240 450 1.9 Hardwired w/Conduit 88 lbs. (40 kg)

HD-2B 120 900 7.5 Hardwired w/Conduit 159 lbs. (72 kg)

208 900 4.3 Hardwired w/Conduit 159 lbs. (72 kg)
240 900 3.8 Hardwired w/Conduit 159 lbs. (72 kg)

HD-3B 120 1350 11.3 Hardwired w/Conduit 223 lbs. (101 kg)

208 1350 6.5 Hardwired w/Conduit 223 lbs. (101 kg)
240 1350 5.6 Hardwired w/Conduit 223 lbs. (101 kg)

NOTE: Shipping weight includes packaging.

Food Holding Capacity

A standard drawer has the following capacity:

Dinner Rolls: 6–8 dozen
Ribs: 25–30 lbs. (11–14 kg)
Potatoes: 3–3-1/2 dozen

Form No. HDM-0210

3
