Page 1

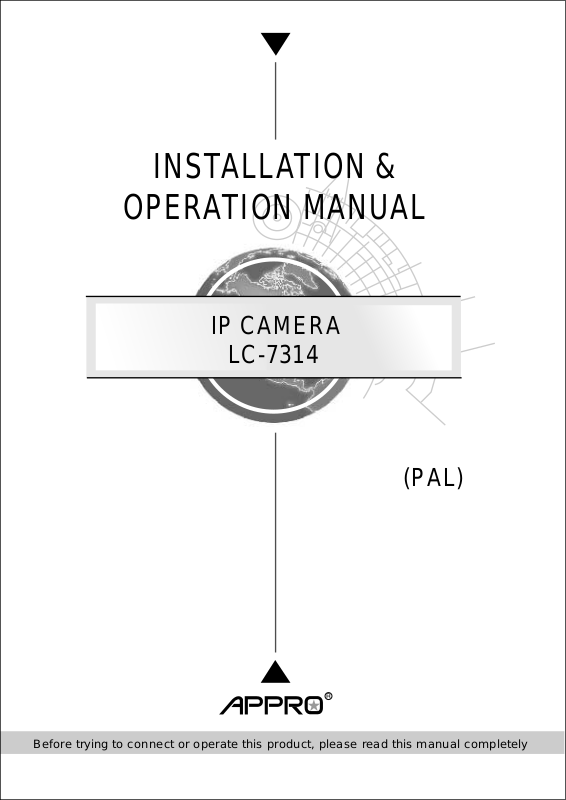

INSTALLATION &
OPERATION MANUAL
IP CAMERA
LC-7314
(PAL)
Before trying to connect or operate this product, please read this manual completely
Page 2
Page 3
Table Of Contents
SAFETY PRECAUTIONS .............................................................................3
1. PRODUCT FEATURES.............................................................................4
1.1 PRODUCT INSTRUCTIONS .....................................................................4
1.2 PRODUCT FEATURES ...........................................................................4
2. DESCRIPTION OF THE FRONT/REAR VIEW.........................................8
2.1 FRONT PANEL AND REAR PANEL...........................................................8
2.2 ALARM I/O ........................................................................................9
2.3 FLANK PANEL ....................................................................................10
2.4 THE USB FUNCTION ..........................................................................11
3. INSTALLATION ......................................................................................12
3.1 CONNECTING WITH AN NVR .......................................................12
3.2 CONNECTING WITH A DVR..........................................................12
3.3 CONNECTING WITH A MULTIPLEXER.........................................13
3.4 UPDATING SYSTEM SOFTWARE.................................................13
3.5 IP CAMERA SD CARD TROUBLESHOOTING .........................................15
4. Network Configuration..........................................................................16
4.1 CABLE CONNECTIONS........................................................................16
4.1.1 Connect to a computer ......................................................................................................................16
4.1.2 Connect to a LAN Hub (INTRANET) .............................................................................................17
4.2 CONFIGURE YOUR IP CAMERA NETWORK SETTINGS ...........................18
4.2.1 Enable DHCP Function.....................................................................................................................18
4.2.2 Set IP Address...................................................................................................................................18
4.3 TCP/IP COMMUNICATION SOFTWARE.................................................20
4.4 TCP/IP INSTALLATION .......................................................................21
4.5 TCP/IP CONFIGURATION SETTING ......................................................22
1
Page 4
4.6 C
ONNECTION TESTING.......................................................................23
5. Operating Instructions for Image Software and Network..................25
5.1 MICROSOFT INTERNET EXPLORER ......................................................26
5.1.1 Connecting the IP Camera ...............................................................................................................26
5.1.2 Change Image Setting......................................................................................................................28
5.1.3 Change the Network Setting............................................................................................................32
5.1.4 Change the System Setting ..............................................................................................................43
5.1.5 Change the Application Setting .......................................................................................................51
5.1.6 Change the SD card Setting .............................................................................................................59
5.1.7 Change the Pan/Tilt setting..............................................................................................................60
5.1.8 PPPoE & DDNS...............................................................................................................................61
5.2 THE IP CAMERA CMS (CENTRAL MANAGEMENT SYSTEM)...................63
5.2.1 Introduction to the CMS ..................................................................................................................63
5.2.2 Install the CMS in your PC..............................................................................................................64
5.2.3 Login the IP Camera software..........................................................................................................65
5.2.4 Operation..........................................................................................................................................67
6. ADVANCED OPERATION......................................................................80
7. SPECIFICATIONS...................................................................................84
8. Functions of client PC...........................................................................85
APPENDIX 1. –SCANIP..............................................................................86
APPENDIX 2. –IP Camera UPnP How To .................................................88
APPENDIX 3. –The ARP function .............................................................98
APPENDIX 4. –Register as a DDNS member ........................................100
APPENDIX 5. –FAQ..................................................................................104
2
Page 5
SAFETY PRECAUTIONS
All the following safety and operational instructions to prevent harm or injury to the operator(s) or
other persons should be read carefully before the unit is activated.
WARNING
To prevent fire or shock hazard, avoid exposing this unit to rain or moisture.
Do not block ventilation openings.
Do not place anything on top of the unit that might spill or fall into it.
Do not attempt to service this unit yourself, as opening or removing covers may
expose you to dangerous voltage or other hazards. Please refer all servicing to
your distributor / retailer.
Do not use liquid cleaners or aerosols for cleaning.
To prevent fire or electric shock, do not overload wall outlets or extension cord.
This unit must be grounded to reduce the risk of electric shocks.
3
Page 6
1. PRODUCT FEATURES
1.1 Product Instructions
The newly designed H.264 / MJPEG stream IP camera provides simultaneous video codec
streams of H.264 and MJPEG in 520 TV lines. This IP camera not only supports the 25 fps frame
rate, motion detection and built-in microphone, but also the day and night, and pre- and
post-alarm functions. In addition it hosts the powerful Multi Profile function which enables the
simultaneous use of different rates of resolution while allowing two video codecs to connect with
computers at the same time. Apart from this, the camera brings you four comprehensive and
advanced user-friendly PnP operations, and captures alarm and scheduled recordings by using
an SD card. Besides, when this IP camera connecting the auto iris lens, and the IP camera makes
available the Auto Iris mode which can easily be turned on or off with the help of the switch on the
camera's side panel. In this mode the ALC function can also be activated.
This new generation H.264 network camera offers a more progressive digitalized image
technology to thoroughly update your surveillance capabilities.
1.2 Product Features
Camera:
Image sensor: Sony 1/3 inch interlaced CCD
Image co-processor: Sony HQ1 DSP
Minimum Illumination: Color 0.5 [email protected]
Lens type: CS (C mount adaptor can be used)
Shutter time: 1/50~1/100,000sec (PAL)
Sensor resolution: 440K pixels (PAL)
Horizontal resolution: 520 TV lines
Auto iris type: DC drive
Exposure: AES/Auto-iris
S/N Ratio: 50db with AGC off
Day & Night: Mechanical IR filter
Day & Night mode: Auto/Day/Night/Schedule
Video Signal:
Video output type: BNC
Video output level: 1.0 Vpp +/-10% 75Ω, composite, Negative (BNC unbalanced)
Video output frequency: -3dB +/-1dB at 3 MHz (25 fps, best recording)
Video output burst level: 300mv(PAL) +/- 10 %
Synchronization: Internal
B/W 0.03 [email protected]
4
Page 7
Video Codec:
Video compression: H.264
Resolutions: 720 x 576 (PAL) 352 x 288 (PAL)
Video streaming: Simultaneous H.264(720 x 480 and 352 x240)
Video Codec – MJPEG:
Motion JPEG frame rate: Up to 25 fps at 720 x 576 (PAL)
Motion JPEG rate control: Yes
Motion JPEG quality level: 5
Video Codec – H.264:
H.264 Frame rate: Up to 25 fps at 720 x 576 (PAL)
H.264 frame rate control: Yes
Customized H.264 bit rate: Yes
H.264 bit rate control: Yes
H.264 quality level: 5
Image:
AWB: Auto/Indoor/Outdoor/Push Hold
ALC adjustable: Yes
Flickless: Yes
Mirror: Yes
High speed shutter: 1/1000 second
Back light compensation: Switchable
Saturation: Adjustable
Sharpness: Adjustable
Contrast: Adjustable
Brightness: Adjustable
Privacy Area: Programmable 3 independent zones
Motion Detection: Programmable 96 independent zones
Motion Detection Sensitivity: 5 levels
Customized motion detection sensitivity: Yes
Digital PTZ: Yes
OSD: IP Address/Date/Time/ICON
Timestamp: Title/Date/Time
Software Platform:
Operation System: Proprietary OS
System Integration:
System Requirement: Microsoft Windows 2000
Remote Access Software: Microsoft Internet Explorer 6.0 or above
Network API: SDK/CGI/DLL
Recording Software: 16 channel free-bundled CMS
Alarm:
Alarm triggers: Motion Detection
Alarm application: SD recording
Alarm duration: Programmable
Schedule counts: 7
Motion JPEG
Microsoft Windows XP
Microsoft Windows Vista
Schedule
Alarm input
Ethernet loss
Network/Remote digital alarm input
SMTP
FTP
CMS recording
5
Page 8
Network active alarm notification: Yes (ANNP)
Hardware:
Processors:
DDRII memory: DDRII 1Gbit
Flash memory: 256Mb
Real-time clock: Built-in
Real-time clock battery: Built-in
Watchdog: Built-in
Firmware upgrade: SD Card/FTP/HTTP
Approvals:
FCC: Yes
CE: Yes
RoHS: Yes
Power:
DC 12V: Yes Max (TBD Watt)
AC 24V: Yes
PoE: Power over Ethernet (IEEE 802.3af)
Physical Property:
Height: 50mm
Width: 62mm
Length: 95mm
Weight: 360 g
MTBF: 1350000Hours
Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)
Operations Humidity: 30% to 80 %
Storage temperature: -20℃ to 60℃(-4℉ to 140℉)
Audio Signal:
Number of tracks: Mono 1 channel
Audio sample rate: 16 KHz sampling-ulaw
Audio output: 1K ohms
Audio input: Built-in Microphone or LINE in10k ohms 1.0Vpp
Network Audio Stream: Available
USB:
Type: 2.0 * 1
Capacity: 24Mbit
Network settings configurable: Yes
Network:
Ethernet: Ethernet (10/100 Base-T), RJ-45 connector
MDIX: Yes
Security: 3-Level password protection
Protocol: TCP/IP, UDP, ARP, ICMP, DNS, DHCP, HTTP, SNTP, PPPoE,
Management console: Full function
Throughput: 19M bit/second
Bandwidth control: Yes
Simultaneous users: 8
DDNS:
IE recording support: Yes
Storage:
SD Card Support: MMC/SD/SDHC 2.0 32MB~32GB
Pre-alarm: Yes
Texas Instruments DaVinci
High performance 32-bit RISC CPU
IP address filtering
User access log
DDNS, UpnP, FTP, SMTP
Dyndns
