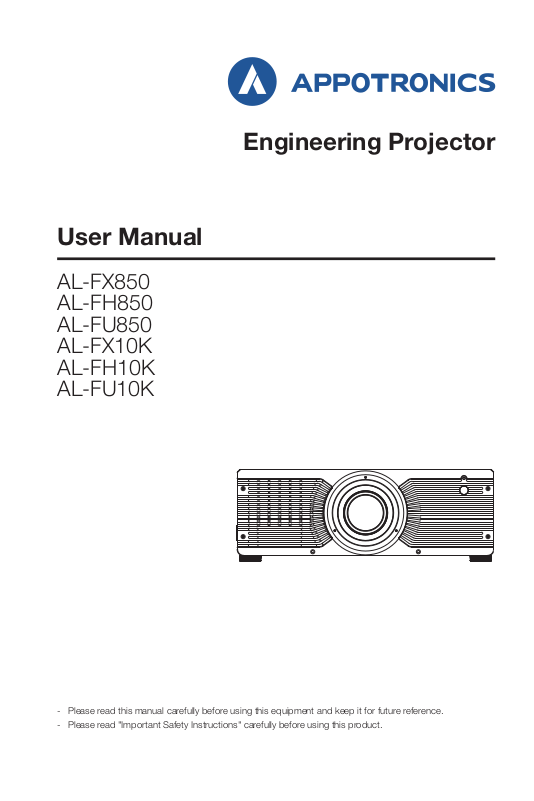

User Manual
AL-FX850 AL-FH850 AL-FU850 AL-FX10K AL-FH10K AL-FU10K
Engineering Projector
- Please read this manual carefully before using this equipment and keep it for future reference.
- Please read "Important Safety Instructions" carefully before using this product.
Page 2

Declaration

Copyright
Appotronics Corporation. All rights reserved. No part of this document may be reproduced, transmitted, translated or stored in a retrieval system or translated into any text or computer language in any form or by any means, including electronic, mechanical, magnetic, optical, chemical, handwritten or otherwise, without the prior written permission of Appotronics Corporation. All trademarks and registered trademarks are the property of their respective owners.
Disclaimer
Appotronics Corporation does not make any express or implied representations or warranties with respect to any of the contents of this manual, and does not provide any warranties with respect to merchantability or fitness for a particular purpose. In addition, Appotronics Corporation reserves the right to revise this publication and to modify the contents of this document at any time without notice to anyone.
Repair
Under normal use and storage conditions, Appotronics Corporation provides warranty on any materials and process defects of this product. Proof of purchase date must be provided when you require the warranty service. If the product is found to be defective during the warranty period, the sole obligation of Appotronics Corporation and the exclusive remedy are to replace any defective parts (including labor service). When you find the product is defective, immediately notify the dealer to obtain the warranty service. IMPORTANT: If the customer fails to use the product in accordance with the written instructions, the above warranty will not apply. In particular, the ambient humidity must be between 10% and 90%, the temperature is between 0ºC and 40ºC, and the altitude is below 2000 meters. Do not operate the projector in a dusty environment. For additional information, please visit www.appotronics.com.
This mark warns users that the uninsulated voltage in the projector may be sufficient to cause an electric shock. Therefore, there is a risk of electric shock for any contact with any component inside the projector.
This symbol alerts users to notice important information about the operation and maintenance. Please read this information carefully to avoid problems.
2
Page 3

Contents

Declaration ............................................... 2
Contents ................................................... 3
Important Safety Instructions ................ 4
General Safety Instructions ...................4
Security Tips ........................................4
FCC Statement.....................................4
Safety Precautions ...............................5
WEEE Directive ....................................8
RoHS ...................................................8
Overview ................................................... 9
About This Manual ...............................9
Safety Warnings and Guides ................9
Installation Requirements ....................10
Packaging Overview ...........................11
Projector Appearance.........................12
Remote Control ..................................14
Replacing the Battery of the Remote
Control ..........................................15
Installation .............................................. 16
Replacing the Lens .............................16
Removing the Lens ............................16
Installing the Lens ...............................16
Connecting the Projector ....................17
Powering On/Off the Projector ............18
Adjusting the Projected Picture ...........19
Ceiling-mounted Installation ...............21

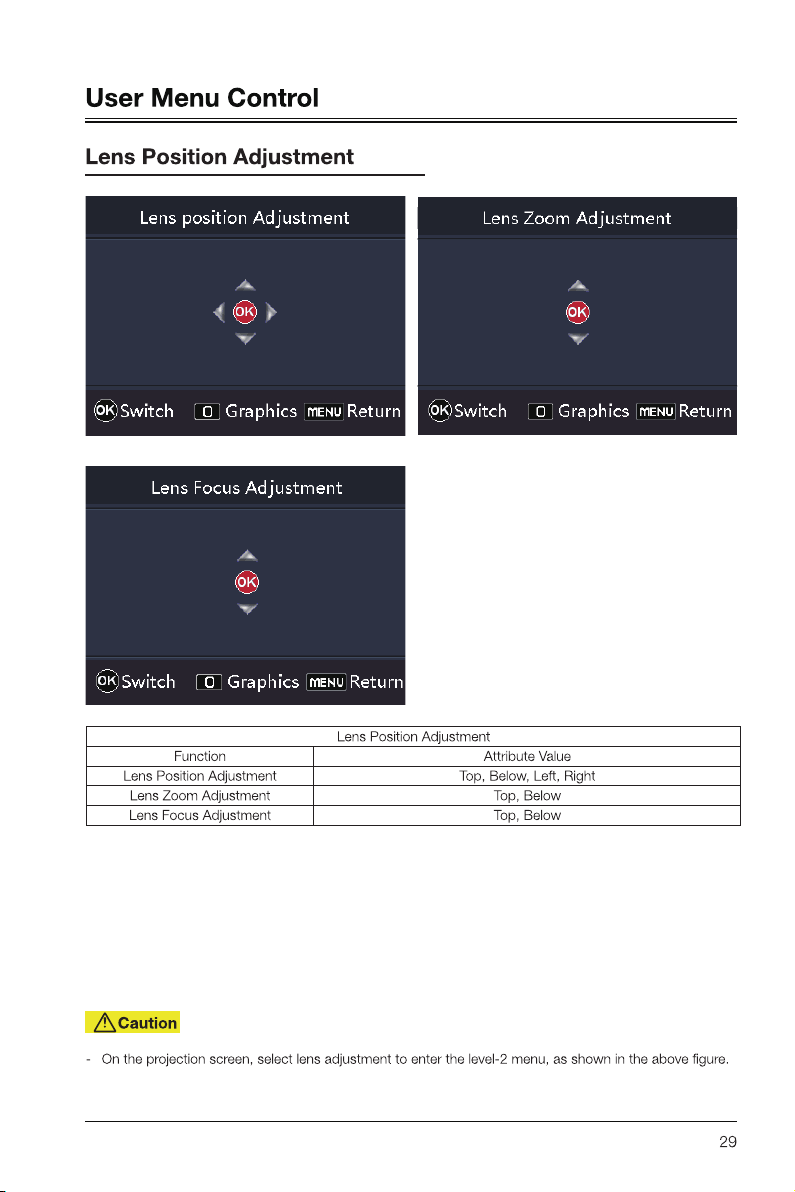

Lens Position Adjustment ...................29
Consistency Adjustment/Geometric
Correction ......................................30
Edge Blending Adjustment .................31
Fault Handling ........................................ 32
Troubleshooting ..................................32
Indicator .............................................33
Maintenance and Repair Services ....... 35
Projector Maintenance .......................35
Cleaning the Lens ..............................35
Cleaning the Projector Enclosure ........35
Storing the Projector ..........................35
Transporting the Projector ..................35
Device Dimensions ................................ 36
Projector Dimensions .........................36

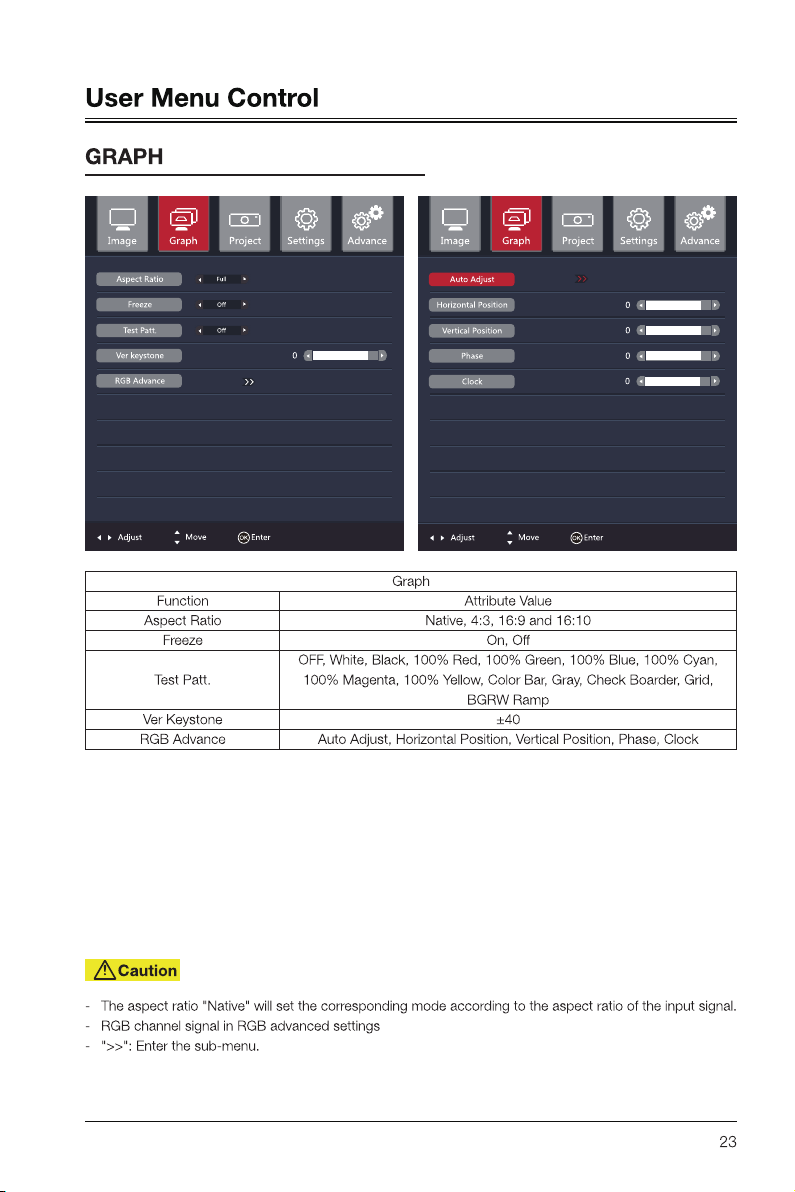

User Menu Control ................................ 22

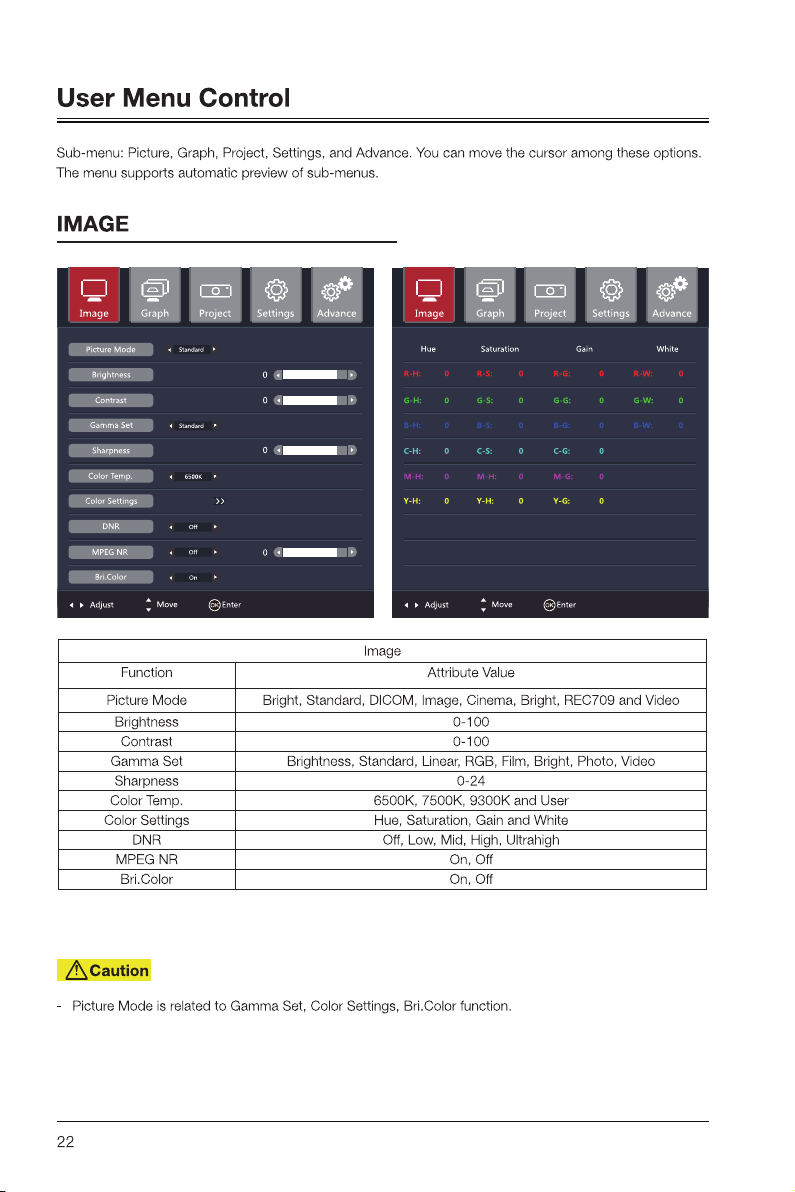

IMAGE ...............................................22
GRAPH ..............................................23
PROJECT ..........................................24
SETTINGS ..........................................25
ADVANCE ..........................................26

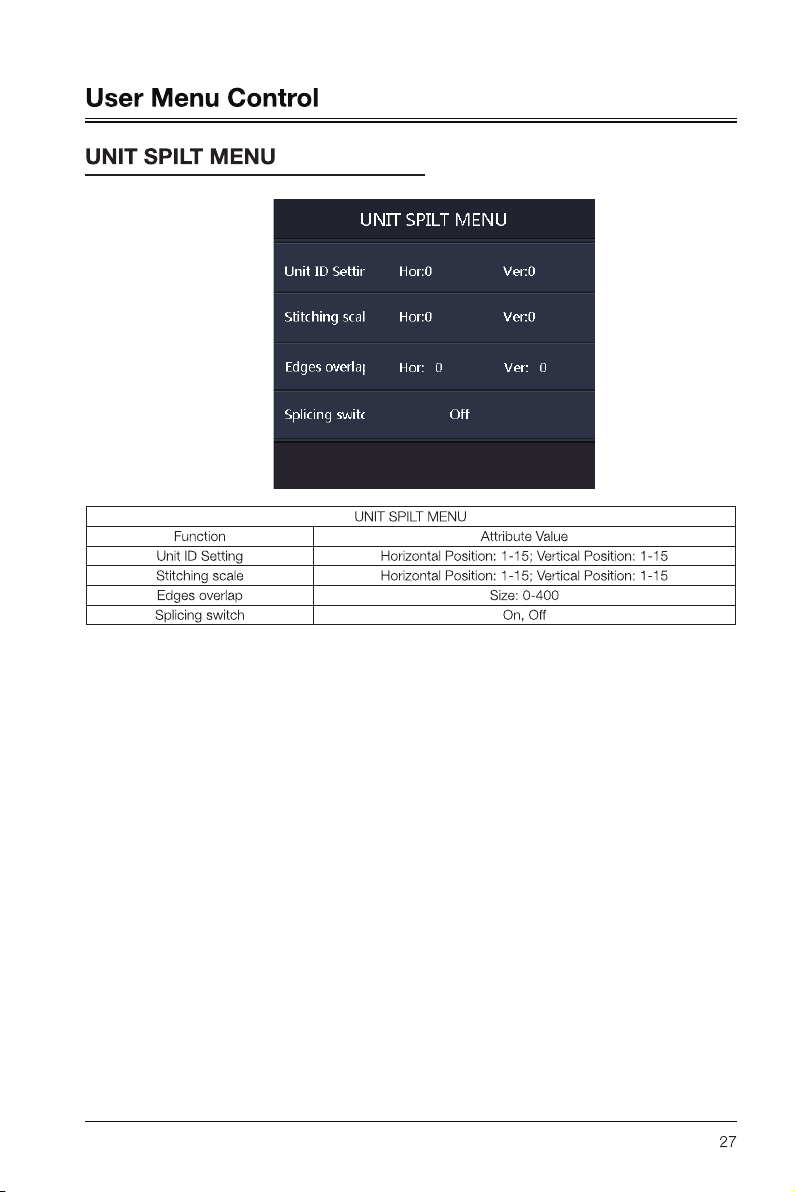

UNIT SPILT MENU .............................27

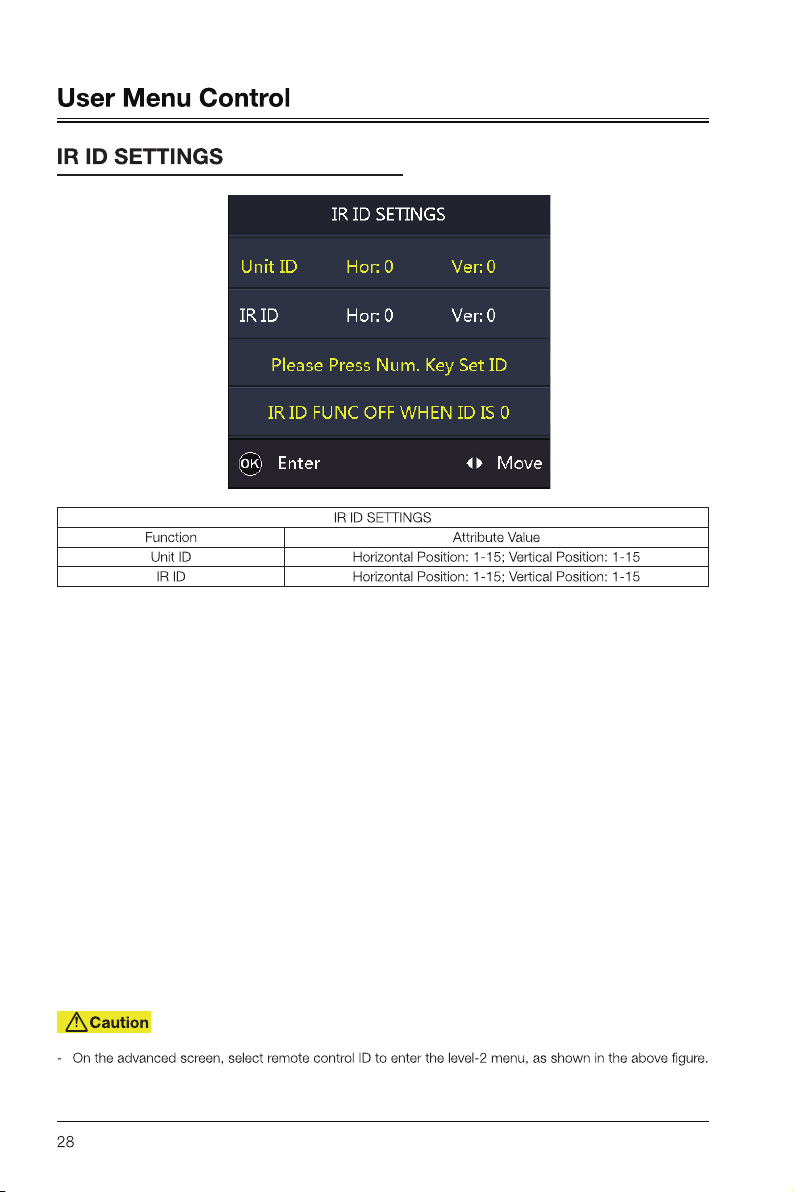

IR ID SETTINGS .................................28
3
Page 4

Important Safety Instructions

General Safety Instructions

Please read this manual carefully before using this equipment and keep it for future reference.
The device shall be installed, operated and maintained by a qualified professional authorized by the
company.
All warnings listed on this projector and listed in this manual should be observed.
Strictly observe all instructions on operations and usage.
Strictly observe all local installation standards.

Security Tips

This device complies with international safety standards IEC60950-1, EN60950-1, UL60950-1, CAN/CSA C22.2 No.60950-1 and domestic safety standards GB4943.1. These standards are safety standards for information technology equipment that are subject to stringent requirements for the use of critical safety components, components, materials and insulators in order to protect the user and operator from the following hazards:
- Electric shock
- Energy-related hazards
- Fire
- Heat-related hazards
- Mechanical hazards
- Radiation
- Chemical hazards In addition, these standards also raise limitations in many ways, such as internal and external temperature rise levels, radiation levels, mechanical stability and intensity, peripheral construction and fire protection devices. Even if the normal operation of the equipment fails, the single-point fault simulation test can also ensure that the device can use the fuse, thermal circuit breakers, overcurrent protection devices and similar devices to provide adequate protection of the human body. This manual is for authorized users only for professional purposes and these persons should be familiar with the potential hazards that may arise from this product. Only qualified maintenance personnel who are familiar with such hazards can open the product shell to perform maintenance operations.
FCC Statement
Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
4
Page 5
Important Safety Instructions
Terms:
Maintenance personnel:
Refer to the professional personnel who may use the training and skills to avoid possible harms to themselves or others when they are in the maintenance contact area or the device in the restricted contact area has obvious dangers.
Users:
Refer to all persons except maintenance personnel.
Restricted access area:
Only a maintenance person can enter the restricted access area or only if the user is aware of the reasons for restricting access to the area and has taken preventive measures. It refers to an area where an operator must use a specific tool, lock, or key or take other safety measures to access; in addition, the access to this area is controlled by the specified agency.

Safety Precautions

Preventing the risk of electric shock
The projector should use AC power. Make sure that the main voltage and capacitance match the rated
power of the projector. If the installation environment cannot meet the AC power requirements, please contact the electrician.
The installation can only be carried out by qualified technical personnel in accordance with local electrical
codes and regulations.
This device uses a three-terminal power cable that includes a single-phase line that protects the ground
wire (PE). If the installation environment cannot meet the AC power requirements, please contact the electrician. Do not ignore the role of grounding.
Turn off the power to the projector and unplug the power cord to cut off all power connections from the
projector.
If you need to extend the cable, use a power cable with the current rated value not lower than that of the
projector. If the rated value of the power cable is lower than the current value of the projector, it may cause overheating.
Do not disassemble the projector. When it needs to be maintained or repaired, hand it over to a trained
and authorized service person.
Do not spill any liquid on the projector.
To better protect the product during thunderstorms or when it is not used for a long period of time, unplug
the power plug from the wall socket. This can prevent lightning or power line surges from causing damage to the projector.
Preventing battery explosion
If the battery is improperly installed, an explosion may occur.
Replace the battery with the manufacturer's recommended or equivalent type of battery.
When disposing used batteries, be sure to refer to the rules and regulations on disposal of hazardous
wastes at the national, provincial and local levels to ensure proper disposal of waste.
5
Page 6
Important Safety Instructions
Preventing personal injury
To prevent personal injury and physical damage, refer to this manual and all the labels on the system
before plugging the power plug into the electrical outlet, or commissioning the projector.
To prevent injury, ensure that the lens and all covers are installed correctly.
Before attempting to move or remove the projector, turn off the projector and unplug the power plug from
the wall socket.
When you need to turn off the projector to access internal parts, you must disconnect the power cable
from the power supply and unplug the power cable from the UPS power input socket (authorized maintenance personnel only). If the projector's power input is not accessible (for example, in ceiling­mounted installation mode), install a common disconnect device that is easily accessible in the fixed wiring.
Warning: High intensity light. Do not look into the lens! High-brightness light will cause damage to the
eyes.
Warning: This projector uses a high-brightness laser light source. Do not try to look directly at the lens or
laser light source.
Do not observe the end of the laser beam while the device is running. Laser radiation is harmful to the
human eye and may cause injury.
Invisible infrared LEDs radiation may be emitted from disconnected optical fibers or connectors. Do not
look directly at the beam or look straight to the optical instruments.
The laser has high density energy. These may be dangerous for skin tissue and may cause electrical, and
chemical and non-ionizing radiation hazards.
This is a Class A product, which may cause radio interference in a living environment. In such conditions,
you may require the user to take practical measures to interfere with.
Preventing damages to the projector
When using the projector, be sure to open the lens shutter or remove the lens cover.
If there is any abnormality in the projector, unplug the power cable immediately. Do not continue to use
the projector when it comes to smoke or makes strange noise or odor. In this case, immediately unplug the power cable and then contact the dealer.
Keep the original shipping box and packing material. You can use it again when you need to transport the
equipment. In order to maximize the protection of the equipment, re-package it in accordance with the original packaging at the factory.
Before cleaning the device, unplug the power plug from the electrical outlet. Do not use cleaners or spray
cleaners, but use a damp cloth for cleaning. Do not use irritating solvents, such as thinners, gasoline, or corrosive cleaners, as they can cause damage to the case. You can use a damp cloth and a mild detergent to remove stubborn stains.
To ensure maximum optical performance and resolution, the projection lens is coated with a special anti-
reflective coating, so avoid touching the lens. If you need to remove dust from the lens, use a soft cloth instead of a damp cloth, cleanser or thinner.
Do not place this projector on an unstable vehicle, shelf or table. Because it will cause serious damage
once the projector is dropped. Functions may be affected. Therefore, you should replace them. For example, damages such as cracks or deep scratches may occur.
6
Page 7
Important Safety Instructions
Preventing fire
The design and manufacture of the projector conforms to the most stringent safety requirements. Putting
the flammable material near the projector may cause the material to ignite itself, causing a fire. Once fire occurs, be sure to use sand, CO2 or dry powder fire extinguishers. Do not use water to fire when an electrical fire occurs.
It is advisable to leave a "quarantine" around all the outer surfaces of the projector. No flammable material
shall be placed in this area. Do not use any material to cover the projector or lens while the projector is working.
Do not block the vents around the projector. Do not place paper or other objects in the range of 10 cm (4
inches) around the projector.
The slots on the projector are used for ventilation and heat dissipation. To ensure reliable operation of the
projector and to prevent it from overheating, do not block or cover these slots. The projector should not be attached to walls or other similar surfaces to prevent clogging of these slots. The projector should not be placed near the radiator or heat regulator. Unless the ventilation is good, the projector should not be placed in the embedded device or enclosed device.
The projection room must be well ventilated or have a cooling device to avoid heat buildup. The hot air
discharged from the projector must be able to be discharged to the outside of the building.
If the projector is not used for a long period of time, remove the power cable.
About Repair
Do not service this equipment privately because opening or removing the cover may expose you to high
pressure and face an electric shock hazard.
If you attempt to change the internal control functions set at the factory or to change other control settings
that are not specifically addressed in this manual, it will cause permanent damage to the laser light source suite and warranty failure.
When the following cases occur, unplug the device from the electrical outlet and allow qualified service
personnel to service:
- The power cable or power plug is damaged or worn.
- Liquid is splashed into the equipment.
- Equipment is in the rain or taking in water.
- If the device is not operating properly in accordance with the operation instructions, adjust only the adjustment apparatuses mentioned in the operation instructions because improper adjustment of other apparatuses may cause damage.
- The device falls to the ground or the case is damaged.
- If the equipment performance has changed significantly, ask the service personnel for help.
Replacement parts: When using replacement parts, ensure that the service technician uses approved
replacement parts or approved replacement parts that are identical to the original parts. Unauthorized alternatives may result in deteriorated performance and stability, causing fire, electric shock, or other hazards. Unapproved alternatives may void the warranty.
Safety check: When the projector is repaired, request the service technician to perform a safety check to
ensure that the device has returned to the normal operation state.
7
Page 8
Important Safety Instructions

WEEE Directive

<Waste Electrical and Electronic Product Recycling Management Regulations> Send the product to the local qualified recycling units when it is discarded. <Waste battery> This product contains the battery. Send the product to the local qualified recycling units when it is discarded.

RoHS

According to the "electronic information products pollution control management approach", for controlling and reducing the electronic information products that may cause environmental pollution after discard, promote the production and sales of low-pollution electronic information products, to protect environment and human health. The harmful substances that may be contained in this product are as follows:
Name and content of hazardous substances in the product
Harmful substances
Parts Name
Power cord
Internal power supply
Plastic enclosure
Light source assembly
Lens assembly
Optical receiver/transmitter assembly
Fan assembly
Speaker
Antenna assembly
PCB assembly
Other metal pieces
Remote control
This form is prepared in accordance with IEC62321.
: Indicates that the content of the hazardous substance in all homogeneous materials of the part is below
○
the limit specified in IEC62321. ×: Indicates that the content of the hazardous substance in at least one of the homogeneous materials of the part exceeds the limit specified in IEC62321. Note: Partial components marked with × contains more harmful substances due to limited industry technology level and are temporarily unable to achieve the replacement or reduction.
Pb Hg Cd
○ ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○
○ ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○
○ ○ ○ ○ ○ ○
○ ○ ○ ○ ○ ○
○ ○ ○ ○ ○ ○
○ ○ ○ ○ ○ ○
○ ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○
○ ○ ○ ○ ○ ○
× ○ ○ ○ ○ ○
Hexavalent
chromium
Cr (VI)
Polybrominated
biphenyls
PBB
Polybrominated
diphenyl ethers
PBDE
Caution
The projector products comply with the EU RoHS directive (restrictions on the use of certain hazardous substances directive in electrical and electronic equipment). All parts marked with × are exception parts permitted by EU RoHS instructions.
8
Page 9

Overview

About This Manual

Repair: Only trained and qualified service technicians (understand laser safety, UV radiation, high voltage and connected circuits that create all the potential hazards) can open the projector for repair.
Disclaimer: Appotronics Corporation has endeavored to ensure the accuracy and reliability of the information provided in this document. However, as the product continues to improve, the information in this document is subject to change without notice. Appotronics Corporation is not responsible for omissions or inaccurate information. The updated version of this document is issued on a regular basis as needed. Please contact Appotronics Corporation to obtain the latest version.

Safety Warnings and Guides

Labels and Tags
Observe and follow all warnings and instructions marked on the projector.
Danger
Warning
Caution
Caution! is used to indicate a situation that is not related to personal injury.
General Warning Information
Warning
Warning
Warning
Warning
Indicates a dangerous condition that, if not avoided, will result in death or serious injury. This signal word is limited to the most extreme case.
Indicates a dangerous condition that, if not avoided, could result in death or serious injury.
Indicates a risk condition that, if not avoided, may result in minor or moderate injury.
Failure to observe the following safety instructions may cause damage to eyes and skin.
Never look directly at the projector lens or laser output. Extreme-high brightness may cause permanent eye damage.To avoid UV radiation, keep the housing complete when working with the projector. Use protective safety equipment and wear goggles during maintenance.
When the laser is on, do not open the protective enclosure.
Reflective objects in the laser beam are not allowed.
9
Page 10
Overview

Installation Requirements

Environment conditions
The following table describes the physical environment for safe operation or storage of the AL-FX850/ FH850/FU850/FX10K/FH10K/FU10K projector.
Environment Operation Storage
Ambient temperature 0ºC-40ºC (*1) -10ºC-60ºC
Humidity 10%-90% RH (non-condensing) 10%-90% RH (non-condensing)
Altitude 0-3000 m (*2) 0-3000 m
(*1): Derated use at 35ºC-40ºC (*2): Below 2000 m for 3C certification
Main power requirements
The Appotronics engineering projector adopts the nominal single-phase power supply (with dedicated grounding PE).
Projector Power Supply Requirements
AL-FX850 AL-FH850 AL-FU850
AL-FX10K AL-FH10K AL-FU10K
AC 100-240 V, 10A,50/60 Hz
This projector comes with a power cable used to connect to the projector and the power supply.
Projector weight
Do not underestimate the weight of this projector. The projector weighs about 35 kg. Ensure that the base or hoisting frame used to install the projector can withstand five times the entire load of the system.
10
Page 11
Overview

Packaging Overview

This product is delivered with all the items shown below. Check the packaging to ensure that the items are complete. If any items are missing, please contact the dealer immediately.
ID SET
Lens
Zoom
Focus
Shift
1 2 3
4 5 6
7 8 9
Pattern
0
Menu
Return
OK
Douser
Blank
Source
HDBaseT DVI
HDMI
RGB1 Video
RGB2 DP
Projector Power cable HDMI cable Remote control
User Manual CD-ROM Quick Start Guide Warranty card Infrared receiver
extension cable
Caution
- Because of the differences in the application in each country (region), the products delivered to some regions may come with different accessories.
11
Page 12
Overview

Projector Appearance

Main unit
Infrared receiver (front)
①
Projection lens
②
Control panel
③
Input and output panel
④
I/O panel
①②
④
⑤ ⑥ ⑦
⑤
Power port
⑥ ⑦
①
⑨ ⑬
⑩ ⑪ ⑫
③
Power switch
Adjustment feet
HDBaseT port
①
HDMI IN port
②
DP IN port
③
DVI IN port
④
RGB1 IN port
⑤
12
③② ④ ⑥ ⑦ ⑧
B/Pb VS port
⑥
G/Y HS port
⑦
R/Pr VIDEO port
⑧
REMOTE OUT port
⑨
USB port
⑩
⑤
RS232 OUT port
⑪
RS232 IN port
⑫
REMOTE IN port
⑬
Page 13
Overview
Control panel
③
②
⑥⑤
①
④
②
⑦
⑧
②
POWER button (power-on/off)
①
Press the power button to enable the projector. In the power-on state, press the power button twice to power off the projector. Arrow key
②
Scroll up and down on the menu; select from the left or decrease the value, or select from the right or increase the value. Signal source
③
RGB1/VIDEO (multiplexing), RGB2, DVI, HDMI, HDBaseT, and DP from top to bottom OK button
④
Press to select or confirm the current value or item.
MENU button
⑤
Press the menu button to display the screen menu. Press the menu button again to go back to the previous menu or exit the screen menu. LENS button
⑥
Press to call/switch to the lens adjustment menu. The functions include zooming, shifting and focusing. DOUSER button
⑦
When an picture is displayed, press to disable the display, and press again to enable the display.
AUTO SETUP button
⑧
Press to enter the automatic lens centering adjustment.
13
Page 14
Overview

Remote Control

①
②
④
⑤
⑥
⑦
⑧
③
Pattern
Menu
Blank
RGB1 Video
Lens
Focus
1 2 3
4 5 6
7 8 9
0
OK
Source
HDBaseT DVI
HDMI
Shift
RGB2 DP
ID SET
Zoom
Return
Douser
⑨
⑩
⑪
⑫
⑬
Power button
①
In standby mode, if you press this key, the device is powered on; in power-on mode, if you press this key, the screen prompts for the power-off operation. Press the power button to shut down the device.
Lens
②
Press Focus,Shift or Zoom button repeatedly to enter the lens focusing, shifting or zooming menu.
1/2/3/4/5/6/7/8/9/0 (number key)
③
Press to enter the corresponding number.
Pattern
④
Press repeatedly to display internal test pictures in a cycle manner.
Menu
⑤
Press to display the main menu. If you press the key again, the main menu disappears or the system returns to the previous-layer menu.
(Arrow key)

⑥
Scroll up or down to select the adjustment item; move to the left to select an adjustment item or decrease the value; move to the right to select an adjustment item or increase the value.
Blank
⑦
Press to switch the picture to the blank screen.
Source
⑧
Set the input source to HDMI, HDBaseT, DVI, RGB1, Video, RGB2 or DP.
ID SET
⑨
When multiple channels are spliced, set the ID number of each remote receiver.
⑩
Press to switch image modes among standard, DICOM, picture, cinema, bright, REC709, video and user.
Return
⑪
Press to exit the settings.
OK
⑫
Press to select or confirm the current value or item.
Douser
⑬
When an picture is displayed, press to disable the display, and press again to enable the display.
14
Page 15
Overview

Replacing the Battery of the Remote Control

Procedure
Place the remote control with the back facing up,
and open the battery cover.
①
Put the new battery to the battery compartment.
Ensure that the polarity (+ and -) of two AAA batteries are correctly connected to the connectors in the battery compartment.
Install the battery cover.
Precautions for the remote control
Ensure that the polarity is correct when inserting the battery.
Do not throw the battery into the fire, since there may be a risk of explosion.
If the remote control is not used for a long period of time, remove the battery to avoid leakage and
damage to the remote control.
The liquid in the battery is harmful to the skin. Do not let the hands directly contact the liquid. When
installing a new battery, clean the leaked liquid thoroughly.
In most cases, you only need to point the remote control to the screen. The infrared signals will be
reflected back from the screen and received by the infrared sensor on the projector. However, in certain circumstances, the projector may fail to receive signals from the remote control due to environmental factors. In this case, point the remote control to the projector and try again.
If the effective signal receive range of the remote control is short, or the remote control does not work,
replace the battery.
If the infrared receiver is exposed to fluorescent or strong sunlight, the remote control may not work
properly.
Please refer to requirements for handling waste batteries of the local government. Improper handling of
waste batteries will cause damage to the environment.
②
③
15
Page 16

Installation

Replacing the Lens

Before replacing the lens, shut down the projector and remove the power cable from the socket.
Before replacing the lends, adjust the lens position to the center. If the lens is not in the center,
replacement may fail.
When moving the lens, do not stuck the lens at the lens opening.
The projector and the lens are precision instrument parts. Do not vibrate them or use brute force.
When replacing the lens, do not touch the lens surface.
Do not leave dust or grease on the lens surface, nor scratch the lens surface.
Do not replace the lens in a dusty room. Dust inside the projector will cause picture quality degradation.
Do not separate the lens and projector for a long time. Dust inside the projector will cause picture quality
degradation.
Do not touch the signal contact of the lens. When the dust is adhered to the lens, it may cause contact
failure.
Do not transport the projector with an optional lens. Otherwise, the projector may be damaged.

Removing the Lens

Before replacing the lens, adjust the lens to the
center.
As shown in the figure, press the lens lock
switch on the top cover, and rotate the lens counterclockwise for about 30 degrees.
Hold the lens, and move forward to take out the
lens.

Installing the Lens

Align the lens structure to lock the lens.
Rotate the lens clockwise until you hear a "click"
sound, indicating that the lens is aligned.
At this time, the lens is installed.
16
Page 17
Installation

Connecting the Projector

Connect the projector to the PC or laptop computer.
Power cable
①
HDMI cable
②
VGA cable
③
RS232 cable
④
Connecting to the video device
Power cable
①
HDMI cable
②
VGA cable
③
DVI cable
④
HDBaseT cable
⑤
DP cable
⑥
5BNC cable
⑦
Single BNC cable
⑧
② ③
② ⑥ ③ ④ ⑦ ⑧⑤
④
①
Connecting to the socket
Connecting to the socket
①
17
Page 18
Installation

Powering On/Off the Projector

Powering on the projector
Ensure that the power cable and signal cable are securely connected. Turn on the power switch and wait
until the state LED indicator is steady on red.
Press the power button on the remote control or control panel to start up the projector. The state LED
indicator is on green, and the screen displays "No signal".
Enable the signal source. Select the signal source (HDMI, HDBaseT, DVI, RGB1, Video, RGB2, or DP)
using the remote control or button. The projector detects the input source and displays pictures.
Front infrared receiver
Power switch
POWER button
POWER button
Powering off the projector
Press the power button on the remote control or control panel to shut down the projector.
Focus
1 2 3
4 5 6
Caution
- Do not power on the project immediately after it enters the standby mode.
18
ID SET
Lens
Zoom
Shift
Page 19
Installation
H
V
V
H

Adjusting the Projected Picture

Adjusting the protector position
To determine the position where the projector is placed, consider the size and shape of the screen, the location of the power outlet, and the distance between the projector and other devices. The following are general principles:
Place the projector on a flat surface and keep a correct angle with the screen.
Place the projector at an ideal location from the screen.
The distance from the projector lens to the screen, the zoom settings, and the video format determine the
size of the projected picture.
For the picture offset (shift) range of this projector, see the following table:
Model H V AL-FU850/AL-FU10K ±30% ±60% AL-FU850/AL-FU10K ±30% ±66%
AL-FX850/AL-FX10K ±31% ±51% H: Horizontal offset range of the picture when the lens is centered. V: Vertical offset range of the picture when the lens is centered.
Caution
- The values in the table above are approximate and may differ slightly from the actual values. The actual values shall apply.
19
Page 20
Installation
Schematic diagram of vertical offset when the lens is centered The above table describes the vertical offset ranges when the lens in different models.
+60%
Lens center
镜头中心
Schematic diagram of horizontal offset when the lens is centered
100%
-60%
Projector screen
投影屏幕
Lens center
-30% +30% 100%
100%
Projector screen
20
Page 21
Installation

Ceiling-mounted Installation

Ensure that the screws used secure the mounting bracket meet the following specifications:
Screw type: It is recommended to use M6*16 screws. Assembly size: see the figure below.
480
137.5
27
531
200
162.5
119
260
Caution
- When using the standard mounting brackets not provided by Appotronics, ensure that the standard mounting brackets meet the following requirements: Within 5 mm around the heat dissipation hole and a height of 40 cm highlighted red in the above figure, there should be no obscure. If the projector is damaged due to improper installation, the warranty becomes invalid.
21
Page 22
Page 23
Page 24
3D FORMAT OFF
3D DISPLAY DLP LINK
L/R EYE FLIP
>
3D SETTING
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32

Fault Handling

Troubleshooting

The projector fails to power on.
Cause Solution
The power cable supplies no power.
No picture
The video signal source is not enabled or is incorrectly connected. The projector and the input signal device are not properly connected.
The input signal is not correctly selected.
The picture is fuzzy.
The lens of the projector cannot accurately focus. The projector does not accurately align with the screen.
The remote control fails.
The battery level is low. Replace the battery. There are obstacles between the remote control and the projector.
The distance to the projector is too far.
Insert one end of the power cable to the AC port on the projector, and insert the other end to the electrical outlet. If the electrical outlet has a switch, ensure that the switch is turned on.
Cause Solution
Enable the video signal source and check whether the signal cable is properly connected.
Check the connection.
Select the correct input signal source using the signal source key on the remote control or control panel.
Cause Solution
Adjust the focus of the lens using the focusing ring.
Adjust the projection angle and direction. If necessary, adjust the projector's height or distance.
Cause Solution
Move the obstacles.
The distance to the projector should be no longer than 8 m (26 inches).
32
Page 33
Fault Handling

Indicator

Light
Red Green
Status
Course light
Off Off Power-off
On Off Standby mode
Off On Power-on state
Blinking Off Protection state upon safety switch anomalies
Blinking Blinking Protection state upon running anomalies
System protection
●
(SN 1)
﹣
(SN 2)
●
﹣
(SN 3)
﹣
(SN 4)
● ●
(SN 6)
﹣ ﹣
(SN 7)
●
﹣ ﹣
(SN 10)
﹣
(SN 11)
●
﹣
(SN 12)
﹣ ﹣
(SN 13)
●
﹣ ﹣ ●
(SN 14)
● ● ●
(SN 15)
● ●
(SN 16)
﹣
● ● ●
﹣
● ●
﹣
●
● ●
﹣
●
●
●
﹣
﹣
Color wheel failed to be enabled
DMD failed to be enabled
Light source failed to be enabled
Signal board anomaly detection
Temperature anomaly detection for the light source
Ambient temperature anomaly detection
DMD temperature anomaly detection
Temperature anomaly detection for the color wheel
Fan state anomaly detection
Upgrade failure
DID synchronization anomaly
DDP synchronization anomaly
Pump alarm
33
Page 34
Fault Handling
● ● ●
﹣
(SN 17)
● ●
﹣
﹣
(SN 18)
●
﹣
﹣ ﹣
(SN 19)
﹣ ﹣ ﹣ ﹣
(SN 20)
Caution
●
: Red indicator short blinking -- red indicator on for 0.5s (+ red indicator off for 0.5s).
: Green indicator long blinking -- green indicator on for 1.5s (+ green indicator off for 0.5s).
﹣
The error code sequence is displayed every 3s in a cycle manner.
Power temperature alarm
DLP anomaly
PCB DIP switch error
Power failure (no 12 V output)
34
Page 35

Maintenance and Repair Services

Projector Maintenance

You need to regularly maintain the projector and clean the lens. Do not disassemble any parts of the projector. To replace the parts, please contact the dealer.

Cleaning the Lens

You can clean the lens when you find that the lens surface is stained or dusty.
Use a compressed air tank to remove dust.
If there is dust or stain, gently wipe the lens surface using the lens paper or damp cloth with some
cleaning agent.
Caution
- Do not rub the lens with abrasive materials.

Cleaning the Projector Enclosure

To remove dirt or dust, wipe the enclosure with a soft, lint-free cloth.
To remove strong dirt or spots, wet the soft cloth using water and neutral pH detergent, and then wipe the
enclosure.
Caution
- Do not use wax, alcohol, benzene, thinner, or other chemical cleaners because these substances can damage the enclosure.

Storing the Projector

If you need to store the projector for a long period of time, follow the instructions below:
Ensure that the temperature and humidity of the storage area are within the recommended range for the
projector.
Retract the adjustment feet.
Remove the battery from the remote control.
Use the projector's original packaging or equivalent material to package the projector.

Transporting the Projector

It is recommended to use the original packaging or equivalent material when transporting the projector.
35
Page 36

Device Dimensions

192

Projector Dimensions

535
592
Caution
- Be sure to use screws with the correct size. The length of the screw depends on the thickness of the lifting plate.
- Be sure to leave a gap of at least 10 cm between the ceiling and the bottom of the projector.
- Do not install the projector near heat sources.
36
Page 37
Appotronics USA, Inc.
Address: 1607 McCarthy Blvd, Milpitas, CA 95035 Website: www.appotronicsusa.com
P/N: D07000000187 Version: Rev01 Implemented corporate standards: Q/GF 001-2016
Loading...
