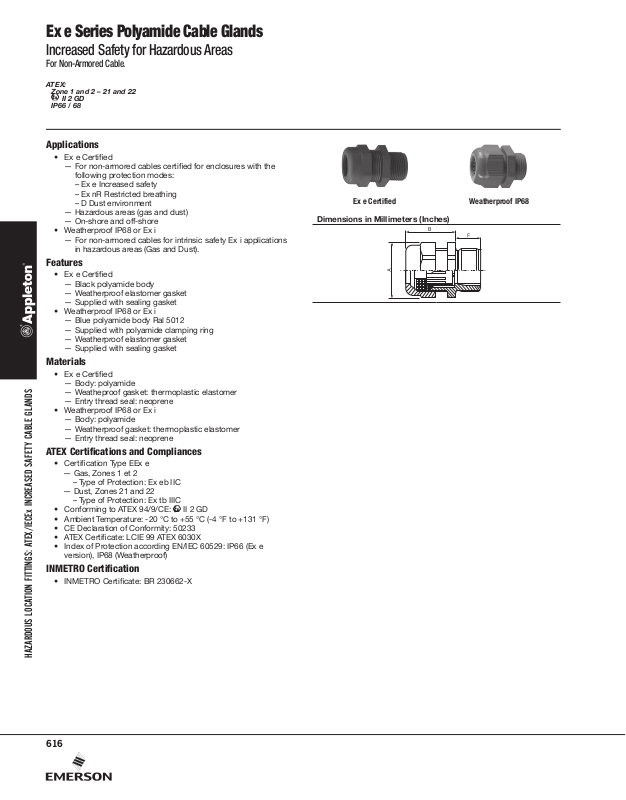

Appleton Ex e Series Polyamide Cable Glands Catalog Page
Ex e Series Polyamide Cable Glands
Increased Safety for Hazardous Areas
For Non-Armored Cable.
ATEX:
Zone 1 and 2 – 21 and 22
II 2 GD
IP66 / 68
Applications
• Ex e Certied
— For non-armored cables certied for enclosures with the
following protection modes:
– Ex e Increased safety
– Ex nR Restricted breathing
– D Dust environment
— Hazardous areas (gas and dust)
— On-shore and off-shore
• Weatherproof IP68 or Ex i
— For non-armored cables for intrinsic safety Ex i applications
in hazardous areas (Gas and Dust).
Features
• Ex e Certied
— Black polyamide body
— Weatherproof elastomer gasket
— Supplied with sealing gasket
• Weatherproof IP68 or Ex i
— Blue polyamide body Ral 5012
— Supplied with polyamide clamping ring
— Weatherproof elastomer gasket
— Supplied with sealing gasket
Materials
• Ex e Certied
— Body: polyamide
— Weatheproof gasket: thermoplastic elastomer
— Entry thread seal: neoprene
• Weatherproof IP68 or Ex i
— Body: polyamide
— Weatherproof gasket: thermoplastic elastomer
— Entry thread seal: neoprene
ATEX Certifications and Compliances
• Certication Type EEx e
— Gas, Zones 1 et 2
– Type of Protection: Ex eb IIC
— Dust, Zones 21 and 22
– Type of Protection: Ex tb IIIC
• Conforming to ATEX 94/9/CE: II 2 GD
• Ambient Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
• CE Declaration of Conformity: 50233
• ATEX Certicate: LCIE 99 ATEX 6030X
• Index of Protection according EN/IEC 60529: IP66 (Ex e
version), IP68 (Weatherproof)
INMETRO Certification
• INMETRO Certicate: BR 230662-X
Ex e Certified Weatherproof IP68
Dimensions in Millimeters (Inches)
HAZARDOUS LOCATION FITTINGS: ATEX/IECEx INCREASED SAFETY CABLE GLANDS
616
Ex e Series Polyamide Cable Glands
Increased Safety for Hazardous Areas
For Non-Armored Cable.
ATEX:
Zone 1 and 2 – 21 and 22
II 2 GD
IP66 / 68
Thread
Metric
Thread
Ex e Certified
Weatherproof IP68
Pitch
(mm)
M16 1.5 3.0 (0.12) 8.5 (0.33) 19.0 (0.75) 24.0 (0.94) 15.0 (0.59) 0.015 (0.03) 0.160 (9.76) 095756 10
M20 1.5 6.5 (0.26) 14.5 (0.57) 27.0 (1.06) 30.0 (1.18) 15.0 (0.59) 0.021 (0.05) 0.160 (9.76) 095605 10
M25 1.5 8.0 (0.31) 18.5 (0.73) 33.0 (1.30) 33.0 (1.30) 15.0 (0.59) 0.032 (0.07) 0.160 (9.76) 095606 10
M32 1.5 10.0 (0.39) 25.0 (0.98) 42.0 (1.65) 43.0 (1.69) 15.0 (0.59) 0.061 (0.13) 0.440 (26.85) 095757 10
M40 1.5 24.0 (0.94) 34.0 (1.34) 55.0 (2.17) 47.0 (1.85) 15.0 (0.59) 0.072 (0.16) 0.072 (4.39) 095758 1
M50 1.5 28.0 (1.10) 42.0 (1.65) 65.0 (2.56) 49.0 (1.93) 15.0 (0.59) 0.124 (0.27) 0.072 (4.39) 095759 1
M16 1.5 2.5 (0.10) 8.0 (0.31) 19.0 (0.75) 27.0 (1.06) 15.0 (0.59) 0.013 (0.03) 0.160 (9.76) 095800 10
M20 1.5 5.0 (0.20) 12.0 (0.47) 24.0 (0.94) 30.0 (1.18) 15.0 (0.59) 0.017 (0.04) 0.160 (9.76) 095801 10
M25 1.5 7.0 (0.28) 14.0 (0.55) 27.0 (1.06) 35.0 (1.38) 15.0 (0.59) 0.020 (0.04) 0.160 (9.76) 095802 10
M32 1.5 14.0 (0.55) 25.0 (0.98) 42.0 (1.65) 42.0 (1.65) 15.0 (0.59) 0.051 (0.11) 0.440 (26.85) 095803 10
M40 1.5 18.0 (0.71) 32.0 (1.26) 53.0 (2.09) 52.0 (2.05) 15.0 (0.59) 0.072 (0.16) 0.072 (4.39) 095804 1
M50 1.5 24.0 (0.94) 38.5 (1.52) 60.0 (2.36) 55.0 (2.17) 15.0 (0.59) 0.100 (0.22) 0.072 (4.39) 095805 1
Cable Capacity
mm (in)
Across Flats
mm (in) A
Gland
Length
mm (in) B
Thread
Length
mm (in) F
Weight
kg (lb)
Volume
dm3 (in3)
Catalog
Number PackMin. Max.
HAZARDOUS LOCATION FITTINGS: ATEX/IECEx INCREASED SAFETY CABLE GLANDS
For Locknut, see Cable Gland Accessories section.
