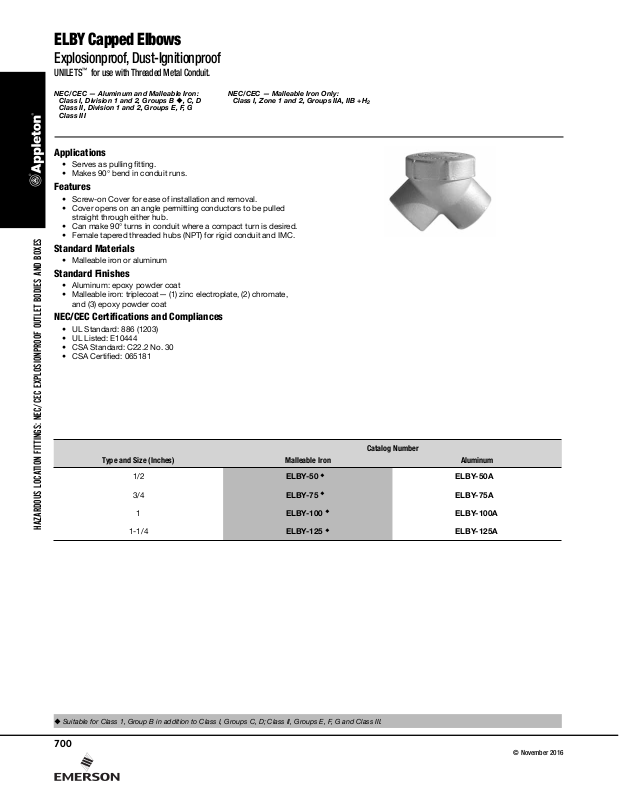

Appleton ELBY Capped Elbows Catalog Page

ELBY Capped Elbows

Explosionproof, Dust-Ignitionproof

UNILETS™ for use with Threaded Metal Conduit.

NEC/CEC — Aluminum and Malleable Iron:

Class I, Division 1 and 2, Groups B , C, D
Class II, Division 1 and 2, Groups E, F, G
Class III

NEC/CEC — Malleable Iron Only:

Class I, Zone 1 and 2, Groups IIA, IIB +H

Applications

• Serves as pulling fi tting.

• Makes 90° bend in conduit runs.

Features

• Screw-on Cover for ease of installation and removal.

• Cover opens on an angle permitting conductors to be pulled
straight through either hub.

• Can make 90° turns in conduit where a compact turn is desired.

• Female tapered threaded hubs (NPT) for rigid conduit and IMC.

Standard Materials

• Malleable iron or aluminum

Standard Finishes

• Aluminum: epoxy powder coat

• Malleable iron: triplecoat— (1) zinc electroplate, (2) chromate,
and (3) epoxy powder coat

NEC/CEC Certifications and Compliances

• UL Standard: 886 (1203)

• UL Listed: E10444

• CSA Standard: C22.2 No. 30

• CSA Certifi ed: 065181

2

Type and Size (Inches)

1/2

3/4

1

HAZARDOUS LOCATION FITTINGS: NEC/CEC EXPLOSIONPROOF OUTLET BODIES AND BOXES

 Suitable for Class 1, Group B in addition to Class I, Groups C, D; Class II, Groups E, F, G and Class III.

1-1/4

Malleable Iron Aluminum

ELBY-50

ELBY-75

ELBY-100

ELBY-125









Catalog Number

ELBY-50A

ELBY-75A

ELBY-100A

ELBY-125A
