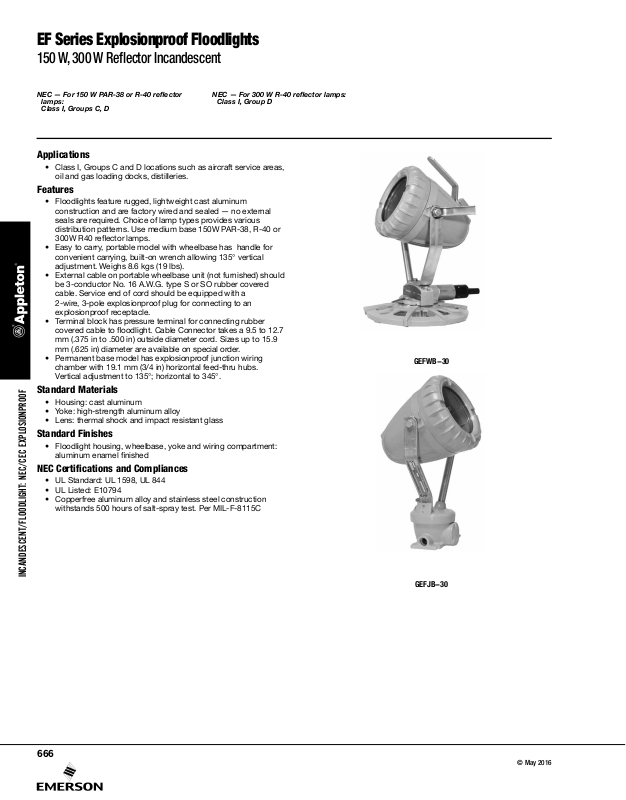

Appleton EF Series Explosionproof Floodlights Catalog Page
EF Series Explosionproof Floodlights
INCANDESCENT/FLOODLIGHT: NEC/CEC EXPLOSIONPROOF
© May 2016
150 W, 300 W Reflector Incandescent
NEC — For 150 W PAR-38 or R-40 reector
lamps:
Class I, Groups C, D
NEC — For 300 W R-40 reector lamps:
Class I, Group D
Applications
• Class I, Groups C and D locations such as aircraft service areas,
oil and gas loading docks, distilleries.
Features
• Floodlights feature rugged, lightweight cast aluminum
construction and are factory wired and sealed — no external
seals are required. Choice of lamp types provides various
distribution patterns. Use medium base 150W PAR-38, R-40 or
300W R40 reector lamps.
• Easy to carry, portable model with wheelbase has handle for
convenient carrying, built-on wrench allowing 135° vertical
adjustment. Weighs 8.6 kgs (19 lbs).
• External cable on portable wheelbase unit (not furnished) should
be 3-conductor No. 16 A.W.G. type S or SO rubber covered
cable. Service end of cord should be equipped with a
2-wire, 3-pole explosionproof plug for connecting to an
explosionproof receptacle.
• Terminal block has pressure terminal for connecting rubber
covered cable to oodlight. Cable Connector takes a 9.5 to 12.7
mm (.375 in to .500 in) outside diameter cord. Sizes up to 15.9
mm (.625 in) diameter are available on special order.
• Permanent base model has explosionproof junction wiring
chamber with 19.1 mm (3/4 in) horizontal feed-thru hubs.
Vertical adjustment to 135°; horizontal to 345°.
Standard Materials
• Housing: cast aluminum
• Yoke: high-strength aluminum alloy
• Lens: thermal shock and impact resistant glass
Standard Finishes
• Floodlight housing, wheelbase, yoke and wiring compartment:
aluminum enamel nished
NEC Certifications and Compliances
• UL Standard: UL 1598, UL 844
• UL Listed: E10794
• Copperfree aluminum alloy and stainless steel construction
withstands 500 hours of salt-spray test. Per MIL-F-8115C
GEFWB-30
666
GEFJB-30
EF Series Explosionproof Floodlights
INCANDESCENT/FLOODLIGHT: NEC/CEC EXPLOSIONPROOF
© May 2016
150 W, 300 W Reflector Incandescent
NEC — For 150 W PAR-38 or R-40 reector
lamps:
Class I, Groups C, D
NEC — For 300 W R-40 reector lamps:
Class I, Group D
EF Series Explosionproof Floodlights
For 150W incandescent medium base PAR-38 (T3C) projector spot or flood, or 150W or 300W incandescent medium base R-40 (T2C)
reflector spot or flood
Description Catalog Number
Portable Flood with Wheelbase and Handle. Accommodates 9.5 mm (.375 in—.500 in) cable.
G-EFWB-30
Permanent Base Floodlight, for 8.0 mm (.314”) conduit G-EFJB-30
Dimensions in Millimeters (Inches)
Wheelbase Floodlight (GEFWB-30) Permanent Base Floodlight (GEFJB-30)
335.0
(13.19)
266.7
(10.5)
425.5 (16.75)
304.8
(12.00)
120.7 (4.75)
82.6
(3.25)
69.9
(2.75)
G-EFJB-30
Base Dimensions
143.0 (5.63 )
444.5 (17.5)
19.1 (0.75) Hub each side
Can be furnished to accommodate cable sizes to 15.9 mm ( .625”) Dia. on special order. Cable must be ordered separately.
667
