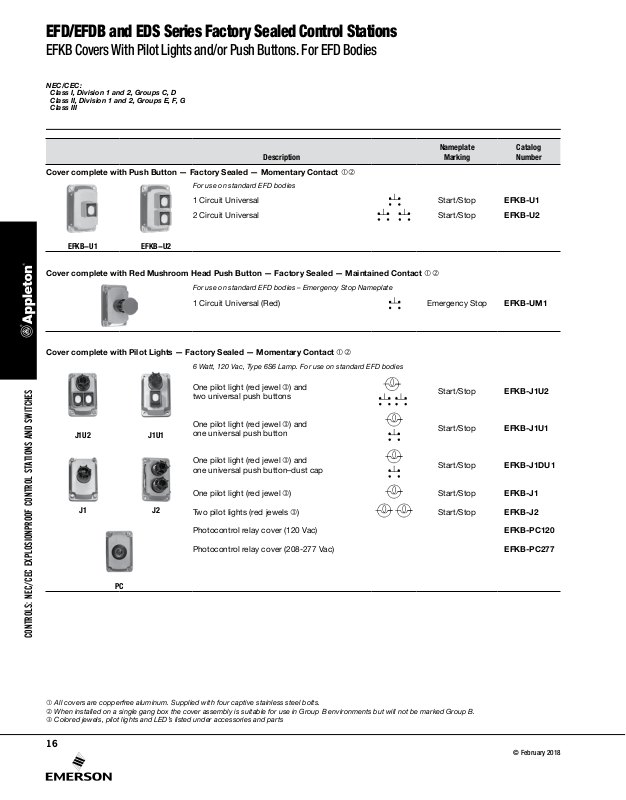

EFD/EFDB and EDS Series Factory Sealed Control Stations

Controls: nEC/CEC Explosionproof Control stations and switChEs

© February 2018

EFKB Covers With Pilot Lights and/or Push Buttons. For EFD Bodies

NEC/CEC:

Class I, Division 1 and 2, Groups C, D
Class II, Division 1 and 2, Groups E, F, G
Class III

Description

Cover complete with Push Button — Factory Sealed — Momentary Contact 

For use on standard EFD bodies

1 Circuit Universal Start/Stop EFKB-U1

2 Circuit Universal

EFKB-U1 EFKB-U2

Cover complete with Red Mushroom Head Push Button — Factory Sealed — Maintained Contact 

For use on standard EFD bodies – Emergency Stop Nameplate

1 Circuit Universal (Red) Emergency Stop EFKB-UM1

Cover complete with Pilot Lights — Factory Sealed — Momentary Contact 

6 Watt, 120 Vac, Type 6S6 Lamp. For use on standard EFD bodies

One pilot light (red jewel ) and
two universal push buttons

One pilot light (red jewel ) and

J1U2 J1U1

one universal push button

Nameplate

Marking

Start/Stop EFKB-U2

Start/Stop EFKB-J1U2

Start/Stop EFKB-J1U1

Catalog
Number

J1 J2

PC

One pilot light (red jewel ) and
one universal push button–dust cap

One pilot light (red jewel

Two pilot lights (red jewels

Photocontrol relay cover (120 Vac) EFKB-PC120

Photocontrol relay cover (208-277 Vac) EFKB-PC277

)

)

Start/Stop EFKB-J1DU1

Start/Stop EFKB-J1

Start/Stop EFKB-J2

 All covers are copperfree aluminum. Supplied with four captive stainless steel bolts.
 When installed on a single gang box the cover assembly is suitable for use in Group B environments but will not be marked Group B.
 Colored jewels, pilot lights and LED’s listed under accessories and parts

16
