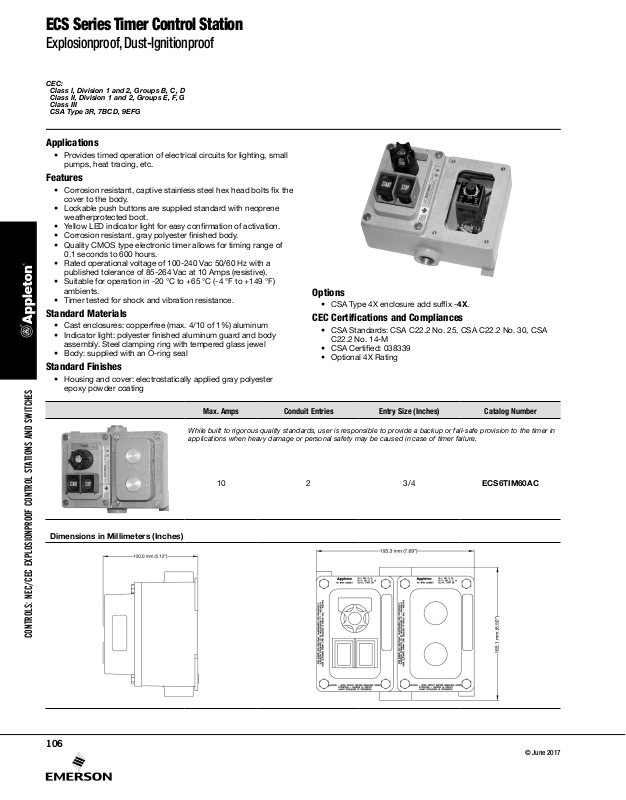

Appleton ECS Series Timer Control Station Catalog Page

ECS Series Timer Control Station

CONTROLS: NEC/CEC EXPLOSIONPROOF CONTROL STATIONS AND SWITCHES

© June 2017

Explosionproof, Dust-Ignitionproof

CEC:

Class I, Division 1 and 2, Groups B, C, D
Class II, Division 1 and 2, Groups E, F, G
Class III
CSA Type 3R, 7BCD, 9EFG

Applications

• Provides timed operation of electrical circuits for lighting, small
pumps, heat tracing, etc.

Features

• Corrosion resistant, captive stainless steel hex head bolts x the

cover to the body.

• Lockable push buttons are supplied standard with neoprene
weatherprotected boot.

• Yellow LED indicator light for easy conrmation of activation.

• Corrosion resistant, gray polyester nished body.

• Quality CMOS type electronic timer allows for timing range of

0.1 seconds to 600 hours.

• Rated operational voltage of 100-240 Vac 50/60 Hz with a
published tolerance of 85-264 Vac at 10 Amps (resistive).

• Suitable for operation in -20 °C to +65 °C (-4 °F to +149 °F)
ambients.

• Timer tested for shock and vibration resistance.

Standard Materials

• Cast enclosures: copperfree (max. 4/10 of 1%) aluminum

• Indicator light: polyester nished aluminum guard and body

assembly. Steel clamping ring with tempered glass jewel

• Body: supplied with an O-ring seal

Standard Finishes

• Housing and cover: electrostatically applied gray polyester
epoxy powder coating

Options

• CSA Type 4X enclosure add sufx -4X.

CEC Certifications and Compliances

• CSA Standards: CSA C22.2 No. 25, CSA C22.2 No. 30, CSA
C22.2 No. 14-M

• CSA Certied: 038339

• Optional 4X Rating

Dimensions in Millimeters (Inches)

Max. Amps Conduit Entries Entry Size (Inches) Catalog Number

While built to rigorous quality standards, user is responsible to provide a backup or fail-safe provision to the timer in
applications when heavy damage or personal safety may be caused in case of timer failure.

10 2 3/4 ECS6TIM60AC
