EBR 30, 60, 100 and 150 Amp Series Receptacles
Explosionproof, Dust-Ignitionproof
With Disconnect Switch or Circuit Breaker. Weatherproof Spring Cover. 600 Vac Max. 250 Vdc Max.
NEC:
Class I, Division 1 and 2, Groups B, C, D
Class II, Division 1 and 2, Groups F, G
Class III
NEMA 3•, 3R•, 4, 4X, 7CD, 9FG
Applications
• Locations where receptacles are used with stationary or
portable electrically operated devices such as:
— Lighting systems
— Conveyors
— Heaters
— Motor-generator sets
— Air conditioners
— Compressors
— Pumps
— Locations where damp or corrosive conditions exist
• Class I: classied locations such as:
— Petrochemical plants
— Petroleum reneries
— Paint and chemical plants
— Any location where ignitable vapors or gases are present
• Class II: classied locations such as:
— Process industries where there are dust hazards from
handling such products as our, grain and starch or any
location where ignitable amounts of dust are present or
amounts which would adversely affect performance
Features
• Energized receptacle contacts deeply recessed to reduce
danger of accidental touching.
• Style 2 (shell and extra pole) grounding.
• Spring door keeps dust out of receptacle when plug is not in
use. Screw cap also supplied.
• Brass contacts exert constant pressure along entire contact
surface and provide superior electrical contact.
• Contacts have beryllium copper wire springs.
• Plug mechanical cable clamps prevent strain on cables– they
meet or exceed UL strain relief pull-out requirements.
• Neoprene bushing compressed by cable collar prevents
entrance of water.
• Insulators provide superior dielectric and mechanical strength
and lowest arc tracking.
• 1-1/2 NPT tapped conduit openings; one top two bottom.
• EBRH: interlocked disconnect switch provides safe connect and
disconnect operation at 30, 60 or 100 Amp, 600 Vac maximum.
Two or three pole, non-fused motor circuit switch. EBRH
permits safe operation in Class I, Group B as well as Class I,
Groups C and D, Class II, Groups F, G, and Class III.
• EBR: interlocked circuit breaker provides interlocked connect
and disconnect operation as well as short circuit and thermal
time delay overload protection.
• To operate, insert plug (which automatically locks into
receptacle) and turn Breaker Handle to ”ON” position. To
remove plug, turn Handle to ”OFF” position, lift Plug Release
Knob and pull plug out.
• ACP and CPH plug ts Powertite™ Series hazardous location
EBR and EBRH receptacles.
Standard Materials
• EBR and EBRH receptacles: copperfree (4/10 of 1% max.)
aluminum receptacle and mounting box
• CPH and ACP plugs: copperfree (4/10 of 1% max.) aluminum
housings
• Insulating blocks: ber glass reinforced polyester
Standard Finishes
• Receptacles, mounting boxes, cord connector housings and
caps: epoxy powder coat
Options
• For Group B version add sufx -GB to receptacle (Group B
version not suitable for NEMA 4, 4X).
• For GE breaker, add -GE after EH, FB or HFB for GE Circuit
Breakers. Contact your local representative for availability and
price.
• Molded case switch available on the 150 Amp versions, add
sufx -K to receptacle.
• Special Polarization: Prevents plug insertion in a receptacle or
connector wired for a different voltage. In installations where
there are different line voltages, the special polarization option
is desirable. This allows only plugs and receptacles wired for
the same line voltage to be mated together. The receptacle
or connector interior is positioned 22-1/2°, relative to the
polarization rivet, to the right (as specied) of standard, and
plug is polarized to correspond. This option can be added
to receptacles using the Powertite™ Plug. Add sufx -P4 to
receptacle or plug.
• For 2” feed-thru openings (one top, one bottom) add sufx -22
to receptacle.
• 1 N/O and 1 N/C Auxiliary Contacts. Add sufx -AUX.
NEC Certifications and Compliances
• UL Standard: UL 1010 (UL 1203), UL 894, UL 1682, UL 1686
• UL Listed: E79132, E10784, E313360(EBR)
Plugs and RecePtacles: nec/cec HazaRdous location
• Flip cover suitable for NEMA 3, 3R only.
NEMA 4 rating maintained with Appleton NEMA 4 plug installed. Install screw cover for 4, 4X. Both covers are included with product.
Add suffix -GB to Cat. No. for Group B. (Group B version not suitable for NEMA 4, 4X).
GE is a registered trademark of General Electric Company.
© February 2019
EBR 30, 60, 100 and 150 Amp Series Receptacles
Explosionproof, Dust-Ignitionproof
With Disconnect Switch or Circuit Breaker. Weatherproof Spring Cover. 600 Vac Max. Pressure Wire Terminals.
NEC:
Class I, Division 1 and 2, Groups B, C, D
Class II, Division 1 and 2, Groups F, G
Class III
NEMA 3•, 3R•, 4, 4X, 7CD, 9FG
EBRH Receptacles with Disconnect Switch
Receptacle Wires/Poles Catalog Number
30 Amp
60 Amp
100 Amp
EBRH with Switch
EBR Receptacles with Circuit Breaker
EBR with Breaker
1-1/2” threaded conduit openings –
one in top and two in bottom
Plugs and RecePtacles: nec/cec HazaRdous location
Circuit Breakers are Cutler-Hammer. Cutler-Hammer F-Frame breakers available up to 175 Amps. Add GE after EH, FB, or HFB for GE Circuit Breakers.
Contact your local representative for availability and price. Cutler-Hammer is a registered trademark of Eaton Corporation. GE is a registered trademark of
General Electric Company.
• Flip cover suitable for NEMA 3, 3R only.
NEMA 4 rating maintained with Appleton NEMA 4 plug installed. Install screw cover for 4, 4X. Both covers are included with product.
Add suffix -GB to Cat. No. for Group B. (Group B version not suitable for NEMA 4, 4X)
Molded Case Switch available. Add suffix -K.
Receptacle
30 Amp
2W, 3P
30 Amp
3W, 4P
60 Amp
2W, 3P
60 Amp
3W, 4P
100 Amp
2W, 3P
100 Amp
3W, 4P
150 Amp
3W, 4P
Circuit
Breaker Amp Pole
20 2 EBR3023EH20 EBR3023FB20 EBR3023HFB20
30 2 EBR3023EH30 EBR3023FB30 EBR3023HFB30
40 2 EBR3023EH40 EBR3023FB40 EBR3023HFB40
50 2 EBR3023EH50 EBR3023FB50 EBR3023HFB50
20 3 EBR3034EH20 EBR3034FB20 EBR3034HFB20
30 3 EBR3034EH30 EBR3034FB30 EBR3034HFB30
40 3 EBR3034EH40 EBR3034FB40 EBR3034HFB40
50 3 EBR3034EH50 EBR3034FB50 EBR3034HFB50
50 2 EBR6023EH50 EBR6023FB50 EBR6023HFB50
60 2 EBR6023EH60 EBR6023FB60 EBR6023HFB60
70 2 EBR6023EH70 EBR6023FB70 EBR6023HFB70
90 2 EBR6023EH90 EBR6023FB90 EBR6023HFB90
100 2 EBR6023EH100 EBR6023FB100 EBR6023HFB100
50 3 EBR6034EH50 EBR6034FB50 EBR6034HFB50
60 3 EBR6034EH60 EBR6034FB60 EBR6034HFB60
70 3 EBR6034EH70 EBR6034FB70 EBR6034HFB70
90 3 EBR6034EH90 EBR6034FB90 EBR6034HFB90
100 3 EBR6034EH100 EBR6034FB100 EBR6034HFB100
50 2 EBR1023EH50 EBR1023FB50 EBR1023HFB50
70 2 EBR1023EH70 EBR1023FB70 EBR1023HFB70
90 2 EBR1023EH90 EBR1023FB90 EBR1023HFB90
100 2 EBR1023EH100 EBR1023FB100 EBR1023HFB100
50 3 EBR1034EH50 EBR1034FB50 EBR1034HFB50
70 3 EBR1034EH70 EBR1034FB70 EBR1034HFB70
90 3 EBR1034EH90 EBR1034FB90 EBR1034HFB90
100 3 EBR1034EH100 EBR1034FB100 EBR1034HFB100
100 3 N/A N/A
125 3 N/A N/A
150 3 N/A N/A
2W, 3P EBRH3023DS
3W, 4P EBRH3034DS
2W, 3P EBRH6023DS
3W, 4P EBRH6034DS
2W, 3P EBRH1023DS
3W, 4P EBRH1034DS
Catalog Number
with 480 Vac
EHD Breaker
with 600 Vac
FDB Breaker
with 600 Vac
FD Breaker
EBR15034FD100
EBR15034FD125
EBR15034FD150
© February 2019
EBR Receptacles 30, 60, 100 and 150 Amp
Circuit Breaker and Disconnect Switch Data
600 Vac Max.
NEC:
Class I, Division 1 and 2, Groups B, C, D
Class II, Division 1 and 2, Groups F, G
Class III
NEMA 3•, 3R•, 4, 4X, 7CD, 9FG
EBR Horsepower Tables
These Cutler-Hammer circuit breaker recommendations are for induction motors running with usual speed
and torque characteristics. Ambient temperature, and frequency of starting could require different protective
characteristics.

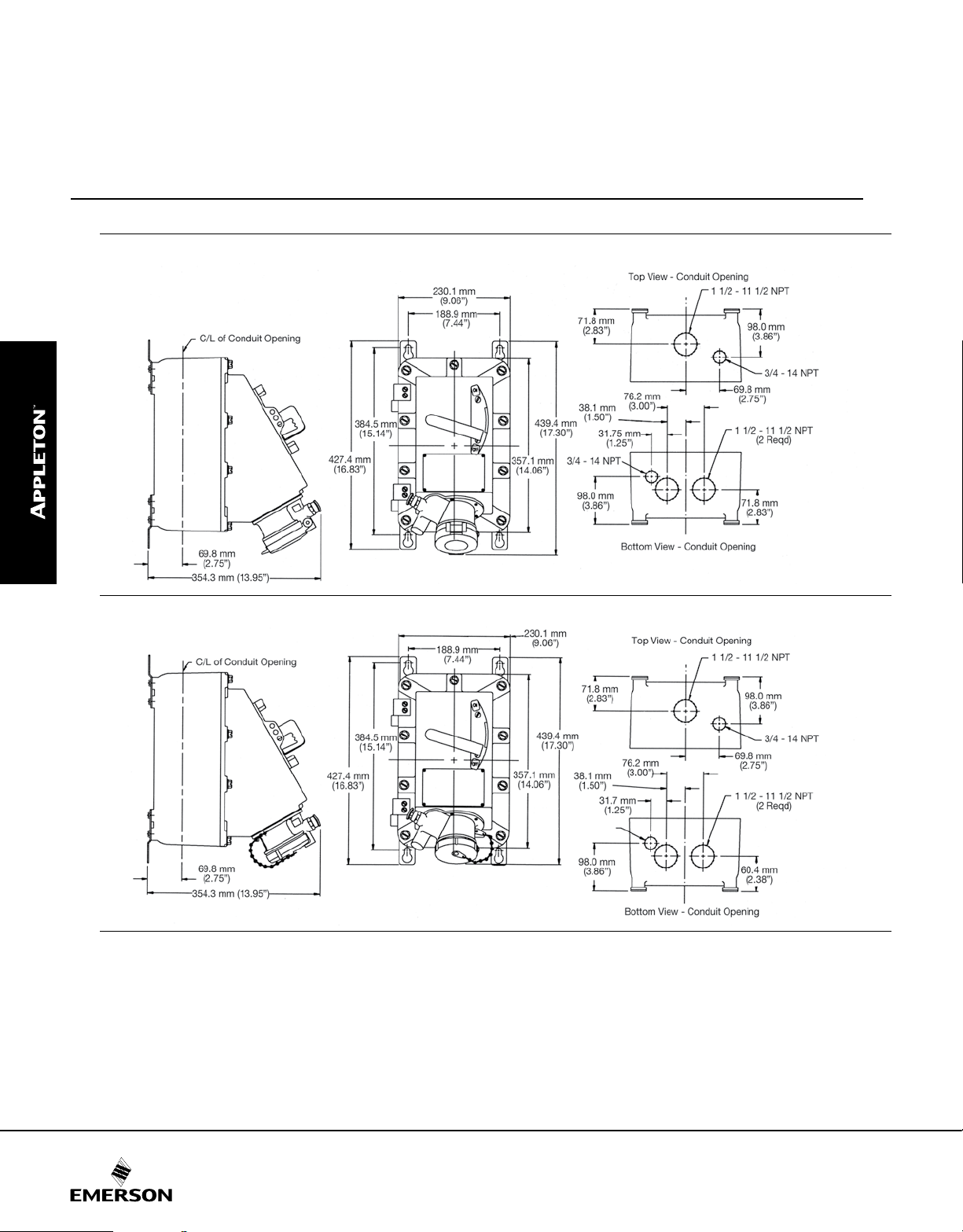

EBR3023
(2W, 3P, 1-Phase,
30 Amp 2-Pole)
EBR Shown
Solderless lugs are provided for
line connections, and receptacle is
prewired to the load side of breaker.
Cover-mounted components leave
entire enclosure space free for pulling
of line conductors and wiring.
EBR Shown
Plug is mechanically locked in
receptacle when circuit breaker is ON.
Design provides interlocked connect
and disconnect operation as well as
short circuit and thermal time delay
overload protection.
Breaker operating handle can be
padlocked in either ON or OFF
position and is trip-free.
Enclosure has additional 3/4”
threaded openings top and bottom
for installation of optional drain and
breather; reducers furnished.
• Flip cover suitable for NEMA 3, 3R only.
NEMA 4 rating maintained with Appleton
NEMA 4 plug installed. Install screw cover
for 4, 4X. Both covers are included with
product.
Cutler-Hammer is a registered trademark of
Eaton Corporation.
100A and 150 Amp 3-Pole)
EBR Circuit Breaker Data — Cutler-Hammer
EBR Horsepower Rating Table — Disconnect Switch
EBR6023
(2W, 3P, 1-Phase,
60 Amp 2-Pole)
EBR3034
(3W, 4P, 3-Phase,
30 Amp 3-Pole)
EBR6034
(3W, 4P, 3-Phase,
60 Amp 3-Pole)
EBR1034
(3W, 4P, 3-Phase,
Continuous
Frame
EHD 20-100 480 18,000 14,000 ––
FDB 20-125 600 18,000 14,000 14,000
FD 20-150 600 65,000 25,000 18,000
Max. Amp
30 5 10 20 25 7-1/2
60 10 20 40 60 15
100 15 30 75 75 25
150 – 50 100 150 –
HP 120 Vac 240 Vac 480 Vac 600 Vac
1 40EHD 20EHD 15EHD 15FDB
1-1/2 40EHD 30EHD 15EHD 15FDB
2 50EHD 30EHD 20EHD 15FDB
3 –– 40EHD 30EHD 20FDB
5 –– –– 40EHD 30FDB
7-1/2 –– –– 40EHD 40FDB
3 50EHD –– –– ––
5 100EHD 50EHD –– ––
7-1/2 70EHD –– ––
10 –– –––– 50EHD 40FDB
1 –– 15EHD 15EHD 15FDB
1-1/2 –– 15EHD 15EHD 15FDB
2 –– 20EHD 15EHD 15FDB
3 –– 30EHD 15EHD 15FDB
5 –– 40EHD 20EHD 20FDB
7-1/2 –– 50EHD 30EHD 30FDB
10 –– –– 40EHD 30FDB
15 –– –– 40EHD 40FDB
20 –– –– –– 50FDB
10 –– 50EHD –– ––
15 –– 70EHD –– ––
20 –– –– 50EHD ––
25 –– –– 50EHD 50FDB
30 –– –– 70EHD 50FDB
40 –– –– –– 70FDB
20 –– 100EHD –– ––
25 –– 100EHD –– ––
30 –– 150FD –– ––
40 –– –– 100EHD ––
50 –– –– 100EHD 100FDB
60 –– –– 125FD 125FDB
75 –– –– –– 125FDB
Amp Max Volts
120 Vac 240 Vac 480 Vac 600 Vac 250 Vdc
Plugs and RecePtacles: nec/cec HazaRdous location
Interrupting Ratings (RMS SYM Amp)
240 Vac 480 Vac 600 Vac
Max. Horsepower Rating
© February 2019
Plugs for EBR and EBRH Receptacles
A
NEC:
Class I, Division 1 and 2, Groups B, C, D
Class II, Division 1 and 2, Groups F, G
Class III
NEMA 3•, 3R•, 4, 4X, 7CD, 9FG
ACP Plugs for EBR and EBRH Receptacles
Cable Dia.
(Inches)
.500 to 1.250 ACP3023BC ACP3034BC –– –– –– –– ––
.500 to 1.375 –– –– ACP6023BC ACP6034BC –– –– ––
.875 to 1.906 –– –– –– –– ACP1023CD ACP1034CD ACP15034CD
1.09 to 2.187 –– –– –– –– –– –– ACP15034DE
CPH Plugs for EBR and EBRH Receptacles
Cable Dia.
(Inches)
.390 to 1.375 CPH3023BC CPH3034BC CPH6023BC CPH6034BC –– –– ––
30 Amp 60 Amp 100 Amp 150 Amp
2W, 3P 3W, 4P 2W, 3P 3W, 4P 2W, 3P 3W, 4P 3W, 4P
30 Amp 60 Amp 100 Amp 150 Amp
2W, 3P 3W, 4P 2W, 3P 3W, 4P 2W, 3P 3W, 4P 3W, 4P
Dimensions of ACP Plugs
Dimensions in Millimeters (Inches)
Max. Amp No. Poles A B C D
30 2,3,4 152.4 6.00) 120.6 (4.75) 79.5 (3.13) 47.2 (1.86)
60 2,3 198.3 7.81) 125.4 (4.94) 88.9 (3.50) 56.6 (2.23)
60 4 198.3 7.81) 125.4 (4.94) 96.7 (3.81) 64.7 (2.55)
100 2,3 266.7 10.50) 168.4 (6.63) 101.6 (4.00) 62.7 (2.47)
100 4 266.7 10.50) 168.4 (6.63) 107.9 (4.25) 69.0 (2.72)
150 (CD & DE) 4 266.7 10.50) 168.4 (6.63) 107.9 (4.25) 69.0 (2.72)
Dimensions of CPH Plugs
Plugs and RecePtacles: nec/cec HazaRdous location
D
E
C
B
Dimensions in Millimeters (Inches)
Max. Amp Wire/Pole A B C D E
30 2W, 3P; 3W, 4P 155.7 (6.13) 60.4 (2.38) 47.2 (1.86) 6.68 (2.63) 112.7 (4.44)
60 2W, 3P 214.3 (8.44) 77.7 (3.06) 77.7 (3.06) 6.68 (2.63) 144.5 (5.69)
60 3W, 4P 214.3 (8.44) 77.7 (3.06) 64.7 (2.55) 6.68 (2.63) 144.5 (5.69)
• Flip cover suitable for NEMA 3, 3R only.
NEMA 4 rating maintained with Appleton NEMA 4 plug installed. Install screw cover for 4, 4X. Both covers are included with product.
60 Amp CPH plugs with -BC suffix are NOT UL listed.
© February 2019
EBR 30, 60, 100 and 150 Amp Series Receptacles
Explosionproof, Dust-Ignitionproof
With Disconnect Switch or Circuit Breaker. Weatherproof Spring Cover. 600 Vac Max. 250 Vdc Max.
NEC:
Class I, Division 1 and 2, Groups B, C, D
Class II, Division 1 and 2, Groups F, G
Class III
NEMA 3•, 3R•, 4, 4X, 7CD, 9FG
Replacement Parts
Description Catalog Number
30 Amp, 2W, 3P Receptacle Interior EBRI3023
30 Amp, 3W, 4P Receptacle Interior EBRI3034
60 Amp, 2W, 3P Receptacle Interior EBRI6023
60 Amp, 3W, 4P Receptacle Interior EBRI6034
100 Amp, 2W, 3P Receptacle Interior EBRI1023
100 Amp, 3W, 4P Receptacle Interior EBRI1034
150 Amp, 3W, 4P Receptacle Interior EBRI15034
30 Amp, 2W, 3P Disconnect Interlock Rod Assembly DEJS30
30 Amp, 3W, 4P Disconnect Interlock Rod Assembly DEJS30
60 Amp, 2W, 3P Disconnect Interlock Rod Assembly DEJS60A
60 Amp, 3W, 4P Disconnect Interlock Rod Assembly DEJS60B
100 Amp, 2W, 3P Disconnect Interlock Rod Assembly DEJS100A
100 Amp, 3W, 4P Disconnect Interlock Rod Assembly DEJS100B
30 Amp, 2W, 3P Breaker Interlock Rod Assembly DEJS30
30 Amp, 3W, 4P Breaker Interlock Rod Assembly DEJS30
60 Amp, 2W, 3P Breaker Interlock Rod Assembly DEJS60A
60 Amp, 3W, 4P Breaker Interlock Rod Assembly DEJS60B
100 Amp, 2W, 3P Breaker Interlock Rod Assembly DEJS100A
100 Amp, 3W, 4P Breaker Interlock Rod Assembly DEJS100B
150 Amp, 3W, 4P Breaker Interlock Rod Assembly DEJS100B
Plugs and RecePtacles: nec/cec HazaRdous location
• Flip cover suitable for NEMA 3, 3R only.
NEMA 4 rating maintained with Appleton NEMA 4 plug installed. Install screw cover for 4, 4X. Both covers are included with product.
© February 2019
EBR 30, 60, 100 and 150 Amp Series Receptacles
NEC:
Class I, Division 1 and 2, Groups B, C, D
Class II, Division 1 and 2, Groups F, G
Class III
NEMA 3•, 3R•, 4, 4X, 7CD, 9FG
Dimensions in Millimeters (Inches)
Shown with Flip Cover
Plugs and RecePtacles: nec/cec HazaRdous location
Shown with Screw Cover
• Flip cover suitable for NEMA 3, 3R only.
NEMA 4 rating maintained with Appleton NEMA 4 plug installed. Install screw cover for 4, 4X. Both covers are included with product.
© February 2019
Loading...
