Apple Hdi20 1.4 Drive Service Manual

0 (0)
Apple Hdi20 1.4 Drive Service Manual

K Service Source

Macintosh HDI-20 1.4 MB

Drive

K Service Source

Troubleshooting

Macintosh HDI-20 1.4 MB Drive

Troubleshooting

General - 1





General

The Symptom Charts included in this chapter will help you diagnose specific symptoms related to your product. Because cures are listed on the charts in the order of most likely solution, try the first cure first. Verify whether or not the product continues to exhibit the symptom. If the symptom persists, try the next cure. (Note: If you have replaced a module, reinstall the original module before you proceed to the next cure.)

If you are not sure what the problem is, or if the Symptom Charts do not resolve the problem, refer to the Flowchart for the product family.

For additional assistance, contact Apple Technical Support.

Troubleshooting Symptom Charts - 2

Symptom Charts

Drive does not appear

1

Attach drive while computer is in Shut Down (not Sleep)

on display



mode.



2

Replace drive mechanism.



3

Replace external drive cable.

Drive reads but does

1

Replace drive mechanism.

not write

2

Replace external drive cable.

Drive does not read

1

Verify that software is known-good.



2

Replace drive mechanism.

Drive does not eject

Replace drive mechanism.

disk







Troubleshooting



Symptom Charts - 3







Drive does not read,

To read and write files with either MS-DOS or HDI-20 1.4 MB

write, or format MS-

drive, format all disks with MS-DOS drive first.

DOS disk





Drive does not read

1

Clean floppy drive.

correctly; many file

2

Replace drive mechanism.

transfer errors occur





Drive fails to format

1

Clean floppy drive.





2

Replace drive mechanism.

K Service Source

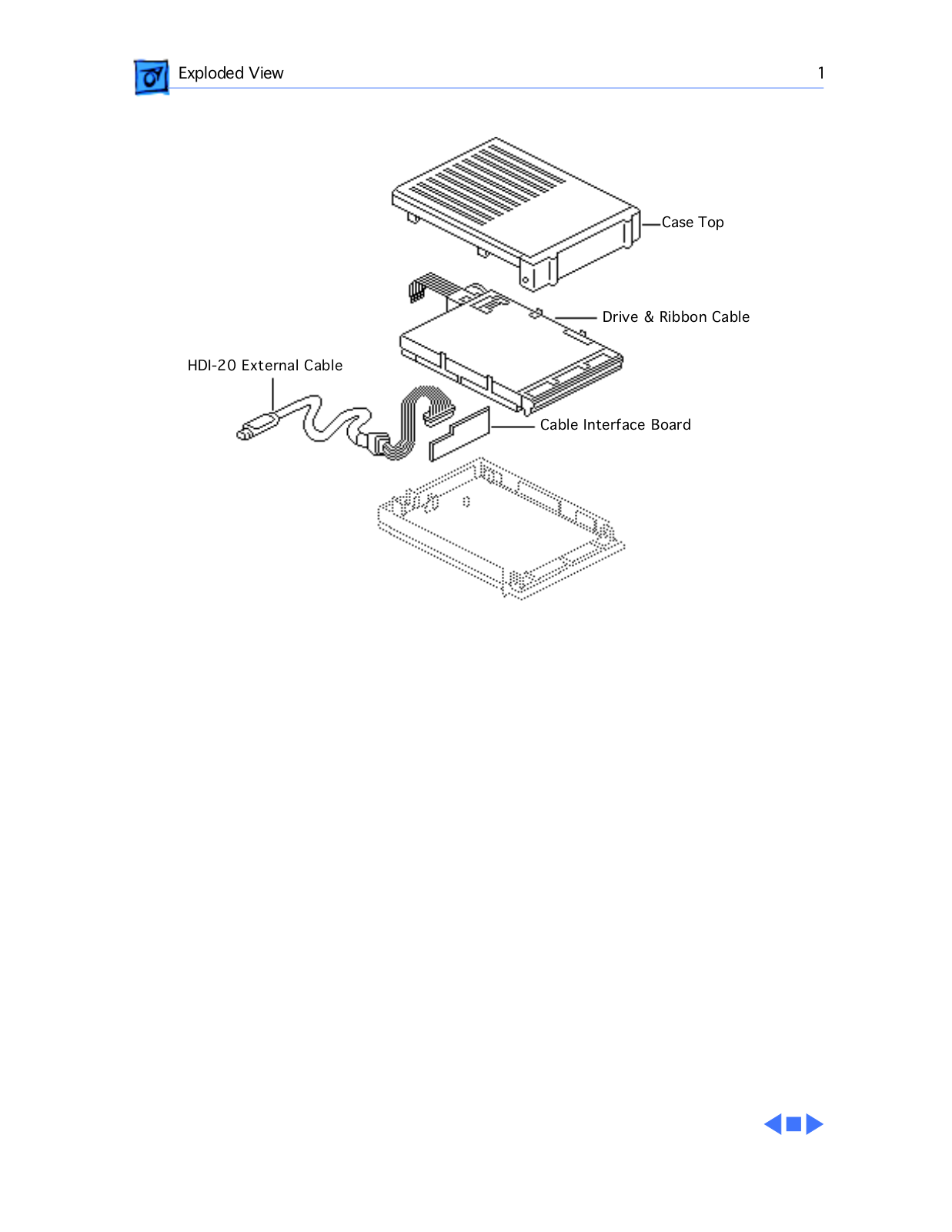

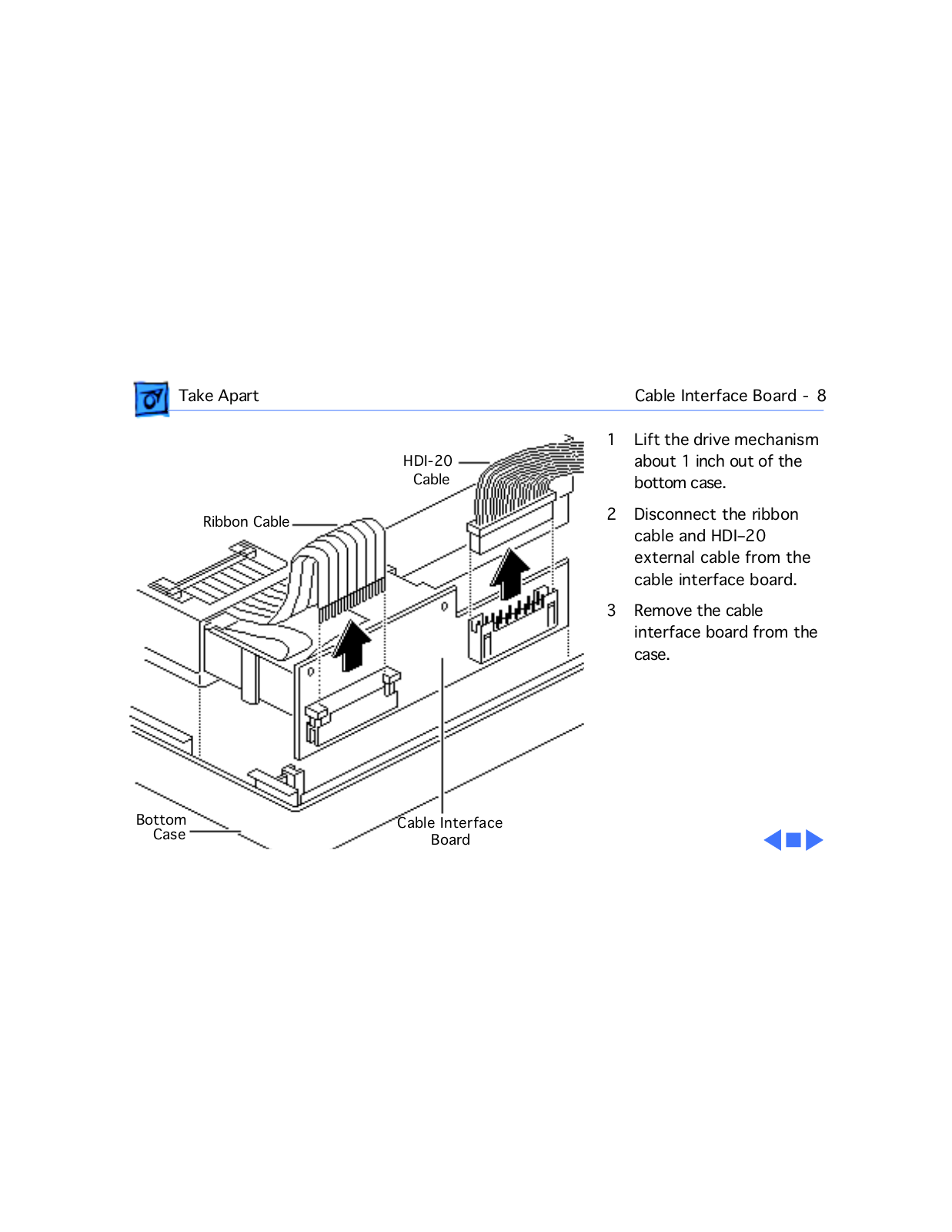

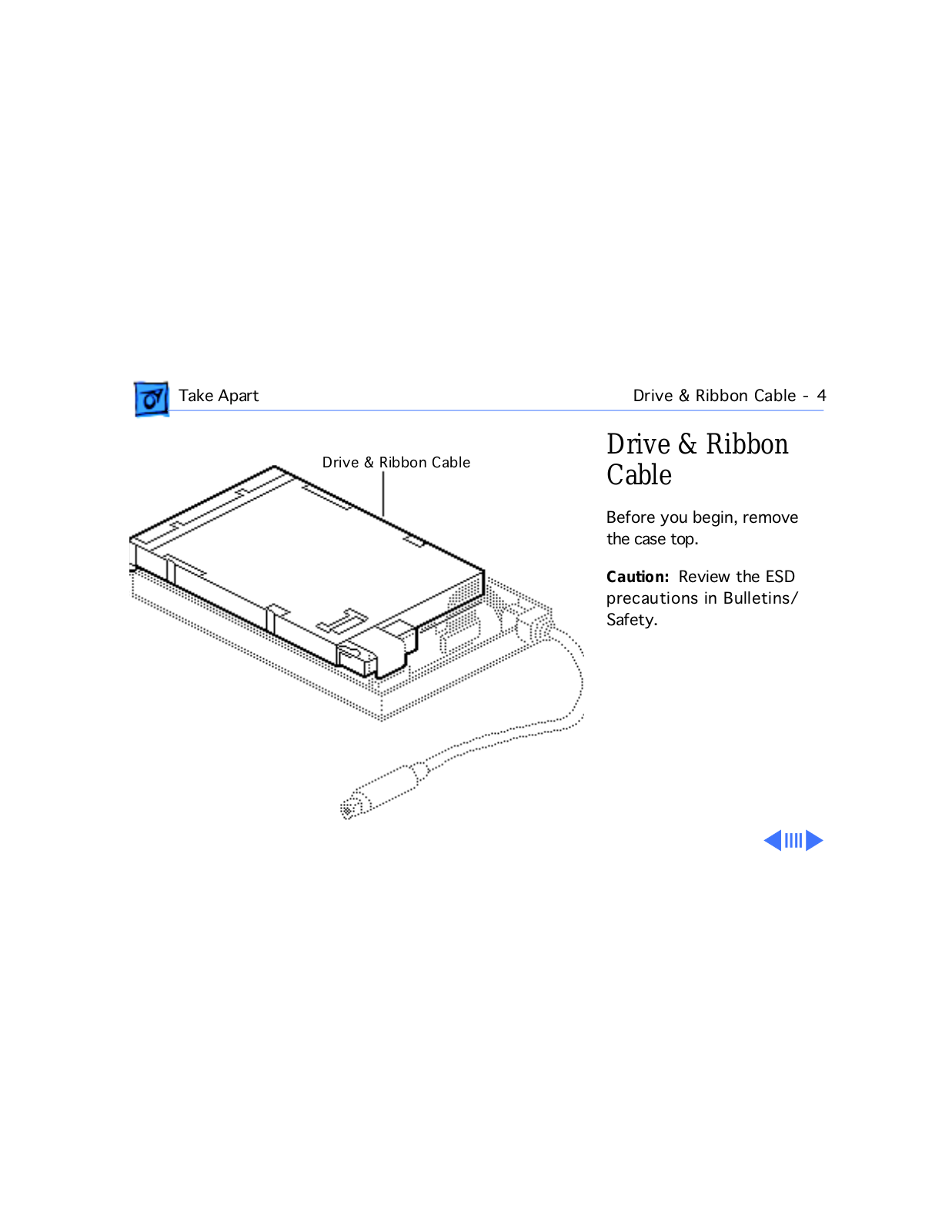

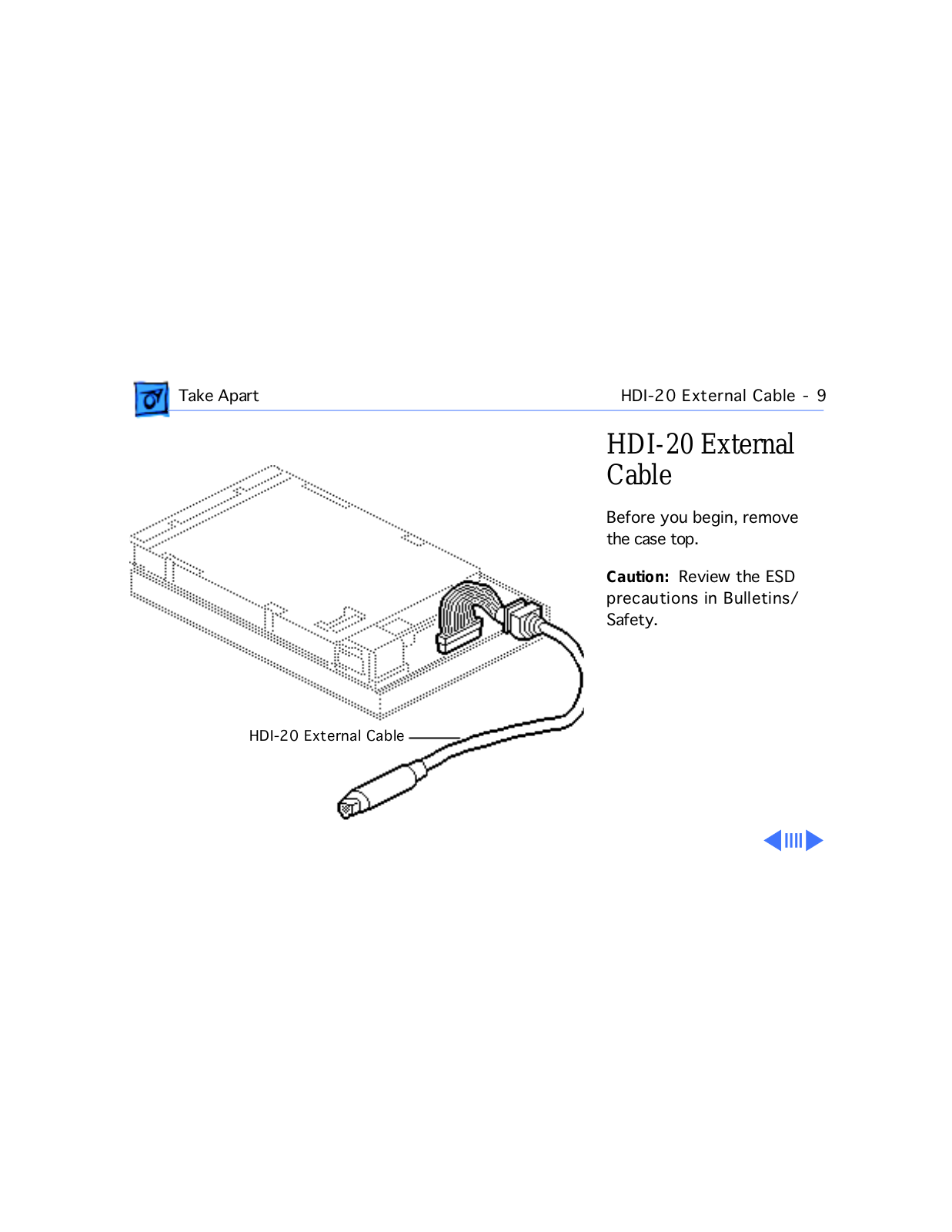

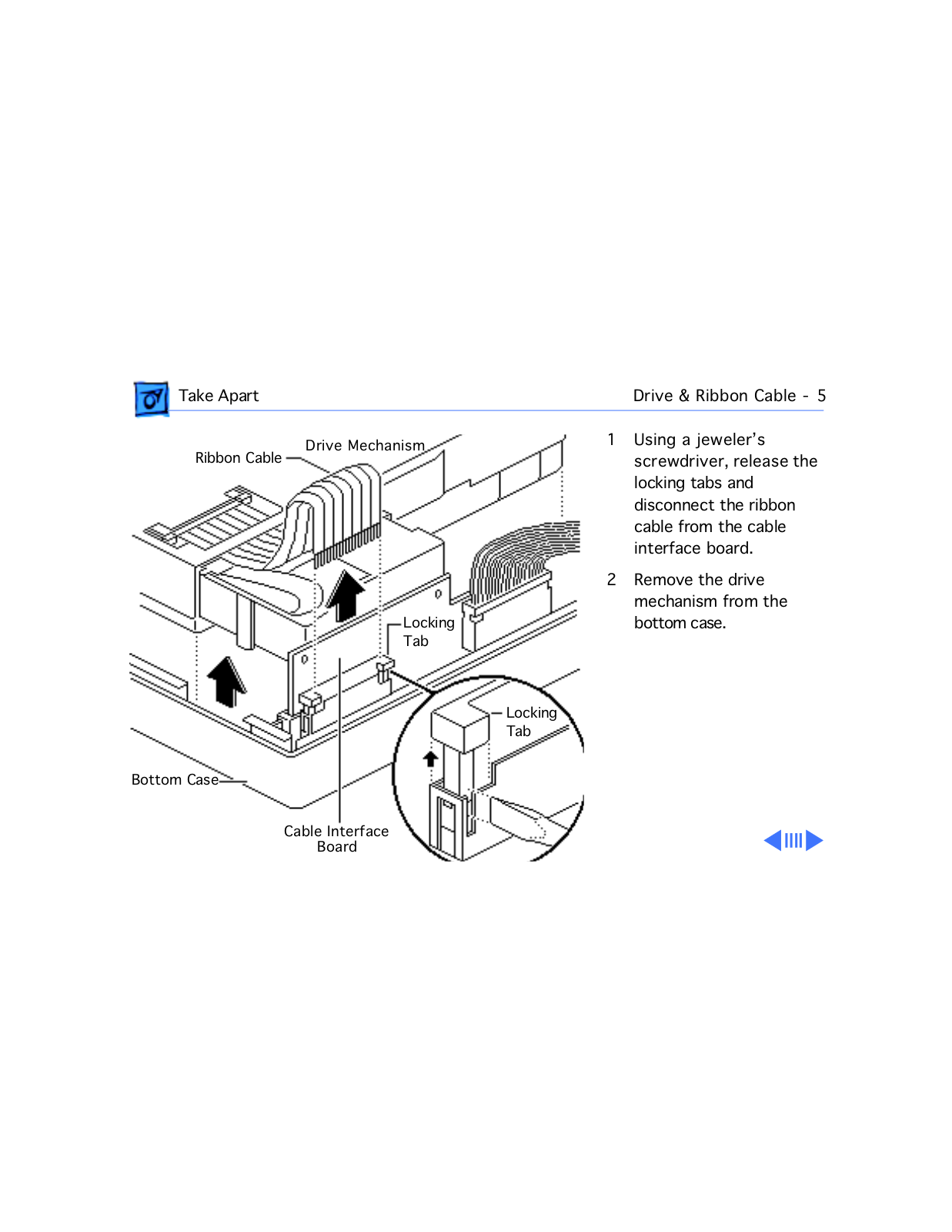

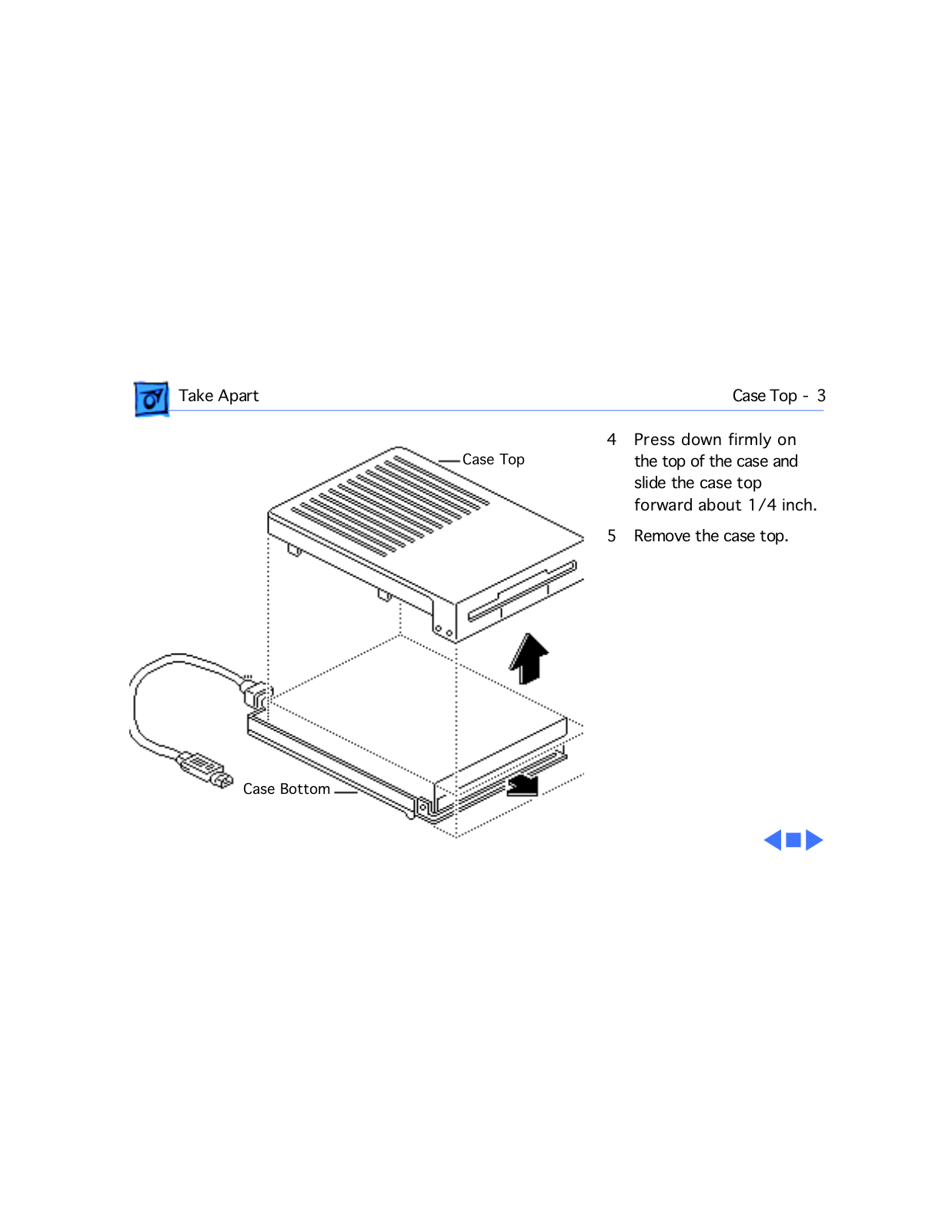

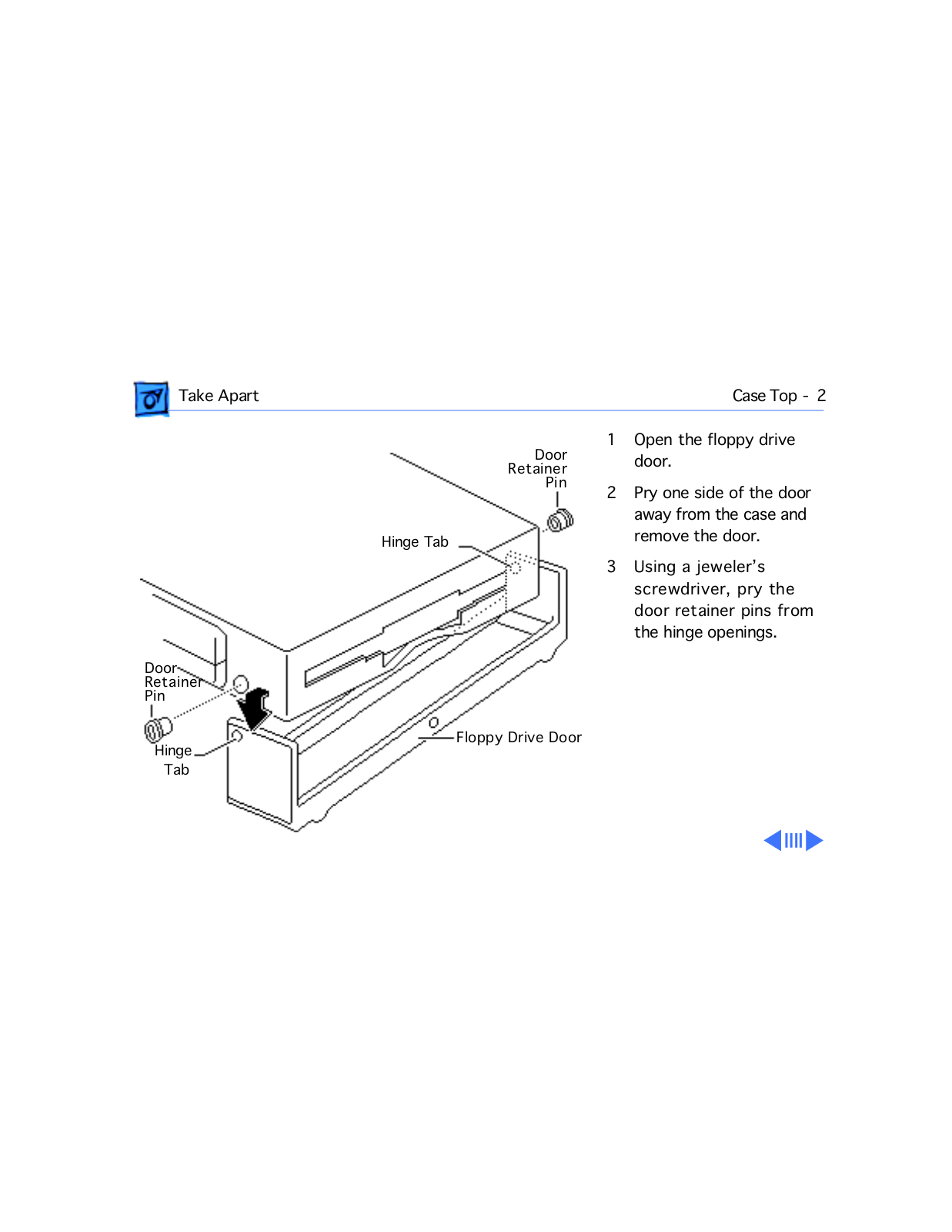

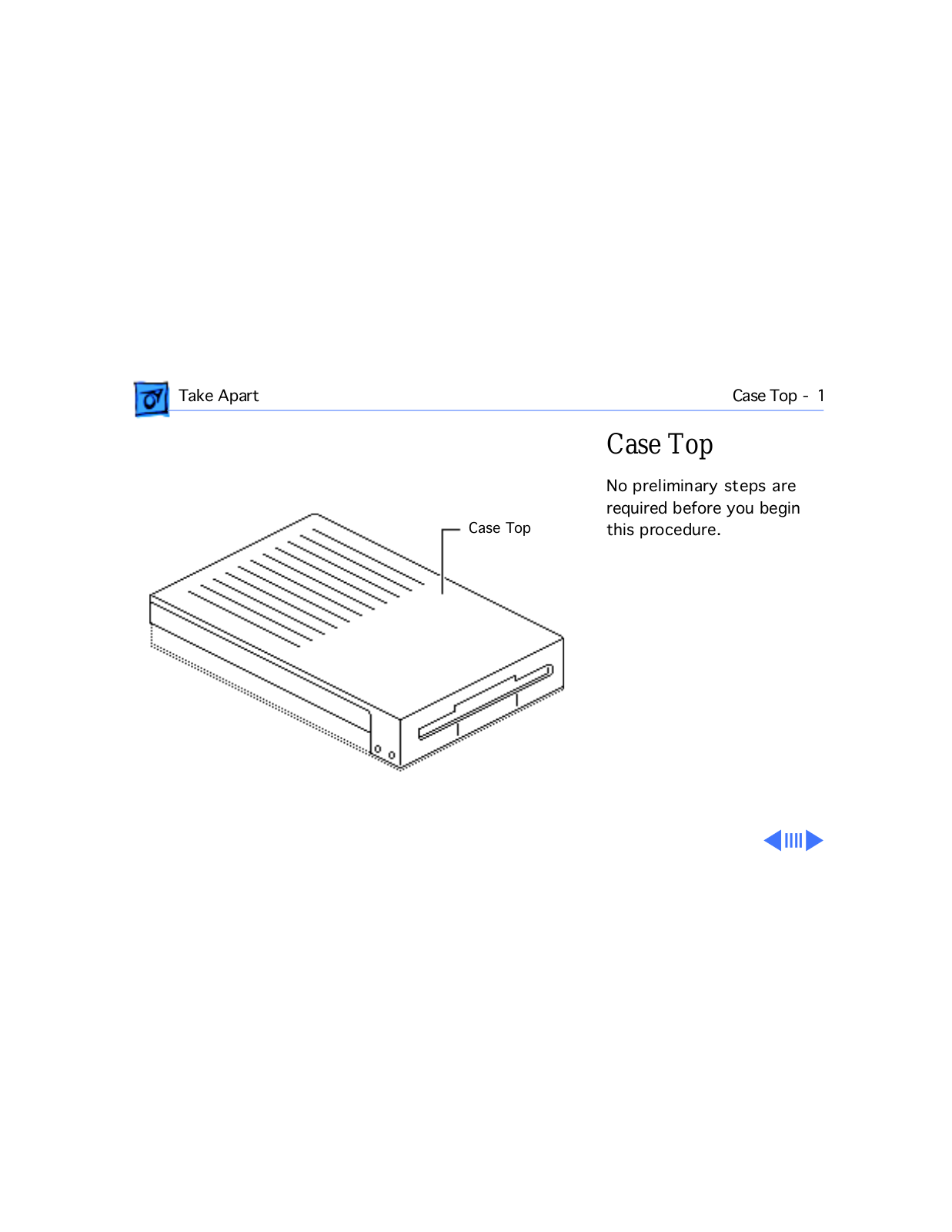

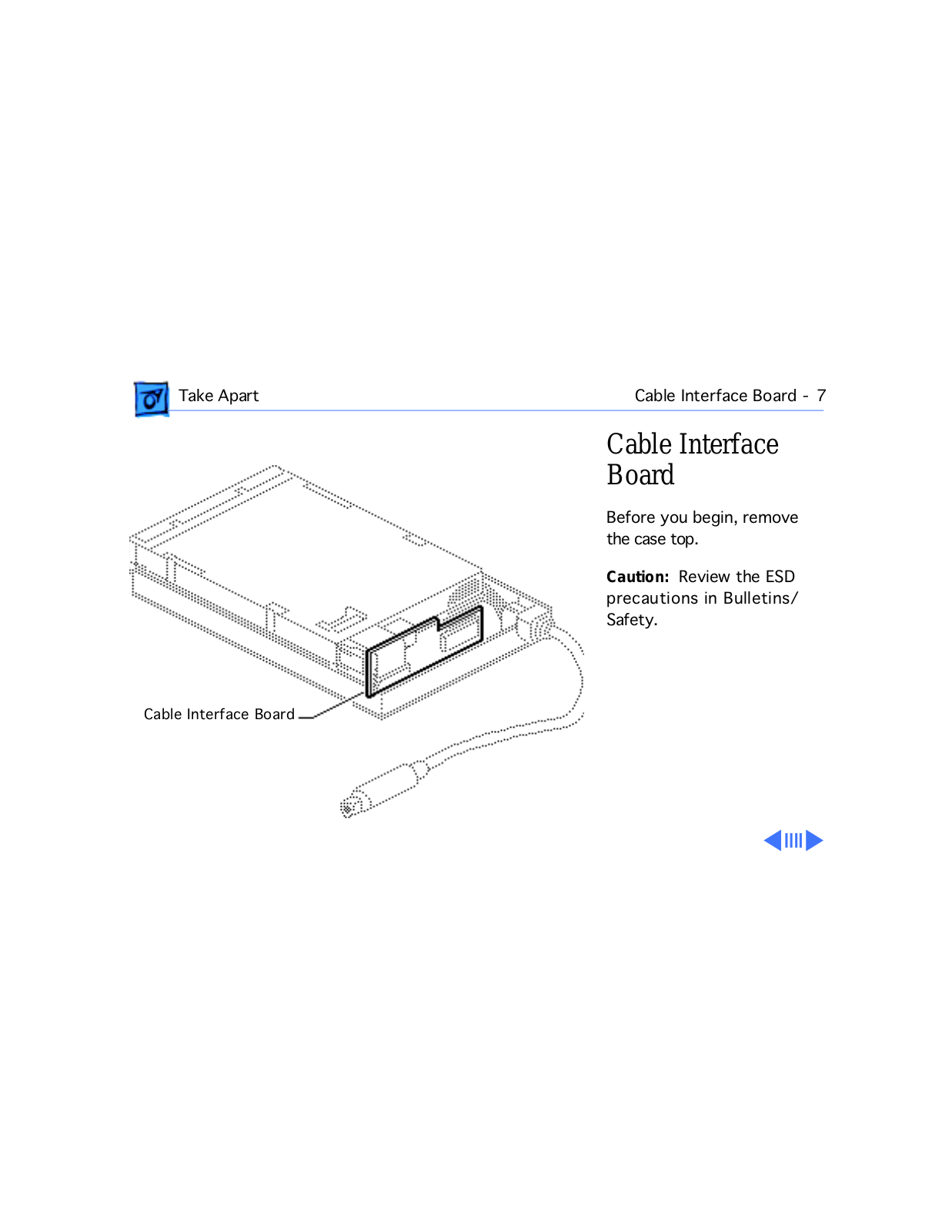

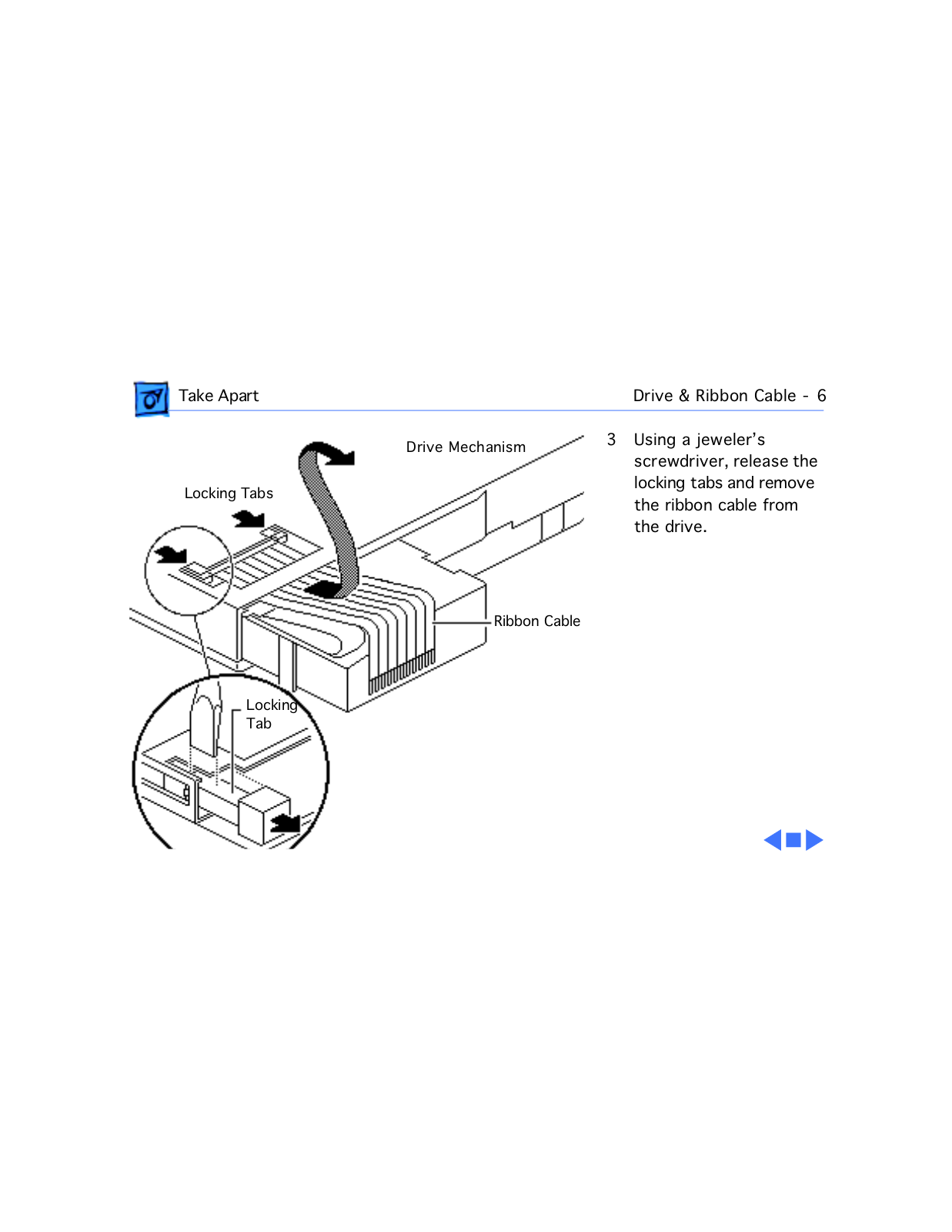

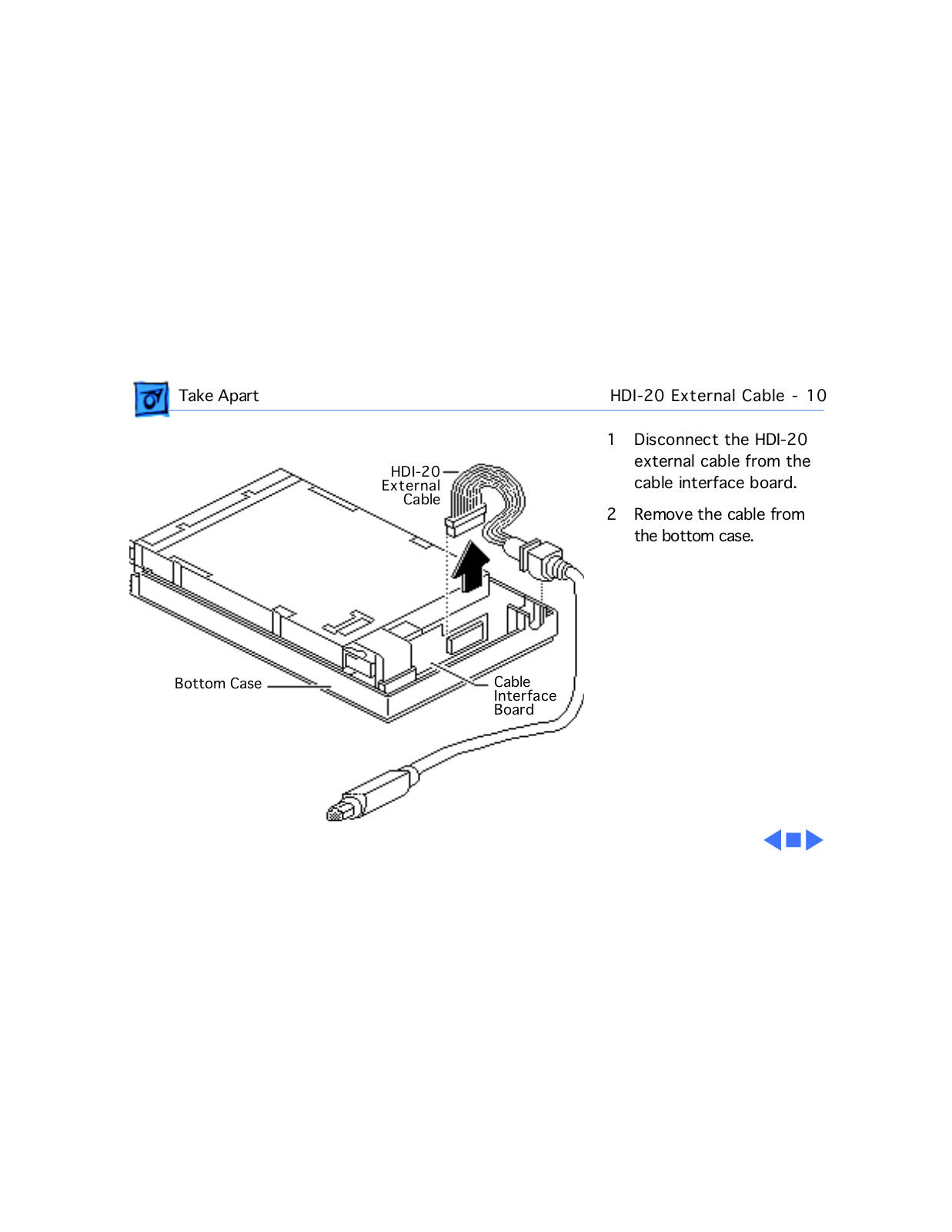

Take Apart

Macintosh HDI-20 1.4 MB Drive
