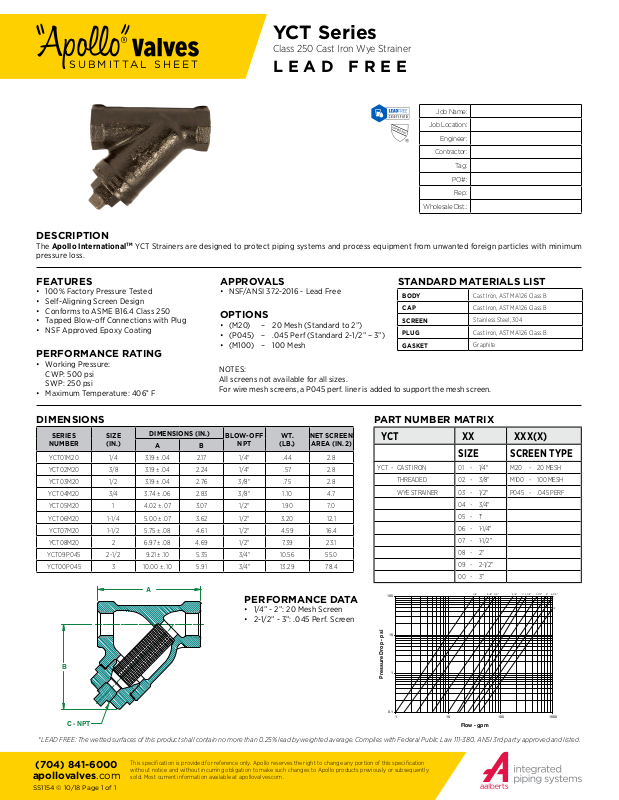

Apollo Conbraco YCT User Manual
Flow - gpm
Pressure Drop - psi
A
YCT Series
Class 250 Cast Iron Wye Strainer
SUBMITTAL SHEET
DESCRIPTION
The Apollo InternationalTM YCT Strainers are designed to protect piping systems and process equipment from unwanted foreign particles with minimum
pressure loss.
LEAD FREE
Job Name:
Job Location:
Engineer:
Contractor:
Tag :
PO#:
Rep:
Wholesale Dist.:
FEATU R ES
• 100% Factory Pressure Tested
APPROVALS
• NSF/ANSI 372-2016 - Lead Free
• Self-Aligning Screen Design
• Conforms to ASME B16.4 Class 250
• Tapped Blow-o Connections with Plug
• NSF Approved Epoxy Coating
OPTIONS
• (M20) – 20 Mesh (Standard to 2”)
• (P045) – .045 Perf (Standard 2-1/2” – 3”)
• (M100) – 100 Mesh
PERFORMANCE RATING
• Working Pressure:
CWP: 500 psi
SWP: 250 psi
• Maximum Temperature: 406° F
NOTES:
All screens not available for all sizes.
For wire mesh screens, a P045 perf. liner is added to support the mesh screen.
DIMENSIONS
SERIES
NUMBER
YCT01M20 1/4 3.19 ± .04 2.17 1/4 " .44 2.8
YCT02M20 3/8 3.19 ± .04 2.24 1 /4" .57 2.8
YCT03 M20 1/2 3.19 ± .04 2.76 3/8" .75 2.8
YCT04M20 3/4 3.74 ± .06 2.83 3/8" 1.10 4.7
YCT05M20 1 4.02 ± .07 3.07 1/2" 1.90 7. 0
YCT06M20 1 -1 /4 5.00 ± .07 3.62 1/2" 3.20 12.1
YCT07M20 1-1/2 5.75 ± .08 4.61 1/2" 4.59 16.4
YCT08M20 2 6.97 ± .08 4.69 1/2" 7. 39 23.1
YCT09P045 2-1/2 9.21 ± .10 5.35 3/4"
YCT00P045 3 10.00 ± .10 5.91 3/4"
SIZE
(IN.)
DIMENSIONS (IN.)
A B
BLOW- OFF
NPT
(LB.)
10.56 55.0
13.29 78.4
WT.
PERFORMANCE DATA
• 1/4” - 2”: 20 Mesh Screen
• 2-1/2” - 3”: .045 Perf. Screen
NET SCREEN
AREA (IN. 2)
STANDARD MATERIALS LIST
BODY
CAP
SCREEN
PLUG
GASKET
Cast Iron, AS TM A126 Class B
Cast Iron, AS TM A126 Class B
Stainle ss Steel, 304
Cast Iron, AS TM A126 Class B
Graphite
PART NUMBER MATRIX
YCT XX XXX(X)
SIZE SCREEN TYPE
YCT - CAST IRON 01 - 1/4" M20 - 20 MESH
THREADED 02 - 3/8” M100 - 100 MESH
WYE STRAINER 03 - 1/2" P045 - .045 PERF
04 - 3/4"
05 - 1"
06 - 1-1/4"
07 - 1-1/2”
08 - 2”
09 - 2-1/2”
00 - 3”
3/8" 1/2"
100
10
1/4"
3/4"
1" 1- 1/ 4" 1-1/ 2"
2" 2-1/ 2"
3"
This specification is provided for reference only. Apollo reserves the right to change any portion of this specification
without notice and without incurring obligation to make such changes to Apollo products previously or subsequently
sold. Most current information available at apollovalves.com.
1
0.1
0001001011
B
C - NPT
*LEAD FREE: The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average. Complies with Federal Public Law 111-380. ANSI 3rd party approved and listed.
(704) 841-6000
apollovalves.com
SS1154 © 10/18 Page 1 of 1
