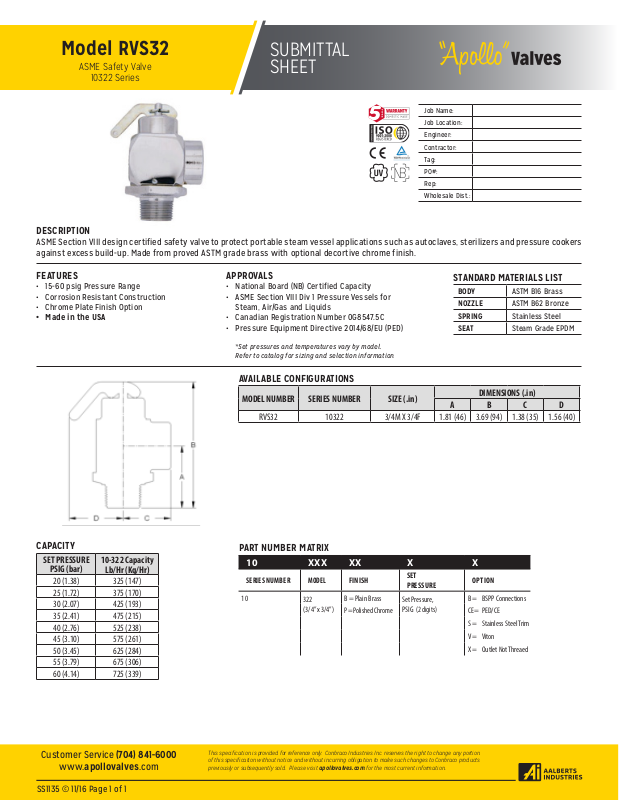

Apollo Conbraco RVS32 User Manual
Model RVS32
ASME Safety Valve
10322 Series
SUBMITTAL
SHEET
Job Name:
Job Location:
Engineer:
Contractor:
Tag:
PO#:
Rep:
Wholesale Dist.:
DESCRIPTION
ASME Section VIII design certified safety valve to protect portable steam vessel applications such as autoclaves, sterilizers and pressure cookers
against excess build-up. Made from proved ASTM grade brass with optional decortive chrome finish.
FEATURES
• 15-60 psig Pressure Range
• Corrosion Resistant Construction
• Chrome Plate Finish Option
• Made in the USA
CAPACITY
SET PRESSURE
PSIG (bar)
10-322 Capacity
Lb/Hr (Kg/Hr)
20 (1.38) 325 (147)
25 (1.72) 375 (170)
30 (2.07) 425 (193)
35 (2.41) 475 (215)
40 (2.76) 525 (238)
45 (3.10) 575 (261)
50 (3.45) 625 (284)
55 (3.79) 675 (306)
60 (4.14) 725 (339)
APPROVALS
• National Board (NB) Certified Capacity
• ASME Section VIII Div 1 Pressure Vessels for
Steam, Air/Gas and Liquids
• Canadian Registration Number 0G8547.5C
• Pressure Equipment Directive 2014/68/EU (PED)
*Set pressures and temperatures vary by model.
Refer to catalog for sizing and selection information
AVAILABLE CONFIGURATIONS
MODEL NUMBER SERIES NUMBER SIZE (.in)
RVS32 10322 3/4M X 3/4F 1.81 (46) 3.69 (94) 1.38 (35) 1.56 (40)
PART NUMBER MATRIX
10 XXX XX X X
SERIES NUMBER
10
MODEL
322
(3/4” x 3/4”)
FINISH
B = Plain Brass
P =Polished Chrome
SET
PRESSURE
Set Pressure,
PSIG
(2 digits)
STANDARD MATERIALS LIST
BODY ASTM B16 Brass
NOZZLE ASTM B62 Bronze
SPRING Stainless Steel
SEAT Steam Grade EPDM
DIMENSIONS (.in)
A B C D
OPTION
B = BSPP Connections
CE= PED/CE
S = Stainless Steel Trim
V =
Viton
X = Outlet Not Threaed
Customer Service (704) 841-6000
www.apollovalves.com
SS1135 © 11/16 Page 1 of 1
This specification is provided for reference only. Conbraco Industries Inc. reserves the right to change any portion
of this specification without notice and without incurring obligation to make such changes to Conbraco products
previously or subsequently sold. Please visit apollovalves.com for the most current information.
