PHSSGB10
SPEC GB-10
SERIES GB-10
SPECIFICATIONS
GENERAL SPECIFICATIONS

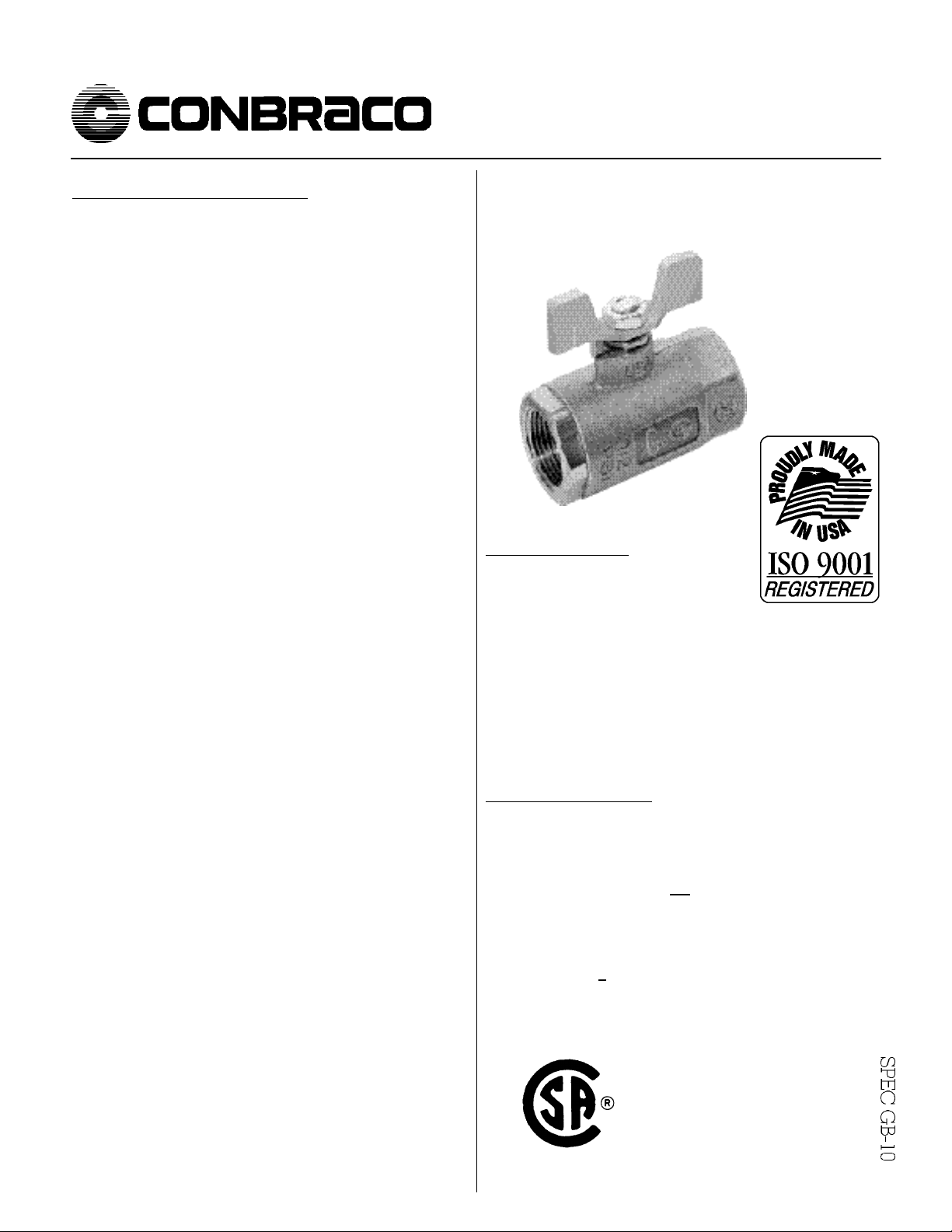

The Conbraco GB-10 Series manually operated gas
ball valve is made from ASTM B584 grade bronze
material for superior corrosion protection. They fully
comply with AGA standard #3-88, ANSI Z21.15.CGA9.1
as well as CR91-002 for manually operated valves.
They are ideally suited for bubble tight shut-off lowpressure gas line service.
CONBRACO SPECIFICATIONS
All ball valves shall comply with AGA standard 3-88,
ANSI Z21.15.CGA9.1 and CR91-002.
The ball valves shall be 100% made and tested in the
USA.
The manufacturing facility shall be ISO 9001
REGISTERED.
The body of the valve shall be composed of ASTM B
584 UNS Alloy C84400 bronze materials.
The ball shall be made of ASTM B-16 chrome plated
brass.
All valves shall be rated up to 5 p.s.i. No higher
pressure ratings shall be displayed on the body of the
valve.
The valves shall be manufactured by CONBRACO
INDUSTRIES, INC., Matthews, North Carolina.
Manually Operated
Gas Ball Va l v e
Sizes 3/8”–1”
FEATURES
• 3/8” through 1” sizes
• 100% AMERICAN made
• Higher BTU capacities
• Fully complies with AGA 3-88, ANSI Z21.15.CGA9.1
and CR91-002 requirements.
• Specially designed for indoor installations up to 5 psi
• Available in three handle configurations
APPROVALS
• ANSI Z21.15.CGA9.1 This standard applies to devices
which are intended for use on gas-fired appliances
with natural, manufactured and mixed gas, liquified
petroleum (LP) gases and LP gas-air mixtures at
pressures not in excess of 1/2 psig.
• AGA 3-88 This standard applies to gas piping
between the meter outlet and the inlet connection to
the valve of a gas appliance. It is capable of operation
at ambient temperatures between 32F and 125F and at
pressures up to 5 psig. This standard does not apply to
outdoor use.
•CR91-002 These standards apply to the same
conditions as above, but for Canadian installations.
PART NUMBER SPECIFICATION
Standard “Wing” Handle Optional “Lever” Handle Optional “Tee” Handle
3/8” GB-10 (51GB201) 3/8” GB-10-L (51GB2L1) 3/8” GB-10-T (51GB2T1)
1/2” GB-10 (51GB301) 1/2” GB-10-L (51GB3L1) 1/2” GB-10-T (51GB3T1)
3/4” GB-10 (51GB401) 3/4” GB-10-L (51GB4L1) 3/4” GB-10-T (51GB4T1)
1” GB-10 (51GB501) 1” GB-10-L (51GB5L1) 1” GB-10-T (51GB5T1)
MATERIAL SPECIFICATION / DIMENSIONS
Body Bronze ASTM B584 UNS Alloy C84400
Retainer Screw Brass ASTM B-16
Gland Screw Brass ASTM B-16
Seats Virgin PTFE (Teflon)
Stem Packing Reinforced PTFE (15% Glass Teflon)
Stem Bearing Virgin PTFE (Teflon)
Stem Brass ASTM B-16
Ball Brass ASTM B-16, Chrome Plated
Hex Nut Steel ASTM A563 Grade A, Zinc Plated
BRONZE FULL PORT MAIN BURNER GAS BALL VALVE
NUMBER SIZE A B C D E F G H I Wt.
51-GB2-01 3/8" .38 1.02 2.04 1.63 .87 2.16 1.70 3.85 2.23 .56
51-GB3-01 1/2" .50 1.14 2.32 1.63 .87 2.22 1.72 3.85 2.31 .63
51-GB4-01 3/4" .68 1.47 2.97 2.22 1.37 3.00 2.02 4.75 2.80 1.39
51-GB5-01 1" .87 1.66 3.33 2.27 1.37 3.18 2.15 4.75 3.05 1.72
CAPACITIES
PLUMBING & HEATING PRODUCTS DIVISION
Conbraco Industries, Inc. P.O. Box 247 Matthews, N.C. 28106 (704) 841-6000 FAX (704) 841-6020-USA-
PRINTED IN USA COPYRIGHT © 1995 CONBRACO INDUSTRIES, INC.
PP 5M 2/00
www.conbraco.com
