Apollo Conbraco 7K-100 User Manual

Download

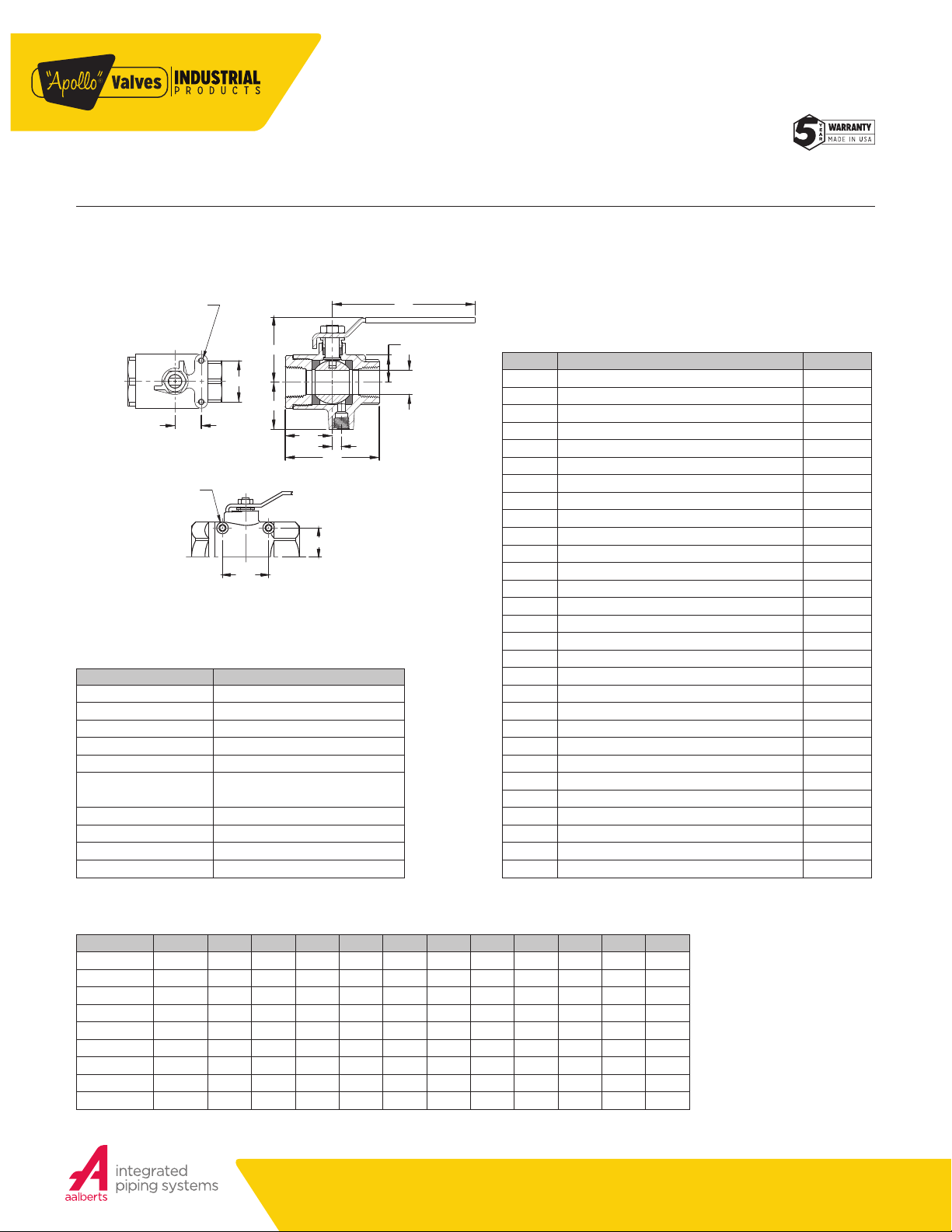

7K-100 SERIES
BRONZE FULL PORT BALL VALVE W/ SAFETY VENT
Female NPT Thread with Female NPT threaded drain port. Recommended for water or air services. Rated +50°F to 200°F, 0-125 psig.
FEATU R ES
• Adjustable packing
• Blowout-proof stem design
• Mounting pad for easy actuator mounting
• RPTFE seats and stung box ring
OPTIONS AVAILABLE
TAPPING: 3/4" (10-24 NC) 1" - 1.25" (1/4-20 NC)
3/4" - 1.25" SIZE
TAPPING:
1.50" - 2" (5/16" - 24 UNF)
2.50" (1/4" - 20 NC)
D
G
J
F
G
B H
C
1.5" - 2.5" SIZE
K
E
K
ØA
STANDARD MATERIAL LIST
PART MATERIAL LEVER AND GRIP
STEM PACKING
STEM BEARING
BALL
SEAT (2)
RE TA INER
GLAN D NUT
STEM
LEVER NUT
BODY
Steel, zinc plated w/vinyl
RPTFE
RPTFE
B16 Brass, chrome plated
RPTFE
B16 Brass (1/4” to 1”) B584-C84400 (1-1/4” to 2-1/2”)
B16 Brass
B16 Brass
Steel, zinc plated
B584-C84400
DIMENSIONS
PART NO. SIZE A B C D E F G H J K WT.
7K-101-01 1/4 ” 0.43 1.12 2.25 1.81 3.87 - - 0.093 1.18 - 0.70
7K-102- 01 3/8” 0.50 1.12 2.25 1.81 3.87 - - 0.093 1.18 - 0.66
7K-103-01 1/2” 0.50 1.12 2.25 1.81 3.87 - - 0.125 1.25 - 0.73
7K-104-01 3/4 ” 0.81 1.56 3.12 2.12 4.87 0.87 1.37 0.296 1.56 0.901 1.93
7K-105 -0 1 1” 1.00 1.81 3.62 2.62 5.50 0.93 1.50 0.310 1.78 1.121 3 .42
7K-106 -01 1-1 /4” 1.25 2.12 4.25 2.87 5.50 0.93 1.50 0.370 2.03 1.371 5.15
7K-107-01 1-1/2” 1.50 2.37 4.75 3.34 8.00 - 2.08 0.500 2.21 1.282 6.81
7K-108 -01 2” 2.00 2.65 5.37 3.71 8.00 - 2.41 0.625 2.68 1.562 11.85
7K-109 -01 2-1/2 ” 2.50 3.25 6.50 4.12 8.00 - 2.75 1.090 3.00 2.002 17. 35
1 To Top of Mounting Pad 2 To Centerline of Mounting Pad
(MORE INFORMATION IN SECTION J)
• Minimum quantities apply
• To specify an option, replace the “0 1” sta ndard sux with th e sux of the option.
• To specify multiple options, replace the “ 01” sux with the d esire d suxes i n the numer ical order shown below. NOT E: Not all suxes c an be combined to gether.
(SUFFIX) OPTION SIZES
-01 Standard Configuration All
-02- Stem Grounded 1/4” to 2-1/2”
-04- 2-1/4” Stem Extension (Carbon Steel, Zinc Plated) 1/4” to 2-1/2”
-07- Steel Tee Handle 1/4” to 1-1/4”
-08- 90° Reversed Stem 1/4” to 2-1/2”
-10- SS Lever & Nut 1/4” to 2-1/2”
-15- Wheel Handle, Steel 1/4” to 1-1/4”
-16- Chain Lever, Vertical 3/4” to 2-1/2”
-17- Rough Chrome Plated 1/4” to 2-1/2”
-18- Plain Yellow Grip 1/4” to 2-1/2”
-24- Graphite Packing 1/4” to 2-1/2”
-27- SS Latch-Lock Lever & Nut 1/4” to 2-1/2”
-30- Cam-Lock & Grounded 1/4” to 1-1/4”
-32- SS Tee Handle & Nut 1/4” to 1-1/4”
-35- PTFE Trim 3/4” to 2”
-40- Cyl-Loc & Grounded 1/4” to 1-1/4”
-45- Less Lever and Nut 1/4” to 2-1/2”
-46- Latch Lock Lever - Closed Position 1/4” to 2-1/2”
-47- SS Oval latch-Lock Handle & Nut 1/4” to 3/4”
-48- SS Oval Handle (No Latch) & Nut 1/4” to 2”
-49- No Lubrication. Assembled Dry. 1/4” to 2-1/2”
-50- 2-1/4” CS Locking Stem Extension 1/4” to 2-1/2”
-56- MPTFE Seats and Packing 1/4” to 2-1/2”
-57- Oxygen Cleaned 1/4” to 2-1/2”
-58- Chain Lever - Horizontal 3/4” to 2-1/2”
-60- Grounded Ball & Stem 1/4” to 2-1/2”
-63- NPT x Solder/Socketweld 1/4” to 2-1/2”
-92- Balancing Stop 1/4” to 2-1/2”
-94- 2-1/4” CS Stem Extension & Balancing Stop 1/4” to 2-1/2”
NOTE: Also consider the 7K with “SV” sux. The 7K with “SV” sux has spring washers that keep the upstream seat in contact with the ball.
REV. 04APR16
Customer Service (704) 841-6000 industrial.apollovalves.com H-5
FLOW DATA
FLOW DATA
The listed Cv “factors” are derived from actual flow testing, at Apollo’s Pageland, South Carolina factory. These tests were completed using standard “o the shelf” valves with no special preparation and utilizing standard schedule 40 pipe. It should be understood that these factors are for the valve only and also include the connection configuration. The flow testing is done utilizing water as a fluid media and is a direct statement of the gallons of water flowed per minute with a 1 psig pressure dierential across the valve/connection unit. Line pressure is not a factor. Because the C formula can be used to estimate flow of most media for valve sizing.
is a factor, the
v
FLOW OF LIQUID
Q = C
or ∆P =
V
(Q)2 (SpGr)
WHERE:
• Q = Flow in US gpm
• ∆P = Pressure drop (psig)
• SpGr = Specific gravity at flowing temperature
• C
= Valve constant
v
√
(C
∆P
SpGr
2
)
v
FLOW OF GAS
Q = 1360 C
or ∆P =
V
5.4 x 10
(∆P) (P
(SpGr) (T)
√
-7
(SpGr) (T) (Q)
2)
(Cv)2 (P2)
WHERE:
• Q = Flow in SCFH
• ∆P = Pressure drop (psig)
• SpGr = Specific gravity (based on air = 1.0)
• P2 = Outlet pressure–psia (psig + 14.7)
• T = (temp. °F + 460)
• C
= Valve constant
v
CAUTION: The gas equation shown, is valid at very low pressure drop ratios.
The gas equation is NOT valid when the ratio of pressure drop (∆P) to inlet
NOTE: Only use the gas equation shown if (P1 -P2)/P1 is less than 0.02.
pressure (P1) exceeds 0.02.
CV FACTORS FOR APOLLO VALVES (CONTINUED ON M-4)
VALVE
70B-140 Series 8.4 7. 2 15 30 43 48 84 108 190 370 670 -- -- -- --
70-100/200 Series 8.4 7.2 15 30 43 48 84 108 190 370 670 -- -- -- ---
70-30 0/400 Series -- -- 15 30 43 48 84 108 -- -- -- -- -- -- --
70-600 Series 2.3 4.5 5.4 12 14 21 34 47 -- -- -- -- -- -- --
70-800 Series 8.4 7. 2 15 30 43 48 84 -- -- -- -- -- -- -- --
71-AR Series -- -- -- 30 43 48 84 108 190 370 -- -- -- -- --
71-100/200 Series -- -- -- 30 43 48 84 108 190 370 -- -- -- -- --
72-100/900 Series -- -- 26 48 65 125 170 216 -- -- -- -- -- -- --
72-1xx-A/72-9xx-A Series -- -- 26 48 65 125 170 245 -- -- -- -- -- -- --
73A-100 Series 8.4 7. 2 15 30 43 48 84 108 -- -- -- -- -- -- --
73-30 0/400 Series -- -- 26 48 65 125 170 216 -- -- -- -- -- -- --
74-100 Series 8.4 7. 2 15 30 43 48 84 108 190 370 670 -- -- -- --
75-10 0 Series 8.4 7. 2 15 30 43 48 84 108 190 370 670 -- -- -- --
76-AR Series 8.4 7. 2 15 30 43 48 84 108 190 370 670 -- -- -- --
76F-100 Series 8.1 15 15 51 68 125 177 389 -- -- -- -- -- -- --
76FJ-100 Series 8.1 15 15 51 68 125 177 389 -- -- -- -- -- -- --
76FK-100 Series 8.1 15 15 51 68 125 177 389 -- -- -- -- -- -- --
76-100 Series 8.4 7. 2 15 30 43 48 84 108 190 370 -- -- -- -- --
76-300/400 Series -- -- 26 48 65 125 170 216 -- -- -- -- -- -- --
76-600 Series 2.3 4.5 5.4 12 14 21 34 47 -- -- -- -- -- -- --
76J-100 Series 8.4 7. 2 15 30 43 48 84 108 190 370 -- -- -- -- --
76J-AR Series 8.4 7. 2 15 30 43 48 84 108 190 370 670 -- -- -- --
76K-100 Series 8.4 7. 2 15 30 43 48 84 108 190 370 -- -- -- -- --
76K-AR Series 8.4 7. 2 15 30 43 48 84 108 190 370 670 -- --
7K-100 Series -- -- 15 51 68 125 177 389 503 -- -- -- -- -- --
77-AR Series 8.1 15 15 51 68 -- 177 389 -- -- -- -- -- -- --
1/4 3/8 1/2 3/4 1 1.25 1.5 2 2.5 3 4 6 8 10 12
SIZE (IN.)
-- --
REV. 21APR17
2
Customer Service (704) 841-6000 industrial.apollovalves.com M-3
FLOW DATA
FOR APOLLO BALL VALVES
CV FACTORS FOR APOLLO VALVES (CONTINUED FROM M-3)
VALVE
77C-10 0/20 0 Series 4.5 7.2 16 36 68 125 177 389 503 -- -- -- -- -- --
77D-140 Series 4.5 7.2 16 36 68 125 177 389 -- -- -- -- -- -- --
77D- 640 Series -- -- -- 11 24 35 -- -- -- -- -- -- -- -- --
77G-UL Series 4.5 7. 2 16 36 68 125 177 389 503 -- -- -- -- -- --
77W Series -- -- 16 36 68 125 177 389 -- -- -- -- -- -- --
77-100/200 Series 8.1 15 15 51 68 125 177 389 503 -- -- -- -- -- --
79 Series 8.5 8.5 9.8 32 44 66 148 218 440 390 -- -- -- -- --
80 Series 8.4 7. 2 15 30 43 48 84 108 190 370 -- -- -- -- --
82-100/200 Series 8 .1 14 26 51 68 120 170 376 510 996 1893 -- -- -- --
83A/83B Series 8.1 14 26 51 68 120 170 376 -- -- -- -- -- -- --
83R-100/200 Series -- -- -- -- -- -- 170 376 -- 996 1893 -- -- -- --
86A/86B Series 8.1 14 26 51 68 120 170 376 -- -- -- -- -- -- --
86R-100/200 Series -- -- -- -- -- -- 170 376 -- 996 1893 -- -- -- --
87A-100 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890 --
87A-200 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
87A-700 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890 --
87A-900 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
87A-F00 Series -- -- -- -- 75 -- 195 410 545 1021 2016 4837 -- -- --
87B-10 0 Series -- -- -- -- -- -- -- -- -- 375 673 1099 1902 3890 --
87J-100 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890 --
87J-200 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
87J-700 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890 --
87J-900 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
87K-100 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890
87K-200 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
87K-700 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890 --
87K-900 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
88A-100 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890 --
88A-200 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
88A-700 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890 --
88A-900 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
88A-F00 Series -- -- -- -- 75 -- 195 410 545 1021 2016 4837 -- -- --
88B-100 Series -- -- -- -- -- -- -- -- -- 375 673 1099 1902 3890 --
89-100 Series 8.4 7. 2 15 30 43 48 84 108 190 370 -- -- -- -- --
9A-100 Series 8.3 6.7 5.7 10 16 25 40 62 -- -- -- -- -- -- --
90-100 Series 8.3 6.7 5.7 10 16 25 40 62 -- -- -- -- -- -- --
92-100 Series 8.3 6.7 5.7 10 16 25 40 62 -- -- -- -- -- -- --
93-100 Series 8.3 6.7 5.7 10 16 25 40 62 -- -- -- -- -- -- --
94A-100/200 Series 6 7 19 34 50 104 268 309 629 1018 1622 -- -- -- --
96-100 Series 8.3 6.7 5.7 10 16 25 40 62 -- -- -- -- -- -- --
399-100 Series 8.4 7.2 15 30 43 48 84 108 190 370 -- -- -- -- --
489-100 Series 8.4 7.2 15 30 43 48 84 108 190 370 -- -- -- -- --
1/4 3/8 1/2 3/4 1 1.25 1.5 2 2.5 3 4 6 8 10 12
SIZE (IN.)
--
Customer Service (704) 841-6000 industrial.apollovalves.comM-4
