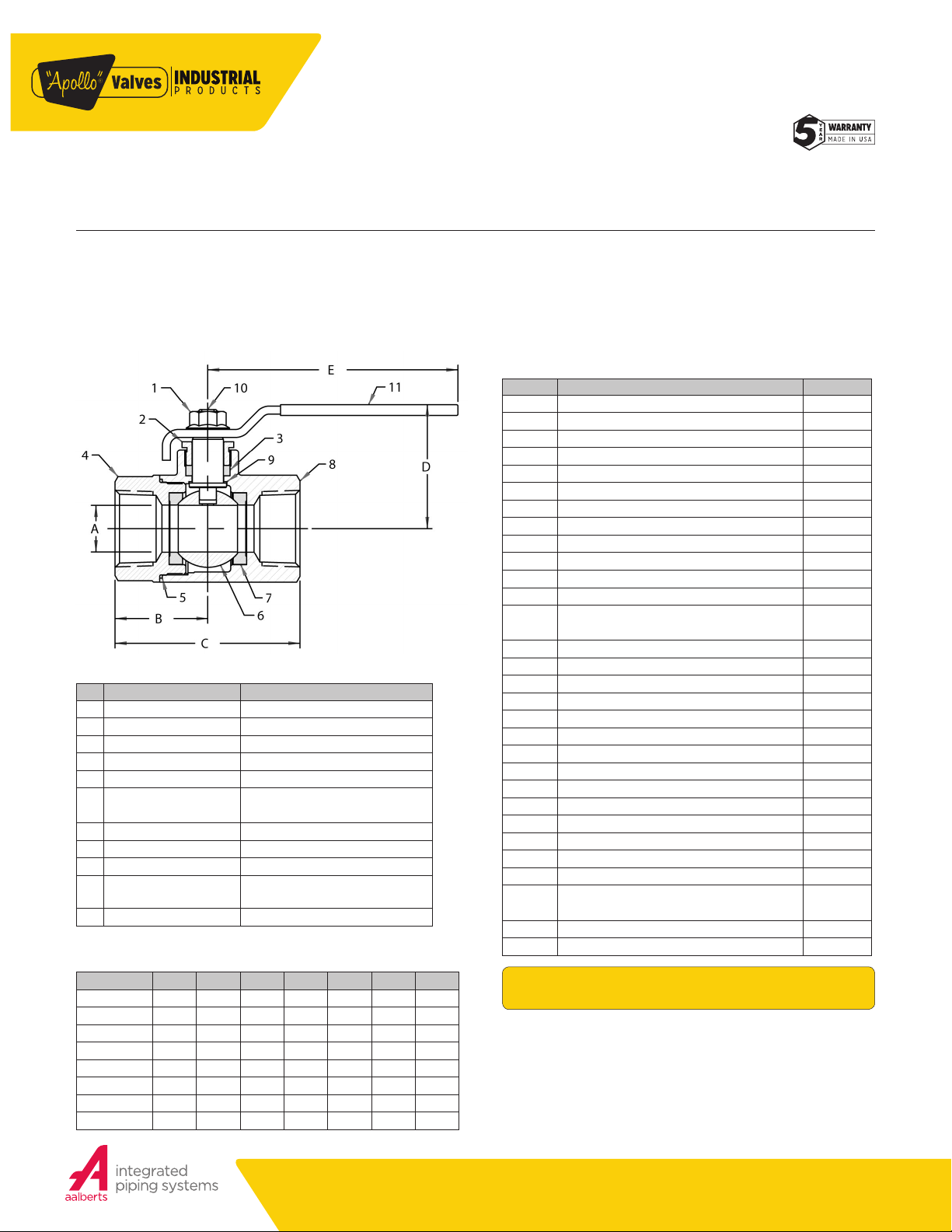

73A-100 SERIES
CARBON STEEL BALL VALVE
Female NPT Thread, 1/4” to 1” 2000 CWP (psig), 1-1/4” to 2” 1500 CWP(psig), Cold Non-Shock. 150 psig Saturated Steam. (See referenced P/T chart) Vacuum Service to 29 inches Hg. MSS SP-110 Compliant. AAR Approved #E999032
FEATU R ES
• Forged construction
• Blowout-proof stem design
• Adjustable packing gland
• Zinc phosphate corrosion protection
• Fire safe to API 607 (requires -24 sux)
STANDARD MATERIAL LIST
PART MATERIAL
Lever nut Steel, zinc plated
1
Gland nut A10 8- CS
2
Stem packing MPTFE
3
Retainer A216-WCB
4
Body seal RPTFE (1/2” to 2”)
5
Ball
6
Seat (2) RPTFE
7
Body A105
8
Stem bearing RPTFE
9
Stem
10
Lev er/grip Steel, zinc plated, with vinyl
11
ASTM A108, Carbon Steel, Chrome Plated or ASTM A 276, Type 316 Stainless Steel
ASTM A108, Carbon Steel or ASTM A276, Type 316 Stainless Steel
DIMENSIONS
PART NO. SIZE A B C D E WT.
73A10101A 1/4" 0.38 1.03 2.05 1.72 3.85 0.58
73A10201A 3/8" 0.38 1.03 2.05 1.72 3.85 0.54
73A10301A 1/2" 0.50 1.12 2.23 1.78 3.88 0.63
73A10401A 3/4 " 0.68 1 .47 2.97 2.05 4.75 1. 27
73A10501A 1" 0.87 1.65 3.32 2.18 4.75 2.20
73A10 601 1-1 /4” 1.00 1.98 3.97 2.72 5.50 3.74
73A10701 1-1/2” 1.25 2.17 4.35 3.20 7.7 6 5.30
73A10801 2" 1.50 2.73 5.44 3.27 7.75 8.03
VAR I ATIONS AVAI L AB LE
• 73A-140 Series (316 SS Ball & Stem. NACE MR0175 (2000) & MR0103 (2003) compliant)
OPTIONS AVAILABLE
(MORE INFORMATION IN SECTION J)
• Minimum quantities apply
• To specify an option, replace the “0 1” sta ndard sux with th e sux of the option.
• To specify multiple options, replace the “ 01” sux with the d esire d suxes i n the numer ical order shown below. NOT E: Not all suxes c an be combined to gether.
(SUFFIX) OPTION SIZES
-01 Standard Configuration All
-P -01 BSPP (Parallel) Thread Connection All
-T -01 BSPT (Tapered) Thread Connection All
-02- Stem Grounded All
-04- 2-1/4” Stem Extension (Carbon Steel, Zinc Plated) All
-07- Steel Tee Handle 1/4” to 1-1/2”
-08- 90º Reversed Stem All
-10- SS Lever & Nut All
-14- Vented Ball All
-15- Wheel Handle, Steel 1/4” to 1-1/2”
-16- Chain Lever - Vertical 3/4” to 2”
-21- UHMWPE Trim (non TFE) All
-24-
-27- SS Latch- Lock Lever & Nut All
-30- Cam-Lock & Grounded All
-32- SS Tee Handle & Nut All
-35- PTFE Trim All
-39- SS Hi-Rise Locking Round Handle, SS Nut All
-40- Cyl-Loc & Grounded All
-45- Less Lever & Nut All
-47- SS Oval Latch-Lock Handle & Nut All
-48- SS Oval Handle (No Latch) & Nut All
-50- 2-1/4” CS Locking Stem Extension All
-52- Two Tack Welds All
-56- Multi-Fill Seats All
-58- Chain Lever - Horizontal 3/4” to 2”
-60- Static Grounded Ball & Stem All
-64-
-67- Cleaned for Industrial Gas - CS Valves All
-UA- AIS (American Iron & Steel) Compliant All
Graphite Packing, PTFE Body Seal,
RPTFE Bearing (API 607, 6th Edition, ISO 10497:2010)
250# Steam Trim (MPTFE Seats & Packing)
Use with 316 SS Ball & Stem Variation
All
All
Pressure/Temperature Ratings -
Page M-14, Graph No. 13 (1/4” to 1”)
Page M-13, Graph No. 11 (1-1/4” to 2”)
REV. 18JUL19
Customer Service (704) 841-6000 industrial.apollovalves.com A-13
FLOW DATA
FLOW DATA
The listed Cv “factors” are derived from actual flow testing, at Apollo’s Pageland, South Carolina factory. These tests were completed using standard “o the shelf” valves with no special preparation and utilizing standard schedule 40 pipe. It should be understood that these factors are for the valve only and also include the connection configuration. The flow testing is done utilizing water as a fluid media and is a direct statement of the gallons of water flowed per minute with a 1 psig pressure dierential across the valve/connection unit. Line pressure is not a factor. Because the C formula can be used to estimate flow of most media for valve sizing.
is a factor, the
v
FLOW OF LIQUID
Q = C
or ∆P =
V
(Q)2 (SpGr)
WHERE:
• Q = Flow in US gpm
• ∆P = Pressure drop (psig)
• SpGr = Specific gravity at flowing temperature = Valve constant
• C
v
√
(C
∆P
SpGr
2
)
v
FLOW OF GAS
Q = 1360 C
or ∆P =
V
5.4 x 10
(∆P) (P
(SpGr) (T)
√
-7
(SpGr) (T) (Q)
2)
(Cv)2 (P2)
WHERE:
• Q = Flow in SCFH
• ∆P = Pressure drop (psig)
• SpGr = Specific gravity (based on air = 1.0)
• P2 = Outlet pressure–psia (psig + 14.7)
• T = (temp. °F + 460) = Valve constant
• C
v
CAUTION: The gas equation shown, is valid at very low pressure drop ratios.
The gas equation is NOT valid when the ratio of pressure drop (∆P) to inlet
NOTE: Only use the gas equation shown if (P1-P2)/P1 is less than 0.02.
pressure (P1) exceeds 0.02.
CV FACTORS FOR APOLLO VALVES (CONTINUED ON M-4)
VALVE
70B-140 Series 8.4 7.2 15 30 43 48 84 108 190 370 670 -- -- -- --
70-100/200 Series 8.4 7. 2 15 30 43 48 84 108 190 370 670 -- -- -- ---
70-30 0/400 Series -- -- 15 30 43 48 84 108 -- -- -- -- -- -- --
70-600 Series 2.3 4.5 5.4 12 14 21 34 47 -- -- -- -- -- -- --
70-800 Series 8.4 7.2 15 30 43 48 84 -- -- -- -- -- -- -- --
71-AR Series -- -- -- 30 43 48 84 108 190 370 -- -- -- -- --
71-100/200 Series -- -- -- 30 43 48 84 108 190 370 -- -- -- -- --
72-100/900 Series -- -- 26 48 65 125 170 216 -- -- -- -- -- -- --
72-1xx-A/72-9xx-A Series -- -- 26 48 65 125 170 245 -- -- -- -- -- -- --
73A-100 Series 8.4 7.2 15 30 43 48 84 108 -- -- -- -- -- -- --
73-300/400 Series -- -- 26 48 65 125 170 216 -- -- -- -- -- -- --
74-100 Series 8.4 7.2 15 30 43 48 84 108 190 370 670 -- -- -- --
75-10 0 Series 8.4 7.2 15 30 43 48 84 108 190 370 670 -- -- -- --
76-AR Series 8.4 7.2 15 30 43 48 84 108 190 370 670 -- -- -- --
76F-100 Series 8.1 15 15 51 68 125 177 389 -- -- -- -- -- -- --
76FJ-100 Series 8.1 15 15 51 68 125 177 389 -- -- -- -- -- -- --
76FK-100 Series 8 .1 15 15 51 68 125 177 389 -- -- -- -- -- -- --
76-100 Series 8.4 7. 2 15 30 43 48 84 108 190 370 -- -- -- -- --
76-300/400 Series -- -- 26 48 65 125 170 216 -- -- -- -- -- -- --
76-600 Series 2.3 4.5 5.4 12 14 21 34 47 -- -- -- -- -- -- --
76J-100 Series 8.4 7.2 15 30 43 48 84 108 190 370 -- -- -- -- --
76J-AR Series 8.4 7.2 15 30 43 48 84 108 190 370 670 -- -- -- --
76K-100 Series 8.4 7.2 15 30 43 48 84 108 190 370 -- -- -- -- --
76K-AR Series 8.4 7. 2 15 30 43 48 84 108 190 370 670 -- --
7K-100 Series -- -- 15 51 68 125 177 389 503 -- -- -- -- -- --
77-AR Series 8.1 15 15 51 68 -- 177 389 -- -- -- -- -- -- --
1/4 3/8 1/2 3/4 1 1.25 1.5 2 2.5 3 4 6 8 10 12
SIZE (IN.)
-- --
2
REV. 21APR17
Customer Service (704) 841-6000 industrial.apollovalves.com M-3
FLOW DATA
FOR APOLLO BALL VALVES
CV FACTORS FOR APOLLO VALVES (CONTINUED FROM M-3)
VALVE
77C-10 0/20 0 Series 4.5 7.2 16 36 68 125 177 389 503 -- -- -- -- -- --
77D-140 Series 4.5 7.2 16 36 68 125 177 389 -- -- -- -- -- -- --
77D-640 Series -- -- -- 11 24 35 -- -- -- -- -- -- -- -- --
77G-UL Series 4.5 7.2 16 36 68 125 177 389 503 -- -- -- -- -- --
77W Series -- -- 16 36 68 125 177 389 -- -- -- -- -- -- --
77-100/200 Series 8.1 15 15 51 68 125 177 389 503 -- -- -- -- -- --
79 Series 8.5 8.5 9.8 32 44 66 148 218 440 390 -- -- -- -- --
80 Series 8.4 7.2 15 30 43 48 84 108 190 370 -- -- -- -- --
82-100/200 Series 8.1 14 26 51 68 120 170 376 510 996 1893 -- -- -- --
83A/83B Series 8.1 14 26 51 68 120 170 376 -- -- -- -- -- -- --
83R-100/200 Series -- -- -- -- -- -- 170 376 -- 996 1893 -- -- -- --
86A/86B Series 8.1 14 26 51 68 120 170 376 -- -- -- -- -- -- --
86R-100/200 Series -- -- -- -- -- -- 170 376 -- 996 1893 -- -- -- --
87A-100 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890 --
87A-200 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
87A-700 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890 --
87A-900 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
87A-F00 Series -- -- -- -- 75 -- 195 410 545 1021 2016 4837 -- -- --
87B-100 Series -- -- -- -- -- -- -- -- -- 375 673 1099 1902 3890 --
87J-100 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890 --
87J-200 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
87J-700 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890 --
87J-900 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
87K-100 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890
87K-200 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
87K-700 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890 --
87K-900 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
88A-100 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890 --
88A-200 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
88A-700 Series -- -- -- -- -- -- 86 104 234 375 673 1099 1902 3890 --
88A-900 Series -- -- 15 19 75 -- 195 410 545 1021 2016 4837 9250 15170 22390
88A-F00 Series -- -- -- -- 75 -- 195 410 545 1021 2016 4837 -- -- --
88B-100 Series -- -- -- -- -- -- -- -- -- 375 673 1099 1902 3890 --
89-100 Series 8.4 7. 2 15 30 43 48 84 108 190 370 -- -- -- -- --
9A-100 Series 8.3 6.7 5.7 10 16 25 40 62 -- -- -- -- -- -- --
90-100 Series 8.3 6.7 5.7 10 16 25 40 62 -- -- -- -- -- -- --
92-100 Series 8.3 6.7 5.7 10 16 25 40 62 -- -- -- -- -- -- --
93-100 Series 8.3 6.7 5.7 10 16 25 40 62 -- -- -- -- -- -- --
94A-100/200 Series 6 7 19 34 50 104 268 309 629 1018 1622 -- -- -- --
96-100 Series 8.3 6.7 5.7 10 16 25 40 62 -- -- -- -- -- -- --
399-100 Series 8.4 7.2 15 30 43 48 84 108 190 370 -- -- -- -- --
489-100 Series 8.4 7.2 15 30 43 48 84 108 190 370 -- -- -- -- --
1/4 3/8 1/2 3/4 1 1.25 1.5 2 2.5 3 4 6 8 10 12
SIZE (IN.)
--
Customer Service (704) 841-6000 industrial.apollovalves.comM-4
PRESSURE/TEMPERATURE RATINGS
ENGINEERING DATA
1500 CWP (CS) ASTM A216-WCB OR ASTM A105 GRAPH 11
1500 CWP (SS) ASTM A351-CF8M GRAPH 12
Customer Service (704) 841-6000 industrial.apollovalves.com M-13
PRESSURE/TEMPERATURE RATINGS
ENGINEERING DATA
2000 CWP (CS) ASTM A216-WCB OR ASTM A105 GRAPH 13
2000 CWP (SS) ASTM A351-CF8M GRAPH 14
Customer Service (704) 841-6000 industrial.apollovalves.comM-14
