6PLF Series
Cast Iron Class 125 Flanged Ball Valve
SUBMITTAL SHEET
DESCRIPTION
The Apollo International™ 6PLF Series Class 125 Cast Iron Ball Valve oers premium features including FDA epoxy coating, stainless steel ball and stem
construction, NSF 61 approval and ANSI 3rd party certification to NSF 372 Lead Free. A compact and cost eective alternative to conventional cast iron
gate valves, the 6PLF ball valve is ideal for both potable water and general HVAC applications.
LEAD FREE
Job Name:
Job Location:
Engineer:
Contractor:
Tag :
PO#:
Rep:
Wholesale Dist.:
FEATU R ES
• A126 Class B Cast lron Body with FDA FoodGrade Epoxy Powder Coat
• Stainless Steel Ball & Stem
• PTFE Seats
• ISO 5211 Mounting Pad for Easy Actuation
• Removable Handles to Fit Into Areas of Limited Space
• Full Port Through 6”
• Lockable in Open or Closed Position
• Lever Handles are Standard 2” – 6”
• Gear Operators are Standard 8” & 10”
PERFORMANCE RATING
• Maximum Pressure: 200 CWP / 125 SWP
• Maximum Temperature: 353° F
• Vacuum Service to 29” Hg
PART NUMBER MATRIX
LF MODEL
NUMBER
6PLF-208-01 2 420 in-lb 500 11.10 24 .47
6PLF-209-01 2-1/2 576 in-lb 750 17. 50 38.58
6PLF-200-01 3 744 in-lb 1245 22.00 48.50
6PLF-20A-01 4 1560 in-lb 2500 33.90 74.74
6PLF-20C-01 6 3120 in-lb 5470 58.25 128.42
6PLF-20E-01* 8 4320 in-lb 4150 91.65 202.05
6PLF-20G-01* 10 6420 in-lb 6700 128.50 283.29
*Supplied with gear operator.
SIZE
(IN.)
MI N . O P.
TORQUE
REPLACEMENT HANDLE KIT
LF MODEL
NUMBER
78257201 2
78257301 2-1/2
78257301 3
78257401 4
78257501 6
Kit Includes: Adapter, Pipe/Grip, Washer and Screw
*LEAD FREE: The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average. Complies with Federal Public Law 111-380. ANSI 3rd party approved and listed.
SIZE
(IN.)
APPROVALS
• Face-to-Face and Flange Dimensions
Conform to ANSI Standard B16.10
• Conforms to MSS SP-72
• ANSI B16.1
• AWWA C507-99: “Proof-of-Design Test”
• NSF/ANSI 372 Lead Free
• NSF/ANSI 61 Water Quality
• FED.SPEC.WW-V-35
• Conforms to API 598 testing
OPTIONS
• Actuator Mounting Kits 2” - 6”
Cv WT. (KG .) WT. (LB. )
SOFT GOODS REPAIR KIT
LF MODEL
NUMBER
6PLF02801 2
6PLF02901 2-1/2
6PLF02001 3
6PLF02A01 4
6PLF02C01 6
6PLF02E01 8
6PLF02G01 10
Kit Includes: 2 Seats, Gasket and Packing
SIZE
(IN.)
STANDARD MATERIALS LIST
Body Cast lron/A126 Clas s B
1
Body Stud A193 B7
2
Body Nut A194 2H
3
Gasket Body PTFE
4
Adapter Cap Cast lron/A126 Clas s B
5
Seat PTFE
6
Ball 304 Stainless Steel
7
Stem 304 Stainless Steel
8
Thrust Bearing PTFE
9
Packing (lower) PTFE
10
Packing (middle) PTFE
11
Packing (top) PTFE
12
Packing Follower Stainless Steel
13
Gland Plate Carbon Steel
14
Stem Indicator Carbon Steel
15
Gland Stud Carbon Steel
16
Indicator Followe r Stainless Steel
17
Handle Bracket Ductile lron
18
Handle Gasket Carbon Steel
19
Handle Stop Screw Carbon Steel
20
Handle Stop Screw Carbon Steel
21
Handle Carbon Steel
22
Handle Grip Vinyl Foam Rubber
23
(704) 841-6000
apollovalves.com
SS1367 © 07/18 Page 1 of 2
This specification is provided for reference only. Apollo reserves the right to change any portion of this specification
without notice and without incurring obligation to make such changes to Apollo products previously or subsequently
sold. Most current information available at apollovalves.com.
SUBMITTAL SHEET
PCD
6PLF Series
Cast Iron Class 125 Flanged Ball Valve
LEAD FREE
C
S
J

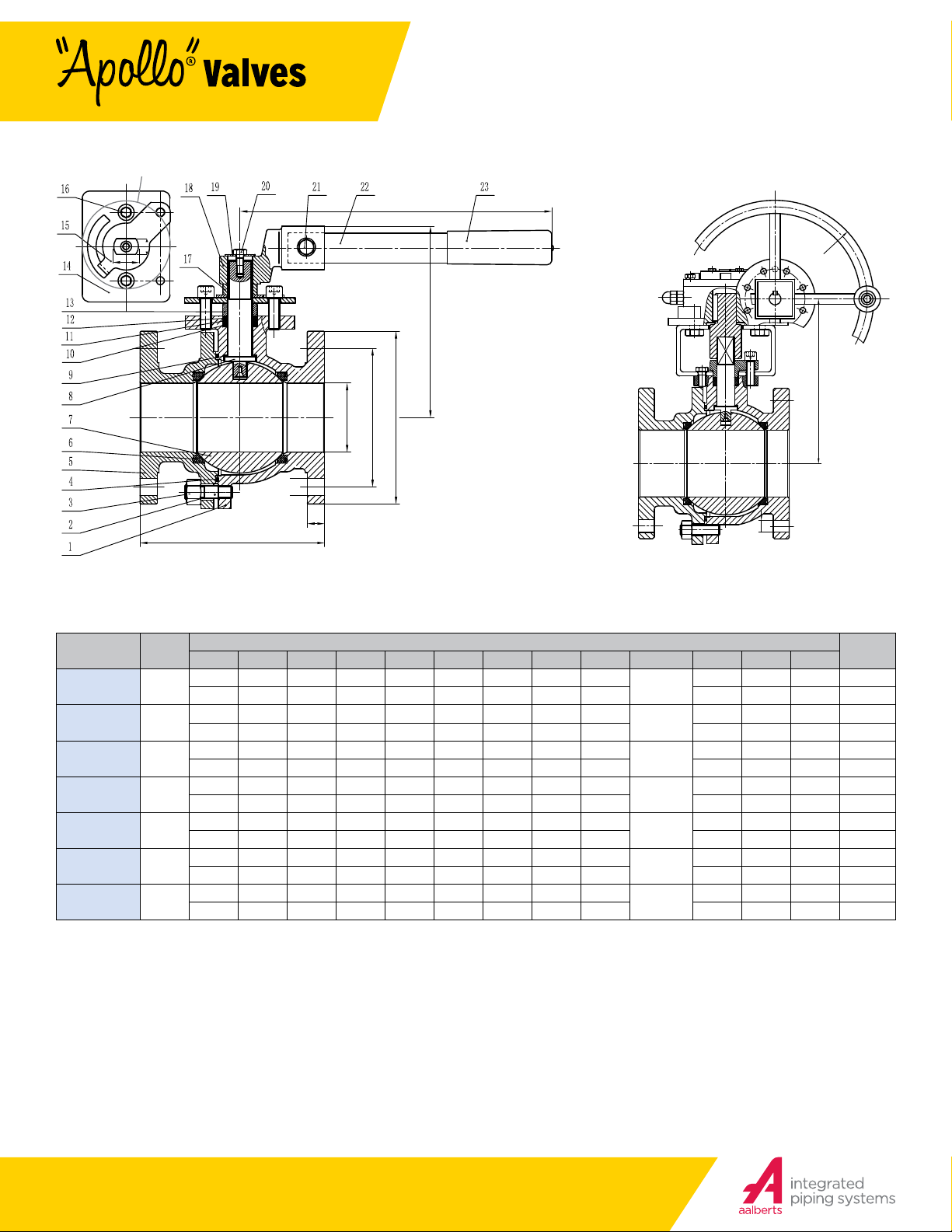

DIMENSIONS
MODEL
NUMBER
6PLF-208-01 2”
6PLF-209-01 2-1/2”
6PLF-200-01 3”
6PLF-20A-01 4”
6PLF-20C-01 6”
6PLF-20E-01* 8”
6PLF-20G-01* 10”
*Supplied with gear operator.
SIZE
(IN.)
G
D
H
E
B
F
t
A
GEAR OPERATOR
DIMENSIONS (IN./MM.)
A B C D E (DIA.) F (BC D) T G H 4-M PCD S J
7.0 0 6.00 12.20 6.50 2.00 4.75 0.625
17 7.8 152.4 310 165.1 50.8 120.65 15.9 – – 70 12 20 4
7.5 0 7.0 0 13 .78 7.42 2.56 5.50 0.688
190.5 177.8 350 188.5 65.0 139.7 17.5 – – 102 17 27 4
8.00 7. 50 13.78 8.17 3.00 6.00 0.75
203.2 190.5 350 2 07.5 76.2 152.4 19.0 – – 102 17 27 4
9.00 9.00 15.75 9.00 4.00 7. 50 0.937
228.6 228.6 400 228 .7 101.6 190.5 23.8 – – 102 17 27 8
10.50 11.00 30.00 11.32 5.94 9.50 1.000
266.7 279.4 762 28 7. 5 151.0 241.3 25.4 – – 125 27 44 8
11.50 13.50 30.00 11.32 5.94 11.75 1.125 1 7.99 12.56
292.1 342.9 762 287.5 151.0 298.5 28.6 457 319 125 27 44 8
13.00 16.00 33.00 13.05 7.9 1 14.25 1.187 17. 99 14.29
330.2 406.4 838 331.5 201.0 362.0 30.2 457 363 125 27 44 12
5/16 -18 unc
7/1 6-14 un c
7/1 6-14 un c
7/1 6-14 un c
1/2-13 unc
1/2-13 unc
1/2-13 unc
2.756 0.47 0.79 4
4.016 0.67 1.06 4
4.016 0.67 1.06 4
4.016 0.67 1.06 8
4.921 1.06 1.73 8
4.921 1.06 1.73 8
4.921 1.06 1.73 12
NUMBER
OF BOLTS
(704) 841-6000
apollovalves.com
SS1367 © 07/18 Page 2 of 2
