FOR OVERHEAD PROJECTOR
MODELS:
V3000 – V3002 – V3400
V3000 SERIES DEALER & AUTHORIZED SERVICE AGENTS PARTS GUIDE January 2005
USED ON ALL MODELS
V3000 Series (ALL MODELS) Platform
Parts Breakdown
Diag # Part# Description of Part
5 E1000142
6 E20109 A4 Fresnel Lens
21 E11000 A4 Stage Glass
22 E10867 Adhesive Stage Glass Retainers
23 E21638
24 & 25 E1000063/64 Slide On / Off –AND - On / Off Button Activator Assy
(DOES NOT INCLUDE FRESNEL LENS OR STAGE GLASS)
Top Cover Platform Assy with Stage Glass
(DOES NOT INCLUDE FRESNEL LENS)
Top Cover Platform Assy
PG
2 OF 9
V3000 SERIES DEALER & AUTHORIZED SERVICE AGENTS PARTS GUIDE January 2005
V3000 & V3002
8
7
Diag # Part# Description of Part
5 E12465 Fan Assy (Motor & Bracket)
6 E20114 Microswitch
7 E21419 PCB assembly (V3000 & V3002)
8 E20040 Fan Motor Bracket
9 E20052 Lampbox Spacer Tall (V3000 & V3002
14 1000040 Power Resistor HS50M 2R 5%
V3000 & V3002 Main Box
Parts Breakdown
PG
3 OF 9
V3000 SERIES DEALER & AUTHORIZED SERVICE AGENTS PARTS GUIDE January 2005
V3400
8
5
V3400 Main Box
Parts Breakdown
Diag # Part# Description of Part
5 E12465 Fan Assy (Motor & Bracket)
6 E20114 Microswitch
8 E20040 Fan Motor Bracket
9 E20052 Lampbox Spacer Short (V3400)
19 E1000052 Transformer 400W - 120V 60Hz
PG
4 OF 9
V3000 SERIES DEALER & AUTHORIZED SERVICE AGENTS PARTS GUIDE January 2005
x
V3000 & V3002
V3000 & V3002
Lamp Box
Assembly
V3000 & V3002
Lamp Box
Parts Breakdown
V3000 & V3002 Lamp Bo
Parts Breakdown
Diag # Part# Description of Part
7 E1000143 Lamp Box Assy (EYB)
1 E20013 EYB Twin LampHolder (SOCKET)
2 E12230 Mirror - Balzer
3 E20021 Reflector Spring
4 E10792 Thermal Cut Out 100c
6 E20114 Microswitch
10 E10092 Tucker POP Rivet TSPD42 Steel
11 E16943 Avdel rivet 1610-01049 (Black)
18 E10088 Borosilicate “Condenser” Lens
PG
Diag # Part# Description of Part
12
13
15
16
17
E10198
Not Sold Separately
E10082
Not Sold Separately
E20025
Not Sold Separately
E20708
Not Sold Separately
E20032
Not Sold Separately
Lampholder Bracket EYB
Heatsink & Spring Riveted
5 OF 9
Tucker POP Rivet Plain
( COMES WITH E1000143 )
Ball Bearing Steel 3/16
( COMES WITH E1000143 )
( COMES WITH E1000143 )
( COMES WITH E1000143 )
Condenser Plate
( COMES WITH E1000143 )
V3000 SERIES DEALER & AUTHORIZED SERVICE AGENTS PARTS GUIDE January 2005
V3400
V3400
Lamp Box
Parts Breakdown
V3400
Lamp Box
Parts Breakdown
V3400
Lamp Box
Assembly
Diag # Part# Description of Part
7 E1000144 Lamp Box Assy (EVD)
1 E20076 EVD Twin Lampholder
2 E12230 Mirror - Balzer
3 E20021 Reflector Spring
4 E10792 Thermal Cut Out 100c
6 E20114 Microswitch
10 E10092 Tucker POP Rivet TSPD42 Steel
11 E16943 Avdel rivet 1610-01049 (Black)
18 E10088 Borosilicate “Condenser” Lens
PG
Diag # Part# Description of Part
12
13
15
16
17
20
E10198
Not Sold Separately
E10082
Not Sold Separately
E20026
Not Sold Separately
E20708
Not Sold Separately
E20032
Not Sold Separately
E20134
Not Sold Separately
Lampholder Bracket EVD
Heatsink & Spring Riveted
6 OF 9
Tucker POP Rivet Plain
( COMES WITH E1000144 )
Ball Bearing Steel 3/16
( COMES WITH E1000144 )
( COMES WITH E1000144 )
( COMES WITH E1000144 )
Condenser Plate
( COMES WITH E1000144 )
400W Rear Heatshield
( COMES WITH E1000144 )
V3000 SERIES DEALER & AUTHORIZED SERVICE AGENTS PARTS GUIDE January 2005
USED ON ALL MODELS
DRIVE/ARM , POST AND
POST KNOB ASSEMBLIES
Diag # Part# Description of Part
2 E21636 Drive/Arm Assembly
3 E20988 Post Assembly
4 E20990 Post Knob Assembly
PG
7 OF 9

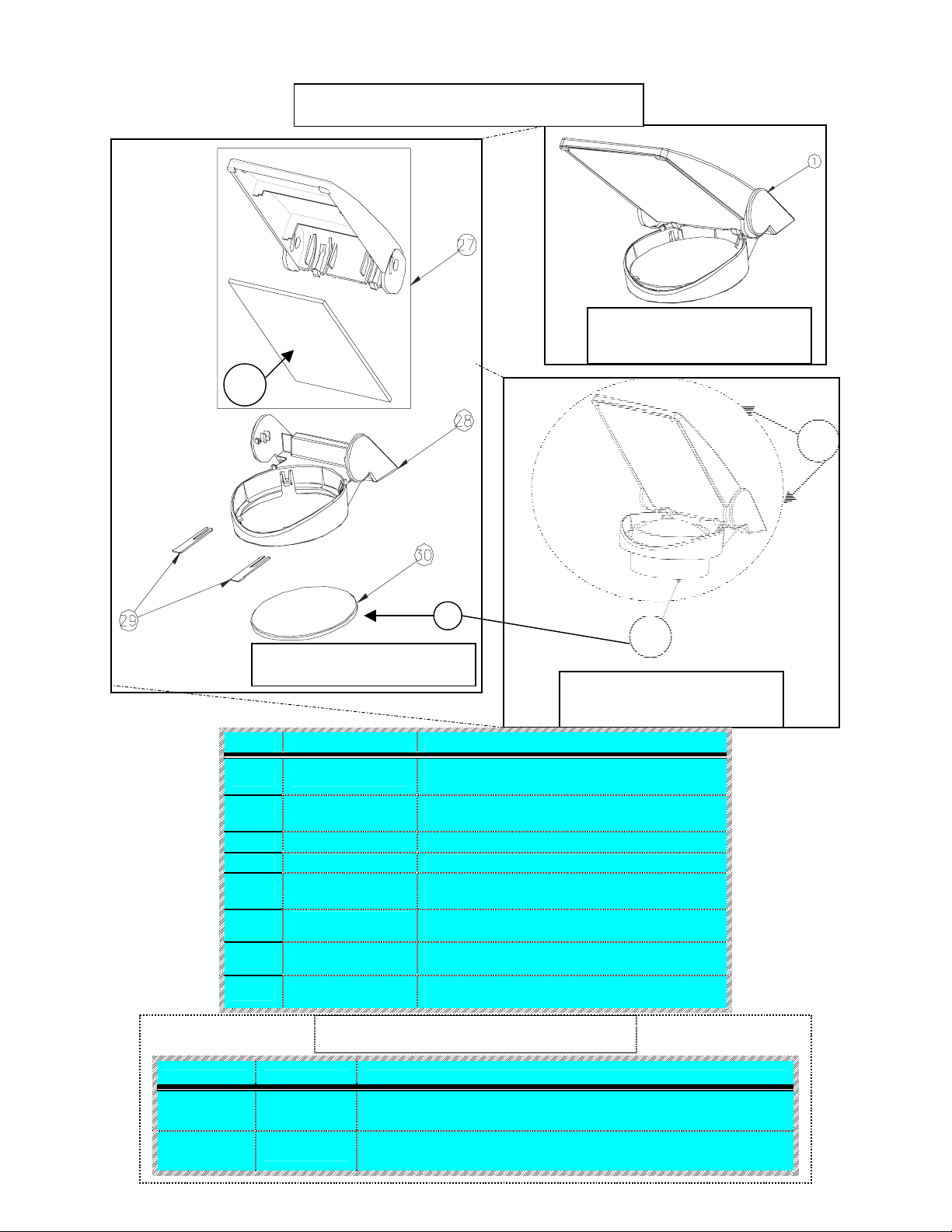

V3000 SERIES DEALER & AUTHORIZED SERVICE AGENTS PARTS GUIDE January 2005
V3000 & V3400
V3000 Open Head
Assembly
26
2
OR
V3000 & V3400 Open Head
Parts Breakdown
Diag # Part# Description of Part
1 E1000140
2 E1000141
27 E20987 Mirror Assembly
26 E20000 Mirror
28 E20944
29
30
3
E20002
Not Sold Separately
E10235
Not Sold Separately
E10407
Not Sold Separately
( COMES WITH E20944, E1000140 OR E1000141 )
V3000 Open Head Assy
(Single Element Lens)
V3400 Open Head Assy
(Triple Element Lens)
Head Unit Body
(WITH SINGLE ELEMEMENT LENS)
Head Unit Spring
12.5" Meniscus Lens (V3000)
( COMES WITH E20944 OR E1000140 )
Triple Element Lens (V3400)
( COMES WITH E1000141 )
3
V3400 Open Head
Assembly
ITEMS AVAILABLE / NOT SHOWN
Diag # Part# Description of Part
NOT
SHOWN
NOT
SHOWN
E140636
E141636
V3000 Open Head 1 Elem. Lens Assy ASSEMBLED TO
Drive/Arm Assy
V3400 Open Head 3 Elem Lens Assy ASSEMBLED TO
Drive/Arm Assy
PG
8 OF 9
V3000 SERIES DEALER & AUTHORIZED SERVICE AGENTS PARTS GUIDE January 2005
V3002
V3002
CLOSED HEAD
ASSEMBLY
Diag # Part# Description of Part
1 E1000137 V3002 Closed Head 1 Elem Lens Assembly
ITEM AVAILABLE / NOT SHOWN
Diag # Part# Description of Part
NOT
SHOWN
E137636
V3002 Closed Head 1 Elem Lens Assy ASSEMBLED TO
Drive/Arm Assembly
PG
9 OF 9
