APOLLO AE-SERIES ELECTRIC ACTUATORS

General Installation, Operation, Specifications, Maintenance and Trouble Shooting Instructions

The following is intended as a guide only in installing and operating the electric actuator. The
manufacturer assumes no liability whatsoever for any personal injury or other special or consequential
damages that may occur. There are no warranties as to suitability for a specific application or purpose.

Installation / Mechanical Operation

• Verify that the valve breakaway torque is less than the rated output torque of the actuator.

• Any mechanical stops that would interfere with the operation of the actuator must be removed

before installation of the actuator, i.e. lever, travel stops, etc.

• The actuator output coupling must be centered with the valve stem to prevent side loading, which
causes premature stem packing wear.

• The AE-Series actuator is not recommended for actuation of butterfly valves or other similar
resilient seated valves, unless installed with Motor Break option.

• To use the manual override feature (identified on cover label), the override shaft must be pressed
down firmly at least 1/4” in order to disengage the motor from the gears. The manual override is
not designed to overcome torque in excess of the rated torque of the actuator. Serious damage
to the gear system may result from excessive turning force on the manual override.

• The AE-Series actuator may be mounted in any position, i.e. horizontal, upside down. If the
conduit entrance points upward, conduit piping must be oriented as to prevent condensation from
entering the actuator from the conduit pipe.

Electrical Operation

• Always verify that the supply voltage and required voltage are the same.

• AE-series 24VAC, 115VAC and 230VAC actuators use capacitor run-reverse induction motors,

which create higher feedback voltages that the supply voltage. Control devices connected to
terminals 3 and 4 must be rated for 250VAC minimum for 15VAC actuators, (440VAC min. for
230VAC actuators: 125VAC min. for 24VAC).

• Do not wire actuators in series or parallel with another actuator or other electrical equipment due
to the induction feedback voltage created by the motor.

• Separate (isolated contacts) are required for each actuator.

• When wiring DC voltage actuators, verify that terminal polarity is correct (pos.+ & Neg.-). Failure

to do so will cause the actuator to operate out of its normal 90 degree rotation.

• The AE-Series actuators are designed to operate at 25% duty cycle at temperatures below
100°F. This means that for a cycle time of 25 seconds the actuator must rest for 75 seconds.
This is an average. For example: The actuator may cycle several times in a row, but must rest
for a period 75% longer that the time it operated.

• All models require electrical power to both OPEN and to CLOSE the actuator and valve.

Maintenance

Under normal circumstances the actuator will not require additional lubrication. All of the actuator’s
essential components are permanently lubricated at the factory.

• Seal conduit entrances to prevent water or dirt from entering the housing. Excessive moisture
can cause premature wear or corrosion within the housing.

• Periodically inspect actuator and valve assembly for worn parts, loose fasteners, or damage to
the outside of the unit.

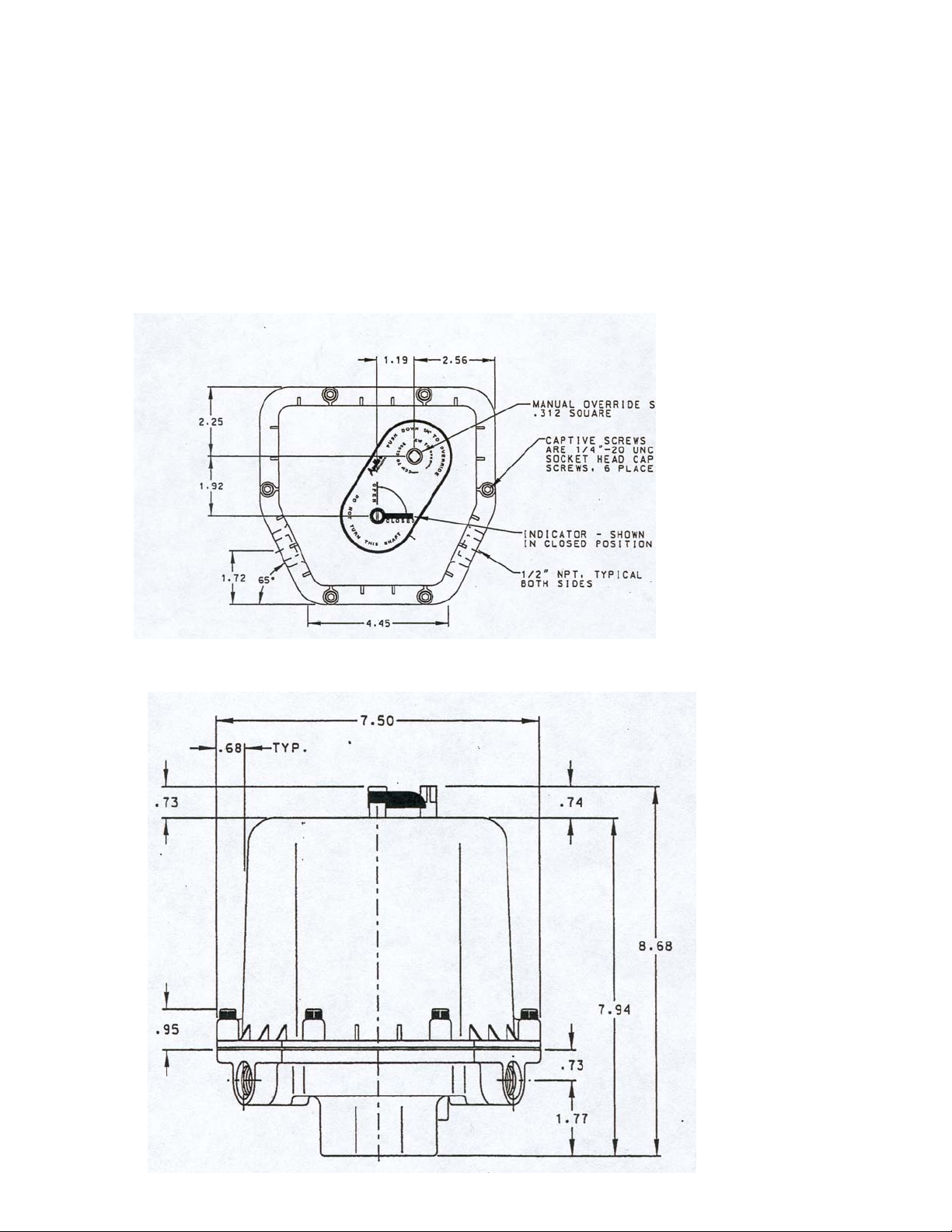

General Specifications

Amperage Draw (max.)
Starting or locked rotor current voltage

Actuator
Model

Breakaway
Torque
Output
(in.-lbs.)

Cycle
Time
90°
Travel
(50%
Load)

Duty
Cycle*

24 VAC

115VAC

230VAC

12VDC

24VDC

AE200

200 in-lbs.

5.0 sec.

25%

4.56
amp

.74 amp

.44 amp

2.00
amp

1.38
amp
AE400

400 in-lbs.

10.0 sec.

25%

4.56
amp

.74 amp

.44 amp

2.00
amp

1.38
amp
AE600

600 in-lbs.

15.0 sec.

25%

4.56
amp

.74 amp

.44 amp

2.00
amp

1.38
amp
AE800

800 in-lbs.

20.0 sec.

25%

4.56
amp

.74 amp

.44 amp

2.00
amp

1.38
amp
AE1000

1000 in-lbs.

25.0 sec.

25%

4.56
amp

.74 amp

.44 amp

2.00
amp

1.38
amp

Note: 90° Travel = Travel From Closed position to Open position or vice versa.
* Duty Cycle for 24VAC will be approximately 20%.

Motor

AC models: 24 VAC, 120 VAC or 230 VAC, Reversible. 3 wire,
capacitor run. Self-resetting thermal overload protection, Class
B insulation, sub-fractional horsepower.
DC models: 12 VDC or 24 VDC, Reversible. 2 wire, POS. &
NEG. No thermal overload (external circuit breaker or fuse
suggested for protection).
Lubrication

Permanently lubricated gear train and bearings.
Duty Cycle

The AE-Series actuators are designed to operate at 25% duty
cycle at temperatures below 100°F. See Electrical Operation.
Temperature Operating Range

32°F to 150°F standard

-40°F to 150°F with optional heater & thermostat
Thermal Protection

Self-resetting (AC Motors Only)
Conduit Connections

(2) 1/2”-NPT female
Direction Of Travel

Clockwise to Close, Counterclockwise to Open (Position
indicator shaft only, manual override shaft rotates opposite)

AE-SERIES NUMBERING SYSTEM

Constant

Torque

Voltage

Options

200

1 = 115 vac

0 = Standard

400

2 = 24 vac

A = One extra switch & cams

600

3 = 220 vac

B = Two extra switches & cams

800

4 = 12 vac

C = Three extra switches & cams

1000

5 = 24 vac

D = Heater & Thermostat

E = Single Potentiometer
Enter all digits of
Torque value

F = Motor Break

Note: AE will always be the first two characters of the part number, all digits from torque value must be entered into part number
(i.e. 400, 1000 etc.). Only use one digit for voltage depiction (i.e. 1-5). For the options listing you may use more than one character,
up to three (i.e. 0, AD or BD etc.).

24/115/230 VAC Wiring Diagram

SUGGESTED CONTROL WIRING (CUSTOMER SUPPLIED). POSITIION INDICATOR JUNCTION 1-2
AND 1-5.

(CUSTOMER SUPPLIED).
115 VAC LINE VOLTAGE

CLOSED POSITION SWITCH (TOP)
