Apogee ENSEMBLE User Manual

Multi–Channel, 24bit/192kHz Audio Interface for the Macintosh
User’s Guide
v1.1 – October 2006
User’s Guide
Table of Contents
Owners Record Introduction Getting Started Quickly
1. Installing software
2. Hardware connections
3. OS X configuration
4. iTunes playback
5. DAW configuration
6. Recording
General Operation Making Settings with Software Control Panels
Making Settings with Ensemble’s Front Panel Encoder Knobs
Setting Sample Rate
Using 176.4–192 kHz Sampling Rates
Setting Clock Source
Digital I/O
Ensemble Routing
Input Routing Diagram
Output Routing Diagram

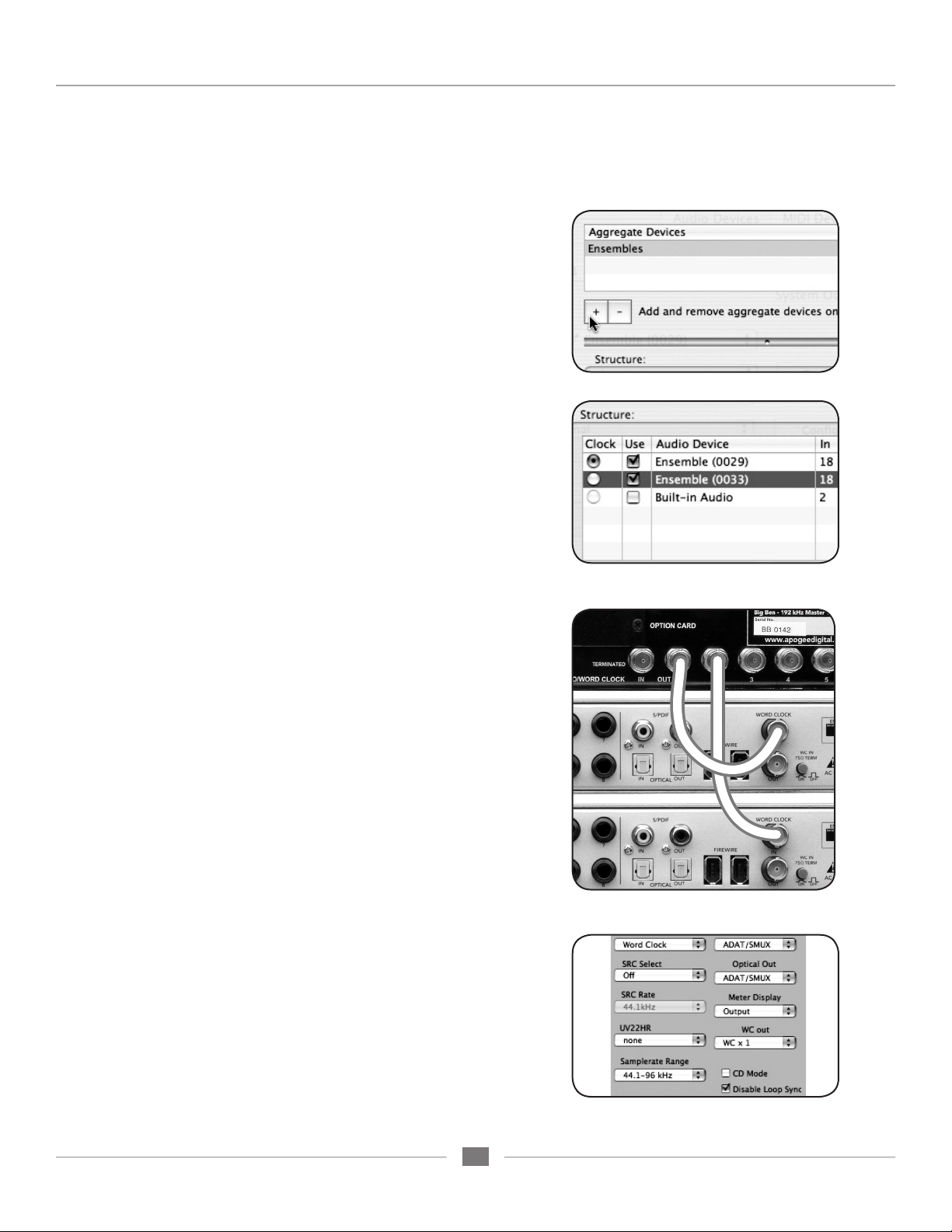

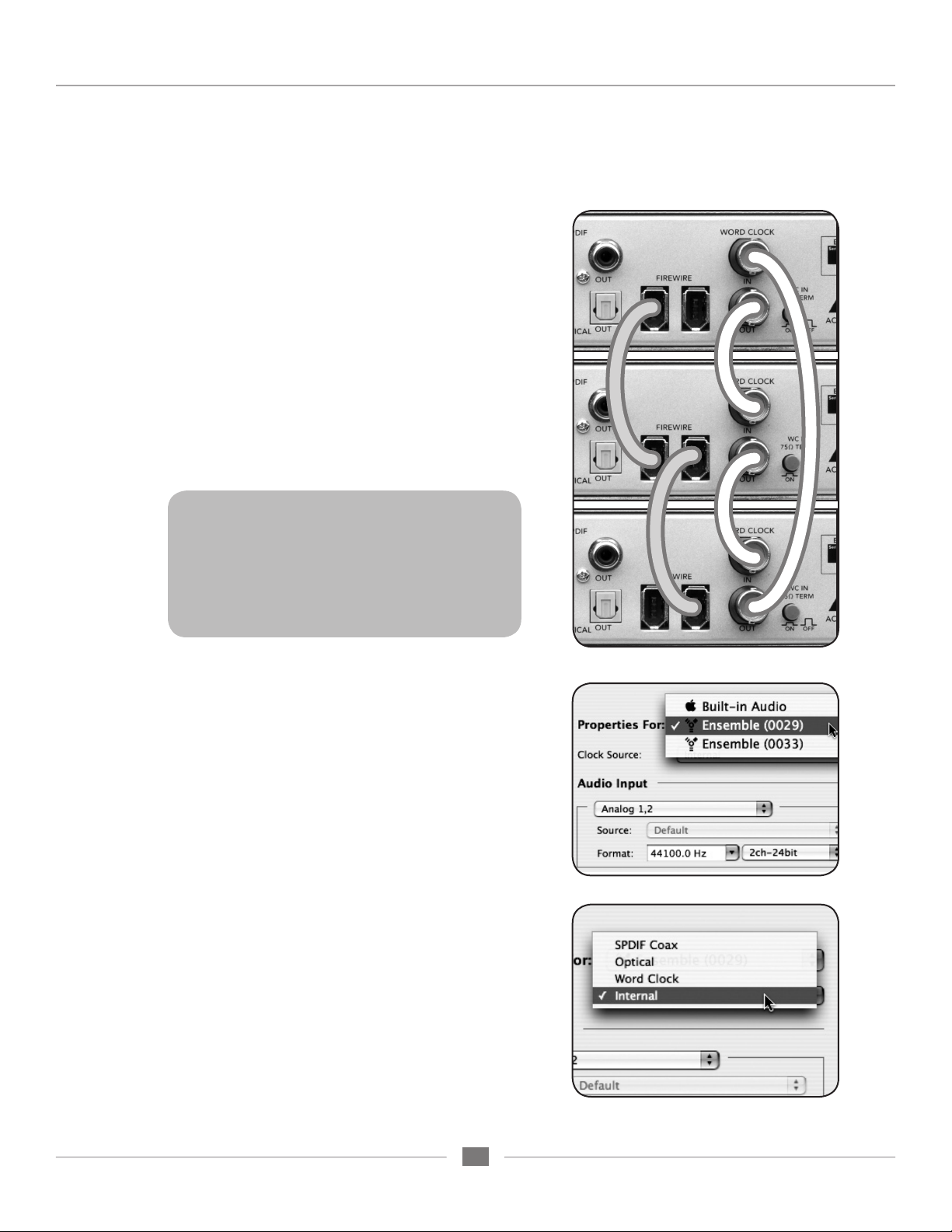

Connecting and Configuring Multiple Ensembles Advanced Clocking Maestro – Settings – Control Panel Maestro – Settings – Output Maestro – Settings – Mic Pre Navigating the Front Panel Connections on the Rear Panel Connecting Your Studio

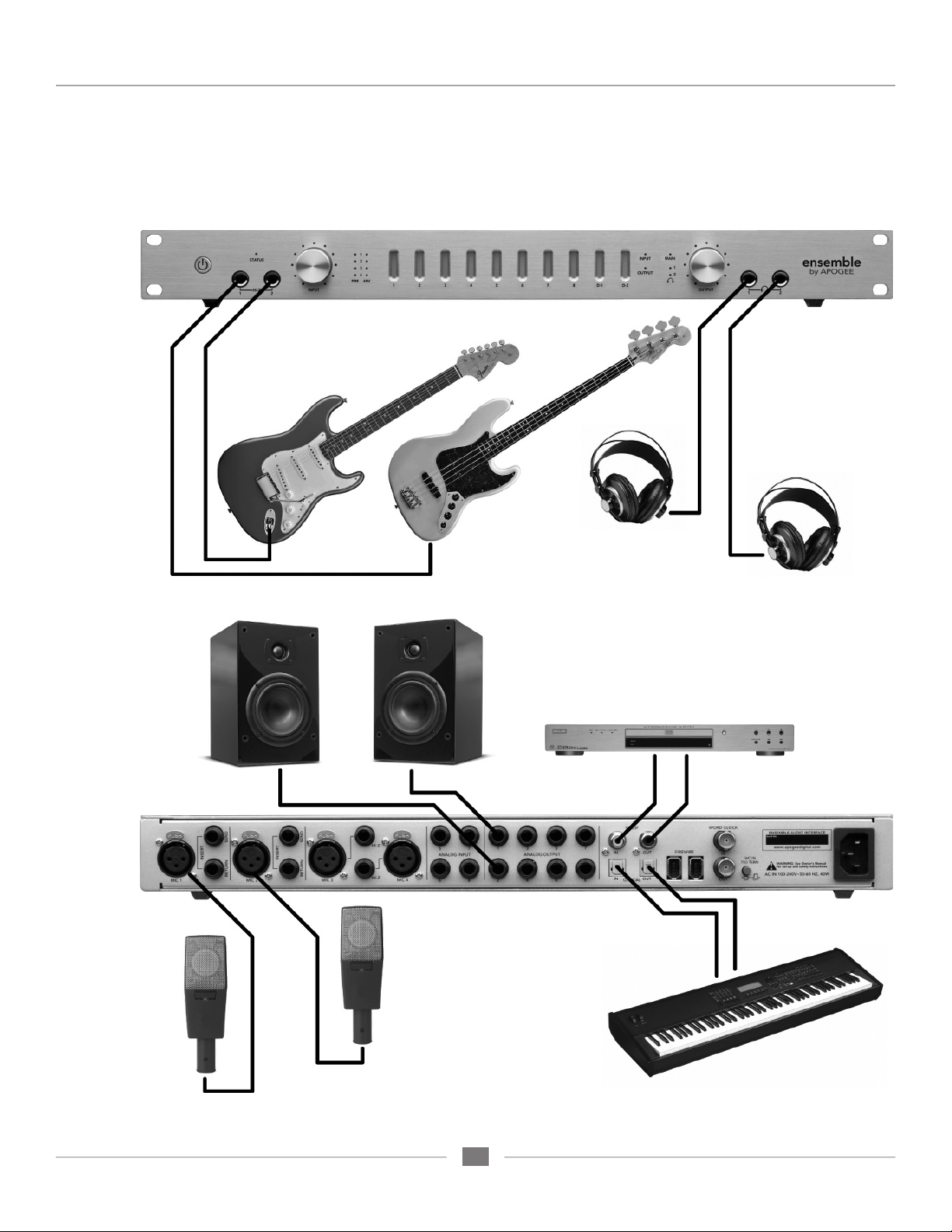

Basic studio configuration
5.1 surround configuration
Configuring Audio Software Apps
Apple Soundtrack Pro
Apple Final Cut Pro
MOTU Digital Performer
Steinberg Nuendo
Troubleshooting Warnings & Copyrights Declarations of Conformity Registration and Warranty Information
............................................................................................................. 2
................................................................................................................... 3
.......................................................................................... 4–7
....................................................................................... 4
................................................................................................. 5
.......................................................................................................... 7
................................................................................................... 8–11
...................................................... 8
.............................................................................................. 9
................................................................... 9
............................................................................................. 9
............................................................................................................. 9
.................................................................................................. 9
........................................................................................ 10
...................................................................................... 11
............................................ 12–13
................................................................................................ 13
................................................................. 14–15
............................................................................. 16–17
............................................................................ 16–17
.................................................................................... 18
............................................................................ 19
.................................................................................... 20–21
................................................................................... 20
.................................................................................. 21
.................................................................. 22–23
.......................................................................................... 22
.............................................................................................. 22
...................................................................................... 23
................................................................................................ 23
.................................................................................................... 24–25
............................................................................................ 26
..................................................................................... 27
........................................................... 28
............................... 8
Ensemble – User’s Guide
OWNER’S RECORD
The serial number is located on the rear panel of the unit. We suggest you record the serial number in the space provided below. Refer to it whenever you call an authorized Apogee Electronics repair facility or the manufacturer. Please be sure to return your completed warranty card immediately!
Ensemble Serial No._________________________________________________
Purchase Date__________________________________________________________
Dealer_________________________________________________________________
Phone_________________________________________________________________
Address________________________________________________________________
APOGEE ELECTRONICS
CAUTION:
Any changes or modifications not expressly approved by APOGEE ELECTRONICS CORPORATION could void your authority to operate this equipment under the FCC rules.
Please register this unit by filling in the included registration card, or registering online at
http://www.apogeedigital.com/support/register.php Please read this manual – if you call for
technical support, we’ll assume that you have. There will be a quiz.
2
Ensemble – User’s Guide
Introduction
Ensemble is a digitally–controlled Firewire audio interface specifically designed for Apple Macintosh computers. From mic preamps to Mac CoreAudio connectivity to headphone outputs, Ensemble includes all that’s necessary for a high–quality Mac–based recording system.
Ensemble includes several of Apogee’s Core technologies, including:
SoftLimit
Soft Limit is an analog peak limiting circuit that instantaneously and gracefully controls transient peaks, thereby allowing an additional 4 dB of headroom. Soft Limit may be engaged on all 8 Ensemble analog inputs.
UV22HR
UV22HR is Apogee’s industry standard dither algorithm for reducing the word–length of a digital audio signal from 24 to 16 bits. UV22HR is also being employed to produce dramatically improved internet and computer audio content without increased file sizes or data rates.
Apogee Sample Rate Conversion (SRC)
APOGEE ELECTRONICS
Ensemble’s hardware sample rate conversion provides a high quality, flexible solution for working with digital audio hardware and software running at different sample rates. Ensemble’s sample rate conversion may be applied to a digital input (to convert an input stream to Ensemble’s sample rate) or to a digital output (to provide an output stream at a user selected sample rate different than Ensemble’s rate).
Ensemble Requirements
1. Apple PowerMac 1.5GHz or higher, 512MB of RAM required, 1GB recommended
2. OS X 10.4.6
3. Apple Logic Pro 7.2.1
4. One Firewire 400 cable (per Ensemble)
3
Ensemble – User’s Guide
Getting Started Quickly
figure 1
APOGEE ELECTRONICS
1. Installing software
VERY IMPORTANT!
BEFORE CONNECTING ENSEMBLE...
Insert the CD that is attached to this document
into your Mac and double click on the “Apogee Software Installer”. Follow the on screen instruc­tions to install the necessary software (figure 1).
2. Hardware connections
Using the enclosed FireWire cable, connect one
of Ensemble’s FireWire ports to a FireWire 400 port on your Mac (figure 2).
figure 2
figure 3
Connect Ensemble’s AC input to an AC outlet
of 90 to 250 volts; Ensemble’s power switch will illuminate to indicate the presence of AC. Press the power switch to turn the unit on (figure 3).
Connect a pair of headphones to Ensemble’s
1 output (figure 4).
figure 4
4
Ensemble – User’s Guide
Getting Started Quickly
3. OS X configuration
From your Mac’s Apple menu bar, open the
System Preferences window, then click on the sound icon (figure 5).
In the Sound Preferences window click on the
Output tab and select Ensemble (figure 6).
APOGEE ELECTRONICS
figure 5
4. iTunes playback
Open iTunes, select an audio file and initiate
playback (figure 7).
Press the OUTPUT encoder knob until the 1
LED is lit and adjust the level in your head­phones (figure 8).
figure 6
figure 7
figure 8
5
Ensemble – User’s Guide
Getting Started Quickly
APOGEE ELECTRONICS
5. DAW configuration
Configure your CoreAudio compatible software
to communicate with Ensemble hardware I/O.
For example, in Logic Pro:
figure 9
figure 10
Open
Audio > Audio Hardware and Drivers >
Drivers > CoreAudio and check the Enabled
box (figure 9). Click “OK” when prompted by Logic.
Select
Ensemble in the Driver field (figure 10), and click Try (Re)–Launch when prompted by Logic.
To “customize” the I/O routing labels in Logic to
match Ensemble hardware I/O, open Audio > Audio Configuration; under the View menu, select I/O Labels; under the Drivers’ I/O Label column, Option–click the first radio button of each group of I/O labels (figure 11).
figure 11
figure 12
To control Ensemble directly from your Logic session, open Audio > Apogee Control Panel
(figure 12).
If you’re using another CoreAudio compatible
audio software app, use Apogee’s Maestro software (installed in your Applications folder in Step 1) to control Ensemble.
6
Ensemble – User’s Guide
Getting Started Quickly
6. Recording
Connect a mic to the MIC 1 rear panel connnec-
tion (figure 13).
or an instrument to the HI–Z 1 front panel con-
nection (figure 14).
APOGEE ELECTRONICS
figure 13
In Logic, set a track’s input to
Analog 1 and its output to Analog 1/2 and record enable the track (figure 15).
Press the front panel INPUT encoder knob until
the Pre 1 LED is lit, and turn encoder to obtain a proper recording level on the record–enabled track (figure 16).
You’re now ready to record!
figure 14
figure 15
figure 16
7
Ensemble – User’s Guide
General Operation
Making Settings with Software Control Panels
APOGEE ELECTRONICS
All Ensemble settings are made from Apogee’s Maestro Certain settings can be also be made from OS X audio control panels. It’s possible to open multiple control panels simultaneously, as settings made on one control panel are mirrored on all others. Additionally, Mic Pre gain and Ouput level may be controlled from Ensemble’s front panel encoders, as described on the lower half of this page.
Apogee Maestro provides the most complete control of Ensemble, including control of all Ensemble parameters, store/recall of configurations, expanded routing and 2 low–latency mixers. Maestro may be used with any Core Audio compatible audio application. Please see the complete explanation of Maestro’s Settings panel beginning on p. 14
The Logic Pro Apogee Control Panel, found in Logic Pro under the Audio menu, provides control of all Ensemble parameters and store/recall of configurations.
Audio Midi Setup (AMS) – This OS X utility (found in the rootdrive/Applications/Utilities folder) provides con trol of Ensemble’s clock source, sample rate and output level.
To set Ensemble’s output level using the Mac’s menu bar audio fader, set semble; OSX audio faders (including the menu bar fader) will then control the output selected on Ensem­ble’s front panel. For example, if the front panel level.
Making Settings with Ensemble’s Front Panel Encoder Knobs
Ensemble’s front panel encoders provide simple and immediate access to Mic Pre gain settings and Output levels.
Settings panel or Logic Pro’s Apogee Control Panel.
Default Output (in AMS) to En-
1 LED is lit, OSX audio faders control the 1 output
-
To use the left encoder to control mic pre gain:
Select the mic pre gain to set by clicking the left encoder knob until the desired Turn the encoder clockwise to increase gain or counter–clockwise to decrease gain. The LEDs encircling the encoder indicate its “position”, providing a quick visual indication of level in the same fashion as a traditional knob.
To use the right encoder to control output levels:
Select the output to set by clicking the left encoder knob until the desired LED is lit, and turn the knob as described above; by selecting 2, the corresponding front panel headphone output level may be set.
By pressing and holding the right encoder button for a few seconds, all analog outputs are muted. The selected output LED flashes to indicate muting.
Please see p. 16 to configure the
MAIN, rear panel analog output levels may be set; by selecting either 1 or
MAIN and headphone outputs
PRE LED is lit.
8
