USER GUIDE
STAGE MONITOR PROCESSOR SPWX
Processor SPWX 1
SUMMARY
SAFETY INSTRUCTIONS 2
THANKS AND UNPAKING 3
IMPORTANT SAFETY INFORMATION 3
FUNCTIONALITIES 4
GENERAL INTRODUCTION 4
BLOCK DIAGRAM OF SPWX 4

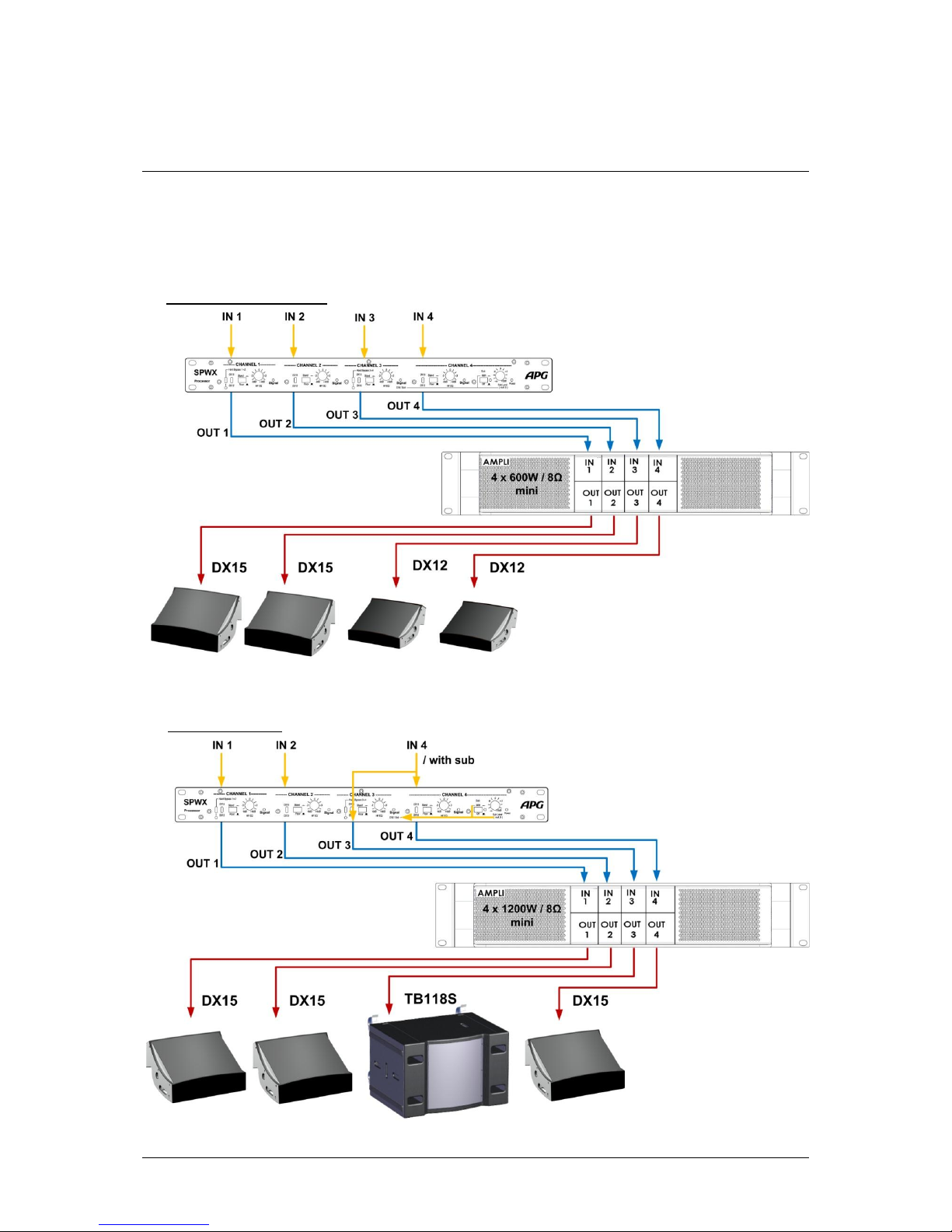

WIRING 5
TECHNICAL SPECIFICATIONS 6
CONTROLS DESCRIPTION 7
FRONT PANEL 7
REAR PANEL 8
Processor SPWX 2
SAFETY INSTRUCTIONS
This symbol, wherever it appears, alerts
you to the presence of un-insulated
dangerous voltage inside the enclosure –
voltage that may be sufficient to
constitute a risk of shock.
This symbol wherever it appears, alerts
You to important t operating and
maintenance instructions in the
accompanying literature. Read the manual.
These symbols indicate that no part is available inside the device. Do not open the device. Do not try to troubleshoot.
Contact a qualified technician. Opening the device will void the warranty for no reason manufacturer. Do not wet the unit.
If liquid is spilled, immediately turn off the device and bring it to the distributor for repair. Unplug the unit during storms to
prevent damage.
INFORMATION ABOUT APPLIANCE SUPPLIED WITH POWERD CORD:
WARNING: APPLIANCE MUST HAVE GROUNDING
The conductors of the cable industry are identified as follows:
Green / Yellow Ground
Blue Neutral
Brown Phase
If the colors of the power cable do not match with the colors of the socket, please proceed as follow:
Green/Yellow wire be must be connected to the wire identified with E letter ground sign.
Blue wire must be connected to the black wire or the wire identified with N letter.
Brown wire must be connected to the red wire or the wire identified with L letter.
Warning: When no grounding exists, problems may appear with the appliance or the system it is connected to, in case of
high tension between casing and grounding. Serious injuries or death can occur in case of simultaneous contact with case
grounding.
FOR YOUR PROTECTION, PLEASE READ THE FOLLOWING:
WATER AND MOISTURE: The device should not be used near a water source (near a bathtub,
bowl, kitchen sink, in a wet basement or near a swimming pool, etc. ...). Be careful that no liquid can be enters the device
(some openings).
POWER SOURCE: The appliance should be connected to a power supply only of the type described in the operating
instructions or as marked on the appliance.
GROUNDING or POLARIZATION: Precautions should be taken so that the grounding and polarization are properly done.
REPAIRS: To avoid the risk of fire or electric shock, user should not attempt to troubleshoot the device out of the
instructions in the manual. In case of failure, contact a qualified technician.
ELECTROMAGNETIC COMPATIBILITY:
The device meets the requirements of the Declaration of Conformity.
This device may not cause harmful parasites.
This device supports any interference, even parasite that may cause malfunctions.
The use of this device in an electromagnetic field, however, must be avoided.
