Operator’s Manual
GROUP, INC.
RPM
Float Level Sensors
Rev. D6, 10/09
Doc. 9002103
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • E-mail: sales@apgsensors.com
RPM Series Rev. D6, 10/09
Table of Contents
Warranty ......................................................................................... 3
Description...................................................................................... 4
Installation ................................................................................... 5-7
Wiring...........................................................................................8-9
Analog Calibration ..................................................................10-12
Inspection & Maintenance ............................................................ 12
Specifications ........................................................................... 13-14

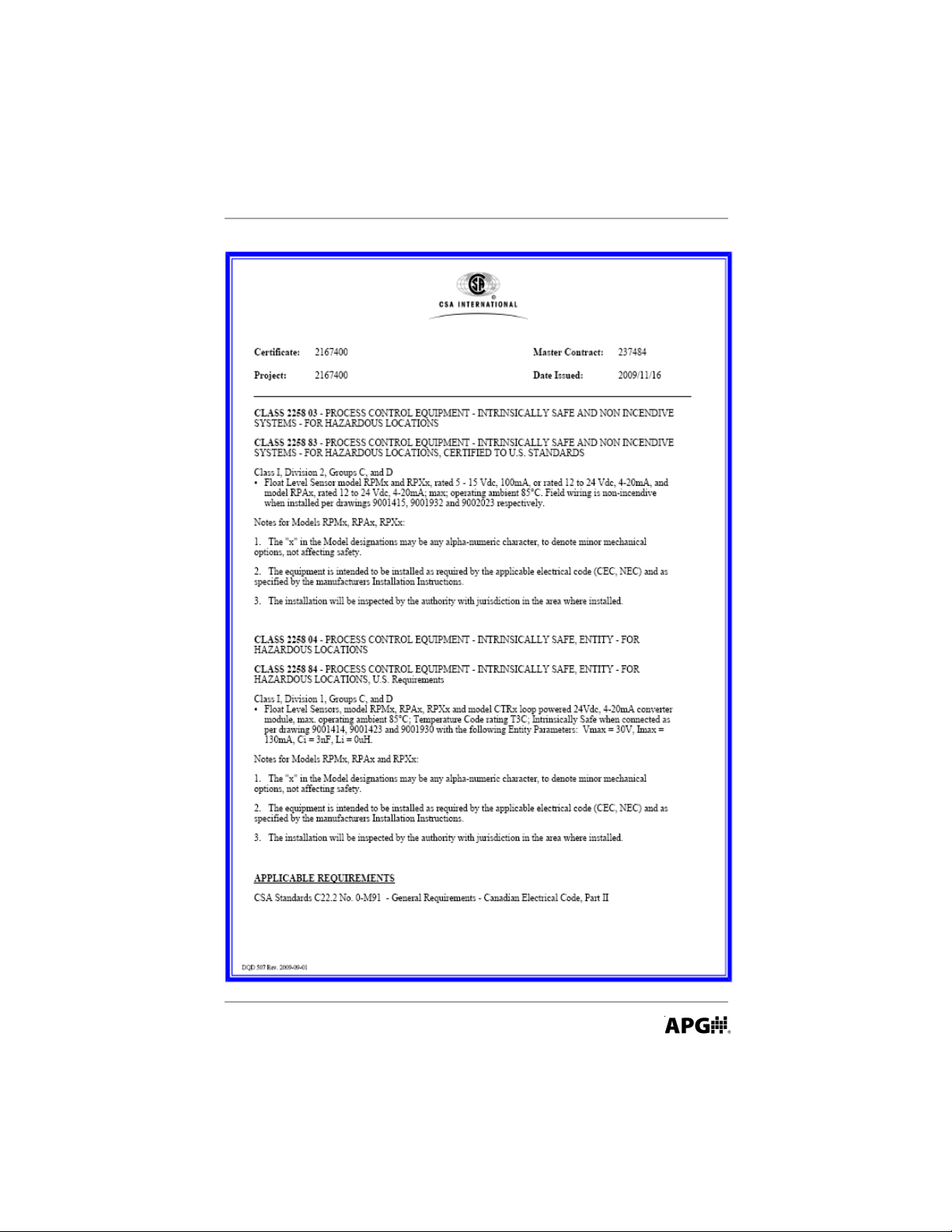

CSA Certificate of Compliance ............................................... 15-18
Automation Products Group, Inc.
2
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
Rev. D6, 10/09 RPM Series
Warranty and W arranty Restrictions
APG warrants its products to be free from defects of material and workmanship and will, without charge, replace or repair any equipment found defective upon inspection at its factory, provided the equipment has been returned, transportation prepaid, within 24 months from date of shipment from factory .
THE FOREGOING WARRANTY IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES NOT EXPRESSL Y SET FOR TH HEREIN, WHETHER EXPRESSED OR IMPLIED BY OPERATION OF LAW OR OTHER WISE INCLUDING BUT NOT LIMITED T O ANY IMPLIED WARRANTIES OF MERCHANT ABILITY OR FITNESS FOR A PAR TICULAR PURPOSE.
No representation or warranty, express or implied, made by any sales representative, distributor, or other agent or representative of APG which is not specifically set forth herein shall be binding upon APG. APG shall not be liable for any incidental or consequential damages, losses or expenses directly or indirectly arising from the sale, handling, improper application or use of the goods or from any other cause relating thereto and APG’s liability hereunder, in any case, is expressly limited to the repair or replacement (at APG’s option) of goods.
Warranty is specifically at the factory. Any on site service will be provided at the sole expense of the Purchaser at standard field service rates.
All associated equipment must be protected by properly rated electronic/ electrical protection devices. APG shall not be liable for any damage due to improper engineering or installation by the purchaser or third parties. Proper installation, operation and maintenance of the product becomes the responsibility of the user upon receipt of the product.
Returns and allowances must be authorized by APG in advance. APG will assign a Return Material Authorization (RMA) number which must appear on all related papers and the outside of the shipping carton. All returns are subject to the final review by APG. Returns are subject to restocking charges as determined by APG’s “Credit Return Policy”.
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
3
RPM Series Rev. D6, 10/09
• Description
The RPM utilizes reed switches in the instrument’s stem and a permanent magnet in the float. As the float rises or falls with the level of the liquid, the magnet inside the float acts on the reed switches inside the stem and provides a resistive-chain output. The RPM is also available with optional electronics that convert the resistance output into a 4-20mA signal.
• Handling of the Intrinsically Safe RPM Series
Electrical ratings; 12 to 24 Volts DC, 4 - 20 ma
Exia Class I Division 1; Groups C, D T3C (Max. Temp. 85°C) Vmax = 30VDC, Imax = 130ma, Ci = 3nF , Li = 0uH
ATEX Directive:
0334
KEMA 05 ATEX 1207 X
II 1 G EEx ia IIB T3
-40°C T a +85 °C
Ui 30 V, Ii 130 mA, Pi 1 W, Ci 3 nF, Li 0 mH
All repairs and adjustments of the RPM must be made by the factory. T o modify, disassemble, or alter the RPM on site is strictly prohibited. Do not loosen any joints, with the exception of the housing cover for electrical connection.
• Handling of the Explosion-Proof RPM Series
Electrical ratings; 5 to 15 Volts DC, 100 ma
Class I Division 1 Groups C & D (Max. T emp. 40°C.)
Probe may be wired as a Non-Incendive device in Class I Division 2 Groups C & D areas. All repairs and adjustments of the RPM must be made by the factory. T o modify, disassemble, or alter the RPM on site is strictly prohibited. Do not loosen any joints, with the exception of the housing cover for electrical connection.
Class I Division 2; Groups C & D (Max. T emp 85°C.
Automation Products Group, Inc.
4
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
Rev. D6, 10/09 RPM Series
• Handling of the Explosion-Proof RPM Series
Installation
- Unpacking -
When unpacking the instrument, exercise care not to subject the instrument to mechanical shock. After unpacking, visually inspect the instrument for damage.
- Environment -
The RPM series intruments should be installed in an areas indoors or outdoors which meets the following conditions:
1. The ambient temperature does not exceed -400C to 850C (-400F to +1850F) for Class I Divison 2 or -400C to 400C (-400F to +1040F) for Class I Divison 1. NOTE: It is recommended that a sun shield be installed over the housing if exposed to direct sunlight.
2. The medium temperature does not exceed -400C to 850C (-400F to +1850F) for Class I Divison 2 or -400C to 400C (-400F to +1040F) for Class I Divison 1.
3. Relative humidity up to 100%
4. Pollution Degree 2
5. Measurment Category II
6. Altitude 2000 m or less.
7. Locate the sensor away from strong magnetic fields such as those produced by motors, transformers, solenoid valves, etc.
8. The medium is free from metallic substances and other foreign matter.
9. No corrosive gases such as NH3, SO2, Cl2, etc.
10. No excessive vibration
11. Ample space for maintenance and inspection.
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
5
RPM Series Rev. D6, 10/09
4.00"
0.75"
0.50"
3.21"
0.125" Ø1.500" .083" Wall Tubing
Ø0.265" 2 places
Part Number 135396
Inflow
Bottom Mounting Bracket
Mounting Bracket
Stilling Tube
Inflow
Bottom Mounting Bracket
Mounting Bracket
Top of Tank Top of Tank
• Installation
- Location -
Do not locate the RPM sensor near inlets/outlets. If there is surface wave action, then it may be advisable to use a stilling tube. If a stilling tube is used, drill vent holes in the tube and use a spacer bottom mounting bracket to assure the probe is centered in the tube and the can move without interference.
Wave action will cause signal bounce. Use a stilling tube to provide a
- Mounting -
The RPM probe must be secured top and bottom. The bottom of the probe can be secured using stainless steel bottom mounting bracket (p/n 135396) or similar stainless steel mounting method. This bracket is fixed to the bottom of the vessel and the probe stem seats inside of it.
Mounting in this way will prevent any lateral movement and prevent the float from coming off of stem during use.
Automation Products Group, Inc.
6
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www .apgsensors.com • sales@apgsensors.com
smooth output signal.
