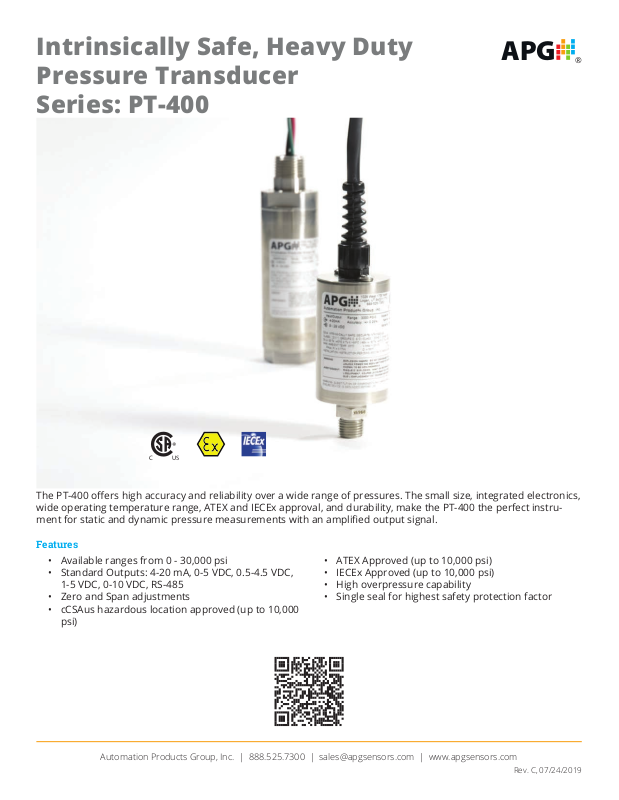

APG PT-400 Specifications

APG

Intrinsically Safe, Heavy Duty
Pressure Transducer
Series: PT-400

®

C

US

The PT-400 oers high accuracy and reliability over a wide range of pressures. The small size, integrated electronics,
wide operating temperature range, ATEX and IECEx approval, and durability, make the PT-400 the perfect instru­ment for static and dynamic pressure measurements with an amplied output signal.

Features

• Available ranges from 0 - 30,000 psi

• Standard Outputs: 4-20 mA, 0-5 VDC, 0.5-4.5 VDC,

1-5 VDC, 0-10 VDC, RS-485

• Zero and Span adjustments

• cCSAus hazardous location approved (up to 10,000

psi)

• ATEX Approved (up to 10,000 psi)

• IECEx Approved (up to 10,000 psi)

• High overpressure capability

• Single seal for highest safety protection factor

Automation Products Group, Inc. | 888.525.7300 | [e-mail] | www.apgsensors.com

Rev. C, 07/24/2019

APG

Built For Reliability In Tough Applications

Ideal For Extreme Vibration

In the world of heavy industry,
there’s a lot of big machines that
can produce powerful vibrations.
Big pumps, drilling rigs, large
engines, you name it! The PT­400 is built for durability in these
tough applications.

To ensure maximum reliability, we
zero-in on the details - like using
the best steel and the strongest
laser welds. We carefully tie
all wires down using a variety
of methods. All soldering is
done by IPC J-STD-001 certied
technicians. We even ll the entire
housing with industrial potting to
dampen vibrations.

Can Take The Shock

That tough build is good for more
than just vibration. The PT-400
handles shock well, too. That’s
important in environments where
things like water hammer or plain
and simple rough handling are
commonplace.

Global Hazardous Area

Certications

The PT-400 is certied compliant
with Class 1, Zone 0 requirements
in North America, ATEX in
Europe, and IECEx for just about
anywhere else. So it’s ideal for
markets like the Oil & Gas or
Water & Wastewater industries
that deal with ammable gases.

2 Week Lead Time For

Congured Models

We stock a variety of commonly congured PT-400 models that ship as you order. But if these won’t do and you
need a unique version, we’ll build it quick - typically in just 2 weeks.

Automation Products Group, Inc. | 888.525.7300 | [e-mail] | www.apgsensors.com

®

2

Rev. C, 07/24/2019

APG

Typical Applications

The PT-400 is perfect for a variety of applications - anywhere durability is a concern. It’s ideally suited for the
following:

• Fracking

• Acidizing

• Cementing

• Wellhead pressure

• Pump monitoring

• Wastewater treatement

• Gas compressors

• Engine compression

• Gas pressure chambers

• Tank level

• Chemical processing

ARTICLE: When To Use Heavy Duty Pressure Transducers

Not sure if you need the robust design of the PT-400? It’s a valid concern. Perhaps this

article will help. Scan the QR code to the right to read about the dierence between light

duy and heavy duty pressure transducers, and when to use each.

VIDEO TUTORIAL: How To Install A Threaded Pressure Transducer

Installing pressure transducers isn’t complicated, but
it is critical. This video will help you do it right:

Automation Products Group, Inc. | 888.525.7300 | [e-mail] | www.apgsensors.com

®

3

Rev. C, 07/24/2019

APG

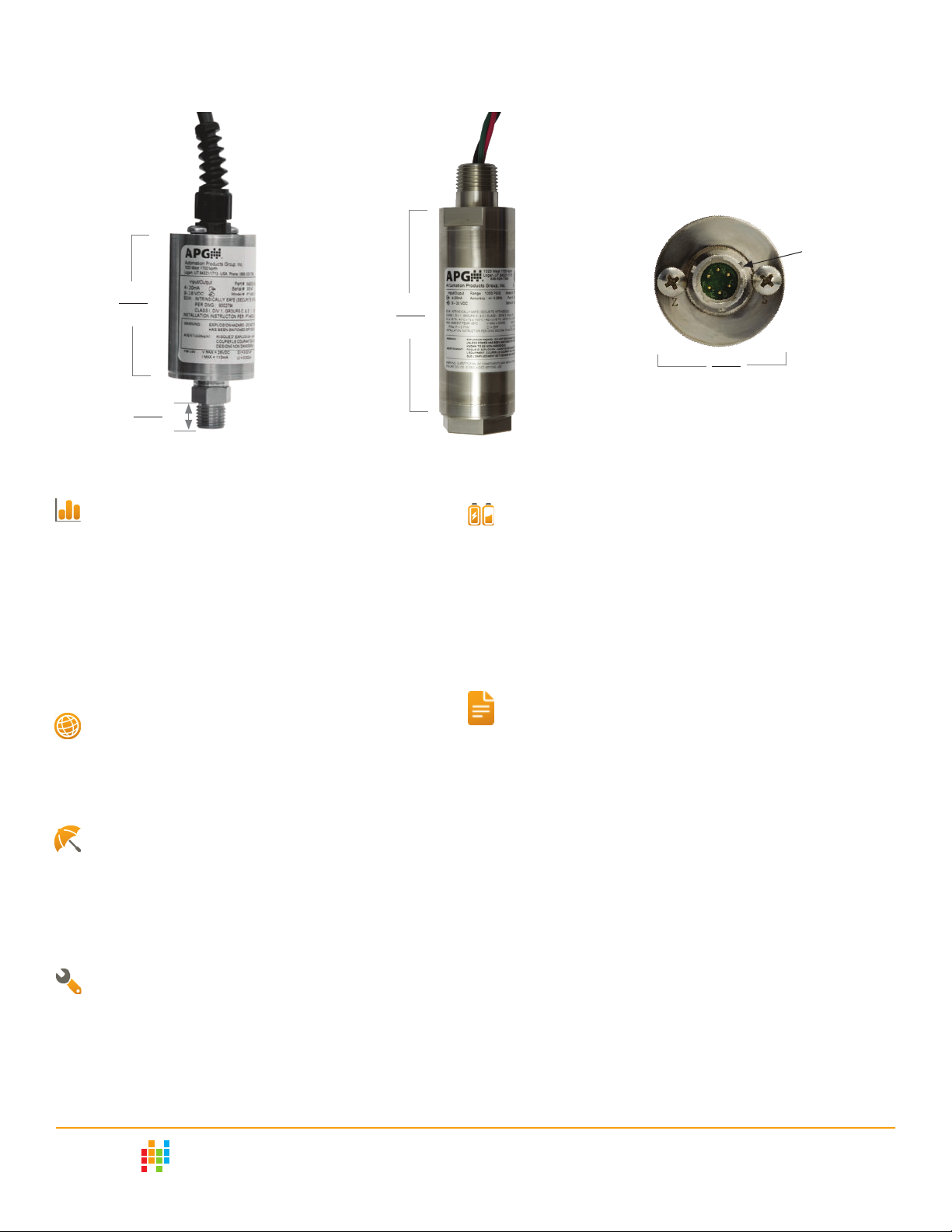

PT-400 Specications

6 pin

Connector

2.50”

63.5 mm

0.55”

13.97 mm

*Overall length may vary depending on process connection.

3.90”

99.06 mm

Performance

• Accuracy (linearity, hysteresis, & repeatabliity):
±0.25% of full scale (BFSL) (1% for ≤ 1 psi)

• Standard Pressure Ranges: 0 - 30,000 psi

• Stability - One Year Zero Drift:

17-4 / 316L: <±0.5% FS

• Overpressure: 2x full scale

• Burst Pressure: up to 3x full scale or limit of

process connection

• Frequency Response:

Less than 5ms

Connectivity

• Output:

4-20 mA (2 wire, loop-powered)
0-5, 0.5-4.5, 1-5, 0-10 VDC (non-isolated 3 wire)
Modbus/RTU (RS-485) with temp. output

Environmental

• Standard Compensated Temp.:

≤ 10 psi: 0º - 60ºC / 32º - 140ºF

10 < x ≤ 1000 psi: -10º - 70ºC / 14º - 158ºF

> 1000 psi: -17º - 54ºC / 0º - 130ºF

• Storage Temp: -40º - 82ºC / -40º - 180ºF

• Operating Temp: -40º - 85ºC / -40º - 185ºF

Physical

• Weight: 10 oz. (283 g) typical

• Wetted Materials: 316L Stainless Steel (≤ 1,000 psi)

17-4 Stainless Steel (> 1,000 psi)

Incoloy (> 10,000 psi)

• Incoloy conforms to NACE MR-01-75 and ISO 15156-3

1.50”

38.10 mm

Electrical

• Supply Voltage:
4-20 mA, 0-5 / 0.5-4.5 / 1-5 VDC: 9-28 VDC
0-10 VDC: 12.5-28 VDC
Modbus/RTU (RS-485): 9-28 VDC

• Electrical Connection:

Pigtail with cable or connector

• Electrical Protection:
Protected against reverse polarity, surge per

IEC 61000-4-5

Certication

• CSA/cCSAus Contract #237484
Ambient: -40º to 85ºC
Max. Working Pressure: 10,000 psi
Single Seal
0-5 VDC, 0.5-4.5 VDC, 1-5 VDC, 0-10 VDC, 4-20mA

- IS: Class I, Div. 2, Groups C & D; Ex nL IIB T4

- Class I, Zone 2; AEx nL IIB T4
4-20 mA

- IS: Class I, Div. 1, Groups C & D; Ex ia IIB T4

- Class I, Zone 0; AEx ia IIB T4

• ATEX
Max. Working Pressure: 10,000 psi
4-20 mA

- Ex II 1G Ex ia IIB T4 Ga

• IECEx
Max. Working Pressure: 10,000 psi
4-20 mA

- Ex ia IIB T4 Ga

Automation Products Group, Inc. | 888.525.7300 | [e-mail] | www.apgsensors.com

®

4

Rev. C, 07/24/2019

APG

PT-400 Pin Out Table

4-20 mA 0-5 / 0.5-4.5 / 1-5 VDC 0-10 VDC RS-485

A + Excitation + Excitation + Excitation + Excitation

B - Excitation + Output + Output - Excitation

C N/C - Output - Output N/C

6-Pin

Bayonet

4-Pin

Bayonet

M12

4-Pin

Cable

D N/C - Excitation - Excitation B (Tx-)

E N/C N/C N/C A (Tx+)

F N/C N/C N/C Case GND

A + Excitation + Excitation + Excitation N/A

B - Excitation + Output + Output N/A

C N/C - Output - Output N/A

D N/C - Excitation - Excitation N/A

1 + Excitation + Excitation + Excitation + Excitation

2 - Excitation + Output + Output A (Tx+)

3 N/C - Output - Output - Excitation

4 N/C - Excitation - Excitation B (Tx-)

Red + Excitation + Excitation + Excitation + Excitation

Grn N/C + Output + Output B (Tx-)

Wht N/C - Output - Output A (Tx+)

Blk - Excitation - Excitation - Excitation - Excitation

Shld Ground Ground Ground No wire

Leads

Flying

Red + Excitation + Excitation + Excitation + Excitation

Grn No wire + Output + Output B (Tx-)

Wht No wire - Output - Output A (Tx+)

Blk - Excitation - Excitation - Excitation - Excitation

Shld No wire No wire No wire No wire

Grn/

Ylw

F

E

6 Pin Bayonet

Case Ground No wire No wire No wire

A

B

C

D

Connector

A

B

4 Pin Bayonet

Connector

D

3

C

4 Pin M12 Micro

Connector

4

2

1

Automation Products Group, Inc. | 888.525.7300 | [e-mail] | www.apgsensors.com

®

5

Rev. C, 07/24/2019

APG

Common Model Congurations

1/2” NPTM with 5 ft cable, 1/4” NPTM or F250C High Pressure Process Connection, Standard Temperature Range

Model Number Model Description

PT-400-L1-15-PSIA-E19-5-P0-N0-M1-S10 4-20 mA, 0-15 PSI, Absolute Pressure, 316L SS, 0.25% Accuracy, -10° - 70°C

PT-400-L1-5-PSIG-E19-5-P0-N0-M1-S9 4-20 mA, 0-5 PSI, Gauge Pressure, 316L SS, 0.25% Accuracy, 0° - 60°C

PT-400-L1-15-PSIG-E19-5-P0-N0-M1-S10 4-20 mA, 0-15 PSI, Gauge Pressure, 316L SS, 0.25% Accuracy, -10° - 70°C

PT-400-L1-30-PSIG-E19-5-P0-N0-M1-S10 4-20 mA, 0-30 PSI, Gauge Pressure, 316L SS, 0.25% Accuracy, -10° - 70°C

PT-400-L1-50-PSIG-E19-5-P0-N0-M1-S10 4-20 mA, 0-50 PSI, Gauge Pressure, 316L SS, 0.25% Accuracy, -10° - 70°C

PT-400-L1-100-PSIG-E19-5-P0-N0-M1-S10 4-20 mA, 0-100 PSI, Gauge Pressure, 316L SS, 0.25% Accuracy, -10° - 70°C

PT-400-L1-200-PSIG-E19-5-P0-N0-M1-S10 4-20 mA, 0-200 PSI, Gauge Pressure, 316L SS, 0.25% Accuracy, -10° - 70°C

PT-400-L1-300-PSIG-E19-5-P0-N0-M1-S10 4-20 mA, 0-300 PSI, Gauge Pressure, 316L SS, 0.25% Accuracy, -10° - 70°C

PT-400-L1-500-PSIG-E19-5-P0-N0-M1-S10 4-20 mA, 0-500 PSI, Gauge Pressure, 316L SS, 0.25% Accuracy, -10° - 70°C

PT-400-L1-1000-PSIS-E19-5-P0-N0-M1-S10 4-20 mA, 0-1000 PSI, Sealed Gauge Pressure, 316L SS, 0.25% Accuracy,

-10° - 70°C

PT-400-L1-5000-PSIS-E19-5-P0-N0-M2-S0 4-20 mA, 0-5000 PSI, Sealed Gauge Pressure, 17-4 SS, 0.25% Accuracy,

-17° - 54°C

PT-400-L1-10000-PSIS-E19-5-P0-N0-M2-S0 4-20 mA, 0-10,000 PSI, Sealed Gauge Pressure, 17-4 SS, 0.25% Accuracy,

-17° - 54°C

PT-400-L1-10000-PSIS-E19-5-P56-N0-M7-S0 4-20 mA, 0-10,000 PSI, Sealed Gauge Pressure, Incoloy, 0.25% Accuracy,

-17° - 54°C

PT-400-L1-15000-PSIS-E19-5-P56-N12-M7-S0 4-20 mA, 0-15,000 PSI, Sealed Gauge Pressure, Incoloy, 0.5% Accuracy,

-17° - 54°C

PT-400 Accessories

Please order separately, by part number.

Description Part Number

4 pin bayonet mating connector (E3) Connector Only 509010

4 pin bayonet mating connector (E3) with 2 ft cable (L1, L3, L10 only) 509010-1002

4 pin bayonet mating connector (E3) with 5 ft cable (L1, L3, L10 only) 509010-1005

4 pin bayonet mating connector (E3) with 10 ft cable (L1, L3, L10 only) 509010-1010

4 pin bayonet mating connector (E3) with 25 ft cable (L1 only) 509010-1025

4 pin bayonet mating connector (E3) with 50 ft cable (L1 only) 509010-1050

6 pin bayonet mating connector (E17) Connector only 509120

6 pin bayonet mating connector (E17) with 2 ft cable 509120-1002

6 pin bayonet mating connector (E17) with 10 ft cable 509120-1010

6 pin bayonet mating connector (E17) with 25 ft cable 509120-1025

6 pin bayonet mating connector (E17) with 50 ft cable 509120-1050

4 pin female micro connector (M12) mating connector (E4) Field wireable 509087

4 pin female micro connector (M12) mating connector (E4) with 2 m molded cable 135407-0002

4 pin female micro connector (M12) mating connector (E4) with 5 m molded cable 135407-0005

Automation Products Group, Inc. | 888.525.7300 | [e-mail] | www.apgsensors.com

®

6

Rev. C, 07/24/2019

APG

Model Conguration Options

Model Number: PT-400 - _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____ - _____
A B C D E F G H I J

A. Operation / Output

□ L1▲ 4 - 20 mA output
□ L3 0 - 5 VDC output
□ L10 0 - 10 VDC output
□ L12 1 - 5 VDC output
□ L20 0.5 - 4.5 VDC output

Modbus

□ L5 RS-485 (Modbus/RTU), 4-wire
Pressure reading (psi) only
(Approvals Pending)
□ L31 RS-485 (Modbus/RTU), 4-wire
Level calculations (mmH2O), tank volume
(Approvals Pending)

B. Common Pressure Ranges - PSI*

□ 5 □ 50 □ 200 □ 1000 □ 5000

□ 15 □ 60 □ 300 □ 2000 □ 10000

□ 30 □ 100 □ 500 □ 3000 □ 30000

*Other ranges available. Please consult factory.

C. Units of Measure

▲

□ psi

□ fH

2

□ bar □ kPa □ inH2O □ inWC

O □ fWC □ mmH2O □ inHG

D. Pressure Type

□ A Absolute (10 - 200 psi)

□ S▲ Sealed (200 psi - 30,000 psi)

□ G Gauge ( ≤ 500 psi)

□ CG Compound Gauge (-1 - 1 psi or -15 - 15 psi)

□ V VAC (-15 - 0 psi)

E. Electrical Connection

□ E3 4 pin bayonet (PT 1H-8-4P or equiv.)†
□ E4 4 pin M12 micro connector
□ E5▲ Pigtail with cable (specify cable length below)
□ E6 4 pin per DIN 43650, short can

(mating connector included)

□ E17 6 pin bayonet (PT02E-10-6P)
□ E19 1/2 in NPTM with cable, short can
□ E36 1/2 in NPTM with 6 in ying leads, long can
□ E40 3 pin bayonet††
□ E41 Blue Junction Box
□ E45 4 pin minifast Turck

F. Electrical Cable Length

□ __ Number represents cable length, in 5-ft increments,

included on E5 & E19 options.

(ex. E5-10 equals pigtail, 10 ft cable)

G. Process Connection

□ P0▲ 1/4 - 18 NPTM ( ≤ 10,000 psi)
□ P1 1/2 - 14 NPTM ( ≤ 10,000 psi)
□ P5 1/4 - 18 NPTF ( ≤ 15,000 psi)
□ P6 1/2 NPTF ( ≤ 10,000 psi)
□ P38 1 1/2 in. tri-clover with 3/4 in. diaphragm ( ≤ 1,000 psi)
□ P52 1 1/2 in. NPTM ( ≤ 1,000 psi)
□ P54 7/16 - 20 UNJF-3A Male w/ Cone ( ≤ 1,000 psi)
□ P56 F250C High Pressure (10,000 psi - 30,000 psi)
□ P57 F560C40 High Pressure (10,000 psi - 30,000 psi)

H. Accuracy

1-5,000 PSI

□ N0*▲ ±0.25% (1% for pressure ≤ 1 psi)
□ N1* ±0.25% with NIST certication
□ N2 ±0.1% with NIST certication

*Note: ±0.25% available up to 10,000 psi for 4-20 mA output only.

Up to 30,000 PSI

□ N12 ±0.5%
□ N13 ±0.5% with NIST certication

I. Materials

□ M1▲ 316L SS ( ≤ 1,000 psi)
□ M2 17-4 SS ( > 1,000 psi)
□ M7 Incoloy (10,000 - 30,000 psi; P56/P57 only)

J. Compensated Temperature Range

□ S0▲ -17º - 54ºC / 0º - 130ºF ( > 1000 psi)
□ S1 -40º - 82ºC / -40º - 180ºF ( > 1,000 psi)
□ S3 -34º - 77ºC / -30º - 170ºF ( > 1,000 psi)
□ S9▲ 0º - 60ºC / 32º - 140ºF ( ≤ 10 psi)
□ S10▲ -10º - 70ºC / 14º - 158ºF (10 < x ≤ 1000 psi)

▲

This option is standard

Note: Mating connectors sold separately unless noted.

†Note: Not currently available with L5/L31 Modbus outputs
††Note: L1 4-20 mA output only

Automation Products Group, Inc. | 888.525.7300 | [e-mail] | www.apgsensors.com

®

7

Rev. C, 07/24/2019

APG

PT-400 Heavy Duty Pressure Transducer

Built for Harsh Conditions and Hazardous Locations

Not all pressure measurements are simple. Changing weather, hazardous environments, intense

shock, and severe vibration can all wreak havoc on a pressure transducer. The PT-400 heavy

duty pressure transducer lives for these applications. It was built with havoc in mind.

Pressure Ranges up to 30,000 psi

Built-In Surge and
Lightning Protection

• IEC 61000-4-5 compliant

®

Adjustable Zero and Span

• Sealed access points

• Zero and span adjustment screws inside

Global Hazardous

• Class 1, Div1/Zone 0 for North America

• ATEX & IECEx for global use (up to 10,000 psi)

• Single seal for highest protection

Fully Sealed Electronics

• Potted inside

• Shock and vibration cushions

• 2nd layer of protection for moisture and dust

Laser Welded Construction

• Pressure tested welds

• Built for shock and vibration

Automation Products Group, Inc. | 888.525.7300 | [e-mail] | www.apgsensors.com

Document #9004535, Part #125816-0025 Rev. C, 07/24/2019
